ACJ96NKX-TGF350DECT 6.0 Base

Operating Instructions Digital Corded/Cordless Answering System Model No. KX-TGF350 KX-TGF352 KX-TG572SK KX-TGF353 Model shown is KX-TGF350. Before initial use, see “Getting Started” on page 8. Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. Consulte “Guía Rápida Española”, página 57. For assistance, visit our Web site: www.panasonic.com/support for customers in the U.S.A. or Puerto Rico. Please register your product: www.panasonic.com/prodreg TGF35x(en)_1009_ver002.pdf 1TGF35x(en)_1009_ver002.pdf 12014/10/10 10:04:082014/10/10 10:04:08 Introduction Model composition ..............................................3 Accessory information ........................................3 Important Information For your safety ....................................................5 Important safety instructions ...............................6 For best performance .........................................6 Other information ................................................6 Specifications ......................................................7 Getting Started Setting up ............................................................8 Controls ............................................................11 Display icons/Indicators ....................................12 Language settings ............................................12 Date and time ...................................................13 Recording your greeting message ....................13 Other settings ...................................................13 Making/Answering Calls Making calls ......................................................14 Answering calls .................................................15 Useful features during a call .............................15 Intercom Intercom ............................................................18 Call block Using MCALL BLOCKN button ..........................19 Storing unwanted callers ..................................19 Phonebook Phonebook ........................................................22 Speed dial .........................................................24 One-touch dial buttons ......................................26 Programming Menu list ...........................................................27 Alarm ................................................................32 Silent mode .......................................................33 Baby monitor .....................................................33 Other programming ...........................................35 Registering a unit ..............................................36 Caller ID Service Using Caller ID service .....................................37 Caller list ...........................................................37 Answering System Answering system .............................................39 Turning the answering system on/off ................39 Greeting message ............................................39 Listening to messages ......................................40 Advanced new message alerting features ........41 Remote operation .............................................43 Answering system settings ...............................44 Useful Information Voicemail service ..............................................46 Wall mounting ...................................................47 Error messages ................................................49 Troubleshooting ................................................49 FCC and other information ...............................54 Guía Rápida Española Guía Rápida Española ......................................57 Appendix Customer services ............................................61 Warranty (For United States and Puerto Rico) .................................................................62 Index Index..................................................................64 2 Table of Contents TGF35x(en)_1009_ver002.pdf 2TGF35x(en)_1009_ver002.pdf 22014/10/10 10:04:082014/10/10 10:04:08 Model composition SeriesModel No. Base unitHandset Part No.Part No.Quantity KX-TGF350 seriesKX-TGF350KX-TGF350KX-TGFA301 KX-TGF352KX-TGF350KX-TGFA302 KX-TG572SKKX-TGF350KX-TGFA302 KX-TGF353KX-TGF350KX-TGFA303 Accessory information Supplied accessories No. Accessory item/ Part number Quantity KX-TGF350KX-TGF352 KX-TG572SK KX-TGF353 AAC adaptor/PNLV226Z111 BTelephone line cord/PQJA10075Z111 C Desk stand/Wall mounting adaptor *1 / PNKL1051Z2 111 DCorded handset/PNLXP1012Y111 ECorded handset cord/PQJA212M111 F Rechargeable batteries *2 466 G Handset cover *3 /PNYNTGFA30NR 123 HBelt clip/PNKE1268Z3123 ICharger/PNLC1040ZN123 *1 The desk stand/wall mounting adaptor comes attached to the base unit. *2 See page 4 for replacement battery information. *3 The handset cover comes attached to the handset. ABCDE FGHI For assistance, please visit www.panasonic.com/support 3 Introduction TGF35x(en)_1009_ver002.pdf 3TGF35x(en)_1009_ver002.pdf 32014/10/10 10:04:082014/10/10 10:04:08 Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information (page 61). Accessory itemModel number/Specifications Rechargeable batteries HHR-4DPA *1 RTo order, please visit www.panasonic.com/batterystore Battery type: – Nickel metal hydride (Ni-MH) – 2 x AAA (R03) size for each handset HeadsetKX-TCA60, KX-TCA93, KX-TCA400, KX-TCA430 T-adaptorKX-J66 Range extender KX-TGA405 *2 Key detector KX-TGA20 *3 *1 Replacement batteries may have a different capacity from that of the supplied batteries. *2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: www.panasonic.com/RangeExtender *3 By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and attaching it to an easy-to-lose item in advance, you can loc…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: • Provided with 128 bits for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Handset knows each other’s security code information.

Date: October 06 th, 2014 DESCRIPTION OF DIFFERENCES between ORIGINAL and SIMILARITY Name of Appliance : 1.9GHz Cordless Telephone System SIMILARITY Model No. : KX-TGF350 (Base Unit) FCC ID: ACJ96NKX-TGF350 ORIGINAL Model No. : KX-TGF380 (Base Unit) Approval Date : under application FCC ID: ACJ96NKX-TGF380 BASIC MODEL SIMILAR MODEL KX-TGF380 KX-TGF350 Appearance Inside Structure P.C. Board AC adaptor Both model are used to PNLV226 AC adaptor. We declare that KX-TGF350 is used the another ID ACJ96NKX-TGF350 because KX-TGF350 is not applied to FCC15 subpart C without 2.4GHz (Bluetooth) transmitter. However, the test of KX-TGF350 are packaged for the test of KX-TGF380 with the following items. (1) The 1.9GHz RF circuit, Baseband IC and antenna of KX-TGF380 and KX-TGF350 are identical. (2) AC adaptor PNLV226 use for both models KX-TGF380 and KX-TGF350. P.C. board and Antenna are identical. Inside Structure are identical. Bluetooth module is removed. Bluetooth module Not provided with Bluetooth function ANT1 (DECT) ANT2 (DECT) ANT1 (DECT) ANT1 (DECT) ANT2 (DECT) ANT2 (DECT) The BT Antenna are formed in the P.C. board.

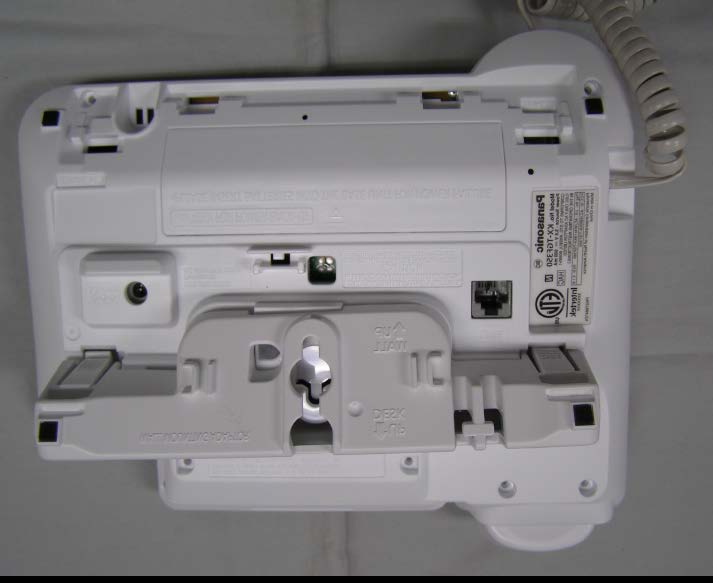

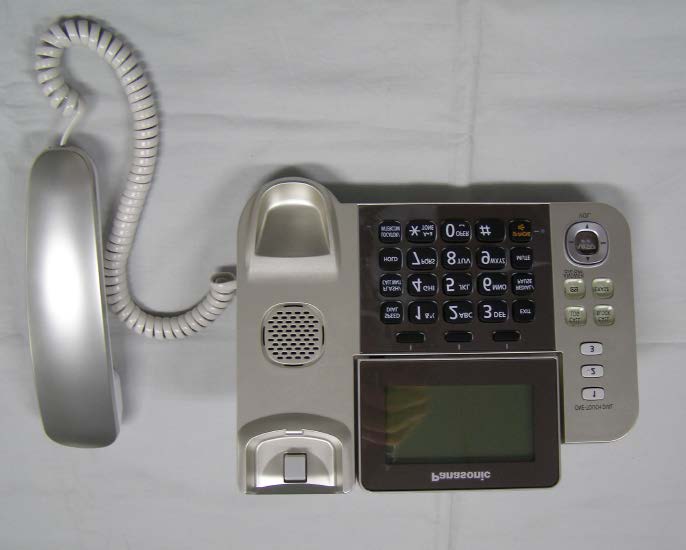

EXTERNAL PHOTOGRAPHS KX-TGF350 Top View Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

INTERNAL PHOTOGRAPHS Internal View Main Board RF Portion

© Panasonic System Networks Co., Ltd. 2014 Unauthorized copying and distribution is a violation of law. Telephone Equipment Model No.KX-TGF380C KX-TGF382C KX-TGF383C KX-TGF350C KX-TGF352C KX-TGF353C KX-TG132CSK KX-TG133CSK KX-TGF370C KX-TGF372C KX-TGF373C KX-TG175CSK KX-TGF340C KX-TGF342C KX-TGF343C KX-TGFA30C (for Canada) 2 1 Replacement Parts List 1.1.Base Unit Main P.C. Board Parts for KX-TGF380C series Safe ty Ref. No. Part No. Part Name & Description Remarks IC301 C0DBAYY00289 IC IC302 C0DBZYY00741 IC IC303 PQVIC61CC20N IC S IC421 C1CB00004266 IC IC501 C1CB00003663 IC IC502 C3FBNY000314 IC IC601 C3FBMY000312 IC IC721 PNXA1015ZA/ RF UNIT IC722 C0DBGYY00915 IC C101 F1K2H681A008 CERAMIC CAPACITOR S C102 F1K2H681A008 CERAMIC CAPACITOR S C103 ECUV1H103KBV 0.01 C104 ECUV1H103KBV 0.01 C105 F1K2H681A008 CERAMIC CAPACITOR S C106 F1K2H681A008 CERAMIC CAPACITOR S C109 ECUE1H821KBQ 820p C110 ECUE1H821KBQ 820p C111 ECUE1A333KBQ 0.033 C113 ECUE1A823KBQ 0.082 C115 ECUV1C104KBV 0.1 C116 ECUV1C104KBV 0.1 C142 ECUV1H103KBV 0.01 C152 ECUE1C103KBQ 0.01 C161 F1K1E1060001 CERAMIC CAPACITOR C167 ECUV1H102KBV 0.001 C171 ECUV1C223KBV 0.022 C173 ECUE1A104KBQ 0.1 C174 ECUE1H222KBQ 0.0022 C184 ECUV1C105KBV 1 C301 ECUV1C105KBV 1 C303 ECUE1A104KBQ 0.1 C304 ECUE1A104KBQ 0.1 C306 F2G1A4710013 470 C308 F1J1C106A059 CERAMIC CAPACITOR C309 F1J1C106A059 CERAMIC CAPACITOR C310 ECUE1C103KBQ 0.01 C311 ECUE1H102KBQ 0.001 C313 ECUE1H222KBQ 0.0022 C314 F1J0J2260004 CERAMIC CAPACITOR C316 F2G1A4710013 470 C318 ECUE1A104KBQ 0.1 C319 ECUE0J105KBQ 1 C320 ECUE0J105KBQ 1 C321 ECUE1A104KBQ 0.1 C323 ECUE0J105KBQ 1 C331 ECUV0J105KBV 1 C332 F1H0J4750002 CERAMIC CAPACITOR C351 ECUV1A225KBV 2.2 C421 ECUE1A104KBQ 0.1 C422 ECUE1A104KBQ 0.1 C423 ECUE1A104KBQ 0.1 C424 ECUE1A104KBQ 0.1 C425 ECUE1H102KBQ 0.001 C435 ECUE1H222KBQ 0.0022 C436 ECUE1H681KBQ 680p C437 ECUE1H681KBQ 680p C438 ECUE1H222KBQ 0.0022 C440 ECUE1H102KBQ 0.001 C441 PQCUV0J106KB 10 C442 ECUE1A104KBQ 0.1 C443 ECUE1A104KBQ 0.1 C444 ECUE1H331KBQ 330p C445 ECUE1A104KBQ 0.1 C451 PQCUV0J106KB 10 C457 ECUE1C333KBQ 0.033 C458 ECUE1C333KBQ 0.033 C459 ECUE1H102KBQ 0.001 C472 ECUE1H100DCQ 10p C473 ECUE1H100DCQ 10p C477 ECUE1H222KBQ 0.0022 C478 ECUE1H222KBQ 0.0022 C501 ECUE1A104KBQ 0.1 C502 ECUE0J105KBQ 1 C503 ECUE1H100DCQ 10p C504 ECUE1A104KBQ 0.1 C505 ECUE1A104KBQ 0.1 C506 ECUV0J225KBV 2.2 C508 ECUE0J105KBQ 1 C509 ECUV1C105KBV 1 C511 ECUE1H100DCQ 10p C512 ECUE0J105KBQ 1 C513 ECUE1A104KBQ 0.1 C514 ECUE1H100DCQ 10p C515 ECUE1A104KBQ 0.1 C516 ECUE1A104KBQ 0.1 C517 ECUE1A104KBQ 0.1 C518 ECUE1H100DCQ 10p C519 ECUE1A104KBQ 0.1 C601 ECUE1A104KBQ 0.1 C671 ECUE1A104KBQ 0.1 C721 ECUE1A104KBQ 0.1 C722 ECUE0J105KBQ 1 C723 ECUE0J105KBQ 1 C851 ECUE1H100DCQ 10p C853 ECUE1H100DCQ 10p C855 ECUE1H100DCQ 10p C857 ECUE1H100DCQ 10p C859 ECUE1H100DCQ 10p C860 F1G1HR70A765 CERAMIC CAPACITOR C862 F1G1H2R2A765 CERAMIC CAPACITOR C880 F1G1H1R0A765 CERAMIC CAPACITOR CN671 K1MY08BA0672 C O N N E C T O R D101 B0EDER000009 D I O D E ( S I ) S D142 DY2J25000L TRANSISTOR(SI) D301 DB2J31300L D I O D E ( S I ) D302 B0BC4R7A0268 D I O D E ( S I ) S D303 DB2X41400L D I O D E ( S I ) D305 DB2X41400L D I O D E ( S I ) DA802 B0DDCL000001 D I O D E ( S I ) F301 ERBRD3R00X FUSE ! F302 ERBRD2R50X FUSE ! L301 G1C100MA0395 COIL L331 G1C100MA0395 COIL L431 PQLQR2KA20T COIL S L432 PQLQR2KA20T COIL S L433 PQLQR2KA20T COIL S L434 PQLQR2KA20T COIL S L781 G1C4N7Z00006 COIL P101 D4DAY220A022 T H E R M I S T O R Q141 B1ACGP000008 TRANSISTOR(SI) Q142 B1ABDM000001 TRANSISTOR(SI) S Q161 DSC7003S0L TRANSISTOR(SI) Q301 B1ADGE000012 TRANSISTOR(SI) Q302 DRC9143Z0L TRANSISTOR(SI) Q303 B1ABGE000011 TRANSISTOR(SI) Q304 2SC6054JSL TRANSISTOR(SI) S Q305 B1ADGE000012 TRANSISTOR(SI) Q306 DRC9143Z0L TRANSISTOR(SI) Q307 B1ZBZ0000086 TRANSISTOR(SI) Q308 DRC9143Z0L TRANSISTOR(SI) Q309 DRC9143Z0L TRANSISTOR(SI) Q310 2SC6054JSL TRANSISTOR(SI) S Q331 FM6K62010L TRANSISTOR(SI) Q351 B1ADGE000012 TRANSISTOR(SI) Q651 DRC9113Z0L TRANSISTOR(SI) Safe ty Ref. No. Part No. Part Name & Description Remarks 3 1.2.Operational P.C. Board Parts for KX-TGF380C series 1.3.LCD P.C. Board Parts for KX-TGF380C, KX-TGF350C series 1.4.LED P.C. Board Parts for KX-TGF380C, KX-TGF350C series Q652 DRC9113Z0L TRANSISTOR(SI) Q653 DRC9113Z0L TRANSISTOR(SI) Q681 DSA2001R0L TRANSISTOR(SI) Q731 2SC6054JSL TRANSISTOR(SI) S Q732 2SC6054JSL TRANSISTOR(SI) S R101 ERJ3GEYJ565 5.6m S R102 ERJ3GEYJ565 5.6m S R103 PQ4R10XJ184 180k S R104 PQ4R10XJ184 180k S R109 ERJ2GEJ823 82k S R110 ERJ2GEJ823 82k S R111 D0GA392JA015 3.9k S R112 D0GA124JA015 120k S R115 ERJ3GEYJ825 8.2m S R116 ERJ3GEYJ825 8.2m S R117 ERJ3GEYJ154 150k S R118 ERJ3GEYJ154 150k S R125 ERJ2GEJ271 270 S R141 ERJ3GEYJ104 100k S R142 PQ4R18XJ272 2.7k S R145 ERJ2GEJ222 2.2k S R151 ERJ2GEJ104 100k S R152 ERJ2GEJ134X 130k S R160 ERJ3GEYJ821 820 S R162 ERJ2GEJ473 47k S R163 D0GG390JA007 39 R164 ERJ2GEJ272 2.7k S R165 ERJ3GEYJ273 27k S R166 ERJ3GEYJ822 8.2k S R168 ERJ2GEJ472X 4.7k S R178 ERJ2GEJ332 3.3k S R301 ERJ2GEJ104 100k S R302 ERJ2GEJ222 2.2k S R303 ERJ3GEYJ102 1k S R304 ERJ3GEYJ150 15 S R305 ERJ3GEYJ8R2 8.2 S R306 ERJ2GEJ473 47k S R307 ERJ2GEJ222 2.2k S R308 ERJ2RKF2203X 220k S R309 ERJ2RKF1203 120k R312 ERJ2GEJ470 47 S R313 ERJ2GEJ470 47 S R314 ERJ2RKF1502 15k R315 ERJ2RKF6801 6.8k R317 ERJ2RKF1200 120 R318 ERJ2RKF6800 680 R319 ERJ2RKF1001 1k R320 ERJ2GEJ103 10k S R321 ERJ2GEJ105X 1m S R323 ERJ2GEJ102 1k S R325 ERJ2GEJ103 10k S R326 ERJ2GEJ333 33k S R331 D0GBR10JA113 0.1 R332 ERJ2RKF1002 10k R333 ERJ2RKF3301 3.3k R351 ERJ2GEJ103 10k S R421 ERJ2GEJ104 100k S R422 ERJ2GE0R00 0 S R433 ERJ2GEJ101 100 S R451 ERJ2GEJ391 390 S R477 ERJ2GEJ1R0 1 S R478 ERJ2GEJ1R0 1 S R501 ERJ2RKF5602 56k S R502 ERJ2GEJ332 3.3k S R504 ERJ2GEJ100 10 S R505 ERJ2GEJ102 1k S R551 ERJ2GEJ102 1k S R651 ERJ2GEJ101 100 S R652 ERJ2GEJ101 100 S R653 ERJ2GEJ391 390 S R654 D0GA681JA021 680 S R655 D0GA681JA021 680 S R656 ERJ2GEJ473 47k S Safe ty Ref. No. Part No. Part Name & Description Remarks R657 ERJ2GEJ102 1k S R658 ERJ2GEJ102 1k S R660 ERJ2GEJ473 47k S R661 ERJ2GEJ102…

Text truncated - open the document above for the full version.

FCC ID: ACJ96NKX-TGF350 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 0,00 (dBm) Maximum peak output power at antenna input terminal : 0,001 (W) Maximum antenna gain: 0,60 (dBi) Maximum antenna gain: 1,148 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2440 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10,00 (W/m^2) Power density at prediction frequency: 0,0002 (mW/cm^2) Power density at prediction frequency: 0,002 (W/m^2) Maximum allowable antenna gain: 37,01 (dBi) Margin of Compliance: 36,41 (dB) 2 4 R PG S π =

Report No. 275367-7 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station without BT Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-TGF350 Rating 120V AC; 5.0V DC Trademark Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 275367 Tested in period 2014.11.27 to 2014.12.15 Issue date 2015.01.19 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 275367-7 FCC ID: ACJ96NKXTGF350 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (46) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Digital Modulation Techniques ........................................................................................................ 10 3.3 Labeling Requirements ................................................................................................................... 10 3.4 Channel Frequencies ...................................................................................................................... 10 3.5 Antenna Requirement...................................................................................................................... 11 3.6 Automatic Discontinuation of Transmission .................................................................................... 11 3.7 Peak Power Output ......................................................................................................................... 12 3.8 Emission Bandwidth B ..................................................................................................................... 15 3.9 Power Spectral Density ................................................................................................................... 18 3.10 In-Band Unwanted Emissions, Conducted ...................................................................................... 21 3.11 Out-of-band Emissions, Conducted................................................................................................. 23 3.12 Carrier Frequency Stability .............................................................................................................. 30 3.13 Frame Repetition Stability ............................................................................................................... 31 3.14 Frame Period and Jitter ................................................................................................................... 31 3.15 Monitoring Threshold, Least Interfered Channel ............................................................................. 33 3.16 Threshold Monitoring Bandwidth ..................................................................................................... 35 3.17 Reaction Time and Monitoring Interval ............................................................................................ 36 3.18 Time and Spectrum Window Access Procedure ............................................................................. 38 3.19 Acknowledgements and Transmission Duration ............................................................................. 41 3.20 Dual Access Criteri…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Project no.: 275367 FCC ID: ACJ96NKX-TGF350 Page 1 (1) PHOTOS OF TEST SET-UP – KX-TGF350 Power line Conducted Emissions Test
