ACJ96NKX-TGFA30DECT 6.0 Handset

Installation Manual Additional Digital Cordless Handset Model No. KX-TGFA30 Thank you for purchasing a Panasonic product. This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: KX-TGF340/KX-TGF350/KX-TGF370/KX-TGF380 (The corresponding models are subject to change without notice.) You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit’s operating instructions for further details. Please read this installation manual before using the unit and save it for future reference. For assistance, visit our Web site: www.panasonic.com/support for customers in the U.S.A. or Puerto Rico. Printed in Malaysia PNQX6731ZA PT1114MG0 TGFA30(en)_Malaysia_1127_ver006.1 12014/11/27 18:03:12 Accessory information Supplied accessories Accessory item/Part numberQuantity Charger *1 1 Rechargeable batteries/HHR-4DPA2 Handset cover *2, *3 1 Belt clip *4 1 *1 PNLC1040ZB (Black), PNLC1040ZS (Silver), PNLC1040ZN (Champagne gold) *2 The handset cover comes attached to the handset. *3 PNYNTGA680BR (Black), PNYNTGFA30NR (White) *4 PNKE1268Z1 (Black), PNKE1268Z3 (White) Note: RPlease read the base unit’s operating instructions for additional/replacement accessories. – Optional headsets: KX-TCA60, KX-TCA93, KX-TCA400, KX-TCA430 Setting up Connections/Wall mounting Connect the AC adaptor to the power outlet. Drive the screws ( 1 ) (not supplied) into the wall, if necessary. 2 27.2 mm (1 1 /16 inches) 2 1 12 Note: RThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) 2 For assistance, please visit www.panasonic.com/support Installation TGFA30(en)_Malaysia_1127_ver006.2 22014/11/27 18:03:13 RMake sure that the wall and the fixing method are strong enough to support the weight of the unit. Battery installation/Battery charging Important: RUse the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted on page 2. RUSE ONLY rechargeable Ni-MH batteries AAA (R03) size ( 1 ). RDo NOT use alkaline/manganese/Ni-Cd batteries. RConfirm correct polarities ( , ). Charge for about 7 hours. RConfirm “Charging” is displayed ( 2 ). RWhen the batteries are fully charged, “Fully charged” is displayed. 1 2 Note: RIf the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends ( , ) and the charge contacts with a dry cloth and charge again. Registering a handset to a base unit 1Base unit: Press and hold MLOCATORN for about 5 seconds. RIf all registered handsets start ringing, press MLOCATORN again to stop, then repeat this step. 2Handset: Place the handset on the base unit or charger, then wait until a long beep sounds and is displayed. Note: RIf an error tone sounds, or if is displayed, register the handset according to the base unit’s operating instructions. For assistance, please visit www.panasonic.com/support 3 Installation TGFA30(en)_Malaysia_1127_ver006.3 32014/11/27 18:03:13 Display language 1MMENUN#110 2MbN: Select the desired setting. a MSAVEN a MOFFN For your safety To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. RUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact us at www.panasonic.com/contactinfo Installation RTo prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture. RDo not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident. CAUTION Installation and location RThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. Battery RWe recommend using the supplied batteries or additional/replacement batteries noted on page 2 for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size. 4 For assistance, please visit www.panasonic.com/support Installation TGFA30(en)_Malaysia_1127_ver006.4 42014/11/27 18:03:13 RDo not mix old and new batteries. RDo not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed. RExercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns. RCharge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual. ROnly use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode. Attention: A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY (1-800-822-8837) for information on how to recycle this battery. Important safety instructions When using your product, basic safety precautions should always be followed to reduce the …

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: • Provided with 128 bits for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Handset knows each other’s security code information.

PCTP-15-F003 FCC ID: ACJ96NKX-TGF380 FCC Part 15D – Compliance Information pctp-15-f003_f005 (fcc_part_15d-compliance_information) page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Junji Sumi FP PP EUT Type/System FCC ID ACJ96NKX-TGF380 (IC:216A-KXTGF380) ACJ96NKX-TGFA30 (IC:216A-KXTGFA30) Model name KX-TGF380 KX-TGFA30 HW Version PNLB2420xx PNLB2415xx SW Version SW401 SW401 Max antenna Gain (dBi) 2.5dBi 0dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-15-F003 FCC ID: ACJ96NKX-TGF380 FCC Part 15D – Compliance Information pctp-15-f003_f005 (fcc_part_15d-compliance_information) page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Pattern Antenna 2 Pattern Antenna 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External 1 Pattern Antenna 2 Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) and Repeater 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC DC 2.4V Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV226 (AC Adaptor) Panasonic Handset (PP) (charger) PNLC1040 (Charger) Panasonic Data Connections PSTN (Base) Others (please specify) .... PCTP-15-F003 FCC ID: ACJ96NKX-TGF380 FCC Part 15D – Compliance Information pctp-15-f003_f005 (fcc_part_15d-compliance_information) page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor Type PNLV226 (AC Adaptor), PNLC1040 (Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-15-F003 FCC ID: ACJ96NKX-TGF380 FCC Part 15D – Compliance Information pctp-15-f003_f005 (fcc_part_15d-compliance_information) page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: January 12, 2015 Richard Mullen

PCTP-15-F004 FCC ID: ACJ96NKX-TGF350 FCC Part 15D – Compliance Information pctp-15-f004 (fcc_part_15d-compliance_information) page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Junji Sumi FP PP EUT Type/System FCC ID ACJ96NKX-TGF350 (IC:216A-KXTGF350) ACJ96NKX-TGFA30 (IC:216A-KXTGFA30) Model name KX-TGF350 KX-TGFA30 HW Version PNLB2420xx PNLB2415xx SW Version SW401 SW401 Max antenna Gain (dBi) 2.5dBi 0dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-15-F004 FCC ID: ACJ96NKX-TGF350 FCC Part 15D – Compliance Information pctp-15-f004 (fcc_part_15d-compliance_information) page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Pattern Antenna 2 Pattern Antenna 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External 1 Pattern Antenna 2 Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) and Repeater 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC DC 2.4V Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV226 (AC Adaptor) Panasonic Handset (PP) (charger) PNLC1040 (Charger) Panasonic Data Connections PSTN (Base) Others (please specify) .... PCTP-15-F004 FCC ID: ACJ96NKX-TGF350 FCC Part 15D – Compliance Information pctp-15-f004 (fcc_part_15d-compliance_information) page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor Type PNLV226 (AC Adaptor), PNLC1040 (Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-15-F004 FCC ID: ACJ96NKX-TGF350 FCC Part 15D – Compliance Information pctp-15-f004 (fcc_part_15d-compliance_information) page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: January 12, 2015 Richard Mullen

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Power of Attorney January 12, 2015 PCTP-15-F005 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product, which are in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for DECT Cordless Telephone Handset, Model KX-TGFA30 1 Product Classification: Part 15 Unlicensed PCS Portable Tx Held to Ear (PUE) FCC ID Handset Unit ACJ96NKX-TGFA30 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 MHz Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 DECT Handset under FCC ID: ACJ96NKX-TGFA30 may be marketed with DECT Bases, which will be Part 15D certified under FCC IDs: ACJ96NKX-TGA370 and ACJ96NKX-TGA340. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Request for Confidentiality January 12, 2015 PCTP-15-F005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for DECT Cordless Telephone Handset, Model KX-TGFA30 Product Classification: Part 15 Unlicensed PCS Portable Tx Held to Ear (PUE) FCC ID Handset Unit ACJ96NKX-TGFA30 FCC Rule Part: FCC Part 15, Subpart D In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Handset Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Handset Unit and RF Unit; (2) Internal Photographs of Handset Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

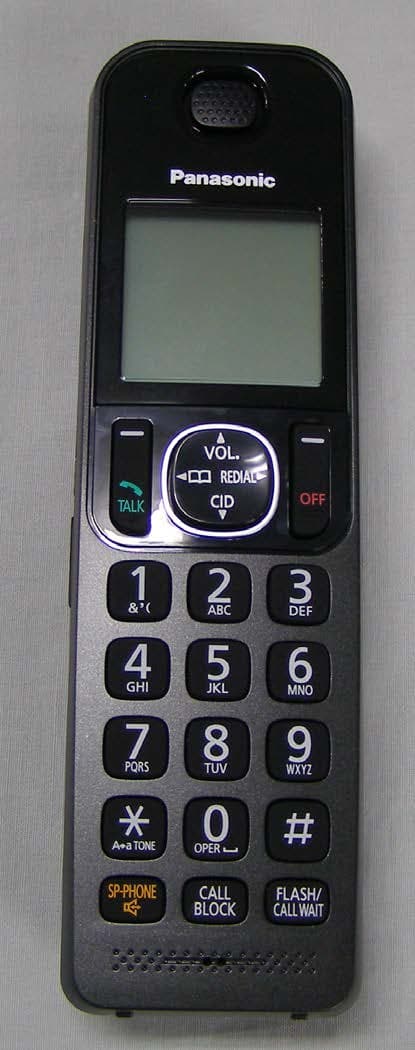

EXTERNAL PHOTOGRAPHS KX-TGFA30 Top View Bottom View

EXHIBIT B MARKINGS Portable Unit: FCC ID Label (Nameplate) The marking will be shown on the battery compartment of the portable unit.

INTERNAL PHOTOGRAPHS Internal View Internal View 2 Bottom View

SAR_Report_Nemko_60320_6140495_FCC_DECT_KX-TGFA30_CalData Page 1 of 20 The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. Appendix for the SAR Test Report Dosimetric Assessment of the Portable Device KX-TGFA30 from Panasonic (FCC ID: ACJ96NKX-TGFA30) (IC: 216A-KXTGFA30) According to the FCC Requirements Calibration Data December 10, 2014 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 47475 Kamp-Lintfort Germany Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. Cal_D1900V2_SN5d051_Sep2013_V2 Page 1 of 7 Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_Sep2013_V2 Object: D1900V2 SN: 5d051 Date of Calibration: September 25, 2013 Next Calibration: September 2015 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Nov 12 Rohde&Schwarz (262487-D-K-15012- 01-00-2012-11) Nov 14 Power Sensor E9301H US40010212 Nov 12 Rohde&Schwarz (262492-D-K-15012- 01-00-2012-11) Nov 14 Powermeter E4417A GB41050441 Nov 12 Rohde&Schwarz (262488-D-K-15012- 01-00-2012-11) Nov 14 Power Sensor E9301A MY41495584 Nov 12 Rohde&Schwarz (262489-D-K-15012- 01-00-2012-11) Nov 14 Network Analyzer E5071C MY46103220 Jul 13 Rohde&Schwarz (11-300285997) Jul 15 Reference Probe EX3DV4 SN 3536 Sep 12 SPEAG (EX3-3536_Sep12) Sep 13 DAE3 SN 335 Feb 13 SPEAG (DAE3-335_Feb13) Feb 14 Cal_D1900V2_SN5d051_Sep2013_V2 Page 2 of 7 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 IEC 62209-2 "Evaluation of Human Exposure to Radio Frequency Fields from Handheld and Body-Mounted Wireless Communication Devices in the Frequency Range of 30 MHz to 6 GHz: Human models, Instrumentation, and Procedures ", Part 2: “Procedure to determine the Specific Absorption Rate (SAR) for including accessories and multiple transmitters” Edition 1.0, 2010-01 Additional Documentation: DASY 4/5 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08 Cal_D1900V2_SN5d051_Sep2013_V2 Page 3 of 7 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1059 Distance Dipole Center – TSL: 10mm With spacer Area Scan resolution dx, dy = 10mm Zoom Scan resolution dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.00 1.40 Measured Head TSL Parameters 21.8 41.4 ± 6% 1.43 S/m ± 6% SAR Result with Head TSL Averaged over 1g SAR measured 250 mW input power 9.80 mW/g SAR normalized normalized to 1W 39.20 mW/g SAR for nominal Head TSL parameters normalized to 1W 39.01 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250 mW input power 4.93 mW/g SAR normalized normalized to 1W 19.72 mW/g SAR for nominal Head TSL parameters normalized to 1W 19.66 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_Sep2013_V2 Page 4 of 7 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 21.7 55.00 ± 6% 1.51 S/m ± 6% SAR Result with Body TSL Averaged over 1g SAR measured 250 mW input power 9.53 mW/g SAR normalized normalized to 1W 38.12 mW/g SAR for nominal Body TSL parameters normalized to 1W 38.54 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250 mW input power 4.85 mW/g SAR normalized normalized to 1W 19.40 mW/g SAR for nominal Body TSL parameters normalized to 1W 19.54 mW/g ± 16.5 % (k=2) General Antenna Parameters Antenna Parameters with Head TSL Impedance, transformed to feed point 47.6 Ω + 0.21 jΩ Return Loss -32.05 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 52.4 Ω – 0.83 jΩ Return Loss -32.06 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feed point can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: May, 2004 Cal_D1900V2_SN5d051_Sep2013_V2 Page 5 of 7 SAR Result with Head TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 250913_b_3536.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.41, 8.41, 8.41); Calibrated: 24.09.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 18.02.2013 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.8 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.1 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 19.2 W/kg SAR(1 g) = 9.8 mW/…

Text truncated - open the document above for the full version.

SAR_Report_Nemko_60320_6140495_FCC_DECT_KX-TGFA30_Conf Page 1 of 29 The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. SAR Test Report Dosimetric Assessment of the Portable Device KX-TGFA30 from Panasonic (FCC ID: ACJ96NKX-TGFA30) (IC: 216A-KXTGFA30) According to the FCC Requirements December 10, 2014 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 47475 Kamp-Lintfort Germany Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_Nemko_60320_6140495_FCC_DECT_KX-TGFA30_Conf Page 2 of 29 SAR_Report_FCC_DECT_WiFI_Head_Body_1.0/10.12.2013/AR Executive Summary The KX-TGFA30 is a new cordless phone (Portable Device) from Panasonic operating in the 1920 MHz -- 1930 MHz frequency range. The device has an integrated antenna and works in US DECT standard. The objective of the measurements done by IMST was the dosimetric assessment of one device in a worst case setup in head and body worn configuration. Since there was a special test software available, SAR tests were conducted with a specific channel and maximum output power during the measurement. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the 47 CFR § 2.1093 [47CFR] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. Additional information and guidelines given by the following FCC documents were used:  SAR Measurement Requirements for 100 MHz to 6 GHz [KDB 865664 D01 v01r03]  Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies [KDB 447498 D01 v05r02] All measurements have been performed in accordance to the recommendations given by the system manufacturer SPEAG AG, Switzerland. SAR_Report_Nemko_60320_6140495_FCC_DECT_KX-TGFA30_Conf Page 3 of 29 SAR_Report_FCC_DECT_WiFI_Head_Body_1.0/10.12.2013/AR Compliance Statement The Panasonic KX-TGFA30 cordless phone (FCC ID: ACJ96NKX-TGFA30, IC: 216A- KXTGFA30) is in compliance with the following standards for uncontrolled exposure:  47 CFR § 2.1093 [47CFR],  ANSI / IEEE C95.1-1999 [IEEE C95.1-1999] The phone was tested in addition to the head positions in the following body worn configurations:  front towards the phantom, headset attached, distance 0 mm  back towards the phantom, headset attached, distance 0 mm The maximum results of SAR for the KX-TGFA30 are as follows: Worst Case SAR Results Band Frequency [MHz] CH Phantom Configuration Fig. No. Plot No. Highest Reported SAR 1g [W/kg] SAR 1g Limit [W/kg]. US DECT 1924.992 2 Left Head Cheek 14 1 0.053 1.6 PASS Body Worn Front 18 5 0.051 1.6 PASS Prepared by: ........................................... Alexander Rahn Test Engineer Reviewed by: ........................................... ........................................... Johannes Borkes Dr. Matthias Geissler Quality Management Quality Assurance IMST GmbH Carl-Friedrich-Gauß-Straße 2 - 4 47475 Kamp-Lintfort Tel. +49- 2842-981 325 Fax +49- 2842-981 399 email: [email protected] SAR_Report_Nemko_60320_6140495_FCC_DECT_KX-TGFA30_Conf Page 4 of 29 SAR_Report_FCC_DECT_WiFI_Head_Body_1.0/10.12.2013/AR Table of Contents SUBJECT OF INVESTIGATION ........................................................................................................................ 5 1 FCC EXPOSURE CRITERIA ..................................................................................................................... 5 1.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ................ 6 1.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS ......................................... 6 2 THE FCC MEASUREMENT PROCEDURE .............................................................................................. 7 2.1 GENERAL REQUIREMENTS ................................................................................................................... 7 2.2 DEVICE OPERATING NEXT TO A PERSON’S EAR ..................................................................................... 7 2.2.1 PHANTOM REQUIREMENTS ............................................................................................................... 7 2.2.2 TEST POSITIONS ............................................................................................................................. 7 2.2.3 TEST TO BE PERFORMED ................................................................................................................. 9 3 BODY-WORN CONFIGURATIONS ........................................................................................................ 10 3.1 POC (PTT) POSITION ........................................................................................................................ 11 3.2 PHANTOM REQUIREMENTS ................................................................................................................. 11 3.3 TEST TO BE PERFORMED ................................................................................................................... 11 3.3.1 MEASUREMENT VARIABILITY .......................................................................................................... 11 4 THE MEASUREMENT SYSTEM ............................................................................................................. 12 4.1 PHANTOMS ........................................................................................................................................ 13 4.2 E-FIELD-PROBES ....................................................................…

Text truncated - open the document above for the full version.

SAR_Report_Nemko_60320_6140495_FCC_DECT_KX-TGFA30_Plots Page 1 of 7 The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. Appendix for the SAR Test Report Dosimetric Assessment of the Portable Device KX-TGFA30 from Panasonic (FCC ID: ACJ96NKX-TGFA30) (IC: 216A-KXTGFA30) According to the FCC Requirements SAR Distribution Plots December 10, 2014 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 47475 Kamp-Lintfort Germany Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not b…

Text truncated - open the document above for the full version.
