ACJ96NKX-TGH220DECT 6.0 Base

Panasonic Corporation of North America
DECT 6.0 Base - FCC ID ACJ96NKX-TGH220 - Panasonic Corporation of North America
Click to zoom

Application Details

Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
Date of Grant
Jan 27, 2014
Application Purpose
Original Equipment
Date of Application
Jan 26, 2014
Equipment Note
DECT 6.0 Base
Frequency Range
1921.53600000 - 1928.44800000
Company
Panasonic Corporation of North America
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Digital Cordless Answering System Model No. KX-TGH220 No. ① AC adaptor/PNLV226Z ② Telephone line cord ③ Rechargeable batteries ④ Handset cover *1 *1The handset cover comes attached to the handset. ①②③④ 1 1 2 1 Accessory item/Order numberQuantity Accessory itemOrder number Rechargeable HHR-4DP A *1 batteries・To order, please visit http://www.panasonic.com/batterystore Battery type: –Nickel metal hydride (Ni-MH) –2 x AAA (R03) size for each handset T-adaptorKX-J66 Range extender KX-TGA405 *2 Key detector KX-TGA20 *3 *1Replacement batteries may have a different capacity from that of the supplied batteries. *2By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: http://www.panasonic.com/RangeExtender *3By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to which the key detector is attached. Please visit our Web site: http://panasonic.net/pcc/products/telephone/p/tga20/ Handset (optional): KX-TGHA20 You can expand your phone system by registering optional handsets (6 max.) to a single base unit. ・Optional handset is a different design from that of the supplied handsets. . . . Printed in Malaysia

Cover Letter(s)

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Power of Attorney December 17, 2013 PCTP-14-F018 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 1 Model Numbers: KX-TGH220(xx), KX-TGH222(xx), KX-TGH223(xx), KX-TGH210(xx), KX-TGH212(xx), KX-TGH213(xx) FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID: ACJ96NKX-TGH220 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels RF Exposure: Mobile / MPE (requires minimum 20cm spacing between antenna and body) Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 1 Base Station will be used with Handset, which will be separately certified under FCC ID: ACJ96NKX-TGHA20.

Cover Letter(s)

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means:  Provided with 128 bits for security codes.  When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC.  Base and Handset knows each other’s security code information.

External Photos

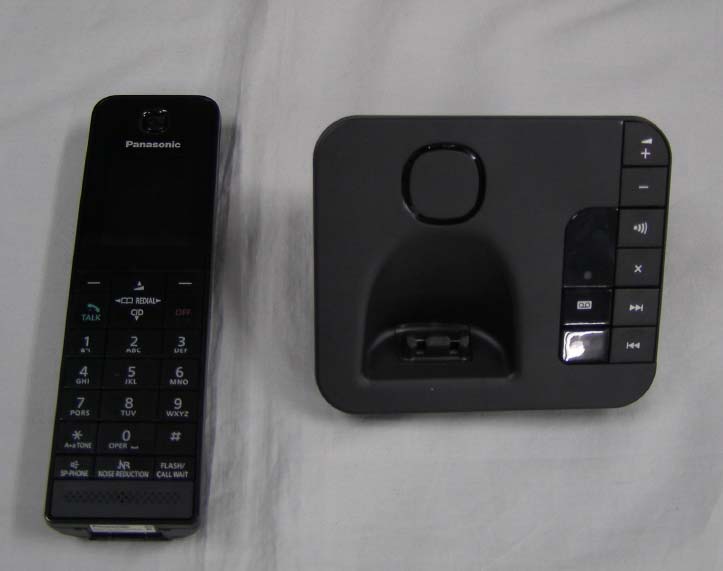

EXTERNAL PHOTOGRAPHS KX-TGH220 Top View Bottom View

ID Label/Location Info

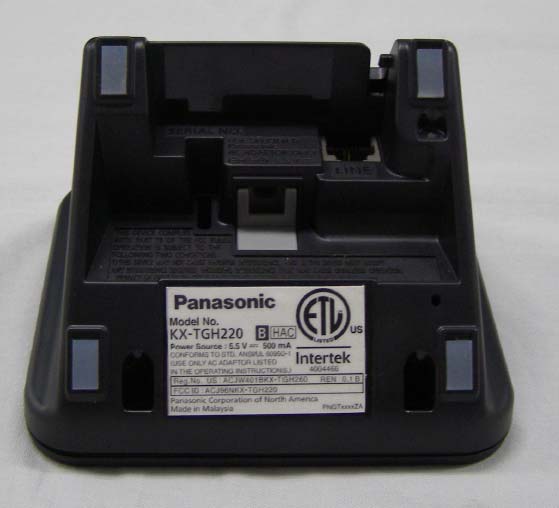

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above m arkings are shown on bottom of the base unit.

Internal Photos

INTERNAL PHOTOGRAPHS Internal View Main Board RF Portion

RF Exposure Info

FCC ID: ACJ96NKX-TGH220 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 18.78 (dBm) Maximum peak output power at antenna input terminal : 0.076 (W) Maximum antenna gain: 0.00 (dBi) Maximum antenna gain: 1.000 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0150 (mW/cm^2) Power density at prediction frequency: 0.150 (W/m^2) Maximum allowable antenna gain: 18.23 (dBi) Margin of Compliance: 18.23 (dB) 2 4 R PG S π =

Test Report

Report No. 248567-12 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-TGH220 Rating 120 V AC (Mains) Trademark Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 248567 Tested in period 2013.12.13 to 2013.12.19 and 2014.01.27 Issue date 2014.01.27 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 248567-12 FCC ID: ACJ96NKX-TGH220 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (50) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Coordination with fixed microwave .................................................................................................. 17 3.3 Digital Modulation Techniques ........................................................................................................ 17 3.4 Labeling Requirements ................................................................................................................... 17 3.5 Antenna Requirement...................................................................................................................... 18 3.6 Channel Frequencies ...................................................................................................................... 18 3.7 Automatic Discontinuation of Transmission .................................................................................... 19 3.8 Peak Power Output ......................................................................................................................... 20 3.9 Emission Bandwidth B ..................................................................................................................... 23 3.10 Power Spectral Density ................................................................................................................... 26 3.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 29 3.12 Out-of-band Emissions, Conducted................................................................................................. 31 3.13 Carrier Frequency Stability .............................................................................................................. 35 3.14 Frame Repetition Stability ............................................................................................................... 36 3.15 Frame Period and Jitter ................................................................................................................... 36 3.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 38 3.17 Threshold Monitoring Bandwidth ..................................................................................................... 40 3.18 Reaction Time and Monitoring Interval ............................................................................................ 41 3.19 Time and Spectrum Window Access Procedure ............................................................................. 43 3.20 …

Text truncated - open the document above for the full version.

Test Report

PCTP-14-F018 FCC ID: ACJ96NKX-TGH220 FCC Part 15D – Compliance Information pctp-14-f018 (fcc_part_15d-compliance_information)8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Yukio Kaneko FP EUT Type/System FCC ID ACJ96NKX-TGH220 (IC:216A- KXTGH220) Model name KX-TGH220 HW Version PNLB2280xx SW Version SW401 Max antenna Gain (dBi) 0dBi Can the EUT be Initiating Device YES Does the EUT transmit signaling channels YES Max number of slots in use simultaneously 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-14-F018 FCC ID: ACJ96NKX-TGH220 FCC Part 15D – Compliance Information pctp-14-f018 (fcc_part_15d-compliance_information)8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Antenna Type Internal External 1 Pattern Antenna 2 3 4 Base (FP) Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) and Repeater 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC - Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV226 (AC Adaptor) Panasonic Handset (PP) (charger) - Data Connections PSTN (Base) Others (please specify) .... PCTP-14-F018 FCC ID: ACJ96NKX-TGH220 FCC Part 15D – Compliance Information pctp-14-f018 (fcc_part_15d-compliance_information)8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor Type PNLV226 (AC Adaptor) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-14-F018 FCC ID: ACJ96NKX-TGH220 FCC Part 15D – Compliance Information pctp-14-f018 (fcc_part_15d-compliance_information)8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: December 17, 2013 Richard Mullen Richard Mullen

Test Setup Photos

FCC ID: ACJ96NKX-TGH220 Project no.: 248567 Page 1 of 1 PHOTOS OF TEST SET-UP – KX-TGH220 Power line Conducted Emissions Test

Contact Information

Applicant

Ben Botros(Manager - Regulatory & Compliance)
[email protected]201-348-7760Fax: 00000

Test Firm

Nemko ASFrode Sveinsen
[email protected]47-22-96-03-35Fax: 47-22-96-05-50

Technical Specifications

#Rule PartsFrequency RangePower Output
115D1.92 GHz - 1.93 GHz76.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
