Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Power of Attorney November 16, 2015 PCTP-16-F001 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15C and D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 1 Model Numbers: KX-TGL460(xx), KX-TGL462(xx), KX-TGL463(xx), KX-TGL464(xx), KX-TGL465(xx), KX-TG3690(xx), KX-TG3692(xx), KX-TG3693(xx), KX-TG673SK(xx), KX-TG674SK(xx) FCC Classification: Spread Spectrum Transmitter (DSS) / BT Transceiver in UPCS Base Station FCC ID Base Unit ACJ96NKX-TGL460 FCC Rule Part: FCC Part 15, Subpart C, Section 15.247 Frequency Range: 2402~ 2480 MHz Number Channels: 79 Channels Type Modulation: Digital (Gaussian Frequency Shift Keying) FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID: ACJ96NKX-TGL460 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels RF Exposure: Mobile / MPE (requires minimum 20cm spacing between antenna and body) Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 1 Base Station will be used with Handset, which will be separately certified under FCC ID: ACJ96NKX-TGLA40. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Request for Confidentiality November 16, 2015 PCTP-16-F001 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 2 Model Numbers: KX-TGL460(xx), KX-TGL462(xx), KX-TGL463(xx), KX-TGL464(xx), KX-TGL465(xx), KX-TG3690(xx), KX-TG3692(xx), KX-TG3693(xx), KX-TG673SK(xx), KX-TG674SK(xx) Product Description: Base Station contains DECT Transmitter FCC ID: ACJ96NKX-TGL460 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 2 Base Station will be used with Handset, which will be separately certified under FCC ID: ACJ96NKX-TGLA40.

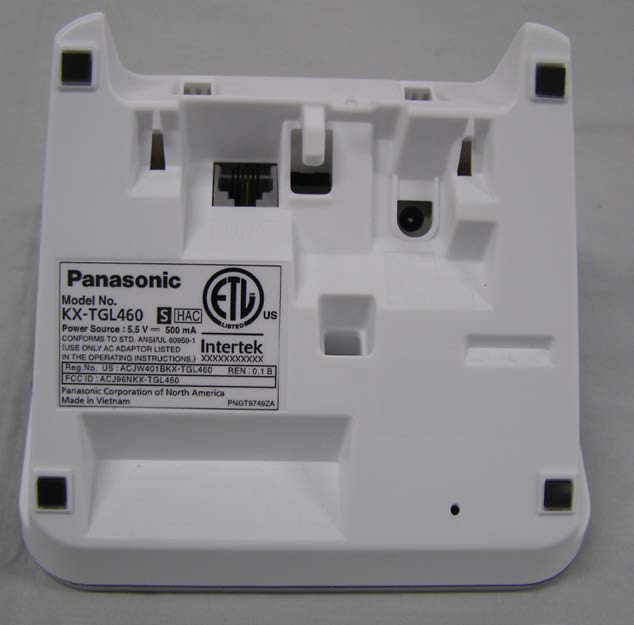

EXTERNAL PHOTOGRAPHS KX-TGL460 Top View Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

FCC ID: ACJ96NKX-TGL460 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 19.70 (dBm) Maximum peak output power at antenna input terminal : 0.093 (W) Maximum antenna gain: 0.00 (dBi) Maximum antenna gain: 1.000 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0186 (mW/cm^2) Power density at prediction frequency: 0.186 (W/m^2) Maximum allowable antenna gain: 17.31 (dBi) Margin of Compliance: 17.31 (dB) 2 4 R PG S π =

Report No. 297372-1 Template version: C Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station with Bluetooth Transceiver Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-TGL460 KX-TGL490C Rating 120V AC (AC Adaptor Model PNLV226) Trademark Panasonic Serial number / Additional information DECT 6.0, Bluetooth 2.1 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 3 2 GHz License-Exempt Personal Communications Services (LE-PCS) Devices Order number 297372 Tested in period 2015.10.15 to 2015.11.10 Issue date 2015.11.19 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: +47 22 96 03 30 FAX: +47 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information please contact Nemko. TEST REPORT FCC part 15D Report no.: 297372-1 FCC ID: ACJ96NKX-TGL460 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (47) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Digital Modulation Techniques ........................................................................................................ 11 3.3 Labeling Requirements ................................................................................................................... 11 3.4 Channel Frequencies ...................................................................................................................... 11 3.5 Antenna Requirement...................................................................................................................... 12 3.6 Automatic Discontinuation of Transmission .................................................................................... 12 3.7 Peak Power Output ......................................................................................................................... 13 3.8 Emission Bandwidth B ..................................................................................................................... 16 3.9 Power Spectral Density ................................................................................................................... 19 3.10 In-Band Unwanted Emissions, Conducted ...................................................................................... 22 3.11 Out-of-band Emissions, Conducted................................................................................................. 24 3.12 Carrier Frequency Stability .............................................................................................................. 29 3.13 Frame Repetition Stability ............................................................................................................... 30 3.14 Frame Period and Jitter ................................................................................................................... 30 3.15 Monitoring Threshold, Least Interfered Channel ............................................................................. 32 3.16 Threshold Monitoring Bandwidth ..................................................................................................... 34 3.17 Reaction Time and Monitoring Interval ............................................................................................ 35 3.18 Time and Spectrum Window Access Procedure ............................................................................. 37 3.19 Acknowledgements and Transmission Duration ........................................…

Text truncated - open the document above for the full version.

PCTP-16-F001 / 003 FCC ID: ACJ96NKX-TGL460 / ACJ96KX-TGLA40 FCC Part 15D – Compliance Information pctp-16-f001 and f003 (fcc_part_15d-compliance_information).doc 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Kazunori Ata FP PP EUT Type/System FCC ID ACJ96NKX-TGL460 (IC:216A-KXTGL460) ACJ96NKX-TGLA40 (IC:216A-KXTGLA40) Model name KX-TGL460 KX-TGLA40 HW Version PNLB2573xx PNLB2580xx SW Version SW302 SW202 Max antenna Gain (dBi) 0dBi 0dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-16-F001 / 003 FCC ID: ACJ96NKX-TGL460 / ACJ96KX-TGLA40 FCC Part 15D – Compliance Information pctp-16-f001 and f003 (fcc_part_15d-compliance_information).doc 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Wired Antenna 2 Pattern Antenna 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External 1 Pattern Antenna 2 Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) and Repeater 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC DC 2.4V Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV226 (AC Adaptor) Panasonic Handset (PP) (charger) PNLC1070 (Charger) Panasonic Data Connections PSTN (Base) Others (please specify) .... PCTP-16-F001 / 003 FCC ID: ACJ96NKX-TGL460 / ACJ96KX-TGLA40 FCC Part 15D – Compliance Information pctp-16-f001 and f003 (fcc_part_15d-compliance_information).doc 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PNLV226 (AC Adaptor), PNLC1070 (Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-16-F001 / 003 FCC ID: ACJ96NKX-TGL460 / ACJ96KX-TGLA40 FCC Part 15D – Compliance Information pctp-16-f001 and f003 (fcc_part_15d-compliance_information).doc 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: November 16, 2015 Richard Mullen

TEST SET-UP PHOTOS Project no.: 297372 FCC ID: ACJ96NKX-TGL460 Page 3 (3) Power line Conducted Emissions Test
