EQUIPMENT DESCRIPTION DESCRIPTION OF DIFFERENCES (1.9GHz Cordless Telephone, KX-TGM_Series) TABLE 1 Model Type Base Unit Model No. Telephone Answering SP-phone Indicator Bluetooth Module AC adaptor Declaration of FCC ID KX-TGM460 1.9GHz Amplified Phone KX-TGM460 Provided Provided 7SEG Counter and LEDs Provided PNLV236 ACJ96NKX-TGM460 KX-TGM450 KX-TGM450 None ACJ96NKX-TGM450 KX-TGM430 KX-TGM430 Provided PNLV226 ACJ96NKX-TGM430 KX-TGM420 KX-TGM420 None ACJ96NKX-TGM420 NOTE: All models have the same P.C. Board PNLB2574 and the same RF cirduit. NOTE: These model numbers may be followed by country code and color code. Table for Handset Model Lighted Keys Headset Jack LCD Amplified Volume Declaration of FCC ID KX-TGMA45 Provided Provided 1.9 inch monochrome 50dB ACJ96NKX-TGMA45 (Handset for TGM460 And TGM450) KX-TGMA44 40dB ACJ96NKX-TGMA45 (Handset for TGM430 and TGM420) NOTE: All models have the same P.C. Board PNLB2581 and the same RF cirduit. NOTE: These model numbers may be followed by country code and color code.

Two Riverfront Plaza | Newark, NJ 07102-5490 Ben Botros, Project Manager Safety , Compliance and Quality Assurance Authorization Letter January 9, 2020 PCTP- 19-F012 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of six months from the date of this letter. Type Filing: Original Application for UPCS Cordless Telephone Base Station 1 FCC ID: ACJ96NKX-TGM460 Model Numbers: KX-TGM460 (xx) FCC Classification: Spread Spectrum Transmitter (DSS) / BT Transceiver in UPCS Base Station FCC Rule Part: FCC Part 15, Subpart C, Section 15.247 Frequency Range: 2402~ 2480 MHz Number Channels: 79 Channels Type Modulation: Digital (Gaussian Frequency Shift Keying) FCC Classification: Isochronous UPCS Base Station (PUB) FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels RF Exposure: Mobile / MPE (requires minimum 20cm spacing between antenna and body) FCC Rule Part: FCC Part 15, Subpart B FCC Classification: Class B Digital Device (JAB) Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Sincerely yours, Ben Botros Project Manager Panasonic Corporation of North America Safety, Compliance and Quality Assurance

Two Riverfront Plaza | Newark, NJ 07102-5490 Ben Botros, Project Manager Safety , Compliance and Quality Assurance Request for Confidentiality January 9, 2020 PCTP-19-F012 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of six months from the date of this letter. Type Filing: Original Application for UPCS Cordless Telephone Base Station 2 FCC ID: ACJ96NKX-TGM460 FCC Rule Part: FCC Part 15, Subpart B (JAB), C (DTS) and D (UPCS ) Request For Permanent Confidentiality In accordance with provisions of Sections §§0.457(d) and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Request For Short-Term Confidentiality In accordance with FCC Public DA 04-1705, we request 180 day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Ben Botros Project Manager Panasonic Corporation of North America Product Safety and Compliance Department

FCC Part 15D – Compliance Information kx-tgm460 fcc_part_15d-compliance_information.doc8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic Co., Ltd. Smart Communication Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Kazunori Ata FP PP EUT Type/System FCC ID ACJ96NKX-TGM460 Model name KX-TGM460 HW Version PNLB2574xx SW Version SW400 Max antenna Gain (dBi) 0dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex FCC Part 15D – Compliance Information kx-tgm460 fcc_part_15d-compliance_information.doc8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Wired Antenna 2 Wired Antenna 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) and Repeater 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP Nominal Voltage 120V AC Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV236 (AC Adaptor) Panasonic Handset (PP) (charger) Data Connections PSTN (Base) Others (please specify) .... FCC Part 15D – Compliance Information kx-tgm460 fcc_part_15d-compliance_information.doc8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor Type PNLV236 (AC Adaptor) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION FCC Part 15D – Compliance Information kx-tgm460 fcc_part_15d-compliance_information.doc8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: January 9, 2020 Ben Botros

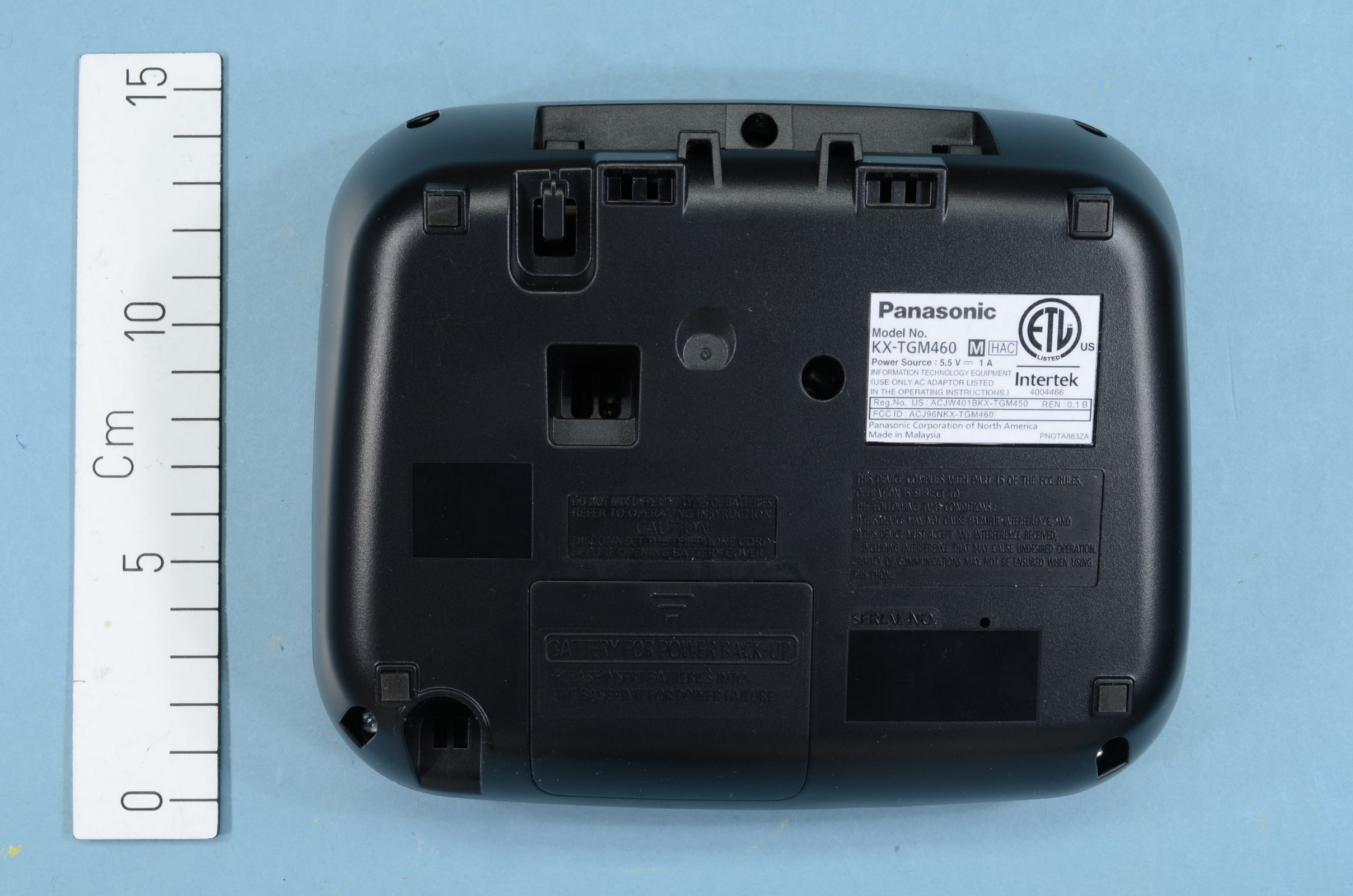

EXTERNAL PHOTOS FCC ID: ACJ96NKX-TGM460 Page 1 (1)

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

INTERNAL PHOTOGRAPHS Internal View Main Board <With RF shield> <Without RF shield> <Opposite side> RF Portion

FCC ID: ACJ96NKX-TGM460 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Source Based Time Averaged Duty Cycle is 100% in calculation below Maximum peak output power at antenna input terminal:19.20(dBm) Maximum peak output power at antenna input terminal:0.083(W) Maximum antenna gain:0.00(dBi) Maximum antenna gain:1.000(numeric) Prediction distance:20(cm) Prediction frequency:1925(MHz) Time Averaged Duty Cycle100% MPE limit for uncontrolled exposure at prediction frequency:10.00(W/m^2) Power density at prediction frequency:0.0165(mW/cm^2) Power density at prediction frequency:0.165(W/m^2) Maximum allowable antenna gain:17.81(dBi) Margin of Compliance:17.81(dB) 2 4R PG S p =

Report No. 388656-2 Template version: C Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station Name and address of the applicant Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor Newark, 07102-5490, NJ, USA Name and address of the manufacturer Panasonic Corporation 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka, 812-8531, Japan Model KX-TGM460 Rating 120V AC (AC Adaptor Model PNLV236) Trademark Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz ISED Canada RSS 213, Issue 3 2 GHz License-Exempt Personal Communications Services (LE-PCS) Devices Order number 388656 Tested in period 2016-02-03 to 2016-02-25 and 2019-12-10 Issue date 2020-01-15 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway www.nemko.com CAB Number: FCC: NO0001 ISED: NO0470 TEL: +47 22 96 03 30 FAX: +47 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information please contact Nemko. TEST REPORT FCC part 15D Report no.: 388656-2 FCC ID: ACJ96NKX-TGM460 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (45) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item ........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Test Environment ............................................................................................................................... 4 1.4 Test Engineer(s) ................................................................................................................................ 4 1.5 Test Equipment .................................................................................................................................. 4 1.6 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Digital Modulation Techniques ........................................................................................................... 9 3.3 Labeling Requirements ...................................................................................................................... 9 3.4 Channel Frequencies ......................................................................................................................... 9 3.5 Antenna Requirement ........................................................................................................................ 9 3.6 Automatic Discontinuation of Transmission ..................................................................................... 10 3.7 Peak Power Output .......................................................................................................................... 11 3.8 Emission Bandwidth B ..................................................................................................................... 14 3.9 Power Spectral Density ................................................................................................................... 17 3.10 In-Band Unwanted Emissions, Conducted ....................................................................................... 20 3.11 Out-of-band Emissions, Conducted ................................................................................................. 22 3.12 Carrier Frequency Stability .............................................................................................................. 28 3.13 Frame Repetition Stability ................................................................................................................ 29 3.14 Frame Period and Jitter ................................................................................................................... 29 3.15 Monitoring Threshold, Least Interfered Channel .............................................................................. 31 3.16 Threshold Monitoring Bandwidth...................................................................................................... 33 3.17 Reaction Time and Monitoring Interval ............................................................................................ 34 3.18 Time and Spectrum Window Access Procedure .............................................................................. 36 3.19 Acknowledgements and Transmission Duration .............................................................................. 39 3.20 Dual Access Criteria Check .................................…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Project no.: 388656 FCC ID: ACJ96NKX-TGM460 Page 1 (2) Part 15B Radiated Emissions, 30 - 1000 MHz Part 15B Radiated Emissions, 1 GHz – 6 GHz TEST SET-UP PHOTOS Project no.: 388656 FCC ID: ACJ96NKX-TGM460 Page 2 (2) KX-TGM460 Power line Conducted Emissions Test
