ACJ96NKX-TGP600DECT 6.0 Cordless Telephone System Base Station for SIP server or PBX

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: ∑ Provided with 128 bits for security codes. ∑ When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. ∑ Base and Handset knows each other’s security code information.

FCC Part 15D – Compliance Information Nemko AS, Instituttveien 6, 2007 Kjeller, Norway kx-tgp600_tpa60 fcc part 15d declarations Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 1 (5) rev.2.3 17-Jul-2013 Email: [email protected] EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic System Networks Co., Ltd. Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, 812-8531, Japan Contact Michihito Miyazaki Telephone +81-50-3380-2671 Email [email protected] Grantee Code ACJ IC Company Number 216A Brand Name Panasonic Model Number KX-TGP600 (Base), KX-TPA60 (Handset) FP PP Repeater EUT Type/System FCC ID ACJ96NKX-TGP600 ACJ96NKX-TPA60 Industry Canada ID 216A-KXTGP600 216A-KXTPA60 Model name KX-TGP600 KX-TPA60 HW Version PNLB2350ZAxx PNLB2348ZAxx SW Version SW00.010 SW0.50 Maximum Antenna Gain 2dBi 1.5dBi Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 10 slot 1 slot Test standard: FCC part 15D RSS-213, Issue 2 / RSS-GEN, Issue 3 Frequency Band 1921.536 – 1928.448 MHz Number of RF Channels 5 Frame Period 10 ms Max. Burst length 723us / duplex channel Min. Burst Length 106us / signaling channel Minimum Number of System Channels 60 (12 duplex channels per RF carrier) Supported DECT Slot Types Full Slot Long Slot Operating Mode Simplex Duplex FCC Part 15D – Compliance Information Nemko AS, Instituttveien 6, 2007 Kjeller, Norway kx-tgp600_tpa60 fcc part 15d declarations Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 2 (5) rev.2.3 17-Jul-2013 Email: [email protected] ANTENNAS Base (FP) Antenna Type Internal External 1 λ/4 monopole Antenna 2 λ/4 monopole Antenna 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External 1 λ/4 PIFAntenna 2 Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 120V AC DC 2.6V Cut-Off Voltage (if applicable) 2.35V POWER SOURCE Type Manufacturer Base or Repeater PQLV219 (AC Adaptor for Base) Panasonic Handset (PP) (charger) PNLV226 (AC Adaptor for charger) Panasonic Data Connections PSTN Others (please specify) .... .LAN(RJ-45) FCC Part 15D – Compliance Information Nemko AS, Instituttveien 6, 2007 Kjeller, Norway kx-tgp600_tpa60 fcc part 15d declarations Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 3 (5) rev.2.3 17-Jul-2013 Email: [email protected] ANCILLARY EQUIPMENT Description Charger cradle Type PNLC1061ZA (Charger for KX-TPA60) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION FCC Part 15D – Compliance Information Nemko AS, Instituttveien 6, 2007 Kjeller, Norway kx-tgp600_tpa60 fcc part 15d declarations Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 4 (5) rev.2.3 17-Jul-2013 Email: [email protected] MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) The applicant declares that the system in this application has more than 40 duplex system access channels defined, and that the system is operating in Least Interfered Channel (LIC) mode in accordance with this section. Applicant Agrees Yes No FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: May 13, 2014 Date Michihito Miyazaki Name (print) Signature FCC Part 15D – Compliance Information Nemko AS, Instituttveien 6, 2007 Kjeller, Norway kx-tgp600_tpa60 fcc part 15d declarations Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 5 (5) rev.2.3 17-Jul-2013 Email: [email protected] About this document This document specifies the information that is needed to select the correct testcases and test procedures for testing to FCC Part 15D. The form must be completed by the applicant and submitted to Nemko before testing is started. Preparation of Equipment for Testing Note (a): Number of samples for testing The following samples are needed for FCC 15D testing: RF Conducted Tests: One sample with a 50 ohm antenna connector (preferably SMA Female). Only one antenna connector is needed for these tests even if the equipment has more than one antenna. Monitoring Tests: One sample with 50 ohm antenna connectors fitted to all antennas (preferably SMA female). Additionally we need a companion device that will work together with the EUT, the companion device must also have antenna connectors on all antennas. Radiated Tests: One sample with integral antennas. This sample will be used to measure Antenna Gain, Part 15B and Power-Line Conducted tests. Note (b): Monitoring Tests Monitoring tests are performed by establishing a connection from the handset (or the initiating device) to the base station (or the responding device). Most tests are performed by establishing connections from the initiating device to the responding device and observing which channel and/or timeslot is used. For monitoring tests we need a EUT and a Companion device that both have antenna conn…

Text truncated - open the document above for the full version.

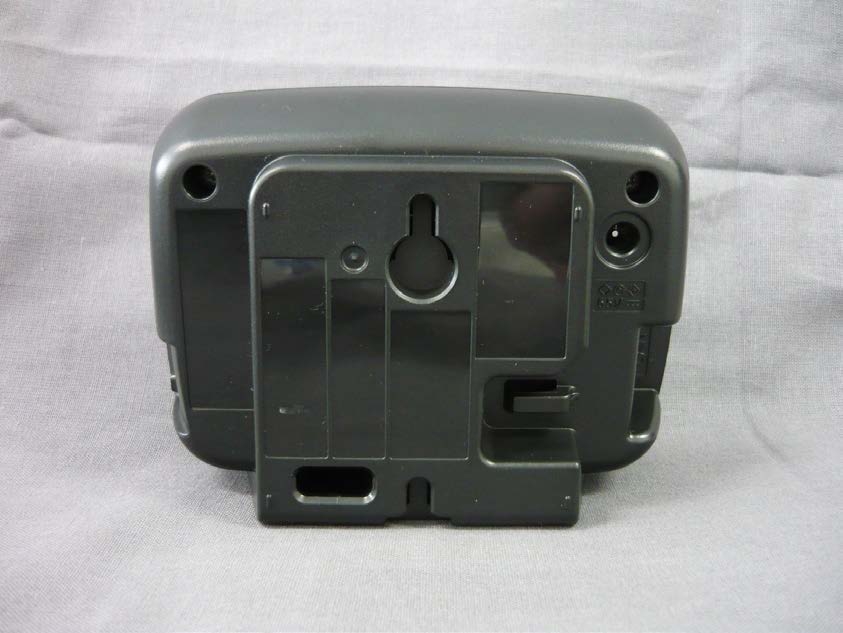

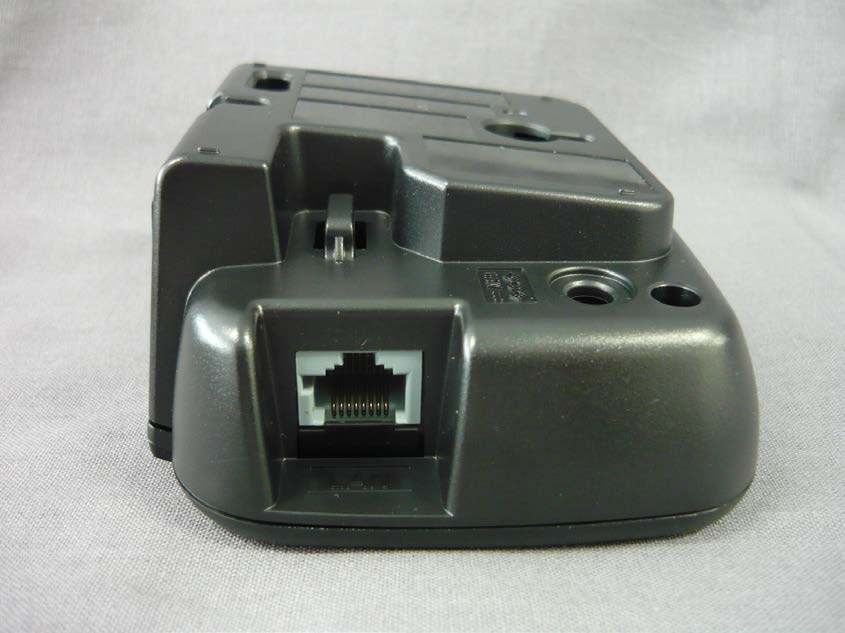

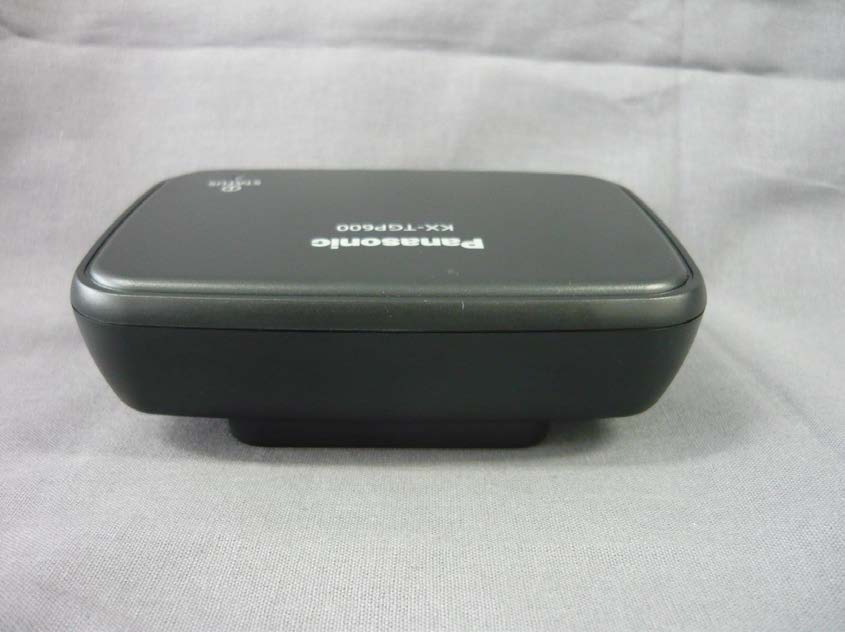

EXHIBIT D-1 EXTERNAL PHOTOGRAPHS Page 1 of 2 EXHIBIT D-1 EXTERNAL PHOTOGRAPHS Page 2 of 2

EXHIBIT B MARKINGS ↑

EXHIBIT D-2 INTERNAL PHOTOGRAPHS EXHIBIT D-2 INTERNAL PHOTOGRAPHS RF block under the shield case

FCC ID: ACJ96NKX-TGP600 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 17.60 (dBm) Maximum peak output power at antenna input terminal : 0.058 (W) Maximum antenna gain: 2.00 (dBi) Maximum antenna gain: 1.585 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0181 (mW/cm^2) Power density at prediction frequency: 0.181 (W/m^2) Maximum allowable antenna gain: 19.41 (dBi) Margin of Compliance: 17.41 (dB) 2 4 R PG S π =

Report No. 255989-1 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station with Ethernet Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-HNB600 Rating 120 V AC (AC Adaptor) or Power over Ethernet Trademark Panasonic Serial number / Additional information DECT 6.0, Ethernet, PoE, VoIP Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 255989 Tested in period 2014.07.10 to 2014.07.18 Issue date 2014.07.18 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 255989-1 FCC ID: ACJ96NKX-TGP600 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (52) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Coordination with fixed microwave .................................................................................................. 13 3.3 Digital Modulation Techniques ........................................................................................................ 13 3.4 Labeling Requirements ................................................................................................................... 13 3.5 Antenna Requirement...................................................................................................................... 14 3.6 Channel Frequencies ...................................................................................................................... 14 3.7 Automatic Discontinuation of Transmission .................................................................................... 15 3.8 Peak Power Output ......................................................................................................................... 16 3.9 Emission Bandwidth B ..................................................................................................................... 19 3.10 Power Spectral Density ................................................................................................................... 22 3.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 25 3.12 Out-of-band Emissions, Conducted................................................................................................. 27 3.13 Carrier Frequency Stability .............................................................................................................. 37 3.14 Frame Repetition Stability ............................................................................................................... 38 3.15 Frame Period and Jitter ................................................................................................................... 38 3.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 40 3.17 Threshold Monitoring Bandwidth ..................................................................................................... 42 3.18 Reaction Time and Monitoring Interval ............................................................................................ 43 3.19 Time and Spectrum Window Access Procedure ........................................…

Text truncated - open the document above for the full version.

FCC ID: ACJ96NKX-TGP600 Project no.: 255989 Page 1 of 1 PHOTOS OF TEST SET-UP – KX-TGP600 Power line Conducted Emissions Test
