ACJ96NKX-TGP700DECT 6.0 Cordless Telephone System Base Unit

Base Unit for SIP Cordless Phone Model No.KX-TGP700 Model No. SIP Cordless Handset KX-TPA70/KX-TPA73 Operating Instructions KX-TGP700KX-TPA70/KX-TPA73 Thank you for purchasing this Panasonic product. Please read this manual carefully before using this product and save this manual for future use. Please use the batteries provided and charge the batteries for about 6 hours before using the handset for the first time. Note • In this manual, the suffix of each model number is omitted unless necessary. • The illustrations such as some keys may differ from the appearance of the actual product. • Certain products and features described in this document may not be available in your country or area. Contact your phone system dealer/service provider. • The contents and design of the software are subject to change without notice. Document Version: 2020-01 Introduction Outline This manual describes information about the installation and operation of KX-TGP700, KX-TPA70 and KX-TPA73. Related Documentation •Quick Start Guide Describes basic information about the installation and safety precautions to prevent personal injury and/or damage to property. •Administrator Guide Describes detailed information about the configuration and management of this unit. This guide describes information about the KX-TGP700 only. Manuals and supporting information are provided on the Panasonic Web site at: https://panasonic.net/cns/pcc/support/sipphone/ Font Information The font information for KX-TPA70 and KX-TPA73 is available on the Panasonic Web site at: https://panasonic.net/cns/pcc/support/sipphone/ For Future Reference Record the information in the space below for future reference. Note • The serial number of this product may be found on the labels affixed to the following places: –Base unit (KX-TGP700): the back of the unit –Handset (KX-TPA70/KX-TPA73): the inside of the battery compartment on the back of the handset –Charger (KX-TPA70/KX-TPA73): the bottom of the charger You should note the serial numbers of these units in the space provided and retain this manual as a permanent record of your purchase to aid in identification in the event of theft. • Copyright for Roboto Copyright 2015 Google Inc. All Rights Reserved. Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0 Introduction 2 Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. MODEL NO. SERIAL NO. DATE OF PURCHASE NAME OF DEALER DEALER’S ADDRESS DEALER’S TEL. NO. Introduction 3 Introduction 4 Table of Contents 1 Important Information .......................................................... 7 1.1Important Information ................................................................................... 8 1.1.1Data Security ............................................................................................... 8 1.2For Users in European Countries ................................................................ 9 1.3For Users in the United Kingdom ................................................................ 9 1.4For Users in Australia and the United Kingdom ...................................... 10 1.5For Users in New Zealand .......................................................................... 10 1.6For Users in the United States ................................................................... 11 1.7For Users in Canada ................................................................................... 13 1.8For Best Performance ................................................................................. 14 1.9Battery Information (KX-TPA70/KX-TPA73) .............................................. 16 2 Before Operating the Telephones ..................................... 19 2.1Before Operating the Telephones .............................................................. 20 2.1.1System Overview ....................................................................................... 20 2.2Accessory Information ............................................................................... 22 2.2.1Included Accessories ................................................................................. 22 2.3Location of Controls ................................................................................... 24 2.3.1Base Unit (KX-TGP700) ............................................................................ 24 2.3.2Handset (KX-TPA70/KX-TPA73) ................................................................ 27 2.4The Display and Icons ................................................................................ 30 2.4.1Display ....................................................................................................... 30 3 Making Calls ........................................................................ 33 3.1Making Calls ................................................................................................ 34 4 Receiving Calls ................................................................... 35 4.1Answering Calls .......................................................................................... 36 5 Installation and Setup ........................................................ 37 5.1Installation and Setup ................................................................................. 38 5.2Connections ................................................................................................ 38 5.2.1Battery Installation ..................................................................................... 39 5.2.2Attaching the Belt Clip ..............................................…

Text truncated - open the document above for the full version.

Two Riverfront Plaza | Newark, NJ 07102-5490 Ben Botros, Project Manager Safety , Compliance and Quality Assurance Authorization Letter November 26, 2019 PCNF-19-F067 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of six months from the date of this letter. Type Filing: Original Application for SIP Cordless Telephone Base Station Model Numbers: KX-TGFP700(xx) FCC Classification: PUB FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels RF Exposure: Mobile / MPE (requires minimum 20cm spacing between antenna and body) FCC Rule Part: FCC Part 15, Subpart B FCC Classification: Class B Digital Device (JAB) FCC ID: ACJ96NKX-TGP700 Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Sincerely yours, Ben Botros Project Manager Panasonic Corporation of North America Safety, Compliance and Quality Assurance

Two Riverfront Plaza | Newark, NJ 07102-5490 Ben Botros, Project Manager Safety , Compliance and Quality Assurance Request for Confidentiality November 26, 2019 PCNF-19-F067 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS t o act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of six months from the date of this letter. Type Filing: Original Application for SIP Cordless Telephone Base Station Model Numbers: KX-TG FP700(xx) FCC ID: ACJ96NKX-TGP700 FCC Rule Part: FCC Part 15, Subpart B and D Request For Permanent Confidentiality In accordance with provisions of Sections §§0.457(d) and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confide ntial and trade secrets material, which would not be routinely made available for public inspection. Request For Short-Term Confidentiality In accordance with FCC Public DA 04-1705, we request ninety day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Ben Botros Project Manager Panasonic Corporation of North America Safety, Compliance and Quality Assurance

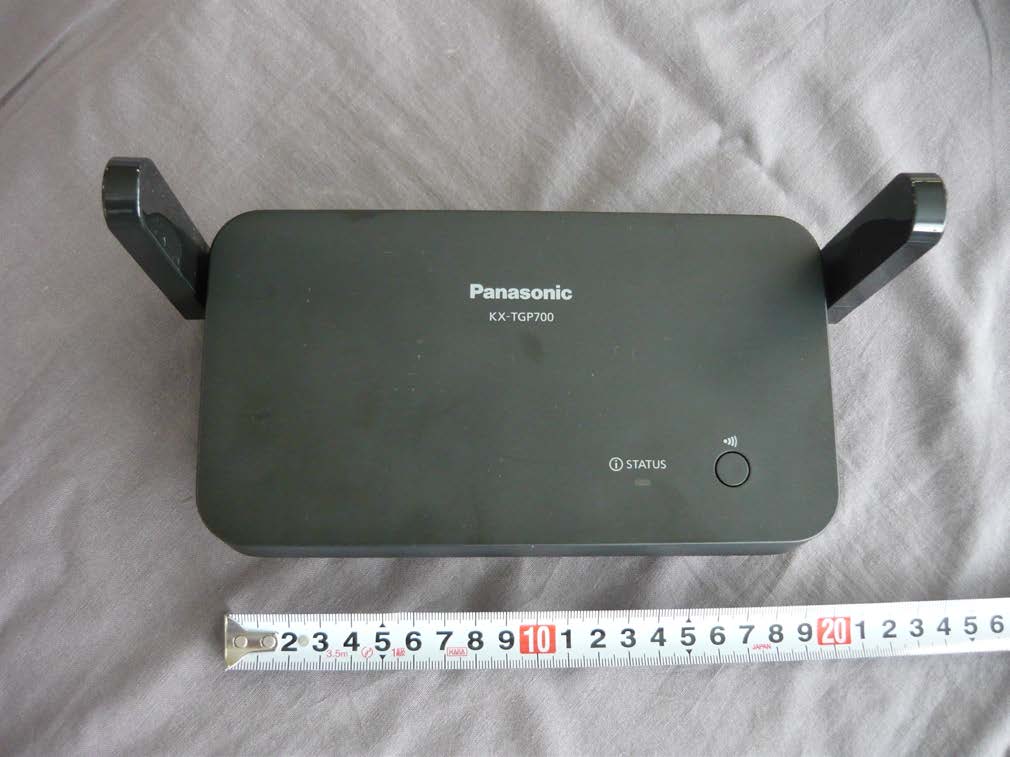

1 of 6 EXHIBIT D-1 EXTERNAL PHOTOGRAPHS 2 of 6 EXHIBIT D-1 EXTERNAL PHOTOGRAPHS 3 of 6 EXHIBIT D-1 EXTERNAL PHOTOGRAPHS 4 of 6 EXHIBIT D-1 EXTERNAL PHOTOGRAPHS 5 of 6 EXHIBIT D-1 EXTERNAL PHOTOGRAPHS 6 of 6 EXHIBIT D-1 EXTERNAL PHOTOGRAPHS

EXHIBIT B PRODUCT LABELING GRANTEE : Panasonic Corporation of North America GRANTEE CODE : ACJ COUNTRY OF ORIGIN : Vietnam TRADE NAME : PANASONIC MATERIAL OF LABEL : Aluminum or Polyester Film or Molded on the Unit Serial number will be printed on the other label, and the serial number label will be affixed on the unit.

1 of 5 EXHIBIT D-2 INTERNAL PHOTOGRAPHS 2 of 5 EXHIBIT D-2 INTERNAL PHOTOGRAPHS 3 of 5 EXHIBIT D-2 INTERNAL PHOTOGRAPHS 4 of 5 EXHIBIT D-2 INTERNAL PHOTOGRAPHS 5 of 5 EXHIBIT D-2 INTERNAL PHOTOGRAPHS

Test Report No.TR99-0038I 1 of 15 Panasonic System Networks Evaluation Technology Co., Ltd. EMC Center EMC TEST REPORT REPORT NUMBER : ERJ13-19037R00FR APPLICANT : Panasonic Corporation PRODUCT : Base Unit for SIP Cordless Phone MODEL NUMBER : KX-TGP700 STANDARD : FCC Rules and Regulations Part 15 Subpart B - Unintentional Radiators ICES-003 Issue 6 Issue Date: December 9, 2019 Authorized by: Reviewed by: K. Nakamura H. Nakayama (Quality Manager) (Technical Manager) The test results only relate to the items tested. This test report shall not be reproduced except in full without the written approval of Panasonic System Networks Evaluation Technology Co., Ltd. EMC Center. This document may be altered or revised by Panasonic System Networks Evaluation Technology EMC Center only, and shall be noted in the revision section in this document. RTL01900 Test Report No.ERJ13-19037R00FR 2 of 15 December 9, 2019 TABLE of CONTENTS Page SECTION 1. GENERAL INFORMATION 3 SECTION 2. SUMMARY OF RESULTS 4 SECTION 3. TEST RESULTS 3.1 Radiated Emission 30 MHz - 1000 MHz 5 3.2 Radiated Emission 1 GHz - 6 GHz 6 3.3 Conducted Emission 7 SECTION 4. DESCRIPTION OF EUT 4.1 Configuration of EUT 8 4.2 EUT and Support Equipment Used 8 4.3 Cable(s) Used 9 4.4 Operating Condition(s) 9 4.5 Any Deviations from, Additions to or Exclusions from the Test Method 9 4.6 Modifications to EUT 9 SECTION 6. TEST INSTRUMENTS LIST 6.1 Radiated Emission 30 MHz - 1000 MHz 10 6.2 Radiated Emission 1 GHz - 6 GHz 11 6.3 Conducted Emission 12 SECTION 7. TEST PROCEDURE(s) 7.1 Radiated Emission 13-14 7.2 Conducted Emission 15 Test Report No.ERJ13-19037R00FR 3 of 15 December 9, 2019 SECTION 1. GENERAL INFORMATION 1.1 Testing Laboratory Name: Panasonic System Networks Evaluation Technology Co., Ltd. EMC Center Address: 1-62, 4-chome, Minoshima Hakata-ku, Fukuoka 812-8531, Japan TEL: 092-477-3267 (+81-92-477-3267) FAX: 092-477-1587 (+81-92-477-1587) Test Site Panasonic System Networks Evaluation Technology Co., Ltd. Fukuoka Site Address: 1-62, 4-chome, Minoshima Hakata-ku, Fukuoka 812-8531, Japan 1.2 Detail of Applicant Name: Panasonic Corporation Address: 1-62, 4-chome, Minoshima Hakata-ku, Fukuoka 812-8531, Japan TEL: 050-3380-2671(+81-50-3380-2671) 1.3 Information about Test Item Kind of Test Item: Base Unit for SIP Cordless Phone Model Number: KX-TGP700 Trade Mark: Panasonic Type of Test Item: Table-top, Wall hanging Condition of Test Item: Pre-Production Serial Number: S11CA000008 Rated Voltage/Frequency: AC 100 V - AC 240 V 50 Hz / 60 Hz Highest frequency (*Note 1): 600 MHz Test Item Received Date: August 30, 2019 Test Date: September 1-2, 2019 *Note 1: Highest frequency generated or used in the devices on which the device operates or tunes. 1.4 Regulation Emission: 47 CFR Part 15 - Digital Devices Subpart A - General Subpart B - Unintentional Radiators (Class B) ICES-003 Issue 6 Section 6 Class B 1.5 Test Procedure General: PSNET-EMC Procedure (EDC02), ANSI C63.4-2014 Section 6 ITE Measurement: PSNET Procedure (EDX34), ANSI C63.4-2014 Section 11 Radiated Emission: PSNET Procedure (EDX01,EDY01/02), ANSI C63.4-2014 Section 8 PSNET Procedure (EDX39), ICES-003 Issue 6 Section 5 (a)(ii), Section 5 (b)(ii) Conducted Emission PSNET Procedure (EDX02, EDY03), ANSI C63.4-2014 Section 7 PSNET Procedure (EDX39), ICES-003 Issue 6 Section 3 (b) 1.6 Notes The results in this report apply only to the sample(s) tested. The instruments used for the measurements were traceable to the national standards and foreign national standards laboratories. Test Report No.ERJ13-19037R00FR 4 of 15 December 9, 2019 SECTION 2. SUMMARY OF RESULTS 2.1 General Remarks The EUT under the test configuration (as shown section 4) was tested according to the requirements of the Regulation as shown section 1.4. The worst margin of test results was as follows: Test Item Worst Margin Frequency Polarity Detector Reference Radiated Emission 30 MHz - 1000 MHz 4.1 dB 799.486 MHz Horizontal Quasi-peak Page 5 Radiated Emission 1 GHz - 6 GHz 25.7 dB 2121.225 MHz Horizontal Average Page 6 27.5 dB 2121.225 MHz Horizontal Peak Page 6 Conducted Emission 11.2 dB 0.33100 MHz --- Quasi-peak Page 7 9.9 dB 0.33100 MHz --- Average Page 7 *Used Test Site up to 1 GHz: ■Fukuoka No.1 Site (D=1.5 m Turn Table), □ADOX No.2 Site (D=3.0 m Turn Table) ■Measurement Distance 3.0 m, □ADOX Site, Class A, Measurement Distance 10 m *Used Test Site above 1 GHz: ■Fukuoka No.1 Site (D=1.5 m Turn Table), □ADOX No.2 Site (D=3.0 m Turn Table) ■Measurement Distance 3.0 m 2.2 Final Judgment The EUT fulfills the test requirements of the regulation as shown section 1.4. 2.3 Uncertainty The measurements uncertainty, at time of test, and at least 95 % confidence, was estimated to be as follows: Radiated Emission Measurements: +/- 3.84 dB (3 m) [30 MHz - 300 MHz], +/- 4.66 dB (3 m) [300 MHz - 1000 MHz] +/- 4.72 dB (3 m) [1 GHz - 6 GHz] Conducted Emission Measurements: +/-2.38 dB [0.15 MHz - 30 MHz] Test Report No.ERJ13-19037R00FR 5 of 15 December 9, 2019 SECTION 3. TEST RESULTS 3.1 Radiated Emission 30 MHz - 1000 MHz Model Name : Base Unit for SIP Cordless Phone Test condition of instruments Model No. : KX-TGP700 Date : 2019/09/01 Serial No. : S11CA000008 Temperature : 24 degree C Operator : E. Abe Humidity : 43 % 1016 hPa Points : 12 EUT Warm-up Time : 30 minutes Detector : QP Distance : 3 m RBW :120 kHz Test Mode : Link, powered by AC adaptor Comment : AC 120 V / 60 Hz The measurement was conducted in the condition where maximum emission was detected by the preliminary test. Level=Emission Level=Meter Reading+ Factor (Antenna + Cable + Preamp) LIMIT: FCC Part 15 Class B (3 m) LIMIT: ICES-003 Class B (3 m) Limit1(QP) Limit2(QP) Hori.(QP) Vert.(QP) Frequency [MHz] Field Strength [dBuV/m] 301000 5070100200300500700 0 10 20 30 40 50 60 [ QP DATA ] Frequency [MHz] Meter Reading (QP) [dBuV] Antenna (Factor) [dB/m] Cable Loss [dB] Pre-AMP Gain [dB] Result (QP) [dBuV/m] Limit [dBuV/m] Margin [dB] pola Height [cm] Angle [deg] 266.5…

Text truncated - open the document above for the full version.

Test Report No.ERJ13-19037R00FPNo.TR99 1 of 3 December 9, 2019 SECTION 5. PHOTOGRAPHS OF MAXIMUM EMISSION SET-UP 5.1 Radiated Emission, 30 MHz - 1000 MHz Test setup in accordance with ANSI C63.4 -2014 [Front view] [Rear view] Test Report No.ERJ13-19037R00FP 2 of 3 December 9, 2019 5.2 Radiated Emission, 1 GHz - 6 GHz Test setup in accordance with ANSI C63.4 -2014 [Front view] [Rear view] Test Report No.ERJ13-19037R00FP 3 of 3 December 9, 2019 5.3 Conducted Emission Test setup in accordance with ANSI C63.4 -2014 [Front view] [Side view]
