ACJ96NKX-THA132.4 GHz Wireless Camera

Temporary Confidential This unit is compatible with Caller ID. To use this feature, you must subscribe to the appropriate service offered by your service provider. Please read these Operating Instructions before using the unit and save for future reference. For assistance, visit our website: http://www.panasonic.com for customers in the U.S.A. or Puerto Rico. Charge the battery for 6 hours before initial use. 2.4 GHz Expandable Cordless Phone System Model No. KX-TH102-A Operating Instructions KX-TH102-M Model shown is KX-TH102-M. TH102.book Page 1 Thursday, May 12, 2005 6:47 PM Temporary Confidential Introduction 2 For assistance, please visit http://www.panasonic.com/consumersupport Expanding your phone You can expand the system by adding handsets (monochrome display handsets and color display handset), wireless camera unit, USB wireless adaptor, and repeater, sold separately. Using these accessories, you can have a video call, monitor on a room where the color display handset or wireless camera is located and taking pictures. Note: LUp to 8 handsets (KX-THA11/KX-THA12/KX-THA16) and up to 10 other Bluetooth featured units (KX-THA13/KX-THA14 and a maximum of 5 cellular phones) can be registered to a single base unit. A B C D G H F E TH102.book Page 8 Thursday, May 12, 2005 6:47 PM Temporary Confidential Introduction For assistance, please visit http://www.panasonic.com/consumersupport 3 Available accessory handsets 3 accessory handset models are available. Operations and features of 3 different accessory handsets have certain differences as indicated in the table below. *1 USB-support allows you to connect the handset to your PC and send pictures and songs from your PC to the handset, as well as create and edit phonebook entries using your PC. *2 For information on using this feature, refer to the help section of the GIGARANGE USB Utility software. If you have not installed the GIGARANGE USB Utility software, refer to the included “Installation Guide for GIGARANGE USB Utility” for details. FeatureKX-THA11KX-THA12KX-THA16Page DescriptionAvailable as accessory handset only Same handset supplied with KX-TH102-A/ KX-TH102-M Available as accessory handset only – Display typeMonochromeColorColor– Display size1.6 inch2 inch3.6 inch– Control type Joystick Navigator key Navigator key USB-support *1 rrr *2 Picture ID – rr Picture download feature – rr *2 Song record feature rrr Song download feature rrr *2 Wallpaper – rr Wallpaper download feature – rr *2 Memory status display – rr Video call – rr View monitor–rr Camera–rr Cellular featurerrr TH102.book Page 9 Thursday, May 12, 2005 6:47 PM Temporary Confidential Introduction 4 For assistance, please visit http://www.panasonic.com/consumersupport Important safety instructions When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on this unit. 3. Unplug this unit from power outlets before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this unit near water, for example near a bathtub, wash bowl, kitchen sink, etc. 5. Place the unit securely on a stable surface. Serious damage and/or injury may result if the unit falls. 6. Do not cover slots and openings on the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided. 7. Use only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. 8. Do not place objects on the power cord. Install the unit where no one can step or trip on the cord. 9. Do not overload power outlets and extension cords. This can result in the risk of fire or electric shock. 10. Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit. 11. To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an authorized service center when service is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used. 12. Unplug this unit from power outlets and refer servicing to an authorized service center when the following conditions occur: A. When the power cord is damaged or frayed. B. If liquid has been spilled into the unit. C. If the unit has been exposed to rain or water. D. If the unit does not work normally by following the operating instructions. Adjust only controls covered by the operating instructions. Improper adjustment may require extensive work by an authorized service center. E. If the unit has been dropped or physically damaged. F. If the unit exhibits a distinct change in performance. 13. During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning. 14. Do not use this unit to report a gas leak, when in the vicinity of the leak. SAVE THESE INSTRUCTIONS CAUTION: Installation LNever install telephone wiring during a lightning storm. LNever install telephone jacks in wet locations unless the jack is specifically designed for wet locations. LNever touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. LUse caution when installing or modifying telephone lines. TH102.book Page 10 Thursday, May 12, 2005 6:47 PM Temporary Confidential Introduction For assistance, please visit http://www.panasonic.com/consumersupport 5 LDo not touch the plug with wet hands. LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the unit and is easily accessible. LTo prevent the electric shock, use only the included audio cable with the transformer w…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This device is a Wireless Camera Unit, and has 281,475 billion digital security coding combinations that are provided by the following means: • Provided with 48bit (281,475billion) for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • This model and the host unit can register each other's security code while the registration mode.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201.348.7758 / Fax: 201.392.4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Date: August 11, 2005 Control No: PCTP-05-F016 731 Confirm No: EA643482 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Original Certification Application for FHSS System (FCC Equipment Code DSS) 2.4 GHz FHSS Wireless Camera with USB, Model KX-THA13 FCC Certification for FCC ID: ACJ96NKX-THA13 To Whom It May Concern: Enclosed, find Panasonic Corporation of North America’s original application for the subject transmitter. This product is in compliance with Part 15, Subpart C and Section 15.247. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request confidentiality for exhibits E, F, G and I, which contain Description of Electrical Circuitry, Schematic Diagram, Block Diagram and FHSS Description. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. The subject wireless camera uses frequency hopping spread spectrum operation within 2402~2480 MHz band. Also, it uses permanently attached dipole antenna with 2.14 dBi nominal antenna gain and has 120 mW maximum peak conducted output power. RF exposure evaluation is satisfied by MPE for mobile operation at 20 cm spacing with calculated results of 0.03915 mW/cm 2 . This wireless camera contains USB interface port. This portion of this product will be authorized under Declaration of Conformity in compliance with FCC Part 15B to meet Class B limits when computer system tested in accordance with ANSI C63.4-2003. This wireless camera may be used with associated cordless telephone base unit, which will be separately FCC certified under FCC ID: ACJ96NKX-TH102. Please advise the undersigned if you have any questions or comments for this filing. Thank you for your attention in this matter. Sincerely yours, Richard Mullen Richard Mullen Group Manager

Temporary Confidential EXTERNAL PHOTOGRAPHS KX-THA13 Temporary Confidential Back View

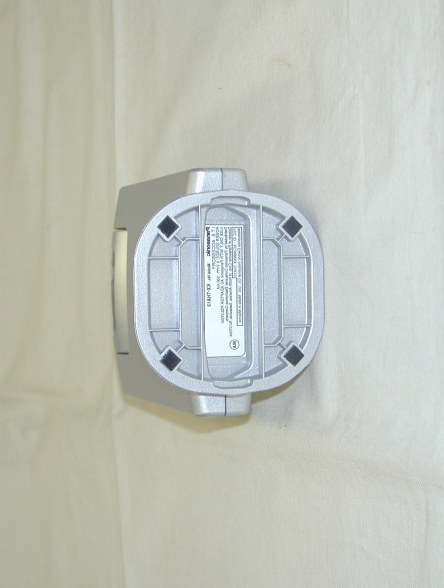

     Bottom View

EXHIBIT B MARKINGS This unit provides with the following markings, or equivalent. Above markings are shown on FCC ID Label bottom of the unit.

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Communications Co., Ltd. T ype of Equipment : W ireless Camera M odel No. : K X-TH A13 FCC ID: ACJ96NKX-THA13 Panasonic Communications Co., Ltd. declares that Model : W ireless Camera complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “KX-THA13“ has 120.23 mW of conducted Peak Output power and 196.79 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW (TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “KX-THA13“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) W here P = 120.23 mW (M aximum peak output power) G = 1.64 Numerical Antenna gain; equal 2.14dBi r =20.0 cm For: KX-THA13S = 0.03915mW/cm 2 No. : 25IE0111-HO-1 RF Exposure / SAR Statement Test report No. : 25IE0111-HO-1 Page : 2 of 58 Issued date : June 20, 2005 FCC ID : ACJ96NKX-THA13 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)..................................................................................... 3 SECTION 3: Test specification, procedures & results...................................................................... 4 SECTION 4: Operation of E.U.T. during testing .............................................................................. 6 SECTION 5: Conducted Emission...................................................................................................... 7 SECTION 6: Spurious Emission ......................................................................................................... 8 SECTION 7: Bandwidth ...................................................................................................................... 9 SECTION 8: Maximum Peak Output Power .................................................................................... 9 SECTION 9: Carrier Frequency Separation ..................................................................................... 9 SECTION 10: Number of Hopping Frequency ................................................................................. 9 SECTION 11: Dwell time..................................................................................................................... 9 APPENDIX 1: Photographs of test setup .........................................................................................10 Conducted Emission .............................................................................................................................. 10 Spurious Emission (Radiated)............................................................................................................... 11 Worst Case Position (Y-axis:Horizontal / X-axis:Vertical) ................................................................ 12 APPENDIX 2:Test instruments ......................................................................................................... 13 APPENDIX 3: Data of EMI test......................................................................................................... 14 Conducted Emission [Mode1] ............................................................................................................... 14 Conducted Emission [Mode2] ............................................................................................................... 18 [Mode1]................................................................................................................................................. 22 Carrier Frequency Separation [Mode1] .............................................................................................. 22 20dB Bandwidth [Mode1]...................................................................................................................... 24 Number of Hopping Frequency [Mode1].............................................................................................26 Dwell Time [Mode 1].............................................................................................................................. 29 Maximum Peak Output Power[Mode 1] ..............................................................................................32 Radiated Emission [Mode 1] ................................................................................................................. 33 Conducted Spurious Emission [Mode1] ............................................................................................... 37 [Mode2]................................................................................................................................................. 41 Carrier Frequency Separation [Mode2] .............................................................................................. 41 20dB Bandwidth [Mode2]...................................................................................................................... 43 Number of Hopping Frequency [Mode2].............................................................................................45 Dwell Time [Mode2].................................................................................…

Text truncated - open the document above for the full version.

Test report No. : 25IE0111-HO-1 Page : 10 of 58 Issued date : June 20, 2005 FCC ID : ACJ96NKX-THA13 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 25IE0111-HO-1 Page : 11 of 58 Issued date : June 20, 2005 FCC ID : ACJ96NKX-THA13 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Spurious Emission (Radiated) Front Rear Test report No. : 25IE0111-HO-1 Page : 12 of 58 Issued date : June 20, 2005 FCC ID : ACJ96NKX-THA13 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position (Y-axis:Horizontal / X-axis:Vertical) X-axis Y-axis Z-axis
