ACJ96NKX-THA162.4 GHz Wireless Speakerphone

Temporary Confidential This unit is compatible with Caller ID. To use this feature, you must subscribe to the appropriate service offered by your service provider. Please read these Operating Instructions before using the unit and save for future reference. For assistance, visit our website: http://www.panasonic.com for customers in the U.S.A. or Puerto Rico. 2.4 GHz Expandable Cordless Unit Model No. KX-THA16 Operating Instructions %QXGTHO2CIG6JWTUFC[/C[#/ Temporary Confidential Introduction 2 For assistance, please visit http://www.panasonic.com/consumersupport Expanding your phone You can expand the system by adding handsets (monochrome display handsets and color display handset), wireless camera unit, USB wireless adaptor, and repeater, sold separately. Using these accessories, you can have a video call, monitor on a room where the color display handset or wireless camera is located and taking pictures. Note: LUp to 8 handsets (KX-THA11/KX-THA12/KX-THA16) and up to 10 other Bluetooth featured units (KX-THA13/KX-THA14 and a maximum of 5 cellular phones) can be registered to a single base unit. A B C D G H F E TH102.book Page 8 Thursday, May 12, 2005 6:47 PM Temporary Confidential Introduction For assistance, please visit http://www.panasonic.com/consumersupport 3 Available accessory handsets 3 accessory handset models are available. Operations and features of 3 different accessory handsets have certain differences as indicated in the table below. *1 USB-support allows you to connect the handset to your PC and send pictures and songs from your PC to the handset, as well as create and edit phonebook entries using your PC. *2 For information on using this feature, refer to the help section of the GIGARANGE USB Utility software. If you have not installed the GIGARANGE USB Utility software, refer to the included “Installation Guide for GIGARANGE USB Utility” for details. FeatureKX-THA11KX-THA12KX-THA16Page Display typeMonochromeColorColor– Display size1.6 inch2 inch3.6 inch– Control type Joystick Navigator key Navigator key USB-support *1 rrr *2 Picture ID – rr Picture download feature – rr *2 Song record feature rrr Song download feature rrr *2 Wallpaper – rr Wallpaper download feature – rr *2 Memory status display – rr Video call – rr View monitor–rr Camera–rr Cellular featurerrr TH102.book Page 9 Thursday, May 12, 2005 6:47 PM Temporary Confidential Introduction 4 For assistance, please visit http://www.panasonic.com/consumersupport Important safety instructions When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on this unit. 3. Unplug this unit from power outlets before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this unit near water, for example near a bathtub, wash bowl, kitchen sink, etc. 5. Place the unit securely on a stable surface. Serious damage and/or injury may result if the unit falls. 6. Do not cover slots and openings on the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided. 7. Use only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. 8. Do not place objects on the power cord. Install the unit where no one can step or trip on the cord. 9. Do not overload power outlets and extension cords. This can result in the risk of fire or electric shock. 10. Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit. 11. To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an authorized service center when service is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used. 12. Unplug this unit from power outlets and refer servicing to an authorized service center when the following conditions occur: A. When the power cord is damaged or frayed. B. If liquid has been spilled into the unit. C. If the unit has been exposed to rain or water. D. If the unit does not work normally by following the operating instructions. Adjust only controls covered by the operating instructions. Improper adjustment may require extensive work by an authorized service center. E. If the unit has been dropped or physically damaged. F. If the unit exhibits a distinct change in performance. 13. During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning. 14. Do not use this unit to report a gas leak, when in the vicinity of the leak. SAVE THESE INSTRUCTIONS CAUTION: LDo not touch the plug with wet hands. LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the unit and is easily accessible. +PVTQFWEVKQPHO2CIG/QPFC[/C[2/ Temporary Confidential Introduction For assistance, please visit http://www.panasonic.com/consumersupport 5 Battery To reduce the risk of fire or injury to persons, read and follow these instructions. LUse only the battery(ies) specified. LDo not dispose of the battery(ies) in a fire. They may explode. Check with local waste management codes for special disposal instructions. LDo not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed. LExercise care when handling the battery(ies). Do not allow conductive materials such as rings, bracelets or keys to touch the battery(ies), otherwise a short circuit may cause the battery(ies) and/or the conductive material to overheat …

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This device is a Wireless Speakerphone, and has 281,475 billion digital security coding combinations that are provided by the following means: • Provided with 48bit (281,475billion) for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • This model and the host unit can register each other's security code while the registration mode.

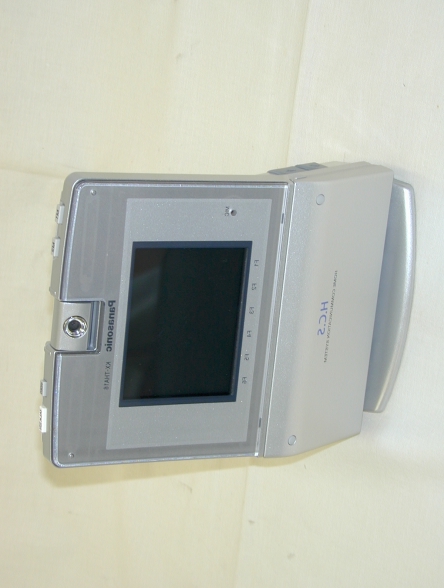

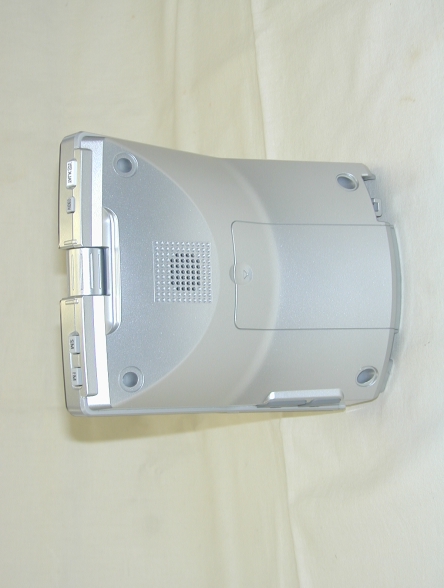

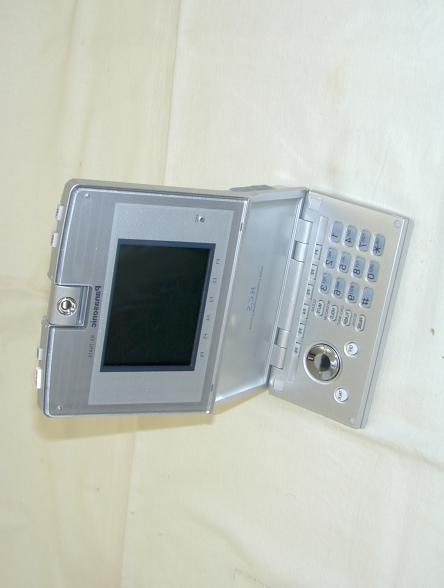

Temporary Confidential EXTERNAL PHOTOGRAPHS KX-THA16 Temporary Confidential KX-THA16 Operation Panel Open Temporary Confidential Back View Temporary Confidential Bottom View

EXHIBIT B MARKINGS This unit provides with the following markings, or equivalent. Above markings are shown on FCC ID Label bottom of the unit.

Temporary Confidential INTERNAL PHOTOGRAPHS Internal View Temporary Confidential RF Cover Open Temporary Confidential P.B. Board Another Side

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Communications Co., Ltd. Type of Equipment : W ireless Speakerphone Model No. : KX-THA16 FCC ID: ACJ96NKX-THA16 Panasonic Communications Co., Ltd. declares that M odel : W ireless Speakerphone com plies w ith FC C radiation exposure requirem ent specified in the FC C R ules 2.1093. The “KX-THA16“ has 88.31 mW of conducted Peak Output power and 144.54 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW (TCB Exclusion List) so that SA R testing is excluded. The Follow ing calculation is the reference data for 20cm distance. RF Exposure Calculations: The following inform ation provides the m inim um separation distance for the highest gain antenna provided with the “KX-THA16“ as calculated from FCC O ET Bulletin 65 A ppendix A , Table (B) Lim its for G eneral Population / U ncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G ) / (4* π * r 2 ) Where P = 88.31 mW (M aximum peak output power) G = 1.64 Numerical Antenna gain; equal 2.14dBi r =20.0 cm For: KX-THA16S = 0.02876mW/cm 2 No. : 25IE0109-HO-1 RF Exposure / SAR Statement Test report No. : 25IE0109-HO-1 Page : 2 of 68 Issued date : June 20, 2005 FCC ID : ACJ96NKX-THA16 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)..................................................................................... 3 SECTION 3: Test specification, procedures & results...................................................................... 4 SECTION 4: Operation of E.U.T. during testing .............................................................................. 6 SECTION 5: Conducted Emission...................................................................................................... 7 SECTION 6: Spurious Emission ......................................................................................................... 8 SECTION 7: Bandwidth ...................................................................................................................... 9 SECTION 8: Maximum Peak Output Power .................................................................................... 9 SECTION 9: Carrier Frequency Separation ..................................................................................... 9 SECTION 10: Number of Hopping Frequency ................................................................................. 9 SECTION 11: Dwell time..................................................................................................................... 9 APPENDIX 1: Photographs of test setup .........................................................................................10 Conducted Emission .............................................................................................................................. 10 Spurious Emission (Radiated)............................................................................................................... 11 Worst Case Position ............................................................................................................................... 12 APPENDIX 2:Test instruments ......................................................................................................... 13 APPENDIX 3: Data of EMI test......................................................................................................... 14 Conducted Emission [Mode 1] .............................................................................................................. 14 Conducted Emission [Mode 2] .............................................................................................................. 18 [Mode 1]................................................................................................................................................ 26 Carrier Frequency Separation [Mode 1].............................................................................................. 26 20dB Bandwidth [Mode 1]..................................................................................................................... 28 Number of Hopping Frequency [Mode 1] ............................................................................................30 Dwell Time [Mode 1].............................................................................................................................. 33 Maximum Peak Output Power [Mode 1] .............................................................................................36 Radiated Spurious Emission [Mode1] .................................................................................................. 37 Conducted Spurious Emission [Mode1] ............................................................................................... 42 [Mode 2]................................................................................................................................................ 46 Carrier Frequency Separation [Mode2]............................................................................................... 46 20dB Bandwidth [Mode2]...................................................................................................................... 48 Number of Hopping Frequency [Mode2] .............................................................................................50 Dwell Time [Mode2].....................................…

Text truncated - open the document above for the full version.

Test report No. : 25IE0109-HO-1 Page : 10 of 68 Issued date : June 20, 2005 FCC ID : ACJ96NKX-THA16 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 25IE0109-HO-1 Page : 11 of 68 Issued date : June 20, 2005 FCC ID : ACJ96NKX-THA16 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Spurious Emission (Radiated) Front Rear Test report No. : 25IE0109-HO-1 Page : 12 of 68 Issued date : June 20, 2005 FCC ID : ACJ96NKX-THA16 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position Main antenna (Y-axis:Horizontal / Y-axis:Vertical) Sub antenna (X-axis:Horizontal / X-axis:Vertical) X-axis Y-axis Z-axis
