ACJ96NKX-WP1050Wi-Fi Phone Base for Skype Service

Please read these Operating Instructions before using the unit and save for future reference. Charge the handset battery for 6 hours before initial use. Operating Instructions Wi-Fi Phone for Skype Executive Travel Set Model No. KX-WP1050 Temporary Confidential Table of Contents 2For assistance, please visit http://www.panasonic.com/phonehelp Introduction Feature highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Security caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Countries permitted to use this product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 For best performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Accessory information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Symbols and screen used in these operating instructions . . . . . . . . . . . . . . . . . . . . . . . 17 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Getting Started Setup flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Installing the base unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 While you are at a hotel room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 While you are at home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Setting the base unit for the first time (Initialization Wizard) . . . . . . . . . . . . . . . . . . . . . 27 Troubleshooting for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Setting up the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Base unit status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Powering on the handset (Signing in to Skype) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Handset displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 Power screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Setting the time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Managing Contacts Contacts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61 Adding contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Searching for Skype contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Contacts list options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Viewing a contact profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Blocking contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Making/Answering Calls Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 Answering calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Diverting calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71 Skype Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Useful features during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Temporary Confidential Table of Contents For assistance, please visit http://www.panasonic.com/phonehelp3 Managing History History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Personal Skype Status and Settings Personal Skype status and profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Personal Skype settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Handset Settings Wi-Fi network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 General settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Services Service information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Handset Locator Registering the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Locating the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Base Unit Settings Setting the base unit from Top Menu . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Power of Attorney & FCC Cover Letter Amended September 15, 2006 Control No. for Base: PCTP-06-F016 / AN06T6103 Control No. for Handset: PCTP-06-F017 / AN06T6104 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Compliance Certification Services to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15C, Section 15.247. Any and all acts carried out by CCS on our behalf shall have the same effects as acts of our own. Product Name: Wi-Fi Phone for Skype, Model KX-WP1050 System Base KX-WPA102 / Handset KX-WPA100 / AC Adaptor PQWEWP1050 Base FCC ID: ACJ96NKX-WP1050 Handset FCC ID: ACJ96NKX-WP1050A Product Specification: 11 channels of operation within 2412~2462 MHz Base 108.64 mW conduct peak RF output power Handset 130.62 mW peak conducted RF output power Wireless network interface is compatible with IEEE 802.11b/g WAN and LAN network interface ports are 10Base-T/100Base-TX Ethernet Type Modulation: Direct Sequence Spread Spectrum / Orthogonal Frequency Division Multiplexing FCC Part & Equipment Class: Part 15C, Section 15.247 / Digital Transmission System Antenna: Internal ¼ λ Monopole Antenna with +1 dBi antenna gain Base RF Exposure / MPE: Maximum Permissive Exposure for Mobile Operation. The User Manual is provided with warning notice regarding recommended minimum 20 cm spacing between antenna and user’s body and must not be co-located or used with another antenna or transmitter. Calculated MPE is 0.02721 mW/cm 2 Handset RF Exposure / SAR: Test Condition SAR [W/kg] With USB Cable SAR [W/kg] Without USB Cable Highest Head SAR of Antenna 0 0.169 W/kg 0.160 W/kg Highest Head SAR of Antenna 1 0.376 W/kg 0.368 W/kg Highest Body SAR of Antenna 0 0.887 W/kg 0.877 W/kg Highest Body SAR of Antenna 1 0.512 W/kg 0.558 W/kg Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Mfr: Panasonic Communications Co., Ltd. Sincerely, Richard Mullen Richard Mullen Group Manager

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality September 15, 2006 Control No. for Base: PCTP-06-F016 / AN06T6103 Control No. for Handset: PCTP-06-F017 / AN06T6104 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Wi-Fi Phone for Skype, Model KX-WP1050 System Base FCC ID: ACJ96NKX-WP1050 / Handset FCC ID: ACJ96NKX-WP1050A To whom it may concern; In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we hereby request permanent confidentiality for the following documents: Exhibit E: Description of Electrical Circuitry Exhibit F: Schematic Diagram Exhibit G: Block Diagram Appendix 1: Tune-Up Procedure (not required for unlicensed transmitter) Appendix 2: Parts List (not required for unlicensed transmitter) Appendix 3: Antenna Figure These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. The public disclosure of these exhibits might be harmful to our business and give unjustified benefit to our competitors. In accordance with FCC Public DA 04-1705, we hereby request short-term confidentiality for the following documents: Exhibit C-1: Part 15C Test Setup Photographs Exhibit C-2: SAR Test Setup Photographs Exhibit D: External and Internal Photographs Exhibit H: User Manual These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely, Richard Mullen Richard Mullen Group Manager

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division September 15, 2006 Control No. for Base: PCTP-06-F016 Subject: Base Unit, Model KX-WPA102 FCC ID: ACJ96NKX-WP1050 Assessment No.: AN06T6103 Notice No.: 1 Dear Helen Zhao / CCS Question #1: Exhibit C-3 (MPE for Base Unit) indicates "The "KX-WP1050 (KX-WPA102(Base Unit))" has 108.64 mW of conducted Peak Output power and 136.77 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW(TCB Exclusion List)", which is not true. 108.64 mW is greater than 60/2.437 = 24.62mW. The real reason you use MPE calculation to demonstrate RF exposure compliance is that the device is in mobile configuration (20 cm separation distance can be maintained between antenna and human bodies). Please update the file. Answer #1: It is our intention to declare the base unit is mobile and the user manual provides the required minimum 20 cm spacing warning. The provided RF Exposure Statement for the base unit was amended to remove SAR Compliance Statement and replace it with MPE Compliance Statement. Refer to uploaded amended MPE Statement. Question #2: This device is an 802.11b/g device, but the user manual only mentions 802.11b. You may need to update the user manual. Answer #2: The user manual affected pages were amended to reflect the base and handset supports 802.11b/g. Refer to uploaded amended user manual. Question #3: This is for your information. For unlicensed devices, parts list and tune-up procedure are not required. You can choose to submit anyway. On the other hand, antenna specification is much desired. Please upload antenna spec in future submission. Answer #3: We understand unlicensed transmitter need not be provided with tune-up procedure and parts list. Therefore, in the future, we will not submit these exhibits. The base and handset uses internal ¼ λ monopole antenna with nominal +1 dBi antenna gain. Refer to uploaded Appendix 3 for antenna specifications. Question #4: This is for your information. This application requires short term confidentiality on EUT photos, however, the test setup photos still show EUT photos, if you want to keep it confidential as well, please update Request for confidentiality letter to add EMC test setup photos. Answer # 4: Refer to uploaded amend Request for Confidentiality letter, which includes request for confidentiality for Appendix 3 for antenna specifications and short-term confidentiality for test set-up photographs. Sincerely, Richard Mullen Richard Mullen Group Manager

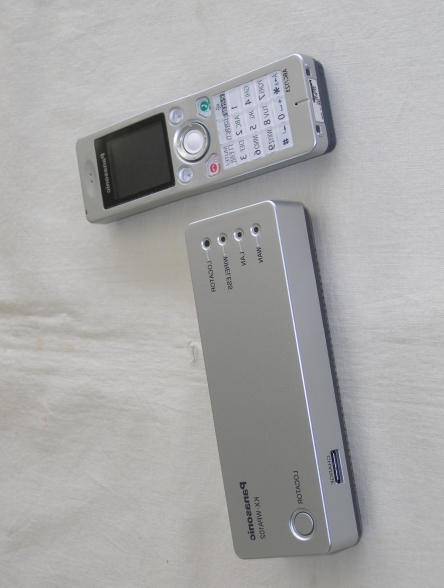

     EXTERNAL PHOTOGRAPHS Base Unit and Handset

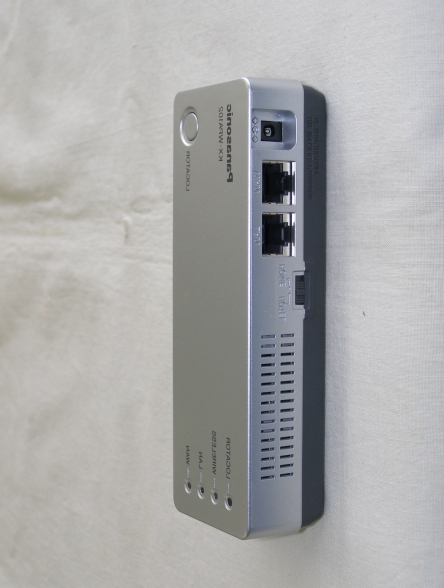

     Rear View
     Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label The marking will be shown on the battery compartment of the portable unit.

     INTERNAL PHOTOGRAPHS Internal View
     Metal Cover Removed
     P.C. Board (Another Side)

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Communications Co.,Ltd. Type of Equipment : Travel Phone Model No. : KX-WP1050 (KX-WPA102(Base Unit)) FCC ID: ACJ96NKX-WP1050 Panasonic Communications Co.,Ltd. declares that Model : KX-WP1050 (KX-WPA102(Base Unit)) complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). The “KX-WP1050 (KX-WPA102(Base Unit))“ has 108.64 mW of conducted Peak Output power and 136.77 mW of EIRP. This type of Equipment: Travel Phone (Base Unit) is used in the distance of more than 20cm from the human body. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “KX-WP1050 (KX-WPA102(Base Unit))“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 108.64 mW (Maximum peak output power) G = 1.26 Numerical Antenna gain; equal 1.00 dBi r =20.0 cm For: KX-WP1050 (KX-WPA102(Base Unit))S = 0.02721mW/cm 2 No. : 26KE0322-HO KX-WPA102(Base Unit) RF Exposure / MPE Statement

Test report No. : 26KE0322-HO-A-1 Page : 2 of 80 Issued date : August 25, 2006 Revised date : August 31, 2006 FCC ID / KX-WPA100(Hand Unit) : ACJ96NKX-WP1050A FCC ID / KX-WPA102(Base Unit) : ACJ96NKX-WP1050 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................8 SECTION 5: Conducted Emission....................................................................................................... 10 SECTION 6: Spurious Emission.......................................................................................................... 11 SECTION 7: Bandwidth ....................................................................................................................... 12 SECTION 8: Maximum Peak Output Power ..................................................................................... 12 SECTION 9: Peak Power Density........................................................................................................ 12 APPENDIX 1: Photographs of test setup ............................................................................................ 13 Conducted Emission ............................................................................................................................13 Spurious Emission (Radiated) ............................................................................................................14 Worst Case Position (Horizontal: Y-axis/ Vertical:Z-axis)..............................................................15 APPENDIX 2: Data of EMI test............................................................................................................ 17 Conducted Emission ............................................................................................................................17 6dB Bandwidth ....................................................................................................................................25 Maximum Peak OutPut Power...........................................................................................................31 Reference data of OutPut Power for SAR testing ............................................................................32 Radiated Spurious Emission (below 1GHz) ......................................................................................35 Radiated Spurious Emission (above 1GHz) ......................................................................................47 Conducted Spurious Emission............................................................................................................59 Conducted emission Band Edge compliance .....................................................................................71 Power Density ......................................................................................................................................73 APPENDIX 3:Test instruments ............................................................................................................ 79 Test report No. : 26KE0322-HO-A-1 Page : 3 of 80 Issued date : August 25, 2006 Revised date : August 31, 2006 FCC ID / KX-WPA100(Hand Unit) : ACJ96NKX-WP1050A FCC ID / KX-WPA102(Base Unit) : ACJ96NKX-WP1050 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name Panasonic Communications Co., Ltd. Brand name Panasonic Address 1-62, 4-chome Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Telephone Number +81-92-477-1405 Facsimile Number +81-92-477-1487 Contact Person Kunihiko Nawata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment Travel Phone Model No. KX-WP1050 KX-WPA100(Hand Unit) / KX-WPA102(Base Unit) Serial No. EUT S/N Used Test Item KX-WPA100 (Hand Unit) 1 Antenna Terminal Conducted Measurement (for the other tests except for Power test) Radiated Emission KX-WPA100 (Hand Unit) 2 Antenna Terminal Conducted Measurement (Power test) KX-WPA102 (Base Unit) 1 Conducted Emission Radiated Emission KX-WPA102 (Base Unit) 2 Antenna Terminal Conducted Measurement Country of Manufacture Japan Condition of EUT Engineering Prototype (Not for Sale: This sample is equivalent to mass-produced items.) Operation Clock (Hand Unit) CPU156MHz, Bus Clock 78MHz, RTC 32.768MHz, RFIC20MHz (Base Unit) CPU187MHz, Bus Clock 93.5MHz, RFIC20MHz Rating (Hand Unit) Battery : DC 3.6V, 730mAh (Base Unit)AC adaptor : AC100V – AC240V 50/60Hz (AC Adaptor: DC6V,1.5A) Receipt Date of Sample July 11, 2006 Modification of EUT No modification by the test lab. Test report No. : 26KE0322-HO-A-1 Page : 4 of 80 Issued date : August 25, 2006 Revised date : August 31, 2006 FCC ID / KX-WPA100(Hand Unit) : ACJ96NKX-WP1050A FCC ID / KX-WPA102(Base Unit) : ACJ96NKX-WP1050 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) 2.2 Product Description Equipment Type Transceiver Frequency of Operation 2412-2462 MHz Bandwidth & Channel spacing 22MHz&5MHz Type of Modulation DSSS / OFDM Method of frequency generation Crystal Power Supply (Inner) (Hand Unit) DC1.8V – 3.1%+3.0% DC3.2V +/- 5% (Base Unit) DC1.8V – 0.5%+0.8% DC3.3V – 1.6%+0.9% Antenna type 1/4 lambda Monopole ant…

Text truncated - open the document above for the full version.

Test report No. : 26KE0322-HO-A-1 Page : 13 of 80 Issued date : August 25, 2006 Revised date : August 31, 2006 FCC ID / KX-WPA100(Hand Unit) : ACJ96NKX-WP1050A FCC ID / KX-WPA102(Base Unit) : ACJ96NKX-WP1050 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Conducted Emission Base Unit and Hand unit Front Side Test report No. : 26KE0322-HO-A-1 Page : 14 of 80 Issued date : August 25, 2006 Revised date : August 31, 2006 FCC ID / KX-WPA100(Hand Unit) : ACJ96NKX-WP1050A FCC ID / KX-WPA102(Base Unit) : ACJ96NKX-WP1050 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emission (Radiated) Hand unit Front Rear Test report No. : 26KE0322-HO-A-1 Page : 15 of 80 Issued date : August 25, 2006 Revised date : August 31, 2006 FCC ID / KX-WPA100(Hand Unit) : ACJ96NKX-WP1050A FCC ID / KX-WPA102(Base Unit) : ACJ96NKX-WP1050 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Y-axis/ Vertical:Z-axis) Hand unit X-axis Y-axis Z-axis Test report No. : 26KE0322-HO-A-1 Page : 16 of 80 Issued date : August 25, 2006 Revised date : August 31, 2006 FCC ID / KX-WPA100(Hand Unit) : ACJ96NKX-WP1050A FCC ID / KX-WPA102(Base Unit) : ACJ96NKX-WP1050 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Radiated Emission Base Unit Front Rear
