ACJ96NKX-WP1050AWi-Fi Phone Handset for Skype Service

Please read these Operating Instructions before using the unit and save for future reference. Charge the handset battery for 6 hours before initial use. Operating Instructions Wi-Fi Phone for Skype Executive Travel Set Model No. KX-WP1050 Temporary Confidential Table of Contents 2For assistance, please visit http://www.panasonic.com/phonehelp Introduction Feature highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Security caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Countries permitted to use this product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 For best performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Accessory information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Symbols and screen used in these operating instructions . . . . . . . . . . . . . . . . . . . . . . . 17 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Getting Started Setup flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Installing the base unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 While you are at a hotel room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 While you are at home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Setting the base unit for the first time (Initialization Wizard) . . . . . . . . . . . . . . . . . . . . . 27 Troubleshooting for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Setting up the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Base unit status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Powering on the handset (Signing in to Skype) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Handset displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 Power screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Setting the time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Managing Contacts Contacts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61 Adding contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Searching for Skype contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Contacts list options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Viewing a contact profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Blocking contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Making/Answering Calls Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68 Answering calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Diverting calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71 Skype Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Useful features during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Temporary Confidential Table of Contents For assistance, please visit http://www.panasonic.com/phonehelp3 Managing History History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Personal Skype Status and Settings Personal Skype status and profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Personal Skype settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Handset Settings Wi-Fi network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83 General settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 Services Service information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Handset Locator Registering the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Locating the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Base Unit Settings Setting the base unit from Top Menu . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This system has 281,475 billion digital security coding combinations that are provided by the following means: • Provided with 48bit (281,475billion) for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Handset units know each other’s security code information.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Power of Attorney & FCC Cover Letter Amended September 15, 2006 Control No. for Base: PCTP-06-F016 / AN06T6103 Control No. for Handset: PCTP-06-F017 / AN06T6104 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Compliance Certification Services to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15C, Section 15.247. Any and all acts carried out by CCS on our behalf shall have the same effects as acts of our own. Product Name: Wi-Fi Phone for Skype, Model KX-WP1050 System Base KX-WPA102 / Handset KX-WPA100 / AC Adaptor PQWEWP1050 Base FCC ID: ACJ96NKX-WP1050 Handset FCC ID: ACJ96NKX-WP1050A Product Specification: 11 channels of operation within 2412~2462 MHz Base 108.64 mW conduct peak RF output power Handset 130.62 mW peak conducted RF output power Wireless network interface is compatible with IEEE 802.11b/g WAN and LAN network interface ports are 10Base-T/100Base-TX Ethernet Type Modulation: Direct Sequence Spread Spectrum / Orthogonal Frequency Division Multiplexing FCC Part & Equipment Class: Part 15C, Section 15.247 / Digital Transmission System Antenna: Internal ¼ λ Monopole Antenna with +1 dBi antenna gain Base RF Exposure / MPE: Maximum Permissive Exposure for Mobile Operation. The User Manual is provided with warning notice regarding recommended minimum 20 cm spacing between antenna and user’s body and must not be co-located or used with another antenna or transmitter. Calculated MPE is 0.02721 mW/cm 2 Handset RF Exposure / SAR: Test Condition SAR [W/kg] With USB Cable SAR [W/kg] Without USB Cable Highest Head SAR of Antenna 0 0.169 W/kg 0.160 W/kg Highest Head SAR of Antenna 1 0.376 W/kg 0.368 W/kg Highest Body SAR of Antenna 0 0.887 W/kg 0.877 W/kg Highest Body SAR of Antenna 1 0.512 W/kg 0.558 W/kg Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Mfr: Panasonic Communications Co., Ltd. Sincerely, Richard Mullen Richard Mullen Group Manager

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality September 15, 2006 Control No. for Base: PCTP-06-F016 / AN06T6103 Control No. for Handset: PCTP-06-F017 / AN06T6104 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Wi-Fi Phone for Skype, Model KX-WP1050 System Base FCC ID: ACJ96NKX-WP1050 / Handset FCC ID: ACJ96NKX-WP1050A To whom it may concern; In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we hereby request permanent confidentiality for the following documents: Exhibit E: Description of Electrical Circuitry Exhibit F: Schematic Diagram Exhibit G: Block Diagram Appendix 1: Tune-Up Procedure (not required for unlicensed transmitter) Appendix 2: Parts List (not required for unlicensed transmitter) Appendix 3: Antenna Figure These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. The public disclosure of these exhibits might be harmful to our business and give unjustified benefit to our competitors. In accordance with FCC Public DA 04-1705, we hereby request short-term confidentiality for the following documents: Exhibit C-1: Part 15C Test Setup Photographs Exhibit C-2: SAR Test Setup Photographs Exhibit D: External and Internal Photographs Exhibit H: User Manual These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely, Richard Mullen Richard Mullen Group Manager

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division September 15, 2006 Control No. for Handset : PCTP-06-F017 Subject: Handset Unit, Model KX-WPA100 FCC ID: ACJ96NKX-WP1050A Assessment No.: AN06T6104 Notice No.: 1 Dear Helen Zhao / CCS Question #1: This device is an 802.11b/g device, but the user manual only mentions 802.11b. You may need to update the user manual. Answer #1: The user manual affected pages were amended to reflect the base and handset supports 802.11b/g. Refer to uploaded amended user manual. Question #2 : The user manual does not contain body-worn operation restriction statement. Please add the following statement into the user manual: “For body-worn operation, the phone meets FCC RF exposure guidelines provided that it is used with a non-metallic accessory. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.” Answer #2: The user manual RF Exposure Requirements statement will be amended to reflect the following type wording. Refer to uploaded amended user manual. FCC RF Exposure Warnings: • This product complies with FCC radiation exposure limits set forth for an uncontrolled environment. • To comply with FCC RF exposure requirements, the base unit must be installed and operated with its antenna located 20 cm (8 inches) or more between product and all person’s body (excluding extremities of hands, wrist and feet). • This product may not be co-located or operated in conjunction with any other antenna or transmitter. • For body-worn operation, the handset must be used only with a non-metallic accessory. Use of other accessories may not ensure compliance with FCC RF exposure requirements. Question #3: This hand unit has built-in battery, in normal operation, the device is powered by battery. But the SAR test was done when the hand unit was in charging mode, not in normal operation, which is not acceptable. Based upon OET65 Supplement C page 45, "Most handsets and portable transmitters are battery operated. The devices should operate with a fully charged battery for each SAR test... Unless an external DC power adapter or other signal leads are required for the normal operation of a device, such as connecting a headset to the device for body-worn use, they should not be used in the SAR tests." When the USB cable is connected to PC, it will affect hot spot location and/or SAR value. Please redo SAR test when the hand unit operates with a fully charged battery and without USB cable connected. Answer #3: The provided complete SAR test report used connected USB cable to guarantee the battery capacity remained at its maximum potential to provide maximum RF output power during the SAR testing. Our engineering judgment was that the USB cable was not near the RF circuitry and antenna and as such, the employed USB cable should have little or no sufficient influence upon SAR test reports. However, we now understand FCC demands portable handset’s SAR test report must be preformed with fully charged battery and without any USB cable connected. Refer to uploaded additional SAR test results performed using multiple fully charged batteries and with no USB cable connected. These additional test results confirm there is no sufficient different between the initial and additional SAR test results. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Question #4: This is for your information. This application requires short term confidentiality on EUT photos, however, the test setup photos as well as SAR test report still show EUT photos, if you want to keep them confidential as well, please extract EUT photos and SAR test setup photos from the SAR report and submit as a separate document. Please resend Request for confidentiality letter (to add EMC test setup photos, SAR test setup photos), SAR test report (without photos) and SAR test setup photos. Answer #4: Refer to uploaded amend Request for Confidentiality letter, which includes request for confidentiality for Appendix 3 for antenna specifications and short-term confidentiality for test set-up photographs. Question #5 : This is for your information. Since Base Unit and Hand Unit are not sharing the same FCC ID, in future, please separate test data of Base Unit from that of Hand Unit, i.e. submit one test report for Base Unit, one report for Hand Unit. Answer #5: We understand that as the base unit and handset units have different FCC ID’s that their associated FCC Part 15C test reports should be separated into separate test reports. In the future, we will separate these type reports into separate reports under separate FCC ID’s. Sincerely, Richard Mullen Richard Mullen Group Manager

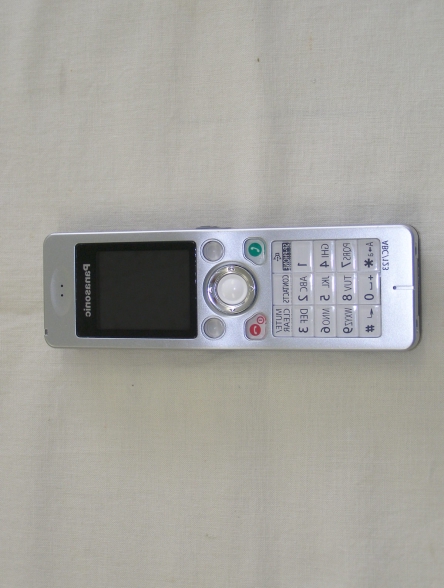

     EXTERNAL PHOTOGRAPHS Handset

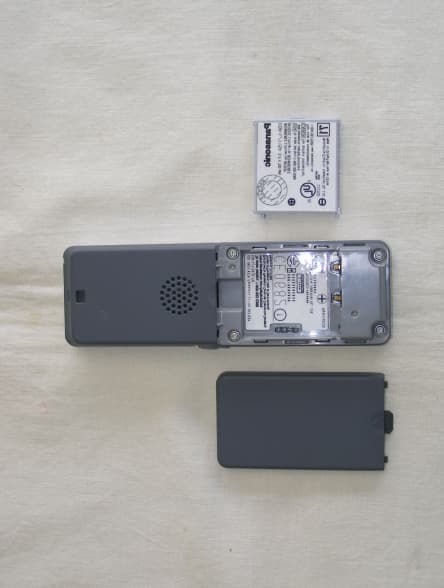

     Battery Cover Open

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label The marking will be shown on the battery compartment of the portable unit.

     INTERNAL PHOTOGRAPHS Internal View
     P.C. Board (Another Side)

Test report No. : 26KE0322-HO-E-3 Page : 1 of 144 Issued date : August 25, 2006 Revised data : September 15, 2006 FCC ID / KX-WPA100(Hand Unit)) : ACJ96NKX-WP1050A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SAR TEST REPORT Test Report No. : 26KE0322-HO-E-3 Applicant : Panasonic Communications Co., Ltd. Type of Equipment : Travel Phone Model No. : KX-WP1050 (KX-WPA100(Hand Unit)) FCC ID : ACJ96NKX-WP1050A(KX-WPA100(Hand Unit)) Test standard : FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C Test Result : Complied Max. SAR Measured : 0.887W/kg (Body, 2462MHz) 1. This test report shall not be reproduced except full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above standard. We hereby certify that the data contain a true representation of the SAR profile. 4. The test results in this test report are traceable to the national or international standards. Date of test : July 31-August 2, 2006/ September 13, 2006 Tested by : Miyo Ikuta Hisayoshi Sato EMC Services EMC Services Approved by : Hironobu Shimoji Group Leader of EMC Services NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have bee n performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://ulapex.jp/emc/nvlap.htm Test report No. : 26KE0322-HO-E-3 Page : 2 of 144 Issued date : August 25, 2006 Revised data : September 15, 2006 FCC ID / KX-WPA100(Hand Unit)) : ACJ96NKX-WP1050A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information ........................................................................................................................................................................ 3 SECTION 2 : Equipment under test (E.U.T.) .................................................................................................................................................... 3 2.1 Identification of E.U.T. ...................................................................................................................................... 3 2.2 Product Description............................................................................................................................................ 4 SECTION 3 : Test standard information ........................................................................................................................................................... 5 3.1 Requirements for compliance testing defined by the FCC ................................................................................. 5 3.2 Exposure limit .................................................................................................................................................... 6 SECTION 4 : Test result ...................................................................................................................................................................................... 7 4.1 Result of Max. SAR value.................................................................................................................................. 7 4.2 Outline of SAR test ............................................................................................................................................ 7 4.3 Test Location...................................................................................................................................................... 7 SECTION 5 : Operation of E.U.T. during testing ............................................................................................................................................. 8 5.1 Confirmation before SAR testing ....................................................................................................................... 8 5.2 Confirmation after SAR testing.......................................................................................................................... 8 5.3 Operating modes for SAR testing....................................................................................................................... 9 5.4 Description of the head test setup....................................................................................................................... 10 5.5 Description of the Body-worn test setup ............................................................................................................ 12 5.6 Antenna of EUT ................................................................................................................................................. 13 5.7 Method of Head / Body SAR Measurement....................................................................................................... 13 SECTION 6 : Test surrounding .......................................................................................................................................................................... 14 6.1 Measurement uncertainty ................................................................................................................................... 14 SECTION 7 : Results of confirmation before SAR testing............................................................................................................................... 15 7.1 Correlation of EMC power and SAR power....................................................................................................... 15 7.2 Reference data of SAR test (Data rate determing) ............................................................................................. 16 7.3 Result of Duty factor verifi…

Text truncated - open the document above for the full version.

Test report No. : 26KE0322-HO-E-3 Page : 31 of 144 Issued date : August 25, 2006 Revised data : September 15, 2006 FCC ID / KX-WPA100(Hand Unit)) : ACJ96NKX-WP1050A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : SAR Measurement data Test report No. : 26KE0322-HO-E-3 Page : 32 of 144 Issued date : August 25, 2006 Revised data : September 15, 2006 FCC ID / KX-WPA100(Hand Unit)) : ACJ96NKX-WP1050A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 1. Evaluation procedure The evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and the horizontal grid spacing was 15 mm x 15 mm . Based on these data, the area of the maximum absorption was determined by spline interpolation. Step 3: Around this point found in the Step 2 (area scan) , a volume of 30mm x 30mm x 30mm was assessed by measuring 7 x 7 x 7 points. And for any secondary peaks found in the Step2 which are within 2dB of maximum peak (level more than ambient noise (> 0.012 W/kg)) and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1). The data at the surface were extrapolated, since the center of the dipoles is 1mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.3 mm. The extrapolation was based on a least square algorithm [4]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2). The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1 g or 10 g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions) [4], [5]. The volume was integrated with the trapezoidal-algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. (3). All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1. Test report No. : 26KE0322-HO-E-3 Page : 33 of 144 Issued date : August 25, 2006 Revised data : September 15, 2006 FCC ID / KX-WPA100(Hand Unit)) : ACJ96NKX-WP1050A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2. Head measurement data of ANT.0 KX-WPA100(Hand Unit) / Head / Left cheek / Ant.0 / 2437MHz / 11b DBPSK (1Mbps) Crest factor: 1 Medium parameters used: f = 2450 MHz; σ = 1.88 mho/m; ε r = 37.7; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: Probe: EX3DV3 - SN3507; ConvF(8.26, 8.26, 8.26); Calibrated: 2006/05/26 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE3 Sn509; Calibrated: 2006/06/15 Phantom: SAM 1196 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.177 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.48 V/m; Power Drift = -0.063 dB Peak SAR (extrapolated) = 0.234 W/kg SAR(1 g) = 0.120 mW/g; SAR(10 g) = 0.061 mW/g Maximum value of SAR (measured) = 0.175 mW/g Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.48 V/m; Power Drift = -0.063 dB Peak SAR (extrapolated) = 0.157 W/kg SAR(1 g) = 0.093 mW/g; SAR(10 g) = 0.050 mW/g Maximum value of SAR (measured) = 0.126 mW/g Test Date = 08/01/06 Ambient Temperature = 25.0 degree C. Liquid Temperature = Before 23.8 degree C. , After 23.8 degree C. Test report No. : 26KE0322-HO-E-3 Page : 34 of 144 Issued date : August 25, 2006 Revised data : September 15, 2006 FCC ID / KX-WPA100(Hand Unit)) : ACJ96NKX-WP1050A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 KX-WPA100(Hand Unit) / Head / Left tilt / Ant.0 / 2437MHz / 11b DBPSK (1Mbps) Crest factor: 1 Medium parameters used: f = 2450 MHz; σ = 1.88 mho/m; ε r = 37.7; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: Probe: EX3DV3 - SN3507; ConvF(8.26, 8.26, 8.26); Calibrated: 2006/05/26 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE3 Sn509; Calibrated: 2006/06/15 Phantom: SAM 1196 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.186 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.99 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 0.243 W/kg SAR(1 g) = 0.125 mW/g; SAR(10 g) = 0.063 mW/g Maximum value of SAR (measured) = 0.179 mW/g Test Date = 08/01/06 Ambient Temperature = 25.0 degree C. Liquid Temperature = Before 23.8 degree C. , After 23.8 degree C. Test report No. : 26KE0322-HO-E-3 Page : 35 of 144 Issued date : August 25, 2006 Revised data : September 15, 2006 FCC ID / KX-WPA100(Hand Unit)) : ACJ96NKX-WP1050A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN …

Text truncated - open the document above for the full version.

Test report No. : 26KE0322-HO-E-3 Page : 61 of 144 Issued date : August 25, 2006 Revised data : September 15, 2006 FCC ID / KX-WPA100(Hand Unit)) : ACJ96NKX-WP1050A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 KX-WPA100(Hand Unit) / Body / Back / Ant.0 / 2462MHz / 11g BPSK (6Mbps) Crest factor: 1.1 Medium parameters used: f = 2450 MHz; σ = 2.01 mho/m; ε r = 50.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: Probe: EX3DV3 - SN3507; ConvF(8.24, 8.24, 8.24); Calibrated: 2006/05/26 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE3 Sn509; Calibrated: 2006/06/15 Phantom: SAM 1196 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Area Scan (81x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.598 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.9 V/m; Power Drift = 0.122 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 0.514 mW/g; SAR(10 g) = 0.210 mW/g Maximum value of SAR (measured) = 0.893 mW/g Test Date = 08/02/06 Ambient Temperature = 25.0 degree C. Liquid Temperature = Before 23.8 degree C. , After 23.8 degree C. Test report No. : 26KE0322-HO-E-3 Page : 62 of 144 Issued date : August 25, 2006 Revised data : September 15, 200…

Text truncated - open the document above for the full version.
