ACJ96NWV-SW174WNetwork Camera

Option Precautions for use Standard accessories This product has no power switch. When turning off the power, disconnect the power supply from the 12 V DC power supply. To keep on using with stable performance Do not use this camera in hot and humid conditions for a long time. Failure to observe this causes component degradation resulting in life shortening of this product. Do not expose this camera to direct heat sources such as a heater. Do not touch the lens cover with your bare hands. A dirty lens cover causes deterioration of picture quality. Handle this camera with care. Do not drop this camera, nor apply shock or vibration to this camera. Failure to observe this may cause trouble. About the PC monitor Displaying the same image on a monitor for a long time may damage the monitor. It is recommend- ed to use a screen-saver. When an error is detected, this product will restart automatically. This product will be inoperable for around 2 minutes after the restart just as when the power is turned on. Product disposal/transfer Data saved on this product or a storage device used with this product may lead to personal information leakage. When it is necessary to dispose or give this product to someone, even when for repair, make sure that there is no data on this product. Cleaning this product body Be sure to turn off the power before cleaning. Failure to observe this may cause injury. Do not use strong abrasive detergent when cleaning this product. Otherwise, it may cause discoloration. When the dirt is hard to remove, use a damp cloth and wipe the dirty areas. Then, wipe with a dry cloth to remove any moisture. Transmission interval Image transmission interval may become slow depending on the network environment, PC performance, shooting subject, access number, etc. Code label The code labels (accessory) are required at inquiry for trouble. Use caution not to lose these labels. It is recommended to paste one of the labels onto the CD-ROM case. About the MOS image sensor When continuously shooting a bright light source such as a spotlight, the color filter of the MOS ⿟ image sensor may have deteriorated and it may cause discoloration. Even when changing the fixed shooting direction after continuously shooting a spotlight for a certain period, the discolor- ation may remain. When shooting fast-moving subjects or performing panning/tilting operations, objects crossing ⿟ the shooting area may look to be bending askew. AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM Flickering Due to the influence of lighting, flickering may sometimes happen. In this case, select “Indoor scene” for “Light control mode”. Select “Indoor scene(50 Hz)” or “Indoor scene(60 Hz)” in accor- dance with the power supply frequency in your locality. Refer to the Operating Instructions (included in the CD-ROM) for further information about the setting. Under extremely strong lighting, flickering may happen even when “Indoor scene” is selected for “Light control mode”. When the brightness (illuminance) level on the screen is set to a relatively low level with the [Brightness] buttons, flickering may frequently happen. In such cases, either of the fol- lowing can reduce flickering. Moderate the illumination intensities of objects by changing the camera direction. ⿟ ⿟ Set the brightness (illuminance) level on the screen to a brighter level with the [Brightness] buttons. White-out on images caused by the effect of light control mode When “Indoor scene” is selected for “Light control mode”, the tone of the brighter parts on the screen may be deteriorated than the case when “ELC” is selected. Color blurring on detailed drawing patterns When there are detailed drawing patterns on images, color blurring may happen over these parts. Consumable parts The following are consumables: Replace them in accordance with their lives. Their lives vary depending on use environment and conditions. Lifetime is just an indication when using the camera at +20 °C {68 °F}. Panning motor, tilting motor, flat cable for tilting: Approx. 3.7 million operations. ⿟ Lens and pan/tilt head If a lens and pan/tilt head are not performed for a long period of time, the grease coating inside these parts may become sticky. That may obstruct the parts from moving. To prevent this, move the lens or pan/tilt head periodically. Flexible Stand (1 pc.)Connector Cover (1 pc.) Sunshade (1 pc.)Screw A (5 pcs.) Screw B (4 pcs.)Washer S (1 pc.)Washer L (1 pc.)Safety Wire (1 pc.) Self Bonding Tape (1 pc.) Foam Strip (1 pc.)Power cable plug (1 pc.) AC Adaptor (P model) (1 pc.) AC Cord (P model) (1 pc.) Extension Cord (P model) (1 pc.) Installation Guide (this document) ........(1 pc.) Configure the settings of the camera (leaflet) ... (1 pc.) Warranty card (P model) .......................(1 pc.) CD-ROM* 1 ............................................(1 pc.) Code label* 2 ..........................................(1 pc.) *1 The CD-ROM contains the operating instructions and different kinds of tool software programs. *2 This label may be required for network management. The network administrator shall retain the code label. Installation Guide Network Camera Model No. WV-SW174W/WV-SW174WE Cs0112-0 PGQX1100ZA Printed in China Main functions System requirements for a PC ● Corresponding to outdoor use This unit complies with waterproof and is able to install outdoors. (IEC 60529 compliant IP55) ● H.264 and JPEG triple encoding A total of 3 outputs, comprising of 2 H.264 outp…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Power of Attorney January 31, 2012 PSSD-12-F562 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Panasonic Corporation of North America hereby authorizes UL Japan to act on our behalf for a one year period from the date of this letter. Any and all acts carried out by them on our behalf shall have the same effects as acts of our own. Product Name: Panasonic Network Camera with built-in Wireless LAN, Model WV-SW174W FCC ID: ACJ96NWV-SW174W FCC Rule Parts: Certification: FCC Part 15C, Section 15.247 / Digital Transmission System Verification: FCC Part 15B / Class A Computing Device Peripheral TX Specification: 2412~2462 MHz WLAN with operation limited to 11 Channels within Canada & USA. Network Camera has built-in transceiver compatible with IEEE 802.11n/b/g (DSSS+OFDM) with two diversity antennas. Rated Max RF Output: 802.11n TX Mode: Ant 1: 169.43 mW / Antenna 2: 216.27 mW 802.11b TX Mode: Ant 1: 63.24 mW / Antenna 2: 89.95 mW 802.11g TX Mode: Ant 1: 161.81 mW / Antenna 2: 219.79 mW Antennas: Antenna 1 is pattern folded monopole with 2.0 dBi antenna gain Antenna 2 is pattern dipole with 2.1 dBi antenna gain Power Supply: AC Adaptor Model PQLV202 Input: AC 100~240V, 0.24A, 50/60 Hz Output: DC 12.0V RF Exposure: The Installation Guide will contain the following FCC RF Exposure Warning Notice: “To comply with FCC RF exposure requirements in uncontrolled environment: This equipment must be installed and operated in accordance with provided instructions and minimum 20 cm (8 inches) spacing must be provided between antenna and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division January 31, 2012 PSSD-12-F562 USA Sales Company: Panasonic System Communications Company of North America Unit of Panasonic Corporation of North America Three Panasonic Way, Secaucus, New Jersey 07094 U.S.A. Customer Support: 1.800.528.6747 / www.panasonic.com/business/ Canada Sales Company: Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada Customer Support: (905)624-5010 / www.panasonic.ca We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This Certification application has not been submitted to any other TCB for Certification. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Cc: Saito Kazumasa / Kouichi Okada / PSN-SSBU (otherwise known as PSSD1 for Camera Group) [email protected] / [email protected]

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality January 31, 2012 PSSD-12-F562 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Panasonic Network Camera with built-in Wireless LAN, Model WV-SW174W FCC ID: ACJ96NWV-SW174W To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Description of Electrical Circuitry • Schematic Diagram • Block Diagram • Antenna Construction Pursuant to DA 04-1705 of the commission’s public notice, we request short-term confidential treatment for the following information until April 15, 2012 in order to ensure sensitive business information remains confidential until the actual marketing of the device: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual (or sometimes known as Operation Instructions or Operational Description) The above materials contain trade secrets and proprietary information not customarily released to the general public. Since this design is a basis from which future technological products will evolve, the public disclosure of these materials can be harmful to the Applicant by providing unfair advantage and benefits to its competitors. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

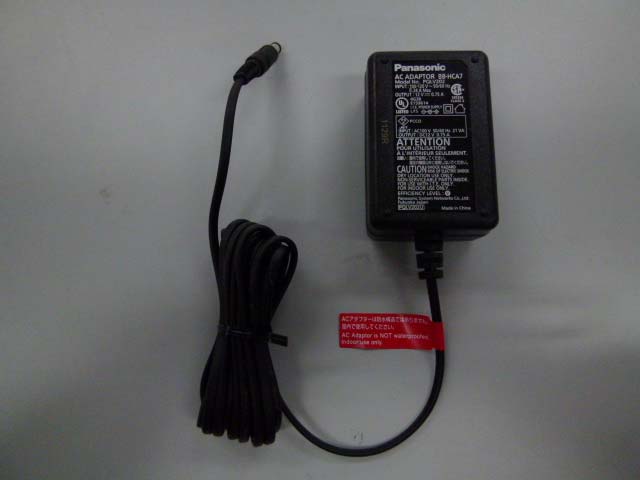

OVERALL VIEW Model: PQLV202 FRONT BACK TOP Bottom Right Side Left Side

Panasonic Corporation of North America FCC ID: ACJ96NWV-SW174W Model: WV-SW174W FRONT BACK Panasonic Corporation of North America FCC ID: ACJ96NWV-SW174W Model: WV-SW174W TOP Bottom Panasonic Corporation of North America FCC ID: ACJ96NWV-SW174W Model: WV-SW174W Right Side Left Side

Interrnal Photo Sid Side A Pa de A with Sh A without S anasonic Co FC hield Shield orporation o C ID: ACJ9 Mod of North Am 96NWV-SW del: WV-SW merica 174W 174W Interrnal Photo Pa Side B anasonic Co FC orporation o C ID: ACJ9 Mod of North Am 96NWV-SW del: WV-SW merica 174W 174W RF Substrate Front RF Substrate Back

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Corporation of North America Type of Equipment : Network Camera Model No. : WV-SW174W FCC ID: ACJ96NWV-SW174W Panasonic Corporation of North America declares that Model : WV-SW174W ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “WV-SW174W“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 219.79 mW (Maximum peak output power) G = 1.62 Numerical Antenna gain; equal to2.10 dBi r =20.0 c m For: WV-SW174WS =0.07091 mW/cm 2 No. : 32CE0047-HO-02 RF Exposure / MPE Calculation

Test report No. : 32CE0047-HO-02-A-R1 Page : 2 of 82 Issued date : January 26, 2012 Revised date : March 3, 2012 FCC ID : ACJ96NWV-SW174W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 Conducted Emission................................................................................................................... 12 6dB Bandwidth .......................................................................................................................... 24 Maximum Peak Output Power ................................................................................................... 27 Radiated Spurious Emission ...................................................................................................... 30 Conducted Spurious Emission ................................................................................................... 55 Conducted Emission Band Edge compliance............................................................................. 73 Power Density ............................................................................................................................ 74 99%Occupied Bandwidth........................................................................................................... 77 APPENDIX 2: Test instruments ............................................................................................................. 79 APPENDIX 3: Photographs of test setup ............................................................................................... 80 Conducted Emission................................................................................................................... 80 Radiated Spurious Emission ...................................................................................................... 81 Worst Case Position ................................................................................................................... 82 Test report No. : 32CE0047-HO-02-A-R1 Page : 3 of 82 Issued date : January 26, 2012 Revised date : March 3, 2012 FCC ID : ACJ96NWV-SW174W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Panasonic System Networks Co., Ltd. Address : 4-1-62, Minoshima, Hakata-ku, Fukuoka-city, Fukuoka, 812-8531 JAPAN Telephone Number : +81-92-477-1335 Facsimile Number : +81-92-477-1751 Contact Person : Hironori Kuribayashi * Panasonic System Networks Co., Ltd. is on behalf of the applicant : Panasonic Corporation of North America. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Camera Model No. : WV-SW174W Serial No. : Refer to Section 4, Clause 4.2 Rating : DC12.0V AC Adaptor:100-120V, 0.24A MAX, 50/60Hz Receipt Date of Sample : November 16, 2011 Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description This device is a 11bgn wireless network camera with 2.4GHz DSSS and OFDM modulation. It functions as a wireless network camera by establishing wireless link with a wireless router. It functions as a wireless camera by wireless link during start-up. It has one port for wired communication and it functions as a wired network camera. Nominal voltage: DC12.0V is supplied with the body by AC adaptor. Two diversity antennas are equipped with the device. General Specification Clock frequency(ies) in the system : 132MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : 11b: DSSS, 11g/n: OFDM Power Supply (radio part input) : DC 3.3V Antenna type : Ant 1: folded monopole antenna (pattern antenna) Ant 2: dipole antenna (pattern antenna) Antenna Gain : Ant 1: 2.0dBi Ant 2: 2.1dBi Test report No. : 32CE0047-HO-02-A-R1 Page : 4 of 82 Issued date : January 26, 2012 Revised date : March 3, 2012 FCC ID : ACJ96NWV-SW174W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz *The revision on February 1, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted …

Text truncated - open the document above for the full version.

Test report No. : 32CE0047-HO-02-A-R1 Page : 80 of 82 Issued date : January 26, 2012 Revised date : March 3, 2012 FCC ID : ACJ96NWV-SW174W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32CE0047-HO-02-A-R1 Page : 81 of 82 Issued date : January 26, 2012 Revised date : March 3, 2012 FCC ID : ACJ96NWV-SW174W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32CE0047-HO-02-A-R1 Page : 82 of 82 Issued date : January 26, 2012 Revised date : March 3, 2012 FCC ID : ACJ96NWV-SW174W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (ANT1: Horizontal: Y-axis/ Vertical: Z-axis) (ANT2: Horizontal: Y-axis/ Vertical: X-axis) X-axis Y-axis Z-axis
