ACJ9TAK-SAP14DECT 6.0 Wireless Access Point

1.9GHz Wireless Access Point K-SAP14 CONTENTS Important safety instructions Major operating controls and their functions Operating procedures Functions and settings Connections Precautions for installation Installation Specifications Accessories FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. Radio Frequency (RF) Exposure Warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. MEDICAL: Consult the manufacturer of any personal medical devices, such as pacemakers, to determine if they are adequately shielded from external RF (radio frequency) energy. The unit operates in the frequency range of 1.92 GHz to 1.93 GHz. Do not use the unit in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF (radio frequency) energy. Notice FCC ID can be found on the bottom of the units. The model number and serial number of this product may be found on the surface of the unit. You should note the model number and serial number of this unit in the space provided and retain this book as a permanent record of your purchase to aid identification in the event of theft. Model No. Serial No. WARNING: - The mains plug or an appliance coupler shall remain readily operable. - To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. - The connections should comply with local electrical code. - The installation shall be carried out in accordance with all applicable installation rules. - To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. - The apparatus should not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, should be placed on the apparatus. - All work related to the installation of this product should be made by qualified service personnel or system installers. - This product has no power switch. When turning off the power, disconnect the power supply from the PoE device. CAUTION: Before attempting to connect or operate this product, please read the label on the bottom. Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10) Only use attachments/accessories specified by the manufacturer. 11) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 12) Unplug this apparatus during lightning storms or when unused for long periods of time. 13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Major operating controls and their functions 2 3 1 6 4 5 [1]POWER indicator (Green/Red) This LED lights green when the power is on and this unit is receivable under normal conditions. This LED lights as follows to indicate other states: E2 signal output provided: lighting red ( For ONLR Alert) [2]LINK indicator [OPERATE] (Green/Red) This LED lights green when connecting with a receiver. This LED lights as follows to indicate other states: E2 signal output provided: lighting red ( For ONLR Alert) [3]MODE indicator (Green/Yellow/Red) This LED lights green when select for …

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Agency Authorization Letter March 26, 2015 PSSD-14-F050 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046-1609 Re: Original Certification for 1.9GHz DECT Wireless Access Point under FCC ID: ACJ9TAK-SAP14 Trade Name: Audio Enhancement Model Number: K-SAP14 To whom it may concern; The undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to all processes required in RF equipment authorization for the subject FCC ID. Any and all acts carried out by UL on our behalf, shall have the same effects as acts of our own. I acknowledge that all responsibilities for complying with the terms and conditions for certification, still reside with Panasonic Corporation of North America. This authorization shall expire six months from issued grant date. We certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Type Filing: Original Certification for 1.9GHz DECT Wireless Access Point FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID: 1 ACJ9TAK-SAP14 FCC Rule Part: 2 FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Authorized by, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department Cc: Panasonic System Networks Co., Ltd. Security Systems Business Division Attn: Yukio Kaneko / [email protected] Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Request for Confidentiality March 26, 2015 PSSD-14-F050 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046-1609 Re: Original Certification for 1.9GHz DECT Wireless Access Point under FCC ID: ACJ9TAK-SAP14 Trade Name: Audio Enhancement Model Number: K-SAP14 To Whom It May Concern, In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and is not provided with user tune-up procedure or parts list. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagram • Block Diagram • Theory of Operation In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs • User Manual The above materials contain trade secrets and proprietary information not customarily released to the general public. Since this design is a basis from which future technological products will evolve, the public disclosure of these materials can be harmful to the Applicant by providing unfair advantage and benefits to its competitors. Thank you for your attention to this matter. Authorized by, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department

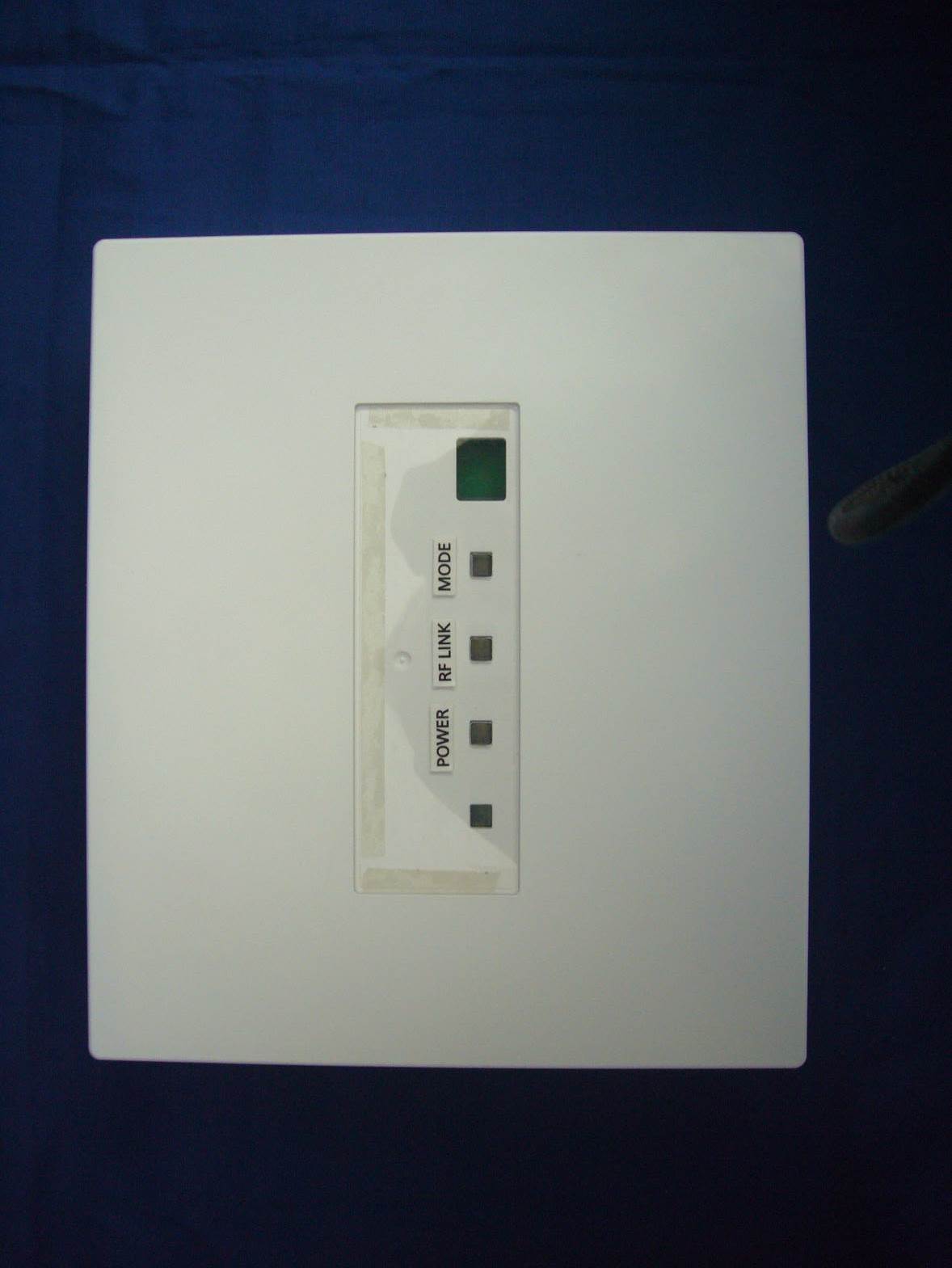

EXTERNAL PHOTOGRAPHS K-SAP14 Rear View

INTERNAL PHOTOGRAPHS Internal View Main Board RF Portion Back Side

FCC ID: ACJ9TAK-SAP14 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 15.80 (dBm) Maximum peak output power at antenna input terminal : 0.038 (W) Maximum antenna gain: 2.14 (dBi) Maximum antenna gain: 1.637 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0124 (mW/cm^2) Power density at prediction frequency: 0.124 (W/m^2) Maximum allowable antenna gain: 21.21 (dBi) Margin of Compliance: 19.07 (dB) 2 4 R PG S π =

Report No. 283083-1 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Transceiver in Wireless Receiver Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model K-SAP14 Rating 48V DC (Power over Ethernet) Trademark Panasonic Serial number / Additional information DECT 6.0, PoE Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 283083 Tested in period 2014.11.04 and 2015.03.10 2015.03.25 Issue date 2015.04.24 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: +47 22 96 03 30 FAX: +47 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 283083-1 FCC ID: ACJ9TAK-SAP14 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (45) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Digital Modulation Techniques ........................................................................................................ 10 3.3 Labeling Requirements ................................................................................................................... 10 3.4 Channel Frequencies ...................................................................................................................... 10 3.5 Antenna Requirement...................................................................................................................... 11 3.6 Automatic Discontinuation of Transmission .................................................................................... 11 3.7 Peak Power Output ......................................................................................................................... 12 3.8 Emission Bandwidth B ..................................................................................................................... 15 3.9 Power Spectral Density ................................................................................................................... 18 3.10 In-Band Unwanted Emissions, Conducted ...................................................................................... 21 3.11 Out-of-band Emissions, Conducted................................................................................................. 23 3.12 Carrier Frequency Stability .............................................................................................................. 28 3.13 Frame Repetition Stability ............................................................................................................... 29 3.14 Frame Period and Jitter ................................................................................................................... 29 3.15 Monitoring Threshold, Least Interfered Channel ............................................................................. 31 3.16 Threshold Monitoring Bandwidth ..................................................................................................... 33 3.17 Reaction Time and Monitoring Interval ............................................................................................ 34 3.18 Time and Spectrum Window Access Procedure ............................................................................. 36 3.19 Acknowledgements and Transmission Duration ..........................................................................…

Text truncated - open the document above for the full version.

FCC ID: ACJ9TAK-SAP14 Project no.: 283083 Page 1 of 1 PHOTOS OF TEST SET-UP – K-SAP14 Power-line Conducted Test
