ACJ9TAK-SRB20Receiver Board Module

Confidential Audio Enhancement Approval Panasonic. Approval Ver. 1.0 November 29, 2019 Panasonic Corporation DECT Microphone System Receiver Board Module for Specifications -2- Confidential ■ INDEX Ver. 1.0 ................................................................................................................. i 1. GENERAL ........................................................................................................ 4 2. FEATURES ...................................................................................................... 4 3. SPECIFICATIONS ............................................................................................ 4 3.1. Product Specifications ...................................................................................................... 4 3.2. Accessory ......................................................................................................................... 8 4. SAFETY REQUEST ......................................................................................... 9 5. BLOCK DIAGRAM ............................................................................................ 10 6. APPEARANCE ................................................................................................. 11 7. CONTROL TERMINAL SPECIFICATIONS ...................................................... 13 7.1. Electrical specifications ..................................................................................................... 13 8. PACKAGING SPECIFICATIONS ..................................................................... 16 8.1. Packaging specifications .................................................................................................. 16 9. FCC AND INDUSTRY CANADA REQUIREMENTS REGARDING THE END PRODUCT ............................................................................................................ 17 9.1. List of applicable FCC and IC rules .................................................................................. 17 9.2. FCC rules that must be complied with in the end product ................................................ 17 9.3. IC rules that must be complied with in the end product .................................................... 17 9.4. Requirement of regarding the end product and manual ................................................... 18 9.5. Notice ................................................................................................................................ 19 -3- Confidential No. Ver. Date Revision Change Time Sign Check 1 1.0 Draft The blue sentences is the changing points from K-SRC14 (Wireless Receiver). 29/Nov/ 2019 Mitsutoshi Nozawa Motoshi Suzuki -4- Confidential 1.GENERAL ・ These specifications describe the preliminary specifications of “Receiver Board Module for DECT Microphone System” for Audio Enhancement (AE). 2.FEATURES ・ Receiver Board Module has same features and outside interface as DECT Receiver （K-SRC14）. ・ System specifications and system functions including microphones are same as "DECT Microphone System" with Receiver, so refer to “DECT Microphone System for Audio Enhancement Specifications”, with replace "Receiver" to "Receiver board module. 3.SPECIFICATIONS 3.1.Product Specifications GENERAL Combined AE’s product : BEAM, XDSolo Power : 24VDC (minimum 21.6VDC~maximum 26.4VDC) input from AE’s product (BEAM or XDSolo) Input current : 130mA Dimensions : 150mm(W)x 114mm(H）x 18mm(D) Weight : 85g Temperature Range : 0 °C ~ +50°C (around Receiver Board Module) Humidity Range : ~ 90% The Condition of Installation : Indoor, Fixed Installation Mounting direction : Only vertical direction with antenna facing upward LINE Inputs The number of connectors : 1 Stereo input (Tip:Left, Ring:Right, Sleeve:GND) 1/8" (3.5 mm) Stereo phone Jack Internal Bus : Mono Mixing Input Level : -10dBV Unbalanced Input Impedance : 10kΩ or more OUTPUT The number of connectors : 1 Mono output (Mix output Unbalanced) 1/8" (3.5 mm) Stereo phone Jack Adapted Load Impedance : 10kΩ or more Nominal Output Level : -10dBV Residual Noise : -60dBV or less -5- Confidential OUTPUT (Amplifier interface) Connectors : RJ-45 (Type for LAN), connect to Amplifier Adapted Load Impedance : 10kΩ or more Nominal Output Level : Mic output 1,2 : -5dBV Balanced Mix output : 0dBV Balanced Residual Noise : -60dBV or less GENERL SPECIFICATIONS for AUDIO Cross talk : -45dB or more @1kHz Dynamic Range : 80dB or more (Line In to Mix output Balanced) : 80dB or more (Line In to Mix output Unbalanced) : 85dB or more (Receiver to Mic/Mix output Balanced) By auto level control function in Microphone Signal to noise ratio (S/N) : 60dB or more (Line In to Mix output Balanced) : 60dB or more (Line In to Mix output Unbalanced) : 60dB or more (Receiver to Mic/Mix output Balanced) Frequency Response : 100Hz ~ 7kHz, : 0dB±3dB (Line In to Mix output) : 0dB±3dB (Receiver to Mic output) Total Harmonic Distortion : 3.0% or less (Line In to Mix output) 3.0% or less (Receiver to Mic output) Attenuator : Built-in each output (Mic output 1,2, Mix output) 0 dB ~ -32dB /2step -32dB ~ -48dB /4step,-60dB,-70dB, OFF (Controlled from Pendant type microphone and RS-232C ) Mixing output attenuator : -10dB attenuator build in to mixing output. Set by dip switch FEEDBACK BLOCKER : Assignment : Mic Channe1 and Mic Channel 2 Filter : 5 band Filter Operation : 3 step operation 1st Step : Searching Feedback point and enable a filter 2nd Step: Add 6dB attenuation to 1st step 3rd Step: Full attenuation RESPONSE TONE Number of tone signal : Five tone signals are build-in ※refer to “AE DECT Mic Specification” -2.9 TONE” -6- Confidential OTHER FUNTIONS Teacher’s over ride : This function will work when voice come into input from Mic CH1 or CH2. Then Mix-output level will be set to fixed attenuate level. Available On/Off control by Dip switch Attenuation = 12dB or more Paging mute : When Paging mute terminal is activated, this function will b…

Text truncated - open the document above for the full version.

P anasonic Corporation of North America Two Riverfront Plaza, 9th Floor Newark, New Jersey, United States 07102-5490 RE FCC ID: ACJ9TAK-SRB20 To the certification reviewer: We are hereby applying for full modular approval of the above-referenced FCC ID, based on compliance with all the criteria as detailed below. P art 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i)The radio elements of the modular transmitter must have their own RF shielding. Yes, shielding is provided by a metal cover over the module circuitry. (ii)The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. Yes, all modulation and data inputs are buffered by circuitry on the transmitter chip. (iii)The modular transmitter must have its own power supply regulation. Yes, Power supply regulation is provided by circuitry on the power regulator chip. And source is from AC to DC power adaptor (iv)The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). Yes, The antenna is permanently attached. (v)The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Yes, The modular transmitter must be tested in a stand-alone configuration (vi)The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. I f the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Yes, A sample of the host label is provided as an exhibit, showing the FCC identifier of the module. (vii)The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes, The module complies fully with the operating requirements of Part 15 Sub part D as demonstrated in the test report exhibit. (viii)The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes, this module operates under Part 15 Sub part D, which is exempt from RF exposure evaluation owing to the very low operating power: Panasonic Corporation of North America Two Riverfront Plaza, 9th Floor Newark, New Jersey, United States 07102-5490 Sincerely,

Panasonic Corporation of North America Date: October 23, 2019 Product Safety & Compliance Department Ref. no.: PMBF-19-F005 Two Riverfront Plaza, 9 th Floor Newark, NJ 07102-5490 U.S.A. Letter of Agency for FCC Certification Sep. 25, 2019 To whom it may concern, Letter of Agency I, an officer of Panasonic Corporation of North America do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong / Melvin Nip / Jess Tang) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Ben Botros Project Manager

Panasonic Corporation of North America Product Safety & Compliance Department Two Riverfront Plaza, 9 th Floor Newark, NJ 07102-5490 U.S.A. Date: Sep. 25, 2019 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: ACJ9TAK-SRB20 Request is hereby submitted by Panasonic Corporation of North America withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Panasonic Corporation of North America reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Panasonic Corporation of North Americaand it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Ben Botros Project Manager

Nov 13, 2019 To whom it may concern, Declarations FCC ID: ACJ9TAK-SRB20 IC: 216M-KSRB20 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the K-SMS19 will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Receiver Board Module 1 Switch-off companion device NA 2 On hook by companion device NA 3 Remove power from companion device B 4 Switch-off device NA 5 On hook device NA 6 Remove power from device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. M L of Receiver Board Module declared by manufacturer are 30dBm. If you have questions or need further information, please contact the undersigned.

INTERTEK TESTING SERVICES External Photos Test Report Number: 19100875HKG-001, 19100875HKG-002 FCC ID: ACJ9TAK-SRB20 IC: 216M-KSRB20

注記 1 指示なき寸法公差は±0.2 2 印刷内容の詳細は版下による。 ファイル名：PUGT1005ZA_K-SRB20_20191107.OL.ai 3 裏面感圧接着剤付 4 印刷のかけ、にじみ、汚れ等無きこと。 5 ラベル材質はUL969,CSANotice219A～Dの規定に適合すること。 材質： 基 材ーリンテック(株)、白色ポリエステル蒸着なし、50μ、PAT1(No4615B#50) 基材色：白色 ラミネート材ーリンテック(株)、艶消しポリエステル練り込みNマット、25μ、PLシン(No3205A#25) 6 印刷色 地：基材色、文字：黒色 7 部品は台紙に貼り付けて納入のこと。 Attention 1 Tolerance is ±0.2,unless otherwise indicated. 2 D etails of the content of the print depend on the block copy. File Name：PUGT1005ZA_K-SRB20_20191107.OL.ai 3 Sensitized adhesive agent must be applied to rear side. 4 No lacking line characters blots and stains on printing. 5 The label materials must be conformed to rules of UL969 and CSA Notice 219 A-D. Texture(Base material) : Lintec Co., Ltd. Polyester of Background in white, 50μ, PAT1(No4615B#50) Base material color:Background in white. Laminate material : Lintec Co., Ltd. Polyester dulled gloss N mat, 25μ, PL SHIN (No3205A#25) 6 Print color : Background in Base material color, Characters in black. 7 The Name Plate should be attached on the separator. 2 1 PUGT1005ZA/C1 K-SRB20 パナソニック株式会社 ・パナソニックグループ化学物質管理ランク指針最新版(製品版)を遵守すること。 URL : http://www.panasonic.com/jp/corporate/management/procurement/ green.html ・Observe the Panasonic Group Chemical Substances Management Rank Guidelines latest version (For Products). URL : http://www.panasonic.com/global/corporate/management/procurement/ green.html 安全部品 量産手配図面 【 2019.11.17 】 ORDER DRAWING FOR MASS PRODUCTION ◆製品分類 生産国 Country Origin 生産会社 Manufacturer Name UL申請上の製品区分 UL application of Product categories 仕向地 Destination 無線機器 Wireless 屋外 Outdoor 国内 Domestic 中国 China 対象 Subjected対象外 Not Subjected 第一 1st Region 特定 Other（ ） 第二・第三 2nd/3rd Region UL60065UL60950 屋内 IndoorUL対象外 Not subject to UL ◆表示内容 仕向地 Destination主銘板別部品非表示 国内 Domestic 第一 1st Region Specified Electrical Appliance 特定電気用品 Electrical Appliance Except for Specified S-JQA 特定以外の電気用品 UL C-UL-US TYPE（ ）ENCLOSURE VCCI （ ） AB FCC/ICS （ ） AB 豪・NZ Australia/NZ RCM 共通 Standard 防水等級 Waterproof Grade IP（ ） 韓国 Korea KC ロシア Russia EAC GOST 中国 China CCC 中国 RoHS China RoHS 温帯地域限定使用マーク 高度限定使用マーク 第二・第三 2nd/3rd Region CE 事業者名・住所 SEMKO WEEE Company Name and Address CE 事業者名・住所 Company Name and Address Highlands ban mark Hot ban mark ＜注意＞ 記入は製品安全チェックリストに基づき記入し、図面は主銘板設計基準に沿って作成すること。 品番決定通知書を添付すること。 法規申請書または認証書を確認すること。 中国 PSNS ( 蘇州 ) MAIN LABEL Panasonic Corporation 24 ±0.3 24 ±0.3 4-R1 松田 ‘19.11.07 松田 ‘19.11.07 216M-KSRB20 松田 阿部有川 相浦

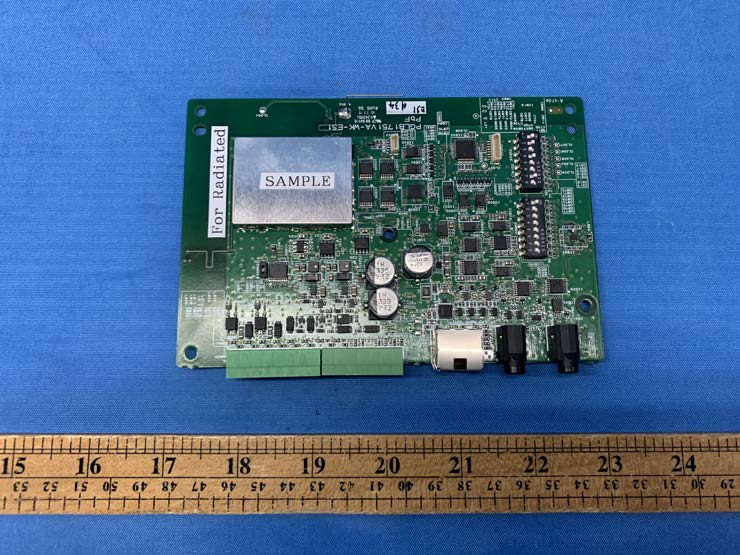

INTERTEK TESTING SERVICES Internal photos Test Report Number: 19100875HKG-001, 19100875HKG-002 FCC ID: ACJ9TAK-SRB20 IC: 216M-KSRB20 INTERTEK TESTING SERVICES Internal photos Test Report Number: 19100875HKG-001, 19100875HKG-002 FCC ID: ACJ9TAK-SRB20 IC: 216M-KSRB20 INTERTEK TESTING SERVICES Internal photos Test Report Number: 19100875HKG-001, 19100875HKG-002 FCC ID: ACJ9TAK-SRB20 IC: 216M-KSRB20

INTERTEK TESTING SERVICES FCC ID: ACJ9TAK-SRB20 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Receiver Board Module of tested model: K-SRB20, the measured powers among all the measured channels were within its production tolerance: +2 dBm (Minimum) and +17 dBm (Maximum).The antenna gain of K-SRB20 is 2.14 dBi = 1.64 (num gain) and its maximum source-based time-averaging duty factor is 16.7% (4/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 17 dBm = 50.1 mW The Conducted Power source-based time-averaging output power = (50.1 * 0.167) mW = 8.37 mW The power density at 20cm = 8.37 *1.64/ 4πR 2 = 0.0027214 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 59 TEST REPORT Report Number: 19100875HKG-001 Application For Original Grant of 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices/ (Receiver Board Module) FCC ID: ACJ9TAK-SRB20 Prepared and Checked by: Approved by: Signed On File Leung Chiu Kuen, Stanley Engineer Tang Kwan Mo, Jess Lead Engineer Date: November 28, 2019 TEST REPORT Panasonic Corporation of North America Intertek Report No: 19100875HKG-001 Page 2 of 59 GENERAL INFORMATION Grantee: Panasonic Corporation of North America Grantee Address: Two Riverfront Plaza, 9th Floor, Newark, NJ 07102-5490 United States FCC Specification Standard: FCC Part 15, October 1, 2018 Edition FCC ID: ACJ9TAK-SRB20 FCC Model(s): K-SRB20 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: Receiver Board Module Serial Number: N/A Sample Receipt Date: October 23, 2019 Date of Test: October 23, 2019 to November 26, 2019 Report Date: November 28, 2019 Environmental Conditions: Temperature: 0 to 50°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Panasonic Corporation of North America Intertek Report No: 19100875HKG-001 Page 3 of 59 TABLE OF CONTENTS 1.0 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE ............................................ 5 1.1 Summary of Test Results ................................................................................................ 5 1.2 Statement of Compliance .............................................................................................. 6 2.0 GENERAL DESCRIPTION ................................................................................................ 7 2.1 Product Description......................................................................................................... 7 2.2 Technical Description ...................................................................................................... 7 2.3 Test Methodology ........................................................................................................... 7 2.4 Test Facility ..................................................................................................................... 7 3.0 SYSTEM TEST CONFIGURATION .................................................................................... 8 3.1 Justification ..................................................................................................................... 8 3.2 Radiated Emission Test Setup ......................................................................................... 9 3.3 AC Line Conducted Emission Test Setup ........................................................................ 10 3.4 Conducted Emission Test Configuration ........................................................................ 11 3.5 Conducted Monitoring and Operational Test Configuration ......................................... 11 3.6 EUT Exercising Software ................................................................................................ 11 3.7 Details of EUT and Description of Accessories ............................................................... 12 3.8 Measurement Uncertainty ............................................................................................ 12 4.0 MEASUREMENT RESULTS ........................................................................................... 13 4.1 Antenna Requirement ................................................................................................... 13 4.2 Digital Modulation Techniques...................................................................................... 13 4.3 Emission Bandwidth ...................................................................................................... 14 4.4 Directional Gain of the Antenna .................................................................................... 17 4.5 Peak Transmit Power .................................................................................................... 18 4.6 Power Spectral Density ................................................................................................. 21 4.7 Automatic Discontinuation of Transmission .................................................................. 24 4.8 Unwanted Emission Inside the Sub-Band ...................................................................... 25 4.9 Emissions Outside the Sub-Band ................................................................................... 30 4.9.1 Radiated Emissions Configuration Photographs ..........................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 19100875HKG-001, 19100875HKG-002 FCC ID: ACJ9TAK-SRB20 IC: 216M-KSRB20 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 19100875HKG-001, 19100875HKG-002 FCC ID: ACJ9TAK-SRB20 IC: 216M-KSRB20 AC Conducted Emission Front View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 19100875HKG-001, 19100875HKG-002 FCC ID: ACJ9TAK-SRB20 IC: 216M-KSRB20 AC Conducted Emission Side View 2
