ACJ9TAWJ-VR3004Wireless LAN Module

1 For U.S.A FCC CAUTION Changes or modifications no expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interfer- ence to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. For Canada CAN ICES-3(A)/NMB-3(A) Compliance statement and notification This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2 For U.S.A. <FCC Information> Information to to Be Supplied to the End User by the Installer or Integrator If the FCC ID of this module is not visible from the outside of the end product, to satisfy FCC exterior labeling requirements, the end product must be labeled in a visible area with the fol- lowing: “Contains FCC ID: ACJ9TAWJ-VR3004” The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Operating near 2.4 GHz electrical appliances may cause interference. Move away from the electrical appliances. Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. This device is master equipment, 5.15-5.25GHz, 5.58-5.66GHz band is restricted to indoor operations only. Frequency Tolerance: ± 50 ppm (2.4GHz band), ± 20 ppm (5GHz band) Radio Frequency (RF) Exposure Warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled en- vironment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). MEDICAL: Consult the manufacturer of any personal medical devices, such as pacemakers, to determine if they are adequately shielded from external RF (radio frequency) energy. The unit operates in the frequency range of 2.412 GHz to 2.462 GHz and/or 5.180 GHz to 5.85 GHz. Do not use the unit in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF (radio frequency) energy. . body. 3 For Canada <IC Information> Information to to Be Supplied to the End User by the Installer or Integrator If the IC ID of this module is not visible from the outside of the end product, to satisfy IC exte- rior labeling requirements, the end product must be labeled in a visible area with the following: “Contains IC: 216A-WJVR3004” The following regulatory and safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations. Informations à fournir à l’utilisateur final par l’installateur ou l’intégrateur Afin de satisfaire les exigences en matière d’étiquetage externe IC, si l’identification IC de ce module n’est pas visible sur le produit final, celui-ci doit être muni d’une étiquette apposée dans une zone visible avec les indications suivantes : “Contient IC : 216A-WJVR3004” Les consignes de contrôle et de sécurité suivantes doivent être publiées dans la documenta- tion fournie à l’utilisateur final du produit ou du système intégrant un adaptateur conformé- ment aux règlements locaux. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired opera- tion of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that neces- sary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maxi…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Agent Authorization Letter May 22, 2014 PSSD-14-F020 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan Re: Original Certification for Modular Approval for Panasonic WLAN Module Model WJ-VR3004 under FCC ID: ACJ9TAWJ-VR3004 To whom it may concern: The undersigned, Panasonic Corporation of North America, hereby authorizes Yoshihisa Maeda of Consumer Technology Division, UL Japan, Inc. (UL) to act on our behalf in all matters relating to all processes required in RF equipment authorization for the subject FCC ID. Any and all acts carried out by UL on our behalf, shall have the same effects as acts of our own. I acknowledge that all responsibilities for complying with the terms and conditions for certification, still reside with Panasonic Corporation of North America. This authorization shall expire six months from issued grant date. We certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety & Compliance Division Cc: Yukio Kaneko Panasonic System Networks Co., Ltd. Security Systems Business Division Email: [email protected]

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Request for Modular Approval Letter May 22, 2014 PSSD-14-F020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046-1609 Re: Original Certification for Modular Approval for Panasonic WLAN Module Model WJ-VR3004 under FCC ID: ACJ9TAWJ-VR3004 Panasonic Module Model WJ-VR3004 is designed by Panasonic System Networks Co., Ltd. / Security Systems Business Division . It complies with the modular transmitters basic requirements (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: Modular approval requirement Yes No (1) Have its’ own RF shielding. (2) Have buffered modulation/data inputs. (3) Have its’ own power supply regulation. Module’s DC/DC converter provides DC3.3V/1.8V stable input to its’ RF input. (4) Comply with the antenna and transmission system requirements of § 15.203, 15.204(b) and 15.204(c). Provided with Ext Antenna with unique connectors (5) Tested in a stand-alone configuration. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Request for Modular Approval Letter May 22, 2014 PSSD-14-F020 (6) Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Plug-In Module’s outer enclosure and its FCC ID label can be seen when installed into host product. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. Satisfies RF exposure evaluation for mobile operation with MPE and provide min 20 cm spacing between antenna and all person’s body. Sincerely, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety & Compliance Division

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Request for Confidentiality May 22, 2014 PSSD-14-F020 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan Re: Original Certification for Modular Approval for Panasonic WLAN Module Model WJ-VR3004 under FCC ID: ACJ9TAWJ-VR3004 To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagram • Block Diagram • Operational Description / Theory of Operation In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs and Test Set-up Configuration • User Manual The above materials contain trade secrets and proprietary information not customarily released to the general public. Since this design is a basis from which future technological products will evolve, the public disclosure of these materials can be harmful to the Applicant by providing unfair advantage and benefits to its competitors. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety & Compliance Division

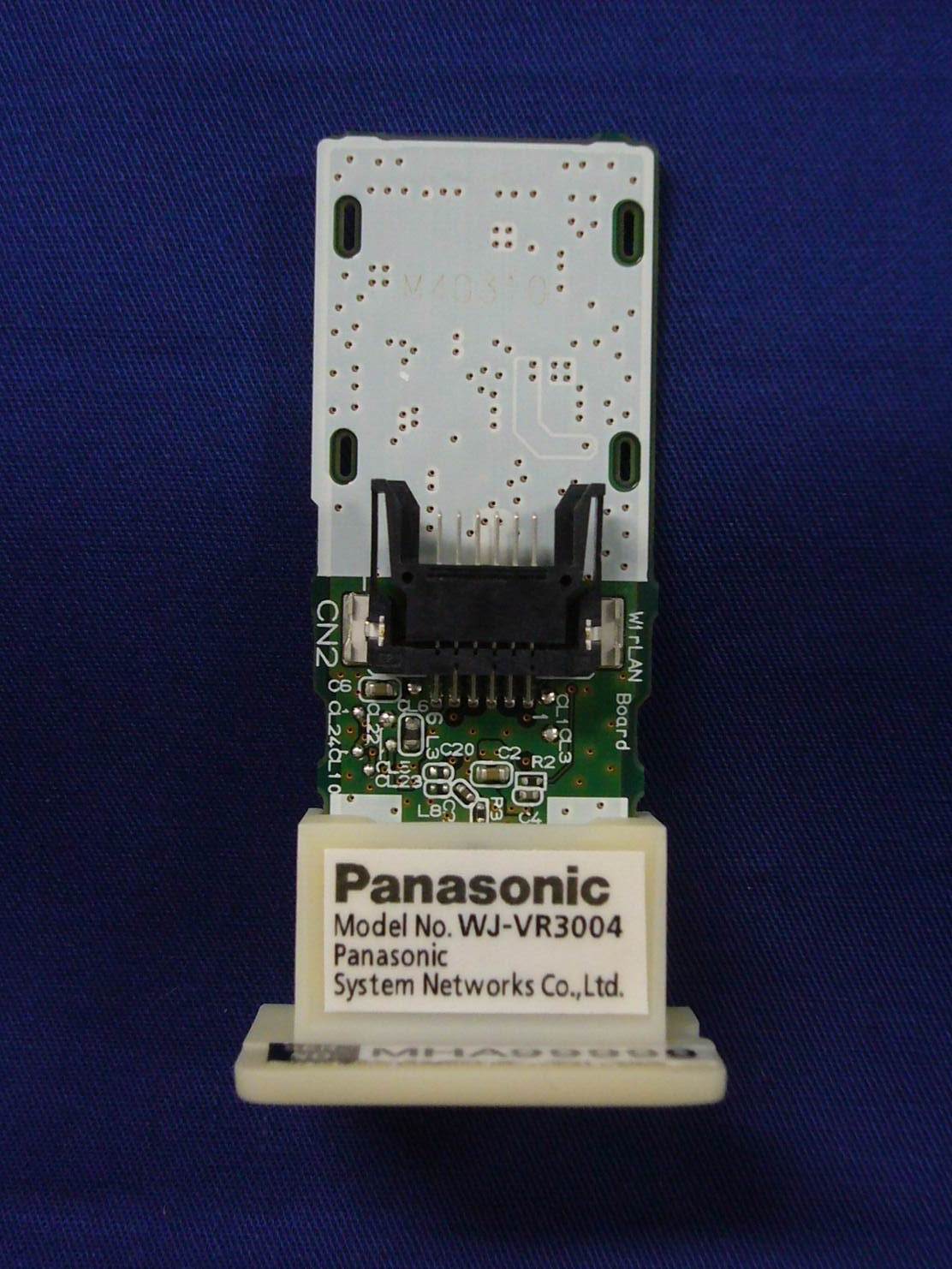

EXTERNAL PHOTOGRAPHS WJ-VR3004 Bottom View Front View Overall View with Antenna

MARKINGS Center Module: FCC/IC ID: Below markings is shown on the front side of the module. Nameplate: Serial No.: Nameplate Top View Bottom View Serial No. This unit cannot be easily removed from the board because it is fixed by screws.

TAIYO YUDEN CO., LTD. CONFIDENTIAL WYSBCVJXM External Photo Upper side Lower side TAIYO YUDEN CO., LTD. CONFIDENTIAL WYSBCVJXM Internal Photo Upper side Lower side

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Applicant: Panasonic Corporation of North America Type of Equipment : Model No. : WJ-VR3004 FCC ID: ACJ9TAWJ-VR3004 Panasonic Corporation of North America declares that Model : WJ-VR3004 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “WJ-VR3004“ as calculate d from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 40.73 mW (Maximum conducted output power) G = 0.80 Numerical Antenna gain; equal to-0.98 dBi (Antenna Gain + Cable loss) r =20.0 cm G is Antenna Gain with cable loss For: WJ-VR3004S =0.00647 mW/cm 2 No. : 10229481H RF Exposure / MPE Calculation Wireless LAN module (11a/n-20 (5GHz/5280-5320MHz), 11n-40 (5GHz/5310MHz)

Test report No. : 10229481H-B-R2 Page : 2 of 43 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10229481H-B Revision Test report No. Date Page revised Contents - (Original) 10229481H-B May 20, 2014 - - 1 10229481H-B-R1 May 26, 2014 P.5 Correction of FCC Part 15.203/212 Antenna requirement sentence 1 10229481H-B-R1 May 26, 2014 P.9 Correction of Cable name 1 10229481H-B-R1 May 26, 2014 P23, 24 -Correction of test data (Deleted antenna gain) -Addition of calculating formula 2 10229481H-B-R2 June 2, 2014 P.4 Change of radio specification from Antenna gain to Antenna gain with cable loss 2 10229481H-B-R2 June 2, 2014 P.8, 13, 20-22 Correction of test name from Maximum Peak Output Power to Maximum Conducted Output Power 2 10229481H-B-R2 June 2, 2014 P.20-22Addition of test result (Cond.) in mW. Addition of “with cable loss” in calculation formula for Result (e.i.r.p.). 2 10229481H-B-R2 June 2, 2014 P.22, 23Addition of test result in mW. Test report No. : 10229481H-B-R2 Page : 3 of 43 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................. 8 SECTION 5: Conducted Emission .........................................................................................................10 SECTION 6: Radiated Spurious Emission and Band Edge Compliance ...........................................11 SECTION 7: Antenna Terminal Conducted Tests ...............................................................................13 APPENDIX 1: Data of EMI test ..............................................................................................................14 Conducted Emission ........................................................................................................................14 26dB Emission Bandwidth and 99% Occupied Bandwidth .............................................................15 Maximum Conducted Output Power ...............................................................................................20 Peak Power Spectral Density ...........................................................................................................23 Radiated Spurious Emission ............................................................................................................32 Conducted Spurious Emission .........................................................................................................36 Peak Excursion Ratio .......................................................................................................................37 APPENDIX 2: Test instruments .............................................................................................................39 APPENDIX 3: Photographs of test setup ..............................................................................................41 Conducted Emission ........................................................................................................................41 Radiated Spurious Emission ............................................................................................................42 Worst Case Position .........................................................................................................................43 Test report No. : 10229481H-B-R2 Page : 4 of 43 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Panasonic System Networks Co., Ltd.* Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-853 Japan Telephone Number : +81-50-3380-6162 Facsimile Number : +81-92-477-1487 Contact Person : Yukio Kaneko * Panasonic System Networks Co., Ltd. is on behalf of the applicant: Panasonic Corporation of North America. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model No. : WJ-VR3004 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC10.5V Receipt Date of Sample : March 24, 2014 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 32.768kHz, 38.4MHz Radio Specification [WLAN (IEEE802.11a/b/g/n-20)] Equipment Type Transceiver Frequency of Operation 2412-2462MHz W53: 5280-5320MHz W58: 5745-5825MHz Type of Modulation DSSS, OFDM OFDM Antenna Type Dual (Planar patch) Dual (Inverted F) Antenna connecter type Module side: Rectangular Coaxial Connector (SMT) Antenna side: RP-SMA Antenna Gain with cable loss 0.58dBi (2.4GHz) -0.98dBi (5GHz) [WLAN (IEEE802.11n-40)] Equipment Type Transceiver Frequency of Operation 2422-2452MHz W53: 5310MHz W58: 5755-5795MHz Type of Modulation OFDM OFDM Antenna Type Dual (Planar patch) Dual (Inverted F) Antenna connecter type Module side: Rectangular Coaxial Connector (SMT) Antenna side: RP-SMA Antenna Gain with cable loss 0.58dBi (2.…

Text truncated - open the document above for the full version.

Test report No. : 10229481H-C-R1 Page : 2 of 84 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10229481H-C Revision Test report No. Date Page revised Contents - (Original) 10229481H-C May 20, 2014 - - 1 10229481H-C-R1 June 2, 2014 P.4, 10 Change of radio specification from Antenna gain to Antenna gain with cable loss Test report No. : 10229481H-C-R1 Page : 3 of 84 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................................ 4 SECTION 3: Scope of Report................................................................................................................................. 5 SECTION 4: Test specification, procedures & results ......................................................................................... 5 SECTION 5: Operation of E.U.T. during testing ............................................................................................... 10 SECTION 6: U-NII Detection Bandwidth ........................................................................................................... 19 SECTION 7: Initial Channel Availability Check Time ..................................................................................... 21 SECTION 8: Radar Burst at the Beginning of the Channel Availability Check Time ................................... 22 SECTION 9: Radar Burst at the End of the Channel Availability Check Time ............................................. 23 SECTION 10: Channel Move Time, Channel Closing Transmission Time ..................................................... 24 SECTION 11: Non-Occupancy Period ................................................................................................................ 29 SECTION 12: In-Service Monitoring(Statistical Performance Check) ........................................................... 30 APPENDIX 1: Data of DFS test ............................................................................................................................ 32 APPENDIX 2: Test instruments ........................................................................................................................... 83 APPENDIX 3: Photographs of test setup ............................................................................................................ 84 Test report No. : 10229481H-C-R1 Page : 4 of 84 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Panasonic System Networks Co., Ltd.* Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-853 Japan Telephone Number : +81-50-3380-6162 Facsimile Number : +81-92-477-1487 Contact Person : Yukio Kaneko * Panasonic System Networks Co., Ltd. is on behalf of the applicant: Panasonic Corporation of North America. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model No. : WJ-VR3004 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC10.5V Receipt Date of Sample : March 24, 2014 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 32.768kHz, 38.4MHz Radio Specification [WLAN (IEEE802.11a/b/g/n-20)] Equipment Type Transceiver Frequency of Operation 2412-2462MHz W53: 5280-5320MHz W58: 5745-5825MHz Type of Modulation DSSS, OFDM OFDM Antenna Type Dual (Planar patch) Dual (Inverted F) Antenna connecter type Module side: Rectangular Coaxial Connector (SMT) Antenna side: RP-SMA Antenna Gain with cable loss 0.58dBi (2.4GHz) -0.98dBi (5GHz) [WLAN (IEEE802.11n-40)] Equipment Type Transceiver Frequency of Operation 2422-2452MHz W53: 5310MHz W58: 5755-5795MHz Type of Modulation OFDM OFDM Antenna Type Dual (Planar patch) Dual (Inverted F) Antenna connecter type Module side: Rectangular Coaxial Connector (SMT) Antenna side: RP-SMA Antenna Gain with cable loss 0.58dBi (2.4GHz) -0.98dBi (5GHz) Test report No. : 10229481H-C-R1 Page : 5 of 84 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Scope of Report This report only covers DFS requirement, as specified by the following referenced procedures. SECTION 4: Test specification, procedures & results 4.1 Test Specification Test Specification : FCC Part 15 Subpart E: 2014, final revised on May 1, 2014 and effective June 2, 2014* * The revision on May 1, 2014 does not affect the test specification applied to the EUT. Title : FCC 47CFR Part15 Radio Frequency Device Subpart E Unlicensed National Information Infrastructure Devices Section 15.407 General technical requirements Test Specification : KDB905462 APPENDIX B Title : COMPLIANCE MEASUREMENT PROCEDURES FOR UNLICENSED- NATIONAL INFORMATION INFRASTRUCTURE DEVICES OPERATING IN THE 5.25-5.35GHz AND 5.47-5.725GHz BANDS INCORPORATING DYNAMIC FREQUENCY SELECTION FCC 15.31 (e) The RF Module has its own regulator. The RF Module is constantly provided voltage (D…

Text truncated - open the document above for the full version.

Test report No. : 10229481H-B-R2 Page : 41 of 43 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10229481H-B-R2 Page : 42 of 43 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10229481H-B-R2 Page : 43 of 43 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Module (Horizontal: X-axis/ Vertical:X-axis) Antenna (Horizontal: Y-axis/ Vertical:X-axis) Module X-axis Antenna X-axis Module Y-axis Antenna Y-axis Module Z-axis Antenna Z-axis End of Report

Test report No. : 10229481H-C-R1 Page : 84 of 84 Issued date : May 20, 2014 Revised date : June 2, 2014 FCC ID : ACJ9TAWJ-VR3004 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Photo 1 Photo 2 End of Report
