ACJ9TGCF-181Panasonic Toughbook w/ Intel WLAN

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 06, 2003
Application Purpose: Original Equipment
Date of Application: May 06, 2003
Equipment Note: Panasonic Toughbook w/ Intel WLAN
Frequency Range: 2412.00000000 - 2462.00000000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Operation Starting Up/Shutting Down ............................15 Touch Pad (Basic Operation).............................19 Touchscreen (Basic Operation)..........................20 Operating in Tablet Mode..............................21 Reference Manual.........................................23 OPERATING INSTRUCTIONS Personal Computer ® Appendix LIMITED USE LICENSE AGREEMENT ........31 Hard Disk Data Erase Utility ..........................33 Names and Functions of Parts ......................34 Specifications ................................................36 LIMITED WARRANTY...................................38 Troubleshooting List of Error Codes.........................................24 Dealing with Problems (Summary)...................25 Reinstalling Software....................................29 Getting Started Read Me First..................................................3 First-time Operation ........................................9 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 18 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Tablet Buttons •Touch Pad (Advanced) •Touchscreen (Advanced) •Software keyboard •Panasonic Hand Writing •Display Rotation •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •PC Cards •RAM Module •Port Replicator •External Display •USB Devices •Modem •LAN •Wireless LAN •Hard Disk Drive •Setup Utility •LED Indicators Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No. CF-18 Series 2000XP Please read these instructions carefully before using this product and save this manual for future use. 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium, PROSet and SpeedStep™ are either registered trademarks or trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. WARNING:WARNING indicates a hazard that may result in moderate or serious injury. Windows 2000 :Information for Microsoft ® Windows ® 2000 Professional users. Windows XP :Information for Microsoft ® Windows ® XP Professional users. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [Start]-[Run]:This illustration means to click [Start], then to click [Run]. (For some applications, you may need to double-click.) :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 18 on how to access this manual. Windows 2000 screens are used in this manual when no specific OS (operating system) notes are required. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explana- tion easier to understand. If the user has logged on without administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with Administrator authority to enable these functions. Confirm the latest information on optional products in catalogs, etc. *For the Model No., insert the 12 digit number (for example, CF-18BHKZXDM) located on the bottom of the computer. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 4 Getting Started Read Me First For Canada Industry Canada (IC) Notice for modem This equipment contains an Industry Canada approved modem unit. The Industry Canada label is affixed on the modem unit. EQUIPMENT ATTACHMENT LIMITATIONS “NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the…

Text truncated - open the document above for the full version.

External Photos

ID Label/Location Info

Internal Photos

Operational Description

Operation Description based on Block diagram Intel Pro/Wireless 2100 MiniPCI is integrated into our laptop PC as 802.11b adapter. The single-band 2.4GHz Intel Pro/Wireless 2100 MiniPCI Adapter is a single PCB design using Intel’s 82531ME (named as ARDON in the block diagram and schematics) and proprietary 802.11b CCK baseband processor (named as DELAWARE) and Phillips SA2400 radio chipsets. In addition to these chips, the RF front-end consists of additional components such as antenna connectors, diversity switch, bandpass filters, baluns, transmit / receive switch, power amplifier (PA), and low-noise amplifier (LNA). [Component Description] 1)82531ME (ARDON) The 82531ME chip incorporates media access control (MAC) logic and a MiniPCI host interface. It communicates with the Baseband processor through a special parallel interface called the Host-Bus (H-BUS) interface. 2)802.11b CCK baseband processor This is the external Complementary Code Keying (CCK) baseband processor and incorporates the low level MAC tasks for 802.11b. It contains integrated analog functions such as transmit Inphase/Quadrature Phase (I/Q) digital-to-analog converters (DACs), receive I/Q analog-to-digital converters (ADCs), DACs for Automatic Gain Control (AGC) and clock adjustments, ADC for RX and TX AGC, and on chip clock power down control circuitry. The DSP is designed to serve as the Physical Layer Entity for CCK. 3)SA2400 Radio The SA2400 from Phillips is a fully integrated single IC RF transceiver designed for 2.4GHz. It is a direct conversion radio architecture and combines a low-noise automatic gain control, receive and transmit filters, and input/output buffers into a single IC. [Mode Description] 1) Transmit Mode The SA2400 generates a differential RF signal at the desired operating frequency.Since this is zero-IF type design, it beats the I/Q modulation directry up to the appropriate frequency of operation set by its built-in PLL. Upon exiting from the SA2400, this differential signal is transformed to single ended form using a dicrete balun circuit (not shown in the diagarm).From the output of the balun, the signal is band pass filtered with a ceramic 2400 to 2500MHz Band Pass filter (BPF). The filtered signal is then attenuated using a 6dB, 50ohm resistive pi-attenuator network. A MAX2242 chip scale RF Power amplifier (PA) IC is used to amplify the low level filtered composite signal to approximately +20dB levels. At the output of the PA, a ceramic 2400 to 2500MHz Low Pass Filter (LPF) is used to reduce harmonic content in the amplified signal. From this point the signal is routed through the single band antenna diversity switch to one of the two U.FL antenna connectors. A discrete logic IC (not shown in the diagram) is used to decode antenna switching information from the CCK baseband processor IC in order to correctly operate the antenna switch. An RF signal level of approx. –5dBm at the output of the SA2400 IC can be expected to produce an amplified RF signal of approximately +16dBm at the antenna connectors. 2) Receive Mode During receive, the signal is first routed through a ceramic 2400 to 2500MHz band pass filter (BPF) and through a single transistor, Low Noise Amplifier (LNA). The amplified and filtered signal is then attenuated via a 6dB, 50ohm receive pi-attenuator network. A 50ohm to 100ohm integrated balun is then used to convert the single ended signal to a differential voltage which can be applied to the receive terminals on the SA2400 IC. The LNA and attenuator form an isolation network which is required to isolate the low level Voltage Controlled Oscillator (VCO) frequency leakage from the antennas. An isolation network helps to reduce DC offsets that occur when switching antennas in diversity applications. Inside the SA2400, the received signal is first amplified with an AGC amplifier and then mixed down in frequency (from RF to DC) using a quadrature I/Q up/down mixer. From here the down-converted signal is then low-pass filtered using Chebychev 5 th order active filters. A DC cancellation mechanism is able to reduce DC offsets by 70dB hence clipping of the baseband signals can be avoided. The baseband I/Q signals are transmitted differentially via current signals which are converted to voltage by the external resistor networks. These differential analog I/Q voltage levels are read by the 6 bit ADCs inside of the CCK baseband processor. The CCK baseband processor is used to demodulate the I/Q signals to produce packets of data which are communicated to the 82531ME upper MAC and onwards to the host system via the MiniPCI bus.

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-230328169.ACJ Test Dates: April 1-2, 2003 EUT Type: Panasonic TOUGHBOOK CF-18 w/ Intel WLAN FCC ID: PD9WM3B2100 FCC ID: ACJ9TGCF-181 Page 1 of 30 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: April 1-2, 2003 1006 Oaza Kadoma, Kadoma, Test Report S/N: IC SAR.230328169.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD USA Attn: Rich Mullen (PSCD, MECA) Project No. : ITPD-03-F004A Yutaka Miyake (ITPD) FCC ID: ACJ9TGCF-181 APPLICANT: Matsushita Electric Industrial Co., Ltd. EUT Type: Panasonic TOUGHBOOK CF-18 w/ Intel WLAN FCC ID: PD9WM3B2100 Tx Frequency: 2412 – 2462 MHz (DTS) Rx Frequency: 2412 – 2462 MHz (DTS) Max. RF Output Power: 45 mW (16.5 dBm) Conducted Max. SAR Measurement: 0.661 W/kg over 1 gm (DTS Body) Trade Name/Model(s): PANASONIC CF-18 FCC Classification: Part 15 Digital Transmission System (DTS) FCC Rule Part(s): § 15.247 Application Type: Certification This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). Grant Conditions: Power output is conducted. This device is authorized to operate with a specific computer as described in this filing and has been tested for SAR compliance for portable configurations. This device must not be co- located or operating with any other antenna or transmitter. End-users must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. ICSAR.230328174-R1.ACJ PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-230328169.ACJ Test Dates: April 1-2, 2003 EUT Type: Panasonic TOUGHBOOK CF-18 w/ Intel WLAN FCC ID: PD9WM3B2100 FCC ID: ACJ9TGCF-181 Page 2 of 30 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................3 SAR DEFINITION ...........................................................................................................................3 2. SAR MEASUREMENT SETUP..........................................................................................................4 Robotic System.................................................................................................................................4 System Hardware.............................................................................................................................4 System Electronics............................................................................................................................4 3. DASY3 E-FIELD PROBE SYSTEM....................................................................................................5 Probe Measurement System............................................................................................................5 Probe Specifications.........................................................................................................................5 4. Probe Calibration Process................................................................................................................6 Dosimetric Assessment Procedure..................................................................................................6 Free Space Assessment....................................................................................................................6 Temperature Assessment.................................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES...........................................................................................7 SAM Phantom...................................................................................................................................7 Brain & Muscle Simulating Mixture Characterization..................................................................7 Device Holder for Transmitters.......................................................................................................7 6. TEST SYSTEM SPECIFICATIONS.....................................................................................................8 Automated Test System Specifications...........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 Measurement Procedure..................................................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications......................................................9 8. DEFINITION OF REFERENCE POINTS.......................................................................................10 EAR Reference Point.....…

Text truncated - open the document above for the full version.

RF Exposure Info

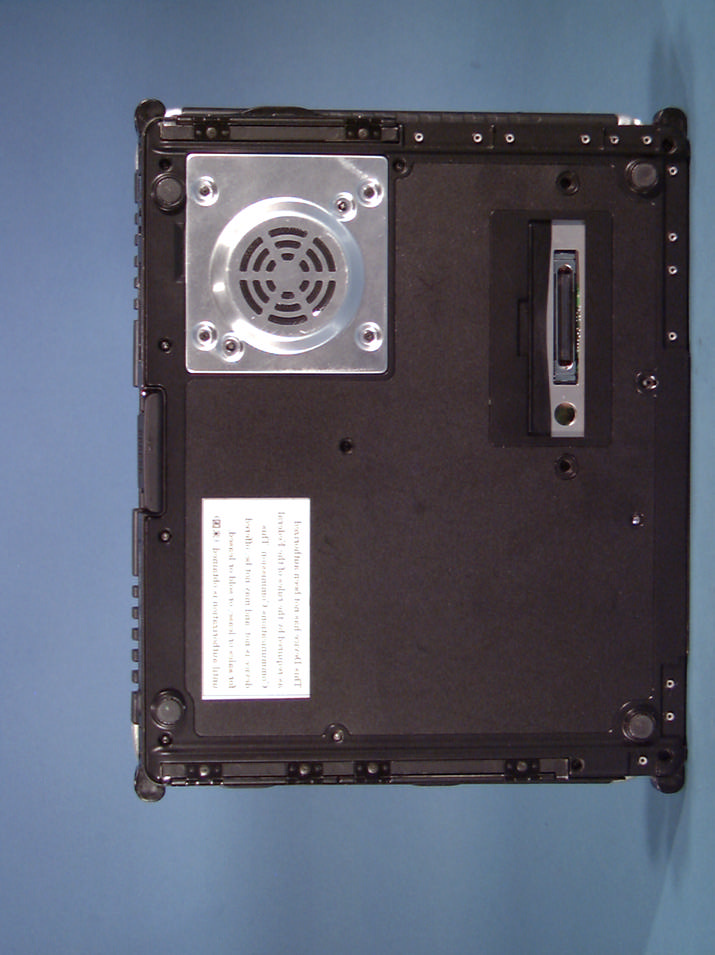

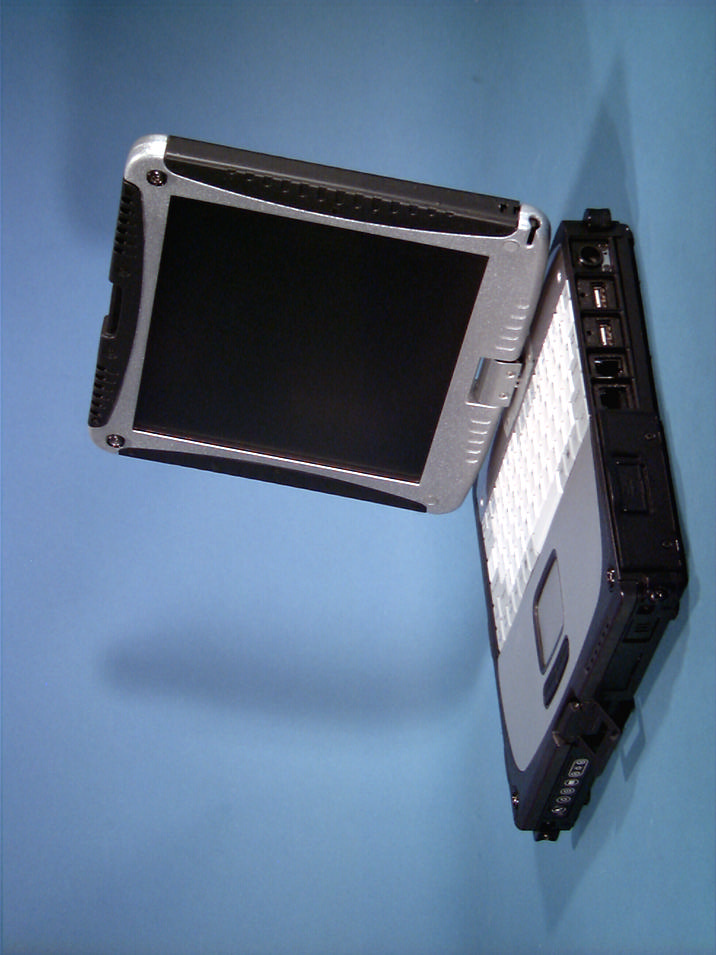

Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18 Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18 Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18 Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18 Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18 Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18 Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18 Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18 Panasonic TOUGHBOOK CF-18 EUT Photographs © 2003 PCTEST Lab. w/ Intel WLAN FCC ID: PD9WM3B2100 IC NO.: 216-CF18

Test Report

© 2003 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: April 7-9, 2003 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.230328170.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Attn: Rich Mullen (PSCD, MECA) Project No.: ITPD-03-F004A Yutaka Miyake (ITPD) FCC ID: ACJ9TGCF-181 APPLICANT: Matsushita Electric Industrial Co., Ltd. SUMMARY: Model No.: CF-18 Equipment EUT Type: Panasonic TOUGHBOOK CF-18 w/ Intel WLAN FCC ID: PD9WM3B2100 Max. Output Power: 45 mW (16.5 dBm) Conducted Frequency Range: 2412 - 2462 MHz FCC Classification: FCC Part 15 Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. Grant Conditions: Power output is conducted. This device is authorized to operate with a specific computer as described in this filing and has been tested for SAR compliance for portable configurations. This device must not be co-located or operating with any other antenna or transmitter. End-users must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. 23032817-R1.ACJ Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230328170.ACJ Test Dates: April 7-9, 2003 EUT Type: Panasonic TOUGHBOOK CF-18 w/ Intel WLAN FCC ID: PD9WM3B2100 FCC ID: ACJ9TGCF-181 Page i of i © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC PART 15.247 MEASUREMENT REPORT COVER PAGE.........................................................................................2 1.0 INTRODUCTION.....................................................................................................................................................3 1.1 EVALUATION PROCEDURE....................................................................................................................................................................................................3 1.2 SCOPE.............................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION.........................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION...................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION.....................................................................................................................................................................................................4 2.2 ENCLOSURE..................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS..............................................................................................................................................................4 3.0 DESCRIPTION OF TEST..........................................................................................................................................5 3.1 CONDUCTED EMISSIONS.......................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS..............................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS..................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA.............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS.....................................................................................................................9 EXHIBIT A. 6dB BANDWIDTH MEAUREMENT..............................................................................................................10-12 EXHIBIT A. OUTPUT POWER MEASUREMENT..............................................................................................................13-15 EXHIBIT A. POWER SPECTRAL DENSITY........................................................................................................................16-18 EXHIBIT…

Text truncated - open the document above for the full version.

Test Report

Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230328170.ACJ Test Dates: April 7-9, 2003 EUT Type: Panasonic TOUGHBOOK CF- 18 w/ Intel WLAN FCC ID: PD9WM3B2100 FCC ID: ACJ9TGCF-181 Page 16 of 44 © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT A – Test Results (Cont.) Power Spectral Density §15.247(d) The peak power density is measured with a spectrum analyzer connected to the antenna terminal while the EUT is operating in transmission mode at the appropriate frequencies. Minimum Standard – The transmitter power density average over 1-second interval shall not be greater than 8dBm in any 3kHz BW. The spectrum analyzer is set to: RBW = 3 kHz (7dB/div) VBW = 3 kHz Span = 40 MHz Ref. Level = 5 dBm Sweep = 1000 sec Test Results Frequency (MHz) Channel No. Power Density (dBm) Limit Margin 2412 1 -3.29 + 8 dBm -11.29 2437 6 -3.16 + 8 dBm -11.16 2462 11 -4.07 + 8 dBm -12.07 See next pages for actual measured spectrum plots Peak Power Density + Attenuation = dBm Table A-4. Conducted Power Density Measurements Figure A-3. Test Instrument & Measurement Setup Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230328170.ACJ Test Dates: April 7-9, 2003 EUT Type: Panasonic TOUGHBOOK CF- 18 w/ Intel WLAN FCC ID: PD9WM3B2100 FCC ID: ACJ9TGCF-181 Page 17 of 44 © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST Plot A-7. Max. Power Density Plot – Ch. 01 Plot A-8. Max. Power Density Plot – Ch.06 Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230328170.ACJ Test Dates: April 7-9, 2003 EUT Type: Panasonic TOUGHBOOK CF- 18 w/ Intel WLAN FCC ID: PD9WM3B2100 FCC ID: ACJ9TGCF-181 Page 18 of 44 © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST Plot A-9. Max. Power Density Plot – Ch.11 Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230328170.ACJ Test Dates: April 7-9, 2003 EUT Type: Panasonic TOUGHBOOK CF- 18 w/ Intel WLAN FCC ID: PD9WM3B2100 FCC ID: ACJ9TGCF-181 Page 19 of 44 © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT A – Test Results (Cont.) Occupied BandEdge /BandEdge at 20dB below, & Out of Band Emissions Plot A-11. Occupied Band Edge Plot – Ch.11 Plot A-10. Occupied Band Edge Plot – Ch.1 Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230328170.ACJ Test Dates: April 7-9, 2003 EUT Type: Panasonic TOUGHBOOK CF- 18 w/ Intel WLAN FCC ID: PD9WM3B2100 FCC ID: ACJ9TGCF-181 Page 20 of 44 © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT A – Test Results (Cont.) Radiated Measurements §15.247(b) / §15.205 & §15.209 Transfer Rate: 1 Mbps Distance of Measurements: 3 Meters Channel: 01 Frequency (MHz) Level (dBm) AFCL (dB) POL (H/V) F/S (dBμV/m) F/S (μV/m) Margin (dB) 4824 -99.5 40.4 V 47.9 248.0 6.1 7236 -112.5 47.4 V 41.9 124.7 12.1 9648 -128.5 50.3 V 28.8 27.5 25.2 12060 -135.0 53.7 V 25.7 19.3 28.3 Table A-6. Radiated Measurements @ 3 meters NOTES: 1. All harmonics in the restricted bands specified in §15.205 are below the limit shown in Table G-1. (Note: * = Restricted Band measured frequency) 2. All harmonics/spurs are at least 20 dB below the highest emission in the authorized band using RBW = 100kHz 3. Average Measurements > 1GHz using RBW = 1 MHz VBW = 10 Hz 4. The peak emissions above 1 GHz are not more than 20 dB above the average limit. 5. The antenna is manipulated through typical positions, polarity and length during the tests. 6. The EUT is supplied with nominal AC voltage or/and a new/fully-recharged battery. 7. The spectrum is measured from 9kHz to the 10 th harmonic and the worst-case emissions are reported. 8. < - 135 dBm are below the analyzer floor level. 9. Above 1 GHz, the limit is 500 μV/…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ben Botros(Project Manager)

[email protected]201-348-7760Fax: 201-348-7760

Technical Contact

PCTEST Engineering Lab.,Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Non-Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	45.00 mW

Confidentiality

Long Term

Grant Notes

Power output is conducted. This device is authorized to operate with a specific computer as described in this filing and has been tested for SAR compliance for portable configurations. This device must not be co-located or operating with any other antenna or transmitter. End-users must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. The highest reported SAR value is � Body-worn: 0.661 W/kg.
