ACJ9TGCF-182PCS1900 Module build-in Notebook

1 This manual contains supplementary instructions regarding the use of the computer. It ex- plains the cases where the operation of the computer differs from that in the Operating Instructions. Your computer is equipped with GSM/GPRS enabling you to communicate using radio frequencies. Contents Precautions ..................................................................2 Names and Functions of Parts ...................................5 Installing/Removing a SIM Card .................................7 Installing the Software.................................................8 Appendix .................................................................... 13 Specifications............................................................ 14 Supplementary Instructions for GSM/GPRS ® NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moder- ate injury. Windows 2000: Information for Microsoft ® Windows ® 2000 Professional users. Windows XP: Information for Microsoft ® Windows ® XP Professional users. Tablet PC: Information for Microsoft ® Windows ® XP Tablet PC Edition users. [Start] - [Run]:This illustration means to click [Start], then to click [Run]. (For some applications, you may need to double-click.) About the abbreviations in this manual, refer to the table on page 13. Windows 2000 screens are used in this manual when no specific OS notes are re- quired. Illustrations and Terminology in this Manual 2 The following safety precautions must be observed during all phases of the operation, us- age, service or repair of any Personal Computer or Handheld Computer incorporating GSM/ GPRS modem. Manufacturers of the cellular terminal are advised to convey the following safety information to users and operating personnel and to incorporate these guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic as- sumes no liability for customer failure to comply with these precautions. When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch Personal Computer or Handheld Computer incorporating GSM/ GPRS modem off, if instructed to do so by the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy. The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference from Personal Computer or Handheld Computer incorporating GSM/GPRS modem placed close to the device. If in doubt about potential danger, contact the physician or the manufacturer of the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or Handheld Computer incorporating GSM/GPRS modem away from the pacemaker, while it is on. Switch off Personal Computer or Handheld Computer incorporating GSM/GPRS modem before boarding an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communications systems. Failure to observe these instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both. Do not operate Personal Computer or Handheld Computer incorporating GSM/ GPRS modem in the presence of flammable gases or fumes. Switch off the cellu- lar terminal when you are near petrol stations, fuel depots, chemical plants or where blasting operations are in progress. Operation of any electrical equipment in potentially explosive atmospheres can constitute a safety hazard. Your Personal Computer or Handheld Computer incorporating GSM/GPRS mo- dem receives and transmits radio frequency energy while switched on. Remember that interference can occur if it is used close to TV sets, radios, computers or inad- equately shielded equipment. Follow any special regulations and always switch off Personal Computer or Handheld Computer incorporating GSM/GPRS modem wher- ever forbidden, or when you suspect that it may cause interference or danger. Road safety comes first! Do not use a Personal Computer or Handheld Computer incorporating GSM/GPRS modem while driving a vehicle. Do not place the com- puter with GSM/GPRS modem in an area where it could cause personal injury to the driver or passengers. It is recommended to stow the unit in the boot or secure stowage area while driving. Safety Precautions Precautions 3 Do not place the computer with GSM/GPRS modem in an area over an air bag or in the vicinity where an air bag may deploy. Air bags inflate with great force and if the computer with GSM/GPRS modem is placed in the air bag deployment area may be propelled with great force and cause serious injury to occupants of the vehicle. IMPORTANT! Personal Computer or Handheld Computer incorporating GSM/GPRS modem operate using radio signals and cellular networks cannot be guaranteed to con- nect in all conditions. Therefore, you should never rely solely upon any wireless device for essential communications, for example emergency calls. Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating GSM/GPRS modem must be switched on and in a ser- vice area with adequate cellular signal strength. Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g. lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an emergency call. Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld Computer incorporating GSM/GPRS modem. Declaration of Conformity (DoC) “Hereby, we and Panasonic Testing Centre (Europe) GmbH (PTC), declares that this Personal Computer is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Hint: If you want to…

Text truncated - open the document above for the full version.

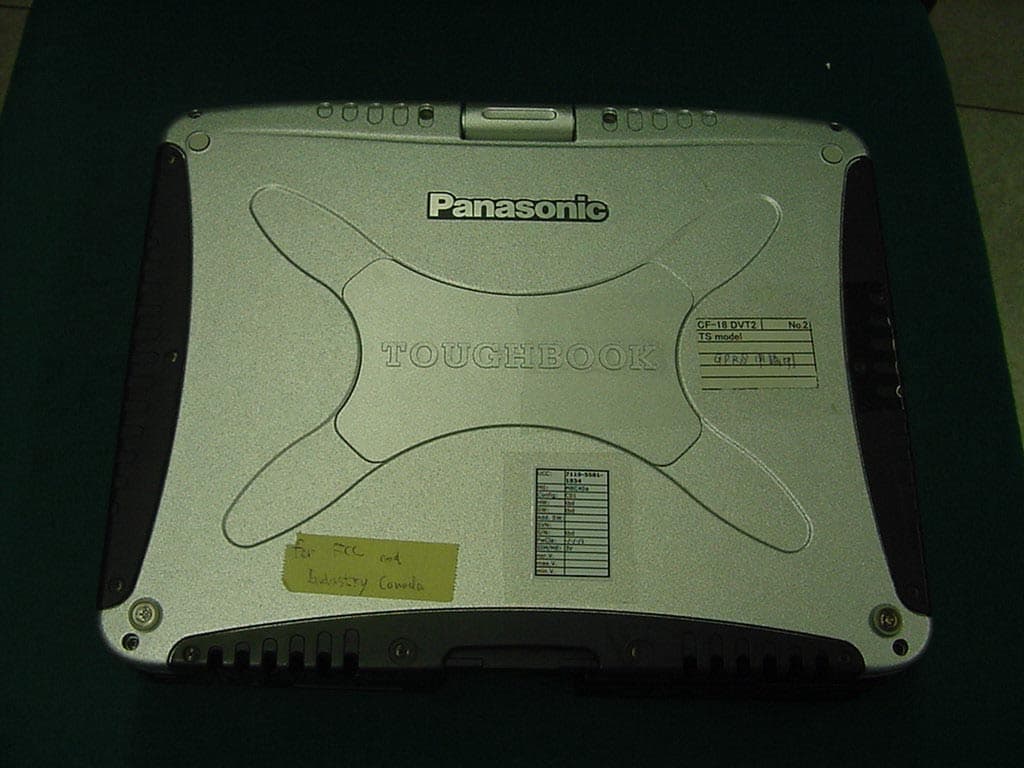

CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 66 (74) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 67 (74) CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 68 (74) CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 69 (74)

CF-18 Label Location FCC ID: ACJ9TGCF-182

CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 70 (74) CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 71 (74) CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 72 (74) CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 73 (74) CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 74 (74)

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, GermanyPhone: +49 (0) 681 598-0Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of February 18, 2003Page 1 of 32 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Appendix to the Report 4-0966-01-04/03 Calibration Data, Phantom Certificate and detail Information of the DASY 3 System Test specification : CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 2 of 32 Table of Content 1Calibration report “Probe ET3DV6” ..................................................................................................................................... 3 2Calibration report “1900 MHz System validation dipole”.................................................................................................. 14 3Calibration certificate of Data Aquisition Unit (DAE) ........................................................................................................ 24 4Certificate of Conformity “SAM Twin Phantom V4.0/V4.0C”........................................................................................... 25 5Application Note Validation and system Check .................................................................................................................. 27 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 3 of 32 1 Calibration report “Probe ET3DV6” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 4 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 5 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 6 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 7 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 8 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 9 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 10 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 11 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 12 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 13 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 14 of 32 2 Calibration report “1900 MHz System validation dipole” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 15 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 16 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 17 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 18 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 19 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 20 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 21 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 22 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 23 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 24 of 32 3 Calibration certificate of Data Aquisition Unit (DAE) CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 25 of 32 4 Certificate of Conformity “SAM Twin Phantom V4.0/V4.0C” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 26 of 32 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-0966-01-04/03 As of February 18, 2003Page 27 of 32 5 Application Note Validation and system Check 5.1.1.1 Purpose of validation The Validation and system check verify that the system operates within ist specifications. System and operator errors can be detected and corrected. It is recommended that the validation be performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the resultdepends on the proper functioning of many components and the correct settings of manyparameters. Faulty results due to drift, failures or incorrect parameters might not berecognized, since they often look similar in distribution to the correct ones. The DosimetricAssessment System DASY3 incorporates a validation procedure to test the properfunctioning of the system. The system validation uses normal SAR measurements in asimplified setup (the flat phantom section of the Generic Twin Phantom) with a wellcharacterized source (a matched dipole of a specified distance). This setup was …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of June 13 , 2003 Page 1 of 50 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Test report no. : 4-0966-01-04/03 Type identification : CF-18 Test specification : Draft IEEE Std 1528-200X : OET Bulletin 65, Supplement C FCC-ID : ACJ9TGCF-182 Test specification : CETECOM ICT Services GmbH Test report no.: 4-0966-01-04/03 As of June 13 , 2003 Page 2 of 50 Table of Contents 1 General Information............................................................................................................................................................... 3 1.1 Notes .............................................................................................................................................................................. 3 1.1.1 Statement of Compliance ........................................................................................................................................... 3 1.2 Testing laboratory .......................................................................................................................................................... 4 1.3 Details of applicant ........................................................................................................................................................ 4 1.4 Application details ......................................................................................................................................................... 4 1.5 Test item ........................................................................................................................................................................ 5 1.6 Test specification(s) ....................................................................................................................................................... 6 1.6.1 RF exposure limits ..................................................................................................................................................... 6 2 Technical test ......................................................................................................................................................................... 7 2.1 Summary of test results.................................................................................................................................................. 7 2.2 Test environment ........................................................................................................................................................... 7 2.3 Measurement and test set-up.......................................................................................................................................... 7 2.4 Measurement system...................................................................................................................................................... 8 2.4.1 System Description .................................................................................................................................................... 8 2.4.2 Test environment ....................................................................................................................................................... 9 2.4.3 Probe description ....................................................................................................................................................... 9 2.4.4 Phantom description ................................................................................................................................................ 10 2.4.5 Device holder description ........................................................................................................................................ 10 2.4.6 Scanning procedure.................................................................................................................................................. 11 2.4.7 Spatial Peak SAR Evaluation................................................................................................................................... 12 2.4.8 Data Storage and Evaluation.................................................................................................................................... 13 2.4.9 Test equipment utilized............................................................................................................................................ 15 2.4.10 Tissue simulating liquids : dielectric properties................................................................................................... 16 2.4.11 Tissue simulating liquids : parameters ................................................................................................................. 17 2.4.12 Measurement uncertainties .................................................................................................................................. 18 2.4.13 System validation................................................................................................................................................. 19 2.4.14 Validation procedure............................................................................................................................................ 20 2.5 Test results (Body SAR) .............................................................................................................................................. 21 2.5.1 Description of test procedures ................................................................................................................................. 21 2.6 Test results (conducted power measurement) ...........................................................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 74 PagesPage 1 (74) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 5_4352-01-02/03 FCC Part 24/15 CF-18 FCC ID: ACJ9TGCF-182 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 2 (74) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 3 (74) 1.3Details of applicant Name : Panasonic Testing Centre (Europe) GmbH Street : Winsbergring 15 City : D-22525 Hamburg Country : Germany Telephone : +49 40 85 383-6 Telefax : +49 40 85 383-561 Contact : Mr. W.Hoepfner Telephone : +49 40 85 383-6 e-mail: [email protected] 1.4Application details Date of receipt of application : 2003-05-20 Date of receipt of test item : 2003-05-20 Date of test : 2003-05-20 – 2003-05-21 1.5Test item Type of equipment : PCS1900 Module build-in Notebook Type designation:CF-18 Manufacturer:Applicant Street: City: Country: Serial number: Additional informations: : Frequency:1850.2 – 1909.8 MHz Type of modulation:300KGXW Number of channels :300 (PCS1900) Antenna:Integral antenna on the side of the display Power supply:via notebook Output power GSM 1900 :cond : 28.94 dBm Peak , ERP: 26.64 dBm (Burst); EIRP: 28.74 dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID: ACJ9TGCF-182 IC : Hardware: Software: 1.6Test standards: FCC Part 24 FCC Part 15 CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 4 (74) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in GPRS mode. Device is able to transmit data in GPRS mode (2slot uplink). As the current measurements are performed in PEAK mode no other results as from GPRS mode are possible. The only difference to voice mode is in the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link ) than in voice mode. 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2003-05-27RSC 8414 Ames H. DateSectionNameSignature Technical responsibility for area of testing : 2003-05-27RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 5 (74) 2.2Test report TEST REPORT Test report no. : 5_4352-01-02/03 CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 6 (74) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 POWER OUTPUT SUBCLAUSE § 24.2327 FREQUENCY STABILITY SUBCLAUSE § 24.23511 AFC FREQ ERROR vs. VOLTAGE12 AFC FREQ ERROR vs. TEMPERATURE12 EMISSIONS LIMITS §24.23814 CONDUCTED SPURIOUS EMISSIONS28 BLOCK EDGE COMPLIANCE FOR BLOCK A, B, C, D, E AND F37 OCCUPIED BANDWIDTH §2.98949 ADDITIONAL MEASUREMENTS FOR THE ANCILLARY EQUIPMENT PART 15.109/20956 CONDUCTED EMISSIONS § 15.107/20759 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS61 Test site and pictures of the sample63 CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 7 (74) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power in GPRS mode (2 slot Uplink). The power was measured with R&S Signal Analyzer FSIQ 26 ( peak and average) This measurements were done at 3 frequencies, 1850,2 MHz, 1880,0 MHz and 1909,8 MHz (bottom, middle and top of operational frequency range) Limits: Power StepNominal Peak Output Power (dBm) Tolerance (dB) 0+30 ± ±± ± 2 Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 63 (74) Test site CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 64 (74) Test site CETECOM ICT Services GmbH Test report no..: 5_4352-01-02/03Issue Date: 2003-05-27Page 65 (74) Test site
