ACJ9TGCF-182ANotebook Computer CF-18 + BT + WLAN (a+b+g)

Personal Computer This Supplementary Instructions manual gives you information about Bluetooth. Model No.CF-18/CF-29/CF-73 Series Read Me First........................................................................... 2 About Bluetooth ....................................................................... 3 Connecting to Bluetooth Devices ........................................... 4 Security Setting ........................................................................ 8 LIMITED USE LICENSE AGREEMENT .................................... 9 Supplementary Instructions for Bluetooth™ ENGLISH ENGLISH 2 ENGLISH Read Me First For U.S.A. Trademarks Microsoft and Windows are registered trademarks of Microsoft Corporation of the United States and/or other countries. Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. Windows 2000: Information for Microsoft ® Windows ® 2000 Professional users. Windows XP: Information for Microsoft ® Windows ® XP Professional or Windows ® XP Tablet PC Edition users. [Start] - [Run]:This illustration means to click [Start], then to click [Run]. (For some applications, you may need to double-click.) :Where to go for referred information. Illustrations and Terminology in this Manual Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced ra- dio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC RF Exposure Warning: • This computer is provided with PC Card slots that could be used with wireless transmitter(s), which will be specifically recommended, when they become available. Other third-party wireless transmitter(s) have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. • This equipment must be installed and operated in accordance with provided instructions and minimum 1.5 cm spacing must be provided between antenna and all person’s body (exclud- ing extremities of hands, wrist and feet) during wireless modes of operation. • This equipment may use multiple installed transmitters, which may be capable of simultaneous transmission. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) Replace the “Federal Communications Commission Radio Frequency Interference Statement” ( Operating Instructions “Read Me First”) with the following. Information to the User This product and your Health This product, like other radio devices, emits radio frequency elec- tromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this product is safe for use by consumers. These standards and recom- mendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representa- tives of the organization. These situations may for example include: Using this product on board of airplanes, or In any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product. Regulatory Information We are not responsible for any radio or television interference caused by unauthorized modification of this product. The correction of in- terference caused by such unauthorized modification will be the re- sponsibility of the user. We and its authorized resellers or distribu- tors are not liable for damage or violation of govern…

Text truncated - open the document above for the full version.

Operation Starting Up/Shutting Down ............................17 Touch Pad (Basic Operation).............................20 Touchscreen (Basic Operation)..........................21 Operating in Tablet Mode ..............................22 Reference Manual .........................................24 Useful Information .........................................25 OPERATING INSTRUCTIONS Personal Computer Appendix LIMITED USE LICENSE AGREEMENT ........36 Hard Disk Backup Function .............................38 Hard Disk Data Erase Utility ..........................42 Specifications ................................................43 LIMITED WARRANTY ...................................45 Troubleshooting List of Error Codes ........................................28 Dealing with Problems (Summary)..................29 Reinstalling Software ....................................34 Getting Started Read Me First..................................................3 Names and Functions of Parts ........................8 First-time Operation ......................................12 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 24 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Tablet Buttons •Touch Pad •Touchscreen •Software keyboard •Panasonic Hand Writing •Display Rotation •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •PC Cards •RAM Module •Port Replicator •External Display •USB Devices •Modem •LAN •Wireless LAN •Hard Disk Drive •Setup Utility •Icon Enlarger •LED Indicators Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No. CF-18 Series XP Please read these instructions carefully before using this product and save this manual for future use. 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2004 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [start]-[Run]:This illustration means to click [start], then to click [Run]. (For some applications, you may need to double-click.) :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 24 on how to access this manual. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explana- tion easier to understand. The “CD/DVD drive” is a description about drives, such as DVD-ROM, CD-ROM, CD-R/RW, and DVD-ROM & CD- R/RW drives. In this manual, descriptions are given using illustrations not featuring the hand strap for convenience of explanation. If the user has logged on without administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. Confirm the latest information on optional products in catalogs, etc. In this manual, “Microsoft ® Windows ® XP Professional” is indicated as “Windows” or “Windows XP”. *For the Model No., insert the 12 digit number (for example, CF-18DHAZXKM) located on the bottom of the computer. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation betwee…

Text truncated - open the document above for the full version.

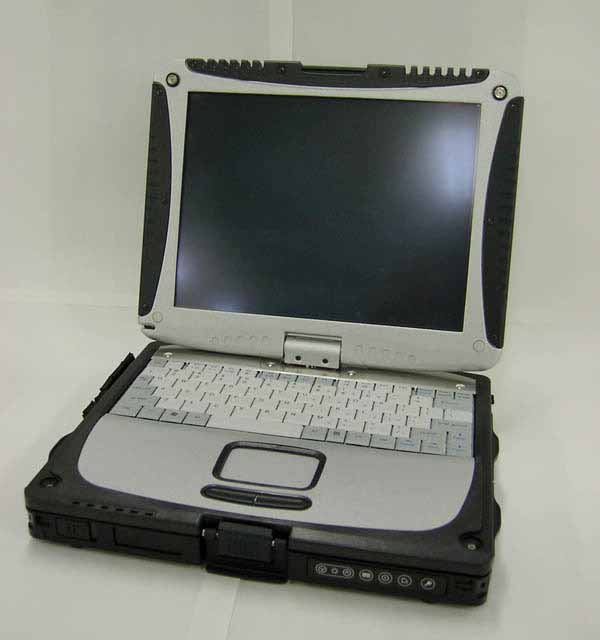

<CF-18 WLANa+b+g & Bluetooth model photo> 1) CF-18 Top/Front View Top View Front View

<CF-18 WLANa+b+g & Bluetooth model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-182A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC DoC LABEL FCC ID LABEL

2) Bluetooth module position Upside down Bottom View of Bluetooth Module with Daughter Board 3) Bluetooth Module exterior photo Top View of Bluetooth Module with Bottom View of Bluetooth module with Daughter-Board Daughter-Board Top View of Bluetooth Module Bottom View of Bluetooth Module 4) Bluetooth Module Interior photo Bluetooth Module without shield 5) WLAN Card position WLAN Card Position 6) WLAN exterior photo WLAN Top View *The Rating Plate of above photo is not final. See hereinafter Rating Plate design. WLAN Bottom View 7) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 8) Antenna position LCD left Side View Bluetooth TX/RX Antenna Bluetooth Antenna LCD Left Side View WLAN Main TX/RX Antenna WLAN Main TX/RX Antenna LCD Right Side View WLAN Aux TX/RX Antenna WLAN Aux TX/RX Antenna 9) Antenna Specification WLAN Main TX/RX Antenna: Pattern Antenna (Inverted F type: 1.42dBi max) WLAN Aux TX/RX Antenna: Pattern Antenna (Inverted F type: 2.59dBi max) Bluetooth Antenna: Pattern Antenna (Inverted F type: 3.36dBi max) Note) WLAN Main/Aux Antenna is diversity Antenna.

PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-182A EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-18

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240902551.ACJ Test Dates: Sept. 20-22, 2004 Phone Type: Panasonic Notebook PC w/ Intel Centrino WLAN FCC ID: ACJ9TGCF-182A Page 1 of 32 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: September 20-22, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: SAR.240902551.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia MD Project No.: ITPD-04-F105A FCC ID: ACJ9TGCF-182A APPLICANT: Matsushita Electric Industrial Co., Ltd. EUT Type: Notebook PC w/ WLAN (Intel Centrino Model: 2915ABG) & Bluetooth Tx/Rx Frequency: 2412 – 2462 MHz (DSSS/OFDM) 5180 – 5320 MHz / 5745 – 5825 MHz (OFDM) Max. RF Output Power: 16.13 dBm Peak Conducted (2.4 GHz DSSS/OFDM) 14.08 dBm Peak Conducted (5.8 GHz OFDM) 15.86 dBm Peak Conducted (5.2 GHz OFDM) Max. SAR Measurement: 0.034 W/kg Laptop Body SAR; 1.180 W/kg Bystander Body SAR; Trade Name/Model(s): CF-18mk3 FCC Classification(s): Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #4AKYA20526] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Output power listed is Conducted. SAR compliance for body-worn operating configuration is based on a separation distance of 0.0 cm between the bottom of the unit and the body of the user. End-users must be informed of the body-worn operating configurations for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240902551.ACJ Test Dates: Sept. 20-22, 2004 Phone Type: Panasonic Notebook PC w/ Intel Centrino WLAN FCC ID: ACJ9TGCF-182A Page 2 of 32 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP.............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...............................................................................13-14 12. SYSTEM VERIFICATION..................................................................................................15 13. SAR TEST DATA SUMMARY...........................................................................................16 14. SAR DATA SUMMARY...............................................................................................17-29 15. SAR TEST EQUIPMENT...................................................................................................29 16. CONCLUSION...............................................................................................................30 17. REFERENCES..................................................................................................................31 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240902551.ACJ Test Dates: Sept. 20-22, 2004 Phone Type: Panasonic Notebook PC w/ Intel Centrino WLAN FCC ID: ACJ9TGCF-182A Page 3 of 32 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement proce…

Text truncated - open the document above for the full version.

CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 15.230811393.AMW PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: October 4, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.240902553.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Project No.: ITPD-04-F105A FCC ID: ACJ9TGCF-182A APPLICANT: Matsushita Electric Industrial Co., Ltd. SUMMARY: Model No.: CF-18 Equipment EUT Type: Notebook PC w/ Intel WLAN & Bluetooth Max. Output Power: 0.0182 W (12.6 dBm) Conducted Frequency Range: 2402 – 2480 MHz FCC Classification: FCC Part 15 Frequency Hopping Spread Spectrum Transceiver (DSS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Installed Options: Bluetooth WLAN UNII Other This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. The EUT complies with Industry Bluetooth Standards. The JBC portion of this EUT is covered in the DOC report. Grant Conditions: Listed output power is conducted. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 Page i © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTESTATION STATEMENTS.....................................................................................................................................................1 1.0 INTRODUCTION.............................................................................................................................................................3 1.1 EVALUATION PROCEDURE.......................................................................................................................................3 1.2 SCOPE........................................................................................................................................................................3 1.3 PCTEST TEST LOCATION...........................................................................................................................................3 2.0 PRODUCT INFORMATION............................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION.......................................................................................................................................4 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS........................................................................................................4 3.0 DESCRIPTION OF TEST...................................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................5 3.2 RADIATED EMISSIONS...............................................................................................................................................6 4.0 ANTENNA REQUIREMENTS...........................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA.....................................................................................................................8 6.0 CONCLUSION.................................................................................................................................................................9 EXHIBIT A – TEST RESULTS.......................................................................................................................................................10 SUMMARY..........................................................................................................................................................................10 20DB BANDWIDTH MEASUREMENT (HANDSET)..............................................................................................................11 OUTPUT POWER MEASUREMENT.....................................................................................................................................14 BAND EDGE COMPLIANCE................................................................................................................................................17 CARRIER FREQUENCY SEPARATION..................................................................................................................................18 DWELL TIME.......................................................................................................................................................................19 CHANNEL SPACING...........................................................................................................................................................20 RADIATED HARMONIC MEASUREMENTS (CONT.).....................................................................................................21-26 CONDUCTED SPURIOUS ME…

Text truncated - open the document above for the full version.
