Operation Starting Up/Shutting Down ............................15 Touch Pad (Basic Operation).............................19 Touchscreen (Basic Operation)..........................20 Operating in Tablet Mode..............................21 Reference Manual.........................................23 OPERATING INSTRUCTIONS Personal Computer ® Appendix LIMITED USE LICENSE AGREEMENT ........31 Hard Disk Data Erase Utility ..........................33 Names and Functions of Parts ......................34 Specifications ................................................36 LIMITED WARRANTY...................................38 Troubleshooting List of Error Codes.........................................24 Dealing with Problems (Summary)...................25 Reinstalling Software....................................29 Getting Started Read Me First..................................................3 First-time Operation ........................................9 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 18 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Tablet Buttons •Touch Pad (Advanced) •Touchscreen (Advanced) •Software keyboard •Panasonic Hand Writing •Display Rotation •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •PC Cards •RAM Module •Port Replicator •External Display •USB Devices •Modem •LAN •Wireless LAN •Hard Disk Drive •Setup Utility •LED Indicators Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No. CF-18 Series 2000XP Please read these instructions carefully before using this product and save this manual for future use. 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft ® and Windows ® are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium, PROSet and SpeedStep™ are either registered trademarks or trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. WARNING:WARNING indicates a hazard that may result in moderate or serious injury. Windows 2000 :Information for Microsoft ® Windows ® 2000 Professional users. Windows XP :Information for Microsoft ® Windows ® XP Professional users. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [Start]-[Run]:This illustration means to click [Start], then to click [Run]. (For some applications, you may need to double-click.) :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 18 on how to access this manual. Windows 2000 screens are used in this manual when no specific OS (operating system) notes are required. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explana- tion easier to understand. If the user has logged on without administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with Administrator authority to enable these functions. Confirm the latest information on optional products in catalogs, etc. *For the Model No., insert the 12 digit number (for example, CF-18BHKZXDM) located on the bottom of the computer. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 4 Getting Started Read Me First For Canada Industry Canada (IC) Notice for modem This equipment contains an Industry Canada approved modem unit. The Industry Canada label is affixed on the modem unit. EQUIPMENT ATTACHMENT LIMITATIONS “NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the…

Text truncated - open the document above for the full version.

1 ENGLISH DEUTSCH FRANÇAIS Personal Computer This Supplementary Instructions manual gives you information about Bluetooth. Model No.CF-18 Series Read Me First........................................................................... 2 About Bluetooth....................................................................... 3 Connecting to Bluetooth Devices........................................... 4 Security Setting........................................................................ 8 LIMITED USE LICENSE AGREEMENT.................................... 9 Supplementary Instructions for Bluetooth™ ENGLISH Wichtige Informationen......................................................... 11 Informationen über Bluetooth............................................... 12 Anschließen an Bluetooth-Geräte........................................ 13 Sicherheitseinstellung........................................................... 18 LIZENZVEREINBARUNG....................................................... 19 Zusatzanleitung für Bluetooth™ DEUTSCH Diese Zusatzanleitung für Bluetooth enthält wichtige Informationen über den Gebrauch von Bluetooth. Lecture préliminaire............................................................... 21 À propos de Bluetooth.......................................................... 22 Raccordement à des appareils Bluetooth............................ 23 Réglage de sécurité............................................................... 27 CONTRAT DE LICENCE D’USAGE LIMITÉ........................... 28 Instructions supplémentaires pour Bluetooth™ FRANÇAIS Ce manuel d’instructions supplémentaires fournit des informations sur Bluetooth. 2 ENGLISH Read Me First For U.S.A. Trademarks Microsoft and Windows are registered trademarks of Microsoft Corporation of the United States and/or other countries. Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. Windows 2000: Information for Microsoft ® Windows ® 2000 Professional users. Windows XP: Information for Microsoft ® Windows ® XP Professional or Windows ® XP Tablet PC Edition users. [Start] - [Run]:This illustration means to click [Start], then to click [Run]. (For some applications, you may need to double-click.) :Where to go for referred information. Illustrations and Terminology in this Manual Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced ra- dio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC RF Exposure Warning: • This computer is provided with PC Card slots that could be used with wireless transmitter(s), which will be specifically recommended, when they become available. Other third-party wireless transmitter(s) have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. • This equipment must be installed and operated in accordance with provided instructions and minimum 1.5 cm spacing must be provided between antenna and all person’s body (exclud- ing extremities of hands, wrist and feet) during wireless modes of operation. • This equipment may use multiple installed transmitters, which may be capable of simultaneous transmission. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) Replace the “Federal Communications Commission Radio Frequency Interference Statement” ( Operating Instructions “Read Me First”) with the following. 3 ENGLISH Bluetooth is a technology which enables wireless communication. With Bluetooth, you can access internet or exchange data with other Bluetooth devices (e.g., computer, mobile phone, access point) without connecting cables. Bluetooth Specification • Bluetooth Specification V1.1 Compliant • Power class: Class 1 Bluetooth Services • LAN Access Profile (Client and Server) • Dial-up Networking Profile (Client and Server) • FAX Profile (Client) • Serial Port Profile (Client and Server) • Generic Object Exchange Profile • Object Push Profile (Client and Server) • File Transfer Profile (Clien…

Text truncated - open the document above for the full version.

November 25, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Tim Harrington SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ9TGCF-183 731 Confirmation No.: TC355597 Correspondence Reference No.: 9820 Request for Tech. Info.: 10/29/03 Dear Tim: Transmitted herewith, on behalf of Matsushita Electric Industrial Co., Ltd. is an amendment provided in response to the request for technical information dated October 29, 2003. 1. Please find attached the revised SAR report containing all antenna locations in the host computer. 2. Please find attached the Bluetooth supplement of the user’s manual. 3. Please find attached the revised SAR report containing the following information: a) Device operating conditions b) Test device is an identical prototype c) Description of the test device operating configurations, including operating modes, frequency ranges, maximum device rating for each operating mode and frequency range, operating tolerances, antenna type, antenna operating positions, and applicable body-worn configurations. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Matsushita Electric Industrial Co., Ltd.

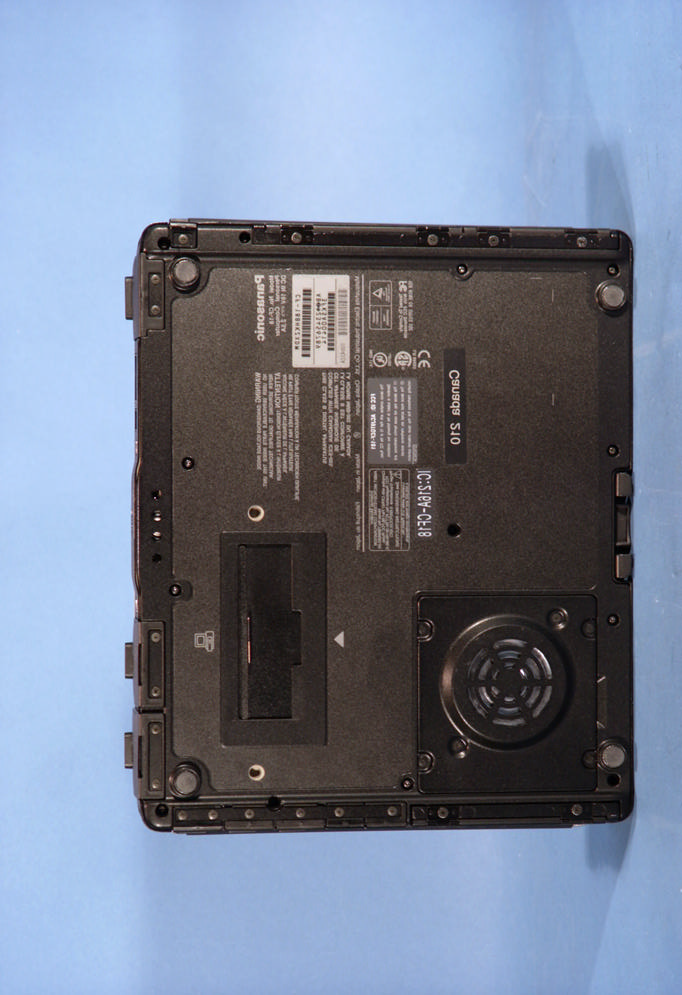

PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18

Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230922458.ACJ Test Dates: Sept. 22-24, 2003 EUT Type: Panasonic TOUGHBOOK CF-18 w/ Intel WLAN FCC ID: ACJ9TGCF-183 Page 36 of 44 © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230922458.ACJ Test Dates: Sept. 22-24, 2003 EUT Type: Panasonic TOUGHBOOK CF-18 w/ Intel WLAN FCC ID: ACJ9TGCF-183 Page 37 of 44 © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID Label

PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-2309224557.ACJ Test Dates: September 22-23, 2003 Phone Type: Panasonic Toughbook CF-18 w/ Alps Blue Tooth Kit Module and Intel WLAN FCC ID: ACJ9TGCF-183 Page 1 of 28 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: September 22-23, 2003 1006 Oaza Kadoma, Kadoma Test Report S/N: SAR.230922457.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia MD Project No.: ITPD-03-F018A FCC ID: ACJ9TGCF-183 APPLICANT: Matsushita Electric Industrial Co., Ltd. EUT Type: Panasonic Toughbook CF-18 w/ Alps Blue Tooth Kit Module Model: CF-WTB181 and Intel WLAN Model: WM3B2100 Tx Frequency: 2412 – 2462 MHz (DTS)/ 2402 – 2480 MHz (FHSS) Rx Frequency: 2412 – 2462 MHz (DTS)/ 2402 – 2480 MHz (FHSS) Max. RF Output Power: 0.45 mW (16.5 dBm) Conducted (WLAN) 0.0182 W (12.6 dBm) Conducted (Bluetooth) Max. SAR Measurement: 0.618 W/kg DTS Bystander Body SAR (WLAN + Bluetooth) 0.009 W/kg DTS Laptop/ LCD Closed Body SAR (WLAN + Bluetooth) 0.006 W/kg DTS Laptop/ LCD Flip Body SAR (WLAN + Bluetooth) 0.255 W/kg DTS Laptop/ LCD Panel Body SAR (WLAN + Bluetooth) Trade Name/Model(s): CF-18 FCC Classification: FCC Part 15 Digital Transmission System (DTS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #3FKSA00414] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output is conducted. This device has been tested for SAR compliance for portable configurations. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except the Bluetooth described in this filing. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230728386-R2.CJ6 PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-2309224557.ACJ Test Dates: September 22-23, 2003 Phone Type: Panasonic Toughbook CF-18 w/ Alps Blue Tooth Kit Module and Intel WLAN FCC ID: ACJ9TGCF-183 Page 2 of 28 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17 15. SAR TEST EQUIPMENT...................................................................................................23 16. CONCLUSION...............................................................................................................24 17. REFERENCES..................................................................................................................25 EXHIBIT A: SAR TEST DATA........................................................................................25 EXHIBIT B: SAR TEST SETUP PHOTOGRAPHS.................................................................26 EXHIBIT C: DIPOLE VALIDATION.................................................................................27 EXHIBIT D: PROBE CALIBRATION DATA.......................................................................28 PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-2309224557.ACJ Test Dates: September 22-23, 2003 Phone Type: Panasonic Toughbook CF-18 w/ Alps Blue Tooth Kit Module and Intel WLAN FCC ID: ACJ9TGCF-183 Page 3 of 28 © 2003 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has a…

Text truncated - open the document above for the full version.

PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18 PANASONIC FCC ID: ACJ9TGCF-183 EUT Photographs © 2003 PCTEST Lab. TOUGHBOOK CF-18 w/ Intel WLAN Model: CF-18

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-230922457-R1.ACJ Test Dates: September 22-23, 2003 Phone Type: Panasonic Toughbook CF-18 w/ Alps Blue Tooth Kit Module and Intel WLAN FCC ID: ACJ9TGCF-183 Page 1 of 22 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: September 22-23, 2003 1006 Oaza Kadoma, Kadoma Test Report S/N: SAR.230922457-R1.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia MD Project No.: ITPD-03-F018A FCC ID: ACJ9TGCF-183 APPLICANT: Matsushita Electric Industrial Co., Ltd. EUT Type: Panasonic Toughbook CF-18 w/ Alps Blue Tooth Kit Module Model: CF-WTB181 and Intel WLAN Model: WM3B2100 Tx Frequency: 2412 – 2462 MHz (DTS)/ 2402 – 2480 MHz (FHSS) Rx Frequency: 2412 – 2462 MHz (DTS)/ 2402 – 2480 MHz (FHSS) Max. RF Output Power: 0.45 mW (16.5 dBm) Conducted (WLAN) 0.0182 W (12.6 dBm) Conducted (Bluetooth) Max. SAR Measurement: 0.618 W/kg DTS Bystander Body SAR (WLAN + Bluetooth) 0.009 W/kg DTS Laptop/ LCD Closed Body SAR (WLAN + Bluetooth) 0.006 W/kg DTS Laptop/ LCD Flip Body SAR (WLAN + Bluetooth) 0.255 W/kg DTS Laptop/ LCD Panel Body SAR (WLAN + Bluetooth) Trade Name/Model(s): CF-18 FCC Classification: FCC Part 15 Digital Transmission System (DTS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #3FKSA00414] Antenna Type: Inverted-F Type Operating Positions: Lap upright, tablet This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 (D1.2, April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output is conducted. This device has been tested for SAR compliance for portable configurations. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except the Bluetooth described in this filing. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-230922457-R1.ACJ Test Dates: September 22-23, 2003 Phone Type: Panasonic Toughbook CF-18 w/ Alps Blue Tooth Kit Module and Intel WLAN FCC ID: ACJ9TGCF-183 Page 2 of 22 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION................................................................................3 2. SAR MEASUREMENT SETUP............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.......................................................................................5 4. PROBE CALIBRATION PROCESS......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. TEST CONFIGURATION POSITIONS..............................................................................10 9. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................................11 10. MEASUREMENT UNCERTAINTIES..................................................................................12 11. SYSTEM VERIFICATION.................................................................................................13 12. ANTENNA LOCATION/DESCRIPTION............................................................................14 13. SAR TEST DATA SUMMARY...........................................................................................15 14. SAR TEST EQUIPMENT..................................................................................................20 15. CONCLUSION..............................................................................................................21 16. REFERENCES.................................................................................................................22 PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-230922457-R1.ACJ Test Dates: September 22-23, 2003 Phone Type: Panasonic Toughbook CF-18 w/ Alps Blue Tooth Kit Module and Intel WLAN FCC ID: ACJ9TGCF-183 Page 3 of 22 © 2003 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specif…

Text truncated - open the document above for the full version.

© 2003 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: September 22-24, 2003 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.230922458.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Project No.: ITPD-03-F018A FCC ID: ACJ9TGCF-183 APPLICANT: Matsushita Electric Industrial Co., Ltd. SUMMARY: Model No.: CF-18 Equipment EUT Type: Panasonic TOUGHBOOK CF-18 w/ Intel WLAN FCC ID: PD9WM3B2100 Max. Output Power: 45 mW (16.5 dBm) Conducted Frequency Range: 2412 - 2462 MHz FCC Classification: FCC Part 15 Digital Transmission …
