From: Botros, Ben Sent: Monday, December 08, 2008 3:50 PM To: PCTEST - Gregory Czumak Subject: FW: ITPD-08-F015A: PCTEST Questions Regarding FCC ID: ACJ9TGCF-19A Dear Greg, I am not sure if you have received this response previously, but please see answers below in blue and attached documents. Thank you, Ben Botros / PNA-PSCD To: Mr. Richard Mullen/ Panasonic Corporation From: Mr. Gregory Czumak/ PCTEST TCB RE: FCC ID: ACJ9TGCF-19A Applicant: Panasonic Correspondence Reference Number: ACJ80993 Confirmation Number: 809190933-6 Date of Original Email: October 28, 2008 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Please submit the statement required b y the FCC averring that the NII transmitter is not capable of operation in ad hoc mode, and that the client s/w and drivers will not permit beacon transmissions on DFS frequencies. Answer: This information is contained within TCB-FCC cover letter dated 10/30/08 under Item (2) description for Intel WLAN/UNII TX. Refer to attached updated copy of this letter. 2. Please submit the FCC ID and Section 15.19 label and label location. Answer: Attached find exhibit for FCC ID Label and Location. 3. Please identify the gains of the various antennae in the EUT. Answer: This information is contained within TCB-FCC cover letter and photos. 4. Please submit the User’s Manual for the EUT, including the information required by Sections 15.21, 15.105, 15.407(e), and the RFx warnin g statement, including info regarding both portable and mobile (external antennae) operation. Answer: Attached find updated Operating Instructions (User Manual) from ITPD. 5. Please submit external and internal photos of the EUT. Answer: Attached find external and internal photos. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected]

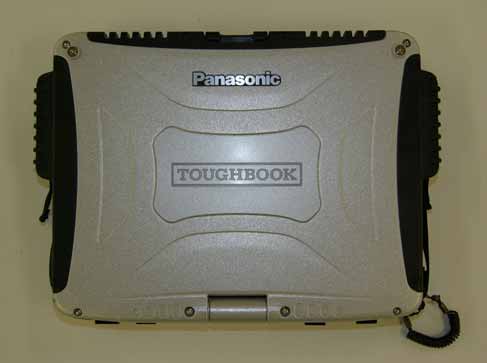

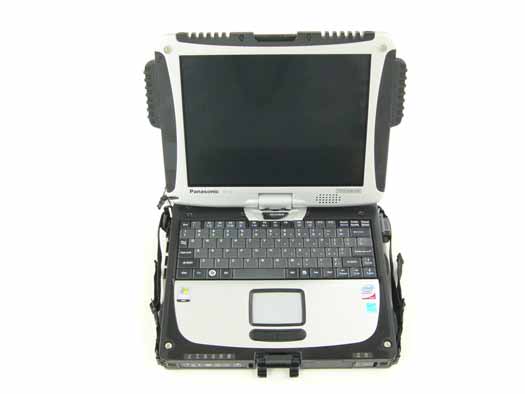

<CF-19mk3 WLAN abgn Bluetooth & UNDP-1 GPS model photo> 1. Top and Front View

<CF-19mk3 WLAN abgn & Bluetooth & UNDP-1 model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-19A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC DoC LABEL FCC ID LABEL

2. Module Position UNDP-1 Module WLAN Module Reverse side of UNDP-1 PWB Reverse Side Bluetooth Module 3. Module Photo 1) WLAN WLAN Exterior Top View WLAN Exterior Bottom View WLAN inside Top View WLAN inside Bottom View 2) Bluetooth Bluetooth Card Top View Bluetooth Card Bottom View Bluetooth Module inside Top View Bluetooth Module inside Bottom View 3) WWAN (UNDP-1) Photo UNDP-1 Top View UNDP-1 Bottom View UNDP-1 Inside Top View UNDP-1 Inside Bottom View 4. Antenna Position WWAN Aux RX Antenna WWAN Main TX/RX Antenna Bluetooth TX/RX Antenna WLAN Aux RX AntennaWLAN Main TX/RX Antenna GPS RX Antenna WLAN Main TX/RX Antenna WLAN Aux RX Antenna Bluetooth TX/RX Antenna UNDP-1 Main TX/RX Antenna UNDP-1 Aux RX Antenna GPS Module Antenna Remove Cover 5. Antenna Specification WLAN Main TX/RX Antenna: Pattern Antenna (Inverted F type: -0.17dBi max: 2.4GHz) (Inverted F type:-0.27dBi max: 5.15-5.35GHz) (Inverted F type:1.87dBm max 5.5-5.825GHz) WLAN Aux RX Antenna: Pattern Antenna (Inverted F type) Bluetooth TX/RX Antenna: Pattern Antenna (Inverted F type: 2.5dBi max) UNDP-1 TX/RX Antenna: Pattern Antenna (Inverted-F type:1.22dBi max: 850MHz) (Inverted-F type:0.37dBi max: 1900MHz) UNDP-1 Aux RX Antenna: Pattern Antenna (Inverted-F type) GPS RX Antenna: Module Antenna 4. Antenna Position WWAN Aux RX Antenna WWAN Main TX/RX Antenna Bluetooth TX/RX Antenna WLAN Aux RX AntennaWLAN Main TX/RX Antenna GPS RX Antenna WLAN Main TX/RX Antenna WLAN Aux RX Antenna Bluetooth TX/RX Antenna UNDP-1 Main TX/RX Antenna UNDP-1 Aux RX Antenna GPS Module Antenna Remove Cover 5. Antenna Specification WLAN Main TX/RX Antenna: Pattern Antenna (Inverted F type: -0.17dBi max: 2.4GHz) (Inverted F type:-0.27dBi max: 5.15-5.35GHz) (Inverted F type:1.87dBm max 5.5-5.825GHz) WLAN Aux RX Antenna: Pattern Antenna (Inverted F type) Bluetooth TX/RX Antenna: Pattern Antenna (Inverted F type: 2.5dBi max) UNDP-1 TX/RX Antenna: Pattern Antenna (Inverted-F type:1.22dBi max: 850MHz) (Inverted-F type:0.37dBi max: 1900MHz) UNDP-1 Aux RX Antenna: Pattern Antenna (Inverted-F type) GPS RX Antenna: Module Antenna

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Serial: EVT2 00044 Communication System: Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Muscle ( σ = 0.96 mho/m, ε r = 55.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 0.0 cm Test Date: 10-02- 2008; Ambient Temp: 23.2 ° C ; Tissue Temp: 22.4 ° C Probe: EX3DV4 - SN3550; ConvF(8.1, 8.1, 8.1); Calibrated: 1/31/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/25/2008 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: Cellular CDMA, Laptop position, LCD Flip, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.0 V/m Peak SAR (extrapolated) = 0.347 W/kg SAR(1 g) = 0.209 mW/g; SAR(10 g) = 0.134 mW/g 0 dB = 0.252mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Serial: EVT2 00044 Communication System: Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Muscle ( σ = 0.96 mho/m, ε r = 55.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 0.0 cm Test Date: 10-02- 2008; Ambient Temp: 23.2 ° C ; Tissue Temp: 22.4 ° C Probe: EX3DV4 - SN3550; ConvF(8.1, 8.1, 8.1); Calibrated: 1/31/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/25/2008 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: Cellular CDMA, Tablet position, Left side, LCD Flip, Mid ch Area Scan (7x21x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.9 V/m Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.662 mW/g; SAR(10 g) = 0.408 mW/g 0 dB = 0.782mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Serial: EVT2 00044 Communication System: Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Muscle (σ = 0.96 mho/m, ε r = 55.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 0.0 cm Test Date: 10-02-2008; Ambient Temp: 23.2 ° C ; Tissue Temp: 22.4 ° C Probe: EX3DV4 - SN3550; ConvF(8.1, 8.1, 8.1); Calibrated: 1/31/2008 Sensor -Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/25/2008 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: Cellular CDMA, Tablet position, Top side, LCD Flip, Mid.ch Area Scan (11x31x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.0 V/m Peak SAR (extrapolated) = 1.00 W/kg SAR(1 g) = 0.636 mW/g; SAR(10 g) = 0.400 mW/g 0 dB = 0.757mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Serial: EVT2 00044 Communication System: Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Muscle (σ = 0.96 mho/m, ε r = 55.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 0.0 cm Test Date: 10-02-2008; Ambient Temp: 23.2 ° C ; Tissue Temp: 22.4 ° C Probe: EX3DV4 - SN3550; ConvF(8.1, 8.1, 8.1); Calibrated: 1/31/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/25/2008 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: Cellular CDMA, Tablet position, Bottom side, LCD Flip, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.31 V/m Peak SAR (extrapolated) = 0.123 W/kg SAR(1 g) = 0.073 mW/g; SAR(10 g) = 0.046 mW/g 0 dB = 0.626mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Serial: EVT2 00044 Communication System: Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Muscle (σ = 0.96 mho/m, ε r = 55.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 0.0 cm Test Date: 10 -03-2008; Ambient Temp: 23.2 ° C ; Tissue Temp: 22.6 ° C Probe: EX3DV4 - SN3550; ConvF(8.1, 8.1, 8.1); Calibrated: 1/31/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/25/2008 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: Cellular EVDO Rev. 0, Laptop position, LCD Flip, Mid.ch Area Scan (6x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.1 V/m Peak SAR (extrapolated) = 0.279 W/kg SAR(1 g) = 0.177 mW/g; SAR(10 g) = 0.116 mW/g 0 dB = 0.211mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Serial: EVT2 00044 Communication System: Cellular CDMA; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: 835 Muscle (σ = 0.96 mho/m, ε r = 55.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 0.0 cm Test Date: 10-03-2008; Ambient Temp: 23.2 ° C ; Tissue Temp: 22.6 ° C Probe: EX3DV4 - SN3550; ConvF(8.1, 8.1, 8.1); Calibrated: 1/31/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/25/2008 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: Cellular EVDO Rev. 0, Tablet position, Left side, LCD Flip, Mid.ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.1 V/m Peak SAR (extrapolated) = 1.11 W/k…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSDPA Serial: EVT2 00044 Communication System: IEEE 802.11a 5.3GHz Band; Frequency: 5260 MHz;Duty Cycle: 1:1 Medium: 5300 Muscle (σ = 5.54 mho/m, ε r = 51.16, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Tablet Position; Space: 0.0 cm Test Date: 09-18-2008; Ambient Temp: 23.2°C; Tissue Temp: 22.5°C Probe: EX3DV4 - SN3561; ConvF(3.83, 3.83, 3.83); Calibrated: 8/26/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: 802.11a, Tablet position, LCD Flip, Ch.52, 6Mbps, Main Ant, Bottom Side Area Scan (9x31x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 2.80 V/m Peak SAR (extrapolated) = 0.183 W/kg SAR(1 g) = 0.037 mW/g; SAR(10 g) = 0.019 mW/g 0 dB = 0.053mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSDPA Serial: EVT2 00044 Communication System: IEEE 802.11a 5.3GHz Band; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: 5300 Muscle (σ = 5.54 mho/m, ε r = 51.16, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Tablet Position; Space: 0.0 cm Test Date: 09-18-2008; Ambient Temp: 23.2°C; Tissue Temp: 22.5°C Probe: EX3DV4 - SN3561; ConvF(3.83, 3.83, 3.83); Calibrated: 8/26/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: 802.11a, Tablet position, LCD Flip, Ch.60, 6Mbps, Main Ant, Top Side Area Scan (9x31x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 1.62 V/m Peak SAR (extrapolated) = 0.094 W/kg SAR(1 g) = 0.016 mW/g; SAR(10 g) = 0.00892 mW/g 0 dB = 0.035mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSDPA Serial: EVT2 00044 Communication System: IEEE 802.11a 5.5GHz Band; Frequency: 5580 MHz;Duty Cycle: 1:1 Medium: 5500 Muscle (σ = 5.79 mho/m, ε r = 50.83, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Laptop Position; Space: 0.0 cm Test Date: 09-19-2008; Ambient Temp: 23.5°C; Tissue Temp: 22.7°C Probe: EX3DV4 - SN3561; ConvF(3.65, 3.65, 3.65); Calibrated: 8/26/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: 802.11a, Laptop position, LCD Flip, Ch.116, 6Mbps, Main Ant Area Scan (8x25x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 1.099 V/m Peak SAR (extrapolated) = 0.107 W/kg SAR(1 g) = 0.036 mW/g; SAR(10 g) = 0.020 mW/g 0 dB = 0.073mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSDPA Serial: EVT2 00044 Communication System: IEEE 802.11a 5.5GHz Band; Frequency: 5540 MHz;Duty Cycle: 1:1 Medium: 5500 Muscle (σ = 5.79 mho/m, ε r = 50.83, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Tablet Position; Space: 0.0 cm Test Date: 09-19-2008; Ambient Temp: 23.5°C; Tissue Temp: 22.7°C Probe: EX3DV4 - SN3561; ConvF(3.69, 3.69, 3.69); Calibrated: 8/26/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: 802.11a, Tablet position, LCD Flip, Ch.108, 6Mbps, Main Ant, Bottom Side Area Scan (9x31x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 2.50 V/m Peak SAR (extrapolated) = 0.239 W/kg SAR(1 g) = 0.034 mW/g; SAR(10 g) = 0.016 mW/g 0 dB = 0.056mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSDPA Serial: EVT2 00044 Communication System: IEEE 802.11a 5.5GHz Band; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: 5500 Muscle (σ = 5.79 mho/m, ε r = 50.83, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Tablet Position; Space: 0.0 cm Test Date: 09-19-2008; Ambient Temp: 23.5°C; Tissue Temp: 22.7°C Probe: EX3DV4 - SN3561; ConvF(3.73, 3.73, 3.73); Calibrated: 8/26/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: 802.11a, Tablet position, LCD Flip, Ch.120, 6Mbps, Main Ant, Top Side Area Scan (9x31x1): Measurement grid: dx=10mm, dy=10mm Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 1.50 V/m Peak SAR (extrapolated) = 0.045 W/kg SAR(1 g) = 0.017 mW/g; SAR(10 g) = 0.00937 mW/g 0 dB = 0.044mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CF - 19mk3; Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSDPA Serial: EVT2 00044 Communication System: IEEE 802.11a 5.8GHz Band; Frequency: 5785 MHz;Duty Cycle: 1:1 Medium: 5800 Muscle (σ = 6.20 mho/m, ε r = 49.68, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Laptop Position; Space: 0.0 cm Test Date: 09-20-2008; Ambient Temp: 23.4°C; Tissue Temp: 22.6°C Probe: EX3DV4 - SN3561; ConvF(3.65, 3.65, 3.65); Calibrated: 8/26/2008 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: 802.11a, Laptop position, LCD Flip, Ch.157…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-19A CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0808221174.ACJ 09/16/08 -10/06/08 Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Page 1 of 36 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.4B 02/04/08 Applicant Name: Date of Testing: Panasonic Corporation of North America 09/16/08 -10/06/08 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0808221174.ACJ FCC ID: ACJ9TGCF-19A APPLICANT: PANASONIC CORPORATION OF NORTH AMERICA EUT Type: Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: FCC Part 15 Frequency Hopping Spread Spectrum Transceiver (DSS) Unlicensed National Information Infrastructure (UNII) PCS Licensed Transmitter (PCB) / Digital Transmission system (DTS) Model(s): CF-19mk3 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) 824.2 - 848.8 MHz (GSM850) / 1850.2 - 1908.8 MHz (GSM1900) 826.4 - 846.6 MHz (WCDMA850) / 1852.4 - 1907.6 MHz (WCDMA1900) 2402 - 2480 MHz (Bluetooth) / 2412 - 2462 MHz (IEEE 802.11b/g/n) 5180 - 5240 MHz, 5260 - 5320 MHz, 5500 - 5825MHz (IEEE 802.11a/n) Conducted Power: 24.92 dBm Cellular EVDO Rev.0 / 24.53 dBm PCS EVDO Rev.0 /32.98 dBm GSM850 / 29.41 dBm GSM1900/ 24.42 dBm WCDMA850 / 24.54 dBm WCDMA1900 / 13.67 dBm BT 14.33 dBm IEEE 802.11b / 15.31 dBm IEEE 802.11g / 15.29 dBm IEEE 802.11n 2.4GHz 13.88 dBm IEEE 802.11a 5.2GHz / 13.74 dBm IEEE 802.11n 5.2GHz 13.62 dBm IEEE 802.11a 5.3GHz / 12.73 dBm IEEE 802.11n 5.3GHz 14.23 dBm IEEE 802.11a 5.5GHz / 13.67 dBm IEEE 802.11n 5.5GHz 13.46 dBm IEEE 802.11a 5.8GHz / 12.79 dBm IEEE 802.11n 5.8GHz Max. Body SAR Measurement: 0.709 W/kg Cellular EVDO Rev.0 / 0.721 W/kg PCS EVDO Rev.0 1.29 W/kg GPRS850 / 0.529 W/kg GPRS1900 0.675 W/kg WCDMA850 / 0.834 W/kg WCDMA1900 0.040 W/kg IEEE 802.11b / 0.077 W/kg IEEE 802.11g / 0.030 W/kg IEEE 802.11n 2.4GHz 0.041 W/kg IEEE 802.11a 5.2GHz / 0.035 W/kg IEEE 802.11n 5.2GHz 0.037 W/kg IEEE 802.11a 5.3GHz / 0.032 W/kg IEEE 802.11n 5.3GHz 0.036 W/kg IEEE 802.11a 5.5GHz / 0.034 W/kg IEEE 802.11n 5.5GHz 0.035 W/kg IEEE 802.11a 5.8GHz / 0.031 W/kg IEEE 802.11n 5.8GHz EUT Serial No.: Pre-Production [S/N: EVT2 00044] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: ACJ9TGCF-19A CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0808221174.ACJ 09/16/08 -10/06/08 Laptop/Tablet PC with 802.11abgn, BT and EVDO/GPRS/EDGE/HSPA Page 2 of 36 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.4B 02/04/08 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 14 10 MULTIPLE ANTENNA & SEPARATION DISTANCES ................................................................. 19 11 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS......................................................................... 22 12 MEASUREMENT UNCERTAINTIES ............................................................................................ 23 13 SYSTEM VERIFICATION.............................................................................................................. 24 14 SAR DATA SUMMARY ................................................................................................................. 25 15 EQUIPMENT LIST......................................................................................................................... 33 16 CONCLUSION............................................................................................................................... 34 17 REFERENCES .............................................................................................................................. 35 Reviewed by: FCC ID: ACJ9TGCF-19A CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0808221174.ACJ 09…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-19A FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0808221176.ACJ October 6 - 7, 2008 Toughbook Model: CF-19 Page 1 of 69 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.1UF 02/15/08 Applicant Name: Date of Testing: Panasonic Corporation of North America October 6 - 7, 2008 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0808221176.ACJ FCC ID: ACJ9TGCF-19A APPLICANT: Panasonic Corporation of North America Model(s): CF-19 EUT Type: Toughbook Model: CF-19 Max. RF Output Power: 24.43 mW (13.88 dBm) Conducted (802.11a UNII Band I) 23.01 mW (13.62 dBm) Conducted (802.11a UNII Band II) 22.54 mW (13.53 dBm) Conducted (802.11a UNII Band III) 23.66 mW (13.74 dBm) Conducted (802.11n UNII Band I) 18.75 mW (12.73 dBm) Conducted (802.11n UNII Band II) 22.96 mW (13.61 dBm) Conducted (802.11n UNII Band III) Frequency Range: 5180MHz – 5240MHz (UNII Band I) 5260MHz – 5320MHz (UNII Band II) 5500MHz – 5700MHz (UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Device Serial No.: 7IKSA00023 T…
