ACJ9TGCF-19FToughbook PC with WWAN, WLAN and Bluetooth

Contents Getting Started OPERATING INSTRUCTIONS Personal Computer Model No. CF-19 series Introduction.................................................................. 2 Read.Me.First.............................................................. 3 Description.of.Parts................................................... 11 First-time.Operation................................................... 15 Useful Information On-screen.Manual..................................................... 19 Handling.and.Maintenance........................................ 21 Reinstalling.Software................................................. 23 Troubleshooting Troubleshooting.(Basic)............................................. 25 Appendix LIMITED.USE.LICENSE.AGREEMENT.................... 30 Specifications............................................................ 32 LIMITED.WARRANTY............................................... 35 Please.read.these.instructions.carefully.before.using.this.product.and.save.this.manual.for.future.use. For further information about the com- puter, you can refer to the on-screen manual. To access the on-screen manual è page 19 “On-screen Manual” Getting Started Useful Information Troubleshooting Appendix 2 Getting Started Introduction Thank.you.for.purchasing.this.Panasonic.product..For.optimum.performance.and.safety,.please.read.these.instructions. carefully. n Terms and illustrations in these instructions CAUTION .:.Conditions.that.may.result.in.minor.or.moderate.injury. NOTE .:.Useful.and.helpful.information. Enter .:.Press.[Enter].key. Fn .+. F5 .:.Press.and.hold.[Fn].key,.and.then.press.[F5].key. .(Start).-.[All.Programs].:.Click..(Start),.and.then.click.[All.Programs]. [start].-.[Run].:.Click.[start],.and.then.click.[Run]..You.may.need.to.double-click.in.some.cases. è .:.Page.in.these.Operating.Instructions.or.in.the.Reference.Manual. .:.Reference.to.the.on-screen.manuals. l ..indicates.Genuine.Windows ® .7.Professional.Operating.System. l ...indicates.Genuine.Microsoft ® .Windows ® .XP.Professional.Operating.System.or.indicates.Genuine. Microsoft ® .Windows ® .XP.Tablet.Operating.System. l Some illustrations are simplified to help your understanding and may look different from the actual unit. l . If.you.do.not.log.on.as.an.administrator,.you.cannot.use.some.functions.or..cannot.display.some.screens. l . Refer.for.the.latest.information.about.optional.products.to.the.catalogs,.etc. l . In.these.instructions,.the.names.and.terms.are.referred.as.follows. Ÿ . “Genuine.Windows ® .7.Professional”.as.“Windows”.or.“Windows.7” Ÿ . “Genuine.Microsoft ® .Windows ® .XP.Professional.Service.Pack.2.with.Advanced.Security.Technologies”.as.“Win- dows”,.“Windows.XP”.or.“Windows.XP.Professional” Ÿ . “Genuine.Microsoft ® .Windows ® .XP.Tablet.PC.Edition.2005”.as.“Windows”,.“Windows.XP”.or..“Windows.XP.Tablet. PC.Edition” Ÿ . DVD-ROM.&.CD-R/RW.drive.and.DVD.MULTI.drive.as.“CD/DVD.drive” Ÿ . Circular.media.including.DVD-ROM.and.CD-ROM.as.“discs” n Disclaimer Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no li - ability.for.damage.incurred.directly.or.indirectly.from.errors,.omissions.or.discrepancies.between.the.computer.and.the. manuals. n Trademarks Microsoft ® ,.Windows ® ,.Windows.7,.and.the.Windows.logo.are.registered.trademarks.of.Microsoft.Corporation.of.the. United.States.and/or.other.countries. Intel,.Core,.Centrino.and.PROSet.are.either.registered.trademarks.or.trademarks.of.Intel.Corporation. SDHC.Logo.is.a.trademark....... Adobe,.the.Adobe.logo.and.Adobe.Reader.are.either.registered.trademarks.or.trademarks.of.Adobe.Systems.Incorpo- rated.in.the.United.States.and/or.other.countries. Computrace ® .is.a.registered.trademark.of.Absolute ® .Software.Corp. Bluetooth™.is.a.trademark.owned.by.Bluetooth.SIG,.Inc.,.U.S.A..and.licensed.to.Panasonic.Corporation. Names.of.products,.brands,.etc.,.appearing.in.this.manual.are.trademarks.or.registered.trademarks.of.their.respective. own.companies. 3 Getting Started Read Me First Models for U.S.A. Federal Communications Commission Radio Fre- quency Interference Statement Note:.This.equipment.has.been.tested.and.found.to.com - ply.with.the.limits.for.a.Class.B.digital.device,.pursuant. to.Part.15.of.the.FCC.Rules..These.limits.are.designed. to.provide.reasonable.protection.against.harmful.interfer- ence.in.a.residential.installation..This.equipment.gener- ates,.uses.and.can.radiate.radio.frequency.energy.and,.if. not.installed.and.used.in .accordance.with.the.instructions,. may.cause.harmful.interference.to.radio.communications.. However,.there.is.no.guarantee.that.interference.will.not. occur.in.a.particular.installation..If.this.equipment.does. cause.harmful.interference.to.radio.or.television.recep- tion,.which.can.be.determined.by.turning.the.equipment. off.and.on,.the.user.is.encouraged.to.try.to.correct.the. interference.by.one.or.more.of.the.following.measures: l . Reorient.or.relocate.the.receiving.antenna. l . Increase.the.separation.between.the.equipment.and. receiver. l . Connect.the.equipment.into.an.outlet.on.a.circuit.dif - ferent.from.that.to.which.the.receiver.is.connected. l . Consult.the.Panasonic.Service.Center.or.an.experi - enced.radio/TV.technician.for.help. Warning To.assure.continued.compliance,.use.only.shielded.inter - face.cables.when.connecting.to.a.computer.or.peripheral... Also, any changes or modifications not expressly ap- proved.by.the.party.responsible.for.compliance.could.void. the.user’s.authority.to.operate.this.equipment. FCC.RF.Exposure.Warning: l .This.equipment.is.provided.with.PC.Card.slot.that.could. be used with wireless transmitters, which will be specifi- cally.recommended.when.they.become.available. Other.third-party.wireless.transmitters.have.not.been. RF.exposure.evaluated.for.use.with.this.computer.and. may.not.comply.with.FCC.RF.exposure.requirements. <Only.for.model.with.wireless.LAN/wireless.WAN/Bluetooth> l . This.equipment.complies.…

Text truncated - open the document above for the full version.

< CF-19 series Gobi2000 Addendum for the external antenna(s) > FCC RF Exposure Warning:
This equipment is provided with external antenna connector(s) for mobile external mounted antenna(s). External antenna(s) must be professionally installed and cannot exceed recommended maximum antenna gain as described in individual provided supplement instructions for wireless transmitters. The maximum allowable antenna gain for the external WWAN base whip antenna for the cellular band is 6.68dBi and PCS band is 7.60dBi. Also, user must maintain minimum 20 cm spacing between external antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7760 / Fax: 201-392-4564 [email protected] BEN BOTROS Project Manager Product Safety and Compliance Division September 3, 2010 ITP-10-F010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Mobile Personal Computer, Model CF-19 mk4 Family TCB Certification for FCC ID: ACJ9TGCF-19F • Alps Bluetooth, Model UGNZA • Azurewave Technologies, Inc. WLAN, Model N5HZC0000054 (Atheros AR9283 Chipset) • Sierra WWAN, Model Gobi2000 (GSM/EDGE/WCDMA/CDMA with GPS) To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents a mobile Personal Computer, Model CF-19 mk4 Family with Intel CPU Types Intel Core i5- 520UM (1.06GHz) or i5-540M (2.40GHz) which will be marketed under FCC ID: ACJ9TGCF-19F. This product will be marketed with the following transmitters: (1) Alps Bluetooth, Model UGNZA (Alps has no FCC ID): This BT transmitter complies with FCC Part 15C under equipment class code DSS. This BT version is under specification Ver 2.1 + ERD has maximum symbol rate of 1~3Mbps. Please refer to test report for exact frequency range and RF output level. (2) Azurewave Technologies, Inc. WLAN, Model N5HZC0000054 – Atheros AR9284 Chipset (has no FCC ID): This module supports 802.11 bgn only 2.4GHZ and MIMO 2x2 function. Please refer to test report for exact frequency ranges and RF output levels. (3) Sierra WWAN, Model Gobi2000 (FCC ID: N7NGOBI2) This combined Cellular and PCS transmitter complies with FCC Parts 22H and 24E under equipment class code PCB. Refer to test report for exact frequency ranges, RF output levels and emission designators. This PC marketed under FCC ID: ACJ9TGCF-19F contains various antennas for BT, WLAN and WWAN. Please refer to separate provided exhibits for antenna photos and test reports for exact antenna description, antenna gains and locations. This portable PC satisfies RF exposure evaluation with the provided transmitters. This PC, when used with optional Car Mounter with external antenna connectors satisfies the RF Exposure Evaluation by the provided SAR and MPE test reports. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7760 / Fax: 201-392-4564 [email protected] BEN BOTROS Project Manager Product Safety and Compliance Division This PC may be marketed with optional Car Mounter, Model CF-WEB184 that may be configured to have one or two TNC antenna pass-thru connectors. The Car Mounter will be marketed to only specific non-general consumers, such as police, fire and military and must be professionally installed by following separate provided mounting instructions. Depending upon exact PC configuration, the GPS module can be connected an external antenna connector. The other antenna connector is intended for licensed radio service (WWAN). The Supplemental Instructions will advise that the recommended maximum external antenna gains are 6.63 dBi for 850 MHz (Cellular) and 7.60 dBi for 1900 MHz (PCS). In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits, which contain Operation Description, Parts Lists, Block Diagram and Schematic Diagram. The BT and WLAN transmitters are not user adjustable and do not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Also, in accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for exhibits which contain External Photographs, Internal Photographs, Test Setup Photographs and the Operating Instructions (User Manual). The requested short-term confidentiality exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Further, we the undersigned, hereby attest to the fact that the subject product is also classified as Class B Computer and will be authorized under Declaration of Conformity to comply with FCC Part 15B to meet Class B limits. Sincerely yours, Ben Botros Ben Botros Project Manager

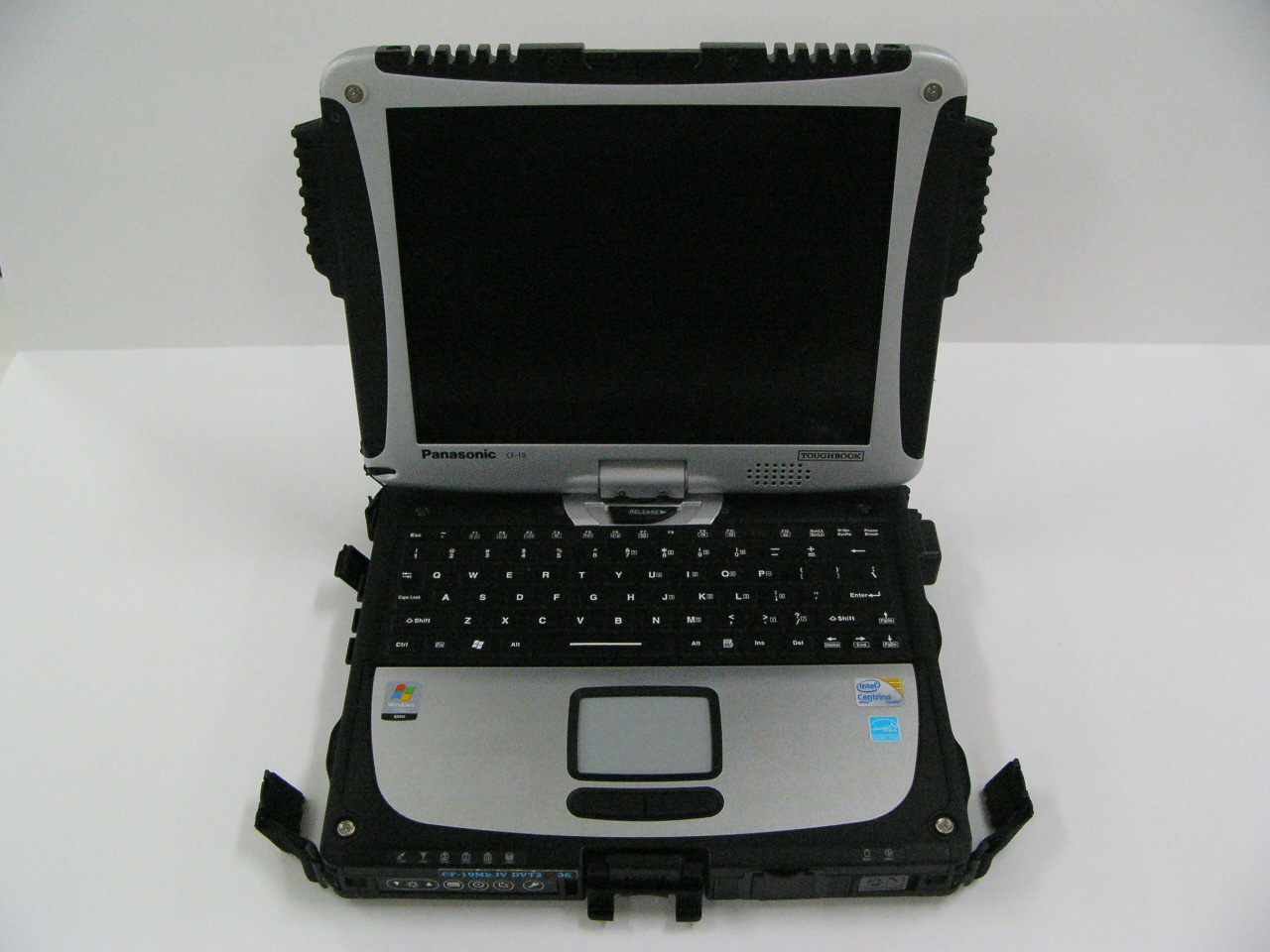

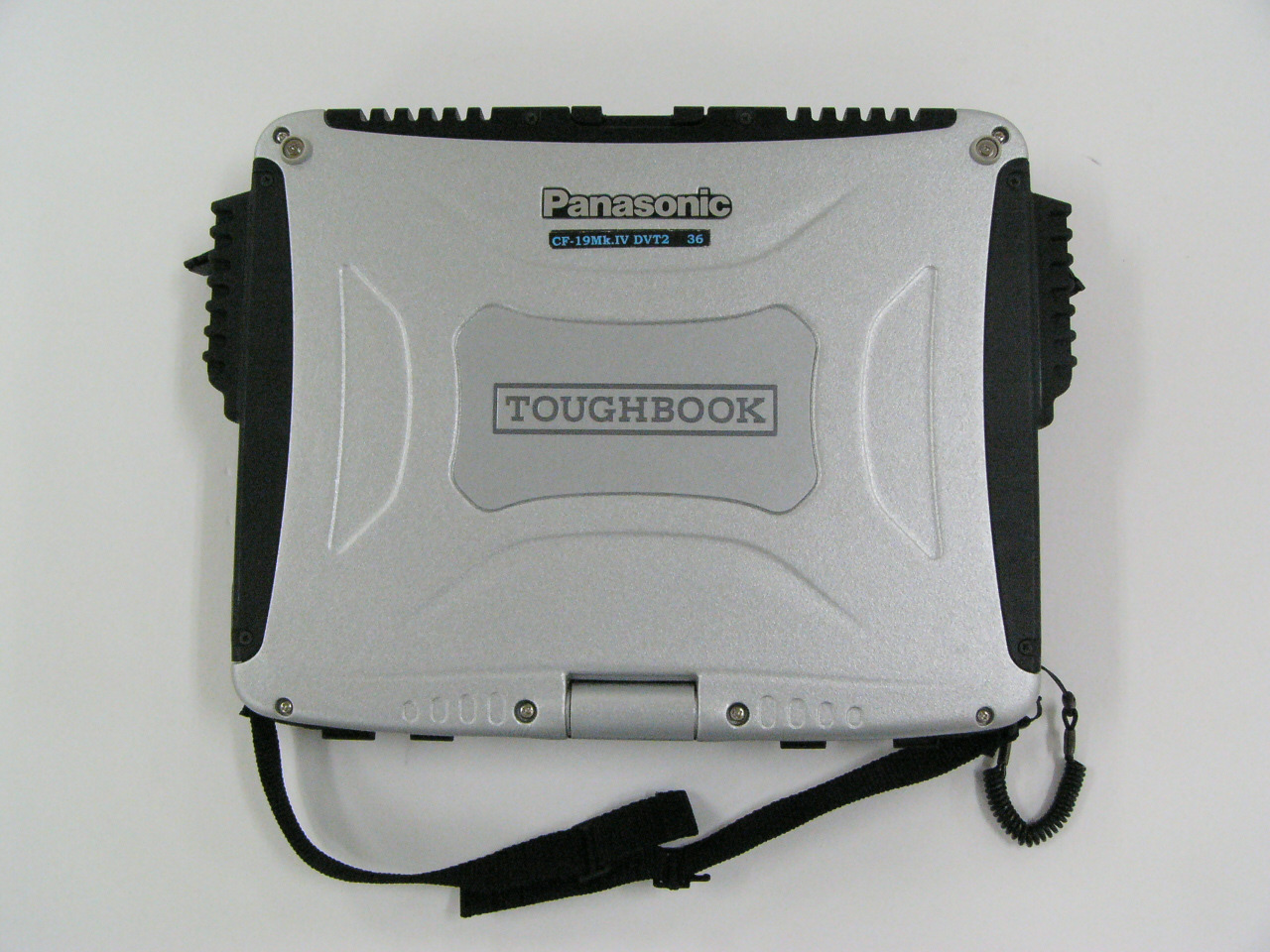

<CF-19mk4 Atheros bgn 100mW + Bluetooth(UGNZA)+ WWAN(Gobi2000) + GPS model photo> 1. Top and Front View FCC ID LABEL FCC DoC LABEL <Photographs of CF <Photographs of CF<Photographs of CF <Photographs of CF- -- -19 WLAN N5HZC0000054+BT UGNZA+WWAN Gobi2000> 19 WLAN N5HZC0000054+BT UGNZA+WWAN Gobi2000>19 WLAN N5HZC0000054+BT UGNZA+WWAN Gobi2000> 19 WLAN N5HZC0000054+BT UGNZA+WWAN Gobi2000> 1. Top side (Lid open) 2. Top side (Lid close) 3. Bottom side 4. Front side 5. Rear side 6. Right side 7. Left side

<CF-19mk4 WLAN bgn (N5HZC0000054)+ Bluetooth (UGNZA) + WWAN (Gobi2000) model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-19F This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2. Module Position WWAN Module WLAN Module Reverse side of RF PWB Reverse Side Bluetooth Module 3. Module Photo 1) WLAN: Model N5HZC0000054 (Azurewave Technologies Inc. AW-NE126H). This module has no own FCC ID. WLAN Exterior Top View WLAN Exterior Bottom View WLAN inside Top View WLAN inside Bottom View 2) Bluetooth Bluetooth Card Top View Bluetooth Card Bottom View Bluetooth Module inside Top View Bluetooth Module inside Bottom View 3) WWAN (Gobi2000) Photo WWAN Top View WWAN Bottom View WWAN Inside Top View WWAN Inside Bottom View 4. CF-19mk4 Antenna Position WWAN Aux RX Antenna WWAN Main TX/RX Antenna Bluetooth TX/RX Antenna WLAN Main TX/RX Antenna WLAN Aux TX/RX Antenna GPS RX Antenna WWAN Aux RX Antenna WLAN Main TX/RX Antenna WLAN Main TX/RX Antenna WWAN Aux RX Antenna WWAN Main TX/RX Antenna WLAN Aux TX/RX Antenna WWAN Main TX/RX Antenna WLAN Aux TX/RX Antenna Bluetooth TX/RX Antenna Bluetooth TX/RX Antenna GPS Module Antenna Remove Cover 5. Antenna Specification WLAN Main TX/RX Antenna: Pattern Antenna (Inverted-F type: 0.86dBi max 2.4GHz) WLAN Aux TX/RX Antenna: Pattern Antenna (Inverted-F type: 2.93dBi max 2.4GHz) Bluetooth TX/RX Antenna: Pattern Antenna (Inverted-F type: 0.80dBi max) WWAN Main TX/RX Antenna: Pattern Antenna (Inverted-F type: -0.46dBi max 850MHz) (Inverted-F type: 1.96dBi max 1900MHz) WWAN Aux RX Antenna: Pattern Antenna (Inverted-F type RX only) GPS RX Antenna: Module Antenna

FCC ID: ACJ9TGCF-19F SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 38 0Y1007231226.ACJ 04/05/10- 08/06/10 Convertible Tablet PC with WLAN, Bluetooth and WWAN © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 Applicant Name: Date of Testing: Panasonic Corporation of North America 04/05/10 - 08/06/10 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1007231226.ACJ FCC ID: ACJ9TGCF-19F APPLICANT: PANASONIC CORPORATION OF NORTH AMERICA EUT Type: Convertible Tablet PC with WLAN, Bluetooth and WWAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Unlicensed National Information Infrastructure (UNII) / PCS Licensed Transmitter(PCB) Digital Transmission System (DTS) / FCC Part 15 Frequency Hopping Spread Spectrum Transceiver (DSS) Model(s): CF-19mk4 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) / 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) / 1852.4 - 1907.6 MHz (UMTS II) 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) 2412 - 2462 MHz (WLAN) Conducted Power: 31.51 dBm GPRS850 / 29.24 dBm GPRS1900 24.43 dBm UMTS V / 23.84 dBm UMTS II 25.07 dBm Cell CDMA EvDO / 25.21 PCS CDMA EvDO 19.87 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.51 W/kg GSM 850 Body SAR / 0.59 W/kg GSM 1900 Body SAR 0.48 W/kg UMTS V Body SAR / 0.75 W/kg UMTS II Body SAR 0.48 W/kg Cell EvDO Body SAR / 0.69 W/kg PCS EvDO Body 0.56 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: ODKSA00505] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: ACJ9TGCF-19F SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 38 0Y1007231226.ACJ 04/05/10- 08/06/10 Convertible Tablet PC with WLAN, Bluetooth and WWAN © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 TEST CONFIGURATION POSITIONS ......................................................................................... 11 9 NOTEBOOK PCS AND USB DONGLES ...................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 13 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 14 12 SYSTEM VERIFICATION .............................................................................................................. 15 13 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 17 14 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 24 15 SAR DATA SUMMARY ................................................................................................................. 26 16 EQUIPMENT LIST ......................................................................................................................... 30 17 CONCLUSION ............................................................................................................................... 32 18 REFERENCES .............................................................................................................................. 33 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 35 FCC ID: ACJ9TGCF-19F SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 38 0Y1007231226.ACJ 04/05/10- 08/06/10 Convertible Tablet PC with WLAN, Bluetooth and WWAN © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 t…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: ACJ9TGCF-19F; Type: Convertible Tablet PC with WLAN, Bluetooth and WWAN Serial: ODKSA00505 Communication System: GSM850 GPRS; 2 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium: 835 Muscle; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.991 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 04-07-2010; Ambient Temp: 23.8°C; Tissue Temp: 22.6°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPR S850, L ap position, LCD Flip, M id.ch, 2x slots Area Scan (8x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.61 V/m; Power Drift = -0.222 dB Peak SAR (extrapolated) = 0.123 W/kg SAR(1 g) = 0.082 mW/g; SAR(10 g) = 0.055 mW/g 0 dB = 0.095mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: ACJ9TGCF-19F; Type: Convertible Tablet PC with WLAN, WWAN and Bluetooth; Serial: ODKSA00505 Communication System: GSM850 GPRS; 2 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium: 835 Muscle; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.973 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 08-05-2010; Ambient Temp: 23.9°C; Tissue Temp: 22.5°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPR S 850, T able t, Edge Left position, LC D Flip, M id.c h, 2x Slots Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.7 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 0.765 W/kg SAR(1 g) = 0.507 mW/g; SAR(10 g) = 0.321 mW/g 0 dB = 0.600mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: ACJ9TGCF-19F; Type: Convertible Tablet PC with WLAN, WWAN and Bluetooth; Serial: ODKSA00505 Communication System: GSM850 GPRS; 2 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium: 835 Muscle; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.973 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 08-05-2010; Ambient Temp: 23.9°C; Tissue Temp: 22.5°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPR S850, T able t, E dge L eft Side position, LCD Flip, M id.ch, 2x Slots Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.7 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 0.765 W/kg SAR(1 g) = 0.507 mW/g; SAR(10 g) = 0.321 mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: ACJ9TGCF-19F; Type: Convertible Tablet PC with WLAN, Bluetooth and WWAN Serial: ODKSA00505 Communication System: GSM850 GPRS; 2 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium: 835 Muscle; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.991 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 04-07-2010; Ambient Temp: 23.8°C; Tissue Temp: 22.6°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPR S850, Tablet, E dge B ottom position, L CD Flip, M id.ch, 2x Slots Area Scan (7x20x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.53 V/m Peak SAR (extrapolated) = 0.128 W/kg SAR(1 g) = 0.079 mW/g; SAR(10 g) = 0.049 mW/g 0 dB = 0.093mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: ACJ9TGCF-19F; Type: Convertible Tablet PC with WLAN, Bluetooth and WWAN Serial: ODKSA00505 Communication System: GSM850 GPRS; 2 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium: 835 Muscle; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.991 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 04-07-2010; Ambient Temp: 23.8°C; Tissue Temp: 22.6°C Probe: EX3DV4 - SN3550; ConvF(8.3, 8.3, 8.3); Calibrated: 1/26/2010 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/22/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPR S850, Tablet, E dge T op position, LCD Flip, M id.ch, 2x Slots Area Scan (7x20x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.5 V/m Peak SAR (extrapolated) = 0.478 W/kg SAR(1 g) = 0.302 mW/g; SAR(10 g) = 0.185 mW/g 0 dB = 0.367mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: ACJ9TGCF-19F; Type: Convertible Tablet PC with WLAN, Bluetooth and WWAN Serial: ODKSA00505 Communication System: GSM1900 GPRS; 2 Tx slots; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium: 1900 Muscle; Medium parameters used: f = 1880 MHz; σ = 1.52 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 04-05-2010; Ambient Temp: 23.5°C; Tissue Temp: 22.3°C Probe: EX3DV4 - SN3550; ConvF(6.63, 6.63, 6.63); Calibrated: 1/26/2010 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-19F FCC Pt. 15.247 802.11 b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1007231224.ACJ August 13, 2010 Toughbook Model: CF-19mk4 Page 1 of 73 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1WN 02/06/2009 Applicant Name: Date of Testing: Panasonic Corporation of North America August 13, 2010 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1007231224.ACJ FCC ID: ACJ9TGCF-19F APPLICANT: Panasonic Corporation of North America Application Type: Certification Model(s): CF-19mk4 EUT Type: Toughbook Model: CF-19mk4 Max. RF Output Power: 196.3 mW (22.93 dBm) Peak Conducted (802.11b) 490.9 mW (26.91 dBm) Peak Conducted (802.11g) 528.4 mW (27.23 dBm) Peak Aggregate Conducted (20MHz 802.11n) 339.6 mW (25.31 dBm) Peak Aggregate Conducted (40MHz 802.11n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: N/A This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: ACJ9TGCF-19F FCC Pt. 15.247 802.11 b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1007231224.ACJ August 13, 2010 Toughbook Model: CF-19mk4 Page 2 of 73 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1WN 02/06/2009 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ......................................…

Text truncated - open the document above for the full version.
