ACJ9TGCF-27GSMGSM PCS Module for use with Panasonic Notebook Com

© 2000 PCTEST Lab ATTACHMENT O – USER’S MANUAL USER MANUAL MARKING FCC DOC FOR NOTEBOOK COMPUTER, MODEL CF-27 SERIES FCC ID: ACJ9TGCF-27GSM FOR GSM PCS MODULE Certificate Number: DoC1998-09L Fty Ref No.: PCPD-00-F005 Original Date: August 11, 1998 Revised Date: December 1, 2000 User Manual provides responsible party name, address and telephone number; and user information in accordance with §§2.1091, 2.1093, 15.19(a)(3), 15.21, 15.27, 15.105(b): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: To assure continued compliance, use only shielded interface cables when connecting this computer to peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Warning Notice if optional FCC Part 22 Cellular or Part 90 Wireless Modem is employed) If this product is used with optional cellular or wireless modem - To comply with FCC RF exposure guidelines, a minimum spacing distance of 20 cm must be maintained between antenna and person’s body during wireless mode of operation. (Warning Notice if optional FCC Part 24E GSM PCS Module is employed) If this product is used with optional GSM PCS Module- To comply with FCC RF exposure safety requirements, a minimum spacing distance of 1 cm must be maintained between antenna and person’s body during wireless modes of operation. Responsible Party: Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No: 1-800-LAPTOP-5 (1-800-527-8675) 16 Using GSM Your computer is equipped with GSM enabling you to communicate using radio frequencies. Names and Functions GSM Switch The modem powers up independently from the computer regardless of the com- puter power status and will remain on when the computer is power off. Power On Indication - Green: A green LED will be used to signal when the modem has been powered on. Ring Indication - Amber: The LED will flash when the modem has received a ring. Communication-mode Indication - Green: LED-off: Not ready LED-flashing slowly: Idle mode LED-flashing rapidly: Communication mode Front Panel Description Your computer is equipped with an external antenna connector. An external an- tenna (i.e. mounted on a vehicle) may be connected to provide higher signal strength in fringe or low signal areas to maximize effective coverage. External Antenna Connector Do not apply excessive force to the H.O.T. antenna or external antenna connec- tor. Doing so could weaken the signal reception strength or damage the antenna or computer. CAUTION External Antenna Connector Antenna Your computer is equipped with a H.O.T. Antenna (High-gain, Omni-directional, Telescopic). The antenna is retractable into the LCD assembly, and data can be sent and re- ceived even when the antenna is not extended. Position the antenna to radiate away from the body to increase effective coverage. H.O.T. Antenna Using GSM

GSM PCS Module For Use Within Panasonic Notebook Computer, Model CF-27 Series FCC Part 24E / Licensed Portable Transmitter Worn On Body FCC ID: ACJ9TGCF-27GSM / Confirmation Number: 13EA99423 WAVECOM COMMITMENT Wavecom is providing Panasonic with a GSM Module, called the Wismo2C-G900/1900 . Wavecom commits itself to make no change that can affect the shape, function, or interface compatibility ( electrical or mechanical ), or that can affect the radio features corresponding to the GSM specification. Done at Issy-les Moulineaux , the 15 th of November 2000-11-15

WISMO2C Hardware Specifications 11/08/00 confidential © Page : 9 / 71 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. 3 Interfaces 3.1 Functional description Figure Figure Figure Figure 2 22 2 : : : : Functional architecture Functional architecture Functional architecture Functional architecture SIM Controller Battery Management Power Supply G E N E R A L P U R P O S E C O N N E C T O R SIM Supply FLASH SRAM Audio Interface A/D Converter RF F U N C T I O N S CPU Vocoder GPSI or SPI Controller Memory Management Unit Keyboard Controller UART RF Interface I/O Controller R.T.C RF C O N N E C T I O N

© 2000 PCTEST Lab ATTACHMENT M – ANTENNA SPECIFICATIONS The GSM Module is provided with interface connections for power supply, serial link, audio, SIM card and 2 antenna connections. The Notebook Computer will provide high-gain omni- directional telescopic antenna with 1dBi gain. The external antenna connector is for optional mounted on vehicle antenna with maximum 3dBi gain.

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Richard Mullen Secaucus, NJ 07094 Group Manager Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 348-7758 e-mail: [email protected] December 4, 2000 PCPD-00-F004 731 Confirmation Number: 13EA99423 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Original Application for Part 24E - Licensed Portable Transmitter GSM PCS Module For Use Within Panasonic Notebook Computer, Model CF-27 Series FCC ID: ACJ9TGCF-27GSM Gentlemen: Enclosed, find Matsushita Electric Industrial Co., Ltd.'s Application for Equipment Authorization dated December 4, 2000. This subject composite device contains: (1) Notebook Computer in compliance with FCC Part 15B under Declaration of Conformity; and (2) the GSM PCS Module in compliance with FCC Part 24E (Broadband PCS) under Certification. The GSM PCS Module is made by Wavecom and this application supports compliance while it is installed within Panasonic Notebook Computer Model CF-27 Series. The module is an internal dual band GSM module that supports international compatibility operation. This filing supports the 1850.2~1909.8 MHz band intended for use within North America with maximum 1.05 watt EIRP (30.22dBm) and receiver that receives within the 1930.2~1989.8 MHz frequency band. The module is provided with interface connections for power supply, serial link, audio, SIM card and 2 antenna connections. The Notebook Computer will provide the 3.6V power supply and high-gain omni-directional telescopic antenna with 1dBi gain. The external antenna connector is for user provided optional vehicle mounted antenna with maximum 3dBi gain. The maximum worst case measured SAR was 1.38W/g measured with 1.0 cm spacing between the antenna and the phantom body performed at 1909.8 MHz with the antenna fully extended. The SAR measurement distance was performed at 1 cm between the significant source of emission (antenna) and the phantom body to determine the minimum required spacing distance to meet FCC RF exposure guidelines. Based upon SAR test results, we purpose to include the following type wording within the user manual: “If this product is used with optional GSM PCS Module - To comply with FCC RF exposure safety requirements, a minimum spacing distance of 1 cm must be maintained between antenna and person’s body during wireless modes of operation.” Should you have any questions, please contact the undersigned. Thank you for your attention in this matter. Sincerely yours, Richard Mullen Group Manager

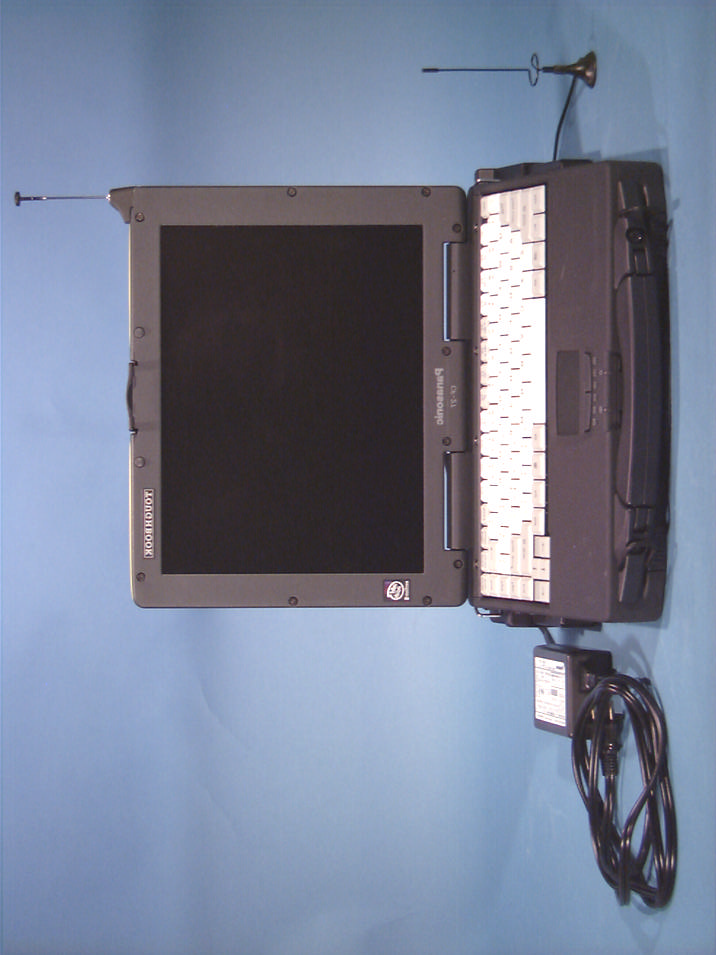

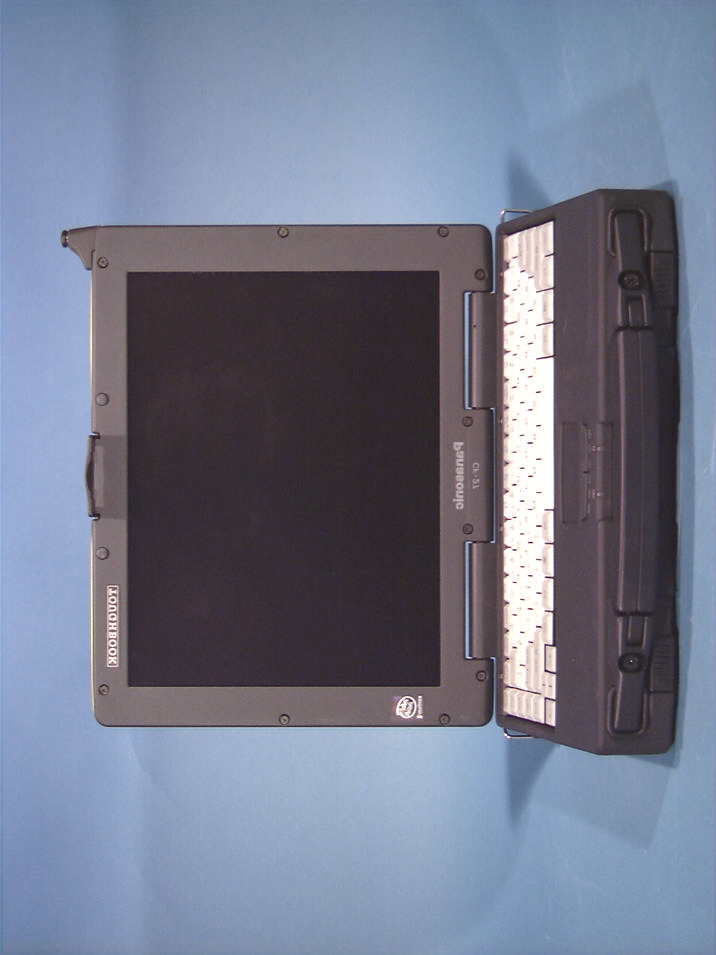

© 2000 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM

LABEL MARKING FCC DOC FOR NOTEBOOK COMPUTER, MODEL CF-27 SERIES FCC ID: ACJ9TGCF-27GSM FOR GSM PCS MODULE Certificate Number: DoC1998-09L Fty Ref No.: PCPD-00-F005 Original Date: August 11, 1998 Revised Date: December 1, 2000 FCC DoC label marking in accordance with §15.19(b)(1)(i) appears on bottom enclosure of Notebook Computer and optional external FDD. FCC ID Label Marking for FCC Part 24E GSM PCS Module: For Use With Panasonic Notebook Computer, Model CF-27 Series. Wavecom GSM Modem TX FCC ID: ACJ9TGCF-27GSM To comply with FCC RF exposure guidelines, a minimum spacing distance of 1 cm must be maintained between antenna and person’s body during wireless mode of operation. © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC ID: ACJ9TGCF-27GSM LABEL MARKING FCC DOC FOR NOTEBOOK COMPUTER, MODEL CF-27 SERIES FCC ID: ACJ9TGCF-27GSM FOR GSM PCS MODULE Certificate Number: DoC1998-09L Fty Ref No.: PCPD-00-F005 Original Date: August 11, 1998 Revised Date: December 1, 2000 FCC DoC label marking in accordance with §15.19(b)(1)(i) appears on bottom enclosure of Notebook Computer and optional external FDD. FCC ID Label Marking for FCC Part 24E GSM PCS Module: For Use With Panasonic Notebook Computer, Model CF-27 Series. Wavecom GSM Modem TX FCC ID: ACJ9TGCF-27GSM To comply with FCC RF exposure guidelines, a minimum spacing distance of 1 cm must be maintained between antenna and person’s body during wireless mode of operation.

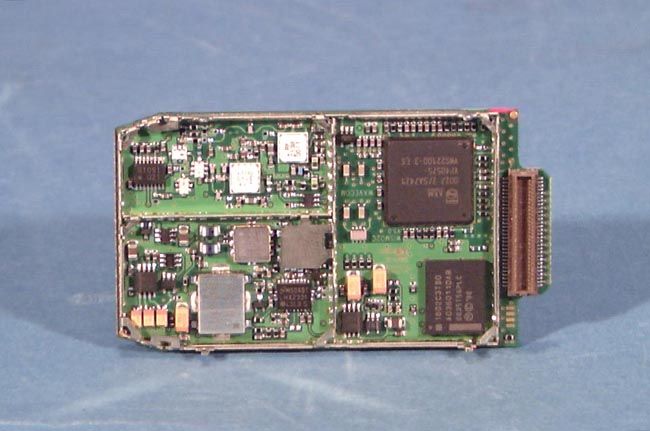

© 2000 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM

© 2000 PCTEST Lab ATTACHMENT N – OPERATIONAL DESCRIPTION WISMO2C Hardware Specifications confidential © Page : 1 / 71 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. Version : 1.0 Date : 11 Tth August 2000 Référence : WM_MKT_WISMO2C_HSP_001_001 WISMO2C Hardware Specifications 11/08/00 confidential © Page : 2 / 71 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. Level/ Indice Date/ Date History of the evolution / Historique des évolutions Writer / Rédacteur 0.106/05/99 CreationJMB 0.216/06/99 Connector ModificationsJMB 0.318/06/99 SIM UpdatePBE 0.402/08/99 SPK load updatePJS 0.512/08/99 SIM and connector updatePBE 0.615/09/99 Battery connection exampleJMB Boot resistor modification SIM max current update 0.723/09/99 General UpdatePBE 0.827/12/99 Validation LGI/DMA/PJS/PBE 0.910/04/00 Modification of Mechanical DrawingsPJS 1.007/00Rework of the documentMNA Name / NomFunction / Fonction Date/ Date Signature/ Signature Written by / Rédigé par M.NAUProduct Line Manager07/00 Validated by / Validé par P.BECHEHardware Department Manager Approved by / Approuvé par P.CALVEZProduct Marketing Senior Manager WISMO2C Hardware Specifications 11/08/00 confidential © Page : 3 / 71 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce document est la propriété exlcusive de WAVECOM. Il ne peut être communiqué ou divulgué à des tiers sans son autorisation préalable. Contents / Sommaire 1Introduction ................................................................................... 6 1.1Scope ..................................................................................................... 6 2General description ........................................................................ 7 2.1General information ................................................................................ 7 2.2RF functionalities .................................................................................... 8 2.3Baseband functionalities......................................................................... 8 2.4Firmware ................................................................................................ 8 3Interfaces ....................................................................................... 9 3.1Functional description ............................................................................ 9 3.2General Purpose Connector (GPC)......................................................... 10 3.2.1 Power supply........................................................................................ 10 3.2.2 Digital I/O.............................................................................................. 14 3.2.3 LCD interface ........................................................................................ 14 3.2.4 SPI Auxiliar bus .................................................................................... 15 3.2.5 Keyboard interface ................................................................................ 16 3.2.6 Serial link .............................................................................................. 17 3.2.7 SIM interface ........................................................................................ 18 3.2.8 General Purpose Input/Output............................................................... 21 3.2.9 Analog to Digital Converter ................................................................... 22 3.2.10Audio .............................................................................................. 23 3.2.11Battery charging interface ............................................................... 32 3.2.12ON / ~OFF....................................................................................... 37 3.2.13BOOT.............................................................................................. 40 3.2.14Reset signal (~RST) ........................................................................ 41 3.2.15External Interrupt (~INTR) ............................................................... 43 3.2.16VCC output ..................................................................................... 44 3.2.17VCC_RTC (Real Time Clock) ............................................................. 44 3.3RF interface .......................................................................................... 47 3.3.1 RF connection....................................................................................... 47 3.3.2 RF performances................................................................................... 49 3.3.3 Antenna specifications.......................................................................... 50 4Technical specifications............................................................... 51 4.1Interfaces.............................................................................................. 51 4.2Climatic and mechanical environments................................................. 54 4.3Mechanical specifications ..................................................................... 55 4.3.1 Physical characteristics......................................................................... 55 4.3.2 Mechanical drawings ........................................................................... 55 WISMO2C Hardware Specifications 11/08/00 confidential © Page : 4 / 71 This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement. Ce d…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT P – SAR MEASUREMENT REPORT © 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Matsushita Electric Industrial Co., Ltd. Dates of Tests: November 7-8, 2000 1006 Oaza Kadoma Test Report S/N: SAR.201108560.NWJ Kadoma, Osaka 571 JAPAN Test Site: PCTEST Lab, Columbia, MD USA Itasca, IL 60143-2844 Attention: K. Nishikawa (MEICL) Richard Mullen (PSCD, MECA) FCC ID ACJ9TGCF-27GSM APPLICANT MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD. EUT Type: Notebook PC w/ GSM PCS Module (AMPS/CDMA) Frequency Range: Tx: 1850.2 – 1909.8MHz (GSM) Rx: 1930.2 – 1989.8MHz (GSM) Max. RF Output Power: 1.05 Watts EIRP (30.22 dBm) Trade Name/Model(s): Tough Book CF-27 FCC Classification: Licensed Portable Transmitter Application Type: Certification Serial Number: n/a (pre production) FCC Rule Part(s): 2.1093; ET Docket 96.326; 24(E); 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 201108560.NWJ SAR Measurement Report FCC Part 24 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14 14.1 SAR TEST EQUIPMENT LIST 15 15.1 CONCLUSION 16 16.1 REFERENCES 17 Test Report S/N: SAR.201108560.NWJ SAR Measurement Report Test Date(s): November 7-8, 2000 FCC Part 24 Certification © 2000 PCTEST Lab Notebook PC w/ GSM PCS Module 1 Panasonic FCC ID: ACJ9TGCF-27GSM SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD. Matsushita Electric Corporation of America Product Safety & Compliance Division Address: One Panasonic Way, Panazip 4B-8 Secaucus, NJ 07094 Attention: Richard Mullen • EUT Type: Notebook PC w/ GSM PCS Module • Trade Name: TOUGH BOOK • Model(s): CF-27 • FCC IDENTIFIER: ACJ9TGCF-27GSM • S/N: Pre-production • Tx Frequency: 1850.2 – 1909.8 MHz (GSM) • Rx Frequency: 1930.2 – 1989.8 MHz (GSM) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter • Modulation(s): GSM • FCC Rule Part(s): § 2.1093, Docket 96-326; § 24(E); • Max. RF Output Power: 1.05 Watts EIRP (30.22 dBm) • Dates of Tests: November 7-8, 2000 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.201108560.NWJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.201108560.NWJ SAR Measurement Report Test Date(s): November 7-8, 2000 FCC Part 24 Certification © 2000 PCTEST Lab Notebook PC w/ GSM PCS Module 2 Panasonic FCC ID: ACJ9TGCF-27GSM 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (r…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT Q – SAR TEST DATA PANASONIC FCC ID:ACJ9TGCF-27GSM -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 7.0 SAR (1g): 0.238 mW/g, SAR (10g): 0.133 mW/g Panasonic PC with PCS Single-Mode phone module Body SAR PCS GSM Mode, Channel 512 [1850.2MHz] Conducted power = 29.7dBm Test Date 11-13-2000 SAR Tot [mW/g] 2.37E-2 7.11E-2 1.19E-1 1.66E-1 2.13E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID:ACJ9TGCF-27GSM -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 7.0 SAR (1g): 1.08 mW/g, SAR (10g): 0.606 mW/g Panasonic PC with PCS Single-Mode phone module Body SAR PCS GSM Mode, Channel 512 [1850.2MHz] Conducted power = 29.7dBm Test Date 11-13-2000 SAR Tot [mW/g] 9.25E-2 2.78E-1 5.55E-1 8.33E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID:ACJ9TGCF-27GSM -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 7.0 SAR (1g): 0.408 mW/g, SAR (10g): 0.218 mW/g Panasonic PC with PCS Single-Mode phone module Body SAR PCS GSM Mode, Channel 649 [1877.6MHz] Conducted power = 30.0dBm Test Date 11-13-2000 SAR Tot [mW/g] 3.96E-2 1.19E-1 1.98E-1 2.77E-1 3.56E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID:ACJ9TGCF-27GSM -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 7.0 SAR (1g): 1.23 mW/g, SAR (10g): 0.704 mW/g Panasonic PC with PCS Single-Mode phone module Body SAR PCS GSM Mode, Channel 649 [1877.6MHz] Conducted power = 30.0dBm Test Date 11-13-2000 SAR Tot [mW/g] 1.07E-1 3.20E-1 6.40E-1 9.59E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID:ACJ9TGCF-27GSM -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 7.0 SAR (1g): 0.553 mW/g, SAR (10g): 0.313 mW/g Panasonic PC with PCS Single-Mode phone module Body SAR PCS GSM Mode, Channel 810 [1909.8MHz] Conducted power = 30.1dBm Test Date 11-13-2000 SAR Tot [mW/g] 5.74E-2 1.72E-1 2.87E-1 4.02E-1 5.17E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC ID:ACJ9TGCF-27GSM -- PCS Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 7.0 SAR (1g): 1.20 mW/g, SAR (10g): 0.616 mW/g Panasonic PC with PCS Single-Mode phone module Body SAR PCS GSM Mode, Channel 810 [1909.8MHz] Conducted power = 30.1dBm Test Date 11-13-2000 SAR Tot [mW/g] 9.63E-2 2.89E-1 5.78E-1 8.67E-1 PCTEST Engineering Laboratory, Inc.

© 2000 PCTEST Lab ATTACHMENT R – SAR TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM © 2000 PCTEST Lab Notebook PC w/GSM PCS Module NVLAP Lab Code: 100431-0 Panasonic FCC ID: ACJ9TGCF-27GSM

© 2000 PCTEST Lab ATTACHMENT S – DIPOLE VALIDATION(S) 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 10.7 mW/g, SAR (10g): 5.51 mW/g 1900MHz Muscle Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 1.11E+0 3.32E+0 5.53E+0 7.74E+0 9.95E+0 PCTEST Engineering Laboratory, Inc.

© 2000 PCTEST Lab ATTACHMENT T – PROBE CALIBRATION Probe ET3DV5 SN:1370 Manufactured: February 1999 Calibrated: February 2000 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μ V range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4)…
