ACJ9TGCF-282Panasonic Notebook PC w/ Sony Ericsson PCMCIA Card

EDGE PC Card Sony Ericsson EDGE PC Cards GC82, GC83 and GC85 User Guide 2Contents Content Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Services Available Over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 EDGE PC Card Hardware Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Start Using Wireless Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Wireless Manager Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Wireless Manager Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Windows Log on Using GPRS/EDGE Dial-up Connection . . . . . . . . . . . . . 19 Create a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 GPRS Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 CSD Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Modify a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Delete a Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using your Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Browse the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Send and Receive emails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Wireless Manager Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . 25 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Wireless Manager Telephony Settings Screen . . . . . . . . . . . . . . 27 Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Forward Calls (Divert). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Wireless Manager SMS Messages Screen . . . . . . . . . . . . . . . . . . 33 SMS Manager Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Wireless Manager Phone Book Screen . . . . . . . . . . . . . . . . . . . . 37 The Phone Book Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Phone Book Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Wireless Manager Online Services Screen . . . . . . . . . . . . . . . . . 41 Contents3 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Wireless Manager Icon Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Software Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 SIM Card Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Sony Ericsson Support Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Guidelines for Safe and Efficient Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Term . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Limitation of liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Disputes and Governing Law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Appendix A - Connection Parameters . . . . . . . . . . . . . . . . . . . . . 62 General Connection Parameters for CSD and GPRS . . . . . . . . . . . . . . . . 62 CSD Specific Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 TCP/IP Optimisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Glossary . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

OPERATING INSTRUCTIONS Personal Computer ® Appendix LIMITED USE LICENSE AGREEMENT ........26 Names and Functions of Parts ......................28 Specifications ................................................30 LIMITED WARRANTY...................................32 Troubleshooting List of Error Codes.........................................19 Dealing with Problems (Summary) .......................21 Reinstalling Software....................................24 Operation Starting Up/Shutting Down ............................14 Touch Pad (Basic Operation).............................17 Reference Manual.........................................18 Getting Started Read Me First..................................................3 First-time Operation ........................................9 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 18 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Touch Pad (Advanced) •Touchscreen* •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •Multimedia Pocket •PC Cards •RAM Module •Port Replicator •Printer •External Display •USB Device •Infrared Data Commu- nications •Modem •Hard Disk Drive •Setup Utility Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No.CF-28 Series Please read these instructions carefully before using this product and save this manual for future use. XP2000 •LED Indicators *Only for models with touchscreen 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2002 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. PS/2 ® is a registered trademark of International Business Machines Corporation. Intel, Pentium and SpeedStep are either registered trademarks or trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. * For the Model No., insert the 12 digit number (for example, CF-28PTJAZQM) located on the bottom of the computer. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. WARNING:WARNING indicates a hazard that may result in moderate or serious injury. [Start] - [Run]:This illustration means to click [Start], then to click [Run]. (For some applications, you may need to double-click.) Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. Windows 2000 :Information for Microsoft ® Windows ® 2000 Professional users. Windows XP :Information for Microsoft ® Windows ® XP Professional users. Dual OS :Information for models on which Windows 2000 and Windows XP are preinstalled. :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 18 on how to access this manual. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. Circular media such as CD-ROM and DVD-ROM are described as “discs”. The “CD Drive” is a description about drives, such as DVD-ROM, CD-ROM, CD-R/RW, and DVD-ROM & CD-R/RW drives. This manual covers two types of models, as distinguished by the type of LCD screen (models with touchscreen and models without touchscreen). If the user has logged on without “Administrator authority,” some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with Administrator authority to enable these functions. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which th…

Text truncated - open the document above for the full version.

Date November 1, 2004 PCTEST Engineering laboratory Inc 6660-B Dobbin Road Columbia, MD 21045 USA TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Sony Ericsson Mobile Communications AB requests confidentiality for the following products: FCC ID Number Product ACJ9TGCF-299A ACJ9TGCF-282 For the product stated above, we request that the following information be held confidential: • Electrical diagrams. • Component listing • Technical description. • Operational description. • Block diagrams. No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Sony Ericsson Mobile Communications AB trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile PC Card. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Rob Emslie M2M Com Sony Ericsson Mobile Communications AB 1 Lakeside Road, Aerospace Centre Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551632 E-mail: [email protected]

Matsushita Electric Corporation of America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201.348.7758 / Fax: 201.392.4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division October 22, 2004 ITPD-04-F035A Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent and Request for Confidentiality Panasonic Mobile Personal Computer Model CF-28 Family With Sony EDGE PC Card Model GC-83 TCB Certification for FCC ID: ACJ9TGCF-282 To Whom It May Concern: On behalf of Applicant Matsushita Electric Industrial Co., Ltd. and their agent Matsushita Electronic Corporation of America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This DoC represents Panasonic Mobile Personal Computer, Model CF-28 to be marketed under FCC ID: ACJ9TGCF-282. This product will be marketed exclusively to Massachusetts Police Department for mobile application with at least 20 cm spacing between antennas in LCD panel and person’s body. This product will be marketed with: (1) CPU type Pentium-3-1000; (2) Sony EGPRS PCMCIA Card, Model GC83 with Part 22H operation within 824.2~848.8 MHz at 0.617 watts ERP and Part 24E operation within 1850.2~1909.8 MHz at 0.805 watts EIRP; and (3) Car Mounter Model CF-WEB272 with 1 external connector for EDGE. RF exposure evaluation satisfied by MPE and 20 cm spacing warning in User Manual. The basic PC User Manual will contain all general RF exposure warning notices, which includes notice that this equipment has been approved for portable operation, and unless otherwise advised in separate supplemental instructions for individual wireless transmitter(s), requires minimum 1.5 cm spacing. Also, it advises connection to optional Car Mounter’s external mounted antenna is for mobile operation with minimum 20 cm spacing requirement, must be professionally installed and cannot exceed recommended maximum antenna dBi gain. Refer to provided samples of User Manuals for exact wording. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request confidentiality for transmitter’s exhibits for Operation Description, Parts List & Tune-Up Procedure, Block Diagram(s) and Schematic Diagram(s). These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Sincerely yours, Richard Mullen Richard Mullen Group Manager

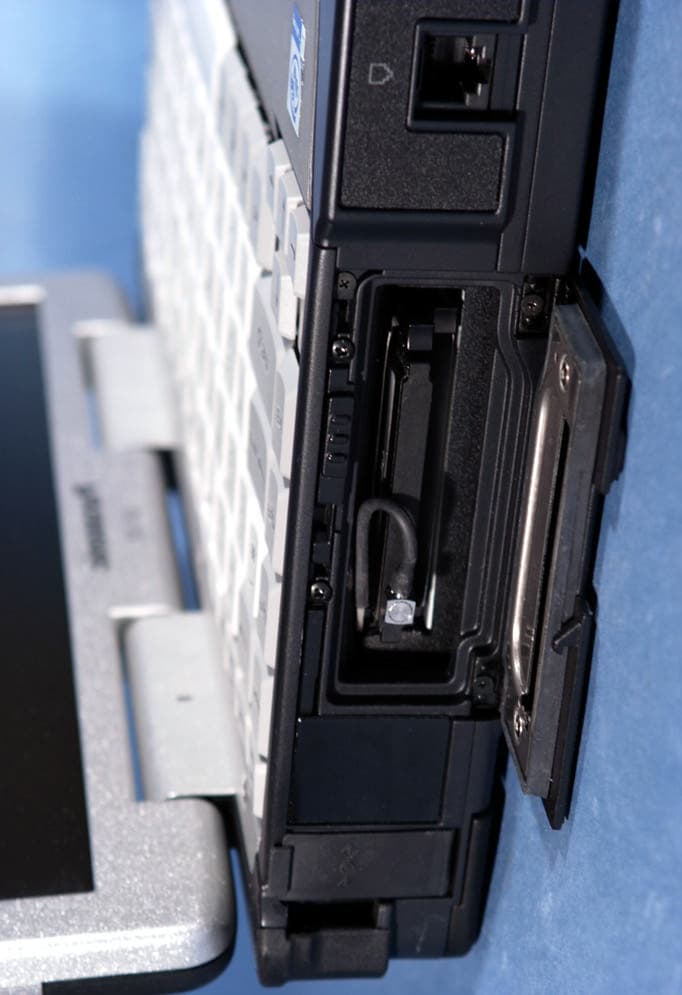

PANASONIC FCC ID: ACJ9TGCF-282 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK w/ SONY Ericsson PCMCIA Card Model: CF-28 PANASONIC FCC ID: ACJ9TGCF-282 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK w/ SONY Ericsson PCMCIA Card Model: CF-28 PANASONIC FCC ID: ACJ9TGCF-282 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK w/ SONY Ericsson PCMCIA Card Model: CF-28 PANASONIC FCC ID: ACJ9TGCF-282 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK w/ SONY Ericsson PCMCIA Card Model: CF-28

<CF-28 EDGE model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-282 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Magnified View FCC DoC LABELFCC ID LABEL

3) EDGE PC Card Exterior photo Top View Bottom View 4) EDGE PC Card Exterior photo Top View Bottom View 5) Antenna Position (EDGE) Front View Whip Antenna Whip Antenna I/F Cable Antenna Position (Whip Antenna) Whip Antenna Black Cable (Soldering)

PCTEST MPE REPORT FCC Measurement Report REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15. 240920544.ACJ TEST DATES: Sept 22, 2004 EUT TYPE: Panasonic Toughbook w/ SONY Ericsson PCMCIA Card FCC ID: ACJ9TGCF-282 PAGE 1 OF 3 © 2004 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-20. 2. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 .163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 30-300 27.5 .073 .2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (P out *G) / (4pr 2 ) Where: Pd = power density in mW/cm 2 (MPE limit) P out = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 r = distance between observation point and center of the radiator in cm Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) PCTEST MPE REPORT FCC Measurement Report REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15. 240920544.ACJ TEST DATES: Sept 22, 2004 EUT TYPE: Panasonic Toughbook w/ SONY Ericsson PCMCIA Card FCC ID: ACJ9TGCF-282 PAGE 2 OF 3 © 2004 PCTEST Engineering Laboratory, Inc. 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. 5. Climate Condition The temperature and relative humidity: 22°C and 78% RH 6. Measurement Results Channel Channel Frequency (MHz) Output Power Power Density (mW/cm 2 ) 190 836.60 0.621 .123 Channel Channel Frequency (MHz) Output Power Power Density (mW/cm 2 ) 661 1880.00 0.813 .165 1. Data taken with all transmitters operating simultaneously 7. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_635FCC22-24_2004 FCC Part 22, 24 / RSS 132, 133 Model: FAF-1031011-BV FCC ID: PY7FF031011 IC ID: 4170B-FF031011 Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 2 (81) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 3 (81) 1.3 Details of applicant Name : Sony Ericsson Mobile Communications AB Street : Maplewood, Chineham Business Park City / Zip Code : Basingstoke, Hampshire RG24 8YB Country : United Kingdom Contact : Michael Bower Telephone : +44 7808 944467 Tele-fax : +44 1252 551697 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-03-08 Date of test : 2004-03-08/17/22, 2004-04-05 1.5 Test item Manufacturer : Applicant Marketing Name : GC83 Model No. : FAF-1031011-BV Description : PC – Card Radio module for GSM 850/1800/1900 MHz FCC-ID : PY7FF031011 IC-ID : 4170B-FF031011 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK and 8-PSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Detachable external Stub Antenna with hinge, 360°, 50Ω (unique connector) Power supply : Powered by the Laptop PC battery via PCMCIA connector Output power : 27.90dBm (616.6mW) max. ERP for GSM 850 29.06dBm (805.37mW) max. EIRP for PCS 1900 Extreme vol. Limits : Low Voltage: 3.0V / High Voltage = Normal Voltage: 3.6V Extreme temp. Tolerance : Low Temperature: -30°C / High Temperature: +55 ° 1.6 Test standards FCC Part 22,24 / RSS 132, 133 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 4 (81) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-04-29 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-04-29 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 5 (81) 2.2 Test report TEST REPORT Test report no.: EMC_635FCC22-24_2004 Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 6 (81) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(a) / § 24.232 (b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 17 OCCUPIED BANDWIDTH §2.1049(h)(i) 20 EMISSION BANDWIDTH §24.238(b) 27 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 34 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 65 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 71 CONDUCTED EMISSIONS § 15.107/207 79 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 80 BLOCK DIAGRAMS 81 Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 7 (81) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. power transmission and proper modulation. This paragraph contains conducted output power, EIRP & ERP measurements for the EUT. In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 824.2 MHz, 836.6 MHz and 848.8 MHz (bottom, middle and top of operational frequency range) for GSM-850 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) for PCS-1900 Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 8 (81) Conducted (GSM-850) Limits: Power Control Level Nominal Peak Output Power Tolerance (dB) 5 ≤33dBm (2W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Frequency (MHz) Average Power during burst (dBm) 824.2 31.72 836.6 32.03 848.8 32.32 Conducted (PCS-1900) Limits: Power Control Level Nominal Peak Output Power Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Frequency (MHz) Average Po…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240920543.ACJ Test Dates: SEPT. 22, 2004 EUT TYPE: Panasonic Toughbook W/ SONY Ericsson PCMCIA Card FCC ID: ACJ9TGCF-282 Page 1 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. G PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Matsushita Electric Industrial Co., Ltd. Dates of Tests: September 22, 2004 1006 Oaza Kadoma, Kadoma Test Report S/N: 22/24.240920543.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia MD Project No.: ITPD-04-F035A FCC ID ACJ9TGCF-282 APPLICANT Matsushita Electric Industrial Co., Ltd. Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Panasonic Toughbook CF-28 w/ Sony Ericsson PCMCIA Card FCC ID: PY7FF031011 Model: CF-28 Tx Frequency Range: 824.20 – 848.80MHz (GPRS) / 1851.20MHz – 1909.80MHz (PCS GPRS) Rx Frequency Range: 869.20 – 893.80MHz (GPRS) / 1931.20MHz – 1989.80MHz (PCS GPRS) Max. RF Output Power: 0.621 W ERP GPRS (27.920 dBm) / 0.813 W EIRP PCS GPRS (29.100 dBm) Emission Designator(s): 300KGXW (GSM) Test Device Serial No. Identical Prototype [S/N: 1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. The Sony Ericsson PCMCIA Card is electrically identical to previously authorized FCC ID: PY7FF031011. RF conducted data is shown in that test report, included in this application. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240920543.ACJ Test Dates: SEPT. 22, 2004 EUT TYPE: Panasonic Toughbook W/ SONY Ericsson PCMCIA Card FCC ID: ACJ9TGCF-282 Page 2 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240920543.ACJ Test Dates: SEPT. 22, 2004 EUT TYPE: Panasonic Toughbook W/ SONY Ericsson PCMCIA Card FCC ID: ACJ9TGCF-282 Page 3 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for co…

Text truncated - open the document above for the full version.
