ACJ9TGCF-28WLAN1Notebook Computer with Built-In Wireless LAN

ORINOCO PC Card - User’s Guide 3-5 Using ORiNOCO and Windows - View Other Computers View Other Computers3 When multiple ORiNOCO stations are up-and-running in your wireless network, you can use the procedure described below to display the other computers: 1. Start Windows Explorer. 2. Scroll down the list of files and folders to look for the item Network Neighborhood . 3. Double-click the Network Neighborhood item to display all stations in your Microsoft Networking Group. 4. To display other workgroups in the network environment, double-click the Entire Network icon. If you cannot find other (ORiNOCO) networked computers, verify whether the other ORiNOCO computers are:
Powered up and logged on to the network.
Configured to operate with identical Microsoft Network settings concerning: — Networking Protocol. — Wireless Network Name — Workgroup Name 3-6 ORINOCO PC Card - User’s Guide Using ORiNOCO and Windows - View Other Computers To view or modify the Station Name or Workgroup of your computer, proceed as follows: 1. Click the button from the Windows task bar. 2. Click on Settings , and then on Control Panel . 3. In the Control Panel window, double-click the Network icon. 4. In the Network Settings window, select the Identification tab. You can verify and change the Station Name or Workgroup parameters. NOTE: You have to restart your computer before changes to the Network Settings will be effected. To verify the radio connection with other stations refer to “View Wireless Link Quality” on page 3-7. ORINOCO PC Card - User’s Guide 3-7 Using ORiNOCO and Windows - Using the Client Manager Using the Client Manager3 If you installed the ORiNOCO Client Manager as described in “Installing the Client Manager Software” on page 2-3, you can use the Client Manager to:
Verify the quality of your wireless connection to the network.
View/Modify the configuration settings of your wireless PC Card. The Client Manager will start automatically every time you power up your computer. The Client Manager icon is displayed in the “System Tray” of your Windows task bar at the right-side on the bottom of your screen, indicating that the Client Manager program is running.
Click the icon once with your left mouse button to retrieve a more detailed status overview.
Click the icon once with your right mouse button to display a menu with more options. View Wireless Link Quality3 You can use the Client Manager icon on the Windows task bar to verify the link quality of your network connection. An overview of all possible icons is given in Table 3-1. When the Client Manager icon is not indicating excellent or good radio connection, act as described below. 3-8 ORINOCO PC Card - User’s Guide Using ORiNOCO and Windows - Using the Client Manager Table 3-1 Client Manager Icon IconDescriptionColor Excellent radio connectionGreen Good radio connectionGreen Marginal radio connection: The radio signal is weak. Move closer to the:
ORiNOCO AP-1000, or
ORiNOCO Base Station Yellow Poor radio connection: The radio signal is very weak. Save your files and move closer to the:
ORiNOCO AP-1000, or
ORiNOCO Base Station Red No radio connection because:
Looking for initial connection, or
You have moved out of range of the network. Red Peer-to-Peer network connectionBlank ORINOCO PC Card - User’s Guide 3-9 Using ORiNOCO and Windows - Using the Client Manager View/Modify PC Card Settings3 If you would like to view or modify ORiNOCO parameters, for example because you would like to connect to another network or type of network, proceed as follows: 1. Right-click on the Client Manager icon on the Windows task bar. 2. From the menu, select Configuration Profile (see Figure 3-2) and select:
Add/Edit Profile to add a new profile or to modify an existing profile.
One of the existing profiles (if present) to select a profile without viewing or modifying the settings. After selecting and another profile, the PC Card will use the selected profile to connect to the wireless network. Figure 3-2 Edit Wireless Configuration Settings 3-10 ORINOCO PC Card - User’s Guide Using ORiNOCO and Windows - Using the Client Manager If your Client Manager icon is not visible, you have to start the Client Manager program again: 1. Click the button from the Windows task bar. 2. Select Programs , and then select the ORiNOCO workgroup. 3. Next select Client Manager to start the Client Manager program. Alternatively you can to change the PC Card configuration via the Control Panel: 1. Click the button from the Windows task bar. 2. Click on Settings , and then on Control Panel . 3. In the Control Panel window, double-click the Wireless Network icon. 4. (Optional) Change the parameters you would like to modify, and click
the OK button to confirm your changes, or
the Cancel button to ignore your modifications. ORINOCO PC Card - User’s Guide 3-11 Using ORiNOCO and Windows - Finding More Information Finding More Information3 If you are looking for more information than contained in this manual, please consult one of the following options:
The online “ ORINOCO PC Card - User’s Guide ” - for more information about the Client Manager program and for information about installing the ORiNOCO PC Card in other operating systems, such as: —MS Windows NT —MS Windows CE —MS DOS — Apple Macintosh The online “ ORINOCO PC Card - User’s Guide ” can be found on the ORiNOCO Software CD-ROM that came with your PC Card kit.
The on-line help system of your ORiNOCO wireless system - for information about software and driver functionality. To view the on-line help system click the Help button or press the function key on your keyboard in any ORiNOCO window, or
The “ORiNOCO Manager Suite User’s Guide” - a reference guide for LAN Administrators that need to setup, monitor and manage corporate LANs. F1 ORINOCO PC Card - User’s Guide 4-1 4 Advanced Configurations Introduction4 Although your ORiNOCO PC Card will work fine in most network environment with the Basic Pa…

Text truncated - open the document above for the full version.

Description in the Operating Instruction Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa-tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer-ence to radio or television reception, which can be determined by turning the equip-ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly ap-proved by the party responsible for compliance could void the user's authority to oper-ate this equipment. FCC RF Exposure Warning: This computer is provided with PC Card slots that could be used with wireless transmitter(s), which will be specifically recommended, when they become available. Other third-party wireless transmitter(s) have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body (excluding extremities: hands, wrists, and feet). Label on Model CF-28 for Lucent (FCC ID: ACJ9TGCF-28WLAN1) FCC ID: ACJ9TGCF-28WLAN1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Description in the Operating Instruction Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa-tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer-ence to radio or television reception, which can be determined by turning the equip-ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly ap-proved by the party responsible for compliance could void the user's authority to oper-ate this equipment. FCC RF Exposure Warning: This computer is provided with PC Card slots that could be used with wireless transmitter(s), which will be specifically recommended, when they become available. Other third-party wireless transmitter(s) have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 5 cm must be maintained between the antenna of this device and person’s body during wireless mode of operation. Label on Model CF-28 (FCC ID: ACJ9TGCF-28WLAN1) FCC ID: ACJ9TGCF-28WLAN1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 16, 2001 RE: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ9TGCF-28WLAN1 This Application does not address any RF Exposure concerns as required by law. Please submit the following: 1.) Please submit RF Exposure exhibit. If you are unfamiliar with this document, I urge you to look for similar 2.4GHz Spread Spectrum products on the FCC website which have been approved this year. 2.) Please be sure users manual has appropriate statements warning users to maintain a 20 cm distance from the EUT and the body (excluding extremities: hands, wrists, and feet). 3.) Please identify antenna(s) used with this device by model or part number, gain, and manufacturer. 4.) The first of two *.jpg files submitted for the external view is a bit fuzzy. Could you please resubmit larger, clearer photo? 5.) The following Grant note will appear on this device. Please note this equipment meets the legal definition of a “Mobile” device for the purposes of RF exposure. • The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Please note the 20 cm distance is between the body and EUT only excluding extremities (hands and feet). This is the only error I can find with this Application. Once solved, I will issue a Grant immediately. William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 23, 2001 RE: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ9TGCF-28WLAN1 I have reviewed the RF exposure information and have a couple of corrections. 1.) Your file RF EXPOSURE STATEMENT (21KE22-1).pdf should show calculations proving that this antenna plus gain and power will be safe as any radius under 20 cm. A blanket attestation statement is not sufficient. Please correct. 2.) Manual Statement as submitted claims a safe radius to 5cm. RF Exposure statement listed in item 1.) claims equipment is safe to 5 cm. There must be agreement with manual statement and RF Exposure statement. Please correct. I caution you that for this device in this configuration, the Mobile environment (20 cm) is the only one appropriate. Bill William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Label on Model CF-28 (FCC ID: ACJ9TGCF-28WLAN1) FCC ID: ACJ9TGCF-28WLAN1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

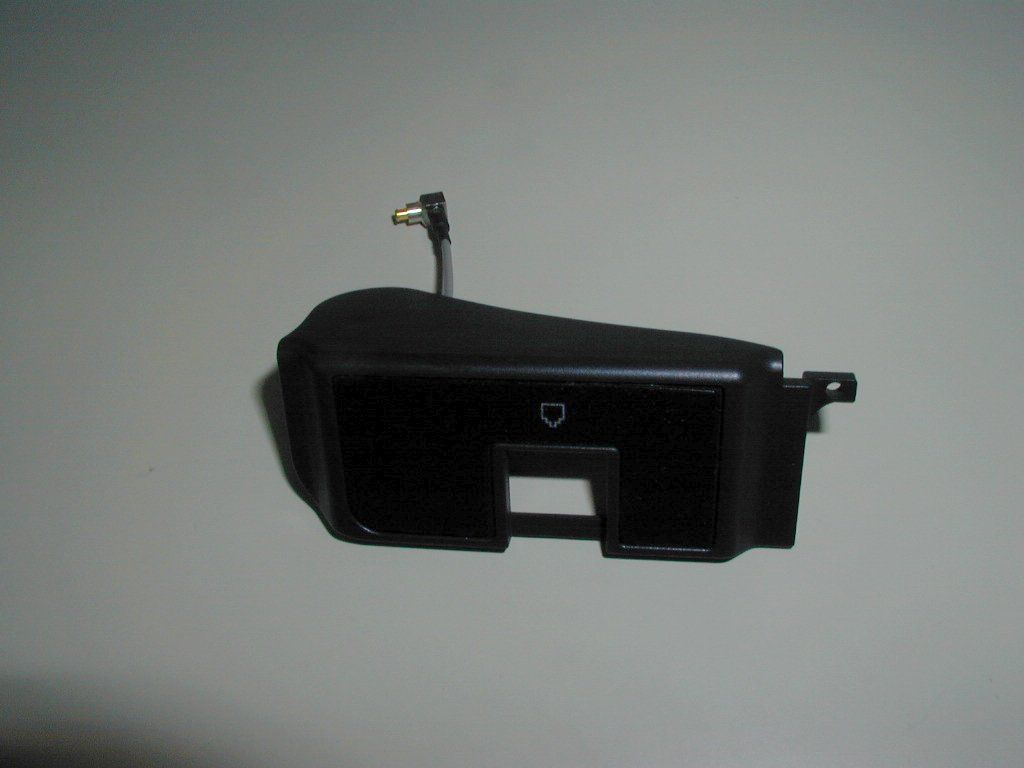

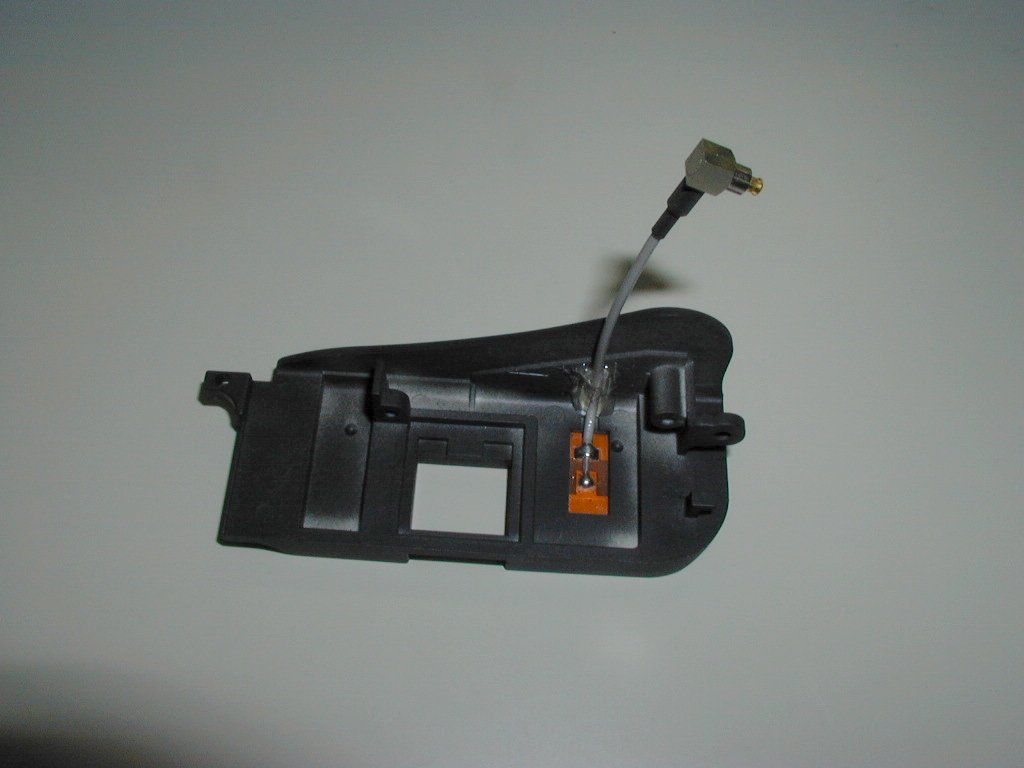

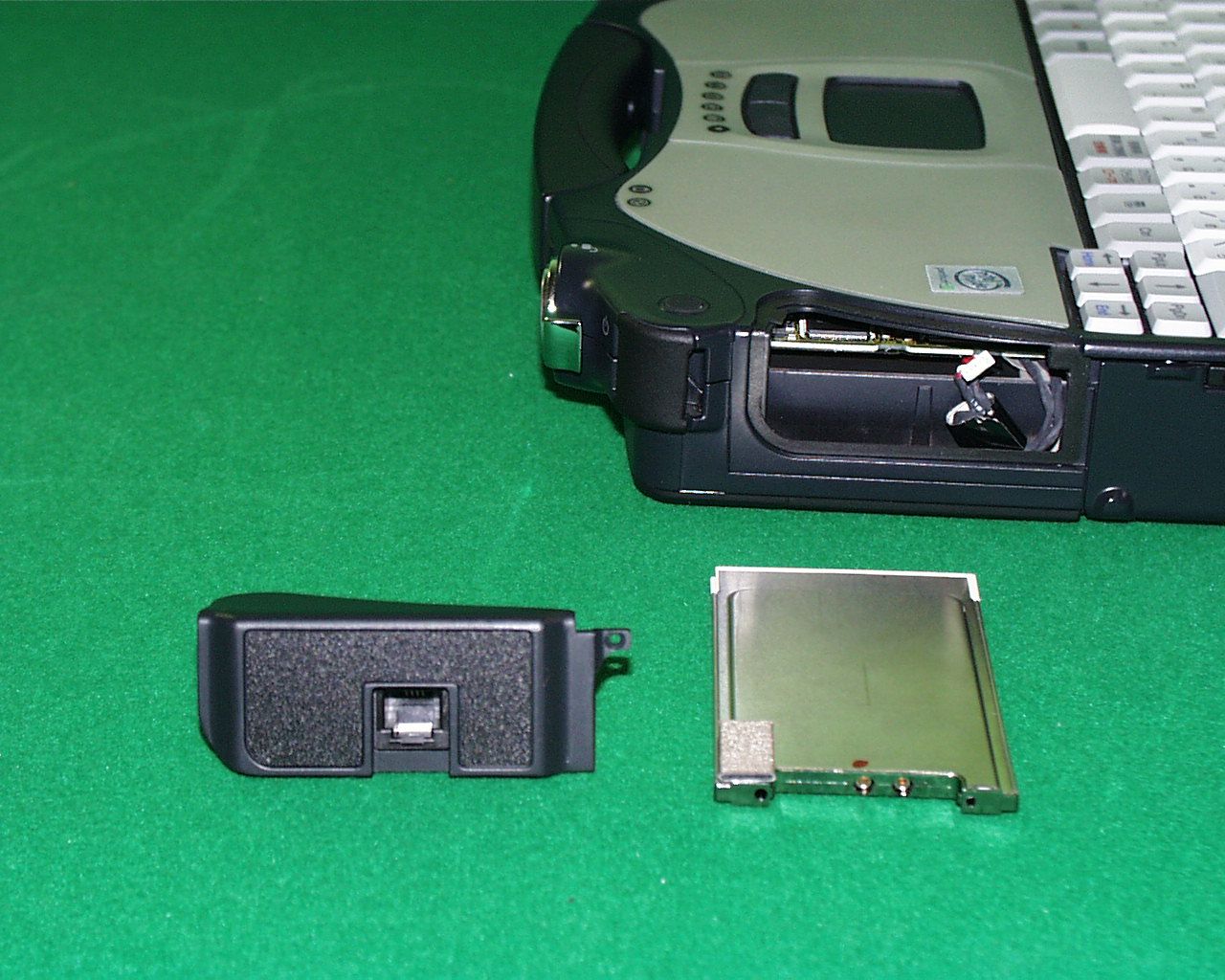

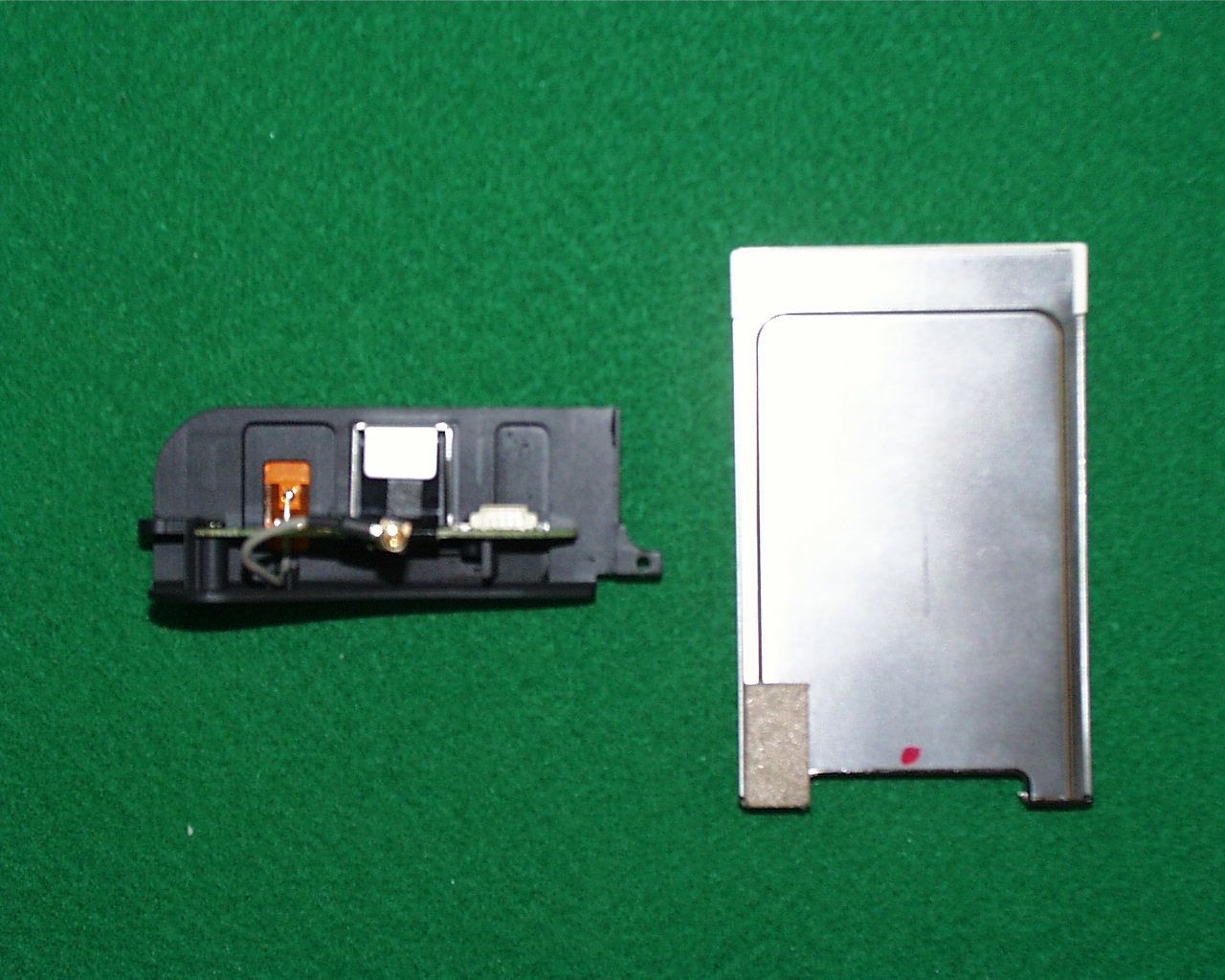

<Lucent WLAN PC Card photo>

< WLAN PC Card photo (bottom)>

OEM Data Sheet March 2001 World PC Card (Integrated) 1 Introduction The ORiNOCO PC Card is an 11 Mbit/s wireless networking card with a range of up to 550 m (1750 ft); ideally suited to operation in the enterprise, ISP, public access, home and SOHO environments. With its PC Card type-II form factor; low power consumption; power management; rugged design (with no protruding antenna); the ORiNOCO PC Card is ideally suited for integration into mobile and handheld platforms. The ORiNOCO PC Card uses Direct Sequence Spread Spectrum (DSSS) technology, and implements DBPSK, DQPSK and CCK modulation, as defined in the IEEE802.11b standard. This gives a very robust radio channel, which is made even better by the excellent receiver sensitivity and delay spread robustness. In an environment with radio interference, the ORiNOCO PC Card, because of its 'acknowledgment protocol' and its option to be tuned to another frequency channel, keeps on running. Superior 'echo path management' makes it suitable for areas with a large delay spread, for example, warehouses. This reduces the number of cells required and therefore reduces the total cost of ownership. Security against eavesdropping is provided for by either Wired Equivalent Privacy, using a 64- bit key, or by RC4, using a 128-bit key. The ORiNOCO PC Card is complemented by drivers and networking tools for most popular operating systems, including Windows, Apple, Novell Client and Linux. Agere provides extensive technical documentation on integration issues, such as: antenna design, customizing drivers, and management software. Features • Automatic fall-back: 11 Mbit/s, 5.5 Mbit/s, 2 Mbit/s or 1 Mbit/s • Low power consumption • Automatic power management to reduce battery use • Software held in upgradeable flash memory • Easy integration into mobile and handheld platforms, with freedom of design and antenna placement • Supports internal and external antenna diversity • 16-bit I/O card • Can be customized with OEM identifying information and MAC addresses • Conforms to IEEE802.11 and IEEE802.11b specification • Interoperable with other IEEE802.11b compliant systems • Conforms to WECA Wi-Fi standard • Conforms to industry-standard PC Card Type-II form factor specification • Compatible with Windows, Apple, and Linux systems ORiNOCO World PC Card (Integrated) 2 Physical Dimensions/Packaging The PC Card has been designed to conform to the PCMCIA standard, February 1995, for type-II PC cards as defined in PC Card Standard Volume 3: Physical Specification, Section 3: Card Dimensions. All dimensions in this section have a tolerance as permitted in PC Card Standard Volume 3. Dimensions:85.6 mm x 54 mm x 5 mm Weight:55 g The card has two mechanically-unique coax connectors for external antennas. Shock and Vibration Resilience The PC Card meets all the requirements specified in PC Card Standard Volume 3 as regards resilience to shock and vibration. Reliability MTTF 125,000 hours, based on workload of 2040 hours/year within operating conditions. Operating Conditions Operating temperature range0 ∞C to 55 ∞C ambient temperature Relative humidity when operational95% maximum (non condensing) Barometric pressure740 hPa to 1050 hPa Absolute Maximum Ratings Storage temperature rangeñ20 ∞C to 75 ∞C ambient temperature Relative humidity during storage95% maximum (non condensing) ORiNOCO World PC Card (Integrated) 3 Barometric pressure740 hPa to 1050 hPa Electrical Specification Supply voltage3.3 V or 5 V DC from host (±0.2 V) Ripple tolerance of supply voltage120 mV ripple (measured peak-to-peak) with fundamental frequency ≤ 150 kHz Load capacitance of supply voltage≤ 150 μF Power-on start-up time≤ 600 ms after switching power supply on. (This includes a delay of max 500 ms for the Flash ROM power up sequence.) Doze to Receive mode start-up time ≤ 0.75 ms. (Transmissions are not allowed during this period.) Power consumptionDoze modeReceive modeTransmit mode Typical for PC Card9 mA185 mA285 mA Max for PC Card15 mA240 mA330 mA RF Specification Frequency Range2400 MHz to 2462 MHz Frequency stabilitywithin 25 kHz of nominal value Transmitter output power15 dBm ±2 dB Over-driving levelstolerated up to +17 dBm at the antenna connector Nominal antenna port impedance 50 Ω Media Access ProtocolCSMA/CA with ACK Modulation techniqueDirect Sequence Spread Spectrum CCK (11 Mbit/s and 5.5 Mbit/s) DQPSK (2 Mbit/s) DBPSK (1 Mbit/s) Spreading11-chip Barker sequence Data RateReceiver sensitivity (Bit Error Rate < 10 -5 ) Delay spread robustness (FER < 1%) 11 Mbit/s-82 dBm65 ns 5.5 Mbit/s-87 dBm225 ns 2 Mbit/s-91 dBm400 ns 1 Mbit/s-94 dBm500 ns ORiNOCO World PC Card (Integrated) 4 Antenna Specification The antenna function of the PC Card provides two connectors for external antennas. These antenna connectors, referred to as MAIN (in the centre) and AUX (towards the side), are used for both reception and transmission (MAIN) and reception only (AUX). The connectors are mechanically unique such that no off-the-shelf connector will fit (FCC requirement). There are two possibilities for antenna connection. Two passive antennas When passive antennas are connected to both ports, one is used for transmission, and the DSP selects which of the two to use for reception, based on signal strength. External diversity antenna When an external diversity antenna is connected to the MAIN port, this antenna will be used for both reception and transmission. The switching circuit of the external diversity antenna is not activated unless the LSB of MMI register 3Fh is set via the Modem Management Interface. Antenna selection is then achieved through 3.3 V CMOS bias voltages on the MAIN connector, as follows: High (V CC =3.3 V nominal)transmit/receive mode using main antenna of external diversity antenna Low (V CC = 0 V nominal)receive mode using auxiliary antenna of external diversity antenna Activity LED The signal for an external activity indicator is available on the AUX connector. If there is also a passiv…

Text truncated - open the document above for the full version.

Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 2 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Tested Methodology4 1.2 Test Facility4 2 PRODUCT DESCRIPTION5 2.1Test system Details5 3 SYSTEM TEST CONFIGURATION6 3.1 Justification6 3.2.Configuration of Tested System6 4 MEASUREMENT UNCERTAINTY7 5 TEST INSTRUMENTS8 6 SUMMARY OF TEST9 6.1 §15.207 Conducted Emissions9 6.2 §15.247(a)(2)6dB Bandwidth9 6.3 §15.247(b) Maximum Peak Out Put Power(Radiated and Conducted)10 6.4 §15.247(c) Out of Band Emissions 11 6.5 §15.247(d) Power Density12 6.6 §15.247(e) Processing Gain12 Photographs of test setup 13-14 APPENDIX15 Test dataA1toA59 Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 3 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: Matsushita Electric Industrial Co.,Ltd. AVC Company Personal Computer Division. ADDRESS: 1-10-12 Yaqumohigashi-machi, Moriguchi City Osaka Japan Tel: +81-6-6907-4050 Fax: +81-6-6907-4041 REGULATION(S): FCC Part15 Subpart C, Section 15.247 MODEL NUMBER: CF-28 SERIAL NUMBER: N/A(Prototype) KIND OF EQUIPMENT: Wireless LAN built in personal computer TESTED DATE: June 20,21,22,23 and 24, 2001 RECEIPT DATE OF SAMPLE : June 20, 2001 REPORT FILE NUMBER: 21KE0022-YW-1 TEST SITE: A-PEX Yokowa No.3 Open Test Sites Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 4 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Tested Methodology The measurement was performed according to the procedures in FCC/ANSI C63.4(1992). 1.2 Test Facility The open area site measurement facilities used to collect the radiated data are located at 108, Yokowa-cho, Ise-shi, Mie-ken, 516-1106 Japan. These sites have been fully described in reports submitted to the FCC office. No.3 test site has filed to the FCC on September 12, 2000 as number: 90412 and is accepted by Industry Canada on February 19, 1998 as number IC2973-3. Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 5 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 PRODUCT DESCRIPTION Sony Corporation, Model ERA-201D1 (referred to as the EUT in this report) is a Wireless LAN built in Personal Computer. The specification is as following : Clock frequency: CPU (Pentium 600MHz) : External100MHz : Internal600Mhz : LCD Clock65MHz : PLL Clock Generator14MHz Operating Voltage: AC100-240V,15-0.7A,50/60Hz(AC Adapter) Wireless LAN : Direct sequence spread spectrum.(IEEE 802.11b) 2412 through 2462MHz (11channels / each 5MHz wide) Integral Antenna.(Antenna Gain: 2.14dBi) *FccPart15.203 Antenna requirement Wireless LAN Card and its antenna comply with this requirement since they are built in PC when they are put up for sale and they are used with a particular antenna connector. PCMCIA-bus 2.1 Test System Details Model FCC ID Description (1) Matsushita Electric Industrial Co.,Ltd. ACJ9TGCF-28WLAN1 Wireless LAN built in PC M/N: CF-28 S/N: N/A(Prototype) *FccPart15 Subpart B Class B Digital Device : DOC (2)Matsushita Electric Industrial Co.,Ltd.DOCAC Adapter M/N: CF-AA1639A S/N: N/A(Prototype) Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 6 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode : Data Transmitting ode(bit rate : 11Mbps) Performed the test about channels 1(low), 6(mid) and 11(high) among 11 channels of all Carrier frequencies. Receiving mode 3.2 Configuration of Tested System AC 120V/60Hz :Ferrite Core Wooden table (1)EUT (2) * Cabling was taken into consideration and test data was taken under worst case conditions. List of cables used No.NameLength (m)ShieldRemark AC Power Cable1.8NP.V.C DC Power Cable1.9NP.V.C Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 7 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 4 Measurement Uncertainty Conducted Emission Test The measurement uncertainty (with a 95% confidence level) for this test was ±2.0dB. The data listed in this test report may exceed the test limit because it does not have enough margin (more than 2.0dB). The data listed in this test report has enough margin, more than 2.0dB. Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test was 3.3dB. The data listed in this test report may exceed the test limit because it does not have enough margin (more than 3.3dB). The data listed in this test report has enough margin, more than 3.3dB. Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 8 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 5 TEST EQUIPMENT USED Name Manufacturer Model Control No. Calibrated Until Pre AmplifierHewlett Packard8447DAF-01March 30, 2002 Pre AmplifierHewlett Packard8449BAF-04November 4, 2001 Biconical AntennaSchwarzbeckBBA9106BA-03April 30, 2002 Logperiodic AntennaSchwarzbeckUHALP9108-ALA-06April 30, 2002 LISNSchwarzbeckNSLK8126 LS-07November 2, 2001 Horn AntennaAH System, In…

Text truncated - open the document above for the full version.

Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 13 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Photographs of test setup(1) Test report FCC ID : ACJ9TGCF-28WLAN1 Our reference : 21KE0022-YW-1 Page: 14 of 15 Issued date: 2001-7-01 Testing Laboratory A-pex International Co., Ltd.Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Photographs of test setup(2)
