Personal Computer Appendix LIMITED USE LICENSE AGREEMENT ..........35 Hard Disk Backup Function .............................37 Hard Disk Data Erase Utility ............................41 Specifications ...................................................42 LIMITED WARRANTY .....................................44 Troubleshooting List of Error Codes ........................................25 Dealing with Problems (Summary) .......................26 Reinstalling Software ....................................33 Operation Starting Up/Shutting Down ............................16 Touch Pad (Basic Operation) ........................19 Reference Manual .........................................20 Useful Information .........................................21 Getting Started Read Me First .................................................3 Names and Functions of Parts ........................9 First-time Operation ......................................11 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 20 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Touch Pad •Touchscreen* 1 •Panasonic Hand Writing •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •Multimedia Pocket •PC Cards •RAM Module •Port Replicator •External Display •Printer •USB Devices •Modem •LAN •Wireless LAN* 2 •Hard Disk Drive •Setup Utility •Icon Enlarger •Loupe Utility Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No.CF-29 Series Please read these instructions carefully before using this product and save this manual for future use. XP •LED Indicators * 1 Only for models with touchscreen* 2 Only for models with wireless LAN OPERATING INSTRUCTIONS 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. © 2004 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. * For the Model No., insert the 12 digit number (for example, CF-29HTLGZBM) located on the bottom of the computer. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [start] - [Run]:This illustration means to click [start], then to click [Run]. For some applications, you may need to double- click. :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 20 on how to access this manual. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. The “CD/DVD drive” is a description about drives, such as DVD-ROM, CD-ROM, CD-R/RW, and DVD-ROM & CD-R/ RW drives. This manual covers two types of models, as distinguished by the type of LCD screen (models with touchscreen and models without touchscreen). If the user has logged on without the administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. Confirm the latest information on optional products in catalogs, etc. In this manual, “Microsoft ® Windows ® XP Professional Service Pack 2 with Advanced Security Technologies” is indicated as “Windows” or “Windows XP”. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relo…

Text truncated - open the document above for the full version.

25 Troubleshooting List of Error Codes When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions shown below. If the problem persists, or if the error code or message displayed is not shown here, contact Panasonic Technical Support. Error Code/Message 0211: Keyboard error 0251: System CMOS checksum bad - Default configuration used 0271: Check date and time set- tings 0280: Previous boot incomplete - Default configuration used 02B0: Diskette drive A error 0613: Serial Port* 1 configura- tion changed 0614: Serial Port* 1 config. error - device disabled * 1 The port name, such as A or B, is displayed, indicating the conflict- ing ports. Press <F2> to Setup Operating System not found Extended RAM Module Failed Action If an external keyboard or mouse is connected, disconnect these devices. An error has occurred in the memory that stores the Setup Utility settings. This error occurs when the memory content is changed through some inadvertent operation by a program or other function. Run the Setup Utility and load the default values, then change the settings to the appropri- ate values as needed. If the problem persists, the internal clock battery may need to be replaced. Contact Pana- sonic Technical Support. The data and time setting are incorrect. Run the Setup Utility and set the date and time correctly. If the problem persists, the internal clock battery may need to be replaced. Contact Pana- sonic Technical Support. ( page 44) Startup has failed repeatedly, so the Setup Utility settings have been returned to their default values, and the computer has been restarted. Run the Setup Utility and load the default values, then change the settings to the appropri- ate values as needed. Disconnect the floppy disk drive and reconnect it. Make sure the drive is secured cor- rectly. I/O address and IRQ settings are in conflict. Run the Setup Utility and change the settings in [Advanced] menu so there is no port conflicts. Write down the error details and press F2 to run the Setup Utility. Confirm the settings, and change the settings to the appropriate values as needed. The OS is not properly installed on the floppy disk or the hard disk that you are trying to boot from. If the computer cannot be booted from the floppy disk, check the floppy disk drive to ensure that the disk is in fact bootable, and change it to another if not. If the computer cannot be booted from the hard disk, confirm whether the hard disk is properly recognized in [Information] menu of the Setup Utility. • If the hard disk is recognized, perform the reinstallation procedure. • If not, contact Panasonic Technical Support. If a device is connected to the USB port, disconnect the device, or run the Setup Utility and set [Legacy USB Support] in [Advanced] menu to [Disable]. If the extended RAM module has not been inserted properly, or if an extended RAM module other than one matching the specifications has been inserted, a beep will sound and the message “Extended RAM Module Failed” will be displayed when turning the power on. In this case, turn the power off, confirm that the extended RAM module meets the specifications, and reinsert it. To run the Setup Utility 1 Restart the computer. 2Press F2 while [Panasonic] boot screen is displayed soon after the computer begins the startup procedure. Troubleshooting 26 The power indicator or bat- tery indicator is not lit The computer does not op- erate when a USB device is connected [Enter Password] is dis- played POST Startup Error(s) is displayed Windows startup, or an op- eration is extremely slow The date and time are incor- rect When resuming from the standby or hibernation mode, [Enter Password] does not appear even if a password has been set in the Setup Utility When the administrator password is forgotten When “Remove disks or other media. Press any key to restart” (or a similar mes- sage) is displayed [Executing Battery Recalibration] screen is dis- played When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact Panasonic Technical Support. You can use the PC Information Viewer to check the computer’s usage status. ( “Dealing with Problems (Advanced)”) Dealing with Problems (Summary) Starting Up Check the cable connection for the AC adaptor. Check to see if a fully charged battery is properly installed. Remove the battery pack and disconnect the AC adaptor, then connect them again. The computer may not operate when certain USB devices are connected. Disconnect the USB device, or set [Legacy USB Support] to [Disable] in [Advanced] menu of the Setup Utility. Input your Supervisor Password or User Password. If you have forgotten it, contact Pana- sonic Technical Support. ( page 44) page 25 Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup Utility’s settings to their default values (except the password settings). Then, the Setup Utility must be run once again for you to input the appropriate operating environment settings. (The processing speed depends on the application software used, so this opera- tion may not cause the processing speed to increase.) If you install resident software after purchasing this computer, disable the resident software. You can set the date and time using the following menu. [start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Date and Time] If you continue to experience problems, the internal battery maintaining the clock may need to be replaced. Contact Panasonic Technical Support. When the computer is connected to a LAN, confirm the date and time of the server. This computer will not correctly recognize the date and time starting from the year 2100 A.D. Even when a password has been set in the Setup Utility, [Enter Password] does not appear when the comput…

Text truncated - open the document above for the full version.

This manual contains supplementary instructions regarding the use of the computer. It explains the cases where the operation of the computer differs from that in the Operating Instructions. Your computer is equipped with Wireless LAN enabling you to communicate using radio frequencies. Supplementary Instructions for Wireless LAN FCC Radio Frequency Interference Requirements This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this product. Specifications Data transfer rates Standards supported Transmission method Wireless channels used RF frequency band IEEE802.11a: 54/48/36/24/18/12/9/6Mbps (automatically switched) IEEE802.11g: 54/48/36/24/18/12/9/6Mbps (automatically switched) IEEE802.11b: 11/5.5/2/1 Mbps IEEE802.11a/IEEE802.11g/IEEE802.11b OFDM system, DSSS system IEEE802.11a: Channels 36 to 64, 149 to 165 IEEE802.11b/IEEE802.11g: Channels 1 to 11 IEEE802.11a: 5.18~5.32GHz, 5.745~5.825GHz IEEE802.11g/IEEE802.11b: 2412~2462MHz 76 Wireless LAN If you use a wireless LAN, you can use a network without cable connections. CAUTIONz Communication is performed through the wireless LAN antenna (A). Do not block the antenna area with your hand or otherwise interfere with the passage of the radio signals. z Do not use the Fast User Switching function. The wireless LAN cannot be used. NOTEz The communication speeds and distances differ depending on the devices that support the wireless LAN, the installation environment and other ambient conditions. z One characteristic of radio waves is that th eir transmission rate tends to drop as the communication distance increases. It is recommended that the devices supporting the wireless LAN be used in close vicinity to each other. z The rate may drop while a microwave oven is being used. „ Do not use wireless LAN on airpl anes, in hospitals, or in other locations where wireless LAN signa ls may affect the operation of devices in the vicinity. z If you intend to use the computer in the environments described above, turn the wireless LAN off using the following method: A Double-click or on the taskbar. B Select your wireless LAN adaptor and select [General]. C Select [Off] for [Switch radio]. D Select [OK].The icon will turn to . • Do not select [Disable] using with the right button located on the taskbar. Precautions 77 Wireless LAN „ To prevent theft of dat a or unauthorized access to the hard disk via a wireless LAN. z If you plan to use wireless LAN functions, we recommend that you do so only after making the appropriate security settings, such as for data encryption. „ We recommend turning the wireless LAN off when it is not used or out of range ( Î page 76 ). z If you leave the wireless LAN on, the battery's operating time is shortened. To use the wireless LAN, set the profile using the following procedure.The settings will vary for diff erent network environments de pending on the network system being used. For more details, a sk your system administrator or the person in charge of the network. CAUTIONz Set profiles for each user using the following procedure. 1 Double-click on the taskbar. 2 Select your wireless LAN adap ter and select [General]. 3 Select [On] for [Switch radio]. 4 Select [Networks] and select [Add]. 5 Enter the profile name and network name (SSID), and then make other necessary changes, then select [Next]. 6 Make necessary changes and select [Finish]. z For security, we recommend that you enable encryption (WEP). If you enable WEP, enable encryption on the access point side as well. (The setting described The Settings 78 Wireless LAN below is only an example. For the other settings, ask your system administrator or the person in charge of the network.) A Select [64-bit] or [128-bit] from [Encryption Level]. B Select [Use pass phrase] or [Use hex key], and input the pass phrase or key.In the case of ASCII character: [64-bit (5 characters)] [128-bit (13 characters)] . In the case of hexadecimal: [64-bit (10 digits)] [128-bit (26 digits)]. • Set the same values for the computer side and the access point side.• When using an access point for which "128-bit" can be set (some access points display "104-bit"), we recommend setting data encryption to "128-bit" to prevent unauthorized decryption. 7 Select the profile you have set and select [Connect]. z If the setting of the profile that is currently connected is changed, the new setting will not be enabled until you select the profile and then select [Connect]. 8 Select [OK]. Open the Intel PROSet using either of the following procedures.z Select [start] - [All Programs] - [Intel Network Adapters] - [Intel(R) PROSet for Wireless]. z Double-click or on the taskbar to check the communication status.For more information about how to use the Intel PROSet, refer to [Help] in the menu bar. If the function fails to operate correctly Read the operating instructions for the access point carefully and check the settings.„ The access point fails to be displayed in [Available Networks] z Select [Networks], then select the profile you are using, and select [Advanced]. [Connect to ad hoc networks only] may have been selected in [Connection preference]. In this case, select [Connect to infrastructure and ad hoc networks]. z This computer uses channels 1 through 11 *1 . Check the channel being used by the access point. Check the Communication Status 79 Wireless LAN *1 In the case of wireless communications, the frequency band being used can be divided into segments, so that different communications can be conducted on each band segment. A "Channel" refers to the individual frequency bandwidth divisions. „ The access point c…

Text truncated - open the document above for the full version.

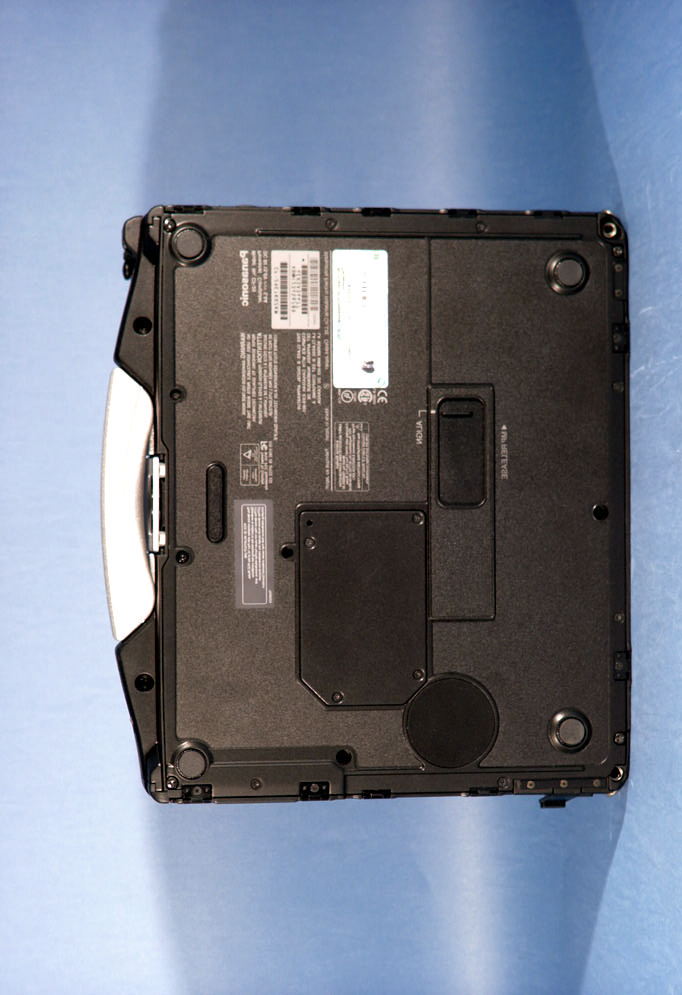

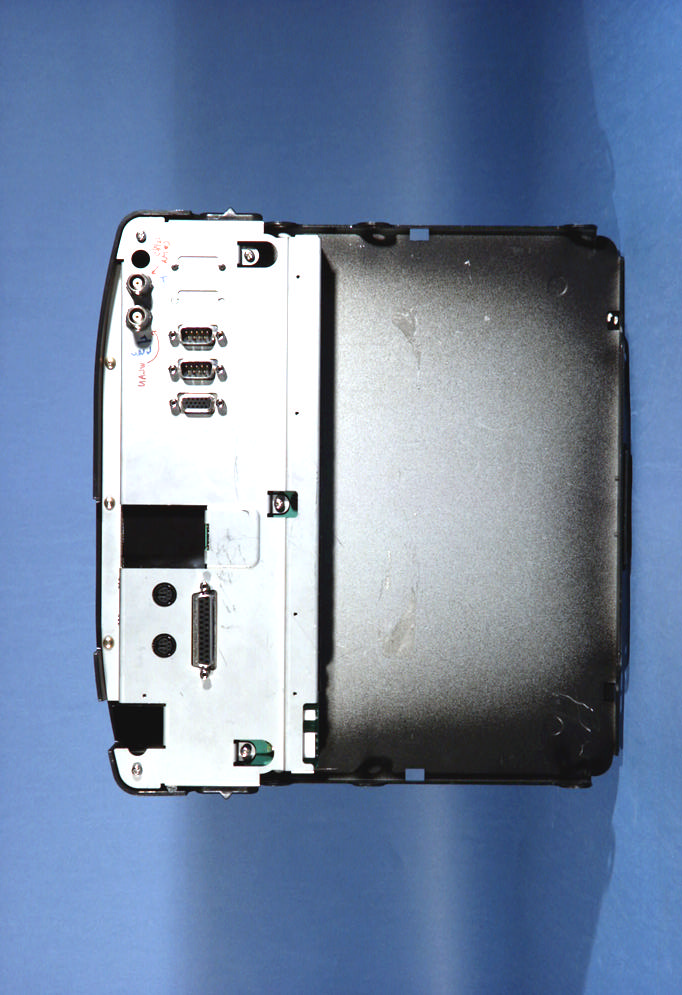

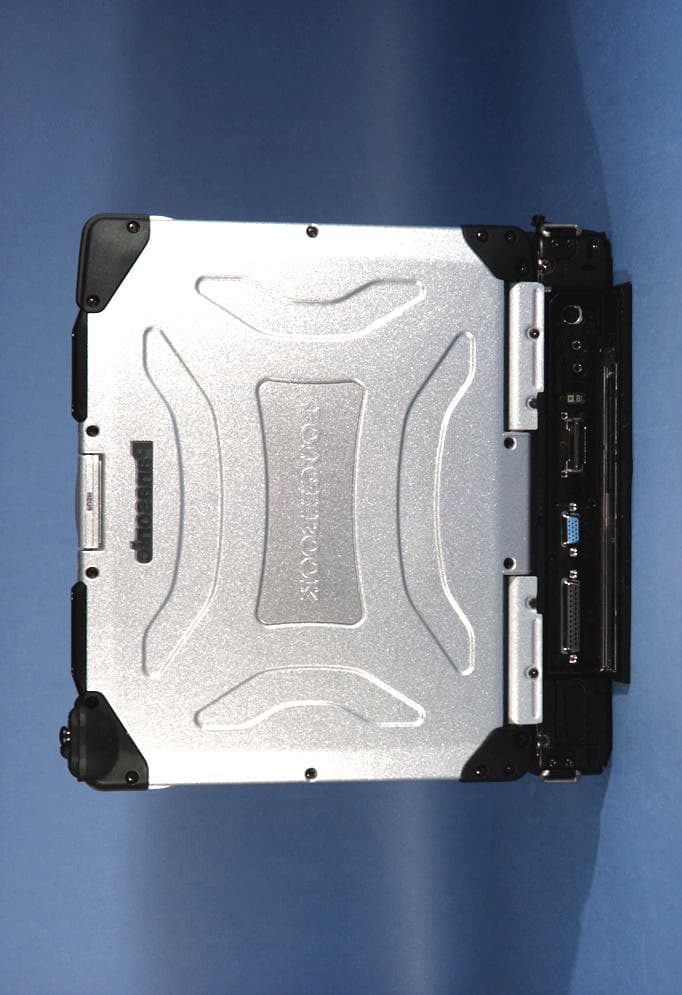

PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29

CONFIDENTIAL PROPERTY OF PCTEST UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (NII), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.241223691.ACJ Test Dates: Nov. 29-30, 2004 EUT Type: Notebook PC w/ WLAN (Intel Centrino Model: 2915ABG) FCC ID: ACJ9TGCF-29AA Page 28 of 34 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). CONFIDENTIAL PROPERTY OF PCTEST UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (NII), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.241223691.ACJ Test Dates: Nov. 29-30, 2004 EUT Type: Notebook PC w/ WLAN (Intel Centrino Model: 2915ABG) FCC ID: ACJ9TGCF-29AA Page 29 of 34 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID LABEL

PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29 PANASONIC FCC ID: ACJ9TGCF-29AA EUT Photographs © 2004 PCTEST Lab. Toughbook w/ CDMA and WLAN Model: CF-29

PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15. 241223698.ACJ TEST DATES: Nov. 29-30, 2004 EUT TYPE: Notebook PC w/ Intel WLAN FCC ID: ACJ9TGCF-29AA PAGE 1 OF 3 © 2004 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-20. 2. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 .163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 30-300 27.5 .073 .2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (P out *G) / (4pr 2 ) Where: Pd = power density in mW/cm 2 (MPE limit) P out = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 r = distance between observation point and center of the radiator in cm Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15. 241223698.ACJ TEST DATES: Nov. 29-30, 2004 EUT TYPE: Notebook PC w/ Intel WLAN FCC ID: ACJ9TGCF-29AA PAGE 2 OF 3 © 2004 PCTEST Engineering Laboratory, Inc. 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. 5. Climate Condition The temperature and relative humidity: 22°C and 78% RH 6. Measurement Results Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 824.70 25.50 20cm .124 .112 .081 .087 .537 2412 23.32 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 835.89 25.5 20cm .127 .111 .076 .088 .543 2437 23.67 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 848.31 25.5 20cm .123 .120 .081 .090 .547 2462 23.65 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 1851.25 23.5 20cm .099 .091 .071 .059 1.00 2412 23.32 PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15. 241223698.ACJ TEST DATES: Nov. 29-30, 2004 EUT TYPE: Notebook PC w/ Intel WLAN FCC ID: ACJ9TGCF-29AA PAGE 3 OF 3 © 2004 PCTEST Engineering Laboratory, Inc. Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 1880 23.5 20cm .100 .092 .075 .061 1.00 2437 23.67 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 1908.75 23.5 20cm .107 .092 .075 .062 1.00 2462 23.65 1. Data taken with all transmitters operating simultaneously 7. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual.

© 2004 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: November 29-30, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.241223690.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Project No.: ITPD-04-F130A FCC ID: ACJ9TGCF-29AA APPLICANT: Matsushita Electric Industrial Co. Ltd. SUMMARY: Model No.: CF-29 Equipment EUT Type: Notebook PC w/ Intel WLAN Max. Output Power: 18.85 dBm Peak Conducted (b) 23.67 dBm Peak Conducted (g) 20.14 dBm Peak Conducted (a) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) 5745 – 5825 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Test Device Serial No.: S/N: 4DKSA00060 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. Digital Transmission System (DTS), 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 15.241223690.ACJ Test Dates: Nov. 29-30, 2004 EUT Type: Notebook PC w/ WLAN, CDMA FCC ID: ACJ9TGCF-29AA Page i of i © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC 15.247 MEASUREMENT REPORT COVER PAGE......................................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE........................................................................................................................................................................................................3 1.2 SCOPE.................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION.............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE.....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................................................................................................4 3.0 DESCRIPTION OF TEST.............................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS.................................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS.....................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS.............................................…
