ACJ9TGCF-29BPanasonic Notebook PC w/ EDGE Modem & Intel WLAN

OPERATING INSTRUCTIONS Personal Computer Appendix LIMITED USE LICENSE AGREEMENT ..........32 Hard Disk Backup Function .............................34 Hard Disk Data Erase Utility ............................38 Specifications ...................................................39 LIMITED WARRANTY .....................................41 Troubleshooting List of Error Codes ........................................24 Dealing with Problems (Summary) .......................25 Reinstalling Software....................................30 Operation Starting Up/Shutting Down ............................15 Touch Pad (Basic Operation).............................18 Reference Manual.........................................19 Useful Information.........................................20 Getting Started Read Me First...................................................3 Names and Functions of Parts .........................8 First-time Operation ....................................... 10 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 20 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Touch Pad •Touchscreen •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •Multimedia Pocket •PC Cards •RAM Module •Port Replicator •Printer •External Display •USB Devices •Modem •LAN •WiressLAN •Hard Disk Drive •Setup Utility Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No.CF-29 Series Please read these instructions carefully before using this product and save this manual for future use. XP2000 •LED Indicators 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. PS/2 ® is a registered trademark of International Business Machines Corporation. Intel, Pentium, SpeedStep and PROSet are either registered trademarks or trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. * For the Model No., insert the 12 digit number (for example, CF-29CTKGZKM) located on the bottom of the computer. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. WARNING:WARNING indicates a hazard that may result in moderate or serious injury. Windows XP :Information for Microsoft ® Windows ® XP Professional users. Windows 2000 :Information for Microsoft ® Windows ® 2000 Professional users. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [Start] - [Run]:This illustration means to click [Start], then to click [Run]. For some applications, you may need to double-click. :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 20 on how to access this manual. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. The “CD Drive” is a description about drives, such as DVD-ROM, CD-ROM, CD-R/RW, and DVD-ROM & CD-R/RW drives. This manual covers two types of models, as distinguished by the type of LCD screen (models with touchscreen and models without touchscreen). If the user has logged on without the administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. Confirm the latest information on optional products in catalogs, etc. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment int…

Text truncated - open the document above for the full version.

August 23, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ9TGCF-29B 731 Confirmation No.: TC466783 Correspondence Reference No.: 13499 Request for Tech. Info.: 08/13/04 Dear Martin: Transmitted herewith, on behalf of Matsushita Electric Industrial Co., Ltd. is an amendment provided in response to the request for technical information dated August 13, 2004. 1. intentionally left blank 2. The filing for FCC ID: ACJ9TGCF-29B uses WLAN FCC ID: PD9WM3B2200BG, while FCC ID: ACJ9TGCF-297 uses WLAN FCC ID: PD9WM3B2100. 3. The for informational only SAR report has been deleted from the application. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Matsushita Electric Industrial Co., Ltd.

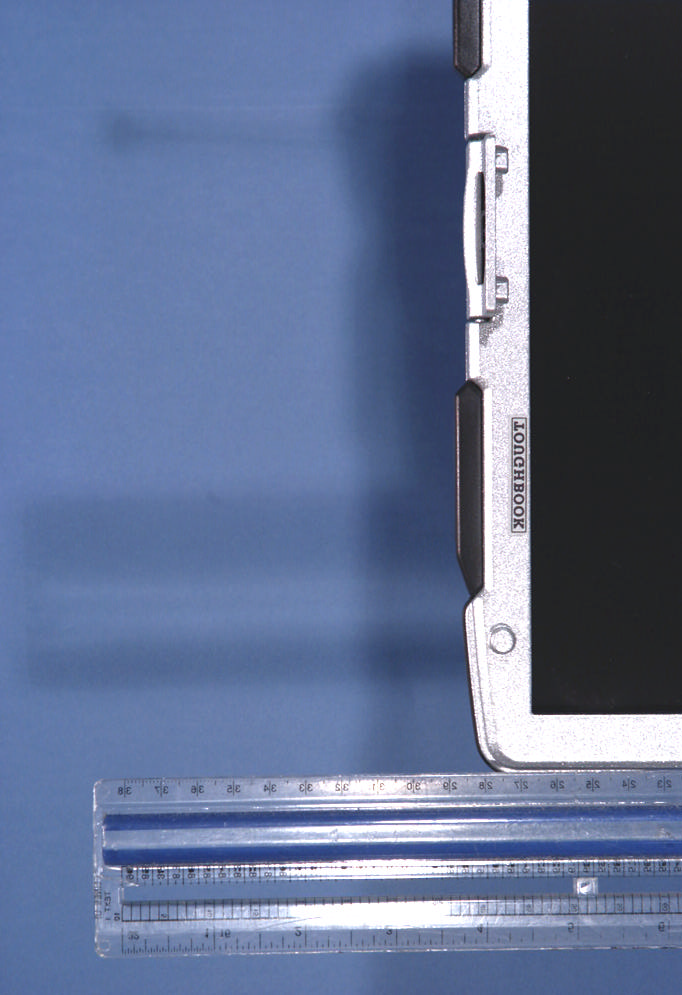

Panasonic FCC ID: ACJ9TGCF-29B EUT Photographs © 2004 PCTEST Lab. Toughbook w/ EDGE PC Card & WLAN Model: CF-29mk2 Panasonic FCC ID: ACJ9TGCF-29B EUT Photographs © 2004 PCTEST Lab. Toughbook w/ EDGE PC Card & WLAN Model: CF-29mk2 Panasonic FCC ID: ACJ9TGCF-29B EUT Photographs © 2004 PCTEST Lab. Toughbook w/ EDGE PC Card & WLAN Model: CF-29mk2 Panasonic FCC ID: ACJ9TGCF-29B EUT Photographs © 2004 PCTEST Lab. Toughbook w/ EDGE PC Card & WLAN Model: CF-29mk2

Panasonic FCC ID: ACJ9TGCF-29B EUT Photographs © 2004 PCTEST Lab. Toughbook w/ Sony EDGE PC Card & WLAN Model: CF-29mk2 Panasonic FCC ID: ACJ9TGCF-29B EUT Photographs © 2004 PCTEST Lab. Toughbook w/ Sony EDGE PC Card & WLAN Model: CF-29mk2

Spread Spectrum Transceiver (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240610369.ACJ Test Dates: Feb. 19-21, 2004 EUT Type: Panasonic Notebook PC w/ EDGE Modem & WLAN FCC ID: ACJ9TGCF-29B Page 40 of 47 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). Spread Spectrum Transceiver (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240610369.ACJ Test Dates: Feb. 19-21, 2004 EUT Type: Panasonic Notebook PC w/ EDGE Modem & WLAN FCC ID: ACJ9TGCF-29B Page 41 of 47 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID Label

5) WLAN Card position WLAN Card Position 6) WLAN exterior photo WLAN Top View WLAN Bottom View 7) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 10) Antenna position (WLAN) Receive only Antenna Cover Send & Receive Antenna Cover Antenna Cover Open Antenna Cover Open 11) Antenna Magnified photo (WLAN) Top View Receive only Antenna View Send & Receive Antenna View 5) EDGE PC Card Position Metal cover assembled by factory EDGE PC Card Metal cover removed 6) EDGE PC Card Exterior photo Top View Bottom View 7) EDGE PC Card Exterior photo Top View Bottom View 10) Antenna Position (EDGE) Front View Whip Antenna I/F PWB Whip Antenna Antenna Position (Whip Antenna)

Panasonic FCC ID: ACJ9TGCF-29B Notebook EUT Photographs © 2004 PCTEST Lab. PC w/ WLAN & EDGE PC Card Model: CF-29mk2 Panasonic FCC ID: ACJ9TGCF-29B Notebook EUT Photographs © 2004 PCTEST Lab. PC w/ WLAN & EDGE PC Card Model: CF-29mk2

© 2004 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: February 19-21, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.240610369.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Project No.: ITPD-04-F033A FCC ID: ACJ9TGCF-29B APPLICANT: Matsushita Electric Industrial Co., Ltd. SUMMARY: Model No.: CF-29mk2 Equipment EUT Type: Panasonic Notebook PC w/ Intel WLAN Model: WM3B2200BG and Sony Ericsson EDGE Modem Model: GC82 Max. Output Power: 56.4 mW (17.5 dBm) Conducted Frequency Range: 2412 - 2462 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Test Device Serial No.: S/N: 4AKYA19419 Installed Options: WLAN Bluetooth EDGE Modem Other This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. This device is approved as a mobile device with respect to RF Exposure compliance (see antenna height photo), however, SAR data is included to demonstrate compliance at a 1.5 cm spacing or closer. Grant Conditions: Power output is conducted. This device is authorized to operate with a specific computer as described in this filing. This device must not be co-located or operating with any other antenna or transmitter except the Sierra CDMA Radio described in this filing. End-users must be provided with operating conditions for satisfying RF exposure compliance. This device is approved as a mobile device with respect to RF Exposure compliance. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. Spread Spectrum Transceiver (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240610369.ACJ Test Dates: Feb. 19-21, 2004 EUT Type: Panasonic Notebook PC w/ EDGE Modem & WLAN FCC ID: ACJ9TGCF-29B Page i of i © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC PART 15.247 MEASUREMENT REPORT COVER PAGE............................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE........................................................................................................................................................................................................3 1.2 SCOPE.................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION.............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE.....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................................................................................................4 3.0 DESCRIPTION OF TEST.............................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS.................................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS.....................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS........................................................................................................................9 EXHIBIT A. 6dB BANDWIDTH MEAUREMENT....…

Text truncated - open the document above for the full version.

Page 1 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG Modular Approval Test Report And Application for Grant of Equipment Authorization Pertaining To: EUT FCC ID: 802.11b/g MiniPCI Type 3B Wireless Adapter, MN: WM3B2200BG PD9WM3B2200BG Configuration 802.11b / 802.11g MEASUREMENTS PERFORMED IN ACCORDANCE WITH Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 1992 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Certificate Number: 1111.01 APPLICANT: PREPARED BY: Intel Corporation Aegis Labs, Inc. EC2-02 13280 Evening Creek Drive 22431 Antonio Parkway B160-417 San Diego, California 92128 Rancho S. Margarita, CA 92688 Contact(s): Mr. James K. Baer Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Test Report #: INTEL-031111F APPENDICES REPORT BODY A TOTAL PAGES PAGES 15 81 96 Test Report Revision: Rev. C, 12-12-2003 The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. Page 2 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 03 2.0 SUMMARY OF TEST RESULTS.............................................................. 04 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION.......................................... 05 4.0 DESCRIPTION OF EUT..................................................................................... 06 4.1 EUT Description..................................................................................... 06 4.1.1 Channel Number and Frequencies................................................................ 07 4.2 EUT Configuration.................................................................................. 08 4.3 List of EUT Sub-Assemblies and Host Equipment...................................................... 09 4.4 I/O Cabling Diagram and Description............................................................................. 10 5.0 TEST EQUIPMENT AND TEST SETUPS............................................................... 11 5.1 AC Power Line Conducted Emissions............................................................ 11 5.2 Spurious Radiated Emissions...................................................................... 12 5.3 Conducted Emissions At The Antenna Port.................................................................... 12 5.4 Test and Measurement Equipment Used......................................................... 13 6.0 SAMPLE CALCULATIONS.......................................................................................... 14 7.0 MODIFICATIONS AND RECOMMENDATIONS........................................ 15 APPENDICES A Test Data Page 3 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG 1.0 CERTIFICATION OF TEST DATA Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs are furnished through the use of part-time, full-time or consulting engineers with the appropriate qualifications to carry out their duties. The intended purpose of this test report is to describe the measurement procedure and to determine whether the equipment under test “EUT” complies with both the conducted and radiated limits. Limits for emissions testing are described under Subpart C of Part 15 of the FCC rules. The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the Equipment Under Test (EUT) under the requirements specified in the emissions standard as described below. The test results contained in this report are only representative of the test sample tested as described in Section 3.0 of this report. Certification of the EUT is required as a prerequisite to marketing as defined in Part 2 of the FCC Rules. Prepared By: ________________________11/19/03 Rick Candelas Date: Staff Engineer Aegis Labs, Inc. Report Approved By: ________________________11/19/03 Steve J. Kuiper Date: Quality Assurance Manager Aegis Labs, Inc. Page 4 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG 2.0 SUMMARY OF TEST RESULTS The test results provided within this report, indicate that the EUT has been found to be in COMPLIANCE with the test specifications based upon the following RF compliance standards: Pass/Fail determination is based upon the nominal values of the test data. EMISSIONS STANDARD FCC Part 15 Section Description Results Comments 15.247(a)(2) The minimum 6dB bandwidth shall be at least 500 kHz. PASSED See Data Sheets 15.247(b)(1) The maximum peak output power of the intentional radiator shall not exceed 1 watt. PASSED See Data Sheets 15.247(b)(4) The intentional radiator shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines per Section 1.1307(b)(1). PASSED Refer to MPE Calculations Exhibit 15.247(c) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power. PASSED See Data Sheets 15.247(c) Radiated emissions, which fall in the restricted bands, as defined in Sec. 15.205(a), must also comply with the radiated emission limits specified in Sec. 15.209(a). All others must be < -20dBc. PASSED See Data Sheets 15.247(d) T…
