OPERATING INSTRUCTIONS Personal Computer Appendix LIMITED USE LICENSE AGREEMENT ..........33 Hard Disk Backup Function .............................35 Hard Disk Data Erase Utility ............................39 Specifications ...................................................40 LIMITED WARRANTY .....................................42 Troubleshooting List of Error Codes ........................................25 Dealing with Problems (Summary).......................26 Reinstalling Software ....................................31 Operation Starting Up/Shutting Down ............................16 Touch Pad (Basic Operation).............................19 Reference Manual .........................................20 Useful Information .........................................21 Getting Started Read Me First..................................................3 Names and Functions of Parts ........................9 First-time Operation ......................................11 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 20 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Touch Pad •Touchscreen •Panasonic Hand Writing •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •Multimedia Pocket •PC Cards •RAM Module •Port Replicator •External Display •Printer •USB Devices •Modem •LAN •Wireless LAN •Hard Disk Drive •Setup Utility •Icon Enlarger Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No.CF-29 Series Please read these instructions carefully before using this product and save this manual for future use. XP •LED Indicators 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2004 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. * For the Model No., insert the 12 digit number (for example, CF-29ETKGZKM) located on the bottom of the computer. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [start] - [Run]:This illustration means to click [start], then to click [Run]. For some applications, you may need to double- click. :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 20 on how to access this manual. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. The “CD/DVD drive” is a description about drives, such as DVD-ROM, CD-ROM, CD-R/RW, and DVD-ROM & CD-R/ RW drives. This manual covers two types of models, as distinguished by the type of LCD screen (models with touchscreen and models without touchscreen). If the user has logged on without the administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. Confirm the latest information on optional products in catalogs, etc. In this manual, “Microsoft ® Windows ® XP Professional” is indicated as “Windows” or “Windows XP”. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to …
Text truncated - open the document above for the full version.

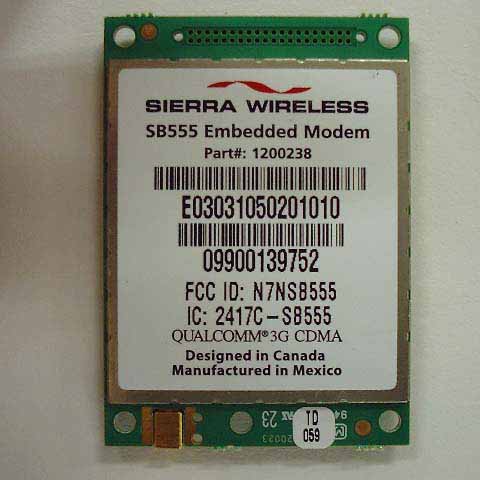

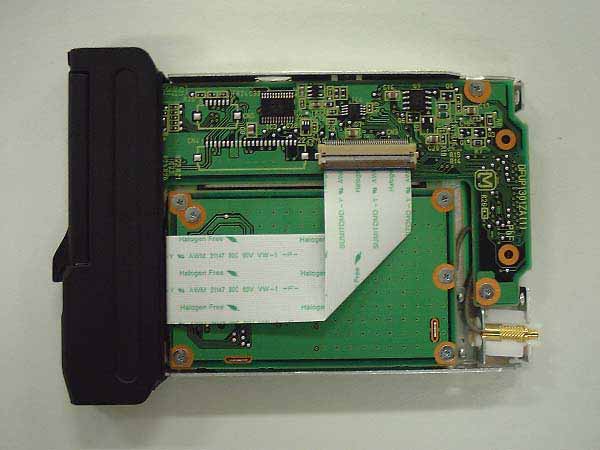

<CF29 WLANb+g DataTac CDMA model photo> 1) CF-29 photo Front View 3) WLAN exterior photo WLAN Top View WLAN Bottom View 5) DataTac Module Position DataTac Module 6) DataTac Module Exterior photo Top View Bottom View 8) CDMA module position SB555 Module Adapter Position SB555 Module Adapter Slide Position SB555 Module Adapter View-1 SB555 Module Adapter View-2 9) CDMA Module exterior/interior photo SB555 Module Top View SB555 module Bottom View SB555 Module Interior Top View SB555 Module Interior Bottom View 10) Antenna position (WLANb+g) Receive only Antenna Cover Send & Receive Antenna Cover Antenna Cover Open Antenna Cover Open 11) Antenna Magnified photo (WLANb+g) Top View Receive only Antenna View Send & Receive Antenna View 12) Antenna Position (DataTac) DataTac Antenna Side Cover open 13) Antenna Position (CDMA) Front View Whip Antenna I/F PWB Whip Antenna Antenna Position (Whip Antenna) 14) Antenna Specification WLANb+g Send & Receive Antenna: (Inverted F type: 1.86dBi max) WLANb+g Receive only Antenna: (Inverted F type: 2.86dBi max) DataTac Antenna: (Inverted F type: -0.83dBi max) CDMA Antenna: (Inverted F type: 2.15dBi max) 15) Antenna distance CDMA antenna / DataTac antenna distance > 20cm WLAN send antenna / DataTac antenna > 20cm CDMA antenna / bottom of PC > 20cm WLAN send antenna / bottom of PC > 20cm
!# "; *%02%%, %&2, !"#$% &'( *%%- )* %0,,%0- + !,, $3&%- -+ $ .)"/0 1 + )(# ( #'2 (# ( # * - )*34)563) < 7 ) +50+0 8 5) IF %E %A2%%,0 &% %6 /, +"$ E' ,23K -.363 C D$ C " $ " C$D 77I#- D-' ' - C#!-K '- ' D DC 'DD# C' #$ #! $ CD' -C C 7D' -C @ "! "C C#!- "C D- 7C$"C D-7# D -- C # 5)) 0 # C 5)) ' $ # D# C #!- D - 3 $ !# "; *%02%%, %&2, !"#$% &'( *%%- )* %0,,%0- + !,, $3&%- -+ $ .)"/0 1 + )(# ( #'2 (# ( # * - )*34)563) <> 7 ) +50+0 8 5) IF %E %A2%%,01,5 &% %6 /, * %
2) WLAN Card position WLAN Card Position 4) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 5) DataTac Module Position DataTac Module 7) DataTac Module Interior photo Top View Bottom View SB555 Module Adapter View-1 SB555 Module Adapter View-2 9) CDMA Module exterior/interior photo SB555 Module Top View SB555 module Bottom View SB555 Module Interior Top View SB555 Module Interior Bottom View 11) Antenna Magnified photo (WLANb+g) Top View Receive only Antenna View Send & Receive Antenna View 12) Antenna Position (DataTac) DataTac Antenna Side Cover open
PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15.241124657.ACJ TEST DATES: Nov. 24, 2004 EUT TYPE: Notebook PC w/ CDMA Module, Boomer-II OEM Radio & Intel WLAN FCC ID: ACJ9TGCF-29C PAGE 1 OF 2 © 2004 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-20. 2. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 .163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 30-300 27.5 .073 .2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (P out *G) / (4pr 2 ) Where: Pd = power density in mW/cm 2 (MPE limit) P out = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 r = distance between observation point and center of the radiator in cm Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15.241124657.ACJ TEST DATES: Nov. 24, 2004 EUT TYPE: Notebook PC w/ CDMA Module, Boomer-II OEM Radio & Intel WLAN FCC ID: ACJ9TGCF-29C PAGE 2 OF 2 © 2004 PCTEST Engineering Laboratory, Inc. 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. 5. Climate Condition The temperature and relative humidity: 22°C and 78% RH 6. Measurement Results at 20 cm Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 806.00 32.80 20cm .263 .247 .100 .272 .537 2412 17.3 20 cm Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 815.00 32.80 20cm .278 .250 .098 .288 .543 2437 17.50 20 cm Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 821.0 32.80 20cm .265 .250 .088 .290 .547 2462 17.72 20 cm 7. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual.
© 2004 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: November 24, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.241124417.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Project No.: ITPD-04-F034A FCC ID: ACJ9TGCF-29C APPLICANT: Matsushita Electric Industrial Co., Ltd. SUMMARY: Model No.: CF-29 Equipment EUT Type: Panasonic Notebook w/ Boomer-II OEM Wireless Radio Modem FCC ID: PQS-BM28001, Sierra Wireless CDMA OEM Radio Module FCC ID: N7NSB555, also incorporating Intel WLAN FCC ID: PD9WM3B2200BG Max. Output Power: 56.4 mW (17.5 dBm) Conducted Frequency Range: 2412 - 2462 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Test Device Serial No.: S/N: 4DKSA00060 Installed Options: WLAN Boomer-II OEM Radio CDMA Radio Module Other This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. This device is approved as a mobile device with respect to RF Exposure compliance (see antenna height photo), however, SAR data is included to demonstrate compliance at a 1.5 cm spacing or closer. Power output is conducted. This device is authorized to operate with a specific computer as described in this filing. This device must not be co-located or operating with any other antenna or transmitter except those described in this filing. End-users must be provided with operating conditions for satisfying RF exposure compliance. This device is approved as a mobile device with respect to RF Exposure compliance. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. Digital Transmission System (DTS), 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 15. 241124417.ACJ Test Dates: Nov. 24, 2004 EUT Type: Panasonic Notebook PC w/ Intel WLAN, CDMA Radio Module & OEM Radio Modem FCC ID: ACJ9TGCF-29C Page i of i © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC 15.247 MEASUREMENT REPORT COVER PAGE......................................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE........................................................................................................................................................................................................3 1.2 SCOPE.................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION.............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE.....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................................................................................................4 3.0 DESCRIPTION OF TEST.............................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS.................................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS.....................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS.............................................................................…
