ACJ9TGCF-29DAPanasonic Toughbook w/ WLAN, HSDPA & Bluetooth

Personal Computer Appendix LIMITED USE LICENSE AGREEMENT ..........34 Hard Disk Backup Function .............................36 Hard Disk Data Erase Utility ............................40 Specifications...................................................42 LIMITED WARRANTY .....................................44 Troubleshooting List of Error Codes ........................................26 Dealing with Problems (Summary) .......................27 Reinstalling Software ....................................32 Operation Starting Up/Shutting Down ............................16 Touch Pad (Basic Operation) ........................19 Reference Manual .........................................20 Useful Information .........................................21 Getting Started Read Me First .................................................3 Names and Functions of Parts ........................9 First-time Operation ......................................11 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 20 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Touch Pad •Touchscreen •Panasonic Hand Writing •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •Multimedia Pocket •PC Cards •SD Memory Card •SD Memory Card Security Function •RAM Module •Port Replicator •External Display •Printer •USB Devices •Modem •LAN •Wireless LAN •Hard Disk Drive •Setup Utility •Icon Enlarger •Loupe Utility Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No.CF-29 Series Please read these instructions carefully before using this product and save this manual for future use. XP •LED Indicators OPERATING INSTRUCTIONS 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. © 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows, the Windows logo and IntelliMouse are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation. SD Logo is a trademark. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. * For the Model No., insert the 12 digit number (for example, CF-29LTQGZBM) located on the bottom of the computer. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [start] - [Run]:This illustration means to click [start], then to click [Run]. For some applications, you may need to double- click. :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 20 on how to access this manual. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. If the user has logged on without the administrator authority, some functions may not be executable, and some screens may not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. In this manual, “Microsoft ® Windows ® XP Professional Service Pack 2 with Advanced Security Technologies” is indicated as “Windows” or “Windows XP”. Confirm the latest information on optional products in catalogs, etc. The “CD/DVD drive” is a description about drives, such as CD-ROM, DVD-ROM & CD-R/RW and DVD MULTI drives. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit diffe…

Text truncated - open the document above for the full version.

1 This manual contains supplementary instructions regarding the use of the computer. It ex- plains the cases where the operation of the computer differs from that in the Operating In- structions. Your computer is equipped with the HSDPA modem enabling you to communicate using radio frequencies. Supplementary Instructions for HSDPA Modem Model No. CF-18/CF-29 Series 2 The following safety precautions must be observed during all phases of the operation, usage, service or repair of any Personal Computer or Handheld Computer incorporating HSDPA modem. Manufacturers of the cellular terminal are advised to convey the following safety information to users and operating personnel and to incorporate these guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these precautions. When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch Personal Computer or Handheld Computer incorporating HSDPA modem off, if instructed to do so by the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy. The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference from Personal Computer or Handheld Computer incorporating HSDPA modem placed close to the device. If in doubt about potential danger, contact the physician or the manufacturer of the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or Handheld Computer incorporating HSDPA mo- dem away from the pacemaker, while it is on. Switch off Personal Computer or Handheld Computer incorporating HSDPA modem before boarding an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communications systems. Failure to observe these instructions may lead to the suspen- sion or denial of cellular services to the offender, legal action, or both. Do not operate Personal Computer or Handheld Computer incorporating HSDPA modem in the presence of flammable gases or fumes. Switch off the cellular termi- nal when you are near petrol stations, fuel depots, chemical plants or where blast- ing operations are in progress. Operation of any electrical equipment in poten- tially explosive atmospheres can constitute a safety hazard. Your Personal Computer or Handheld Computer incorporating HSDPA modem re- ceives and transmits radio frequency energy while switched on. Remember that inter- ference can occur if it is used close to TV sets, radios, computers or inadequately shielded equipment. Follow any special regulations and always switch off Personal Computer or Handheld Computer incorporating HSDPA modem wherever forbid- den, or when you suspect that it may cause interference or danger. Road safety comes first! Do not use a Personal Computer or Handheld Computer in- corporating HSDPA modem while driving a vehicle. Do not place the computer with HSDPA modem in an area where it could cause personal injury to the driver or passen- gers. It is recommended to stow the unit in the boot or secure stowage area while driving. Safety Precautions Precautions 3 Do not place the computer with HSDPA modem in an area over an air bag or in the vicinity where an air bag may deploy. Air bags inflate with great force and if the computer with HSDPA modem is placed in the air bag deployment area may be propelled with great force and cause serious injury to occupants of the vehicle. IMPORTANT! Personal Computer or Handheld Computer incorporating HSDPA modem operate using radio signals and cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely solely upon any wireless device for essential communications, for example emergency calls. Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating HSDPA modem must be switched on and in a service area with adequate cellular signal strength. Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g. lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an emergency call. Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld Computer incorporating HSDPA modem. 4 For U.S.A. Precautions <CF-18 Series> Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radi- ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance co…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification - FCC ID: NBZNRM-EU730 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Integration Guide Technical Specification Schematics Bill of Materials / Part List Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kevin Goodfellow Technical Specialist December 10, 2005

Panasonic Corporation of America Three Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-48-758 / Fax: 201-92-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division February 10, 2006 ITPD-05-F038A: BT Part 15C / DSS / EA721037 ITPD-05-F038B: WLAN Part 15C / DTS / EA363076 ITPD-05-F038C: WLAN Part 15E / NII / EA234521 ITPD-05-F038D: HSDPA Parts 22H, 24E / PCB / EA843052 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Panasonic Notebook Computer Model CF-18mk4 Family with Alps BT, Intel WLAN and Novatel HSDPA / FCC Certification for FCC ID: ACJ9TGCF-189A To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents Portable Notebook Computer Model CF-18mk4 Family with CPU type Pentium-M-1.2 GHz to be marketed under FCC ID: ACJ9TGCF-189A. This product will be marketed with the following three transmitters: 1. Alps Blue Tooth Blue Module and Daughter Board, Model UGXZ5 with operation within 2402~2480 MHz at 18.8 mW. 2. Intel WLAN (a+b+g), Model WM3B2915ABG with Part 15C operation within 2412~2462 at 233 mW and 5745~5825 MHz at 103 mW; and Part 15E operation within low band 5180~5240 at 55 mW and high band 5260~5320 MHz at 125 mW. 3. Novatel HSDPA (Quad Band GPRS/EDGE & UMTS), Model EU730 with Part 22H operation within 824.2~848.8 MHz at 1.49 watts ERP and 826.4~846.6 MHz at 0.086 watts ERP; and Part 24E operation within 1850.2~1909.8 MHz at 0.936 watts EIRP and 1852.4 ~1907.6 MHz at 0.217 watts EIRP. The max various configuration worse-case SAR measurements with 1.5 cm LCD side panel extenders and zero air spacing were: 1. 0.611 W/kg GSM850 Body SAR; 0.350 W/kg GSM 1900 Body SAR 2. 0.230 W/kg WCDMA Body SAR; 0.236 W/kg PCS WCDMA Body SAR 3. 0.217 W/kg 802.11b Body SAR; 0.115 W/kg 802.11g Body SAR 4. 0.841 W/kg 802.11a (5300 MHz) Body SAR 5. 0.401 W/kg 802.11a (5800 MHz) Body SAR 6. 0.061 W/kg Bluetooth (2450 MHz) Body SAR This PC contains the following Inverted-F type transmitter antennas: (1) BT Inverter-F type with 3.36 dBi antenna gain; (2) WLAN Main TX/RX and Aux TX/RX Inverted-F type with 1.42 dBi and 2.59 dBi antenna gain; and (3) Novatel Inverter-F type with 2.15dBi antenna gain. The PC’s main User Manual gives all FCC required notices and warning, including general RF Exposure Warning and notice about NII operation for indoor use only. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits which contain Operation Description, Parts Lists & Tune-Up Procedure, Block Diagram and Schematic Diagram. The BT and WLAN transmitters are not user adjustable and do not have a Tune- Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Also, in accordance with FCC Public DA 04-1705, we request short-term confidentiality for exhibits which contain External Photographs, Internal Photographs and User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager

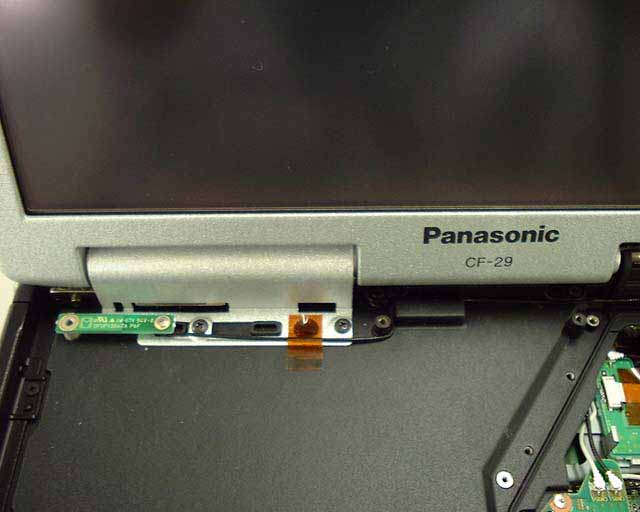

<CF29 WLANa+b+g & BlueTooth & HSDPA model photo> 1) CF-29 photo Front View 5) HSDPA module position HSDPA Module Adapter Position HSDPA Module Adapter Slide Position 10) Antenna position (WLANa+b+g) Aux TX/RX Antenna Cover Main TX/RX Antenna Cover Antenna Cover Open Antenna Cover Open 11) Antenna Magnified photo (WLANa+b+g) Top View Aux TX/RX Antenna View Main TX/RX Antenna View 12) Antenna Position (HSDPA) Front View Whip Antenna I/F PWB Whip Antenna Antenna Position (Whip Antenna) 13) Antenna position (Bluetooth) Bluetooth Antenna

Digital Transmission System (DTS), 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 0601190026 Test Dates: Feb. 1-3, 2006 EUT Type: Notebook PC w/ Intel WLAN, UNII, HSDPA & Bluetooth FCC ID: ACJ9TGCF-29DA Page 48 of 55 © 2006 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19(b)(2). Digital Transmission System (DTS), 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 0601190026 Test Dates: Feb. 1-3, 2006 EUT Type: Notebook PC w/ Intel WLAN, UNII, HSDPA & Bluetooth FCC ID: ACJ9TGCF-29DA Page 49 of 55 © 2006 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID Label

2) WLAN Card position WLAN Card Position 3) WLAN exterior photo WLAN Top View WLAN Bottom View 4) WLAN interior photo WLAN inside Top View WLAN inside Bottom View HSDPA Module Adapter View-1 HSDPA Module Adapter View-2 6) HSDPA Module photo HSDPA Module Top View HSDPA module Bottom View HSDPA Module Interior Top View HSDPA Module Interior Bottom View 8) Bluetooth Module exterior photo Top View of Daughter Board with BlueTooth Module Bottom View of Daughter Board with BlueTooth Module 4) Bluetooth Module Interior photo Bluetooth Module without shield Bottom View of BlueTooth Module

PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 0601190030 TEST DATES: Feb. 3, 2006 EUT TYPE: Notebook PC w/ Intel WLAN, UNII, Bluetooth & HSDPA FCC ID: ACJ9TGCF-29DA PAGE 1 OF 3 © 2006 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-20. 2. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 .163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 30-300 27.5 .073 .2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (P out *G) / (4pr 2 ) Where: Pd = power density in mW/cm 2 (MPE limit) P out = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 r = distance between observation point and center of the radiator in cm Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 0601190030 TEST DATES: Feb. 3, 2006 EUT TYPE: Notebook PC w/ Intel WLAN, UNII, Bluetooth & HSDPA FCC ID: ACJ9TGCF-29DA PAGE 2 OF 3 © 2006 PCTEST Engineering Laboratory, Inc. 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. 5. Climate Condition The temperature and relative humidity: 22°C and 78% RH 6. Measurement Results Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 824.2 32.97 20cm .111 .109 .066 .082 537 2412 23.32 2402 12.6 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 836.6 32.63 20cm .110 .106 .072 .084 .543 2437 23.67 2441 12.1 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 848.8 32.88 20cm .107 .110 .062 .068 .547 2462 23.65 2480 11.65 PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 0601190030 TEST DATES: Feb. 3, 2006 EUT TYPE: Notebook PC w/ Intel WLAN, UNII, Bluetooth & HSDPA FCC ID: ACJ9TGCF-29DA PAGE 3 OF 3 © 2006 PCTEST Engineering Laboratory, Inc. Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 1850.2 30.78 20cm .092 .081 .056 .061 1.00 2412 23.32 2402 12.60 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 1880 330.95 20cm .090 .077 .052 .059 1.00 2437 23.67 2441 12.10 Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 1909.80 30.72 20cm .101 .091 .072 .049 1.00 2462 23.65 2480 11.65 1. Data taken with all transmitters operating simultaneously 7. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual. * All data was taken with WLAN Channel 6 with 1 Mbps transmitting at full power.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0601190029-G Test Dates: FEB. 1-3, 2006 EUT Type: Panasonic Toughbook w/ WLAN, UNII, HSDPA & Bluetooth FCC ID: ACJ9TGCF-29DA Page 1 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Panasonic Corporation of North America Dates of Tests: February 1-3, 2006 One Panasonic Way, 4B-8 Test Report S/N: 0601190029-G Secaucus, NJ 07094 Test Site: PCTEST Lab, Columbia MD Project No.: ITPD-06-F002A FCC ID ACJ9TGCF-29DA APPLICANT Panasonic Corporation of North America Classification: Licensed Portable Transmitter (PCB) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Panasonic Toughbook w/ Intel WLAN , UNII, HSDPA and Bluetooth Model: CF-29 Tx Frequency Range: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.983 W ERP GSM850 (32.973 dBm) / 1.245 W EIRP GSM1900 (30.951 dBm) Emission Designator(s): 278KGXW/ 277KGXW Test Device Serial No. Identical Prototype [S/N: 5JKSA72522] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0601190029-G Test Dates: FEB. 1-3, 2006 EUT Type: Panasonic Toughbook w/ WLAN, UNII, HSDPA & Bluetooth FCC ID: ACJ9TGCF-29DA Page 2 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0601190029-G Test Dates: FEB. 1-3, 2006 EUT Type: Panasonic Toughbook w/ WLAN, UNII, HSDPA & Bluetooth FCC ID: ACJ9TGCF-29DA Page 3 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: Panasonic Corporation of North America Address: One Panasonic Way, 4B-8 Secaucus, NJ 07094 • FCC ID: ACJ9TGCF-29DA • Quantity: Quantity production is planned • Emission Designators: 250KGXW (GSM) • Tx Freq. Range: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Freq. Range: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Max. Power Rating: 1.983 W ERP GSM850 (32.973 dBm) 1.245 W EIRP GSM1900 (30.951 dBm) • FCC Classification(s): Licensed Portable Transmitter (PCB) • Equipment (EUT) Type: Panasonic Toughbook w/ Intel WLAN , UNII, HSDPA & Bluetooth • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22H • Dates of Tests: February 1-3, 2006 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0601190029-G • Project No.: ITPD-06-F002A PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0601190029-G Test Dates: FEB. 1-3, 2006 EUT Type: Panasonic Toughbook w/ WLAN, UNII, HSDPA & Bluetooth FCC ID: ACJ9TGCF-29DA Page 4 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations wer…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0601190029-W Test Dates: Feb. 1-3, 2006 EUT Type: Panasonic Toughbook w/ WLAN, UNII, HSDPA & Bluetooth FCC ID: ACJ9TGCF-29DA Page 1 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Panasonic C…
