Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Personal Computer Appendix LIMITED USE LICENSE AGREEMENT ..........34 Hard Disk Backup Function .............................36 Hard Disk Data Erase Utility ............................40 Specifications...................................................42 LIMITED WARRANTY .....................................44 Troubleshooting List of Error Codes ........................................26 Dealing with Problems (Summary) .......................27 Reinstalling Software ....................................32 Operation Starting Up/Shutting Down ............................16 Touch Pad (Basic Operation) ........................19 Reference Manual .........................................20 Useful Information .........................................21 Getting Started Read Me First .................................................3 Names and Functions of Parts ........................9 First-time Operation ......................................11 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 20 on how to access the Reference Manual. Reference Manual •Read Me First •Key Combinations Reference Manual •Touch Pad •Touchscreen •Panasonic Hand Writing •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •Multimedia Pocket •PC Cards •SD Memory Card •SD Memory Card Security Function •RAM Module •Port Replicator •External Display •Printer •USB Devices •Modem •LAN •Wireless LAN •Hard Disk Drive •Setup Utility •Icon Enlarger •Loupe Utility Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No.CF-29 Series Please read these instructions carefully before using this product and save this manual for future use. XP •LED Indicators OPERATING INSTRUCTIONS 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. © 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows, the Windows logo and IntelliMouse are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation. SD Logo is a trademark. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies. * For the Model No., insert the 12 digit number (for example, CF-29LTQGZBM) located on the bottom of the computer. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [start] - [Run]:This illustration means to click [start], then to click [Run]. For some applications, you may need to double- click. :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 20 on how to access this manual. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. If the user has logged on without the administrator authority, some functions may not be executable, and some screens may not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. In this manual, “Microsoft ® Windows ® XP Professional Service Pack 2 with Advanced Security Technologies” is indicated as “Windows” or “Windows XP”. Confirm the latest information on optional products in catalogs, etc. The “CD/DVD drive” is a description about drives, such as CD-ROM, DVD-ROM & CD-R/RW and DVD MULTI drives. Customer's Record Serial No. or Date of Purchase Model No.* Code No. Dealer's Name Dealer's Address 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit diffe…
Text truncated - open the document above for the full version.
Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division March 24, 2008 ITPD-08-F003A To: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: ACJ9TGCF-29DC Applicant: Panasonic Corporation of North America Correspondence Reference Number: ACJ80044 Confirmation Number: 801230048-51 Date of Original Email: March 19, 2008 Subject: TCB Questions for FCC ID: ACJ9TGCF-29DC This is in response to your request for additional information. 1. Please submit External/Internal photos of the EUT. Please be sure that there is a photo that shows the position of all antennae in the EUT, and demonstrates a minimum 20cm separation distance for each (except the BT). Answer : Today I will send you additional photographs, which show antenna positions and spacings. 2. The Bluetooth Operational Description states that EDR mode is available to the EUT, however, the test report does not reflect the higher data rates. Please verify that EDR mode has been disabled in the EUT. Answer: The subject PC will employ Alps Bluetooth Model UGXZ5 in compliance with BT spec Ver 1.1 with max symbol rate of 1Mbps. Note, this PC combination will not use Alps Bluetooth Model UGXZA with BT spec Ver 2.0 + ERD, which has max symbol rate of 3Mbps. Today I will send you confidential specifications for employed Alps Bluetooth Model UGXZ5. 4. FYI: in the future, please be sure that the HSDPA3.6 and Bluetooth Block Diagrams show all of the clock/oscillator values, as required. Answer: We have requested all our different employed transmitter manufactures to begin to include all internal used clock/oscillator frequencies into these provided confidential block diagram(s). Sincerely yours, Richard Mullen Richard Mullen Group Manager
Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division March 24, 2008 ITPD-08-F003A Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Panasonic Mobile Personal Computer Model CF-29 Family With Alps Bluetooth Model UGXZ5, Intel WLAN Model WM3B2915ABG and Novatel HSDPA, Model EU860D / TCB Certification for FCC ID: ACJ9TGCF-29DC To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents Mobile Personal Computer (PC), Model CF-29mk4 Family with Intel CPU, type Pentium-M-1.6GHz, which will be marketed under FCC ID: ACJ9TGCF-29DC. This product will be marketed with the following co-located transmitters: Alps Bluetooth, Model UGXZ5 (Alps BT has no FCC ID): This module contains Bluetooth protocol stack (firmware) under Host Controller Interface and is in compliance with Bluetooth specification Ver 1.1 with maximum symbol rate of 1Mbps. Note, this PC combination will not use Alps Bluetooth Model UGXZA under specification Ver 2.0 + ERD, which has maximum symbol rate of 3Mbps. FCC Rule Part Type Freq Range (MHz) Output Watts Part 15C DSS 2402~2480 0.005802 Intel WLAN (a+b+g) Model WM3B2915ABG (Intel FCC ID: PD9WM3B2915ABG) FCC Rule Part Type Freq Range (MHz) Output Watts Part 15C 802.11(b) 2412~2462 0.05781 Part 15C 802.11(g) 2412~2462 0.03855 Part 15C 802.11(a) 5745~5825 0.03006 Part 15E 802.11(a) Low Band 5180~5240 0.01452 Part 15E 802.11(a) High Band 5260~5320 0.03828 (3) Novatel HSDPA3.6, Model EU860D (Novatel FCC ID: NBZNRM-EU860D) FCC Rule Part Type Freq Range (MHz) Output Watts Emission Designator Part 22H Cellular GSM 824.2~848.8 1.384 W ERP 243KGXW Part 22H Cellular EDGE 824.2~848.8 0.491 W ERP 246KG7W Part 22H Cellular WCDMA 826.4~846.6 0.234 W ERP 4M18F9W Part 24E PCS GSM 1850.2~1909.8 1.216 W EIRP 246KGXW Part 24E PCS EDGE 1850.2~1909.8 0.531 W EIRP 246KG7W Part 24E PSC WCDMA 1852.4~1907.6 0.291 W EIRP 4M19F9W This PC contains the following type transmitter antennas: (1) BT Inverter-F type with 1.47 dBi antenna gain; (2) WLAN Main TX/RX and Aux TX/RX Inverted-F type with 1.86 dBi and 2.86 dBi antenna gain; and (3) Novatel Whip type with 2.15dBi antenna gain. The PC’s main User Manual gives all FCC required notices and warning, including general RF Exposure Warning and notice about U-NII operation for indoor use only. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division This PC contains two unique pass-thru antenna connectors on the bottom of the enclosure for connection to the optional Car Mounter Model CF-WEB291. The Car Mounter has 2 matching unique antenna passive pass-thru connectors, which are hard-wired connected to its rear panel to two external TNC antenna connectors for connection to external WLAN and/or WWAN base whip antennas. The Car Mounter option is marketed to only specific non-general consumers, such as police, fire and military and must be professionally installed by following the provided mounting instructions in all cases. The Car Mounter is provided with Radiall/Larsen WLAN whip antenna, type NMO5E2400BKTNC with 5dBi antenna gain. Instructions will be provided for end-user provided WWLAN whip antenna that advises the maximum allowable antenna gain for the external WWAN base whip antenna, which is based upon MPE Test Report based upon the maximum allowable ERP/EIRP and maximum permissible exposure for the employed cellular and PCS frequency bands. The Car Mounter Installation Instructions will provide the following type marking: This equipment is provided with external antenna connector(s) for connection to optional Car Mounter or Port Replicator for mobile external mounted antenna(s). External antenna(s) must be professionally installed and cannot exceed recommended maximum antenna gain as described in individual provided supplement instructions for wireless transmitters. The Car Mounter is provided with Radiall/Larsen WLAN whip antenna, type NMO5E2400BKTNC with 5dBi antenna gain. The maximum allowable antenna gain for the external WWAN base whip antenna for the cellular band is 2.23 dBi and PCS band is 3.84 dBi. Also, user must maintain minimum 20 cm spacing between external antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. The subject PC and optional Car Mounter are classified as mobile devices with respect to RF exposure evaluation and the Maximum Permissive Exposure was calculated at 20 cm spacing. There is no co-location between the electric fields of any two transmitters and therefore, the following power densities were calculated for each individual transmitter by frequency at 20 cm spacing: (1) Cellular Band at 848.8 MHz is 0.556 mW/cm 2 ; (2) PCS Band at 1880 MHz is 0.2690 mW/cm 2 ; (3) WLAN 2.4 GHz Band at 2,437 MHz is 0.022 mW/cm 2 ; (4) U-NII 5GHz Band at 5,320 MHz is 0.014 mW/cm 2 ; (5) 802.11a Band at 5,825 MHz is 0.012 mW/cm 2 ; and (6) Car Mounter for Cellular Band at 848.8 MHz is 0.566 mW/cm 2 . In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits, which contain Operation Description, Parts Lists, Block Diagram and Schematic Diagram. The BT and WLAN transmitters are not user adjustable and do not have a Tune-Up Procedure. These exhibits co…
Text truncated - open the document above for the full version.

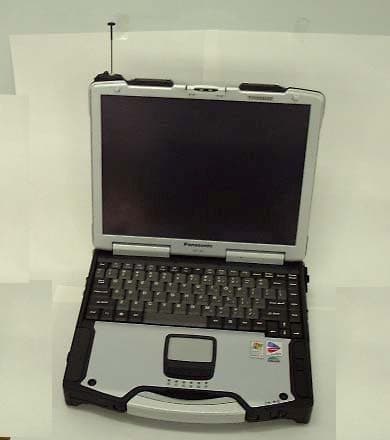

<CF29mk4 WLAN abg & Bluetooth & HSDPA3.6 (EU860D)model photo> 1. CF-29 photo Front View
<CF-29 WLANa+b+g & BT & HSDPA model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-29DC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABELFCC DoC
2. Module position WLAN Module Bluetooth Module ReverseSide HSDPA Module Adapter Position HSDPA Module Pack Slide Position HSDPA Module Pack 3. Module photo 1) WLAN WLAN Top View WLAN Bottom View WLAN inside Top View WLAN inside Bottom View 2) Bluetooth Top View of Daughter Board with Bluetooth Module Bottom View of Daughter Board with Bluetooth Module Bluetooth Module without shield Bottom View of Bluetooth Module 3) HSDPA3.6 HSDPA Module Top View HSDPA Module Bottom View HSDPA Module Interior Top View HSDPA Module Interior Bottom View 4. Antenna position HSDPA TX/RX Antenna WLAN Aux TX/RX Antenna WLAN Main TX/RX Antenna Bluetooth TX/RX Antenna WLAN Aux TX/RX Antenna Cover WLAN Main TX/RX Antenna Cover Antenna Cover Open Antenna Cover Open To p Vi e w WLAN Aux TX/RX Antenna View WLAN Main TX/RX Antenna View Bluetooth TX/RX Antenna HSDPA Whip Antenna HSDPA TXRX Antenna I/F PWB 5. Antenna Specification WLAN Main TX/RX Antenna: Pattern Antenna (Inverted F type: 1.86dBi max) WLAN Aux TX/RX Antenna: Pattern Antenna (Inverted F type: 2.86dBi max) Bluetooth Antenna: Pattern Antenna (Inverted F type: 1.47dBi max) HSDPA Antenna: Whip Antenna (Whip type: 2.15dBi max) 4. Antenna position HSDPA TX/RX Antenna WLAN Aux TX/RX Antenna WLAN Main TX/RX Antenna Bluetooth TX/RX Antenna WLAN Aux TX/RX Antenna Cover WLAN Main TX/RX Antenna Cover Antenna Cover Open Antenna Cover Open To p Vi e w WLAN Aux TX/RX Antenna View WLAN Main TX/RX Antenna View Bluetooth TX/RX Antenna HSDPA Whip Antenna HSDPA TXRX Antenna I/F PWB 5. Antenna Specification WLAN Main TX/RX Antenna: Pattern Antenna (Inverted F type: 1.86dBi max) WLAN Aux TX/RX Antenna: Pattern Antenna (Inverted F type: 2.86dBi max) Bluetooth Antenna: Pattern Antenna (Inverted F type: 1.47dBi max) HSDPA Antenna: Whip Antenna (Whip type: 2.15dBi max)
Reviewed by: FCC ID: ACJ9TGCF-29DC MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0801230090.ACJ February 11, 2008 Toughbook Model: CF-29 Page 1 of 8 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 Applicant Name: Date of Testing: Panasonic Corporation of North America February 11, 2008 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0801230090.ACJ FCC ID: ACJ9TGCF-29DC APPLICANT: Panasonic Corporation of North America EUT Type: Toughbook Model: CF-29 FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: ACJ9TGCF-29DC MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0801230090.ACJ February 11, 2008 Toughbook Model: CF-29 Page 2 of 8 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 7 2.0 CONCLUSION..................................................................................................................................8 Reviewed by: FCC ID: ACJ9TGCF-29DC MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0801230090.ACJ February 11, 2008 Toughbook Model: CF-29 Page 3 of 8 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Panasonic Corporation of North America to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and Health Code 6 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Panasonic Model: CF-29 is a Toughbook containing Novatel HSDPA, Intel PRO/Wireless WLAN, and Alps Bluetooth modules. For this MPE evaluation the device is set to transmit from the antenna of each transmitter and the RF exposure of each transmitter is evaluated individually. A 5dBi external antenna (Model: NMO5E2400BKTNC) is used for the WLAN card in the MPE evaluation of the Panasonic Toughbook while it is docked in a vehicle mount. EUT: Model: CF-29 Grantee: Panasonic Corporation of North America FCC ID: ACJ9TGCF-29DC Internal Antenna Gains: 2.86dBi (Used with WLAN Module / Model: WM3B2915ABG) 1.47dBi (Used with Bluetooth Module / Model: UGXZ5) 2.15dBi (Used with Novatel Wireless Module / Model: EU860D) External Antenna Gain: 5dBi (Used with Vehicle Mount Model: CFWEB291) Reviewed by: FCC ID: ACJ9TGCF-29DC MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0801230090.ACJ February 11, 2008 Toughbook Model: CF-29 Page 4 of 8 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as …
Text truncated - open the document above for the full version.
Reviewed by: FCC ID: ACJ9TGCF-29DC FCC Pt. 15.407 802.11a UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801230086.ACJ February 13 - 14, 2008 Toughbook Model: CF-29 Page 1 of 39 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.0UF 02/11/08 Applicant Name: Date of Testing: Panasonic Corporation of North America February 13 - 14, 2008 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0801230086.ACJ FCC ID: ACJ9TGCF-29DC APPLICANT: Panasonic Corporation of North America Model(s): CF-29 EUT Type: Toughbook Model: CF-29 Max. RF Output Power: 14.52 mW (11.62 dBm) Conducted (UNII Low Band) 38.28 mW (15.83 dBm) Conducted (UNII High Band) Frequency Range: 5180MHz – 5240MHz (UNII Low Band) 5260MHz – 5320MHz (UNII High Band) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Device Serial No.: 5KKSA00013 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. The JBC portion of this EUT is covered in the DOC report. Radiated data was taken with the highest gain antenna. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.407 Certification Reviewed by: FCC ID: ACJ9TGCF-29DC FCC Pt. 15.407 802.11a UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801230086.ACJ February 13 - 14, 2008 Toughbook Model: CF-29 Page 2 of 39 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.0UF 02/11/08 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT .....................................................................................................11 6.3 OUTPUT POWER MEASUREMENT .......................................................................................................15 6.4 PEAK POWER SPECTRAL DENSITY.....................................................................................................16 6.5 PEAK EXCURSION RATIO ..................................................................................................................... 20 6.6 FREQUENCY STABILITY ........................................................................................................................ 24 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 26 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 33 6.9 LINE-CONDUCTED TEST DATA............................................................................................................. 35 7.0 CONCLUSION ..........................................................................................................................…
Text truncated - open the document above for the full version.
Reviewed by: FCC ID: ACJ9TGCF-29DC FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801230087.ACJ February 21, 2008 Toughbook Model CF-29 Page 1 of 18 © 2008 PCTEST Engineering Laboratory, Inc. REV 1.2DFS 10/16/07 Company Name: Date of Testing: Panasonic Corporation of North America February 21, 2008 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab. Columbia, MD, USA United States Test Report Serial No.: 0801230087.ACJ FCC ID: ACJ9TGCF-29DC COMPANY: Panasonic Corporation of North America Model(s): CF-29 EUT Type: Toughbook Model CF-29 Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) Output Power: 15.83 dBm (38.282 mW) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003 and FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Do…
Text truncated - open the document above for the full version.
6660-B Dobbin Road · Columbia, Maryland · United States
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15E | 5.26 GHz - 5.32 GHz | 38.30 mW |
