ACJ9TGCF-307Toughbook CF-30 with WLAN and Bluetooth

Contents Getting Started OPERATING INSTRUCTIONS Personal Computer Model No. CF-30 series Introduction ................................................................. 2 Read Me First ............................................................. 3 Description of Parts .................................................. 10 First-time Operation .................................................. 13 Useful Information On-screen Manual .................................................... 16 Handling and Maintenance ....................................... 17 Hard Disk Backup Function (Recover Pro) .............. 19 Hard Disk Data Erase Utility ..................................... 21 Reinstalling Software ................................................ 22 Troubleshooting Error Code/Message ................................................ 24 Troubleshooting (Basic) ............................................ 25 Hardware Diagnostics .............................................. 29 Appendix LIMITED USE LICENSE AGREEMENT ................... 32 Specifi cations ........................................................... 34 LIMITED WARRANTY .............................................. 37 Please read these instructions carefully before using this product and save this manual for future use. For further information about the com- puter, you can refer to the on-screen manual. To access the on-screen manual Î page 16 “On-screen Manual” Getting Started Useful Information Troubleshooting Appendix 3 Getting Started Read Me First Models for U.S.A. Federal Communications Commission Radio Fre- quency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit dif- ferent from that to which the receiver is connected. z Consult the Panasonic Service Center or an experi- enced radio/TV technician for help. Warning To assure continued compliance, use only shielded inter- face cables when connecting to a computer or peripheral. Also, any changes or modifi cations not expressly ap- proved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC RF Exposure Warning: z This equipment is provided with PC Card slot that could be used with wireless transmitters, which will be specifi - cally recommended when they become available. Other third-party wireless transmitters have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements. <Only for model with wireless LAN/Bluetooth> z This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. z This equipment has been approved for mobile operation, and unless otherwise advised in separate supplemental instructions for individual wireless transmitter(s), requires minimum 20 cm spacing be provided between antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. z This equipment may use multiple installed transmitters, which may be capable of simultaneous transmission. This device complies with Part 15 of the FCC Rules. Op- eration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired op- eration. Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP5 (1-800-527-8675) 6-M-1 FCC Regulation Notice for modem This equipment contains a FCC approved modem. 1. This equipment complies with CFR47 Part 68 rules. On the computer is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If re- quired, this information must be provided to the tele- phone company. 2. An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instruc- tions for details. 3. The REN is used to determine the quantity of devices which may be connected to the telephone line. Ex- cessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all area, the sum of RENs should not ex- ceed fi ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. 4. If your telephone equipment cause harm to the tele- phone network, the telephone company will notify you in advice that temporary discontinuance of service may be required. But if advice notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to fi le a complaint with the FCC if you believe it is neces- sary. 5. The telephone company may take changes in its facili- ties, equipment, operations or procedures that could affect the operation of the equipment. If this happens the t…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division February 6, 2008 ITPD-07-F036A Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Panasonic Mobile Personal Computer Model CF-30 Family With Alps Bluetooth Model UGNZA and Atheros WLAN (b+g), Model N5HZC0000036 TCB Certification for FCC ID: ACJ9TGCF-307 To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents Mobile Personal Computer, Model CF-30 Family with Intel Core 2 Duo L7500 (1.66 GHz), which will be marketed under FCC ID: ACJ9TGCF-307. This product will be marketed with the following co-located transmitters: (1) Alps Bluetooth, Model UGNZA (Alps has no FCC ID): FCC Rule Part Type Freq Range (MHz) Output Watts Part 15C DSS 2402~2480 0.023 (2) Atheros WLAN (b+g), Model N5HZC0000036 (Atheros has no FCC ID) FCC Rule Part Type Freq Range (MHz) Output Watts Part 15C 802.11(b) 2412~2462 0.082 Part 15C 802.11(g) 2412~2462 0.057 This product is classified as mobile device with respect to RF exposure evaluation and the calculated Maximum Permissive Exposure at 20 cm was with the LCD in the flip position. The calculated MPE values for Part 15C BT at 2480 MHz was 0.004 mW/cm 2 and Part 15C WLAN at 2437 MHz was 0.0203 mW/cm 2 . This PC contains BT Inverted-F antenna with -0.62 dBi antenna gain, which is located in the rear left portion of the keyboard; and WLAN Inverted-F Main and Aux antennas with 0.94 dBi and -0.42 dBi antenna gains, which are located in the top portion of the LCD. The PC’s User Manual gives all FCC required notices and warning, including RF Exposure Warning. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits, which contain Operation Description, Parts Lists, Block Diagram and Schematic Diagram. The BT and WLAN transmitters are not user adjustable and do not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Also, in accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits which contain External Photographs, Internal Photographs, Test Setup Photographs and the User Manual. The requested short-term confidentiality exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager

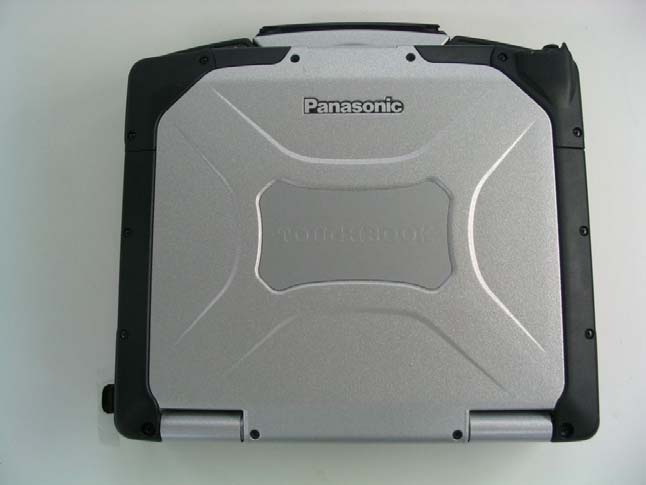

< CF-30mk2 Atheros WLANabg Bluetooth model photo> 1. Top and Front View FCC ID LABEL FCC DoC

<CF-30 Atheros WLANbg+BT model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-307 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2. Module Position Bluetooth Module WLAN Module 3. Module Photo 3.1) WLAN WLAN Top View WLAN Bottom View 3.2) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 3.3) Bluetooth Bluetooth Card Top View Bluetooth Card Bottom View Bluetooth Module inside Top View Bluetooth Module inside Bottom View 4. Antenna Position and Antenna photo WLAN Main TX/RX Antenna WLAN Aux TX/RX Antenna Bluetooth TX/RX Antenna WLAN Main TX/RX Antenna WLAN AUX TX/RX Antenna Bluetooth TX/RX Antenna 5. Antenna Specification WLAN Main TX/RX Antenna: Pattern Antenna (Inverted F type: 0.94dBi max) WLAN Aux TX/RX Antenna: Pattern Antenna (Inverted F type: -0.42dBi max) Bluetooth TX/RX Antenna: Pattern Antenna (Inverted F type: -0.62dBi max)

Reviewed by: FCC ID: ACJ9TGCF-307 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090029.ACJ January 14, 2008 Toughbook Model: CF-30 Page 1 of 7 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 Applicant Name: Date of Testing: Panasonic Corporation of North America January 14, 2008 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0801090029.ACJ FCC ID: ACJ9TGCF-307 APPLICANT: Panasonic Corporation of North America EUT Type: Toughbook Model: CF-30 FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: Digital Transmission System (DTS) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: ACJ9TGCF-307 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090029.ACJ January 14, 2008 Toughbook Model: CF-30 Page 2 of 7 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 6 2.0 CONCLUSION..................................................................................................................................7 Reviewed by: FCC ID: ACJ9TGCF-307 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090029.ACJ January 14, 2008 Toughbook Model: CF-30 Page 3 of 7 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Panasonic Corporation of North America to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Panasonic Model: CF-30 is a Toughbook containing Atheros WLAN and Alps Bluetooth modules. The Bluetooth module is located <20cm from the user so MPE is not applicable for this transmitter. Also, the power of the Bluetooth (23mW) is below the low threshold for SAR testing. This MPE report therefore covers the WLAN card. For this MPE evaluation the device is set to transmit from the antenna of the transmitter and the RF exposure is evaluated. EUT: Model: CF-30 Grantee: Panasonic Corporation of North America FCC ID: ACJ9TGCF-307 Antenna Gains: 0.94dBi (Used with WLAN Module / Model: N5HZC0000036) Reviewed by: FCC ID: ACJ9TGCF-307 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090029.ACJ January 14, 2008 Toughbook Model: CF-30 Page 4 of 7 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-307 FCC Pt. 15.247 WLAN 802.11b/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090027.ACJ January 14, 2008 Toughbook Model: CF-30 Page 1 of 36 © 2008 PCTEST Engineering Laboratory, Inc. REV 2.5WFC 10/25/07 Applicant Name: Date of Testing: Panasonic Corporation of North America January 14, 2008 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0801090027.ACJ FCC ID: ACJ9TGCF-307 APPLICANT: Panasonic Corporation of North America Model(s): CF-30 EUT Type: Toughbook Model: CF-30 Max. RF Output Power: 82.04 mW (19.14 dBm) Conducted (b) 57.02 mW (17.56 dBm) Conducted (g) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: 7KKSA00656 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.247 Certification Reviewed by: FCC ID: ACJ9TGCF-307 FCC Pt. 15.247 WLAN 802.11b/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090027.ACJ January 14, 2008 Toughbook Model: CF-30 Page 2 of 36 © 2008 PCTEST Engineering Laboratory, Inc. REV 2.5WFC 10/25/07 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G.................................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 15 6.4 OUTPUT POWER MEASUREMENT – 802.11G...................................................................................... 16 6.5 POWER SPECTRAL DENSITY (802.11B/G) ........................................................................................... 17 6.6 OUT OF BAND EMISSIONS AT THE BAND EDGE................................................................................ 21 6.7 OUT OF BAND EMISSIONS .................................................................................................................... 23 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 26 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 30 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 32 7.0 CONCLUSION .......................................................................................................................................36 Reviewed by: FCC ID: ACJ9TGCF-307 FCC Pt. 15.247 WLAN 802.11b/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090027.ACJ January 14, 2008 Toughbook Model: CF-30 Page 3 of …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-307 FCC Pt. 15.247 WLAN 802.11b/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090027.ACJ January 14, 2008 Toughbook Model: CF-30 Page 1 of 2 © 2008 PCTEST Engineering Laboratory, Inc. REV 2.5WFC 10/25/07 TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: ACJ9TGCF-307 FCC Pt. 15.247 WLAN 802.11b/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801090027.ACJ January 14, 2008 Toughbook Model: CF-30 Page 2 of 2 © 2008 PCTEST Engineering Laboratory, Inc. REV 2.5WFC 10/25/07
