ACJ9TGCF-313Toughbook PC with WWAN, WLAN and Bluetooth

Contents Getting Started OPERATING INSTRUCTIONS Personal Computer Model No. CF-31 series Introduction.................................................................. 2 Read.Me.First.............................................................. 3 Description.of.Parts................................................... 10 First-time.Operation................................................... 13 Useful Information On-screen.Manual..................................................... 17 Handling.and.Maintenance........................................ 18 Reinstalling.Software................................................. 20 Troubleshooting Troubleshooting.(Basic)............................................. 22 Appendix LIMITED.USE.LICENSE.AGREEMENT.................... 27 Specifications............................................................ 29 LIMITED.WARRANTY............................................... 32 Please.read.these.instructions.carefully.before.using.this.product.and.save.this.manual.for.future.use. For further information about the com- puter, you can refer to the on-screen manual. To access the on-screen manual è page 17 “On-screen Manual” Getting Started Useful Information Troubleshooting Appendix 2 Getting Started Introduction Thank.you.for.purchasing.this.Panasonic.product..For.optimum.performance.and.safety,.please.read.these.instructions. carefully. n Terms and illustrations in these instructions CAUTION .:.Conditions.that.may.result.in.minor.or.moderate.injury. NOTE .:.Useful.and.helpful.information. Enter .:.Press.[Enter].key. Fn .+. F5 .:.Press.and.hold.[Fn].key,.and.then.press.[F5].key. .(Start).-.[All.Programs].:.Click..(Start),.and.then.click.[All.Programs]. [start].-.[Run].:.Click.[start],.and.then.click.[Run]..You.may.need.to.double-click.in.some.cases. è .:.Page.in.these.Operating.Instructions.or.in.the.Reference.Manual. .:.Reference.to.the.on-screen.manuals. l ..indicates.Windows ® .7.Professional.Operating.System. l ..indicates.Microsoft ® .Windows ® .XP.Professional.Operating.System. l Some illustrations are simplified to help your understanding and may look different from the actual unit. l . If.you.do.not.log.on.as.an.administrator,.you.cannot.use.some.functions.or.cannot.display.some.screens. l . Refer.for.the.latest.information.about.optional.products.to.the.catalogs,.etc. l . In.these.instructions,.the.names.and.terms.are.referred.as.follows. Ÿ . “Windows ® .7.Professional”.as.“Windows”.or.“Windows.7” Ÿ . “Microsoft ® .Windows ® .XP.Professional.Service.Pack.2. with.Advanced.Security.Technologies”.as.“Windows”,.“Win- dows.XP”.or.“Windows.XP.Professional” Ÿ . DVD-ROM.&.CD-R/RW.drive.and.DVD.MULTI.drive.as.“CD/DVD.drive” Ÿ . Circular.media.including.DVD-ROM.and.CD-ROM.as.“discs” n Disclaimer Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no li- ability.for.damage.incurred.directly.or.indirectly.from.errors,.omissions.or.discrepancies.between.the.computer.and.the. manuals. n Trademarks Microsoft ® ,.Windows ® ,.Windows.7,.the.Windows.logo,.and.IntelliMouse.are.registered.trademarks.of.Microsoft.Corpo- ration.of.the.United.States.and/or.other.countries. Intel,.Core,.Centrino.and.PROSet.are.either.registered.trademarks.or.trademarks.of.Intel.Corporation. SDHC.Logo.is.a.trademark.. Adobe,.the.Adobe.logo.and.Adobe.Reader.are.either.registered.trademarks.or.trademarks.of.Adobe.Systems.Incorpo- rated.in.the.United.States.and/or.other.countries. Computrace ® .is.a.registered.trademark.of.Absolute ® .Software.Corp. Bluetooth™.is.a.trademark.owned.by.Bluetooth.SIG,.Inc.,.U.S.A..and.licensed.to.Panasonic.Corporation. Names.of.products,.brands,.etc.,.appearing.in.this.manual.are.trademarks.or.registered.trademarks.of.their.respective. own.companies. 3 Getting Started Read Me First Models for U.S.A. Federal Communications Commission Radio Frequency Interference Statement Note:.This.equipment.has.been.tested.and.found.to.comply.with. the.limits.for.a.Class.B.digital.device,.pursuant.to.Part.15.of.the. FCC.Rules..These.limits.are.designed.to.provide.reasonable. protection.against.harmful.interference.in.a.residential.instal- lation..This.equipment.generates,.uses.and.can.radiate.radio. frequency.energy.and,.if.not.installed.and.used.in.accordance. with.the.instructions,.may.cause.harmful.interference.to.radio. communications..However,.there.is.no.guarantee.that.interfer- ence.will.not.occur.in.a.particular.installation..If.this.equipment. does.cause.harmful.interference.to.radio.or.television.reception,. which.can.be.determined.by.turning.the.equipment.off.and.on,. the.user.is.encouraged.to.try.to.correct.the.interference.by.one. or.more.of.the.following.measures: l .Reorient.or.relocate.the.receiving.antenna. l .Increase.the.separation.between.the.equipment.and.receiver. l .Connect.the.equipment.into.an.outlet.on.a.circuit.different. from.that.to.which.the.receiver.is.connected. l .Consult.the.Panasonic.Service.Center.or.an.experienced. radio/TV.technician.for.help. Warning To.assure.continued.compliance,.use.only.shielded.interface. cables.when.connecting.to.a.computer.or.peripheral...Also,.any. changes or modifications not expressly approved by the party responsible.for.compliance.could.void.the.user’s.authority.to. operate.this.equipment. FCC.RF.Exposure.Warning: l .This.equipment.is.provided.with.PC.Card.slot.that.could.be. used with wireless transmitters, which will be specifically recommended.when.they.become.available. .Other.third-party.wireless.transmitters.have.not.been.RF. exposure.evaluated.for.use.with.this.computer.and.may.not. comply.with.FCC.RF.exposure.requirements. <Only.for.model.with.wireless.LAN/wireless.WAN/Bluetooth> l .This.equipment.complies.with.FCC.radiation.exposure.limits. set.forth.for.an.uncontrolled.environment. l .This.equipment.has.been.approved.for.portable.operation,. and.does not require any minimum spacing be provided between antennas and all person's body.. l .This.equi…

Text truncated - open the document above for the full version.

< CF-31 series Gobi2000 Addendum for the external antenna(s) > FCC RF Exposure Warning: z This equipment is provided with external antenna connector(s) for mobile external mounted antenna(s). External antenna(s) must be professionally installed and cannot exceed recommended maximum antenna gain as described in individual provided supplement instructions for wireless transmitters. The maximum allowable antenna gain for the external WWAN base whip antenna for the cellular band is 2.90dBi and PCS band is 3.77dBi. Also, user must maintain minimum 20 cm spacing between external antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7760 / Fax: 201-392-4564 [email protected] BEN BOTROS Project Manager Product Safety and Compliance Division September 14, 2010 ITP-10-F011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Mobile Personal Computer, Model CF-31 mk1 Family TCB Certification for FCC ID: ACJ9TGCF-313 • Alps Bluetooth, Model UGNZA • Azurewave Technologies, Inc. WLAN, Model N5HZC0000054 (Atheros AR9283 Chipset) • Sierra WWAN, Model Gobi2000 (GSM/EDGE/WCDMA/CDMA with GPS) To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents a mobile Personal Computer, Model CF-31 mk1 Family with Intel CPU Types Intel Core i5-540M (2.53GHz) or i3-350M (2.26GHz) which will be marketed under FCC ID: ACJ9TGCF-313. This product will be marketed with the following transmitters: (1) Alps Bluetooth, Model UGNZA (Alps has no FCC ID): This BT transmitter complies with FCC Part 15C under equipment class code DSS. This BT version is under specification Ver 2.1 + ERD has maximum symbol rate of 1~3Mbps. Please refer to test report for exact frequency range and RF output level. (2) Azurewave Technologies, Inc. WLAN, Model N5HZC0000054 – Atheros AR9284 Chipset (has no FCC ID): This module supports 802.11 bgn only 2.4GHZ and MIMO 2x2 function. Please refer to test report for exact frequency ranges and RF output levels. (3) Sierra WWAN, Model Gobi2000 (FCC ID: N7NGOBI2) This combined Cellular and PCS transmitter complies with FCC Parts 22H and 24E under equipment class code PCB. Refer to test report for exact frequency ranges, RF output levels and emission designators. This PC marketed under FCC ID: ACJ9TGCF-313 contains various antennas for BT, WLAN and WWAN. Please refer to separate provided exhibits for antenna photos and test reports for exact antenna description, antenna gains and locations. This portable PC satisfies RF exposure evaluation with the provided transmitters. This PC, when used with optional Car Mounter with external antenna connectors satisfies the RF Exposure Evaluation by the provided SAR and MPE test reports. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7760 / Fax: 201-392-4564 [email protected] BEN BOTROS Project Manager Product Safety and Compliance Division This PC may be marketed with optional Car Mounter, Model CF-WEB301 that may be configured to have one or two TNC antenna pass-thru connectors. The Car Mounter will be marketed to only specific non-general consumers, such as police, fire and military and must be professionally installed by following separate provided mounting instructions. Depending upon exact PC configuration, the GPS module can be connected an external antenna connector. The other antenna connector is intended for licensed radio service (WWAN). The Supplemental Instructions will advise that the recommended maximum external antenna gains are 2.90 dBi for 850 MHz (Cellular) and 3.77 dBi for 1900 MHz (PCS). In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits, which contain Operation Description, Parts Lists, Block Diagram and Schematic Diagram. The BT and WLAN transmitters are not user adjustable and do not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Also, in accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for exhibits which contain External Photographs, Internal Photographs, Test Setup Photographs and the Operating Instructions (User Manual). The requested short-term confidentiality exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Further, we the undersigned, hereby attest to the fact that the subject product is also classified as Class B Computer and will be authorized under Declaration of Conformity to comply with FCC Part 15B to meet Class B limits. Sincerely yours, Ben Botros Ben Botros Project Manager

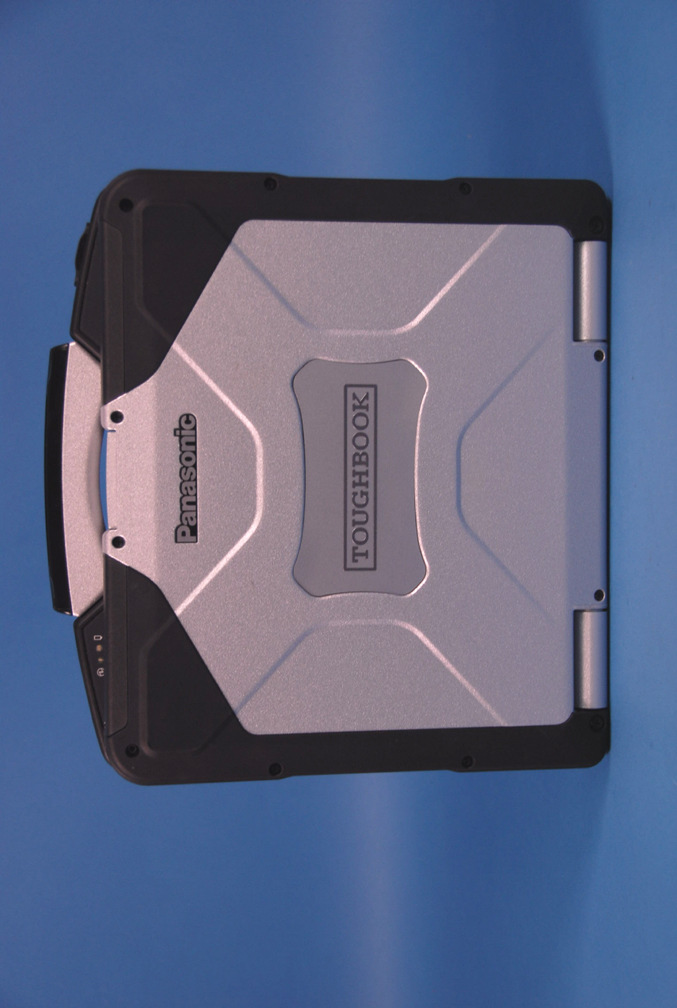

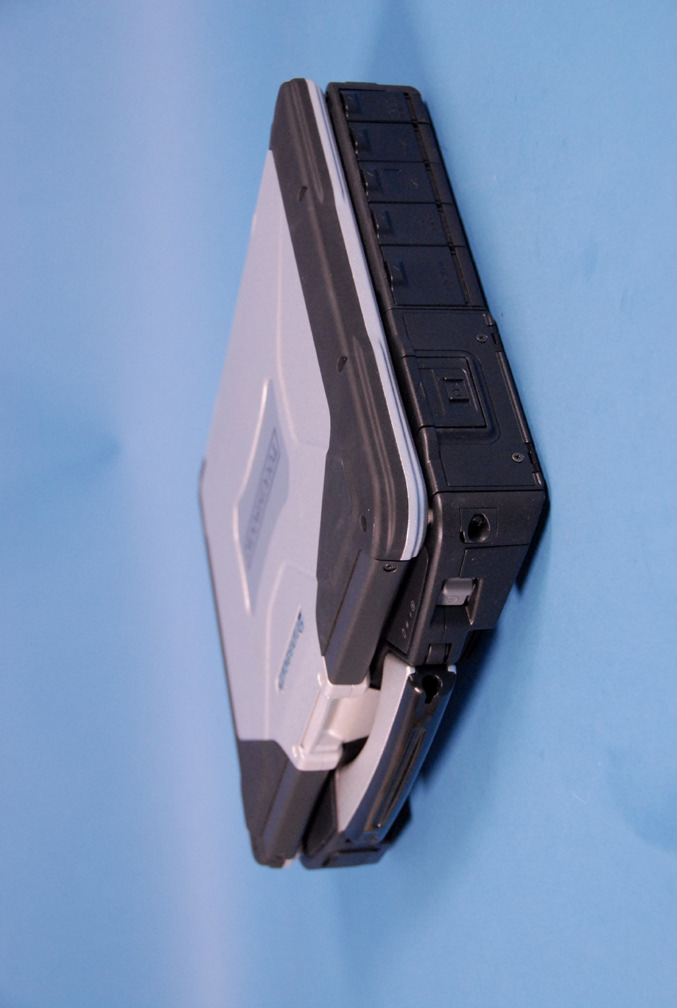

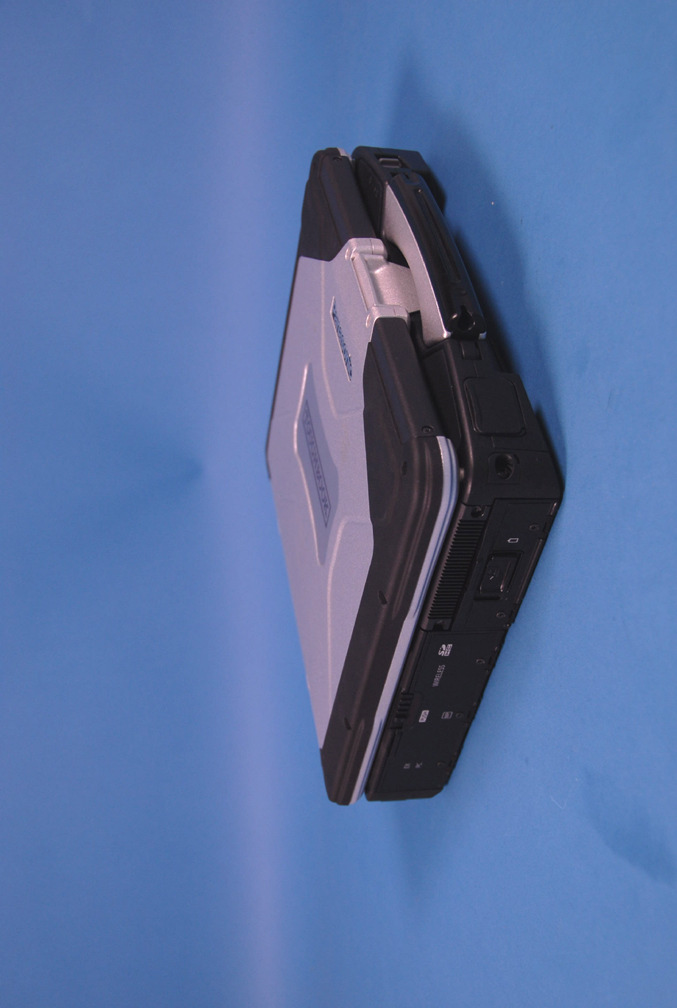

Panasonic FCC ID:ACJ9TGCF-313 Model: CF-313 External Photos EUT Type: Toughbook Model: CF-31 Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. E X T E R N A L P H O T O G R A P H S Panasonic FCC ID:ACJ9TGCF-313 Model: CF-313 External Photos EUT Type: Toughbook Model: CF-31 Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. Panasonic FCC ID:ACJ9TGCF-313 Model: CF-313 External Photos EUT Type: Toughbook Model: CF-31 Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. Panasonic FCC ID:ACJ9TGCF-313 Model: CF-313 External Photos EUT Type: Toughbook Model: CF-31 Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc. < CF-31mk1 WLAN Atheros bgn 100mW +Bluetooth (UGNZA) +WWAN (Gobi2000) + GPSmodel photo> 1. Top and Front View FCC ID Label Position FCC DoC Logo

<FCC ID & DoC LABEL for CF-31mk1 Gobi2000 + Alps BT + 100mW WLAN bgn> 1) FCCID LABEL 2) FCC DOC Logo LABEL FCC ID: ACJ9TGCF-313 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2. Module Position WWAN Module removed Bluetooth Module WWAN Module WWAN Module Circuit removed GPS Module WLAN Module 3. Module Photo 1) WLAN (N5HZC0000054) WLAN Top View WLAN Bottom View WLAN interior photo WLAN inside Top View WLAN inside Bottom View 2) Bluetooth (UGNZA) Bluetooth Card Top View Bluetooth Card Bottom View Bluetooth Module inside Top View Bluetooth Module inside Bottom View 3) WWAN /GPS Photo WWAN/GPS(Gobi2000) Module Top View WWAN/GPS(Gobi2000) module Bottom View WWAN Module Interior Top View WWAN Module Interior Bottom View 4) GPS (LR9101) Card exterior GPS Card Top View GPS Card Bottom View 4. Antenna Position and Antenna photo WWAN Aux RX Antenna and GPS RX Antenna (Gobi2000) WLAN Main TX/RX Antenna WWAN Main TX/RX Antenna Bluetooth TX/RX AntennaWLAN Aux RX Antenna GPS RX Antenna (LR9101) WLAN Main TX/RX Antenna WLAN Aux RX Antenna Bluetooth TX/RX Antenna WWAN Main TX/RX Antenna WAN Aux /GPS(Gobi2000) RX Antenna GPS RX Antenna

Reviewed by: FCC ID: ACJ9TGCF-313 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008061315.ACJ September 9, 2010 Toughbook Model: CF-31 Page 1 of 9 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Panasonic Corporation of North America September 9, 2010 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1008061315.ACJ FCC ID: ACJ9TGCF-313 APPLICANT: Panasonic Corporation of North America EUT Type: Toughbook Model: CF-31 FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: ACJ9TGCF-313 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008061315.ACJ September 9, 2010 Toughbook Model: CF-31 Page 2 of 9 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 4 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 5 1.4 PROCEDURE........................................................................................................................................ 6 1.5 SUMMARY OF RESULTS ..................................................................................................................... 8 2.0 CONCLUSION..................................................................................................................................9 Reviewed by: FCC ID: ACJ9TGCF-313 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008061315.ACJ September 9, 2010 Toughbook Model: CF-31 Page 3 of 9 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Panasonic Corporation of North America to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) Reviewed by: FCC ID: ACJ9TGCF-313 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008061315.ACJ September 9, 2010 Toughbook Model: CF-31 Page 4 of 9 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.2 EUT Description The Panasonic Model: CF-31 is a Toughbook containing Sierra Wireless GSM/WCDMA/CDMA/EvDO WWAN, Atheros 2.4GHz WLAN, and Alps Bluetooth modules. For this MPE evaluation the device is set to transmit from the antenna of each transmitter and the RF exposure of each transmitter is evaluated individually. The RF exposure is also evaluated for the case in which both the main and the auxiliary WLAN antennas are transmitting. This device has a car-mounter option which allows for external antennas for use in WWAN operation. EUT: Model: CF-31 Grantee: Panasonic Corporation of North America FCC ID: ACJ9TGCF-313 Antenna Gains: Intel WLAN abgn Main Aux 2.4 GHz 1.45 dBi 1.20 dBi Sierra WWAN (Gobi2000) Main 850 MHz -0.17 dBi 1900 MHz 1.13 dBi Output Power: Cellular GSM 1.245 W (30.95dBm) ERP PCS GSM 1.585 W (32.00dBm) EIRP WLAN Chain A (2.4GHz) 20.04 dBm WLAN Chain B (2.4 GHz) 19.81 dBm Aggregate Powers – MIMO Operation: Summed Powers for 2 x 2 MIMO operation (Worst Case) WLAN: 2.4GHz = 75.16mW (18.76dBm) – 802.11n 20MHz Bandwidth 2.4GHz = 48.53mW (16.86dBm) – 802.11n 40MHz Bandwidth Reviewed by: FCC ID: ACJ9TGCF-313 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008061315.ACJ September 9,…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-313 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008061311-R1.ACJ 08/18/10 Notebook PC with WLAN, Bluetooth and WWAN Page 1 of 26 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 Applicant Name: Date of Testing: Panasonic Corporation of North America 08/18/10 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1008061311-R1.ACJ FCC ID: ACJ9TGCF-313 APPLICANT: PANASONIC CORPORATION OF NORTH AMERICA EUT Type: Notebook PC with WLAN, Bluetooth and WWAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Unlicensed National Information Infrastructure (UNII) PCS Licensed Transmitter (PCB) FCC Part 15 Frequency Hopping Spread Spectrum Digital Transmission System (DTS) Model(s): CF-31mk1 Tx Frequencies Tested: 2412 - 2462 MHz (WLAN) Conducted Power: 19.87 dBm (WLAN) Max. SAR Measurement: 0.10 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: CF-31 #1] Note: This revised Test Report (S/N: 0Y1008061311-R1.ACJ) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: ACJ9TGCF-313 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008061311-R1.ACJ 08/18/10 Notebook PC with WLAN, Bluetooth and WWAN Page 2 of 26 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 TEST CONFIGURATION POSITIONS ......................................................................................... 11 9 NOTEBOOK PCS AND USB DONGLES ...................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 13 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 14 12 SYSTEM VERIFICATION.............................................................................................................. 15 13 RF CONDUCTED POWERS......................................................................................................... 17 14 ANTENNA LOCATIONS & SAR EXCLUSIONS ........................................................................... 19 15 SAR DATA SUMMARY ................................................................................................................. 20 16 EQUIPMENT LIST......................................................................................................................... 21 17 CONCLUSION............................................................................................................................... 22 18 REFERENCES .............................................................................................................................. 23 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 25 Reviewed by: FCC ID: ACJ9TGCF-313 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008061311-R1.ACJ 08/18/10 Notebook PC with WLAN, Bluetooth and WWAN Page 3 of 26 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for loc…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-313 FCC Pt. 15.247 802.11 b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008061313.ACJ September 1 - 8, 2010 Toughbook Model: CF-31 Page 1 of 71 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1WN 02/06/2009 Applicant Name: Date of Testing: Panasonic Corporation of North America September 1 - 8, 2010 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1008061313.ACJ FCC ID: ACJ9TGCF-313 APPLICANT: Panasonic Corporation of North America Application Type: Certification Model(s): CF-31 EUT Type: Toughbook Model: CF-31 Max. RF Output Power: 196.3 mW (22.93 dBm) Peak Conducted (802.11b) 490.9 mW (26.91 dBm) Peak Conducted (802.11g) 528.4 mW (27.23 dBm) Peak Aggregate Conducted (20MHz 802.11n) 339.6 mW (25.31 dBm) Peak Aggregate Conducted (40MHz 802.11n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 7 Test Device Serial No.: N/A This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: ACJ9TGCF-313 FCC Pt. 15.247 802.11 b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1008061313.ACJ September 1 - 8, 2010 Toughbook Model: CF-31 Page 2 of 71 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1WN 02/06/2009 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA...................................................................…

Text truncated - open the document above for the full version.
