ACJ9TGCF-512CF-51 Notebook Computer with WLAN

Please read these instructions carefully before using this product and save this manual for future use. Contents Getting Started Operation Troubleshooting Getting Started Operation Troubleshooting Appendix Appendix Personal Computer OPERATING INSTRUCTIONS Model No. CF-51 series XP [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to “Reference Manual” on how to access the Reference Manual. (Îpage 19) Read Me First . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Names and Functions of Parts . . . . . . . . . . . . . . . 9 First-time Operation . . . . . . . . . . . . . . . . . . . . . . 11 Starting Up/Shutting Down . . . . . . . . . . . . . . . . . 15 Touch Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Reference Manual . . . . . . . . . . . . . . . . . . . . . . . 19 Useful Information . . . . . . . . . . . . . . . . . . . . . . . 20 List of Error Codes . . . . . . . . . . . . . . . . . . . . . . . 24 Dealing with Problems (Summary) . . . . . . . . . . . 25 Reinstalling Software . . . . . . . . . . . . . . . . . . . . . 29 LIMITED USE LICENSE AGREEMENT. . . . . . . 31 Hard Disk Data Erase Utility . . . . . . . . . . . . . . . . 33 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . 37 2 *1 For the Model No., insert the 12 digit number (for example, CF-51GAKBAKM) located on the bottom of the computer. Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual zSome of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. zIf the user has logged on without the administrator authority, some functions may not be executable, and some screens may be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. zConfirm the latest information on optional products in catalogs, etc. zIn this manual, “Microsoft ® Windows ® XP Professional” is indicated as “Windows” or “Windows XP”. zIn this manual, the following software packages are described as follows: “WinDVD™ 5 (OEM Version)” as “WinDVD” “B’s Recorder GOLD7 BASIC” as “B’s Recorder” “B’s CLiP 5” as “B’s CLiP” zThe following drives may be described as “CD/DVD drive”. DVD-ROM & CD-R/RW drive, DVD MULTI drive zCircular media such as DVD-ROM and CD-ROM are described as “discs”. Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be repro- duced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2004 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft ® , Windows ® and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. PS/2 ® is a registered trademark of International Business Machines Corporation. Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. WinDVD™ is a trademark of InterVideo, Inc. Panasonic ® is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective own compa- nies. NOTENOTE provides a useful fact or helpful information. CAUTIONCAUTION indicates a condition that may result in minor or moderate injury. Enter This illustration means to press the [Enter] key. Fn + F5 This illustration means to press and hold the [Fn] key, then press the [F5] key. [start] - [Run]This illustration means to click [start], then to click [Run]. For some applications, you may need to double-click. Î or ⇒These symbols indicated related pages. Î : Refer to the page in this Operating Instructions ⇒ : Refer to the Reference Manual Customer’s Record Model No.* 1 Serial No. or Code No. Date of Purchase Dealer’s Name Dealer’s Address 3 Getting Started Read Me First Federal Communications Commission Radio Fre- quency Interference Statement Note: This equipment has been tested and found to com- ply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment gener- ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. zConsult the Panasonic Service Center or an experi- enced radio/TV technician for help. Warning To assure continued compliance, use only shielded inter- face cables when connecting to a computer or peripheral. Also, any changes or modifications …

Text truncated - open the document above for the full version.

This manual contains supplementary instructions regarding the use of the computer. It explains the cases where the operation of the computer differs from that in the Operating Instructions. Your computer is equipped with Wireless LAN enabling you to communicate using radio frequencies. Supplementary Instructions for Wireless LAN FCC Radio Frequency Interference Requirements This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this product. Specifications Data transfer rates Standards supported Transmission method Wireless channels used RF frequency band IEEE802.11a: 54/48/36/24/18/12/9/6Mbps (automatically switched) IEEE802.11g: 54/48/36/24/18/12/9/6Mbps (automatically switched) IEEE802.11b: 11/5.5/2/1 Mbps IEEE802.11a/IEEE802.11g/IEEE802.11b OFDM system, DSSS system IEEE802.11a: Channels 36 to 64, 149 to 165 IEEE802.11b/IEEE802.11g: Channels 1 to 11 IEEE802.11a: 5.18~5.32GHz, 5.745~5.825GHz IEEE802.11g/IEEE802.11b: 2412~2462MHz 3 Wireless LAN If you use a wireless LAN, you can use a network without cable connections. CAUTIONz Communication is performed through the wireless LAN antenna. Do not block the antenna area with your hand or otherwise interfere with the passage of the radio signals. NOTEz The communication speeds and distances differ depending on the devices that support the wireless LAN, the installation environment and other ambient conditions. z One characteristic of radio waves is that th eir transmission rate tends to drop as the communication distance increases. It is recommended that the devices supporting the wireless LAN be used in close vicinity to each other. z The rate may drop while a microwave oven is being used. Windows XP z Do not use the Fast User Switching function. „ Do not use wireless LAN on airpl anes, in hospitals, or in other locations where wireless LAN signa ls may affect the operation of devices in the vicinity. z If you intend to use the computer in the environments described above, turn the wireless LAN off using the following method: 1 Double-click or on the taskbar. 2 Select your wireless LAN adaptor and select [General]. 3 Select [Off] for [Switch radio]. 4 Select [OK].The icon will turn to . Precautions 4 Wireless LAN „ To prevent theft of dat a or unauthorized access to the hard disk via a wireless LAN. z If you plan to use wireless LAN functions, we recommend that you do so only after making the appropriate security settings, such as for data encryption. „ We recommend turning the wireless LAN off when it is not used or out of range. z If you leave the wireless LAN on, the battery's operating time is shortened. To use the wireless LAN, set the profile using the following procedure.The settings will vary for diff erent network environments de pending on the network system being used. For more details, a sk your system administrator or the person in charge of the network. CAUTIONz Set profiles for each user using the following procedure. NOTE Windows XP z If [Windows XP is currently configured to manage the Intel(R) PRO/Wireless LAN adaptor.] is displayed, select [Yes]. Windows 2000 z After setting the profile, delete the profile displayed at the time of purchase (profile name: Default). 1 Double-click on the taskbar. 2 Select your wireless LAN adap ter and select [General]. 3 Select [On] for [Switch radio]. The Settings 5 Wireless LAN 4 Select [Networks] and select [Add]. 5 Enter the profile name and network name (SSID), and then make other necessary changes, then select [Next]. 6 Make necessary changes and select [Finish]. 7 Select [OK]. NOTEz About WLAN Security ClientWLAN Security Client is an implementation of the client side of the IEEE 802.1X-Port Based Network Access Control protocol. • Since the WLAN Security Client has alre ady started when is displayed on the taskbar, do not double-start it. If is not displayed, start up the WLAN Security Client in the following menu.Windows XP Select [Start] - [All Programs] - [Int el] - [WLAN Security Client Manager]. Windows 2000Select [Start] - [Programs] - [Intel] - [WLAN Security Client Manager]. • For more information about how to use the WLAN Security Client, refer to [Help] in the menu bar or;Windows XP Select [Getting Started Guide] or [User's Guide] in [Start] - [All Programs] - [Intel].Windows 2000Select [Getting Started Guide] or [User's Guide] in [Start] - [Programs] - [Intel]. Select or on the taskbar to check the communication status.For more information about how to use the Intel PROSet, refer to [Help] in the menu bar. Check the Communication Status 6 Wireless LAN If the function fails to operate correctly Read the operating instructions for the access point carefully and check the settings.„ The access point fails to be displayed in [Available Networks] z Select the profile you are using, and select [Advanced] in [Networks]. [Connect to ad hoc networks only] may have been selected in [Connection preference]. In this case, select [Connect to infrastructure and ad hoc networks]. z This computer uses channels 1 through 11 *1 . Check the channel being used. *1 In the case of wireless communications, the frequency band being used can be divided into segments, so that different communications can be conducted on each band segment. A "Channel" refers to the individual frequency bandwidth divisions. „ The access point cannot be accessed z The network key setting may not conform to the access point.Check the network key setting of the access point and, if necessary, set it again correctly. z Depending on the access point and settings, access may not be accepted unless the computer's MAC address is registered b…

Text truncated - open the document above for the full version.

























!"#$#%##




 &
#"!'$!
(
) *&
#"!'$#



+
!$



















 !
"#
$
%

$&
'

(
)
*

+
,


(&)
-./01
%
+
+

0)

(

2
3 .
+
%

*/4/


+

+
+
(,/5

+

#
&6

&6

&

"
&

+

7
3

*/4/




+

+









3

/









+



2
(,/5


6

+



6

2
2




6
3

4

6



+
2
+
6

2
88
(,/5




+
2

+
+







+

+



2
68


+
86


#3


4


%
"
*
*/4/
66
5
(

March 7, 2005 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Panasonic Corporation of North America FCC ID: ACJ9TGCF-512 731 Confirmation No.: EA366610 Correspondence Reference No.: 28530 Request for Tech. Info.: 03/02/05 Dear Martin: Transmitted herewith, on behalf of Panasonic Corporation of North America is an amendment provided in response to the request for technical information dated March 2, 2005. 1. The mixtures were developed at PCTEST lab by experimenting with quantity combinations of Water, Triton, DGBE, and Salt. Parameter measurements were taken with the Agilent 8753E and HP probe. 2. The tip diameter of ES3DV2 is 4mm. Please find the attached corrected page 5 of the SAR report showing the correct dimensions. The tip to center dimension is 2.0 mm as shown in the test report- the data sheet for the probe is attached for your reference. The 3 mm distance shown on the SAR plots is the sensor to surface spacing which is programmable. 3. The 5mm zoom scans take 30 minutes to complete. The SAR values for this device are well below the FCC limits. A scan resolution of 8 mm yields sufficient interpolation accuracy for directions parallel to the surface. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Panasonic Corporation of North America

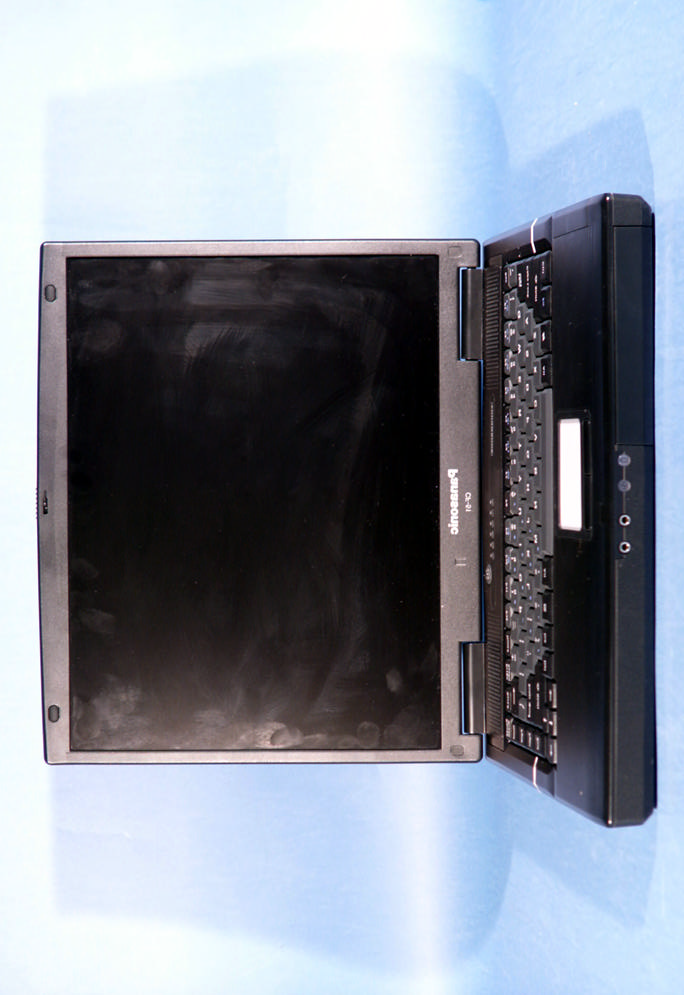

Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51

<FCC ID & DoC LABEL for CF-51> FCC ID: ACJ9TGCF-512 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Position Rating Plate (FCC DoC Position)

Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51

Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51 Panasonic FCC ID: ACJ9TGCF-512 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ Intel Centrino WLAN Model: CF-51

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR. 241122636-R1.ACJ Test Dates: Nov. 30 & Dec. 1-3 & 21, 2004 Phone Type: Panasonic Notebook PC w/ Intel Centrino WLAN FCC ID: ACJ9TGCF-512 Page 1 of 27 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Panasonic Corporation of North America Dates of Tests: Nov. 11, Dec. 1-3 & 21, 2004 One Panasonic Way, 4B-8 Test Report S/N: SAR.241122636-R1.ACJ Secaucus, NJ 07094 Test Site: PCTEST Lab, Columbia MD Project No.: ITPD-04-F111A FCC ID: ACJ9TGCF-512 APPLICANT: Panasonic Corporation of North America EUT Type: Notebook PC w/ WLAN (Intel Centrino Model: 2915ABG) Tx/Rx Frequency: 2412 – 2462 MHz (DSSS/OFDM) 5180 – 5320 MHz / 5745 – 5825 MHz (OFDM) Max. RF Output Power: 23.67 dBm Peak Conducted (2.4 GHz DSSS/OFDM) 20.14 dBm Peak Conducted (5.8 GHz OFDM) 17.36 dBm Peak Conducted (5.2 GHz OFDM) 20.96 dBm Peak Conducted (5.3 GHz OFDM) Max. SAR Measurement: 0.068 W/kg Laptop Body SAR; 0.712 W/kg Bystander Body SAR Trade Name/Model(s): CF-51 FCC Classification(s): Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: # FCC 33] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Output power listed is Conducted. SAR compliance for body-worn operating configuration is based on a separation distance of 0.0 cm between the bottom of the unit and the body of the user. Bystander SAR compliance is based on 0.5 cm spacing. End-users must be informed of the body-worn operating configurations for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR. 241122636-R1.ACJ Test Dates: Nov. 30 & Dec. 1-3 & 21, 2004 Phone Type: Panasonic Notebook PC w/ Intel Centrino WLAN FCC ID: ACJ9TGCF-512 Page 2 of 27 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP.............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...............................................................................13-14 12. SYSTEM VERIFICATION..................................................................................................13 13. SAR TEST DATA SUMMARY...........................................................................................16 14. SAR DATA SUMMARY...............................................................................................17-24 15. SAR TEST EQUIPMENT...................................................................................................25 16. CONCLUSION...............................................................................................................26 17. REFERENCES..................................................................................................................27 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR. 241122636-R1.ACJ Test Dates: Nov. 30 & Dec. 1-3 & 21, 2004 Phone Type: Panasonic Notebook PC w/ Intel Centrino WLAN FCC ID: ACJ9TGCF-512 Page 3 of 27 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.…

Text truncated - open the document above for the full version.

PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR. 241122636-R1.ACJ Test Dates: Nov. 30 & Dec. 1-3 & 21, 2004 Phone Type: Panasonic Notebook PC w/ Intel Centrino WLAN FCC ID: ACJ9TGCF-512 Page 5 of 27 © 2004 PCTEST Engineering Laboratory, Inc 3. DASY4 E-FIELD PROBE SYSTEM Probe Measurement System The SAR measurements were conducted with the dosimetric probe ET3DV6, designed in the classical triangular configuration [7] (see Fig. 3.2) and optimized for dosimetric evaluation. The probe is constructed using the thick film technique; with printed resistive lines on ceramic substrates. The probe is equipped with an optical multifiber line ending at the front of the probe tip (see Fig. 3.3). It is connected to the EOC box on the robot arm and provides an automatic detection of the phantom surface. Half of the fibers are connected to a pulsed infrared transmitter, the other half to a synchronized receiver. As the probe approaches the surface, the reflection from the surface produces a coupling from the transmitting to the receiving fibers. This reflection increases first during the approach, reaches maximum and then decreases. If the probe is flatly touching the surface, the coupling is zero. The distance of the coupling maximum to the surface is independent of the surface reflectivity and largely independent of the surface to probe angle. The DASY4 software reads the reflection during a software approach and looks for the maximum using a 2 nd order fitting (see Fig.3.1). The approach is stopped at reaching the maximum. Probe Specifications Calibration: In air from 10 MHz to 6 GHz In brain and muscle simulating tissue at Frequencies of 150 MHz, 450 MHz, 835 MHz, 900 MHz, 1900MHz, 2450MHz, 5300MHz, & 5800MHz Frequency: 10 MHz to > 6 GHz; Linearity: ± 0.2 dB (30 MHz to 6 GHz) Directivity: ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal probe axis) Dynamic: 5 :W/g to > 100 mW/g; Range: Linearity: ± 0.2 dB Dimensions: Overall length: 330 mm Tip length: 16 mm Body diameter: 12 mm Tip diameter: 4 mm Distance from probe tip to dipole centers: 2 mm Application: General dosimetry up to 6 GHz Compliance tests of mobile phones Fast automatic scanning in arbitrary phantoms Figure 3.1 Triangular Probe Configuration Figure 3.2 Probe Thick-Film Technique Figure 3.1 DAE System

CONFIDENTIAL PROPERTY OF PCTEST UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (NII), FCC RULE PART 15.407 15.240217125-R1.ACJ PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Panasonic Corporation of North America Date(s) of Tests: December 27-28, 2004 One Panasonic Way, 4B-8 Test Report S/N: 15.241122637-R1.ACJ Secaucus, NJ 07094 Test Site: PCTEST Lab, Columbia, MD Project Number: ITPD-04- F111A FCC ID: ACJ9TGCF-512 APPLICANT: Panasonic Corporation of North America SUMMARY: Model No.: CF-51 Equipment EUT Type: Notebook PC w/ WLAN (Intel Centrino Model: 2915ABG) Max. Output Power: 17.36 dBm (Peak) Conducted (Low Band) 20.96 dBm (Peak) Conducted (High Band) Frequency Range: 5180 – 5240 MHz (Low Band) 5260 – 5320 MHz (High Band) FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Parts 15.407; ANSI C-63.4-2001 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. CONFIDENTIAL PROPERTY OF PCTEST UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (NII), FCC RULE PART 15.407 Page i © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC PART 15 E MEASUREMENT REPORT COVER PAGE................................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE.......................................................................................................................................................................................................3 1.2 SCOPE................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS................................................................................................................................................................4 3.0 DESCRIPTION OF TEST............................................................................................................................................5 3.1 CONDUCTED EMISSIONS.........................…
