ACJ9TGCF-521Panasonic Toughbook with EvDO, WLAN and Bluetooth

Please read these instructions carefully before using this product and save this manual for future use. Contents Getting Started Useful Information Troubleshooting Getting Started Useful Information Troubleshooting Appendix Appendix OPERATING INSTRUCTIONS Personal Computer Model No. CF-52 series Introduction.................................................2 Read Me First..............................................3 Description of Parts.......................................9 First-time Operation.....................................11 On-screen Manual.......................................14 Handling and Maintenance.............................15 Hard Disk Backup Function (Recover Pro)...........17 Hard Disk Data Erase Utility...........................19 Reinstalling Software....................................20 Error Code/Message....................................22 Troubleshooting (Basic)................................23 Hardware Diagnostics...................................27 LIMITED USE LICENSE AGREEMENT..............30 Specifications............................................32 LIMITED WARRANTY..................................35 For further information about the com- puter, you can refer to the on-screen manual. To access the on-screen manual Îpage 14 “On-screen Manual” 2 Getting Started Useful Information Troubleshooting Appendix Introduction Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc- tions carefully. „Terms and illustrations in these instructions zSome illustrations are simplified to help your understanding and may look different from the actual unit. zIf you do not log on as an administrator, you cannot use some functions or cannot display some screens. zRefer for the latest information about optional products to the catalogs, etc. zIn these instructions, the names and terms are referred as follows. • “Microsoft ® Windows ® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows” or “Windows XP” • “WinDVD™ 5 (OEM Version)” as “WinDVD” • “B’s Recorder GOLD8 BASIC” as “B’s Recorder” • “B’s CLiP 6” as “B’s CLiP” • DVD-ROM & CD-R/RW drive and DVD MULTI drive as “CD/DVD drive” • Circular media including DVD-ROM and CD-ROM as “discs” zThe display modes are referred as follows. ( ) indicates the terms in [Intel ® Graphics Media Accelerator Driver for Mobile] screen. To display the screen, click [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Drive for Mobile]. • Internal LCD (Notebook): The computer’s display • External display (Monitor): External display • Simultaneous display (Intel ® Dual Display Clone): The same screen is displayed on the internal LCD and the external display. • Extended desktop: The extended working area across the internal LCD and the external display. „Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. © 2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. „Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the com- puter and the manuals. „Trademarks Microsoft ® , Windows ® and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation. SD Logo is a trademark. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo- rated in the United States and/or other countries. PhoenixBIOS, Phoenix Always and Recover Pro™ are trademarks and/or registered trademarks of Phoenix Technolo- gies Ltd. Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd. WinDVD™ is a trademark of InterVideo, Inc. Panasonic ® is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective own companies. :Conditions that may result in minor or moderate injury. :Useful and helpful information. Enter :Press [Enter] key. Fn + F5 :Press and hold [Fn] key, and then press [F5] key. [start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases. Î :Page in these Operating Instructions or in the Reference Manual. :Reference to the on-screen manuals. CAUTION NOTE 3 Getting Started Useful Information Troubleshooting Appendix Read Me First Federal Communications Commission Radio Fre- quency Interference Statement Note: This equipment has been tested and found to com- ply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment gener- ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit differ- ent from that to which t…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division July 25, 2007 ITPD-07-F008A Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Panasonic Mobile Personal Computer Model CF-52 Family Alps Bluetooth Model UGNZA, Intel WLAN(a+g) Model WM4965AG and Sierra EVDO Rev A Model MC5725 / TCB Certification for FCC ID: ACJ9TGCF-521 To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. The subject product represents Mobile Personal Computer, Model CF-52 Family with CPU type Intel Core 2 Duo 2.0 GHz T7300, which will be marketed under FCC ID: ACJ9TGCF-521. This product will be marketed with the following co-located transmitters: (1) Alps Bluetooth, Model UGNZA (Alps have no FCC ID): FCC Rule Part Type Freq Range (MHz) Output Watts Part 15C DSS 2402~2480 0.023276 (2) Intel WLAN(a+b+g) Model WM4965AG (Intel FCC ID: PD94965AG) This device complies with Dynamic Frequency Selection requirements in R&O FCC 03-287 and Section 15.407(h) as a client only devoice without radar detection within the 5260~5320 MHz U-NII Band. FCC Rule Part Type Freq Range (MHz) Output Watts Part 15C 802.11(b+g) 2412~2462 0.019142 Part 15C 802.11(a) 5745~5825 0.023933 Part 15E 802.11(a) Low Band 5180~5240 0.020417 Part 15E 802.11(a) High Band 5260~5320 0.018197 (3) Sierra EVDO Rev A, Model MC5725 (Sierra FCC ID: N7N-MC5725) FCC Rule Part Type Freq Range (MHz) Output Watts Emission Designator Part 22H Cellular CDMA 824.70~848.31 0.281 W ERP 1M27F9W Part 24E PCS CDMA 1851.25~1908.75 0.562 W EIRP 1M27F9W The highest calculated MPE values were: Part 15C WLAN 802.11(g) MPE at 2480 MHz was 0.011 mW/cm 2 at 20 cm with max antenna gain of 2.08 dBi Part 15C WLAN 802.11(a) MPE at 5745 MHz was 0.008 mW/cm 2 at 20 cm with max antenna gain of 2.08 dBi Part 22H Cellular CDMA MPE at 848.31 MHz was 0.080 mW/cm 2 at 20 cm with max antenna gain of 2.19 dBi Part 24E PCS CDMA MPE at 1851.25 MHz was 0.1852 mW/cm 2 at 20 cm with max antenna gain of 2.19 dBi Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division This PC contains the following Inverted-F type transmitter antennas, which are all located within the LCD panel, except for the BT TX/RX antenna, which is located in the keyboard: (1) BT TX/RX antenna with 3.69 dBi antenna gain; (2) WLAN Main (Left) TX/RX and Aux (Right) TX/RX antennas with 2.08 dBi and 1.21 dBi antenna gains; and (3) EVDO Rev A Main (Left) TX/RX and Aux (Right) antennas with 2.19 dBi and 0.85 dBi antenna gains. The PC’s main User Manual gives all FCC required notices and warning, including RF Exposure Warning. Mobile Personal Computer Model CF-52 Family may be marketed with optional Port Replicator, Model CF-VEB521, which does not contain any external antenna connectors. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits, which contain Operation Description, Parts Lists & Tune-Up Procedure, Block Diagram and Schematic Diagram. The BT and WLAN transmitters are not user adjustable and do not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available f/or public inspection. Also, in accordance with FCC Public DA 04-1705, we request short-term confidentiality for exhibits, which contain External Photographs, Internal Photographs, Test Setup Photographs and the User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager

<CF-52 WLAN4965ag + BT + EVDO Rev.A model photo> 1) CF-52 Top/Front View Top View Front View

<CF-52 WLANa+b+g & BlueTooth & EVDO rev.A model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-521 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

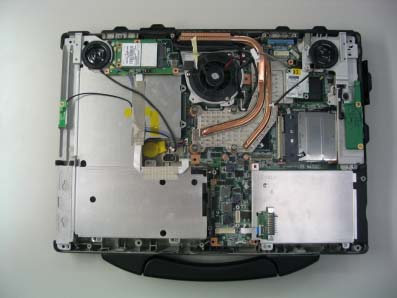

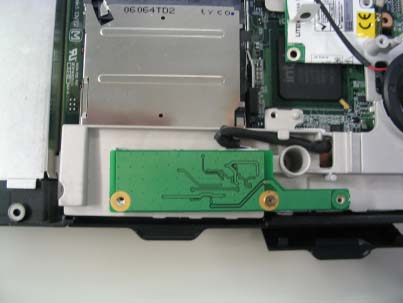

2) EVDO module position 3) EVDO rev.A Module photo MC5725 Module Top View MC5725 Module Bottom View MC5725 Module Interior Top View MC5725 Module Interior Bottom View 4) WLAN Card position Magnified View 5) WLAN exterior photo WLAN Top View WLAN Bottom View 6) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 7) BlueTooth Card Position BlueTooth Card Magnified View (Main PWB removed) 8) BlueTooth Card exterior photo BlueTooth Card Top View BlueTooth Card Bottom View 9) BlueTooth Module interior photo BlueTooth Module inside Top View BlueTooth Module inside Bottom View 10) Antenna position (EVDO, WLAN & BlueTooth) EVDO (Aux) EVDO (main) WLAN(Aux) WLAN(Main) BlueTooth EVDO (Aux) EVDO (Main) WLAN(Aux) WLAN(Main) BlueTooth 11) EVDO antenna photo EVDO Main antenna magnified view EVDO Aux antenna magnified view EVDO (Main) EVDO (Aux) 12) WLAN antenna Photo WLAN Main antenna magnified view WLAN Aux antenna magnified view WLAN(main) WLAN(Aux) 13) BlueTooth antenna Photo BlueTooth Antenna Magnified View Bluetooth Antenna 14) Antenna Specification EVDO Main Antenna: Inverted F type: 2.19dBi max EVDO Aux Antenna Inverted F type: 0.85dBi max WLAN Main Antenna: Inverted F type: 2.08dBi max WLAN Aux Antenna: Inverted F type: 1.28dBi max BlueTooth Antenna: Inverted F type: 3.69dBi max

Reviewed by: FCC ID: ACJ9TGCF-521 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0704180315.ACJ April 24, 2007 Toughbook Model: CF-52 Page 1 of 7 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 Applicant Name: Date of Testing: Panasonic Corporation of North America April 24, 2007 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0704180315.ACJ FCC ID: ACJ9TGCF-521 APPLICANT: Panasonic Corporation of North America EUT Type: Toughbook Model: CF-52 FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: ACJ9TGCF-521 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0704180315.ACJ April 24, 2007 Toughbook Model: CF-52 Page 2 of 7 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 6 2.0 CONCLUSION..................................................................................................................................7 Reviewed by: FCC ID: ACJ9TGCF-521 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0704180315.ACJ April 24, 2007 Toughbook Model: CF-52 Page 3 of 7 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Panasonic Corporation of North America to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Panasonic Model: CF-52 is a Toughbook containing Sierra Wireless EvDO Rev. A, Intel PRO/Wireless WLAN, and Alps Bluetooth modules. For this MPE evaluation the device is set to transmit from the antenna of each transmitter and the RF exposure of each transmitter is evaluated individually. EUT: Model: CF-52 Grantee: Panasonic Corporation of North America FCC ID: ACJ9TGCF-521 Antenna Gains: 2.08dBi (Used with WLAN Module / Model: 4965AG) 3.69dBi (Used with Bluetooth Module / Model: UGNZA) 2.19dBi (Used with Sierra Wireless Module / Model: MC5725) Reviewed by: FCC ID: ACJ9TGCF-521 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0704180315.ACJ April 24, 2007 Toughbook Model: CF-52 Page 4 of 7 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-521 FCC Pt. 15.247 WLAN 802.11a/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0704180316.ACJ May 3 - 4, 2007 Toughbook Model: CF-52 Page 1 of 36 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.4WFC 04/02/07 Applicant Name: Date of Testing: Panasonic Corporation of North America May 3 - 4, 2007 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0704180316.ACJ FCC ID: ACJ9TGCF-521 APPLICANT: Panasonic Corporation of North America Model(s): CF-52 EUT Type: Toughbook Model: CF-52 Max. RF Output Power: 23.933 mW (13.79 dBm) Conducted (a) 19.142 mW (12.82 dBm) Conducted (g) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) 5745 – 5825 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: 7CTSA00088R This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.247 Certification Reviewed by: FCC ID: ACJ9TGCF-521 FCC Pt. 15.247 WLAN 802.11a/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0704180316.ACJ May 3 - 4, 2007 Toughbook Model: CF-52 Page 2 of 36 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.4WFC 04/02/07 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 EVALUATION PROCEDURE..................................................................................................................... 4 1.2 SCOPE....................................................................................................................................................... 4 1.3 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 CONDUCTED EMISSIONS........................................................................................................................ 6 3.2 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11G..................................................................................... 11 6.3 6DB BANDWIDTH MEASUREMENT – 802.11A (5.8GHZ)...................................................................... 13 6.4 OUTPUT POWER MEASUREMENT – 802.11G...................................................................................... 15 6.5 OUTPUT POWER MEASUREMENT – 802.11A (5.8GHZ) ...................................................................... 17 6.6 POWER SPECTRAL DENSITY (802.11A/G) ........................................................................................... 18 6.7 OUT OF BAND EMISSIONS AT THE BAND EDGE................................................................................ 22 6.8 RADIATED MEASUREMENTS ................................................................................................................ 24 6.9 RADIATED RESTRICTED BAND MEASUREMENTS............................................................................. 31 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 32 7.0 CONCLUSION .......................................................................................................................................36 Reviewed by: FCC ID: ACJ9TGCF-521 FCC Pt. 15.247 WLAN 802.11a/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0704180316.ACJ May 3 - 4, 2007 Toughbook Mode…

Text truncated - open the document above for the full version.

Panasonic FCC ID: ACJ9TGCF-521 EUT Photographs © 2007 PCTEST Lab. Notebook PC w/ WLAN, EVDO and Bluetooth Model: CF-52
