ACJ9TGCF-527Toughbook PC with WWAN, WLAN and Bluetooth

Please read these instructions carefully before using this product, and save this manual for future use. Contents Getting Started Useful Information Getting Started Useful Information Troubleshooting Appendix Appendix Troubleshooting OPERATING INSTRUCTIONS Personal Computer Model No. CF-52 series Introduction .................................................2 Read Me First..............................................3 (Precautions) Description of Parts.....................................10 First-time Operation.....................................12 On-screen Manual.......................................16 Handling and Maintenance.............................17 Reinstalling Software....................................19 Troubleshooting (Basic)................................21 LIMITED USE LICENSE AGREEMENT..............26 Specifications............................................28 LIMITED WARRANTY..................................32 For further information about the com- puter, you can refer to the on-screen manual. To access the on-screen manual Îpage 16 “On-screen Manual” DFQW5355ZAT_52mk3_XP7_OI_EN.book 1 ページ ２００９年１２月２９日 火曜日 午後１時４７分 2 Getting Started Useful Information Troubleshooting Appendix Introduction Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions carefully. „Terms and illustrations in these instructions z indicates Genuine Windows ® 7 Professional Operating System. z indicates Genuine Microsoft ® Windows ® XP Professional Operating System. zSome illustrations are simplified to help your understanding and may look different from the actual unit. zIf you do not log on as an administrator, you cannot use some functions or cannot display some screens. zRefer for the latest information about optional products to the catalogs, etc. zIn these instructions, the names and terms are referred as follows. • “Genuine Windows ® 7 Professional” as “Windows” or “Windows 7” • “Genuine Microsoft ® Windows ® XP Professional Service Pack 3” as “Windows” or “Windows XP” • DVD-ROM & CD-R/RW drive and DVD MULTI drive as “CD/DVD drive” • Circular media including DVD-ROM and CD-ROM as “discs” „Disclaimer Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manu- als. „Trademarks Microsoft ® , Windows ® and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation. SDHC Logo is a trademark. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo- rated in the United States and/or other countries. Computrace ® is a registered trademark of Absolute ® Software Corp. Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation. Corel, InterVideo ® , WinDVD ® , the InterVideo logo and the Corel logo are trademarks or registered trademarks of Corel Corporation and/or its subsidiaries in Canada, the United States and/or other countries. Sonic and Roxio are trademarks or registered trademarks of Sonic in the United states and/or other countries. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective own companies. :Conditions that may result in minor or moderate injury. :Useful and helpful information. Enter :Press [Enter] key. Fn + F5 :Press and hold [Fn] key, and then press [F5] key. (Start) - [All Programs]:Click (Start), and then click [All Programs]. [start] - [Run] :Click [start], and then click [Run]. You may need to double-click in some cases. Î :Page in these Operating Instructions or in the Reference Manual. :Reference to the on-screen manuals. CAUTION NOTE DFQW5355ZAT_52mk3_XP7_OI_EN.book 2 ページ ２００９年１２月２９日 火曜日 午後１時４７分 3 Getting Started Useful Information Troubleshooting Appendix Read Me First Federal Communications Commission Radio Fre- quency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea- sonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accor- dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. zConsult the Panasonic Service Center or an experi- enced radio/TV technician for help. Warning To assure continued compliance, use only shielded inter- face cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, includ- ing interference that may cause undesired operation. FCC RF Exposure Warning: <Only for model with wireless LAN/wireless WAN/Bluetooth> zThis equipment complies with FCC radiation exposure limits set forth for an…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7760 / Fax: 201-392-4564 [email protected] BEN BOTROS Project Manager Product Safety and Compliance Division February 18, 2010 ITPD-09-F011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Mobile Personal Computer, Model CF-52 mk3 Family TCB Certification for FCC ID: ACJ9TGCF-527 • Alps Bluetooth, Model UGNZA • Intel WLAN, Model 622ANHMW(a/b/g/n) / Model 622BGHMW(b/g) • Sierra WWAN, Model Gobi2000 (GSM/EDGE/WCDMA/CDMA with GPS) To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents mobile Personal Computer, Model CF-U52mk3 Family with Intel CPU Type i5-520M(2.40GHz – for low model) or Intel CPU Type i5-540M(2.53GHz – for high model) which will be marketed under FCC ID: ACJ9TGCF-U527. This product will be marketed with the following co-located transmitters: (1) Alps Bluetooth, Model UGNZA (Alps has no FCC ID): This BT transmitter complies with FCC Part 15C under equipment class code DSS. This BT version is under specification Ver 2.0 + EDR with maximum symbol rate of 1~3Mbps. Refer to test report for exact frequency range and RF output level. (2) Intel WLAN Model 622ANHMW Family (Intel FCC ID: PD9622ANH) or Model 622BGHMW (Intel FCC ID: PD9622BGH). This combined WLAN and UNII transmitters complies with FCC Parts 15C and 15E under equipment class codes DTS and NII. Refer to test report for exact frequency ranges and RF output levels. The U-NII portion of this transmitter complies with Dynamic Frequency Selection (DFS) requirements in R&O FCC 03-287 as a client only device without radar detection capability and client software and associated drivers will not initiate any transmission on DFS frequencies, which includes transmissions for beacon ad-hoc peer-to- peer modes. The Intel WLAN theory of operation describes 3x3 MIMO capacities (multiple input/multiple output architecture); however this end-product usage will be limited to 2x2 MIMO capacity. The User Manual will provide the following type wording, pursuant to §15.407(e): This PC operation within 5.15~5.25 GHz band is restricted to indoor use only to reduce any potential harmful interference to co-channel Mobile Satellite Systems. Model 622ANHMW supports 802.11 a/b/g/n (Intel FCC ID: PD9622ANH). Model 622BGHMW supports 802.11 b/g (Intel FCC ID: PD9622BGH). Model 622BGHMW is identical to Model 622ANHMW except that the 802.11a and 802.11n functions are disabled by EEPROM setting for marketing purposes. (3) Sierra WWAN, Model Gobi2000 (FCC ID: N7NGOBI2) This combined Cellular and PCS transmitter complies with FCC Parts 22H and 24E under equipment class code PCB. Refer to test report for exact frequency ranges, RF output levels and emission designators. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7760 / Fax: 201-392-4564 [email protected] BEN BOTROS Project Manager Product Safety and Compliance Division This PC marketed under FCC ID: ACJ9TGCF-527 contains various antennas for BT, WLAN and WWAN. Refer to separate provided exhibits for antenna photos and test reports for exact antenna description, antenna gains and locations. This Mobile PC satisfies RF exposure evaluation with the provided co-located transmitters. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits, which contain Operation Description, Parts Lists, Block Diagram and Schematic Diagram. The BT and WLAN transmitters are not user adjustable and do not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Also, in accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for exhibits which contain External Photographs, Internal Photographs, Test Setup Photographs and the Operating Instructions (User Manual). The requested short-term confidentiality exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Further, we the undersigned, hereby attest to the fact that the subject product is also classified as Class B Computer and will be authorized under Declaration of Conformity to comply with FCC Part 15B to meet Class B limits. Sincerely yours, Ben Botros Ben Botros Project Manager

From: Greg Snyder Sent: Friday, February 19, 2010 7:45 PM To: 'Gregory Czumak' Subject: RE: ACJ9TGCF-527 Hi Greg, Please see below. Thanks Greg From: Gregory Czumak Sent: Friday, February 19, 2010 2:42 PM Subject: ACJ9TGCF-527 RT Questions: 1. Please provide additional external photos of the EUT showing all sides of the de vice. Ext Photos have been sent 2. Please provide the gain of all Part 15 antennas used by the EUT. Antenna gains are located in the MPE report 3. Please submit the MPE report for the EUT. Please see the revised MPE test report 4. The PCE, NII, DTS and DSS reports all contain data plots that are time-stamped with test dates that do not match the test dates shown on p.1 of the reports (some are several years off). Please confirm that the test dates on p.1 of the reports are correct, or else revise them accordingly. If any testing was performed more than 1 year ago, please confirm that the data is still applicable to the EUT. The PCE test report has been updated with the correct plots. The WLAN and UNII reports have been updated to cover the correct test dates. The data plots included for the DSS are the same module that has been used in previous application and the data remains representative for this application. 5. If the +/- 0.7 dB nominal power tolerance specified in the PCE tune- up procedure is applied, the following output power levels are less than the lowest specified acceptable power level: cellular CDMA, cellular GSM, PCS CDMA, PCS GSM (all channels for each). Please address. The powers have been updated to reflect this mo dule. The previous powers reported were form and previous version of this module. 6. On pages 23-25 of the PCE report, the dBc levels in the tables are not correct, based on the reported emission levels. Please revise. The PCE reports has been revised to correct these three table. 7. The NII EMC report measures the 26 dBc bandwidths, but does not use these values to calculate the transmit power limits (the power data is not compared to any limit to demonstrate compliance). Please revise the report to include the calculated transmit power limits, so that the measured levels can be shown to be compliant. The power limitations based on the 26dB bandwidth have been added to the revised UNII test report. 8. On pages 50-51 of the NII EMC report, because the peak excursion values are shown as negative numbers the Margins associated with them are all incorrect. Please revise. The UNII report has been revised to correct the peak excursion numbers to absolute values. 9. In the DTS report, are the output power measurements peak or average? Please specify. They appear to be average measurements, however, the EUT does not comply with the 30 dBc bandedge limit in all modes of operation (see Plots 6-75 and 6-76). As a result, the output power measurements must be peak. If this is the case, please provide peak output power measurement data. Peak powers have been added to the revised DTS report. 10. In the DTS report, the spurious RF conducted measurements for 5 GHz operation must be performed up thru 40 GHz. This was not done in Plots 6-84, 6-86 and 6-88. Please provide the additional required data from 27-40 GHz. I note that the DL in these plots appears to be set at more than 30 dBc, even taking into account the 1 MHz RBW (instead of 100 kHz) correction. The additional plots covering up to 40 GHz for the conducted spurious have been added to the revised WLAN report. 11. For NII and DTS operation, please confirm that the single chain output power levels reported represent the highest output levels. In other words, please confirm that the reported levels exceed the levels of the 2 chains transmitting simultaneously and summed together. Otherwise, please provide output power measurement data for each chain while they are transmitting simultaneously, and mathematically sum their outputs to provide the true peak output levels of the EUT. It’s confirmed that th e output powers of the individual chain transmissions remain slightly higher than with both Chain A and Chain B transmitting simultaneously for MIMO operation. The mathematically summed output powers of both chains have been added to the MPE test report for the worst case and separate MPE calculations have been made using the summed MIMO powers. 12. FYI: the text at the top of several pages in the NII report (e.g., p.35) does not r eference the hi band. 13. FYI: in the future, the RFx warning statement in the user’s manual should indicate how the user can comply with the 20 cm minimum separation distance requirement (e.g., “this minimum required separation distance is maintained when the device is used in a normal operating configuration.”).

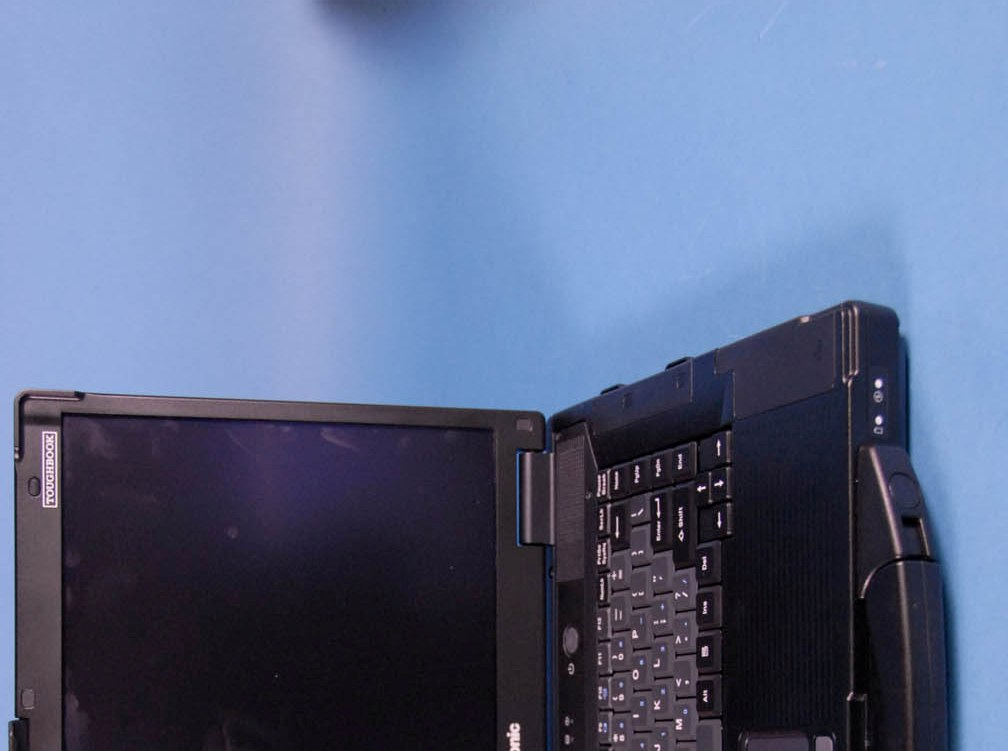

<CF-52 WLAN (622ANHMW) +BT (UGNZA) +WWAN (Gobi2000) +GPS (Gobi2000) model photo> 1) CF-52 Top/Front View Top View Front View 4) WLAN Card position WLAN Module Magnified View WLAN module position 90 Deg Rotate PANASONIC FCC ID: ACJ9TGCF-527 Model: CF-52mk3 External Photos EUT Type: Toughbook Model: CF-52mk3 Page 2 of 5 © 2009 PCTEST Engineering Laboratory Inc. PANASONIC FCC ID: ACJ9TGCF-527 Model: CF-52mk3 External Photos EUT Type: Toughbook Model: CF-52mk3 Page 3 of 5 © 2009 PCTEST Engineering Laboratory Inc. PANASONIC FCC ID: ACJ9TGCF-527 Model: CF-52mk3 External Photos EUT Type: Toughbook Model: CF-52mk3 Page 4 of 5 © 2009 PCTEST Engineering Laboratory Inc. PANASONIC FCC ID: ACJ9TGCF-527 Model: CF-52mk3 External Photos EUT Type: Toughbook Model: CF-52mk3 Page 5 of 5 © 2009 PCTEST Engineering Laboratory Inc. CF-52mk3H model FCC DoC LabelFCC ID Label CF-52mk3L model FCC DoC LabelFCC ID Label

<CF-52 WLAN abgn & Bluetooth & WWAN(Gobi2000) model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-527 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2) WWAN Module position 3) WWAN/GPS (Gobi2000) Photo WWAN Module Top View WWAN module Bottom View WWAN Module Interior Top View WWAN Module Interior Bottom View 5) WLAN (622ANHMW) exterior photo WLAN Top View WLAN Bottom View 6) WLAN (622ANHMW) interior photo WLAN inside Top View WLAN inside Bottom View 7) Bluetooth Card Position Bluetooth Card Magnified View (PWB removed) 8) Bluetooth Card exterior photo Bluetooth Card Top View Bluetooth Card Bottom View 9) Bluetooth (UGNZA) Module interior photo Bluetooth Module inside Top View 10) Antenna position (WWAN, WLAN, Bluetooth & GPS) WWAN Main TX/RX antenna WLAN main TX/RX antenna WLAN Aux TX/RX antenna WWAN Aux RX only antenna/ GPS RX antenna BluetoothTX/RX antenna WWAN Main TX/RX antenna WLAN main TX/RX antenna WLAN Aux TX/RX antenna WWAN Aux RX only antenna/ GPS RX antenna BluetoothTX/RX antenna 11) WWAN antenna photo WWAN Main TX/RX Antenna WWAN AUX RX only Antenna/GPS RX antenna WWAN Main TX/RX antenna WWAN Aux RX only antenna/ GPS RX antenna 12) WLAN antenna Photo WLAN Main antenna magnified view WLAN Aux antenna magnified view WLAN Main TX/RX antenna WLAN Aux TX/RX antenna/ 13) Bluetooth antenna Photo Bluetooth Antenna Magnified View Bluetooth TX/RX antenna

Reviewed by: FCC ID: ACJ9TGCF-527 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0912152261.ACJ January 30, 2010 Toughbook Model: CF-52 Page 1 of 13 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Panasonic Corporation of North America January 30, 2010 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0912152261.ACJ FCC ID: ACJ9TGCF-527 APPLICANT: Panasonic Corporation of North America EUT Type: Toughbook Model: CF-52 FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: ACJ9TGCF-527 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0912152261.ACJ January 30, 2010 Toughbook Model: CF-52 Page 2 of 13 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE).......................3 1.1 INTRODUCTION...................................................................................................................................................3 1.2 EUT DESCRIPTION.............................................................................................................................................4 1.3 MPE REQUIREMENTS OVERVIEW.................................................................................................................6 1.4 PROCEDURE........................................................................................................................................................7 1.5 SUMMARY OF RESULTS.................................................................................................................................12 2.0 CONCLUSION.....................................................................................................................13 Reviewed by: FCC ID: ACJ9TGCF-527 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0912152261.ACJ January 30, 2010 Toughbook Model: CF-52 Page 3 of 13 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Panasonic Corporation of North America to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) Reviewed by: FCC ID: ACJ9TGCF-527 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0912152261.ACJ January 30, 2010 Toughbook Model: CF-52 Page 4 of 13 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.2 EUT Description The Panasonic Model: CF-52 is a Toughbook containing Sierra Wireless GSM/WCDMA/CDMA/EvDO WWAN, Intel PRO/Wireless WLAN and UNII, and Alps Bluetooth modules. For this MPE evaluation the device is set to transmit from the antenna of each transmitter and the RF exposure of each transmitter is evaluated individually. All antennas are internal. There are no provisions for external antennas. EUT: Model: CF-52 Grantee: Panasonic Corporation of North America FCC ID: ACJ9TGCF-527 Antenna Gains: Intel WLAN abgn Main Aux 2.4 GHz 1.85 dBi 1.23 dBi 5.15-5.35 GHz 1.47 dBi 2.78 dBi 5.5-5.7 GHz 1.76 dBi 2.10 dBi 5.7-5.825 GHz 1.08 dBi 0.73 dBi Sierra WWAN (Gobi2000) Main 850 MHz -0.84 dBi 1900 MHz 2.19 dBi Output Power: Cellular GSM 1.084 W ERP PCS GSM 1.148 W EIRP Cellular WCDMA 0.356 W ERP PCS WCDMA 0.873 W EIRP Cellular CDMA 0.401 W ERP PCS CDMA 0.752 W EIRP UNII Chain A Band I 14.46 dBm UNII Chain A Band II 14.31 dBm UNII Chain A Band III 13.79 dBm UNII Chain B Band I 13.11 dBm UNII Chain B Band II 13.24 dBm UNII Chain B Band III 13.32 dBm WLAN Chain A (2.4GHz) 14.72 dBm WLAN Chain B (2.4 GHz) 14.22 dBm WLAN Chain A (5.8 GHz) 14.35 dBm WLAN Chain B (5.8 GHz) 12.92 dBm Reviewed by: FCC ID: ACJ9TGCF-527 MAXI…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ACJ9TGCF-527 FCC Pt. 22/24 GSM/EDGE/CDMA/WCDMA TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0912152256.ACJ December 28, 2009 - January 29, 2010 Toughbook Model: CF-52mk3 Page 1 of 81 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.7GCW 05/13/2009 Applicant Name: Date of Testing: Panasonic Corporation of North America December 28, 2009 - January 29, 2010 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0912152256.ACJ FCC ID: ACJ9TGCF-527 APPLICANT: PANASONIC CORPORATION OF NORTH AMERICA Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Toughbook Model: CF-52mk3 Model(s): CF-52mk3 Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Output Power: 1.084 W ERP Cell. GSM (30.35 dBm) / 1.148 W EIRP PCS GSM (30.6 dBm) 0.356 W ERP Cell. WCDMA (25.52 dBm) / 0.873 W EIRP PCS WCDMA (29.41 dBm) 0.401 W ERP Cell. CDMA (26.03 dBm) / 0.752 W EIRP PCS CDMA (28.76 dBm) 0.513 W ERP EDGE850 (27.1 dBm) 0.711 W EIRP EDGE1900 (28.52 dBm) Emission Designator(s): 246KGXW (Cellular GSM), 242KGXW (PCS GSM) 245KG7W (EDGE850), 242KG7W (EDGE1900) 4M16F9W (Cellular WCDMA), 4M17F9W (PCS WCDMA) 1M27F9W (Cellular CDMA), 1M27F9W (PCS CDMA) Test Device Serial No.: identical prototype [S/N: 9KTSA00072] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: ACJ9TGCF-527 FCC Pt. 22/24 GSM/EDGE/CDMA/WCDMA TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0912152256.ACJ December 28, 2009 - January 29, 2010 Toughbook Model: CF-52mk3 Page 2 of 81 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.7GCW 05/13/2009 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 5.0 SAMPLE CALCULATIONS ............................................................................................................11 6.0 TEST RESULTS ................................…

Text truncated - open the document above for the full version.
