ACJ9TGCF-735CF-73 Personal Computer with WLAN+CDMA

KYL-SUM02252004 User Manual for Toughbook with integrated SB555 CDMA modem KYL-SUM02252004 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices are used in a normal manner with a well-constructed network, the Panasonic Toughbook computer with integrated Sierra Wireless SB555 OEM CDMA modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Matsushita Electric Industrial Co., Ltd. accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Panasonic Toughbook computer, or for failure of the Panasonic Toughbook computer to transmit or receive such data. Safety and Hazards Do not operate the integrated Sierra Wireless SB555 CDMA modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the integrated CDMA modem MUST BE POWERED OFF. The integrated CDMA modem can transmit signals that could interfere with this equipment. Do not operate the integrated CDMA modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the integrated Sierra Wireless SB555 CDMA modem MUST BE POWERED OFF. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. Disclaimers No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.. No patent liability is assumed with respect to the use of the information contained herein. Some of the illustrations included with the text may differ slightly in shape from the actual items in order to make the explanation easier to understand. Computers, computer devices, and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions, or discrepancies between the computer and the manuals. Trademarks - Panasonic is registered trademark of Matsushita Electric Industrial Co., Ltd.. - Sierra Wireless, the Sierra Wireless logo, and Watcher are trademarks of Sierra Wireless, Inc. - Windows® is a registered trademark of Microsoft Corporation. - Qualcomm® is a registered trademark of Qualcomm Incorporated. - InstallShield® is a registered trademark and service mark of InstallShield Corporation. - Other trademarks are the property of the respective owners. Copyright ©2004 Matsushita Electric Industrial Co., Ltd.. All rights reserved. i KYL-SUM02252004 Table of Contents Introduction ................................................................................... 1 Getting Started ................................................................................... 2 Installation ................................................................................... 3 Activation ................................................................................... 5 Using Watcher TM ................................................................................... 6 LED Indicators and Modem Specifications ................................................... 8 ii KYL-SUM02252004 1: Introduction The Sierra Wireless SB555 OEM CDMA modem is an embedded wireless modem for cellular and North American PCS networks. It enhances the functionality of your Toughbook by adding high speed wireless data service. The SB555 modem functions as a wireless network card. It allows you to connect to the Internet, send and receive e-mail, and connect to a corporate network, without the need of a network cable or phone line. The SB555 modem is designed to provide a wide range of capabilities using CDMA network technology. Implementation of these features will depend on the particular service provider and account features you have chosen. Some features described in this manual may not be supported by your service provider or may not be available with your network account. Contact your service provider for details of the services and accounts available. CDMA2000 1X services The Sierra Wireless SB555 modem operates over a type of wireless network called CDMA (Code Division Multiple Access). CDMA technology provides a variety of connectivity features, depending on your service provider and account: • Express Network SM high-speed packet data, sometimes known as 1xRTT, this supports Internet connections with data rates up to 153.6 kbps (downlink) and 76.8 kbps (uplink). Actual speed will depend on the network. • Circuit switched (dial-up) data, using the earlier CDMA IS-95 specification, supports data connections to any dial-in service at rates up to 14.4 kbps. • Quick 2 Net SM , provides a simplified way to dial into an Internet connection (using circuit switched data) where Express Network (1X) packet service is not available. (available with Verizon Wireless) • SMS (Short Message Service), allows you to send and receive short text messages using the SB555 modem. A CDMA service provider account Companies that operate CDMA networks and provide access to these networks are called service providers. You must have an account with a CDMA service provider to use the SB555 modem. Each SB555 has been provisioned at the factory for use with a particular service provider. This sets the SB555modem to use particular radio channels and enable services specific for that provider. The process of setting up your account is called activation. Activation involves action by the service provider and configuration of…

Text truncated - open the document above for the full version.

Personal Computer Supplementary Instructions for CDMA This Supplementary Instructions manual points out cases where the operation of the computer will differ from that in the Operating Instructions. ® Model No.CF-73 Series Replace the “Federal Communications Commission Radio Frequency Interference Statement” ( Operating Instructions “Read Me First”) with the following. For U.S.A Names and Functions of Parts Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced ra- dio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC RF Exposure Warning: • This computer is provided with PC Card slots that could be used with wireless transmitter(s), which will be specifically rec- ommended, when they become available. Other third-party wire- less transmitter(s) have not been RF exposure evaluated for use with this computer and may not comply with FCC RF expo- sure requirements. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. • This equipment must be installed and operated in accordance with provided instructions and minimum 1.5 cm spacing must be provided between antenna and all person’s body (exclud- ing extremities of hands, wrist and feet) during wireless modes of operation. • This equipment may use multiple installed transmitters, which may be capable of simultaneous transmission. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) Except the followings, refer to the Operating Instructions. Antenna LED Indicators ( User Manual for Toughbook with integrated SB555 CDMA modem)

March 4, 2004 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Rd. Columbia, M.D. 21046 Dear sir/madam: Re: Request for Confidentiality We hereby request that the documentation listed below, submitted with the application for certification, be withheld from public disclosure. This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. We cite trade secrets as the reason and purpose of the request. 1. SB555 modem schematics SB555SCH_S_3C.PDF 2. SB555 Bill of Materials SB555BOM_S_3C.PDF. 3. SB555 Detailed Circuit Description SB555DCD_S_3C.PDF 4. SB555 Block Diagram SB555BLK_S_3C.PDF 5. SB555 Tune Up Procedure.pdf Sincerely, Dattesh Kumar Senior Hardware Designer Sierra Wireless Inc Comment [y1]: You probably need to change this to “certification”. Check with @Road and see what kind of application they will file. According to FCC, no equipment can be type accepted now.

<CF-73 WLANb+g & CDMA model photo> 1) CF-73 Top/Front View Top View Front View 2) CDMA module position Magnified View Upside Down CDMA (SB555) Module 7) Antenna position & Magnified photo (WLAN) Receive only Antenna View Send & Receive Antenna View Receive only WLAN Antenna Send & Receive WLAN Antenna 8) Antenna position & Magnified photo (CDMA) Magnified View CDMA whip Antenna 9) Antenna Specification WLAN Send & Receive Antenna: (Inverted F type: 3.66dBi max) WLAN Receive only Antenna: (Inverted F type: 3.26dBi max) CDMA Antenna: (Monopole whip type: 0.68dBi max)

<CF-73 WLANb+g & CDMA model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-735 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC DoC LABEL FCC ID LABEL

2) CDMA module position Magnified View Upside Down CDMA (SB555) Module 3) CDMA Module photo SB555 Module Top View SB555 module Bottom View SB555 Module Interior Top View SB555 Module Interior Bottom View 4) WLAN Card position Magnified View WLAN Card Position 5) WLAN exterior photo WLAN Top View WLAN Bottom View 6) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 7) Antenna position & Magnified photo (WLAN) Receive only Antenna View Send & Receive Antenna View Receive only WLAN Antenna Send & Receive WLAN Antenna 8) Antenna position & Magnified photo (CDMA) Magnified View CDMA whip Antenna 9) Antenna Specification WLAN Send & Receive Antenna: (Inverted F type: 3.66dBi max) WLAN Receive only Antenna: (Inverted F type: 3.26dBi max) CDMA Antenna: (Monopole whip type: 0.68dBi max)

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240206095.ACJ Test Dates: Feb. 26, 2004 EUT Type: Panasonic Toughbook w/ Sierra OEM Module Radio & WLAN FCC ID: ACJ9TGCF-735 Page 1 of 24 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: February 26, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: SAR.240206095.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD USA Project Number: ITPD-03-F011A FCC ID: ACJ9TGCF-735 APPLICANT NAME: Matsushita Electric Industrial Co., Ltd. EUT Type: Panasonic Toughbook w/ Intel WLAN Module FCC ID: PD9WM3B2200BG and Sierra Wireless CDMA OEM Radio FCC ID: N7NSB555 Tx Frequency: 824.70 – 848.31 MHz (CDMA) / 1851.25 - 1908.75 MHz (PCS) Max. RF Output Power: 0.224 W CDMA (23.5 dBm) Conducted 0.224 W PCS (23.5 dBm) Conducted 0.056 W (WLAN) Max. SAR Measurement: 0.08 W/kg CDMA Body Lap SAR; 0.57W/kg CDMA Body Top SAR 0.17 W/kg PCS Body Lap SAR; 1.19 W/kg PCS Body Top SAR Trade Name/Model(s): CF-73mk3 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: 3JKSA00051] Installed Options: WLAN Bluetooth CDMA Radio Module Other This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240206095.ACJ Test Dates: Feb. 26, 2004 EUT Type: Panasonic Toughbook w/ Sierra OEM Module Radio & WLAN FCC ID: ACJ9TGCF-735 Page 2 of 24 © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................10 9. MEASUREMENT UNCERTAINTIES...................................................................................11 10. SAR TEST DATA SUMMARY............................................................................................12 11. SAR TEST EQUIPMENT...................................................................................................13 12. CONCLUSION...............................................................................................................14 13. REFERENCES..................................................................................................................15 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................16 EXHIBIT A. SAR DATA SUMMARY....................................................................................17-24 PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240206095.ACJ Test Dates: Feb. 26, 2004 EUT Type: Panasonic Toughbook w/ Sierra OEM Module Radio & WLAN FCC ID: ACJ9TGCF-735 Page 3 of 24 © 2004 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) …

Text truncated - open the document above for the full version.

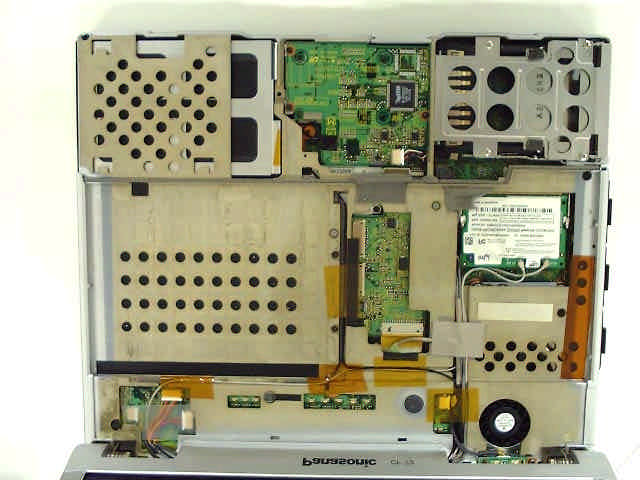

Panasonic FCC ID: ACJ9TGCF-735 Notebook EUT Photographs © 2004 PCTEST Lab. PC w/ Intel WLAN & Sierra CDMA Radio Module Model: CF-73mk3 Panasonic FCC ID: ACJ9TGCF-735 Notebook EUT Photographs © 2004 PCTEST Lab. PC w/ Intel WLAN & Sierra CDMA Radio Module Model: CF-73mk3 Panasonic FCC ID: ACJ9TGCF-735 Notebook EUT Photographs © 2004 PCTEST Lab. PC w/ Intel WLAN & Sierra CDMA Radio Module Model: CF-73mk3 Panasonic FCC ID: ACJ9TGCF-735 Notebook EUT Photographs © 2004 PCTEST Lab. PC w/ Intel WLAN & Sierra CDMA Radio Module Model: CF-73mk3 Panasonic FCC ID: ACJ9TGCF-735 Notebook EUT Photographs © 2004 PCTEST Lab. PC w/ Intel WLAN & Sierra CDMA Radio Module Model: CF-73mk3 Panasonic FCC ID: ACJ9TGCF-735 Notebook EUT Photographs © 2004 PCTEST Lab. PC w/ Intel WLAN & Sierra CDMA Radio Module Model: CF-73mk3

CMD80 Base Station Simulator Screen Shots for Maintenance of Max Power Cellular CDMA PCS CDMA Channel 1013 Channel 25 Channel 363 Channel 600 Channel 777 Channel 1175

PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240206095-R1.ACJ Test Dates: Feb. 26, 2004 EUT Type: Panasonic Toughbook w/ Sierra OEM Module Radio & WLAN FCC ID: ACJ9TGCF-735 Page 12 of 24 © 2004 PCTEST Engineering Laboratory, Inc. 10. SAR TEST DATA SUMMARY See Measurement Result Data Pages Procedures Used To Establish Test Signal The device was placed into continuous transmit mode using a base station simulator for Cellular CDMA and PCS mode, and test codes for the WLAN mode. Such test signals offer a consistent means for testing SAR and are recommended for evaluating SAR [4]. Device Test Conditions The device was powered through the battery. In order to verify that the device was tested at full power, conducted output power measurements were performed before the evaluation at the maximum power set on the base station simulator to confirm the output power. If a power deviation of more than 5% occurred, the test was repeated.

SAR Data Report 04041503 Start : 15-Apr-04 8:47:23 am End : 15-Apr-04 8:54:49 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : CF-73 Serial Number : 3KYA00029 Frequency : 2412 MHz Transmit Pwr : 0.056 W Antenna Type : Inverted F Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-FLAT-B-pcs Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 52.430 Tissue Conductivity : 1.970 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 54.370 Calibrated Conductivity : 1.970 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 6.700 Probe Sensitivity : 3.285 3.652 4.167 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: DSSS Mode CH-1 Body SAR CF=1; Amb. Temp= 20.8 'C; Liq. Temp=19.3 'C Power Drop Test: Reading @ start = 0.001 Reading @ End = 0.001 Power at End = 105.9% Area Scan - Max Peak SAR Value at x=-65.0 y=-4.0 = 0.11 W/kg Zoom Scan - Max Peak SAR Value at x=-69.0 y=-3.0 z=0.0 = 0.21 W/kg Max 1g SAR at x=-67.0 y=-2.0 z=0.0 = 0.11 W/kg Max 10g SAR at x=-67.0 y=-2.0 z=0.0 = 0.05 W/kg 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-69.0 y:-3.0 1g SAR Values 0.1139 0.1055 0.0972 0.0888 0.0804 0.0720 0.0637 0.0553 0.0469 0.0385 0.0302

SAR Data Report 04022613 Start : 26-Feb-04 02:27:24 pm End : 26-Feb-04 02:34:32 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : CF-73 Serial Number : 3CKYA00029 Frequency : 1880.00 MHz Transmit Pwr : 0.225 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-FLAT-B-pcs Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 51.110 Tissue Conductivity : 1.580 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Muscle Calibrated Dielectric : 51.770 Calibrated Conductivity : 1.580 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 6.300 Probe Sensitivity : 3.331 3.804 3.975 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: PCS Mode CH-600 BODY CF=1; Amb. Temp= 23.0 'C; Liq. Temp=19.1 'C Power Drop Test: Reading @ start = 0.995 Reading @ End = 1.015 Power at End = 102.0% Area Scan - Max Peak SAR Value at x=0.0 y=-4.0 = 1.00 W/kg Zoom Scan - Max Peak SAR Value at x=1.0 y=-4.0 z=0.0 = 2.29 W/kg Max 1g SAR at x=1.0 y=-3.0 z=0.0 = 1.19 W/kg Max 10g SAR at x=1.0 y=-3.0 z=0.0 = 0.57 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:1.0 y:-4.0 1g SAR Values 1.186 1.124 1.062 1.000 0.939 0.877 0.815 0.753 0.691 0.629 0.567

CMD80 Base Station Simulator Screen Shots for Maintenance of Max Power Cellular CDMA PCS CDMA Channel 1013 Channel 25 Channel 363 Channel 600 Channel 777 Channel 1175

PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240206095-R1.ACJ Test Dates: Feb. 26, 2004 EUT Type: Panasonic Toughbook w/ Sierra OEM Module Radio & WLAN FCC ID: ACJ9TGCF-735 Page 12 of 24 © 2004 PCTEST Engineering Laboratory, Inc. 10. SAR TEST DATA SUMMARY See Measurement Result Data Pages Procedures Used To Establish Test Signal The device was placed into continuous transmit mode using a base station simulator for Cellular CDMA and PCS mode, and test codes for the WLAN mode. Such test signals offer a consistent means for testing SAR and are recommended for evaluating SAR [4]. Device Test Conditions The device was powered through the battery. In order to verify that the device was tested at full power, conducted output power measurements were performed before the evaluation at the maximum power set on the base station simulator to confirm the output power. If a power deviation of more than 5% occurred, the test was repeated.

SAR Data Report 04041503 Start : 15-Apr-04 8:47:23 am End : 15-Apr-04 8:54:49 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : CF-73 Serial Number : 3KYA00029 Frequency : 2412 MHz Transmit Pwr : 0.056 W Antenna Type : Inverted F Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-FLAT-B-pcs Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 52.430 Tissue Conductivity : 1.970 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 54.370 Calibrated Conductivity : 1.970 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 6.700 Probe Sensitivity : 3.285 3.652 4.167 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: DSSS Mode CH-1 Body SAR CF=1; Amb. Temp= 20.8 'C; Liq. Temp=19.3 'C Power Drop Test: Reading @ start = 0.001 Reading @ End = 0.001 Power at End = 105.9% Area Scan - Max Peak SAR Value at x=-65.0 y=-4.0 = 0.11 W/kg Zoom Scan - Max Peak SAR Value at x=-69.0 y=-3.0 z=0.0 = 0.21 W/kg Max 1g SAR at x=-67.0 y=-2.0 z=0.0 = 0.11 W/kg Max 10g SAR at x=-67.0 y=-2.0 z=0.0 = 0.05 W/kg 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-69.0 y:-3.0 1g SAR Values 0.1139 0.1055 0.0972 0.0888 0.0804 0.0720 0.0637 0.0553 0.0469 0.0385 0.0302

SAR Data Report 04022613 Start : 26-Feb-04 02:27:24 pm End : 26-Feb-04 02:34:32 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : CF-73 Serial Number : 3CKYA00029 Frequency : 1880.00 MHz Transmit Pwr : 0.225 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-FLAT-B-pcs Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 51.110 Tissue Conductivity : 1.580 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Muscle Calibrated Dielectric : 51.770 Calibrated Conductivity : 1.580 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 6.300 Probe Sensitivity : 3.331 3.804 3.975 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: PCS Mode CH-600 BODY CF=1; Amb. Temp= 23.0 'C; Liq. Temp=19.1 'C Power Drop Test: Reading @ start = 0.995 Reading @ End = 1.015 Power at End = 102.0% Area Scan - Max Peak SAR Value at x=0.0 y=-4.0 = 1.00 W/kg Zoom Scan - Max Peak SAR Value at x=1.0 y=-4.0 z=0.0 = 2.29 W/kg Max 1g SAR at x=1.0 y=-3.0 z=0.0 = 1.19 W/kg Max 10g SAR at x=1.0 y=-3.0 z=0.0 = 0.57 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:1.0 y:-4.0 1g SAR Values 1.186 1.124 1.062 1.000 0.939 0.877 0.815 0.753 0.691 0.629 0.567

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240206096.ACJ Test Dates: FEB. 23-26, 2004 EUT Type: Panasonic Toughbook w/ Sierra OEM Radio & Intel WLAN FCC ID: ACJ9TGCF-735 Page 1 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. G PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Matsushita Electric Industrial Co., Ltd. Dates of Tests: February 23-26, 2004 1006 Oaza Kadoma, Kadoma Test Report S/N: 22/24.240206096.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia MD Project No.: ITPD-04-F011A FCC ID ACJ9TGCF-735 APPLICANT Matsushita Electric Industrial Co., Ltd. Classification: Licensed Portable Transmitter Worn on Body (PCT) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Panasonic Toughbook w/ Intel WLAN Module FCC ID: PD9WM3B2200BG and Sierra Wireless CDMA OEM Radio FCC ID: N7NSB555 Model: CF-73mk3 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.278 W ERP CDMA (24.433 dBm) / 0.377 W EIRP PCS CDMA (25.751 dBm) Max. SAR Measurement: 0.57 W/kg CDMA Body Lap SAR; 0.08 W/kg CDMA Body Top SAR 1.19 W/kg PCS Body Lap SAR; 0.17 W/kg PCS Body Top SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: 3CKYA00029 ] Installed Options: WLAN Bluetooth CDMA Radio Module Other This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240206096.ACJ Test Dates: FEB. 23-26, 2004 EUT Type: Panasonic Toughbook w/ Sierra OEM Radio & Intel WLAN FCC ID: ACJ9TGCF-735 Page 2 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMEN…

Text truncated - open the document above for the full version.
