ACJ9TGCF-736Panasonic Notebook PC w/ Intel WLAN

OPERATING INSTRUCTIONS Personal Computer ® Appendix LIMITED USE LICENSE AGREEMENT........29 Hard Disk Data Erase Utility..........................31 WinDVD™.....................................................32 Names and Functions of Parts ......................34 Specifications................................................36 LIMITED WARRANTY...................................38 Troubleshooting List of Error Codes.........................................21 Dealing with Problems (Summary).......................23 Reinstalling Software....................................27 Operation Starting Up/Shutting Down............................16 Touch Pad.....................................................19 Reference Manual.........................................20 Getting Started Read Me First..................................................3 First-time Operation......................................11 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 20 on how to access the Reference Manual. Reference Manual •Read Me First•LED Indicators •Key Combinations Reference Manual •Touch Pad •Touchscreen* •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •Multimedia Pocket •CD Drive •PC Cards •RAM Module •Port Replicator •Printer •External Display •USB Devices •Modem •LAN •Wireless LAN •Hard Disk Drive •Setup Utility *Only for models with touchscreen Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Model No. CF-73 Series 2000 Please read these instructions carefully before using this product and save this manual for future use. XP Getting Started Appendix Operation Troubleshooting 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows, Windows NT and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium and SpeedStep are either registered trademarks or trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. WinDVD™ is a trademark of InterVideo, Inc. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. WARNING:WARNING indicates a hazard that may result in moderate or serious injury. Windows 2000: Information for Microsoft ® Windows ® 2000 Professional users. Windows XP: Information for Microsoft ® Windows ® XP Professional users. Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. [Start] - [Run]:This illustration means to click [Start], then to click [Run]. (For some applications, you may need to double-click.) :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 20 on how to access this manual. Windows 2000 screens are used in this manual when no specific OS notes are required. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. Circular media such as DVD-ROM and CD-ROM are described as “discs”. The following drives are described as “CD drive”. DVD-ROM drive, DVD-ROM & CD-R/RW drive This manual covers two types of models, as distinguished by the type of display (models with touchscreen and models without touchscreen). If the user has logged on without the administrator authority, some functions may not be executable, and some screens may not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions. Confirm the latest information on optional products in catalogs, etc. Customer’s Record Serial No. or Date of Purchase Model No. * Code No. Dealer’s Name Dealer’s Address * For the Model No., insert the 12 digit number (for example, CF-73E3KVXDM) located on the bottom of the computer. 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase…

Text truncated - open the document above for the full version.

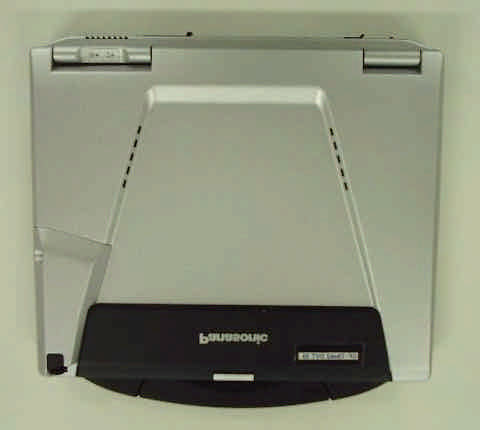

<CF-73 WLANb+g photo> 1) CF-73 Top/Front View Top View Front View

Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240206396.ACJ Test Dates: Feb. 26, 2004 EUT Type: Panasonic Toughbook CF-73mk3 w/ Intel WLAN FCC ID: ACJ9TGCF-736 Page 27 of 35 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240206396.ACJ Test Dates: Feb. 26, 2004 EUT Type: Panasonic Toughbook CF-73mk3 w/ Intel WLAN FCC ID: ACJ9TGCF-736 Page 28 of 35 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID Label

4) WLAN Card position Magnified View WLAN Card Position 5) WLAN exterior photo WLAN Top View WLAN Bottom View 6) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 7) Antenna position & Magnified photo (WLAN) Receive only Antenna View Send & Receive Antenna View Receive only WLAN Antenna Send & Receive WLAN Antenna 9) Antenna Specification WLAN Send & Receive Antenna: (Inverted F type: 3.66dBi max) WLAN Receive only Antenna: (Inverted F type: 3.26dBi max)

Panasonic FCC ID: ACJ9TGCF-736 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-73 Panasonic FCC ID: ACJ9TGCF-736 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-73 Panasonic FCC ID: ACJ9TGCF-736 EUT Photographs © 2004 PCTEST Lab. Notebook PC w/ WLAN Model: CF-73

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR.240614397.ACJ Test Dates: Feb. 12-13, 2004 EUT Type: Notebook PC w/ WLAN FCC ID: ACJ9TGCF-736 Page 1 of 21 © 2003 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: February 12-13, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: SAR.240614397.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD USA Project No: ITPD-04-F031A FCC ID: ACJ9TGCF-736 APPLICANT: MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD. EUT Type: Panasonic TOUGHBOOK CF-73 w/ Intel WLAN Model: WM3B2200BG Tx Frequency: 2412 – 2462 MHz (DTS) Rx Frequency: 2412 – 2462 MHz (DTS) Max. RF Output Power: 56.4 mW (17.5 dBm) Conducted Max. SAR Measurement: 0.01 W/kg Body SAR Trade Name/Model(s): PANASONIC CF-73 FCC Classification: FCC Part 15 Digital Transmission System (DTS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: 3GKYA00016] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), Industry Canada RSS-102 and IEEE Std. 1528 (Aug. 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output is conducted. This device is authorized to operate with a specific computer as described in this filing and has been tested for SAR compliance for portable configurations. This device must not be co-located or operating with any other antenna or transmitter. End-users must be provided with operating conditions for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR.240614397.ACJ Test Dates: Feb. 12-13, 2004 EUT Type: Notebook PC w/ WLAN FCC ID: ACJ9TGCF-736 Page 2 of 21 © 2003 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION..........................................................................3 2. SAR MEASUREMENT SETUP..........................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM............................................................................5 4. PROBE CALIBRATION PROCESS.................................................................................6 5. PHANTOM & EQUIVALENT TISSUES..........................................................................7 6. TEST SYSTEM SPECIFICATIONS...................................................................................8 7. TEST CONFIGURATION POSITION.............................................................................9 8. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.........................................................10 9. MEASUREMENT UNCERTAINTIES.............................................................................11 10. SYSTEM VERIFICATION.............................................................................................12 11. SAR TEST DATA SUMMARY......................................................................................13 12. SAR DATA SUMMARY...............................................................................................14 14. CONCLUSION...........................................................................................................16 15. REFERENCES...............................................................................................................17 PCTEST SAR TEST REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR.240614397.ACJ Test Dates: Feb. 12-13, 2004 EUT Type: Notebook PC w/ WLAN FCC ID: ACJ9TGCF-736 Page 3 of 21 © 2003 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[6] SAR is a measure of the rate of en…

Text truncated - open the document above for the full version.

Page 1 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG Modular Approval Test Report And Application for Grant of Equipment Authorization Pertaining To: EUT FCC ID: 802.11b/g MiniPCI Type 3B Wireless Adapter, MN: WM3B2200BG PD9WM3B2200BG Configuration 802.11b / 802.11g MEASUREMENTS PERFORMED IN ACCORDANCE WITH Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 1992 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Certificate Number: 1111.01 APPLICANT: PREPARED BY: Intel Corporation Aegis Labs, Inc. EC2-02 13280 Evening Creek Drive 22431 Antonio Parkway B160-417 San Diego, California 92128 Rancho S. Margarita, CA 92688 Contact(s): Mr. James K. Baer Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Test Report #: INTEL-031111F APPENDICES REPORT BODY A TOTAL PAGES PAGES 15 81 96 Test Report Revision: Rev. C, 12-12-2003 The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. Page 2 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 03 2.0 SUMMARY OF TEST RESULTS.............................................................. 04 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION.......................................... 05 4.0 DESCRIPTION OF EUT..................................................................................... 06 4.1 EUT Description..................................................................................... 06 4.1.1 Channel Number and Frequencies................................................................ 07 4.2 EUT Configuration.................................................................................. 08 4.3 List of EUT Sub-Assemblies and Host Equipment...................................................... 09 4.4 I/O Cabling Diagram and Description............................................................................. 10 5.0 TEST EQUIPMENT AND TEST SETUPS............................................................... 11 5.1 AC Power Line Conducted Emissions............................................................ 11 5.2 Spurious Radiated Emissions...................................................................... 12 5.3 Conducted Emissions At The Antenna Port.................................................................... 12 5.4 Test and Measurement Equipment Used......................................................... 13 6.0 SAMPLE CALCULATIONS.......................................................................................... 14 7.0 MODIFICATIONS AND RECOMMENDATIONS........................................ 15 APPENDICES A Test Data Page 3 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG 1.0 CERTIFICATION OF TEST DATA Aegis Labs, Inc. operates as both a Nevada and California Corporation with no organizational or financial relationship with any company, institution, or private individual. Testing and engineering functions provided by Aegis Labs are furnished through the use of part-time, full-time or consulting engineers with the appropriate qualifications to carry out their duties. The intended purpose of this test report is to describe the measurement procedure and to determine whether the equipment under test “EUT” complies with both the conducted and radiated limits. Limits for emissions testing are described under Subpart C of Part 15 of the FCC rules. The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the Equipment Under Test (EUT) under the requirements specified in the emissions standard as described below. The test results contained in this report are only representative of the test sample tested as described in Section 3.0 of this report. Certification of the EUT is required as a prerequisite to marketing as defined in Part 2 of the FCC Rules. Prepared By: ________________________11/19/03 Rick Candelas Date: Staff Engineer Aegis Labs, Inc. Report Approved By: ________________________11/19/03 Steve J. Kuiper Date: Quality Assurance Manager Aegis Labs, Inc. Page 4 of 15 Report Number: INTEL-031111F FCC ID: PD9WM3B2200BG 2.0 SUMMARY OF TEST RESULTS The test results provided within this report, indicate that the EUT has been found to be in COMPLIANCE with the test specifications based upon the following RF compliance standards: Pass/Fail determination is based upon the nominal values of the test data. EMISSIONS STANDARD FCC Part 15 Section Description Results Comments 15.247(a)(2) The minimum 6dB bandwidth shall be at least 500 kHz. PASSED See Data Sheets 15.247(b)(1) The maximum peak output power of the intentional radiator shall not exceed 1 watt. PASSED See Data Sheets 15.247(b)(4) The intentional radiator shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the FCC guidelines per Section 1.1307(b)(1). PASSED Refer to MPE Calculations Exhibit 15.247(c) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power. PASSED See Data Sheets 15.247(c) Radiated emissions, which fall in the restricted bands, as defined in Sec. 15.205(a), must also comply with the radiated emission limits specified in Sec. 15.209(a). All others must be < -20dBc. PASSED See Data Sheets 15.247(d) T…

Text truncated - open the document above for the full version.

© 2003 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: February 26, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.240206396.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Project No.: ITPD-04-F031A FCC ID: ACJ9TGCF-736 APPLICANT: Matsushita Electric Industrial Co., Ltd. SUMMARY: Model No.: CF-73mk3 Equipment EUT Type: Panasonic TOUGHBOOK CF-73 w/ Intel WLAN FCC ID: PD9WM3B2200BG Max. Output Power: 56.4 mW (17.5 dBm) Frequency Range: 2412 - 2462 MHz FCC Classification: FCC Part 15 Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Test Device Serial No.: S/N: 3GKYA00016 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. Grant Conditions: Power output is conducted. This device is authorized to operate with a specific computer as described in this filing and has been tested for SAR compliance for portable configurations. This device must not be co-located or operating with any other antenna or transmitter. End-users must be provided with operating conditions for satisfying RF exposure compliance. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. Digital Transmitter System (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240206396.ACJ Test Dates: Feb. 26, 2004 EUT Type: Panasonic Toughbook CF-73mk3 w/ Intel WLAN FCC ID: ACJ9TGCF-736 Page i of i © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC PART 15.247 MEASUREMENT REPORT COVER PAGE...........................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE.......................................................................................................................................................................................................3 1.2 SCOPE................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS................................................................................................................................................................4 3.0 DESCRIPTION OF TEST............................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS.................................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS.....................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS.......................................................................................................................9 EXHIBIT A. 6dB BANDWIDTH MEAUREMENT................................................................................................................10-11 EXHIBIT A. OUTPUT POWER MEASUREMENT................................................................................................................12-13 EXHIBIT A. POWER SPECTRAL DENSITY..........................................................................................................................14-15 EXHIBIT A. BANDEDGE.............................…

Text truncated - open the document above for the full version.

Panasonic FCC ID: ACJ9TGCF-736 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK CF-73 w/ Intel WLAN Model: CF-73 Panasonic FCC ID: ACJ9TGCF-736 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK CF-73 w/ Intel WLAN Model: CF-73 Panasonic FCC ID: ACJ9TGCF-736 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK CF-73 w/ Intel WLAN Model: CF-73 Panasonic FCC ID: ACJ9TGCF-736 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK CF-73 w/ Intel WLAN Model: CF-73 Panasonic FCC ID: ACJ9TGCF-736 EUT Photographs © 2004 PCTEST Lab. TOUGHBOOK CF-73 w/ Intel WLAN Model: CF-73
