ACJ9TGCF-H12Handheld PC with WWAN, WLAN, Bluetooth and RFID

Contents Getting Started Introduction..................................................................2 Read.Me.First..............................................................3 Description.of.Parts.....................................................9 Preparation................................................................11 First-time.Operation...................................................12 OPERATING INSTRUCTIONS Personal Computer Model No. CF-H1 series Useful Information On-screen.Manual.....................................................16 Handling.and.Maintenance........................................17 Reinstalling.Software.................................................18 Troubleshooting Troubleshooting.(Basic).............................................20 Appendix LIMITED.USE.LICENSE.AGREEMENT....................24 Specifications............................................................26 LIMITED.WARRANTY...............................................28 Please.read.these.instructions.carefully.before.using.this.product.and.save.this.manual.for.future.use. For further information about the computer, you can refer to the on-screen manual. To access the on-screen manual è page 16 “On-screen Manual” Getting Started Useful Information Troubleshooting Appendix CF-H1_Vista_ENxx.indb 112/19/2008 6:01:02 PM 2 Getting Started Introduction Thank.you.for.purchasing.this.Panasonic.computer..For.optimum.performance.and.safety,.please.read.these. instructions.carefully. In.these.instructions,.the.names.are.referred.as.follows. . l. “Windows.Vista ® .Business.Service.Pack.1”.as.“Windows”.or.“Windows.Vista” . l. “Microsoft ® .Windows ® .XP.Tablet.PC.Edition.2005.Service.Pack.3.as.“Windows”.or.“Windows.XP”. n Terms and illustrations in these instructions è.:.Page.in.these.Operating.Instructions.or.in.the.Reference.Manual. .:.Reference.to.the.on-screen.manuals. CAUTION .:.Conditions.that.may.result.in.minor.or.moderate.injury. NOTE .:.Useful.and.helpful.information. Click.:.Touch.the.screen.with.the.digitizer.pen. Right-click.:.Touch.and.hold.with.the.digitizer.pen,.or.touch.and.select.the.right.button.of.“touch.pointer”. . .(Start).-.[All.Programs].: .Click. .(Start),.and.then.click.[All.Programs]. . [start].-.[All.Programs].: .Click.[start],.and.then.click.[All.Programs]. .You.may.need.to.double-click.in.some.cases. <Only when connected to Cradle and keyboard> .:.Press.[].(Enter).key. Ctrl .+. F7 :.Press.and.hold. Ctrl .key,.and.then.press. F7 .key. l Some illustrations are simplified to help your understanding and may look different from the actual unit. l. If.you.do.not.log.on.as.an.administrator,.you.cannot.use.some.functions.or.cannot.display.some.screens. l. Refer.for.the.latest.information.about.optional.products.to.the.catalogs,.etc. n Disclaimer Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability.for.damage.incurred.directly.or.indirectly.from.errors,.omissions.or.discrepancies.between.the.computer.and. the.manuals. n Trademarks Microsoft ® ,.Windows ® ,.Windows.Vista ® ,.and.the.Windows.logo.are.registered.trademarks.of.Microsoft.Corporation.of. the.United.States.and/or.other.countries. Intel,.Core,.Centrino.and.PROSet.are.either.registered.trademarks.or.trademarks.of.Intel.Corporation. Adobe,.the.Adobe.logo.and.Adobe.Reader.are.either.registered.trademarks.or.trademarks.of.Adobe.Systems. Incorporated.in.the.United.States.and/or.other.countries. Computrace ® .is.a.registered.trademark.of.Absolute ® .Software.Corp. Bluetooth™.is.a.trademark.owned.by.Bluetooth.SIG,.Inc.,.U.S.A..and.licensed.to.Panasonic.Corporation. Names.of.products,.brands,.etc.,.appearing.in.this.manual.are.trademarks.or.registered.trademarks.of.their.respective. own.companies. CF-H1_Vista_ENxx.indb 212/19/2008 6:01:03 PM 3 Getting Started Federal Communications Commission Radio Frequency Interference Statement Note:.This.equipment.has.been.tested.and.found.to.comply.with. the.limits.for.a.Class.B.digital.device,.pursuant.to.Part.15.of.the. FCC.Rules..These.limits.are.designed.to.provide.reasonable. protection.against.harmful.interference.in.a.residential. installation..This.equipment.generates,.uses.and.can.radiate. radio.frequency.energy.and,.if.not.installed.and.used.in. accordance.with.the.instructions,.may.cause.harmful. interference.to.radio.communications..However,.there.is.no. guarantee.that.interference.will.not.occur.in.a.particular. installation..If.this.equipment.does.cause.harmful.interference.to. radio.or.television.reception,.which.can.be.determined.by. turning.the.equipment.off.and.on,.the.user.is.encouraged.to.try. to.correct.the.interference.by.one.or.more.of.the.following. measures: l. Reorient.or.relocate.the.receiving.antenna. l.Increase.the.separation.between.the.equipment.and. receiver. l. Connect.the.equipment.into.an.outlet.on.a.circuit. different.from.that.to.which.the.receiver.is.connected. l. Consult.the.Panasonic.Service.Center.or.an. experienced.radio/TV.technician.for.help. Warning To.assure.continued.compliance,.use.only.shielded. interface.cables.when.connecting.to.a.computer.or. peripheral. Also, any changes or modifications not expressly.approved.by.the.party.responsible.for. compliance.could.void.the.user’s.authority.to.operate.this. equipment. FCC.RF.Exposure.Warning: l.This.computer.complies.with.FCC.radiation.exposure. limits.set.forth.for.an.uncontrolled.environment. l.This.computer.may.not.be.co-located.or.operated.with. any.other.antenna.or.transmitter. l. This.PC.with.WLAN.and/or.Bluetooth.transmitters. installed,.has.been.approved.for.portable.operation. and.does.not.require.any.minimum.spacing.be. provided.between.antennas.and.all.person’s.body. This.product.is.restricted.to.indoor.use.due.to.its. operation.in.the.5.15.to.5.25.GHz.frequency.range..FCC. requires.this.product.to.be.used.indoors.for.the.frequency. range.5.15.to.5.25.GHz.to.reduce.the.potential.for. harmful.interference.to.co-chan…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7760 / Fax: 201-392-4564 [email protected] BEN BOTROS Project Manager Product Safety and Compliance Division November 24, 2009 ITPD-09-F009A Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Handheld Personal Computer, Model CF-H1mk2 Family TCB Certification for FCC ID: ACJ9TGCF-H12 • Alps Bluetooth, Model UGNZA • Philips RF Chip, Model CL RC632 • Intel WLAN(a/b/g/n), Model 512AN_MMW • Sierra WWAN, Model Gobi2000 (GSM/EDGE/WCDMA/CDMA with GPS) To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents Handheld Personal Computer, Model CF-H1mk2 Family with Intel CPU type Atom Z540 (1.86GHz), which will be marketed under FCC ID: ACJ9TGCF-H12. This product will be marketed with the following co-located transmitters: (1) Alps Bluetooth, Model UGNZA (Alps has no FCC ID): This BT transmitter complies with FCC Part 15C under equipment class code DSS. This BT version is under specification Ver 2.0 + EDR with maximum symbol rate of 1~3Mbps. Refer to test report for exact frequency range and RF output level. (2) Philips RF Chip, Model CL RC632 (Philips has no FCC ID): This RFID transmitter complies with FCC Part 15C under equipment class code: Low Power Communications Device Transmitter (DXX). Refer to test report for exact frequency range and RF output level. (3) Intel WLAN Model 512AN_MMW (802.11a/b/g/n) (Intel FCC ID: PD9512ANM) This combined WLAN and UNII transmitters complies with FCC Parts 15C and 15E under equipment class codes DTS and NII. Refer to test report for exact frequency ranges and RF output levels. The U-NII portion of this transmitter complies with Dynamic Frequency Selection (DFS) requirements in R&O FCC 03-287 as a client only device without radar detection capability and client software and associated drivers will not initiate any transmission on DFS frequencies, which includes transmissions for beacon ad-hoc peer-to- peer modes. The Intel WLAN theory of operation describes 3x3 MIMO capacities (multiple input/multiple output architecture); however this end-product usage will be limited to 1x1 MIMO capacity . The User Manual with provide the following type wording, pursuant to §15.407(e): This PC operation within 5.15~5.25 GHz band is restricted to indoor use only to reduce any potential harmful interference to co-channel Mobile Satellite Systems. Model 512AN_MMW is compatible with 802.11a/b/g/n. To enable marketing in Asia Pacific and Europe, this WLAN may have its 802.11a/n functions disabled by factory set EEPROM settings. Model 512AG_MMW is compatible with 802.11a/b/g and Model 512BG_MMW is compatible with 802.11b/g. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7760 / Fax: 201-392-4564 [email protected] BEN BOTROS Project Manager Product Safety and Compliance Division (4) Sierra WWAN, Model Gobi2000 (FCC ID: N7NGOBI2) This combined Cellular and PCS transmitter complies with FCC Parts 22H and 24E under equipment class code PCB. Refer to test report for exact frequency ranges, RF output levels and emission designators. This PC contains various antennas for BT, RFID, WLAN and WWAN. Refer to separate provided exhibits for antenna photos and test reports for exact antenna description, antenna gains and locations. This Handheld PC satisfies RF exposure evaluation with the provided co-located transmitters SAR Test Report. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits, which contain Operation Description, Parts Lists, Block Diagram and Schematic Diagram. The BT and WLAN transmitters are not user adjustable and do not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Also, in accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits which contain External Photographs, Internal Photographs, Test Setup Photographs and the Operating Instructions (User Manual). The requested short- term confidentiality exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Further, we the undersigned, hereby attest to the fact that the subject product is also classified as Class B Computer and will be authorized under Declaration of Conformity to comply with FCC Part 15B to meet Class B limits. Sincerely yours, Ben Botros Ben Botros Project Manager

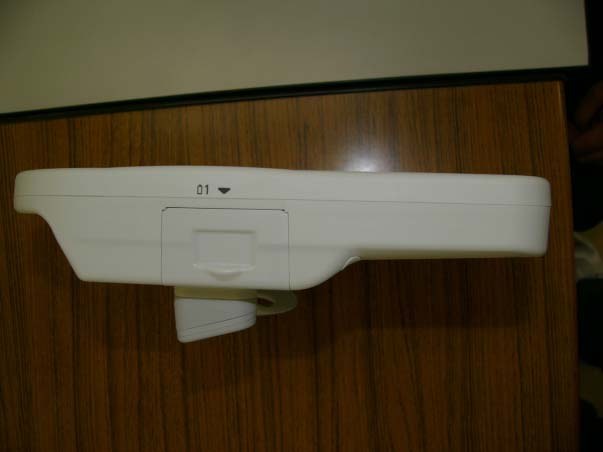

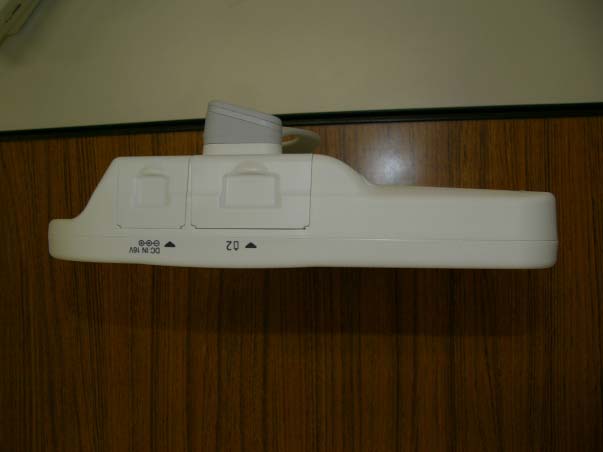

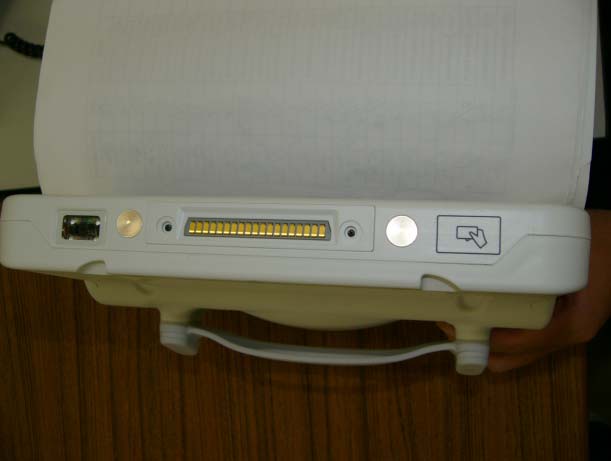

CF-H1 PHOTO 1) Front 2) Top 3) Left side 4) Right side 5) Bottom 6) Back 4. Antenna Position WLAN Aux RX Antenna Bluetooth TX/RX Antenna WWAN Main TX/RX Antenna WLAN Main TXRX Antenna WWAN Aux RX Antenna GPS RX Antenna RFID RX Antenna FCC ID DoC LABEL FCC ID LABEL FCC ID : AC9JTGCF-H12 IC : 216A-CFH1

<CF-H1 WLAN & Bluetooth & Gobi2000 model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-H12 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID DoC LABEL FCC ID LABEL FCC ID : AC9JTGCF-H12 IC : 216A-CFH1

2. Module Position Remove Cover of Main PWB WWAN Module WLAN Module GPS Module Remove Main PWB Bluetooth Module RFID Circuits 90 Deg Rotate 3. Module Photo 1) WLAN (512AN MMW) WLAN Exterior Top View WLAN Exterior Bottom View WLAN inside Top View WLAN inside Bottom View 2) Bluetooth (UGNZA) Bluetooth Top View on Main Board Bluetooth Module Bluetooth Module inside Top View Bluetooth Module inside Bottom View ) WWAN (Gobi2000) WWAN Module Top View WWAN Module Bottom View WWAN Module inside Top View WWAN Module inside Bottom View 4) GPS (LR9101) Card exterior GPS Card Top View GPS Card Bottom View 5) RFID RDIF Card Top View RFID Circuits WLAN WLAN Main TX/RX Antenna & WLAN Aux RX Antenna WLAN Main TX/RX Antenna WLAN Aux RX Antenna Bluetooth Bluetooth TX/RX Antenna WWAN WWAN Main TX/RX Antenna WWAN Aux RX Antenna GPS GPS Module & RX Antenna RFID RFID TX/RX Antenna Antenna Position 57mm 50mm 25mm Bluetooth Antenna 17mm 24mm 15mm 5mm 75mm 115mm 202mm 212mm WLAN main TX/RX Antenna Bluetooth Antenna (Under GPS Board) WWAN main TX/RX Antenna RFID Antenna

Reviewed by: FCC ID: ACJ9TGCF-H12 FCC Pt. 15.225 MEASUREMENT REPORT Quality Manager Test Report S/N: Test Date(s): EUT Type: 0910051847.ACJ October 22 - 26, 2009 Toughbook Model: CF-H1 Page 1 of 23 © 2009 PCTEST Engineering Laboratory, Inc. REV 1.3RFID 02/106/2009 Applicant Name: Date of Testing: Panasonic Corporation of North America October 22 - 26, 2009 One Panasonic Way, 4B-8 Test Site/Location: Secaucus, NJ 07094 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0910051847.ACJ FCC ID: ACJ9TGCF-H12 APPLICANT: Panasonic Corporation of North America Model(s): CF-H1 EUT Type: Toughbook Model: CF-H1 Frequency: 13.56MHz FCC Classification: Low Power Communications Device Transmitter (DXX) FCC Rule Part(s): FCC Part 15 Subpart C (15.225) The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 15.225 Certification Reviewed by: FCC ID: ACJ9TGCF-H12 FCC Pt. 15.225 MEASUREMENT REPORT Quality Manager Test Report S/N: Test Date(s): EUT Type: 0910051847.ACJ October 22 - 26, 2009 Toughbook Model: CF-H1 Page 2 of 23 © 2009 PCTEST Engineering Laboratory, Inc. REV 1.3RFID 02/106/2009 TABLE OF CONTENTS FCC Part 15.225 MEASUREMENT REPORT...............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE .................................................................................................................................................. 4 1.2 PCTEST TEST LOCATION ................................................................................................................... 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................ 5 2.2 OPERATION MODE.............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ............................................................................. 5 2.4 LABELING REQUIREMENTS ............................................................................................................... 5 3.0 DESCRIPTION OF TEST.................................................................................................................6 3.1 EVALUATION PROCEDURE................................................................................................................ 6 3.2 CONDUCTED EMISSIONS ................................................................................................................... 6 3.3 RADIATED EMISSIONS........................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..........................................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 5.1 CONDUCTED EMISSION MEASUREMENT SAMPLE CALCULATION ............................................... 9 5.2 RADIATED EMISSION MEASUREMENT SAMPLE CALCULATION.................................................... 9 6.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 7.0 ENVIRONMENTAL CONDITIONS .................................................................................................11 8.0 TEST DATA ....................................................................................................................................12 8.1 SUMMARY .......................................................................................................................................... 12 8.2 20DB BANDWIDTH MEASUREMENT ................................................................................................ 13 8.3 IN-BAND RADIATED SPURIOUS EMISSION MEASUREMENTS...................................................... 14 8.4 RADIATED SPURIOUS EMISSION MEASUREMENTS, OUT-OF-BAND .......................................... 15 8.5 LINE CONDUCTED MEASUREMENT DATA ..................................................................................... 17 8.6 FREQUENCY STABILITY TEST DATA............................................................................................... 21 9.0 CONCLUSION..........................................................................................................................…

Text truncated - open the document above for the full version.

PANASONIC CORPORATION OF NORTH AMERICA FCC ID: ACJ9TGCF-H12 Model: CF-H1 Test Set-Up Photos EUT Type: Toughbook Model: CF-H1 Page 1 of 3 © 2009 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS PANASONIC CORPORATION OF NORTH AMERICA FCC ID: ACJ9TGCF-H12 Model: CF-H1 Test Set-Up Photos EUT Type: Toughbook Model: CF-H1 Page 2 of 3 © 2009 PCTEST Engineering Laboratory Inc. PANASONIC CORPORATION OF NORTH AMERICA FCC ID: ACJ9TGCF-H12 Model: CF-H1 Test Set-Up Photos EUT Type: Toughbook Model: CF-H1 Page 3 of 3 © 2009 PCTEST Engineering Laboratory Inc.
