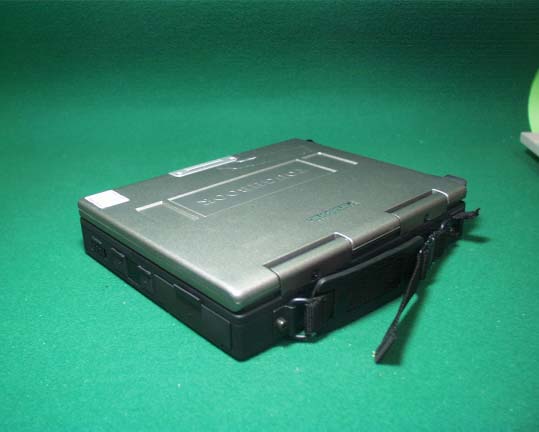

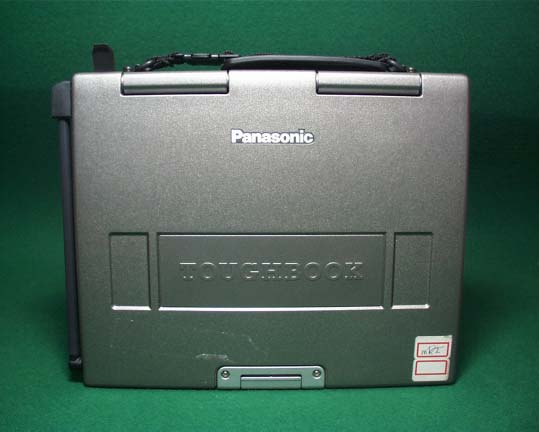

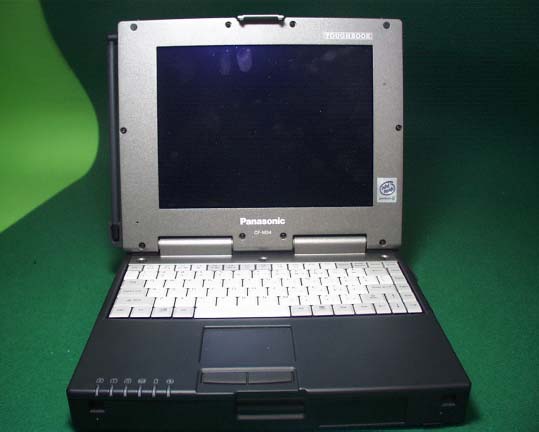

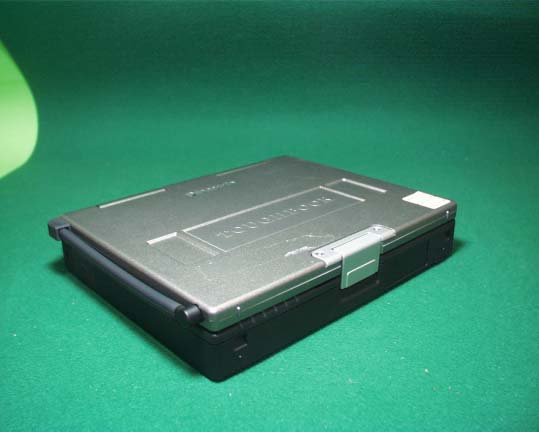

ACJ9TGCF-M342Notebook Computer with Wireless LAN

OPERATING INSTRUCTIONS Personal Computer ® Appendix LIMITED USE LICENSE AGREEMENT ........26 Names and Functions of Parts ......................28 Specifications ................................................29 LIMITED WARRANTY ...................................30 Troubleshooting List of Error Codes.........................................19 Dealing with Problems (Summary) .......................21 Reinstalling Software ....................................24 Operation Starting Up/Shutting Down ............................14 Touch Pad (Basic Operation) ...................................17 Reference Manual .........................................18 Getting Started Read Me First..................................................3 First-time Operation ........................................9 Contents [Additional Manual] Reference Manual This manual can be accessed on your computer. Refer to page 18 on how to access the Reference Manual. Reference Manual •Key Combinations Reference Manual •Touch Pad (Advanced) •Touchscreen •Panasonic Hand Writ- ing •Display Rotation Tool •Standby/Hibernation Functions •Security Measures •Computing on the Road •Battery Power •PC Cards •External Display •USB Devices •Modem •LAN •Port Replicator •Accessories •Hard Disk Drive •Setup Utility •LED Indicators Reference Manual •Technical Information •DMI Viewer •List of Error Codes •Dealing with Problems (Advanced) Appendix Getting Started Operation Troubleshooting Model No.CF-M34 Series 2000NT98 Please read these instructions carefully before using this product and save this manual for future use. In this manual, descriptions are given us- ing illustrations not featuring the hand strap for convenience of explanation. 2 Getting Started Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations in this Manual Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. ©2001 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks PS/2™ is a trademark of International Business Machines Corporation. Microsoft ® , MS-DOS ® and Windows ® are registered trademarks of Microsoft Corporation of the United States and/or other coun- tries. Intel, Pentium and SpeedStep are registered trademarks of Intel Corporation. Adobe ® and Acrobat ® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Panasonic ® is a registered trademark of Matsushita Electric Industrial Co., Ltd. NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moderate injury. WARNING:WARNING indicates a hazard that may result in moderate or serious injury. [Start]-[Shut Down]:This illustration means to click [Start], then to click [Shut Down]. (For some applications, you may need to double-click.) Enter :This illustration means to press the [Enter] key. Fn + F5 :This illustration means to press and hold the [Fn] key, then press the [F5] key. Windows 98 :Information for Microsoft ® Windows ® 98 Second Edition users. Windows 2000 :Information for Microsoft ® Windows ® 2000 Professional users. Windows NT :Information for Microsoft ® Windows NT ® Workstation Version 4.0 users. :Where to go for referred information. :This illustration means to refer to the Reference Manual, which is available on your computer. Refer to page 18 on how to access this manual. * 1 For the Model No., insert the 12 digit number (for example, CF-M34NPFZPM) located on the bottom of the computer. * 2 For Product Key, write down the Product Key shown on the “Certificate of Authenticity” located on the bottom of the computer. Customer's Record Serial No. or Date of Purchase Model No. *1 Code No. Dealer's Name Dealer's Address Product Key *2 3 Getting Started Read Me First Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced ra- dio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC RF Exposure Warning: This computer is provided with PC Card slots that could be used with wireless transmitter(s), which wil…

Text truncated - open the document above for the full version.

Description in the Operating Instruction Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC RF Exposure Warning: This computer is provided with PC Card slots that could be used with wireless transmitter(s), which will be specifically recommended, when they become available. Other third-party wireless transmitter(s) have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipme nt should be installed a nd operated with mi ni mum distance 20cm between the radiator and body (excluding extre mities: hands, wrists and feet) and must not be co- located or operated with any antenna or transmitter.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 4, 2002 RE: Matasushita Electric Industrial Co., Ltd. FCC ID: ACJ9TGCF-M342 I have a few comments on this Application. 1.) Please note Confidentiality for internal photographs is not permitted per FCC policy. Your Confidentiality request for Internal Photographs will be omitted. Please advise. 2.) Form 731 indicates this is a DSS device. However no processing gain is included. Since conducted power is below 100mW, you may wish to consider DTS (Digital Transmission System). Please advise. 3.) There appears to be spurious emissions at ~1.5GHz on each of the conducted transmitter spurious plots. This emission also appears in the radiated result tables. Does the emission level change when the transmitter is changed in power? If the EUT is in receive mode is the emission still present? 4.) Was equipment tested in three orthogonal planes? 5.) Could you please provide vendor’s specs for this antenna? Are other antennas under consideration by the Applicant? 6.) Manual must have specific language warning consumers about RF energy. The following note will appear on the Grant: If the warnings specified in the second sentence appear in the Manual and I have missed it, please indicate where. “The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.” Thank you for your patience. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

A- PEX INTERNATIONAL CO., LTD. □EMC HEAD OFFICE DIVISION 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan TEL:0596-24-8116 / FAX:0596-24-8124 Date: February 6, 2002 Re : Matsushita Electric Industrial Co., Ltd. FCC ID : ACJ9TGCF-M342 Dear Mr. William H. Graff, Please find the following replies to your comments dated February 5, 2002; 1) When we submitted the similar application (FCC ID: ACJ9TGCF-M34) with Confidentiality for internal photographs to your Mr. your Timothy Johnson, and then he accepted it. So, please consider it for this project again. 2) Cisco will submit processing gain to you in near future. 3) The spurious level of 1.5GHz is lower when the transmitter power is down. All testing have been performed by the worst conditions (maximum output power mode). Also, on the receiving mode, there is no spurious emission of 1.5GHz range. 4) Since the antenna fitted to EUT can be changed the angle freely, we sought the angle which the radiated emission is worst by changing the antenna angle from 0 to 180 ̊. Also, on receiving antenna is transverse electric, the antenna of EUT, when the antenna of EUT is indicated the angle of 180 ̊(horizontal), it is the maximum emission. So, we performed the test under the condition of each maximum emission. 5) This antenna fitted to EUT is exclusive use for this model only. Accordingly, it is settled the specification which user can not replace by any another antenna. 6) We submitted the file titled “the manual statement.doc” in the filing. This notice was given from your Mr. Mr. Timothy Johnson. Doesn’t it’s information enough ? Do they need to replace to the statement which you advised ? FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and body (excluding extremities: hands, wrists and feet) and must not be co-located or operated with any antenna or transmitter. Kanako Sanda A-Pex International Co., Ltd.

<FCC ID & DoC LABEL for CF-M34> FCC ID: ACJ9TGCF-M342 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label PositionFCC DoC Position

Cisco Systems, Inc. All contents are Copyright © 1992–2001 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement. Page 1 of 5 D ATA S HEET Cisco Aironet 350 Series Mini-PCI The Cisco Aironet ® 350 Series Mini-PCI (MPI352) Client Adapter is an embedded solution that complements the industry-leading 11-Mbps Cisco Aironet 350 Series. Based on direct sequence spread spectrum (DSSS) technology operating in the 2.4 GHz Industrial, Science and Medical (ISM) band, the MPI352 client adapter complies with the IEEE 802.11b standard, ensuring interoperability with other compliant wireless LAN (WLAN) products. Key Features • IEEE 802.11b high-rate standard compliance • Type IIIa Mini-PCI form factor for standard compatibility in a variety of mobile devices • Industry-leading range and throughput performance • Up to 100mW transmit power • Supports hardware accelerated 128-bit WEP RC4 encryption for data security with negligible performance degradation • 802.1x security support via EAP and LEAP for the most advanced wireless authentication scheme available • World mode for international mobility across regulatory domains • Dual antenna connectors supporting diversity for improved multipath compensation • True PCI bus interface • Support for all popular operating systems An Embedded Adapter The Cisco Aironet MPI352 provides OEM vendors an embedded client adapter with the proven performance, security, and manageability that customers have come to expect from Cisco. The Mini-PCI small form factor (approximately 51mm x 60mm) and lightweight (37g) design are ideally suited for PC notebooks, Internet appliances, and other mobile devices. Drivers are supported for all popular operating systems, including Windows 95, 98, NT 4.0, Windows 2000, Windows Me, Mac OS Version 9.x, and Linux. A complete set of tools and documentation is available for OEM integration and testing. Cisco Systems, Inc. All contents are Copyright © 1992–2001 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement. Page 2 of 5 Figure 1 Cisco Aironet MPI352 Schematic 1.219 30.963 TYP 2 PLCS 2.006 50.952 .071 1.797 .366 9.288 .159 4.039 Front View 2.346 59.588 Best Available Performance Designed with 100 mW transmit power and the best receive sensitivity in the industry, the Cisco Aironet MPI352 client adapter achieves the longest range and strongest signal available. The device supports distances of up to 130 ft indoors and 800 ft outdoors at 11 Mbps. Automatic data rate selection extends range by switching to a lower data rate, if required, to maintain connectivity. As a pioneer and leader in the WLAN industry, Cisco Aironet radio technology has advanced signal processing to help manage multipath propagation. Intelligent filtering minimizes ambient noise and interference that hampers wireless performance. The Cisco Aironet 350 Series provides the highest throughput available in the 802.11b market. The Cisco Aironet MPI352 achieves this excellent performance with minimal power consumption by offering three power management levels, including constantly awake mode, power save mode, and maximum power save mode. Enhanced Client Management The Cisco Aironet Client Utility, with an intuitive graphical user interface, provides an easy way to configure, monitor, and manage the Cisco Aironet MPI352 client adapter. The client utility includes site-survey tools that present easy-to-understand detailed graphical information to assist in the placement of access points. Quantifiable data is presented, including signal-to-noise ratio measured in decibels (dB) and signal level and noise level measured in decibels below 1mW (-dBm). Profiles allow a user to create profile settings for various environments, such as the office or home, making it simple for telecommuters and business travelers to move from one environment to another. Profile settings include channel selection, service set identifier (SSID), wired equivalent privacy (WEP) key, and authentication method for different locations. Cisco Systems, Inc. All contents are Copyright © 1992–2001 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement. Page 3 of 5 World Mode for International Roaming Cisco Aironet MPI352 client adapter simplifies deployment and mobility for international travelers and multinational organizations with a world mode feature. This mode allows the Cisco Aironet MPI352 to automatically inherit channel configuration settings directly from Cisco Aironet access points. This feature allows a single client adapter to be used around the world while maintaining regulatory compliance. Industry-Leading Centralized Security Solution Cisco Aironet wireless solutions provide the most advanced security solution available. Based on IEEE 802.1x standard, the Cisco Aironet security architecture utilizes the Extensible Authentication Protocol (EAP), a proposed open standard that enables wireless client adapter manufactures and Remote Access Dial-In User Service (RADIUS) server vendors to independently develop interoperable client- and server-side security software. This new security architecture provides centralized user-based authentication integrated with network logon. It uses an EAP-enabled RADIUS server such as the CiscoSecure Access Control Server 2000 Version 2.6 or later. When the user supplies a username and password, the client interacts with the RADIUS server through a Cisco Aironet access point. When the RADIUS server authenticates the client, the server and client negotiate a single-session, single-user encryption key and the RADIUS server transmits the key to the access point. With this centralized and standards-based architecture, wireless security scales to meet the requirements of any organization. The Cisco Aironet MPI352 client adapter supports the standard WEP security architecture, with both 40-bit and 128-bit RC4 encryption keys. Unlike some competitive products, the Cisco Aironet Series handles encr…

Text truncated - open the document above for the full version.

RF Exposure Statement No. : 22EE0038-YW Applicant : Matsushita Electric Industrial Co., Ltd. Type of Equipment : Wireless LAN built-in PC (Cisco LAN Card) Model No. : CF-M34 FCC ID : ACJ9TGCF-M342 FCC Radiation Exposure Statement: Sony Corporation Model : CF-M34 complies with FCC radiation exposure requirement specified in the FCC Rules 15.247(b)(4). Notice in Installation Manual FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should installed and operated with minimum distance 20cm between the radiator and your body (excluding extremities : hands, wrists, and feet) and must not be co-located or operated with any antenna or transmitter. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CF-M34” as calculated from FCC OET 65 Appendix B, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0m W/cm^2 uncontrolled exposure limit. The Fires formula used was: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π* S) Where S = 1.0 mW/cm^2 for 2400 MHz P = 89.1mW (Maximum Conducted Power) G = 1.64(Half wave dipole antenna gain : Converted absolute value) r = Minimum safe distance from antenna (cm) A-PEX International Co., Ltd. YOKOWA LAB. For: CF-M34 r = 3.4cm 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: int +81 596 39 1485 Facsimile: int +81 596 39 0232 Page 1 RF Exposure Statement No. : 22EE0038-YW Applicant : Matsushita Electric Industrial Co., Ltd. Type of Equipment : Wireless LAN built-in PC (Cisco LAN Card) Model No. : CF-M34 FCC ID : ACJ9TGCF-M342 A-PEX International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone: int +81 596 39 1485 Facsimile: int +81 596 39 0232 Page 2

A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 EMI TEST REPORT Test Report No. : 22EE0038-YW Applicant: Matsushita Electric Industrial Co.,Ltd. AVC Company Personal Computer Division Type of Equipment:Wireless LAN built in Personal Computer (Cisco LAN Card) Model No.:CF-M34 FCC ID:ACJ9TGCF-M342 Test standard:Fcc Part15 Subpart C, Section 15.247 *Except §15.247(e) Processing Gain Test Result:Complied This report may not be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Date of test: January 10, 19 and 20, 2002 Issued date: January 24, 2002 Tested by: Approved by: Makoto Kosaka Kazutoyo Nakanishi Site Operation Manager of EMC section Test report FCC ID : ACJ9TGCF-M342 Our reference : 22EE0038-YW Page: 2 of 14 Issued date: January 24, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Tested Methodology4 1.2 Test Facility4 2 PRODUCT DESCRIPTION5 2.1Test system Details5 3 SYSTEM TEST CONFIGURATION6 3.1 Justification6 3.2.Configuration of Tested System6 4 MEASUREMENT UNCERTAINTY7 5 TEST INSTRUMENTS8 6 SUMMARY OF TEST9 6.1 §15.207 Conducted Emissions9 6.2 §15.247(a)(2)6dB Bandwidth9 6.3 §15.247(b) Maximum Peak Out Put Power(Conducted)10 6.4 §15.247(c) Out of Band Emissions(Radiated)10 6.5 §15.247(c) Out of Band Emissions(Conducted)11 6.6 §15.247(d) Power Density(Conducted)11 Photographs of test setup 12-13 APPENDIX14 Test dataA1toA29 Test report FCC ID : ACJ9TGCF-M342 Our reference : 22EE0038-YW Page: 3 of 14 Issued date: January 24, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 1 GENERAL INFORMATION APPLICANT: Matsushita Electric Industrial Co.,Ltd. AVC Company Personal Computer Division. ADDRESS : 1-10-12 Yakumohigashi-machi, Moriguchi City Osaka 570-0021 Japan Tel: +81-6-6907-4050 Fax: +81-6-6907-4041 REGULATION(S): FCC Part15 Subpart C, Section 15.247 MODEL NUMBER: CF-M34 SERIAL NUMBER: CF-M34JA2BEM 0JKSA01049 KIND OF EQUIPMENT: Wireless LAN built in personal computer (Cisco LAN Card) TESTED DATE: January 10, 19 and 20, 2002 RECEIPT DATE OF SAMPLE : January 10 and 19, 2002 REPORT FILE NUMBER: 22EE0038-YW TEST SITE: A-PEX Yokowa No.2 and No.3 Open Test Sites Test report FCC ID : ACJ9TGCF-M342 Our reference : 22EE0038-YW Page: 4 of 14 Issued date: January 24, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 1.1 Tested Methodology The measurement was performed according to the procedures in ANSI C63.4(1992). 1.2 Test Facility The open area site measurement facilities used to collect the radiated data are located at 108, Yokowa-cho, Ise-shi, Mie-ken, 516-1106 Japan. These sites have been fully described in reports submitted to the FCC office. No.2 test site has filed to the FCC on October 26, 2000 as number: 90411 and is accepted by Industry Canada on May 01,2001 as number IC2973-2. No.3 test site has filed to the FCC on September 12, 2000 as number: 90412 and is accepted by Industry Canada on May 01,2001 as number IC2973-3. Test report FCC ID : ACJ9TGCF-M342 Our reference : 22EE0038-YW Page: 5 of 14 Issued date: January 24, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 2 PRODUCT DESCRIPTION Matsushita Electric Industrial Co.,Ltd, Model CF-M34 (referred to as the EUT in this report) is a Wireless LAN built in Personal Computer(Cisco LAN Card). The specification is as following : Wireless LAN : Direct sequence spread spectrum.(IEEE 802.11b) 2412 through 2462MHz (11channels / each 5MHz wide) Antenna Type:Dipole Antenna Antenna Gain: 2.14dBi Antenna Part No:NIBZBJA00001 I/F:PCMCIA-bus *Fcc Part 15.31(e) The host device CF-M34 provide the LAN Module with stable power supply(DC3.3V), and the LAN module complies power supply regulation. *Fcc Part 15.203 Antenna requirement The wireless LAN card is installed in the host device and cannot be removed by the user. Connector used between the wireless LAN card and antenna cable is special one (manufacturer's unique specification: TC-1 plug) , and antenna and its cable are solder-mounted so that antenna is unremoved. Due to the above reasons, the wireless LAN card meets the antenna requirements of FCC 15. 203. 2.1 Test System Details Model FCC ID Description (1) Matsushita Electric Industrial Co.,Ltd. ACJ9TGCF-M342 Wireless LAN built in PC M/N: CF-M34(Cisco LAN Card) S/N: CF-M34JA2BEM 0JKSA01049 *FccPart15 Subpart B Class B Digital Device DOC (2)Matsushita Electric Industrial Co.,Ltd.DOC AC Adapter M/N: CF-AA1527 C4 S/N: C010901919A Test report FCC ID : ACJ9TGCF-M342 Our reference : 22EE0038-YW Page: 6 of 14 Issued date: January 24, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode : Data Transmitting mode(bit rate : 11Mbps) Performed the test about channels 1(low), 6(mid) and 11(high) among 11 channels of all Carrier frequencies. 3.2 Configuration of Tested System AC 120V/60Hz 2 1 Wooden table (1)EUT (2) * Cabling was taken into consideration and test data was taken under worst case conditions. List of cables used No.NameLength (m)ShieldRemark 1 AC Power Cable1.8NPolyvinyl chloride 2 DC Power Cable1.9NPolyvinyl chloride Test report FCC ID : ACJ9TGCF-M342 Our reference : 22EE0038-YW Page: 7 of 14 Issued date: Januar…

Text truncated - open the document above for the full version.

Test report FCC ID : ACJ9TGCF-M342 Our reference : 22EE0038-YW Page: 12 of 14 Issued date: January 24, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 Photographs of test setup(1) Test report FCC ID : ACJ9TGCF-M342 Our reference : 22EE0038-YW Page: 13 of 14 Issued date: January 24, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 Photographs of test setup(2)
