ACJ9TGCF-P12CF-P1 Personal Computer with WLAN+BT+GPRS

® Using a Bluetooth ENGLISH ENGLISH SUPPLEMENTARY INSTRUCTIONS The Setup Wizard Starting My Wirefree Network Device Discovery Serial Ports Specifications 2 Supplementary Instructions Information to the User This product and your Health This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because this product operates within the guidelines found in radio frequency safety stan- dards and recommendations, we believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and inter- pret the extensive research literature. In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: Using this product on board of airplanes, or In any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product. Regulatory Information We are not responsible for any radio or television interference caused by unauthorized modi- fication of this product. The correction of interference caused by such unauthorized modifi- cation will be the responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines. This Supplementary Instructions explains how to get started with a Bluetooth and point out cases where the operation of the computer will differ from that in the Operating Instructions. Bluetooth Antenna Bluetooth communications are done via an antenna. Do not shield this antenna with the hand, etc. This will negatively effect the performance of your Bluetooth communications. NOTE 3 ENGLISH Read Me First - For U.S.A. Replace as follows. Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip- ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Safety Notice Do not touch or move antenna while the unit is transmitting or receiving. Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. Do not operate a portable transmitter near unshielded blasting caps or in an explosive environment unless it is type especially qualified for such use. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement: • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. • This equipment must be installed and operated in accordance with provided instructions and minimum 1.5 cm spacing must be provided between antenna and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. • This equipment may use multiple installed transmitters, which may be capable of simulta- neous transmission. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) Page 7My Wirefree NetworkCopyright 2003 Rappore Consulting, Inc. Setup: Welcome My Wirefree Network assigns PDA as the default name. This is the name by which your PDA will be known to other devices. A personal device passkey is used during bonding or connections for security purposes. The default is to not set a personal device passkey. A personal device passkey is only recommended when advanced security is enabled. The Setup Wizard guides you through each step necessary to configure your device for connectivity. To personalize your device settings: 1. Enter a device name. 2. If you want to have a personal device passkey, enter the same value in Passkey and Confirm Passkey. 3. Tap Next. The Setup Wizard Page 8My Wirefree NetworkCopyright 2003 Rappore Consulting, Inc. Setup: Hardware Test The hardware test initializes and tests the Bluetooth radio. It …

Text truncated - open the document above for the full version.

Operation Starting Up/Shutting Down ................................... 15 LCD (Touchscreen)............................................... 19 Backlight Setting................................................... 21 Entering Information ............................................. 22 Program Buttons .................................................. 27 Battery Power ....................................................... 28 SD Memory Card/MultiMedia Card ...................... 29 Panasonic Backup ................................................ 30 Pocket Internet Explorer ....................................... 32 Connecting to Your Computer............................... 33 Customizing the Computer ................................... 36 Troubleshooting Dealing with Problems.......................................... 39 Getting Started Read Me First..........................................................3 Precautions............................................................. 5 What’s in the Box?.................................................. 8 Names and Functions of Parts ............................... 9 First-time Operation.............................................. 12 Please read this instructions manual carefully before using this product and save this manual for future use. Appendix For Effective Use .................................................. 43 Specifications ....................................................... 44 LIMITED USE LICENSE AGREEMENT............... 46 OPERATING INSTRUCTIONS Handheld Computer ® Contents Model No.CF-P1Series 2 Customer's Record Serial No. or Model No.* Code No. Dealer's Name Dealer's Address Date of Purchase *For the Model No., insert the 12 digit number (for example, CF-P1P3CZF6E) located on the back of the computer. CF-P1P3 series (QWERTY key type keyboard) CF-P1P1 series (numeric keypad type keyboard) NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moder- ate injury. - [Programs]:This illustration means to tap at the top of the screen, then to tap [Programs]. < For the CF-P1P3 series > :This illustration means to press the [A] key. Mode key + NUM key:This illustration means to press and hold the [] key (Mode key), then press the [NUM] key. < For the CF-P1P1 series > :This illustration means to press the [1] key. :Where to go for referred information. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. This operating instructions describes the models below. Note however that the illustrations mainly show the CF-P1P3 series. Introduction Thank you for purchasing the Panasonic Handheld Computer. Read the operating instruc- tions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual 3 For U.S.A. Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn- ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) Read Me First Notice for the products using LCD This product uses one or more fluorescent lamps containing a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org/> 4 Read Me First Lithium Battery Lithium Battery! This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only be exchanged by authorized service personnel. Warning! A risk of explosion from incorrect installation or misapplication may possibly occur. Pile au lithium! Le micro-ordinateur renferme une pile au lithium qui permet de sauvegarder certaines données comme la date et l'heure notamment. Elle ne devra être remplacée que par un technicien qualifié. Avertissement! Risque d'explosion en cas de non respect de cette mise en garde! For Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 5 Avoid Radio Frequency Inter- ference Do not place the computer near …

Text truncated - open the document above for the full version.

® Using a Wireless LAN ENGLISH ENGLISH SUPPLEMENTARY INSTRUCTIONS Information to the User ................................ 2 Read Me First - For U.S.A. ........................... 3 First-time Operation..................................... 4 Dealing with Problems ................................. 5 Specifications ............................................... 6 2 Supplementary Instructions This Supplementary Instructions explains how to get started with a wireless LAN and point out cases where the operation of the computer will differ from that in the Operating Instructions. Wireless LAN Antenna Wireless LAN communications are done via an antenna. Do not shield this antenna with the hand, etc. This will negatively effect the performance of your wireless LAN commu- nications. NOTE Information to the User This product and your Health This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because this product operates within the guidelines found in radio frequency safety stan- dards and recommendations, we believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and inter- pret the extensive research literature. In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: Using this product on board of airplanes, or In any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product. Regulatory Information We are not responsible for any radio or television interference caused by unauthorized modi- fication of this product. The correction of interference caused by such unauthorized modifi- cation will be the responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines. 3 ENGLISH Read Me First - For U.S.A. Replace as follows. Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip- ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Safety Notice Do not touch or move antenna while the unit is transmitting or receiving. Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. Do not operate a portable transmitter near unshielded blasting caps or in an explosive environment unless it is type especially qualified for such use. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement: • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. • This equipment must be installed and operated in accordance with provided instructions and minimum 1.5 cm spacing must be provided between antenna and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. • This equipment may use multiple installed transmitters, which may be capable of simulta- neous transmission. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) 4 Supplementary Instructions First-time Operation After finishing the”First-time Operation” of Operating Instructions, install the driver for Wireless LAN using the following procedure. Install the driver for Wireless LAN If the [Wireless LAN] file is not inside the [Options] folder in [My Computer], perform all steps from (1) to (7). If the [Wireless LAN] file is present, perform steps (4) through (7). (1)When the computer recognizes the internal Wireless LAN card, a screen will be displayed designating the driver name. Tap to close this screen. (2)Tap [Start]-[Run] in order, then input “ffrestore.exe r”, and then tap [OK]. The dr…

Text truncated - open the document above for the full version.

<CF-P1 WLAN(b) & Bluetooth & GPRS model photo> 1) CF-P1 Top View Front View 2) Bluetooth and WLAN module position Upside down Bluetooth Module WLAN Module

<CF-P1 WLANb & Bluetooth & GPRS model’s Label Description> 1) FCCID Label 2) FCC DoC Logo FCC ID: ACJ9TGCF-P12 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: The above rating plate is not final. FCC DoC LABEL FCC ID LABEL

2) Bluetooth and WLAN module position Upside down Bluetooth Module WLAN Module 3) Bluetooth Module exterior photo Top View of Bluetooth Module Bottom View of Bluetooth Module 4) Bluetooth Module Interior photo Bluetooth Module without shield 5) WLAN interior photo WLAN Top View Note: WLAN Bottom is no component. 6) GPRS module position MC46 Module Adapter Position Upside down 7) GPRS Module photo MC46 Module Label Final Design MC46 Module Top View Note: Above Module Label is not final. MC46 Module Interior View MC46 Module Bottom View 8) Antenna (WLAN / Bluetooth / GPRS) Magnified GPRS Antenna Bluetooth Antenna WLAN Antenna GPRS Antenna 9) Antenna Specification WLAN Antenna: (Inverted F type: 1.02dBi max) Bluetooth Antenna: (Inverted F type: -0.23dBi max) GPRS Antenna: (Helical type: 2.74dBi max)

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Certification SAR Filename: SAR.230801370.ACJ PCTEST SAR TEST REPORT Reviewed by: Quality Manager FCC ID: ACJ9TGCF-P12 Test Dates: Feb. 16 - 17, 2004 EUT Type: Dual-Band GPRS PDA Phone w/ WLAN and Bluetooth Page 1 of 1 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Dates of Tests: Feb. 16 - 17, 2004 1006 Oaza Kadoma, Kadoma Test Report S/N: SAR.230801370.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD USA FCC ID: ACJ9TGCF-P12 APPLICANT NAME: MATSUSHITA ELECTRIC INDUSTRIAL CO., INC. EUT Type: Dual-Band GPRS PDA Phone w/ WLAN and Bluetooth Tx Frequency: 824.20 – 848.80 MHz (GSM) / 1850.20 – 1909.80 MHz (PCS) 2412 – 2462 MHz (DSSS) 2402 – 2480 MHz (FHSS) Max. RF Output Power: 1.407 W Conducted GSM850 (31.483 dBm) 1.192 W Conducted GSM1900 (30.751 dBm) Max. SAR Measurement: 1.47 W/kg GSM850 Head SAR; 0.46 W/kg GPRS850 Body SAR; 1.29 W/kg GSM1900 Head SAR; 0.20 W/kg GPRS1900 Body SAR Trade Name/Model(s): CF-P1 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: 4AKSB00010] Certification(s): See Attachment J This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 – April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. Speaker phone operating configuration is based on a separation distance of 1.5 cm from the front of the unit and the face of the user. End-users must be informed of the Push-to-Talk operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR Filename: SAR.230801370.ACJ PCTEST SAR TEST REPORT Reviewed by: Quality Manager FCC ID: ACJ9TGCF-P12 Test Dates: Feb. 16 - 17, 2004 EUT Type: Dual-Band GPRS PDA Phone w/ WLAN and Bluetooth Page 2 of 2 © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITION.................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...................................................................................13 12. SAR TEST DATA SUMMARY............................................................................................14 13. SAR TEST EQUIPMENT...................................................................................................15 14. CONCLUSION...............................................................................................................16 15. REFERENCES..................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................18 EXHIBIT A. SAR DATA SUMMARY....................................................................................19-30 SAR Filename: SAR.230801370.ACJ PCTEST SAR TEST REPORT Reviewed by: Quality Manager FCC ID: ACJ9TGCF-P12 Test Dates: Feb. 16 - 17, 2004 EUT Type: Dual-Band GPRS PDA Phone w/ WLAN and Bluetooth Page 3 of 3 © 2004 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended P…

Text truncated - open the document above for the full version.

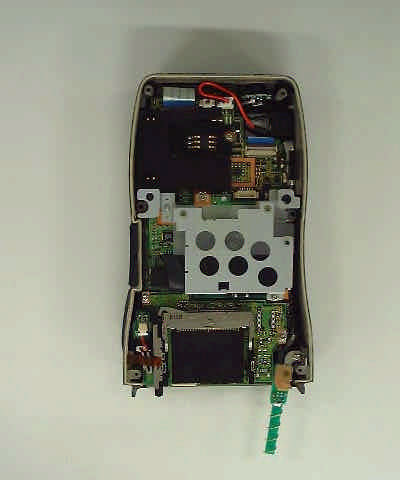

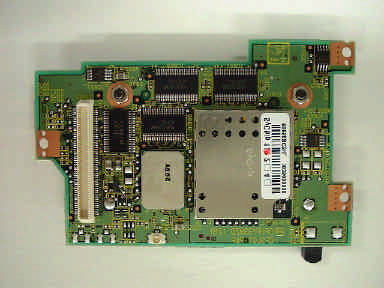

Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2

Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2

Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P12 EUT Photographs © 2004 PCTEST Lab. Dual-Band GPRS PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Certification SAR Filename: SAR.230801370-R1.ACJ PCTEST SAR TEST REPORT Reviewed by: Quality Manager FCC ID: ACJ9TGCF-P12 Test Dates: Feb. 16 - 17, 2004 EUT Type: Dual-Band GPRS PDA Phone w/ WLAN and Bluetooth Page 1 of 1 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Dates of Tests: Feb. 16 - 17, 2004 1006 Oaza Kadoma, Kadoma Test Report S/N: SAR.230801370-R1.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD USA FCC ID: ACJ9TGCF-P12 APPLICANT NAME: MATSUSHITA ELECTRIC INDUSTRIAL CO., INC. EUT Type: Dual-Band GPRS PDA Phone w/ WLAN and Bluetooth Tx Frequency: 824.20 – 848.80 MHz (GSM)…

Text truncated - open the document above for the full version.
