ACJ9TGCF-P14Panasonic PDA w/ Alps Bluetooth & Sychip WLAN

Operation Starting Up/Shutting Down ................................... 15 LCD (Touchscreen)............................................... 19 Backlight Setting................................................... 21 Entering Information ............................................. 22 Program Buttons .................................................. 27 Battery Power ....................................................... 28 SD Memory Card/MultiMedia Card ...................... 29 Panasonic Backup ................................................ 30 Pocket Internet Explorer ....................................... 32 Connecting to Your Computer............................... 33 Customizing the Computer ................................... 36 Troubleshooting Dealing with Problems.......................................... 39 Getting Started Read Me First..........................................................3 Precautions............................................................. 5 What’s in the Box?.................................................. 8 Names and Functions of Parts ............................... 9 First-time Operation.............................................. 12 Please read this instructions manual carefully before using this product and save this manual for future use. Appendix For Effective Use .................................................. 43 Specifications ....................................................... 44 LIMITED USE LICENSE AGREEMENT............... 46 OPERATING INSTRUCTIONS Handheld Computer ® Contents Model No.CF-P1Series 2 Customer's Record Serial No. or Model No.* Code No. Dealer's Name Dealer's Address Date of Purchase *For the Model No., insert the 12 digit number (for example, CF-P1P3CZF6E) located on the back of the computer. CF-P1P3 series (QWERTY key type keyboard) CF-P1P1 series (numeric keypad type keyboard) NOTE:NOTE provides a useful fact or helpful information. CAUTION:CAUTION indicates a condition that may result in minor or moder- ate injury. - [Programs]:This illustration means to tap at the top of the screen, then to tap [Programs]. < For the CF-P1P3 series > :This illustration means to press the [A] key. Mode key + NUM key:This illustration means to press and hold the [] key (Mode key), then press the [NUM] key. < For the CF-P1P1 series > :This illustration means to press the [1] key. :Where to go for referred information. Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation easier to understand. This operating instructions describes the models below. Note however that the illustrations mainly show the CF-P1P3 series. Introduction Thank you for purchasing the Panasonic Handheld Computer. Read the operating instruc- tions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual 3 For U.S.A. Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn- ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Responsible Party:Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) Read Me First Notice for the products using LCD This product uses one or more fluorescent lamps containing a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org/> 4 Read Me First Lithium Battery Lithium Battery! This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only be exchanged by authorized service personnel. Warning! A risk of explosion from incorrect installation or misapplication may possibly occur. Pile au lithium! Le micro-ordinateur renferme une pile au lithium qui permet de sauvegarder certaines données comme la date et l'heure notamment. Elle ne devra être remplacée que par un technicien qualifié. Avertissement! Risque d'explosion en cas de non respect de cette mise en garde! For Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 5 Avoid Radio Frequency Inter- ference Do not place the computer near …

Text truncated - open the document above for the full version.

® Using a Wireless LAN ENGLISH ENGLISH SUPPLEMENTARY INSTRUCTIONS Information to the User ................................ 2 Read Me First - For U.S.A. ........................... 3 First-time Operation..................................... 4 Dealing with Problems ................................. 5 Specifications ............................................... 6 2 Supplementary Instructions This Supplementary Instructions explains how to get started with a wireless LAN and point out cases where the operation of the computer will differ from that in the Operating Instructions. Wireless LAN Antenna Wireless LAN communications are done via an antenna. Do not shield this antenna with the hand, etc. This will negatively effect the performance of your wireless LAN commu- nications. NOTE Information to the User This product and your Health This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because this product operates within the guidelines found in radio frequency safety stan- dards and recommendations, we believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and inter- pret the extensive research literature. In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include: Using this product on board of airplanes, or In any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product. Regulatory Information We are not responsible for any radio or television interference caused by unauthorized modi- fication of this product. The correction of interference caused by such unauthorized modifi- cation will be the responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines. 3 ENGLISH Read Me First - For U.S.A. Replace as follows. Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip- ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Safety Notice Do not touch or move antenna while the unit is transmitting or receiving. Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting. Do not operate a portable transmitter near unshielded blasting caps or in an explosive environment unless it is type especially qualified for such use. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement: • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. • This equipment must be installed and operated in accordance with provided instructions and minimum 1.5 cm spacing must be provided between antenna and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. • This equipment may use multiple installed transmitters, which may be capable of simulta- neous transmission. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Matsushita Electric Corporation of America One Panasonic Way Secaucus, NJ 07094 Tel No:1-800-LAPTOP-5 (1-800-527-8675) 4 Supplementary Instructions First-time Operation After finishing the”First-time Operation” of Operating Instructions, install the driver for Wireless LAN using the following procedure. Install the driver for Wireless LAN If the [Wireless LAN] file is not inside the [Options] folder in [My Computer], perform all steps from (1) to (7). If the [Wireless LAN] file is present, perform steps (4) through (7). (1)When the computer recognizes the internal Wireless LAN card, a screen will be displayed designating the driver name. Tap to close this screen. (2)Tap [Start]-[Run] in order, then input “ffrestore.exe r”, and then tap [OK]. The dr…

Text truncated - open the document above for the full version.

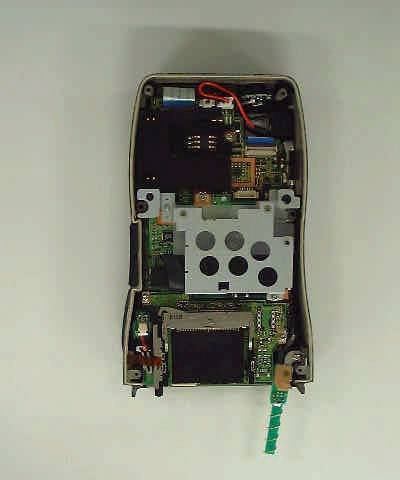

<CF-P1 WLAN(b) & Bluetooth photo> 1) CF-P1 Top View Front View 2) Bluetooth and WLAN module position Upside down Bluetooth Module WLAN Module

Spread Spectrum Transceiver (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240206394.ACJ Test Dates: Feb. 16-17, 2004 EUT Type: Panasonic PDA w/ WLAN & Bluetooth FCC ID: ACJ9TGCF-P14 Page 27 of 35 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). Spread Spectrum Transceiver (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240206394.ACJ Test Dates: Feb. 16-17, 2004 EUT Type: Panasonic PDA w/ WLAN & Bluetooth FCC ID: ACJ9TGCF-P14 Page 28 of 35 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID Label

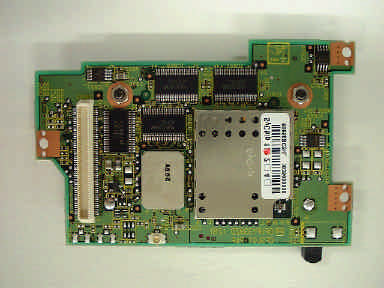

2) Bluetooth and WLAN module position Upside down Bluetooth Module WLAN Module 3) Bluetooth Module exterior photo Top View of Bluetooth Module Bottom View of Bluetooth Module 4) Bluetooth Module Interior photo Bluetooth Module without shield 5) WLAN interior photo WLAN Top View Note: WLAN Bottom is no component. 9) Antenna Specification WLAN Antenna: (Inverted F type: 1.02dBi max) Bluetooth Antenna: (Inverted F type: -0.23dBi max)

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240614395.ACJ Test Dates: June 14, 2004 EUT Type: PDA with WLAN and Bluetooth FCC ID: ACJ9TGCF-P14 Page 1 of 21 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: June 14, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: SAR.240614395.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD USA Project Number: ITPD-04-F032A FCC ID: ACJ9TGCF-P14 APPLICANT NAME: Matsushita Electric Industrial Co., Ltd. EUT Type: Panasonic PDA Model: CF-P1mk2 w/ Sychip DSS WLAN Model: WLAN6065EBC2-HL-TR-01 and Alps Bluetooth Model: UGXZ1-116B Tx Frequency: 2412 – 2462 MHz (WLAN) / 2402 – 2480 MHz (Bluetooth) Max. RF Output Power: 0.033 W Conducted Max. SAR Measurement: 0.09 W/kg Body SAR Trade Name/Model(s): CF-P1mk2 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: 4AKSB00010] Installed Options: WLAN Bluetooth CDMA Radio Module Other This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240614395.ACJ Test Dates: June 14, 2004 EUT Type: PDA with WLAN and Bluetooth FCC ID: ACJ9TGCF-P14 Page 2 of 21 © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................10 9. MEASUREMENT UNCERTAINTIES...................................................................................11 10. SAR TEST DATA SUMMARY............................................................................................12 11. SAR TEST EQUIPMENT...................................................................................................13 12. CONCLUSION...............................................................................................................14 13. REFERENCES..................................................................................................................15 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................16 EXHIBIT A. SAR DATA SUMMARY.........................................................................................17 PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240614395.ACJ Test Dates: June 14, 2004 EUT Type: PDA with WLAN and Bluetooth FCC ID: ACJ9TGCF-P14 Page 3 of 21 © 2004 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[6] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Ab…

Text truncated - open the document above for the full version.

Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2

© 2004 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: February 16-17, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.240206394.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Project No.: ITPD-04-F032A FCC ID: ACJ9TGCF-P14 APPLICANT: Matsushita Electric Industrial Co., Ltd. SUMMARY: Model No.: CF-P1mk2 Equipment EUT Type: Panasonic PDA w/ Sychip WLAN Model: WLAN6065EBC2-HL-TR-01 & Alps Bluetooth Model: UGXZ1-116B Max. Output Power: 33.2 mW Conducted Frequency Range: 2412 - 2462 MHz FCC Classification: FCC Part 15 Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Test Device Serial No.: S/N: 4AKSB00010 Installed Options: WLAN Bluetooth GPRS Module Other This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. The JBC portion of this EUT is covered in the DOC report. Grant Conditions: Power output is conducted. This device has been tested for SAR compliance for portable configurations. This device must not be co-located or operating with any other antenna or transmitter. End- users must be provided with operating conditions for satisfying RF exposure compliance. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. Spread Spectrum Transceiver (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240206394.ACJ Test Dates: Feb. 16-17, 2004 EUT Type: Panasonic PDA w/ WLAN & Bluetooth FCC ID: ACJ9TGCF-P14 Page i of i © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC PART 15.247 MEASUREMENT REPORT COVER PAGE............................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE........................................................................................................................................................................................................3 1.2 SCOPE.................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION.............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE.....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................................................................................................4 3.0 DESCRIPTION OF TEST.............................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS.................................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS.....................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS........................................................................................................................9 EXHIBIT A. 6dB BANDWIDTH MEAUREMENT.................................................................................................................10-12 EXHIBIT A. OUTPUT POWER MEASUREMENT................................................................................................................13-15 EXHIBIT A. POWER SPECTRAL DENSI…

Text truncated - open the document above for the full version.

Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. Panasonic PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. Panasonic PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. Panasonic PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. Panasonic PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. Panasonic PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. Panasonic PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2 Panasonic FCC ID: ACJ9TGCF-P14 EUT Photographs © 2004 PCTEST Lab. Panasonic PDA Phone w/ WLAN & Bluetooth Model: CF-P1mk2
