ACJ9TGCF-VDW07Panasonic PDA w/ Sychip WLAN

BEDIENUNGSANLEITUNG Erste Inbetriebnahme......................................... 44 Starten/Abschalten ............................................ 51 Berührungsempfindlicher Bildschirm .............. 53 Software-Tastatur ............................................... 56 Batteriestrom ...................................................... 58 Einstellen des drahtlosen Displays .................. 62 Änderung der Einstellungen des drahtlosen Displays .66 Bildschirmerfassung .......................................... 69 Störungsbeseitigung......................................... 70 Technisch Daten ................................................ 72 First-time Operation ........................................... 14 Starting Up/Shutting Down................................ 20 Touchscreen ....................................................... 22 Software Keyboard ............................................ 25 Battery Power ..................................................... 27 Setting the Wireless Display ............................. 31 Changing the Wireless Display Settings .......... 35 Capturing the Screen ......................................... 38 Troubleshooting................................................. 39 Specifications ..................................................... 41 OPERATING INSTRUCTIONS E DEUTSCH ENGLISH MODE D’EMPLOI FRANÇAIS Première utilisation............................................ 74 Mise en marche/Arrêt ......................................... 81 Ecran tactile ........................................................ 83 Clavier logiciel.................................................... 86 Alimentation par batterie................................... 88 Configuration de l'écran déporté sans fil ......... 92 Modification des paramètres de l’écran déporté sans fil ...96 Capture de l’écran .............................................. 99 Dépannage ........................................................ 100 Spécifications ................................................... 102 Wireless Display Drahtloses Display Ecran Déporté Sans Fil CF-VDW07BH OPERATING INSTRUCTIONS BEDIENUNGSANLEITUNG MODE D’EMPLOI G F 2 Information to the User This product and your Health This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones. Because this product operates within the guidelines found in radio frequency safety stan- dards and recommendations, we believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and inter- pret the extensive research literature. In some situations or environments, the use of this product may be restricted by the propri- etor of the building or responsible representatives of the organization. These situations may for example include: Using this product on board of airplanes, or In any other environment where the risk of interference to other devices or services is perceived or identified as harmful. If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product. Regulatory Information We are not responsible for any radio or television interference caused by unauthorized modi- fication of this product. The correction of interference caused by such unauthorized modifi- cation will be the responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines. Declaration of Conformity (DoC) “Hereby, we and Panasonic Service Europe GmbH (PSE), declares that this Personal Computer is in compliance with the essential re- quirements and other relevant provisions of the Directive 1999/5/EC.” Hint: If you want to get a copy of the original DoC of our products which relates to the R&TTE, please contact to our web address: http://doc.panasonic-tc.de ------------------------------------------------------------------------------------------------------------- Compliance Notice - CE Mark This equipment is in conformance with the requirements of the European Council Directive listed below: 73/23/EEC Low Voltage Directive with amendment 93/68/EEC 89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC 1999/5/EC ------------------------------------------------------------------------------------------------------------- 3 Informationen für den Benutzer Dieses Produkt und Ihre Gesundheit Wie viele andere Radiogeräte strahlt auch dieses Gerät hochfrequente elektromagnetische Energie aus. Jedoch ist der Pegel der von diesem Gerät ausgestrahlten Energie viel niedriger als die elektromagnetische Energie, die von drahtlosen Geräten, wie zum Beispiel Mobiltelefonen, ausgestrahlt wird. Da dieses Gerät die Richtlinien für die Sicherheitsnormen und Empfehlungen für Geräte mit Hochfrequenzausstrahlung beachtet, sind wir der Überzeugung, dass das Gerät kein Gesundheitsrisiko für die Benutzer darstellt. Die erwähnten Normen und Empfehlungen spiegeln den Konsensus der wissenschaftlichen Gemeinschaft (Scientific Community) wider und resultieren aus den Erörterungen von wissenschaftlichen Gremien und Konferenzen, die die umfangreiche Forschungsliteratur kontinuierlich durchforsten. In gewissen Situationen oder Umgebungen kann die Verwendung dieses Produktes durch den Hauseigentümer oder den verantwortlichen Stellvertreter einer Organisation eingeschränkt werden. Dies gilt möglicherweise in den folgenden Situationen: Bei Verwendung dieses Produktes an Bord von Flugzeugen, oder In anderen Umgebungen, in denen der Geb…

Text truncated - open the document above for the full version.

Matsushita Electric Corporation of America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201.348.7758 / Fax: 201.392.4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Amended: September 17, 2004 ITPD-04-F036A Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent and Request for Confidentiality Panasonic Handheld Wireless Display, Model CF-VDW07 With Sychip WLAN(b) TCB Certification for FCC ID: ACJ9TGCF-VDW07 To Whom It May Concern: On behalf of Applicant Matsushita Electric Industrial Co., Ltd. and their agent Matsushita Electronic Corporation of America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents Handheld Wireless Display Model CF-VDW07 Family to be marketed under FCC ID: ACJ9TGCF-VDW07. This product will be marketed with: (1) CPU type SH7709A with clock speed of 120 MHz; (2) Sychip 2.4 GHz DSSS WLAN(b) Model WLAN6065EBC2-HL-TR-01with Part 15C operation within 2412~2462 MHz at 28.8 mW conducted RF output; and (3) AC Adaptor, Type CF-AA1639A, provided with DC cable with ferrite core. This product uses internal planar inverted F-type antenna with 4.68 dBi antenna gain. This WLAN had conducted power measurements already performed under past project ITPD- 04-F017 for CF-P1+WLAN+BT+CDMA under FCC ID: ACJ9TGCF-P13. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request confidentiality for both transceivers’ exhibits for Operation Description, Parts List, Block Diagrams and Schematic Diagram. The WLAN is not user adjustable and does not have any Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Sincerely yours, Richard Mullen Group Manager

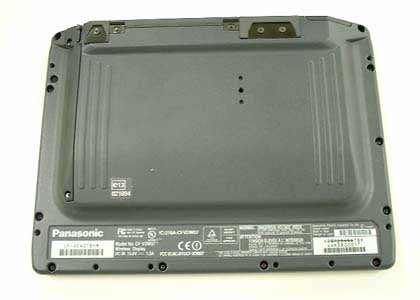

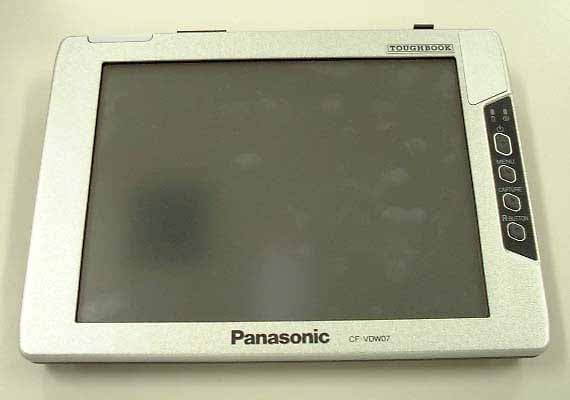

<CF-VDW07 photo> 1) CF-VDW07 Exterior/Interior CF-VDW07 Top View CF-VDW07 Bottom View WLAN Antenna location

Spread Spectrum Transceiver (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240803478.ACJ Test Dates: August 30, 2004 EUT Type: Panasonic Wireless Handheld Display w/ Sychip WLAN FCC ID: ACJ9TGCF-VDW07 Page 27 of 35 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). EXHIBIT B – Labeling Requirements (Cont.) Spread Spectrum Transceiver (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240803478.ACJ Test Dates: August 30, 2004 EUT Type: Panasonic Wireless Handheld Display w/ Sychip WLAN FCC ID: ACJ9TGCF-VDW07 Page 28 of 35 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST Sample Label & Location FCC ID Label

CF-VDW07 Inside View (Bottom Cover open) WLAN Daughter Board Bottom View (Main PWB and Metal Cover removed) 2) WLAN module with Daughter Board (Exterior) WLAN module (Sychip) on Daughter Board 3) WLAN module Interior WLAN Top View Note: WLAN Bottom is no component. 4) Antenna WLAN Antenna Magnified View WLAN Antenna location WLAN Antenna 5) Antenna Specification WLAN Antenna: (Inverted F type: 4.68dBi max)

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240803536.ACJ Test Dates: Aug. 30, 2004 EUT Type: Handheld Wireless Display w/ WLAN FCC ID: ACJ9TGCF-VDW07 Page 1 of 23 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: Aug. 30, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: SAR.240803536.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD USA Project Number: ITPD-04-F017A FCC ID: ACJ9TGCF-VDW07 APPLICANT NAME: Matsushita Electric Industrial Co., Ltd. EUT Type: Handheld Wireless Display Model: CF-VDW07 w/ Sychip DSS WLAN Model: WLM-1 Tx Frequency: 2412 – 2462 MHz Max. RF Output Power: 0.033 W Conducted Max. SAR Measurement: 0.84 W/kg Body SAR Trade Name/Model(s): CF-VDW07 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: 2IKSA01763] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240803536.ACJ Test Dates: Aug. 30, 2004 EUT Type: Handheld Wireless Display w/ WLAN FCC ID: ACJ9TGCF-VDW07 Page 2 of 23 © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................10 9. MEASUREMENT UNCERTAINTIES...................................................................................11 10. SAR TEST DATA SUMMARY............................................................................................12 11. SAR TEST EQUIPMENT...................................................................................................13 12. CONCLUSION...............................................................................................................14 13. REFERENCES..................................................................................................................15 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................16 EXHIBIT A. SAR DATA SUMMARY.........................................................................................17 PCTEST SAR TEST REPORT FCC Measurement Report Reviewed by: Quality Manager SAR Filename: SAR.240803536.ACJ Test Dates: Aug. 30, 2004 EUT Type: Handheld Wireless Display w/ WLAN FCC ID: ACJ9TGCF-VDW07 Page 3 of 23 © 2004 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[6] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an i…

Text truncated - open the document above for the full version.

PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07

© 2004 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: August 30, 2004 1006 Oaza Kadoma, Kadoma, Test Report S/N: 15.240803478.ACJ Osaka, 571 JAPAN Test Site: PCTEST Lab, Columbia, MD Project No.: ITPD-04-F036A FCC ID: ACJ9TGCF-VDW07 APPLICANT: Matsushita Electric Industrial Co., Ltd. SUMMARY: Model No.: CF-VDW07 Equipment EUT Type: Panasonic Handheld Wireless Display Model: CF-VDW07 w/ Sychip WLAN Model: WLAN6065EBC2-HL-TR-01 Max. Output Power: 33.2 mW Conducted Frequency Range: 2412 - 2462 MHz FCC Classification: FCC Part 15 Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Test Device Serial No.: S/N: 2IKSA01763 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. The JBC portion of this EUT is covered in the DOC report. Grant Conditions: Power output is conducted. This device has been tested for SAR compliance for portable configurations. This device must not be co-located or operating with any other antenna or transmitter. End- users must be provided with operating conditions for satisfying RF exposure compliance. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. Spread Spectrum Transceiver (DTS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 240803478.ACJ Test Dates: August 30, 2004 EUT Type: Panasonic Wireless Handheld Display w/ Sychip WLAN FCC ID: ACJ9TGCF-VDW07 Page i of i © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC PART 15.247 MEASUREMENT REPORT COVER PAGE............................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE........................................................................................................................................................................................................3 1.2 SCOPE.................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION.............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE.....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................................................................................................4 3.0 DESCRIPTION OF TEST.............................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS.................................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS.....................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS........................................................................................................................9 EXHIBIT A. 6dB BANDWIDTH MEAUREMENT.................................................................................................................10-12 EXHIBIT A. OUTPUT POWER MEASUREMENT................................................................................................................13-15 EXHIBIT A. POWER SPECTRAL DENSITY................................…

Text truncated - open the document above for the full version.

PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07 PANASONIC FCC ID: ACJ9TGCF-VDW07 EUT Photographs © 2004 PCTEST Lab. Handheld Wireless Display w/ Sychip WLAN Model: CF-VDW07
