ACJ9TGCF-W51CF-W51 Notebook with WLAN(a+b+g) and EVDO

Contents Preparations Page Getting Started (Basic Operations) Troubleshooting Useful Information Important Information Preparations Getting Started Useful Information Troubleshooting Important Information OPERATING INSTRUCTIONS Personal Computer Model No. CF-W5 Series XP Read Me First .............................................................. 3 Usage Precautions/About Notations ..........................11 How to Use this Manual ............................................12 Names and Functions of Parts..................................13 Confirm the Status Using the LEDs ..........................15 First-time Operation ..................................................16 Starting Up/Shutting Down........................................23 Using the Touch Pad.................................................25 Using the Fn Key ......................................................26 Expanding Memory ...................................................27 Setup Utility...............................................................29 Usage/Handling/Maintenance...................................35 Wireless LAN<Only for models with wireless LAN>...37 Windows/Antivirus Protection ...................................38 Using CD/DVD ..........................................................41 Use of Peripheral Devices/Internal Hard Disk ..........42 List of Error Codes ....................................................43 Dealing with Problems (Summary) ...........................44 Reinstalling Software ................................................50 LIMITED USE LICENSE AGREEMENT ...................54 Hard Disk Backup Function ......................................56 When Disposing of This Computer ..........................60 Specifications ............................................................62 Index .........................................................................65 For first-time and basic opera- tion, refer to the Operating Instructions (this manual). For more information on how to use this computer, refer to the onscreen Reference Man- ual. Î page 12 For your technical support office, refer to “LIMITED WARRANTY.” 2 1 2 *1 For the Model No., insert the 12 digit number (for example, CF-W4GWCZZBM) located on the bottom of the computer. Introduction Thank you for purchasing the Panasonic computer. Read this manual thoroughly for proper operation of your new computer. Copyright This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be repro- duced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with respect to the use of the information contained herein. © 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Disclaimer Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liabil- ity for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. Trademarks Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation. SD Logo is a trademark. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. WinDVD ™ is a trademark of InterVideo, Inc. PhoenixBIOS is a common law trademark of Phoenix Technologies Ltd. Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner compa- nies. Customer’s Record Model No.* 1 Serial No. or Code No. Date of Purchase Dealer’s Name Dealer’s Address 3 Preparations Read Me First For U.S.A. Federal Communications Commission Radio Fre- quency Interference Statement Note: This equipment has been tested and found to com- ply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment gener- ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. zConsult the Panasonic Service Center or an experi- enced radio/TV technician for help. Warning To assure continued compliance, use only shielded inter- face cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC RF Exposure Warning: zThis computer is provided with a PC Card slot that could be used with wireless transmitter(s), which will be specifically recommended, when they become available. Other third-party wireless transmitter(s) have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements. <Only for models with wireless LAN> zThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. zThis equipment must be installed and operated in accordanc…

Text truncated - open the document above for the full version.

1 Supplementary Instructions for EVDO Model No. CF-T5/CF-W5 Series This manual contains supplementary instructions regarding the use of the computer. It ex- plains the cases where the operation of the computer differs from that in the Operating In- structions. Your computer is equipped with the EVDO enabling you to communicate using radio fre- quencies. 2 The following safety precautions must be observed during all phases of the operation, usage, service or repair of any Personal Computer or Handheld Computer incorporating EVDO. Manufacturers of the cellular terminal are advised to convey the following safety informa- tion to users and operating personnel and to incorporate these guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these precautions. When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch Personal Computer or Handheld Computer incorporating EVDO off, if instructed to do so by the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy. The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference from Personal Computer or Handheld Computer incorporating EVDO placed close to the device. If in doubt about po- tential danger, contact the physician or the manufacturer of the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or Handheld Computer incorporating EVDO away from the pacemaker, while it is on. Switch off Personal Computer or Handheld Computer incorporating EVDO before boarding an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communica- tions systems. Failure to observe these instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both. Do not operate Personal Computer or Handheld Computer incorporating EVDO in the presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots, chemical plants or where blasting opera- tions are in progress. Operation of any electrical equipment in potentially explo- sive atmospheres can constitute a safety hazard. Your Personal Computer or Handheld Computer incorporating EVDO receives and transmits radio frequency energy while switched on. Remember that interference can occur if it is used close to TV sets, radios, computers or inadequately shielded equip- ment. Follow any special regulations and always switch off Personal Computer or Handheld Computer incorporating EVDO wherever forbidden, or when you suspect that it may cause interference or danger. Safety Precautions Precautions 3 Road safety comes first! Do not use a Personal Computer or Handheld Computer in- corporating EVDO while driving a vehicle. Do not place the computer with EVDO in an area where it could cause personal injury to the driver or passengers. It is recom- mended to stow the unit in the boot or secure stowage area while driving. Do not place the computer with EVDO in an area over an air bag or in the vicinity where an air bag may deploy. Air bags inflate with great force and if the computer with EVDO is placed in the air bag deployment area may be propelled with great force and cause serious injury to occu- pants of the vehicle. 4 For U.S.A. Precautions Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radi- ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced radio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC RF Exposure Warning: This equipment is provided with PC Card slot that could be used with wireless transmit- ters, which will be specifically recommended when they become available. Other third-party wireless transmitters have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements. This equipment complies with FCC radiation exposure limits set forth for an uncon- trolled environment. This equipment has been approved for portable operation, and unless otherwise advised in separate supplemental instructions for individual wireless transmitter(s), requires mini- mum 1.5 cm spacing be provided between antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This equipment may use multiple installed transmitters, which may be capable of simul- taneous transmission. This device complie…

Text truncated - open the document above for the full version.

This manual contains supplementary instructions regarding the use of the computer. It explains the cases where the operation of the computer differs from that in the Operating Instructions. Your computer is equipped with Wireless LAN enabling you to communicate using radio frequencies. Supplementary Instructions for Wireless LAN FCC Radio Frequency Interference Requirements This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this product. Specifications Data transfer rates Standards supported Transmission method Wireless channels used RF frequency band IEEE802.11a: 54/48/36/24/18/12/9/6Mbps (automatically switched) IEEE802.11g: 54/48/36/24/18/12/9/6Mbps (automatically switched) IEEE802.11b: 11/5.5/2/1 Mbps IEEE802.11a/IEEE802.11g/IEEE802.11b OFDM system, DSSS system IEEE802.11a: Channels 36 to 64, 149 to 165 IEEE802.11b/IEEE802.11g: Channels 1 to 11 IEEE802.11a: 5.18~5.32GHz, 5.745~5.825GHz IEEE802.11g/IEEE802.11b: 2412~2462MHz 3 Wireless LAN If you use a wireless LAN, you can use a network without cable connections. CAUTIONz Communication is performed through the wireless LAN antenna. Do not block the antenna area with your hand or otherwise interfere with the passage of the radio signals. NOTEz The communication speeds and distances differ depending on the devices that support the wireless LAN, the installation environment and other ambient conditions. z One characteristic of radio waves is that th eir transmission rate tends to drop as the communication distance increases. It is recommended that the devices supporting the wireless LAN be used in close vicinity to each other. z The rate may drop while a microwave oven is being used. Windows XP z Do not use the Fast User Switching function. „ Do not use wireless LAN on airpl anes, in hospitals, or in other locations where wireless LAN signa ls may affect the operation of devices in the vicinity. z If you intend to use the computer in the environments described above, turn the wireless LAN off using the following method: 1 Double-click or on the taskbar. 2 Select your wireless LAN adaptor and select [General]. 3 Select [Off] for [Switch radio]. 4 Select [OK].The icon will turn to . Precautions 4 Wireless LAN „ To prevent theft of dat a or unauthorized access to the hard disk via a wireless LAN. z If you plan to use wireless LAN functions, we recommend that you do so only after making the appropriate security settings, such as for data encryption. „ We recommend turning the wireless LAN off when it is not used or out of range. z If you leave the wireless LAN on, the battery's operating time is shortened. To use the wireless LAN, set the profile using the following procedure.The settings will vary for diff erent network environments de pending on the network system being used. For more details, a sk your system administrator or the person in charge of the network. CAUTIONz Set profiles for each user using the following procedure. NOTE Windows XP z If [Windows XP is currently configured to manage the Intel(R) PRO/Wireless LAN adaptor.] is displayed, select [Yes]. Windows 2000 z After setting the profile, delete the profile displayed at the time of purchase (profile name: Default). 1 Double-click on the taskbar. 2 Select your wireless LAN adap ter and select [General]. 3 Select [On] for [Switch radio]. The Settings 5 Wireless LAN 4 Select [Networks] and select [Add]. 5 Enter the profile name and network name (SSID), and then make other necessary changes, then select [Next]. 6 Make necessary changes and select [Finish]. 7 Select [OK]. NOTEz About WLAN Security ClientWLAN Security Client is an implementation of the client side of the IEEE 802.1X-Port Based Network Access Control protocol. • Since the WLAN Security Client has alre ady started when is displayed on the taskbar, do not double-start it. If is not displayed, start up the WLAN Security Client in the following menu.Windows XP Select [Start] - [All Programs] - [Int el] - [WLAN Security Client Manager]. Windows 2000Select [Start] - [Programs] - [Intel] - [WLAN Security Client Manager]. • For more information about how to use the WLAN Security Client, refer to [Help] in the menu bar or;Windows XP Select [Getting Started Guide] or [User's Guide] in [Start] - [All Programs] - [Intel].Windows 2000Select [Getting Started Guide] or [User's Guide] in [Start] - [Programs] - [Intel]. Select or on the taskbar to check the communication status.For more information about how to use the Intel PROSet, refer to [Help] in the menu bar. Check the Communication Status 6 Wireless LAN If the function fails to operate correctly Read the operating instructions for the access point carefully and check the settings.„ The access point fails to be displayed in [Available Networks] z Select the profile you are using, and select [Advanced] in [Networks]. [Connect to ad hoc networks only] may have been selected in [Connection preference]. In this case, select [Connect to infrastructure and ad hoc networks]. z This computer uses channels 1 through 11 *1 . Check the channel being used. *1 In the case of wireless communications, the frequency band being used can be divided into segments, so that different communications can be conducted on each band segment. A "Channel" refers to the individual frequency bandwidth divisions. „ The access point cannot be accessed z The network key setting may not conform to the access point.Check the network key setting of the access point and, if necessary, set it again correctly. z Depending on the access point and settings, access may not be accepted unless the computer's MAC address is registered b…

Text truncated - open the document above for the full version.

Panasonic Corporation of America Three Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division July 7, 2006 ITPD-06-F009A: WLAN Part 15C / DTS / EA434113 ITPD-06-F009B: UNII Part 15E / NII / EA802725 ITPD-06-F009C: EVDO Parts 22H, 24E / PCB / EA723908 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Panasonic Notebook Computer Model CF-W5 Family with Intel WLAN and Sierra EVDO / FCC Certification for FCC ID: ACJ9TGCF-W51 To Whom It May Concern: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents Portable Panasonic Toughbook Computer Model CF-W51 Family with Intel Core Solo Processor U1300 (1.06 GHz) FSB 533 MHz to be marketed under FCC ID: ACJ9TGCF-W51. This product will be marketed with the following two transmitters: (1) Intel WLAN (a+b+g) Module, Model WM3945ABG with Part 15C operation within 2412~2462 MHz at 26.4 mW and 5745~5825 MHz at 34.9 mW peak conducted RF output power; and Part 15E operation within low band 5180~5240 at 27.7 mW and high band 5260~5320 MHz at 13.7 mW peak conducted RF output; and (2) Sierra EVDO Module, Model MC5720 with Part 22H operation within 824.70~848.31 MHz at 0.498 watts ERP; and Part 24E operation within 1851.25~1908.75 MHz at 0.360 watts EIRP. The maximum worse-case SAR measurements was 1.250 W/kg 802.11a (5.8 GHz) Body SAR. This PC contains the following Inverted-F type transmitter antennas: (1) WLAN Main TX/RX and Aux TX/RX antennas with 2.65 dBi and 0.99 dBi antenna gains; and (2) EVDO Main TX/RX and Aux TX/RX antennas with 3.80 dBi and 2.59 dBi antenna gains. The PC’s main User Manual gives all FCC required notices and warning, including general RF Exposure Warning and notice about NII operation for indoor use only. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits which contain Operation Description, Parts Lists & Tune-Up Procedure, Block Diagram and Schematic Diagram. The WLAN transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Also, in accordance with FCC Public DA 04-1705, we request short-term confidentiality for exhibits which contain External Photographs, Internal Photographs and User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager

Panasonic Corporation of America Three Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division August 16, 2006 ITPD-06-F009A: WLAN Part 15C / DTS / EA434113 ITPD-06-F009B: UNII Part 15E / NII / EA802725 ITPD-06-F009C: EVDO Parts 22H, 24E / PCB / EA723908 To: Stanley Lyles / FCC Application Processing Branch FCC ID: ACJ9TGCF-W51 Applicant: Panasonic Corporation of North America 731 Confirmation Numbers: EA434113, EA802725, EA723908 Correspondence Ref Numbers: 31384, 31385, 31383 Subject: Laptop Computer, Model CF-W5 Family with Intel WLAN(a+b+g) and Sierra EVDO 1) SAR test photos not found - please submit, including revised cover letter for short-term confidentiality for all test setup photos if appropriate. Answer : SAR test set-up photographs and amended cover letter with additional short-term confidentiality request for all submitted test setup photographs has been filed. 2) CF-W5 user manual shows position of WLAN antennas, but not pt22/24 antenna(s) - if updated user manual is available, please submit. Answer : The WLAN Main TX/RX and Aux TX/RX antennas are located in the bottom keyboard; and the EVDO Main TX/RX and Aux TX/RX antennas are located in top LCD. Refer to additional filed photograph. 3) What is distance from closest point of pt22/24 antenna(s) to bottom of base of laptop? Answer : The EVDO’s transmitter antennas are located in the LCD and are located greater than 20 cm from the bottom base of the laptop. As such, the WLAN is portable and the EVDO is mobile applications. 4). The operation description exhibit shows 5.47-5.725GHz capabilities. Please clarify if this band is available on this device and submit test data as required. Answer: The provided operational description inadvertently included future specifications for operation within 5.47-5.725GHz. At this time, this product is not intended to be marketed for operation within frequency band. 5) In accordance with OET/Lab grant power listing procedures (e.g., July 2006 TCB conference call, repeated below for convenience), max radiated power will be listed in grant notes. Please explain and /or revise filing to clarify what are measured maximum radiated powers for this transmitter integrated into this specific final-product. Answer: The Parts 15C and 15E output powers were reported as Peak Conducted Output Power. The Parts 22H and 24E output powers were reported as ERP and EIRP. The highest reported SAR measurements are 0.657 W/kg 802.11b Body SAR; 0.663 W/kg 802.11g Body SAR; 0.648 W/kg 802.11a (5.3GHz) Body SAR; and 1.25 W/kg 802.11a (5.8 GHz) for Body SAR. Sincerely yours, Richard Mullen Richard Mullen Group Manager

Panasonic Corporation of America Three Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Amended August 16, 2006 ITPD-06-F009A: WLAN Part 15C / DTS / EA434113 ITPD-06-F009B: UNII Part 15E / NII / EA802725 ITPD-06-F009C: EVDO Parts 22H, 24E / PCB / EA723908 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Authority to Act as FCC Agent for Panasonic Laptop Computer Model CF-W5 Family with Intel WLAN(a+b+g) and Sierra EVDO / FCC Certification for FCC ID: ACJ9TGCF-W51 Dear Stanley Lyles: On behalf of Panasonic Corp. of North America, we herby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in matters relating to FCC equipment authorization, including the signing of documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. This project represents Portable Panasonic Laptop Computer Model CF-W51 Family with Intel Core Solo Processor U1300 (1.06 GHz) FSB 533 MHz to be marketed under FCC ID: ACJ9TGCF-W51. This product will be marketed with the following two transmitters: 1. Intel WLAN (a+b+g), Model WM3945ABG with Part 15C operation within 2412~2462 MHz at 26.4 mW and 5745~5825 MHz at 34.9 mW peak conducted RF output power; and Part 15E operation within low band 5180~5240 at 15.10 mW and high band 5260~5320 MHz at 13.74 mW peak conducted RF output 2. Sierra EVDO, Model MC5720 with Part 22H operation within 824.70~848.31 MHz at 0.498 watts ERP with emission designator 1M27F9W; and Part 24E operation within 1851.25~1908.75 MHz at 0.360 watts EIRP with emission designator 1M27F9W. The highest reported SAR measurements are 0.657 W/kg 802.11b Body SAR; 0.663 W/kg 802.11g Body SAR; 0.648 W/kg 802.11a (5.3GHz) Body SAR; and 1.25 W/kg 802.11a (5.8 GHz) for Body SAR. This PC contains the following Inverted-F type transmitter antennas: (1) WLAN Main TX/RX and Aux TX/RX antennas located in keyboard with 2.65 dBi and 0.99 dBi antenna gains; and (2) EVDO Main TX/RX and Aux TX/RX antennas located in LCD with 3.80 dBi and 2.59 dBi antenna gains. The PC’s main User Manual gives all FCC required notices and warning, including general RF Exposure Warning and notice about NII operation for indoor use only. In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for transmitter’s exhibits which contain Operation Description, Parts Lists & Tune-Up Procedure, Block Diagram and Schematic Diagram. The WLAN transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. Also, in accordance with FCC Public DA 04-1705, we request short-term confidentiality for exhibits which contain External Photographs, Internal Photographs, Test Set-Up Photographs and the User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager

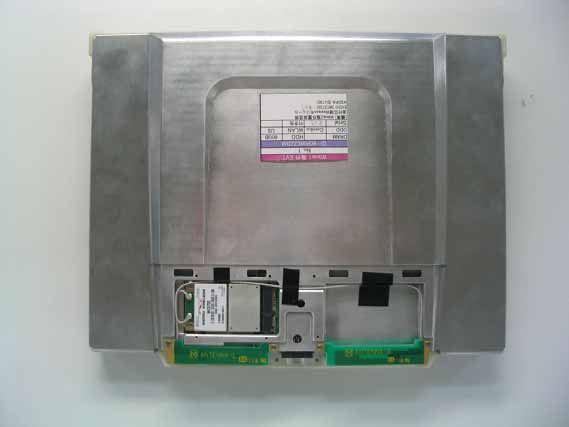

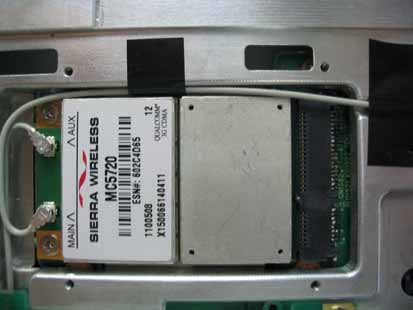

<CF-T5 W5 EVDO Antenna position> CF-T5, CF-W5 Top View without EVDO antenna cover Magnified View EVDO Module Aux TX/RX Antenna Main TX/RX Antenna EVDO Module (Sieera MC5720) Main Antenna AUX Antenna Antenna Specification Main TX/RX Antenna: Inverted F type: ***dBi max Aux TX/RX Antenna: Inverted F type: ***dBi max

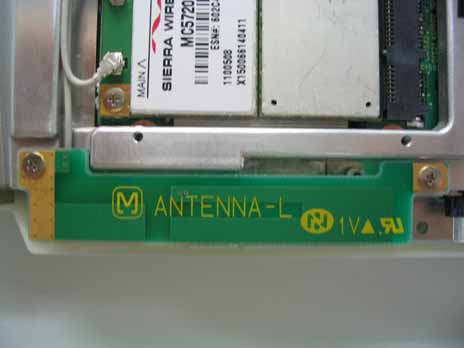

<CF-W5 WLANa+b+g + EVDO photo> 1) CF-W5 Front View Aux TX/RX Antenna Main TX/RX Antenna 2) WLAN Card position WLAN Card Position Reverse Side 3) WLAN exterior photo WLAN Top View WLAN Bottom View 4) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 5) WLAN Antenna position Aux TX/RX Antenna Main TX/RX Antenna Main TX/RX Antenna magnified View Main TX/RX Antenna magnified View(Reverse Side) Aux TX/RX Antenna Magnified View Aux TX/RX Antenna Magnified View(Reverse side) 6) Top View without EVDO antenna cover 7) EVDO Module and antenna position Magnified View Main TX/RX Antenna EVDO Module (Sierra MC5720) Aux TX/RX Antenna EVDO Main Antenna Magnified Viwe EVDO AUX Antenna Magnified View 8) EVDO Exterior photo EVDO Top View EVDO Bottom View 9) EVDO Exterior photo EVDO Inside Top View EVDO Inside Bottom View 10) Antenna Specification WLAN Main TX/RX Antenna: Inverted F type: 2.65 dBi max WLAN Aux TX/RX Antenna: Inverted F type: 0.99 dBi max EVDO Main TX/RX Antenna: Inverted F type: 3.80 dBi max EVDO Aux TX/RX Antenna: Inverted F type: 2.59 dBi max

<CF-W5 WLANa+b+g photo> 1) CF-W5 Front View Aux TX/RX Antenna Main TX/RX Antenna 2) WLAN Card position WLAN Card Position Reverse Side 3) WLAN exterior photo WLAN Top View WLAN Bottom View 4) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 5) Antenna position Aux TX/RX Antenna Main TX/RX Antenna Main TX/RX Antenna magnified View Main TX/RX Antenna magnified View(Reverse Side) Aux TX/RX Antenna Magnified View Aux TX/RX Antenna Magnified View(Reverse side) 6) Antenna Specification Main TX/RX Antenna: Inverted F type: 2.65Bi max Aux TX/RX Antenna: Inverted F type: 0.99dBi max *Note: WLAN antenna is diversity antenna.

<FCC ID & DoC LABEL for CF-W5 EVDO> 1) FCCID LABEL 2) FCC DoC LABEL FCC ID: ACJ9TGCF-W51 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Position FCC DoC Position

2) WLAN Card position WLAN Card Position Reverse Side 3) WLAN exterior photo WLAN Top View WLAN Bottom View 4) WLAN interior photo WLAN inside Top View WLAN inside Bottom View 5) WLAN Antenna position Aux TX/RX Antenna Main TX/RX Antenna Main TX/RX Antenna magnified View Main TX/RX Antenna magnified Vi…
