ACJ9TGFZ-A13Tablet PC

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Power Reduction Attestation Letter July 12, 2012 ITP-12-F014 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Original Application for Panasonic System Approval Panasonic Tablet Model FZ-A1 with WLAN, Bluetooth and WWAN (MC7700) / FCC ID: ACJ9TGFZ-A13 To Whom It May Concern, We, the undersigned Panasonic Corporation of North America, hereby declare that we are fully responsible for the power reduction design and configuration in the tablet product, FCC ID: ACJ9TGFZ-A13. The purpose of power reduction design is to reduce radiation power to meet the SAR criteria of FCC for specified WWAN application and only used for the main antenna. Because the tablet, FCC ID: ACJ9TGFZ-A13 integrates a WWAN module for GPRS/EDGE/WCDMA/LTE application (The detail is described in the operation description and tune up procedure) and this WWAN module is certificated by PTCRB and FCC, its FW is fixed and could not be change by our EUT, FCC ID: ACJ9TGFZ- A13, or third-party application program. Therefore, these LTE modes and configurations can never operate at higher power levels due to the MPR implementation. Finally, in the power reduction design, the decreasing power of LTE modes is “LTE MPR + P-sensor power reduction.” The attached table is specified P-sensor power reduction for wireless mode and operating combination. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division P-Sensor Power Reduction Table Technology/BandMode P-sensor Power Reduction (dB) GPRS8 0 GPRS850 GPRS10 5 EDGE8, MCS1-MCS4 0 EDGE10, MCS1-MCS4 0 EDGE11, MCS1-MCS4 0 EDGE12, MCS1-MCS4 3 EDGE8, MCS5-MCS9 0 EDGE10, MCS5-MCS9 0 EDGE11, MCS5-MCS9 0 EDGE850 EDGE12, MCS5-MCS9 3 GPRS8 0 GPRS1900 GPRS10 3 EDGE8, MCS1-MCS4 0 EDGE10, MCS1-MCS4 0 EDGE11, MCS1-MCS4 3 EDGE12, MCS1-MCS4 4 EDGE8, MCS5-MCS9 0 EDGE10, MCS5-MCS9 0 EDGE11, MCS5-MCS9 3 EDGE1900 EDGE12, MCS5-MCS9 3 RMC12.2K-data 3 HSDPA, 3 UMTS V HSUPA, 3 RMC12.2K-data 5 HSDPA, 5 UMTS II HSUPA, 5 MPR=0 5MHz, QPSK MPR=1 0 MPR=1 5MHz, 16QAM MPR=2 0 MPR=0 10MHz, QPSK MPR=1 0 MPR=1 LTE B17 10MHz, 16QAM MPR=2 0 MPR=05 5MHz, QPSK MPR=14 MPR=14 5MHz, 16QAM MPR=23 MPR=05 10MHz, QPSK MPR=14 MPR=14 LTE B4 10MHz, 16QAM MPR=23

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality May 25, 2012 ITP-12-F014 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Original Application for Panasonic System Approval Panasonic Tablet Model FZ-A1 with WLAN, Bluetooth and WWAN (MC7700) FCC ID: ACJ9TGFZ-A13 To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as permanent confidential document from public disclosure. • Schematic Diagram • Block Diagram • Parts List • Tune-Up Procedure • Theory of Operation (Operational Description) Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In addition, please be advised that Panasonic Corporation of North America hereby requests the following filed sensitive information to be held under short-term confidential, pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s Rules and the provisions in FCC Public DA 04-1705. We request temporarily confidentiality of forty-five days, starting from the original issued Certification grant date. • External & Internal Photographs • Test Setup Photographs • Users Manual Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Agent Authorization Letter May 25, 2012 ITP-12-F014 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Original Application for Panasonic System Approval Panasonic Tablet Model FZ-A1 with WLAN, Bluetooth and WWAN (MC7700) FCC ID: ACJ9TGFZ-A13 To whom it may concern: We, the undersigned Panasonic Corporation of North America hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan and Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd. Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Parts 15C and 15E and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. The undersigned hereby certify that I am not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This authorization is valid for one year period from the date of this letter. This application for the subject equipment has not been submitted to another TCB for certification Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

Declaration Disable 2G/3G Voice Function June 5, 2012 ITP-12-F014 Re: Original Application for Panasonic System Approval Panasonic Tablet Model FZ-A1 Series with WLAN, Bluetooth and WWAN (MC7700) FCC ID: ACJ9TGFZ-A13 We, Panasonic Corporation of North America, declare that the device will disable 2G Voice / 3G Voice function by software and can’t be operated by end-user or third party. FCC ID: ACJ9TGFZ-A13 Model name: FZ-A1BDAAAAM Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Hardware Equality Declaration June 8, 2012 ITP-12-F014 Re: Original Application for Panasonic System Approval for Panasonic Tablet PC Description: The layout of basic sku has WWAN antenna and P-Sensor Design. It’s technical identical with following models except adding WWAN module card. FCC ID: ACJ9TGFZ-A11 is basic SKU. FCC ID Specification WWAN Brand ACJ9TGFZ-A11 Wi-Fi/BT No WWAN ACJ9TGFZ-A12 Wi-Fi/BT/WWAN Sierra (MC7750) ACJ9TGFZ-A13 Wi-Fi/BT/WWAN Sierra (MC7700) Therefore, we only provide spot check document for SAR portion of Wi-Fi function as below: FCC ID: ACJ9TGFZ-A12 FCC ID: ACJ9TGFZ-A13 Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Declaration Disable 2G/3G Voice Function June 8, 2012 ITP-12-F014 Re: Original Application for Panasonic System Approval Panasonic Tablet Model FZ-A1 Series with WLAN, Bluetooth and WWAN (MC7700) FCC ID: ACJ9TGFZ-A13 We, Panasonic Corporation of North America, declare that the device will disable 2G Voice / 3G Voice function by software and can’t be operated by end-user or third party. FCC ID: ACJ9TGFZ-A13 Model name: FZ-A1BDAAAAM Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

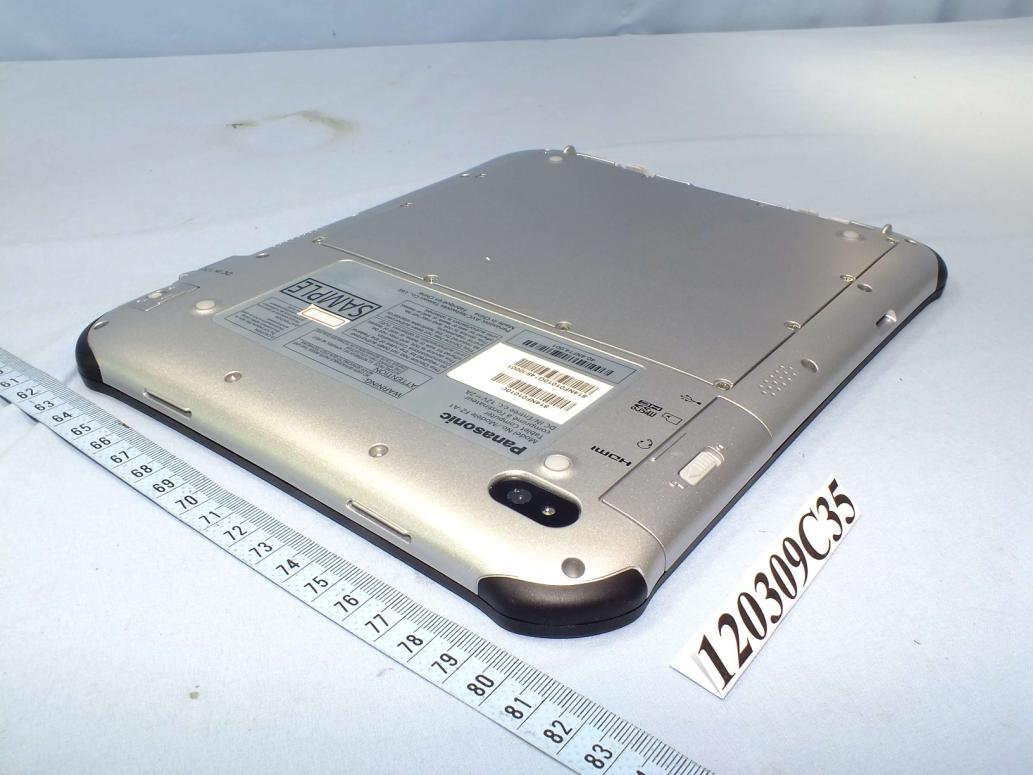

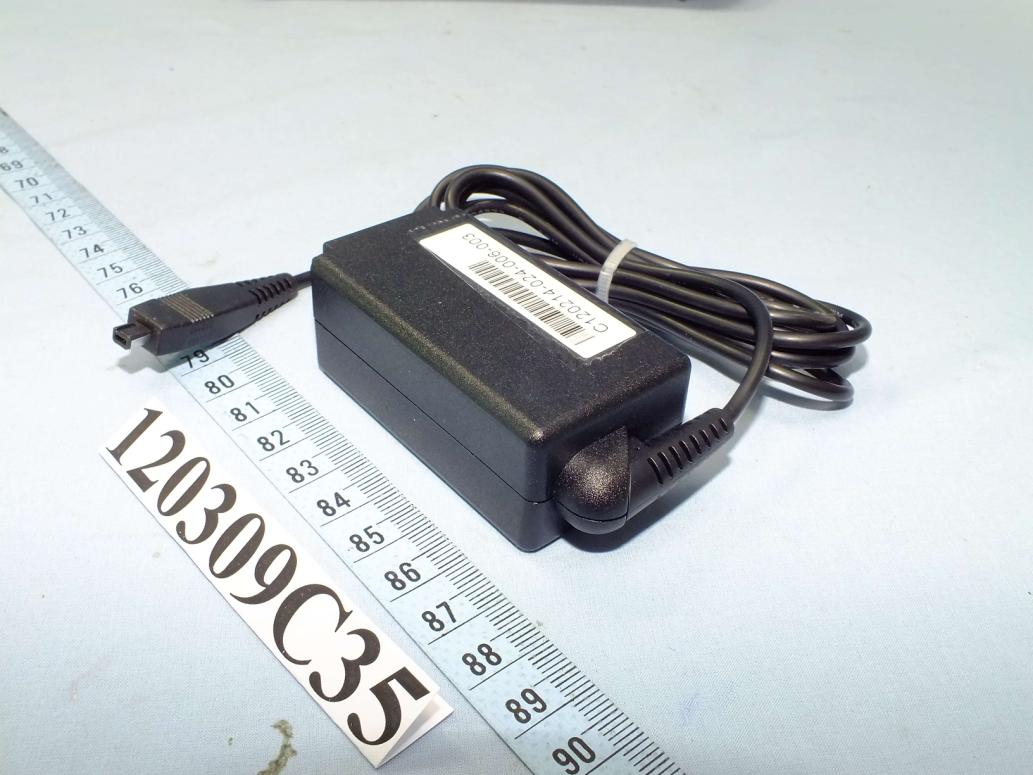

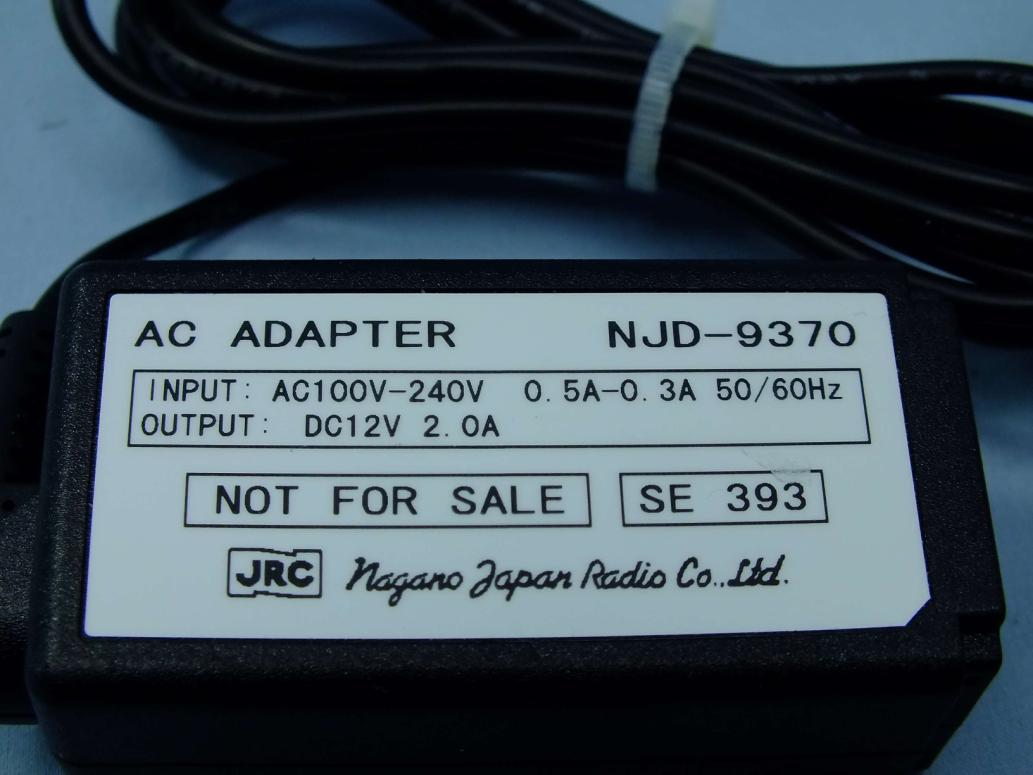

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID: ACJ9TGFZ-A13 Label Location

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18

LTE(MT8820C)基地台 操作說明 1.換基地台功能按Std 鍵 2.點選F2 LTE22.20S#027 進入LTE功能 3.點選Preset鍵 4.再按右邊F1 Preset回覆原始設定 5.按Screen鍵 6.選擇Fundamental Measurement 7.按Focus鍵 8.選擇到Parameter 9.按F1 Common 10.一開始選Normal連線的調變即可 11.Channel Bandwidth 選擇 連線 頻寬5MHz或10MHz 12.Operation Band設定連線的Band 13.UL Channel & Frequency 設定連線CH 14.External Loss ->選On 是針對 目前的Band Main UL及Main DL做Loss補償 15.External Loss ->選Common 針對頻率做Loss補償 Loss補償設定 特定頻率補償: 16.按Screen鍵 17.按Common鍵 18.按Common External Loss 19.在中間視窗空白按Enter進入選單 Frequency:設定補設定補償的頻率 DL(Main):該頻率的補償值 UL(Main):該頻率的補償值 同時對單點設定多組Loss補償 (單個頻率設定完,按SET結束設定) 20.EUT註冊到基地台前 21.EUT註冊到基地台後 22.按Start Call連線 23.連線基地台會顯示Conducted 24.按Focus鍵 25.選擇到->Fundamental 26.按Next到第2頁 27.選擇F3 TX-1 Test Parameter 28.選擇F1 TX-1 Max Power 29.點選Continuous 讓TX Power顯示 30.選擇要連的調變 31.按Focus鍵 32.選擇到->Parameter 33.設定Number of RB 百分比 100%:50 50%:25 25%:12 34.設定Starting RB起始位置

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/12 System Check_B750_120312 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: B750_0312 Medium parameters used: f = 750 MHz; σ = 0.966 mho/m; ε r = 55.243; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(9.34, 9.34, 9.34); Calibrated: 2011/08/05 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.964 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.694 V/m; Power Drift = -0.0055 dB Peak SAR (extrapolated) = 3.4640 SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.977 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/06/13 System Check_B750_120613 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: B750_0613 Medium parameters used: f = 750 MHz; σ = 0.966 mho/m; ε r = 55.3; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.61, 10.61, 10.61); Calibrated: 2012/02/23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1039 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.58 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.3 V/m; Power Drift = -0.003 dB Peak SAR (extrapolated) = 3.03 W/kg SAR(1 g) = 2.1 mW/g; SAR(10 g) = 1.42 mW/g Maximum value of SAR (measured) = 2.62 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/10 System Check_B835_120310 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_0310 Medium parameters used: f = 835 MHz; σ = 0.988 mho/m; ε r = 54.796; ρ = 1000 kg/m 3 Ambient Temperature：21.9 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.169 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.972 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.6650 SAR(1 g) = 2.51 mW/g; SAR(10 g) = 1.66 mW/g Maximum value of SAR (measured) = 3.152 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/13 System Check_B835_120313 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_0313 Medium parameters used: f = 835 MHz; σ = 0.979 mho/m; ε r = 54.682; ρ = 1000 kg/m 3 Ambient Temperature：22.2 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.306 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.974 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.8240 SAR(1 g) = 2.62 mW/g; SAR(10 g) = 1.74 mW/g Maximum value of SAR (measured) = 3.298 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/02 System Check_B835_120502 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d092 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_0502 Medium parameters used: f = 835 MHz; σ = 0.994 mho/m; ε r = 56.023; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011/06/24 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.10 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.076 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.600 mW/g SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 3.08 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/21 System Check_B835_120521 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d021 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_0521 Medium parameters used: f = 835 MHz; σ = 0.992 mho/m; ε r = 55.533; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：20.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.12, 9.12, 9.12); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/7/29 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) P…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/02 P130 GSM850_GPRS8_Rear Face_0cm_Ch251_Earphone_Sensor On DUT: 120309C35 Communication System: GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.30042 Medium: B835_0502 Medium parameters used: f = 849 MHz; σ = 1.008 mho/m; ε r = 55.877; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011/06/24 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch251/Area Scan (121x151x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.26 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.967 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 2.050 mW/g SAR(1 g) = 1.2 mW/g; SAR(10 g) = 0.705 mW/g Maximum value of SAR (measured) = 1.61 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/02 P131 GSM850_GPRS8_Rear Face_0cm_Ch128_Earphone_Sensor On DUT: 120309C35 Communication System: GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.30042 Medium: B835_0502 Medium parameters used : f = 824.2 MHz; σ = 0.983 mho/m; ε r = 56.132; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011/06/24 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch128/Area Scan (101x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.20 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.086 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.857 mW/g SAR(1 g) = 1.09 mW/g; SAR(10 g) = 0.639 mW/g Maximum value of SAR (measured) = 1.43 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/02 P126 GSM850_GPRS8_Rear Face_0cm_Ch189_Earphone_Sensor On DUT: 120309C35 Communication System: GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.30042 Medium: B835_0502 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 56.007; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011/06/24 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch189/Area Scan (71x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.65 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.582 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 2.039 mW/g SAR(1 g) = 1.18 mW/g; SAR(10 g) = 0.689 mW/g Maximum value of SAR (measured) = 1.63 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/02 P127 GSM850_GPRS8_Secondary Portrait_0cm_Ch251_Earphone_Sensor On DUT: 120309C35 Communication System: GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.30042 Medium: B835_0502 Medium parameters used: f = 849 MHz; σ = 1.008 mho/m; ε r = 55.877; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011/06/24 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch251/Area Scan (41x131x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.64 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 33.064 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 5.286 mW/g SAR(1 g) = 1.22 mW/g; SAR(10 g) = 0.719 mW/g Maximum value of SAR (measured) = 1.73 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/02 P128 GSM850_GPRS8_Secondary Portrait_0cm_Ch128_Earphone_Sensor On DUT: 120309C35 Communication System: GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.30042 Medium: B835_0502 Medium parameters used: f = 824.2 MHz; σ = 0.983 mho/m; ε r = 56.132; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011/06/24 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW: DASY52, Version 52.8 (1); SEMCAD X Version 14.6.5 (6469) Ch128/Area Scan (41x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.58 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 32.841 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.899 mW/g SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.655 mW/g Maximum value of SAR (measured) = 1.51 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/05/02 P129 GSM850_GPRS8_Secondary Portrait_0cm_Ch189_Earphone_Sensor On DUT: 120309C35 Communication System: GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.30042 Medium: B835_0502 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 56.007; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3800; ConvF(8.94, 8.94, 8.94); Calibrated: 2011/08/05; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2011/06/24 - Phantom: ELI v4.0; Type: QDOVA001BA; Serial: TP:1043 - Measurement SW:…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 4.1.0 Page No. : 1 of 40 Report No. : SA120309C35 Issued Date : Jun. 15, 2012 Revision : R01 FCC SAR Test Report Report No. : SA120309C35 Applicant : Panasonic Corporation of North America Address : One Panasonic Way, 4B-8 Secaucus, NJ 07094 Product : Tablet PC FCC ID : ACJ9TGFZ-A13 Brand : Panasonic Model No. : FZ-A1BDAAAAM Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 447498 D01 v04 / KDB 941225 D01 v02 KDB 941225 D03 v01 / KDB 941225 D05 v01 Date of Testing : Mar. 03, 2012 ~ Jun. 15, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. This test report consists of 40 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Prepared By : Ivonne Wu / Senior Specialist Approved By : Roy Wu / Manager FCC SAR Test Report Report Format Version 4.1.0 Page No. : 2 of 40 Report No. : SA120309C35 Issued Date : Jun. 15, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 7 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 7 3.2 SPEAG DASY System ................................................................................................................................................. 7 3.2.1 Robot.................................................................................................................................................................. 8 3.2.2 Probes ................................................................................................................................................................ 9 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 9 3.2.4 Phantoms ......................................................................................................................................................... 10 3.2.5 Device Holder ................................................................................................................................................... 11 3.2.6 System Validation Dipoles ................................................................................................................................ 11 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 12 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 15 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR Averaged Methods ................................................................................................................................... 16 4. SAR Measurement Evaluation ............................................................................................................................................ 17 4.1 EUT Configuration and Setting ................................................................................................................................... 17 4.2 EUT Testing Position .................................................................................................................................................. 21 4.3 Tissue Verification ...................................................................................................................................................... 22 4.4 System Verification ..................................................................................................................................................... 23 4.5 Conducted Power Result…

Text truncated - open the document above for the full version.

Report No.: RF120309C35 R1 1 of 35 Report Format Version 5.0.0 Cancels and replaces the report No.: RF120309C35 dated May 31, 2012 FCC TEST REPORT (PART 22) REPORT NO.: RF120309C35 R1 MODEL NO.: FZ-A1BDAAAAM FCC ID: ACJ9TGFZ-A13 RECEIVED: Mar. 09, 2012 TESTED: Apr. 06 ~ Jun. 15, 2012 ISSUED: Jun. 15, 2012 APPLICANT: Panasonic Corporation of North America ADDRESS: One Panasonic Way, 4B-8 Secaucus, NJ 07094 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120309C35 R1 2 of 35 Report Format Version 5.0.0 Cancels and replaces the report No.: RF120309C35 dated May 31, 2012 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 3 1 CERTIFICATION .................................................................…

Text truncated - open the document above for the full version.
