ACJ9TGRI11ARFID Module

RFID: RI11A User Manual 1 GENERAL 1-1 Purpose and Scope of this document This document contains the specifications pertinent to the module for 13.56MHz RFID. Items Specification RFID reader RF frequency: 13.56 MHz, compatible with ISO14443 TYPE-A, ISO14443 TYPE-B, ISO15693 Operation Environment Temperature: 5 °C to 35 °C {41 °F to 95 °F} Humidity: 30% to 80% RH (No condensation) Storage Environment Temperature: –20 °C to 60 °C {–4 °F to 140 °F} Humidity: 30% to 90% RH (No condensation) Regulatory Information USA-Federal Communications Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labeling System integrators must include the FCC ID on the end product. Canada-Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of this device. L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Labeling System integrators must include the IC ID on the end product. Important Notice Panasonic will not sell radio modules to any third party; and will not allow aftermarket installation by any third party or end user. Instead, they will only be installed within Panasonic Notebooks, Laptops, Tablets and Ultra Mobile Toughbook PCs. Panasonic confirms that the provided operating instruction to user will not include any instructions how to add or remove any of the transmitter modules. Professional installation is required.

Contents Getting Started Introduction .................................................................2 Read Me First .............................................................3 (Precautions) Description of Parts ....................................................9 Preparation ...............................................................11 First-time Operation ..................................................12 OPERATING INSTRUCTIONS Personal Computer Model No. CF-H2 series Useful Information On-screen Manual ....................................................16 Handling and Maintenance .......................................17 Reinstalling Software ................................................19 Troubleshooting Troubleshooting (Basic) ............................................21 Appendix LIMITED USE LICENSE AGREEMENT ...................25 Specifications ...........................................................27 LIMITED WARRANTY ..............................................30 Please read these instructions carefully before using this product, and save this manual for future use. For further information about the computer, you can refer to the on-screen manual. To access the on-screen manual è page 16 “On-screen Manual” Getting Started Useful Information Troubleshooting Appendix 2 Getting Started Introduction Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions carefully. In these instructions, the names are referred as follows. l Genuine “Windows ® 7 Professional” as “Windows” or “Windows 7” l Genuine “Microsoft ® Windows ® XP Tablet PC Edition Service Pack 3” as “Windows” or “Windows XP” n Terms and illustrations in these instructions è : Page in these Operating Instructions or in the Reference Manual. : Reference to the on-screen manuals. CAUTION : Conditions that may result in minor or moderate injury. NOTE : Useful and helpful information. Click : Touch the screen with the digitizer pen. Right-click : Touch and hold with the digitizer pen, or press and hold the right button, and then touch the object. (Start) - [All Programs] : Click (Start), and then click [All Programs]. [start] - [All Programs] : Click [start], and then click [All Programs]. You may need to double-click in some cases. <Only when connected to Cradle and keyboard> : Press [] (Enter) key. Ctrl + F7 : Press and hold Ctrl key, and then press F7 key. l The display of the key may be different from this manual according to the keyboard used. (e.g. “Delete” instead of “Del”) <For flash memory model> Read the term “hard disk” as “flash memory” whenever it appears in this manual. l Some illustrations are simplified to help your understanding and may look different from the actual unit. l If you do not log on as an administrator, you cannot use some functions or cannot display some screens. l Refer for the latest information about optional products to the catalogs, etc. n Disclaimer Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals. n Trademarks Microsoft ® , Windows ® and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries. Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Computrace ® is a registered trademark of Absolute ® Software Corp. Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation. Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective own companies. 3 Getting Started Federal Communications Commission Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. l Consult the Panasonic Service Center or an experienced radio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Exposure Warning: <Only for model with wireless LAN/wireless WAN/ Bluetooth> l This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. l This equipment has been approved for portable operation, and does not require any minimum spacing be provided between antennas and all…

Text truncated - open the document above for the full version.

Applicant/Grantee Panasonic Corporation of North America FCC ID: ACJ9TGRI11A Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device does not have Metal shielding to cover RF section. Refer to external photos N 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All inputs to the device are buffered through logic IC3 inputs. Refer to Schematic Diagram. Y 3 The modular transmitter must have its own power supply regulation. There is no power supply regulation in the module. 5V DC is fed by the final product. N 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Device is equipped with unique antenna connector. Refer to external photos . Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially The device was installed into the final product for testing. Refer to setup photos. N available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: ACJ9GTRI11A” shall be placed on the outside of final host system. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The device complies with RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Agent Authorization Letter June 15, 2011 ITD-11-F018 UL CCS Certification Division 47173 Benicia Street Fremont, CA 94538, USA Re: Original Application for RFID Limited Modular Approval for Panasonic RFID Module, Model RI11A under FCC ID: ACJ9TGRI11A / Installed within Panasonic Personal Computer Model CF-H2mk1 To whom it may concern: The undersigned hereby authorizes Ms. Claire Hoque /Application Examiner of Compliance Engineering Services, Inc., d.b.a. UL CCS and hereafter referred to as UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL CCS on our behalf shall have the same effect as acts of our own. The undersigned hereby certify that I am not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This authorization is valid for one year period from the date of this letter. This application for the subject equipment has not been submitted to another TCB for certification In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division June 15, 2011 ITD-11-F018 h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality June 15, 2011 ITD-11-F018 UL CCS Certification Division 47173 Benicia Street Fremont, CA 94538, USA Re: Original Application for RFID Limited Modular Approval for Panasonic RFID Module, Model RI11A under FCC ID: ACJ9TGRI11A / Installed within Panasonic Personal Computer Model CF-H2mk1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Theory of Operation Above mentioned document contains detailed system and equipment description, which are considered as proprietary information in operation of this equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. In addition, please be advised that Panasonic Corporation of North America hereby requests the following filed sensitive information to be held under short-term confidential, pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s Rules and the provisions in FCC Public DA 04-1705. We request temporarily confidentiality of forty-five days, starting from the original issued Certification grant date. • Operating Instructions (Users Manual for Host and Module) • Test Setup Photographs • External & Internal Photographs Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division June 15, 2011 ITD-11-F018 Panasonic also acknowledges that we will provide appropriate notice to Compliance Certification Services should either of the following occur: • If we require additional 45 day extension period, we will notify Compliance Certification Services with a new request letter at least seven days prior to the short-term confidentiality expiration date [Note: up to a maximum of 3 extensions only are allowed], or • We will immediately notify Compliance Certification Services in the event the information regarding the product or the product is made available to the public. Compliance Certification Services will then release the documents listed above for public disclosure, pursuant to FCC Public Notice DA 04-1705. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

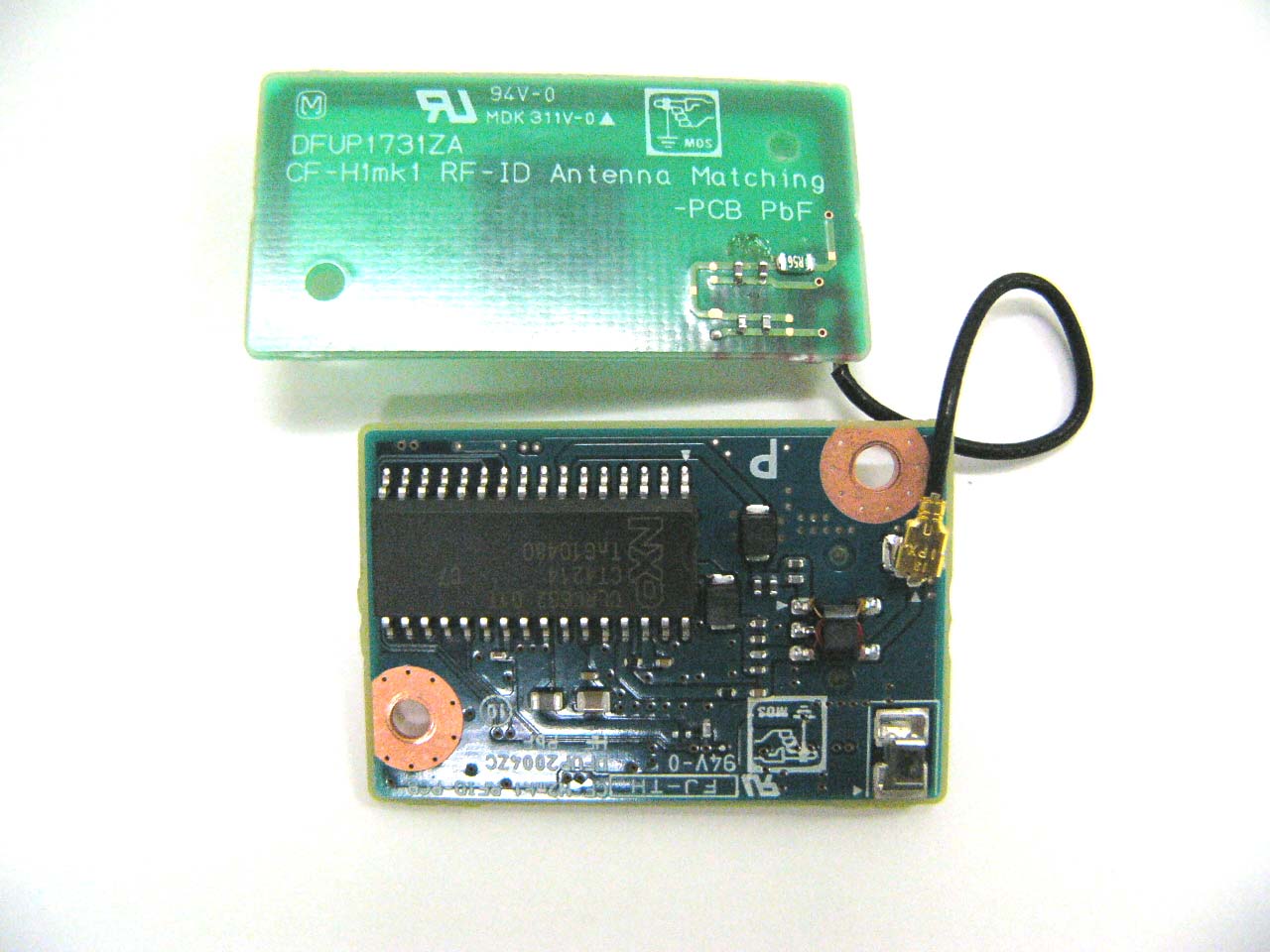

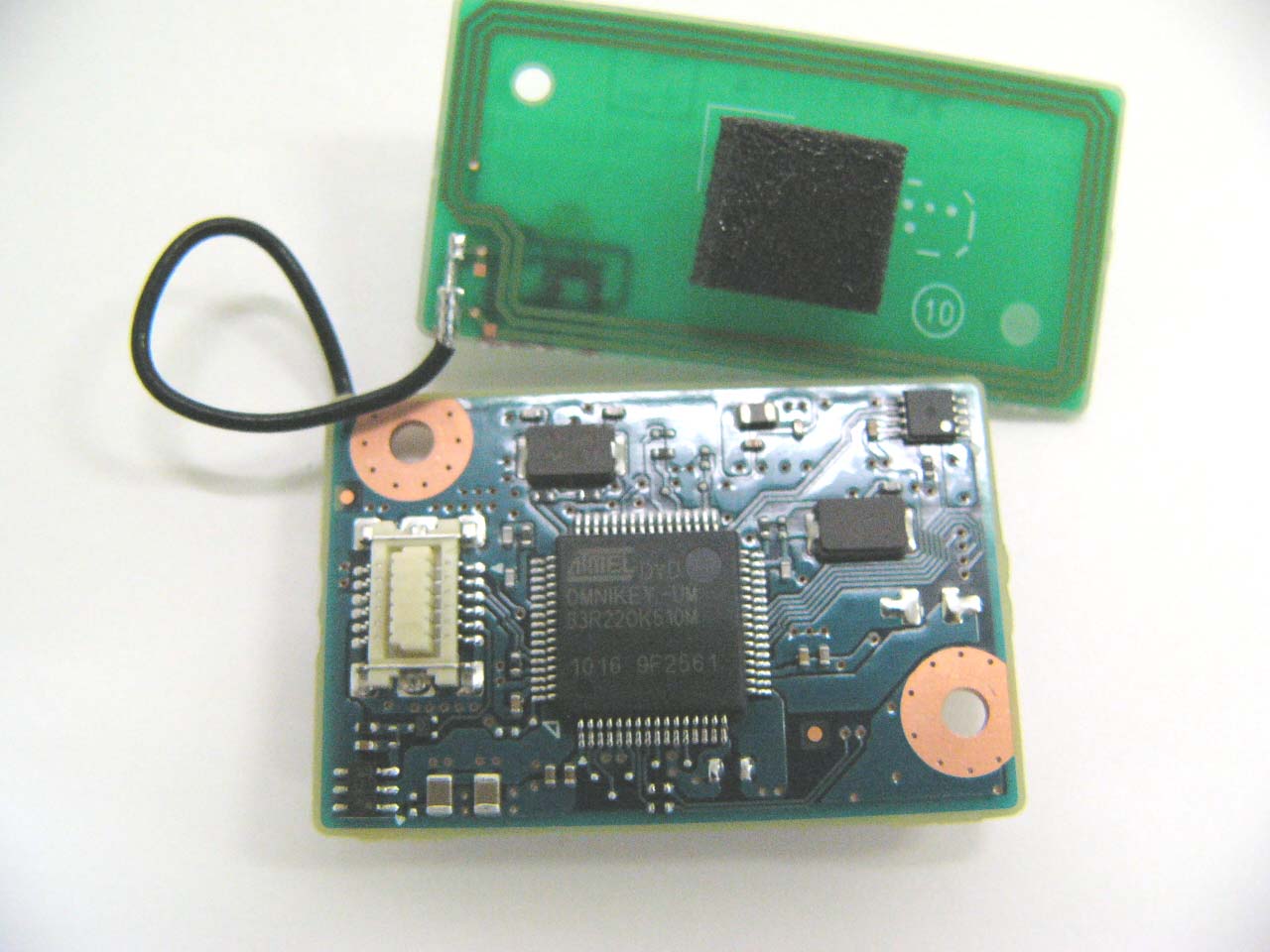

Photographs of Model RI11A (RFID module) 1. Wireless IC side of the module 2. Microcontroller side of the module (Size: W:38.2 x D:25.0 x H:7.5 mm) 3. Loop Antenna (Parts side) 4. Loop Antenna (Solder side) Photographs of connection between RFID module Model. RI11A and its antenna 1. Solder side of the antenna cable (Microcontroller side of the RFID module) 2. Parts side of the antenna ( RF connector side of the RFID module)

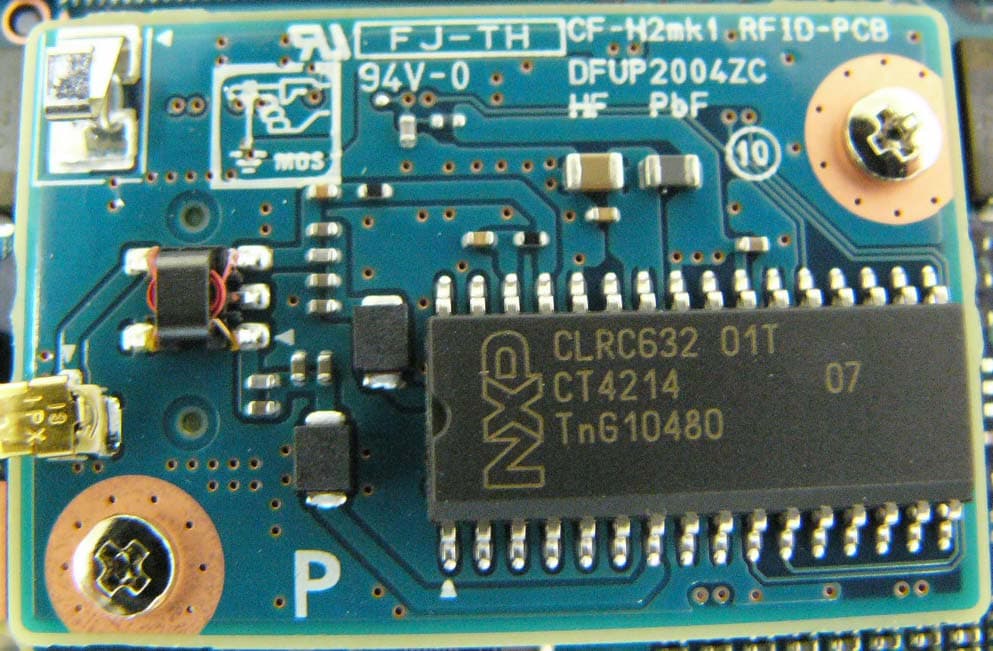

Photographs of Model RI11A (RFID module) 1. Wireless IC side of the module 2. Microcontroller side of the module (Size: W:38.2 x D:25.0 x H:7.5 mm) 3. Loop Antenna (Parts side) 4. Loop Antenna (Solder side)

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR RFID MODULE MODEL NUMBER: RI11A FCC ID: ACJ9TGRI11A REPORT NUMBER: 11J13821-1 ISSUE DATE: JUNE 09, 2011 Prepared for PANASONIC CORPORATION OF NORTH AMERICA ONE PANASONIC WAY, 4B-8 SECAUCUS, NEW JERSEY 07094, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11J13821-1 DATE: JUNE 09, 2011 FCC ID: ACJ9TGRI11A MODEL: RI11A Page 2 of 36 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 06/09/11 Initial Issue F. Ibrahim REPORT NO: 11J13821-1 DATE: JUNE 09, 2011 FCC ID: ACJ9TGRI11A MODEL: RI11A Page 3 of 36 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. SAMPLE CALCULATION ............................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. MAXIMUM TRANSMITTER FIELD STRENGTH............................................................ 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE............................................................ 6 5.6. MODIFICATIONS ........................................................................................................... 6 5.7. DESCRIPTION OF TEST SETUP .................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 9 7. RADIATED EMISSION TEST RESULTS............................................................................ 10 7.1. LIMITS AND PROCEDURE ......................................................................................... 10 7.2. FUNDAMENTAL AND SPURIOUS EMISSIONS (0.15 – 30 MHz)............................... 12 7.3. TX SPURIOUS EMISSION 30 TO 1000 MHz (HORIZONTAL).................................... 13 7.4. TX SPURIOUS EMISSION 30 TO 1000 MHz (VERTICAL) ......................................... 15 7.5. TX SPURIOUS EMISSIONS ABOVE 1 GHz................................................................ 17 7.6. RX SPURIOUS EMISSIONS ABOVE 1 GHz ............................................................... 18 8. AC MAINS LINE CONDUCTED EMISSIONS ..................................................................... 19 9. FREQUENCY STABILITY................................................................................................... 23 10. 99% BANDWIDTH ........................................................................................................... 24 11. MAXIMUM PERMISSIBLE EXPOSURE ......................................................................... 26 12. SETUP PHOTOS ............................................................................................................. 30 REPORT NO: 11J13821-1 DATE: JUNE 09, 2011 FCC ID: ACJ9TGRI11A MODEL: RI11A Page 4 of 36 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: PANASONIC CORPORATION OF NORTH AMERICA ONE PANASONIC WAY, 4B-8 SECAUCUS, NEW JERSEY 07094, U.S.A. EUT DESCRIPTION: RFID MODULE MODEL: RI11A SERIAL NUMBER: 1DKSA00084 (CONDUCTED); 1DKSA00072(RADIATED) DATE TESTED: MAY 17 TO MAY 25, 2011 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 2 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass Compliance Certification Services (UL CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out …
