ACJ9TGRI14ARFID Module

<Only for model with NFC sensor/RFID Reader> You can read the data from NFC (Near Field Communication) devices (Contactless Card, etc.) and RFID (Radio Frequency Identification) tags. This sensor is typically used with specialized applications. For further information, ask the system administrator. 1. Aim the center of RFID tag at the RFID Reader (A). Continue operation by using the specialized applications. Wave cards one at a time. If multiple cards are waved simultaneously, proper reading will not be possible. If the chip device is held outside of the NFC sensor area or at an angle, or waved incorrectly, proper reading may not be possible. Operation distance depends on RFID tag. NFC Devices/RFID Reader NOTE NOTE 1/1ページNFC Devices/RFID Reader 2014/03/04mk:@MSITStore:Q:\TEAM\Gikan\50_Manual\03_PDFCheck\FZ-M1mk1(FM131)\o ... Regulatory Information USA-Federal Communications Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labeling System integrators must include the FCC ID on the end product. Canada-Industry Canada (IC) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Labeling System integrators must include the IC ID on the end product. Important Notice Panasonic will not sell radio modules to any third party; and will not allow aftermarket installation by any third party or end user. Instead, they will only be installed within Panasonic Notebooks, Laptops, Tablets and Ultra Mobile Toughbook PCs. Panasonic confirms that the provided operating instruction to user will not include any instructions how to add or remove any of the transmitter modules.

Read Me First Getting Started Useful Information Troubleshooting Appendix OPERATING INSTRUCTIONS Personal Computer Model No. FZ-M1 series Please read these instructions carefully before using this product, and save this manual for future use. Contents Read Me First Safety Precautions ..................................... 2 Regulatory Information ............................. 10 Getting Started Introduction ............................................... 20 Description of Parts .................................. 23 First-time Operation .................................. 26 Turning On / Turning Off ........................... 31 Useful Information Handling and Maintenance ....................... 33 Installing Software .................................... 40 Troubleshooting Troubleshooting (Basic) ............................ 46 Appendix LIMITED USE LICENSE AGREEMENT ... 55 SpeciÞ cations ........................................... 59 LIMITED WARRANTY .............................. 65 2 Read Me First Safety Precautions To reduce the risk of injury, loss of life, !"!#$%&#'()*#+,'-%!,'./"012#$&*2,'/23' 3/./4!'$*'!51&6.!2$'*%'6%*6!%$7,' /"8/7('*9(!%:!'$)!'0*""*8&24'(/0!$7' 6%!#/1$&*2(; Explanation of symbol word panels <)!'0*""*8&24'(7.9*"'8*%3'6/2!"('/%!' 1(!3'$*'#"/((&07'/23'3!(#%&9!'$)!'"!:!"' *0')/=/%3,'&2>1%7,'/23'6%*6!%$7'3/./4!' #/1(!3'8)!2'$)!'3!2*$/$&*2'&('3&(%!- 4/%3!3'/23'&.6%*6!%'1(!'&('6!%0*%.!3; DANGER ?!2*$!('/'6*$!2$&/"')/=/%3'$)/$'8&""' %!(1"$'&2'(!%&*1('&2>1%7'*%'3!/$); WARNING ?!2*$!('/'6*$!2$&/"')/=/%3'$)/$'#*1"3' %!(1"$'&2'(!%&*1('&2>1%7'*%'3!/$); CAUTION ?!2*$!('/')/=/%3'$)/$'#*1"3'%!(1"$'&2' .&2*%'&2>1%7; NOTICE ?!2*$!('/')/=/%3'$)/$'#*1"3'%!(1"$'&2' 6%*6!%$7'3/./4!; <)!'0*""*8&24'(7.9*"('/%!'1(!3'$*'#"/(- (&07'/23'3!(#%&9!'$)!'$76!'*0'&2($%1#- $&*2('$*'9!'*9(!%:!3; <)&('(7.9*"'&('1(!3'$*'/"!%$' 1(!%('$*'/'(6!#&-#'*6!%/$&24' 6%*#!31%!'$)/$'.1($'2*$'9!' 6!%0*%.!3; <)&('(7.9*"'&('1(!3'$*'/"!%$'1(- !%('$*'/'(6!#&-#'*6!%/$&24'6%*- #!31%!'$)/$'.1($'9!'0*""*8!3'&2' *%3!%'$*'*6!%/$!'$)!'12&$'(/0!$7; DANGER Precautions on the Battery Pack Electrolyte leakage, generation of heat, ignition or rupture of the Bat- tery Pack may result. ! Do Not Throw the Battery Pack into a Fire or Expose It to Excessive Heat ! Do Not Deform, Disassem- ble, or Modify the Battery Pack ! Do Not Short the Positive (+) and Negative (-) Con- tacts " ?*'2*$'6"/#!'$)!'9/$$!%7' 6/#+'$*4!$)!%'8&$)'/%$&#"!(' (1#)'/('2!#+"/#!('*%' )/&%6&2('8)!2'#/%%7&24'*%' ($*%&24; 5HDG0H)LUVWLQGG 3 Read Me First DANGER Precautions on the Battery Pack ! Do Not Apply Shocks to the Product by Dropping It, Applying Strong Pressure to It, etc. " @0'$)&('6%*31#$'&('(19>!#$!3' $*'/'($%*24'&.6/#$,'3/.- /4!3'*%'3!0*%.!3,'($*6' 1(&24'&$'&..!3&/$!"7; ! Do Not Charge the Battery Using Methods Other Than !"#$%&'(%)*+%, ! Do Not Use the Battery Pack with Any Other Prod- uct A' <)!'9/$$!%7'6/#+'&('%!- #)/%4!/9"!'/23'8/('&2- $!23!3'0*%'$)!'(6!#&-!3' 6%*31#$; ! Do Not Use This Product with a Battery Pack Other !"-.&/"%&0.%&'(%)*+%, " B(!'*2"7'$)!'(6!#&-!3' 9/$$!%7'6/#+'8&$)'7*1%' 6%*31#$; ! When the Battery Pack Has Deteriorated, Replace It With a New One " ?*'2*$'#*2$&21!'$*'1(!'/' 3/./4!3'9/$$!%7'6/#+; ! Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for Example) DANGER Precautions on the Built-in Bridge Battery (for disposal) <Only for model with Built-in Bridge Battery> When disposing the battery, gen- eration of heat, ignition or rupture of the Built-in Bridge Battery may result. ( # page 37) Handling This Computer ! Do Not Disassemble the Computer Except When Disposing Handling the Built-in Bridge Battery ! Do Not Short the Positive (+) and Negative (-) Con- tacts ! Do Not Throw the Battery into a Fire or Expose It to Excessive Heat ! Do Not Apply Shocks to the Built-in Bridge Battery by Dropping It, Applying Strong Pressure to It, etc. ! Do Not Charge ! Do Not Use ! Do Not Deform, Disassem- ble, or Modify the Battery Pack ! Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for Example) 5HDG0H)LUVWLQGG 4 Read Me First Safety Precautions WARNING <Only for model with Built-in Bridge Battery> Generation of heat, ignition or rup- ture of the Built-in Bridge Battery may result. ! Do Not Throw This Product Into a Fire or Expose It to Excessive Heat ! Do Not Insert Sharp Ob- jects Into This Product, Disassemble, or Modify It ! Do Not Apply Shocks to the Product by Dropping It, Applying Strong Pressure to It, etc. ! Do Not Charge the Battery Using Methods Other Than Those SpeciÞ ed ! Avoid Extreme Heat (Near the Fire, In Direct Sunlight, for Example) ! When the Battery Has Deteriorated, Contact Your Technical Support OfÞ ce to Replace the Battery WARNING Fire or electric shock may result. ! Do Not Do Anything That May Damage the AC Cord, the AC Plug, or the AC Adaptor Do not damage or modify the cord, place it near hot tools, bend, twist, or pull it forcefully, place heavy objects on it, or bundle it tightly. " Do not continue to use a damaged AC cord, AC plug and AC adaptor. • Contact your technical support ofÞ ce for repair. ! Do Not Connect the AC Adaptor to a Power Source Other Than a Standard Household AC Outlet " Connecting to a DC/AC converter (inverter) may damage the AC adap- tor. On an airplane, only connect the AC adaptor/ charger to an AC outlet speciÞ cally approved for such use. ! Do Not Pull or Insert the AC Plug If Your Hands Are Wet ! Do Not Disassemble This Product ! Do Not Touch This Product In a Thunderstorm If Con- nected with the AC Cable or Any Other Cables 5 Read Me First WARNING ! If a Malfunction or Trouble Occurs, Immediately Stop Use If the Following Malfunc- tion Occurs, Immediately Unplug the AC Plug and the Battery Pack • This product is damaged • Foreign object inside this product • Smoke emitted • Unusual smell emitted • Unusually hot " After the above procedure, contact your technical sup- port ofÞ ce for repair. ! Clean Dust and Other De…

Text truncated - open the document above for the full version.

Applicant/Grantee Panasonic Corporation of North America FCC ID: ACJ9TGRI14A Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device does not have Metal shielding to cover RF section. Refer to External Photos. N 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the device are buffered through logic IC5 inputs. Refer to Schematic Diagram. Y 3 The modular transmitter must have its own power supply regulation. There is no power supply in the module. 3.3V and 5V are fed by the final product. N 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The device is equipped with the unique antenna connector. Refer to External photos. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). The device was installed into the final product for testing. Refer to setup photos. N 6 The modular transmitter must be equipped with either a permanently affixed label or must be The proposed FCC ID label format is to be placed on the module. If Y capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. FCC ID is not visible when the module is installed into the system, “Contains FCC ID: ACJ9TGRI14A” shall be placed on the outside of final host system. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The device complies with RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

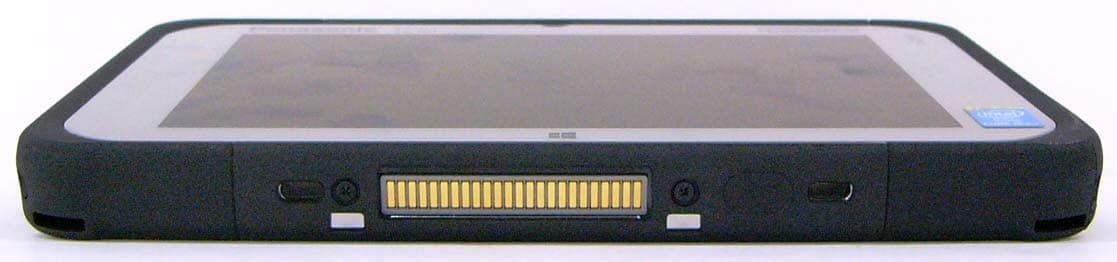

<Host PC> FZ-M1 External Photos 1/2 1) External photos 1-1) Front 1-2) Back <Host PC> FZ-M1 External Photos 2/2 1-3) Edge1 1-4) Edge2 1-4) Edge3 1-4) Edge4 Edge 1 Edge 2 Edge 3 Edge 4

<FZ-M1 NFC> FZ-M1 Internal Photos 3/4 2) HF-RFID photos 2-1) Module <Front side> <Back side> <FZ-M1 NFC> FZ-M1 Internal Photos 4/4 2-2) Antenna <Front side> <Back side>

ACJ9TGRI14A Rating Label for RI14A of FZ-M1 1/2 1. RI14A Module Label 2. Rating Label for FZ-M1 Stick on a “RI14A” module ID label. ACJ9TGRI14A Rating Label for RI14A of FZ-M1 2/2 3. Rating Label location Equipment of FZ-M1 Rating Label for FZ-M1 <Under the battery pack> Back side Module FCC ID / IC Number

ACJ9TGRI14A Label position 1. Label of the module. 2. Label position. RI14A module Label

<FZ-M1 NFC> FZ-M1 Internal Photos 1/4 1) Internal photos 1-1) For this picture, the back cover was removed. <FZ-M1 NFC> FZ-M1 Internal Photos 2/4 1-2) For this picture, the option gadget are was removed. HF-RFID Module <FZ-M1 NFC> FZ-M1 Internal Photos 3/4 2) HF-RFID photos 2-1) Module <Front side> <Back side> <FZ-M1 NFC> FZ-M1 Internal Photos 4/4 2-2) Antenna <Front side> <Back side>

NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/abo ut/mark1/index.jsp#nvlap FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR RFID MODULE MODEL NUMBER: RI14A FCC ID: ACJ9TGRI14A REPORT NUMBER: 10227857H-A-R1 ISSUE DATE: March 25, 2014 Prepared for PANASONIC CORPORATION OF NORTH AMERICA ONE PANASONIC WAY, 4B-8 SECAUCUS, NEW JERSEY, 07094, USA Prepared by UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi Mie-ken 516-0021 JAPAN TEL: +81 596 24 8999 FAX: +81 596 24 8124 REPORT NO: 10227857H-A-R1 DATE: March 25, 2014 FCC ID: ACJ9TGRI14A Page 2 of 34 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan Revision History Rev. Issue Date Revisions Revised By -- 03/20/2014 Initial Issue T. Hatakeda 1 03/25/2014 1. Page 5: Correction of typing error (from ANSI C63 10-2009 to ANSI C63 4-2003) 2. Page 13: Correction of test data 3. Page 17: Addition of test data 4. Page 27: Correction of typing error (from ANSI/TIA/EIA 603 Clause 2.3.1 and 2.3.2 to ANSI C63 4) *This report is a revised version of 10227857H-A, which is replaced with this report. T. Hatakeda REPORT NO: 10227857H-A-R1 DATE: March 25, 2014 FCC ID: ACJ9TGRI14A Page 3 of 34 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 4 2. TEST METHODOLOGY .......................................................................................................... 5 3. FACILITIES AND ACCREDITATION ..................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION .................................................................. 5 4.2. SAMPLE CALCULATION ................................................................................................. 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................... 6 5. EQUIPMENT UNDER TEST ................................................................................................... 7 5.1. DESCRIPTION OF EUT ................................................................................................... 7 5.2. MAXIMUM TRANSMITTER FIELD STRENGTH ............................................................. 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .................................................................. 7 5.4. SOFTWARE AND FIRMWARE ........................................................................................ 7 5.5. WORST-CASE CONFIGURATION AND MODE ............................................................. 7 5.6. MODIFICATIONS ............................................................................................................. 7 5.7. DESCRIPTION OF TEST SETUP .................................................................................... 8 6. TEST AND MEASUREMENT EQUIPMENT ........................................................................ 10 7. RADIATED EMISSION TEST RESULTS ............................................................................. 11 7.1. LIMITS AND PROCEDURE ........................................................................................... 11 7.2. FUNDAMENTAL EMISSION .......................................................................................... 13 7.3. SPURIOUS EMISSIONS (0.15 – 30 MHz) ..................................................................... 18 7.4. SPURIOUS EMISSION 30 TO 1000 MHz ..................................................................... 22 8. AC MAINS LINE CONDUCTED EMISSIONS ...................................................................... 24 9. FREQUENCY STABILITY .................................................................................................... 27 10. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................... 29 11. SETUP PHOTOS ............................................................................................................... 32 REPORT NO: 10227857H-A-R1 DATE: March 25, 2014 FCC ID: ACJ9TGRI14A Page 4 of 34 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan 1. ATTESTATION OF TEST RESULTS COMPANY NAME: PANASONIC CORPORATION OF NORTH AMERICA ONE PANASONIC WAY, 4B-8 SECAUCUS, NEW JERSEY, 07094, USA EUT DESCRIPTION: RFID MODULE MODEL: RI14A SERIAL NUMBER: 2HTSA00252 DATE TESTED: February 28 and March 5, 2014 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass UL Japan, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Japan, Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditio…

Text truncated - open the document above for the full version.

REPORT NO: 10227857H-A-R1 DATE: March 25, 2014 FCC ID: ACJ9TGRI14A Page 32 of 34 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan 11. SETUP PHOTOS RADIATED EMISSION Photo 1 Photo 2 REPORT NO: 10227857H-A-R1 DATE: March 25, 2014 FCC ID: ACJ9TGRI14A Page 33 of 34 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan Worst Case Position Below 30MHz(Y-axis) Above 30MHz(Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis REPORT NO: 10227857H-A-R1 DATE: March 25, 2014 FCC ID: ACJ9TGRI14A Page 34 of 34 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan AC MAINS LINE CONDUCTED EMISSION Photo 1 Photo 2 END OF REPORT
