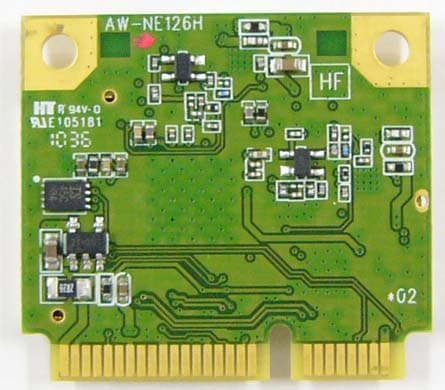

ACJ9TGWL11E802.11n 2X2 PCIe MINICARD

Model: WL11E Operating Instructions 1 GENERAL The purpose of this manual is to explain correct way how to integrate module WL11E to Panasonic PC. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module complies with regulations in certain regions. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by Panasonic could void the user’s authority to operate this equipment. 2. Frequency Scanning Plan The EEPROM will be programmed at the factory to only operate and actively scan on these specific channels: Channels 1-11, 2412-2462MHz 802.11b mode Channels 1-11, 2412-2462MHz 802.11g mode Channels 1-11, 2412-2462MHz 802.11n mode (20MHz channel) Channels 3-9, 2422-2452MHz 802.11n mode (40MHz channel) This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. Regulatory Information USA-Federal Communications Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labeling The model WL11E is labelled as below. FCC ID: ACJ9TGWL11E The proposed with FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: ACJ9TGWL11E” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures.

Contents Getting Started OPERATING INSTRUCTIONS Personal Computer Model No. CF-31 series Introduction.................................................................. 2 Read.Me.First.............................................................. 3 (Precautions) Description.of.Parts................................................... 11 First-time.Operation................................................... 14 Useful Information On-screen.Manual..................................................... 18 Handling.and.Maintenance........................................ 19 Reinstalling.Software................................................. 21 Troubleshooting Troubleshooting.(Basic)............................................. 23 Appendix LIMITED.USE.LICENSE.AGREEMENT.................... 28 Specifications............................................................ 30 LIMITED.WARRANTY............................................... 34 Please.read.these.instructions.carefully.before.using.this.product,.and.save.this.manual.for.future.use. For further information about the com- puter, you can refer to the on-screen manual. To access the on-screen manual è page 18 “On-screen Manual” Getting Started Useful Information Troubleshooting Appendix 2 Getting Started Introduction Thank.you.for.purchasing.this.Panasonic.product..For.optimum.performance.and.safety,.please.read.these.instructions. carefully. n Terms and illustrations in these instructions CAUTION .:.Conditions.that.may.result.in.minor.or.moderate.injury. NOTE .:.Useful.and.helpful.information. Enter .:.Press.[Enter].key. Fn .+. F5 .:.Press.and.hold.[Fn].key,.and.then.press.[F5].key. .(Start).-.[All.Programs].:.Click..(Start),.and.then.click.[All.Programs]..You.may.need.to.double-click.in.some. cases. [start].-.[Run].:.Click.[start],.and.then.click.[Run]..You.may.need.to.double-click.in.some.cases. è .:.Page.in.these.Operating.Instructions.or.in.the.Reference.Manual. .:.Reference.to.the.on-screen.manuals. l ..indicates.Genuine.Windows ® .7.Professional.Operating.System. l ..indicates.Genuine.Microsoft ® .Windows ® .XP.Professional.Operating.System. l Some illustrations are simplified to help your understanding and may look different from the actual unit. l . If.you.do.not.log.on.as.an.administrator,.you.cannot.use.some.functions.or.cannot.display.some.screens. l . Refer.for.the.latest.information.about.optional.products.to.the.catalogs,.etc. l . In.these.instructions,.the.names.and.terms.are.referred.as.follows. Ÿ . “Genuine.Windows ® .7.Professional.32-bit.Service.Pack.1”.and.“Genuine.Windows ® .7.Professional.64-bit.Service. Pack.1”.as.“Windows”.or.“Windows.7” Ÿ . “Genuine.Microsoft ® .Windows ® .XP.Professional.Service.Pack.3”.as.“Windows”,.“Windows.XP”.or.“Windows.XP. Professional” Ÿ . DVD.MULTI.drive.as.“CD/DVD.drive” Ÿ . Circular.media.including.DVD-ROM.and.CD-ROM.as.“discs” n Disclaimer Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no li - ability.for.damage.incurred.directly.or.indirectly.from.errors,.omissions.or.discrepancies.between.the.computer.and.the. manuals. n Trademarks Microsoft ® ,.Windows ® ,.the.Windows.logo,.and.IntelliMouse.are.registered.trademarks.of.Microsoft.Corporation.of.the. United.States.and/or.other.countries. Intel,.Core,.Centrino.and.PROSet.are.either.registered.trademarks.or.trademarks.of.Intel.Corporation. SDXC.Logo.is.a.trademark.of.SD-3C,.LLC.. Adobe,.the.Adobe.logo.and.Adobe.Reader.are.either.registered.trademarks.or.trademarks.of.Adobe.Systems.Incorpo- rated.in.the.United.States.and/or.other.countries. Bluetooth™.is.a.trademark.owned.by.Bluetooth.SIG,.Inc.,.U.S.A..and.licensed.to.Panasonic.Corporation. HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing.LLC.in.the.United.States.and.other.countries. Names.of.products,.brands,.etc.,.appearing.in.this.manual.are.trademarks.or.registered.trademarks.of.their.respective. own.companies. 3 Getting Started Read Me First Models for U.S.A. Federal Communications Commission Radio Frequency Interference Statement Note:.This.equipment.has.been.tested.and.found.to.comply.with. the.limits.for.a.Class.B.digital.device,.pursuant.to.Part.15.of.the. FCC.Rules..These.limits.are.designed.to.provide.reasonable. protection.against.harmful.interference.in.a.residential.instal - lation..This.equipment.generates,.uses.and.can.radiate.radio. frequency.energy.and,.if.not.installed.and.used.in.accordance. with.the.instructions,.may.cause.harmful.interference.to.radio. communications..However,.there.is.no.guarantee.that.interfer - ence.will.not.occur.in.a.particular.installation..If.this.equipment. does.cause.harmful.interference.to.radio.or.television.reception,. which.can.be.determined.by.turning.the.equipment.off.and.on,. the.user.is.encouraged.to.try.to.correct.the.interference.by.one. or.more.of.the.following.measures: l . Reorient.or.relocate.the.receiving.antenna. l .Increase.the.separation.between.the.equipment.and.receiver. l . Connect.the.equipment.into.an.outlet.on.a.circuit.different. from.that.to.which.the.receiver.is.connected. l . Consult.the.Panasonic.Service.Center.or.an.experienced. radio/TV.technician.for.help. Warning To.assure.continued.compliance,.use.only.shielded.interface. cables.when.connecting.to.a.computer.or.peripheral...Also,.any. changes or modifications not expressly approved by the party responsible.for.compliance.could.void.the.user’s.authority.to. operate.this.equipment. This.device.complies.with.Part.15.of.the.FCC.Rules..Operation. is.subject.to.the.following.two.conditions: (1).This.device.may.not.cause.harmful.interference,.and (2).This.device.must.accept.any.interference.received,.including. interference.that.may.cause.undesired.operation. FCC.RF.Exposure.Warning: l . This.equipment.is.provided.with.PC.Card.slot.that.could.be. used with wireless transmitters, which will be specifically recommended.when.they.become.available…

Text truncated - open the document above for the full version.

21 Useful Information Reinstalling Software Reinstalling.software.will.return.the.computer.to.the.default.condition..When.you.reinstall.the.software,.the.hard.disk. data.will.be.erased. Back.up.important.data.to.other.media.or.an.external.hard.disk.before.reinstallation. n Hard Disk Recovery CAUTION Area usable by Windows Hard disk HDD Recovery partition 10GB Recover partition 300MB l . You.can.reinstall.Windows.7.only. l . Do.not.delete.the.recovery.partition.on.the.hard.disk. . The.disk.space.in.the.partition.is.not.available.to.store.data. Preparation l . Remove.all.peripherals. l . Connect.the.AC.adaptor.and.do.not.remove.it.until.reinstallation.is.complete. 1 Turn on the computer, and press F2 or Del while [Panasonic] boot screen is displayed. The.Setup.Utility.starts.up. l . If.the.password.is.requested,.enter.the.Supervisor.Password. 2 Write down all of the contents of the Setup Utility and press F9 . At the confirmation message, select [Yes] and press Enter . 3 Press F10 . At the confirmation message, select [Yes] and press Enter . Computer.will.restart. 4 Press F2 or Del while [Panasonic] boot screen is displayed. The.Setup.Utility.starts.up. l . If.the.password.is.requested,.enter.the.Supervisor.Password. 5 Select the [Exit] menu, then select [Repair Your Computer] and press Enter . 6 Click [Reinstall Windows] and click [Next]. The.License.Agreement.screen.appears. 7 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next]. 8 Select the settings and click [Next]. l . [Reinstall.Windows.to.the.whole.Hard.Disk.to.factory.default.] . Select.this.option.when.you.want.to.reinstall.Windows.to.the.factory.default..After.reinstallation,.you.can.create. a.new.partition..For.how.to.create.a.new.partition,.refer.to.“To.change.the.partition.structure”.( è .page.17). l . [Reinstall.to.the.System.and.OS.partitions.] *1 . Select.this.option.when.the.hard.disk.has.already.been.divided.into.several.partitions..For.how.to.create.a. new.partition,.refer.to.“To.change.the.partition.structure”.( è .page.17). . You.can.keep.the.partition.structure. *1 This does not appear if Windows cannot be reinstalled to the partition containing boot files and the area usable by Win- dows. 9 At the confirmation message, click [OK]. 10 Select OS (32bit or 64bit) and click [OK]. 11 At the confirmation message, click [OK]. Reinstallation.starts.according.to.the.instructions.on.the.screen. l . Do.not.interrupt.reinstallation,.for.example.by.turning.off.the.computer..Otherwise.reinstallation.may.become. unavailable.as.Windows.may.not.start.up.or.the.data.may.be.corrupted. 12 When ending screen is displayed, click [OK] to turn off the computer. 13 Turn on the computer. l . If.the.password.is.requested,.enter.the.Supervisor.Password. 14 Perform the “First-time Operation” ( è page 15). 15 Start the Setup Utility and change the settings as necessary. 16 Perform Windows Update. 22 Useful Information n Using Recovery Disc Use.the.Recovery.Disc.for.reinstallation.in.the.following.conditions. Ÿ . You.have.forgotten.the.administrator.password. Ÿ . Reinstallation.is.not.complete..The.recovery.partition.may.be.broken. NOTE Ÿ .When.you.reinstall.OS.using.the.Recovery.Disc,.OS.which.was.installed.as.the.factory.default.will.be.installed..To. change.OS.from.32.bit.to.64.bit,.or.vice.versa,.reinstall.OS.using.the.recovery.partition.in.the.hard.disk. Preparation l . Prepare.the.Recovery.Disc.( è ..Reference Manual.“Recovery.Disc.Creation.Utility”) l . Remove.all.peripherals. l . Connect.the.AC.adaptor.and.do.not.remove.it.until.reinstallation.is.complete. 1 Turn on the computer, and press F2 or . Del while [Panasonic] boot screen is displayed. The.Setup.Utility.starts.up. l . If.the.password.is.requested,.enter.the.Supervisor.Password. 2 Write down all of the contents of the Setup Utility and press F9 . At the confirmation message, select [Yes] and press Enter . 3 Press F10 . At the confirmation message, select [Yes] and press Enter . Computer.will.restart. 4 Press F2 or . Del . while [Panasonic] boot screen is displayed. The.Setup.Utility.starts.up. l . If.the.password.is.requested,.enter.the.Supervisor.Password. 5 Set the Recovery Disc into the CD/DVD drive. 6 Select the [Exit] menu, then select [TEAC DV-W28S-V] in [Boot Override]. 7 Press . Enter . The.computer.will.restart. 8 Click [Reinstall Windows] and click [Next]. The.License.Agreement.screen.appears. 9 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next]. 10 Select the settings and click [Next]. l . [Reinstall.Windows.to.the.whole.Hard.Disk.to.factory.default.] . Select.this.option.when.you.want.to.reinstall.Windows.to.the.factory.default..After.reinstallation,.you.can.create. a.new.partition..For.how.to.create.a.new.partition,.refer.to.“To.change.the.partition.structure”.( è page.17). l [Reinstall to the first 3 partitions.] *2 . Select.this.option.when.the.hard.disk.has.already.been.divided.into.several.partitions..For.how.to.create.a. new.partition,.refer.to.“To.change.the.partition.structure”.( è page.17).. You.can.keep.the.partition.structure. *2 .This does not appear if Windows cannot be reinstalled to the partition containing boot files and the area usable by Windows. 11 At the confirmation message, click [YES]. Reinstallation.starts..(It.will.take.approximately.30.minutes.) According.to.the.screen,.replace.the.Recovery.Disc. l . Do.not.interrupt.reinstallation,.for.example.by.turning.off.the.computer..Otherwise.reinstallation.may.become. unavailable.as.Windows.may.not.start.up.or.the.data.may.be.corrupted. 12 When “Ending process.” is displayed, remove the Recovery Disc, and then click [OK] to turn off the computer. 13 Turn on the computer. l . If.the.password.is.requested,.enter.the.Supervisor.Password. 14 Perform the “First-time Operation” ( è page 15). 15 Start the Setup Utility and change the settings as necessary. 16 Perform Windows Update. Reinstalling Software 23 Troubleshooting Troubleshooting (Basic)…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Agent Authorization Letter August 11, 2011 ITP-11-F026 UL CCS Certification Division 47173 Benicia Street Fremont, CA 94538, USA Re: Original Application for WLAN (802.11b/g/n) Modular Approval 1 Panasonic WLAN Module, Model WL11E under FCC ID: ACJ9TGWL11E Installation within Representative Panasonic Personal Computer, Model CF-31mk2 To whom it may concern: The undersigned hereby authorizes Ms. Claire Hoque / Application Examiner of Compliance Engineering Services, Inc., d.b.a. UL CCS and hereafter referred to as UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL CCS on our behalf shall have the same effect as acts of our own. The undersigned hereby certify that I am not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This authorization is valid for one year period from the date of this letter. This application for the subject equipment has not been submitted to another TCB for certification In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; 1 This is identical to Azurewave WLAN Model 9283 with Atheros Chipset, Type AR5B95 Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division August 11, 2011 ITP-11-F026 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

Applicant/Grantee Panasonic Corporation of North America FCC ID: ACJ9TGWL11E Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device is equipped with Metal shielding to cover RF section. Refer to external photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All inputs to the device are buffered through logic U1 inputs. Re fer to Schematic Diagram. Y 3 The modular transmitter must have its own power supply regulation. The device is equipped with Internal 1.2VDC regulator. Refer to Block Diagram. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The device is equipped with the permanently attached antenna. Any connector isn’t used. Refer to External Photo. . Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). The device was tested inside of the Laptop PC for limited modular approval. Refer to setup photos. N 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: ACJ9GTWL11E” shall be placed on the outside of final host system. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The device complies with RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

Model WL11E Module Photo External View WLAN Exterior Top View WLAN Exterior Bottom View

Model WL11E Module Label Label sample Label position

Model WL11E Module Photo Internal View WLAN inside Top View WLAN inside Bottom View

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 802.11n 2X2 PCIe MINICARD, add Panasonic Laptop PC CF-31 MODEL NUMBER: WL11E FCC ID: ACJ9TGWL11E REPORT NUMBER: 11J13902-1 ISSUE DATE: AUGUST 15, 2011 Prepared for PANASONIC CORPORATION OF NORTH AMERICA ONE PANASONIC WAY, 4B-8 SECAUCUS, NEW JERSEY 07094, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11J13902-1 DATE: AUGUST 15, 2011 FCC ID: ACJ9TGWL11E Page 2 of 137 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written Chainproval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 08/15/11 Initial Issue F. Ibrahim REPORT NO: 11J13902-1 DATE: AUGUST 15, 2011 FCC ID: ACJ9TGWL11E Page 3 of 137 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written Chainproval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION.................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 6 4.2. SAMPLE CALCULATION.............................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY................................................................................ 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT................................................................................................ 7 5.2. MAXIMUM OUTPUT POWER....................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 7 5.4. SOFTWARE AND FIRMWARE..................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.6. DESCRIPTION OF TEST SETUP................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. ANTENNA PORT TEST RESULTS .................................................................................... 12 7.1. 802.11b TWO CHAINS LEGACY MODE IN THE 2.4 GHz BAND .............................. 12 7.1.1. 6 dB BANDWIDTH ................................................................................................ 12 7.1.2. 99% BANDWIDTH ................................................................................................ 16 7.1.3. OUTPUT POWER ................................................................................................. 20 7.1.4. AVERAGE POWER .............................................................................................. 21 7.1.5. POWER SPECTRAL DENSITY ............................................................................ 22 7.1.6. CONDUCTED SPURIOUS EMISSIONS............................................................... 26 7.2. 802.11g TWO CHAINS LEGACY MODE IN THE 2.4 GHz BAND .............................. 33 7.2.1. 6 dB BANDWIDTH ................................................................................................ 33 7.2.2. 99% BANDWIDTH ................................................................................................ 37 7.2.3. OUTPUT POWER ................................................................................................. 41 7.2.4. AVERAGE POWER .............................................................................................. 42 7.2.5. POWER SPECTRAL DENSITY ............................................................................ 43 7.2.6. CONDUCTED SPURIOUS EMISSIONS............................................................... 47 7.3. 802.11n TWO CHAINS HT20 MODE IN THE 2.4 GHz BAND .................................... 54 7.3.1. 6 dB BANDWIDTH ................................................................................................ 54 7.3.2. 99% BANDWIDTH ................................................................................................ 58 7.3.3. OUTPUT POWER ................................................................................................. 62 7.3.4. AVERAGE POWER .............................................................................................. 63 7.3.5. POWER SPECTRAL DENSITY ............................................................................ 64 7.3.6. CONDUCTED SPURIOUS EMISSIONS............................................................... 68 7.4. 802.11n TWO CHAINS HT40 MODE IN THE 2.4 GHz BAND .................................... 75 REPORT NO: 11J13902-1 DATE: AUGUST 15, 2011 FCC ID: ACJ9TGWL11E Page 4 of 137 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written Chainproval of CCS. 7.4.1. 6 dB BANDWIDTH .....................................…
