ACJ9TGWW18ARadio Module

AirPrime EM7511 Hardware Integration Guide 41112332 Rev 1 Proprietary and Confidential Contents subject to change Product Technical Specification Rev Apr.182 Important Notice Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to transmit or receive such data. Safety and Hazards Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any form of radio interference. In such areas, the Sierra Wireless modem MUST BE POWERED OFF. The Sierra Wireless modem can transmit signals that could interfere with this equipment. Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the Sierra Wireless modem MUST BE POWERED OFF. When operating, the Sierra Wireless modem can transmit signals that could interfere with various onboard systems. Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. Sierra Wireless modems may be used at this time. The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some states and provinces, operating such communications devices while in control of a vehicle is an offence. Limitation of Liability The information in this manual is subject to change without notice and does not represent a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates aggregate liability arising under or in connection with the Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. Preface Rev Apr.183 PatentsThis product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM®. This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from MMP Portfolio Licensing. Copyright©2018 Sierra Wireless. All rights reserved. TrademarksSierra Wireless ® , AirPrime ® , AirLink ® , AirVantage ® and the Sierra Wireless logo are registered trademarks of Sierra Wireless, Inc. Windows ® and Windows Vista ® are registered trademarks of Microsoft Corporation. QUALCOMM ® is a registered trademark of QUALCOMM Incorporated. Used under license. Other trademarks are the property of their respective owners. Contact Information Revision History Sales information and technical support, including warranty and returns Web: sierrawireless.com/company/contact-us/ Global toll-free number: 1-877-687-7795 6:00 am to 5:00 pm PST Corporate and product informationWeb: sierrawireless.com Revision number Release dateChanges 1April 2018FCC/IC Certification Rev Apr.184 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Required Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Module Power States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 RF Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Antenna and Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Ground Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Interference and Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Interference From Other Wireless Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Host-generated RF Interference . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Class II Permissive Change Decemb er 8, 2020 MSBD-20-F004 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subje ct: Class II Permissive Change Application for Panasonic Single Modular Model WW18A under FCC ID: ACJ9TGWW18A / Certified Under FCC Parts 22H, 24E, 27, 90 and 96 For Installation within Panasonic Personal Computer Model CF-33 (mk2 series) To whom it may concern: Pursua nt to CFR§ 2.1043, Panasonic Corporation of North America hereby requests a Class II Permissive Change for its application with FCC ID: ACJ9TGWW18A. This a uthorization only covers the Class II permissive change application for the following changes: This module used in the Host PC CF-33 has the power reduction mode which is specially programmed and tuned by proximity sensor to operate at a lower power setting than the original maximum power to ensure that the output power does not exceed the targets described in the SAR report. Collocation with Wireless Module Model: WL20A with pre-existing FCC ID: ACJ9TGWL20A, whose SAR test data is included in this application. The Host PC CF-33 supports LTE band 48 which is enabled by software at the factory. A changes to licensed module from single module to a limited single-module since adding CBRS band are tested in specific host device, CF-33, as non-standalone configuration. No other radio parameters have been changed. Thank you for your attention in this matter. Sin cerely, Ben Botr os Manager – Regulatory and Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America FCC Modular Approval Declaration D ecember 8, 2020 MSBD-20-F004 Product Information Product Description: Radio Module FRN: 0003762242 Model Name(s): WW18A FCC Product ID: FCC Module ID: ACJ9TGWW18A Modular Checklist/Information For Modular Approval, the module shall meet all the requirements listed below. Please check () if the module complies with the stated requirement. The modular transmitter must have its own shielding. The modular transmitter must have buffered modulation/data inputs. The modular transmitter must have its own power supply regulation. The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c). The modular transmitter must be tested in a stand-alone configuration. The modular transmitter must be labeled with its own FCC ID number. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements. The modular transmitter must comply with any applicable RF exposure requirements. I f a module(s) does NOT meet one or more of the above listed requirements, the applicant may request Limited Modular Approval (LMA). For LMA, please state details about why the above requirement(s) could not be met; and state how control of the end product, into which the module will be installed, will be maintained by the applicant / manufacturer, such that full compliance of the end product is always ensured: - C 2PC application for adding CBRS band (Equipment class: CBE) was tested in specific host device, CF-33, as non-standalone configuration. S incerely, B en Botros Manager – Regulatory and Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Declaration Letter December 4, 2020 MSBD-20-F004 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Class II Permissive Change Application for Panasonic Single Modular Model WW18A under FCC ID: ACJ9TGWW18A / Certified Under FCC Parts 22H, 24E, 27, 90 and 96 For Installation within Panasonic Personal Computer Model CF-33 (mk2 series) To whom it may concern: We declare the following regarding FCC ID: ACJ9TGWW18A 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3. We confirm the specific MPR targets and tolerances shown in the SAR Report. 4. When the laptop Mode is applied in LTE Band B48 of ACJ9TGWW18A, 3GPP MPR is set tolerances shown in the SAR Report. (All configuration of QPSK set to MPR=0) 5. When the Tablet mode and Convertible mode are applied in LTE Band B48 of ACJ9TGWW18A, all RB Configuration of 3GPP MPR is set to 0. Should you have any questions or comments concerning the above, please contact the undersigned. Thank you for your attention in this matter. Sincerely, Ben Botros Manager – Regulatory and Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Agent Authorization Letter November 12, 2020 MSBD-20-F004 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Class II Permissive Change Application for Panasonic Single Modular Model WW18A under FCC ID: ACJ9TGWW18A / Certified Under FCC Parts 22H, 24E, 27, 90 and 96 For Installation within Panasonic Personal Computer Model CF-33 (mk2 series) To whom it may concern: Please be notified that Ben Botros of Panasonic Corporation of North America (PNA), hereby authorize HCT Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT on our behalf shall have the same effect as acts of our own. The undersigned hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing HCT America as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is for Single Modular, Model WW18A under FCC ID: ACJ9TGWW18A and is valid for a one year period from the date of this letter. Thank you for your attention in this matter. Sincerely, Ben Botros Manager – Regulatory and Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Request for Permanent & Short-Term Confidentiality November 12, 2020 MSBD-20-F004 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Class II Permissive Change Application for Panasonic Single Modular Model WW18A under FCC ID: ACJ9TGWW18A / Certified Under FCC Parts 22H, 24E, 27, 90 and 96 For Installation within Panasonic Personal Computer Model CF-33 (mk2 series) To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as permanent confidential document from public disclosure.  Theory of Operation  Tune up and Alignment Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In addition, please be advised that Panasonic Corporation of North America hereby requests the following filed sensitive information to be held under short-term confidential, pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s Rules and the provisions in FCC Public DA 04-1705. We request temporarily confidentiality of 45 days, starting from the original issued Certification grant date.  Operating Instructions (User’s Manual)  Test Setup Photographs  External and Internal Photographs Panasonic also acknowledges that we will provide appropriate notice to HCT Co., Ltd. should either of the following occur.  If we require an additional 45-day extension period, we will notify HCT Co., Ltd. with a new request letter at least seven days prior to the short-term confidentiality expiration date (maximum of 3 extensions only all owed), or  We will immediately notify HCT Co., Ltd. in the event the information regarding the product is made available to the public. HCT Co., Ltd. will them release the documents listed above for public disclosure, pursuant to FCC Public Notice DA 04-1705. . Sincerely, Ben Botros Manager – Regulatory and Compliance Panasonic Corporation of North America

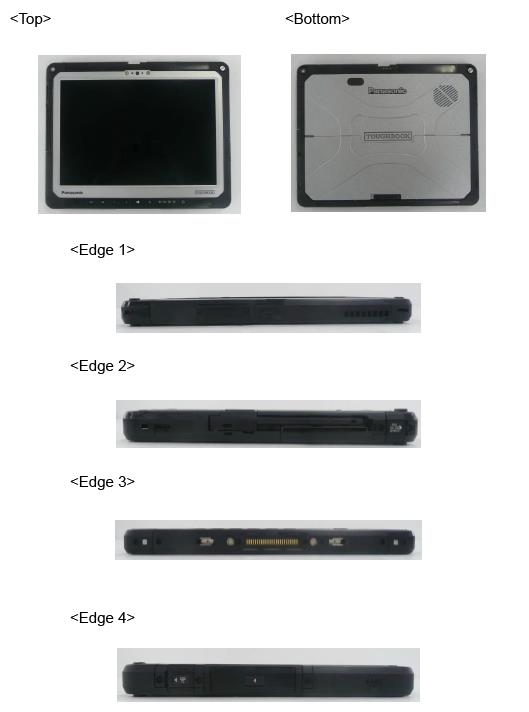

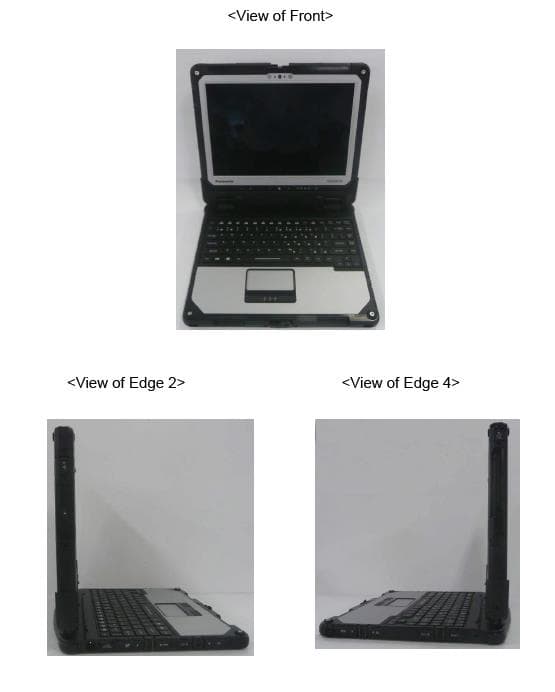

FCC ID: ACJ9TGWW18A HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 4 EXTERNAL PHOTOGRAPHS FCC ID: ACJ9TGWW18A HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 4 ■ EXTERNAL PHOTO FCC ID: ACJ9TGWW18A HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 4 ■ EXTERNAL PHOTO FCC ID: ACJ9TGWW18A HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 4 ■ EXTERNAL PHOTO

WWAN FCC ID :ACJ9TGWW18A IC:216H-CFWW18A Label 1/1 Label 1. Label for WWAN Module 2. Label position Visible outline for Module Model: WW18A FCC ID: ACJ9TGWW18A IC: 216H-CFWW18A

FCC ID: ACJ9TGWW18A HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 3 INTERNAL PHOTOGRAPHS FCC ID: ACJ9TGWW18A HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 3 ■ INTERNAL PHOTO FCC ID: ACJ9TGWW18A HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 3 ■ INTERNAL PHOTO

F-TP22-03 (Rev.00) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL: +82-31-645-6300 FAX: +82-31-645-6401 SAR TEST REPORT Applicant Name: Panasonic Corporation of North America Two Riverfront Plaza, 9th Floor, Newark, NJ 07102- 5490, USA Date of Issue: Dec. 07, 2020 Test Report No.: HCT-SR-2012-FC001 Test Site: HCT CO., LTD. FCC ID: Equipment Type: Multi-Band Radio Module Application Type: Class II Permissive change FCC Rule Part(s): 47CFR §2.1093 Model Name: WW18A (Tested inside of Panasonic PC CF-33) Date of Test: 11/13/2020 This device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in FCC KDB procedures and had been tested in accordance with the measurement procedures specified in FCC KDB procedures. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By Jee-ill Lee Test Engineer SAR Team Certification Division Reviewed By Yun-jeang, Heo Technical Manager SAR Team Certification Division This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. ACJ9TGWW18A FCC ID: ACJ9TGWW18A Report No: HCT-SR-2012-FC001 F-TP22-03 (Rev.00) 2 / 78 HCT CO.,LTD. DOCUMENT HISTORY Rev. DATE DESCRIPTION HCT-SR-2012-FC001 Dec.07, 2020 First Approval Report FCC ID: ACJ9TGWW18A Report No: HCT-SR-2012-FC001 F-TP22-03 (Rev.00) 3 / 78 HCT CO.,LTD. Table of Contents 1. ATTESTATION OF TEST RESULT OF DEVICE UNDER TEST .................................................................. 4 2. DEVICE UNDER TEST DESCRIPTION........................................................................................................ 5 3. INTRODUCTION ......................................................................................................................................... 11 4. DESCRIPTION OF TEST EQUIPMENT ..................................................................................................... 12 5. SAR MEASUREMENT PROCEDURE ........................................................................................................ 13 6. SAR Test Configurations ............................................................................................................................. 15 7. RF EXPOSURE LIMITS .............................................................................................................................. 19 8. FCC SAR GENERAL MEASUREMENT PROCEDURES ........................................................................... 20 9. OUTPUT POWER SPECIFICATIONS ........................................................................................................ 22 10. SYSTEM VERIFICATION .......................................................................................................................... 29 11. SAR TEST DATA SUMMARY ................................................................................................................... 30 12. SIMULTANEOUS SAR ANALYSIS ........................................................................................................... 32 13. SAR MEASUREMENT VARIABILITY AND UNCERTAINTY .................................................................... 33 14. MEASUREMENT UNCERTAINTY ............................................................................................................ 34 15. SAR TEST EQUIPMENT ........................................................................................................................... 35 16. CONCLUSION ........................................................................................................................................... 36 17. REFERENCES .......................................................................................................................................... 37 Attachment 1. – SAR Test Plots ...................................................................................................................... 39 Attachment 2. – Dipole Verification Plots ......................................................................................................... 41 Attachment 3. – SAR SYSTEM VALIDATION ................................................................................................. 43 Attachment 4. – The Verification of Power reduction ...................................................................................... 44 Attachment 5. – Probe Calibration Data .......................................................................................................... 47 Attachment 6. – Dipole Calibration Data .......................................................................................................... 70 Attachment 7. – DUT Antenna Information and SAR Test SETUP PHOTOGRAPHS FCC ID: ACJ9TGWW18A Report No: HCT-SR-2012-FC001 F-TP22-03 (Rev.00) 4 / 78 HCT CO.,LTD. 1. ATTESTATION OF TEST RESULT OF DEVICE UNDER TEST Test Laboratory Company Name: HCT Co., LTD Address: 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of Korea Telephone: +82 31 645 6300 Fax.: +82 31 645 6401 Attestation of SAR test result Applicant Name: Panasonic Corporation of North America FCC ID: ACJ9TGWW18A Model: WW18A (Tested inside of Panasonic PC CF-33) EUT Type: Multi-Band Radio Module Application Type: Class II Permissive change The Highest Reported SAR Band Tx. Frequency Equipment Class Reported SAR (MHz) 1g Body SAR (W/Kg) LTE TDD Band 48 3 552.5 ~ 3 697.5 PCB 0.94 Simultaneous SAR per KDB 690783 D01v01r03 1.352 Date(s) of Tests: 11/13/2020 * All Simultaneous transmission conditions with WLAN module is evaluated in SAR r…

Text truncated - open the document above for the full version.

TEST REPORT FCC LTE B48 Test for WW18A(Tested inside of Panasonic PC CF-33) Class II Permissive Change APPLICANT Panasonic Corporation of North America REPORT NO. HCT-RF-2012-FC004 DATE OF ISSUE December 4, 2020 Tested by Jae Ryang Do Technical Manager Jong Seok Lee HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 F-TP22-03 (Rev. 03) Page 2 of 147 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TEST REPORT FCC LTE Test for WW18A(Tested inside of Panasonic PC CF- 33) REPORT NO. HCT-RF-2012-FC004 DATE OF ISSUE December 04, 2020 Additional Model - A pplicantPanasonic Corporation of North America Two Riverfront Plaza, 9th Floor, Newark, NJ 07102-5490, USA Eut Type Model Name Multi-Band Radio Module WW18A(Tested inside of Panasonic PC CF-33) FCC ID:ACJ9TGWW18A FCC Rule Part(s):96, §2 The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2012-FC004 F-TP22-03 (Rev. 03) Page 3 of 147 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 December 04, 2020 Initial Release The measurements shown in this report were made in accordance with the procedures specified in CFR47 section §2.947. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) * The report shall not be reproduced except in full(only partly) without approval of the laboratory. Report No. HCT-RF-2012-FC004 F-TP22-03 (Rev. 03) Page 4 of 147 CONTENTS 1. GENERAL INFORMATION 5 1.1. MAXIMUM OUTPUT POWER 6 2. INTRODUCTION 7 2.1. DESCRIPTION OF EUT 7 2.2. MEASURING INSTRUMENT CALIBRATION 7 2.3. TEST FACILITY 7 3. DESCRIPTION OF TESTS 8 3.1 TEST PROCEDURE 8 3.2 RADIATED POWER 9 3.3 RADIATED SPURIOUS EMISSIONS 10 3.4 PEAK- TO- AVERAGE RATIO 11 3.5 OCCUPIED BANDWIDTH. 13 3.6 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL 14 3.7 CHANNEL EDGE 16 3.8 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE 17 3.9 End User Device Additional Requirement (CBSD Protocol) 18 3.10 WORST CASE(RADIATED TEST) 19 3.11 WORST CASE(CONDUCTED TEST) 20 4. LIST OF TEST EQUIPMENT 21 5. MEASUREMENT UNCERTAINTY 22 6. SUMMARY OF TEST RESULTS 23 7. SAMPLE CALCULATION 25 8. TEST DATA 27 8.1 EQUIVALENT ISOTROPIC RADIATED POWER 27 8.2 RADIATED SPURIOUS EMISSIONS 29 8.3 PEAK-TO-AVERAGE RATIO 33 8.4 OCCUPIED BANDWIDTH 34 8.5 CONDUCTED SPURIOUS EMISSIONS 35 8.6 CHANNEL EDGE 36 8.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE 38 8.8 End User Device Additional Requirements (CBSD Protocol) 50 9. TEST PLOTS 54 10 ANNEX A_ TEST SETUP PHOTO 147 Report No. HCT-RF-2012-FC004 F-TP22-03 (Rev. 03) Page 5 of 147 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: Panasonic Corporation of North America Address: Two Riverfront Plaza, 9th Floor, Newark, NJ 07102-5490, USA FCC ID: ACJ9TGWW18A Application Type: Class II Permissive Change FCC Rule Part(s): §96, §2 EUT Type: Multi-Band Radio Module Model(s): WW18A(Tested inside of Panasonic PC CF-33) Tx Frequency: 3552.5 ᄧ 3697.5 : 5 MHz 3555.0 ᄧ 3695.0 : 10 MHz 3557.5 ᄧ 3692.5 : 15 MHz 3560.0 ᄧ 3690.0 : 20 MHz Date(s) of Tests: October 28, 2020 ~ December 03, 2020 Report No. HCT-RF-2012-FC004 F-TP22-03 (Rev. 03) Page 6 of 147 1.1. MAXIMUM OUTPUT POWER Mode (MHz) Tx Frequency (MHz) Emission Designator Modulation EIRP Max. Power (W) Max. Power (dBm/10MHz) LTE ᄧ Band 48 (5) 3552.5 ᄧ 3697.5 4M51G7D QPSK 0.093 19.70 4M47W7D 16QAM 0.091 19.61 4M47W7D 64QAM 0.090 19.55 LTE ᄧ Band 48 (10) 3555.0 ᄧ 3695.0 8M93G7D QPSK 0.096 19.84 8M96W7D 16QAM 0.094 19.74 8M99W7D 64QAM 0.093 19.69 LTE ᄧ Band 48 (15) 3557.5 ᄧ 3692.5 13M4G7D QPSK 0.098 19.91 13M4W7D 16QAM 0.096 19.81 13M4W7D 64QAM 0.082 19.13 LTE ᄧ Band 48 (20) 3560.0 ᄧ 3690.0 17M9G7D QPSK 0.099 19.96 17M9W7D 16QAM 0.098 19.89 17M9W7D 64QAM 0.080 19.04 Report No. HCT-RF-2012-FC004 F-TP22-03 (Rev. 03) Page 7 of 147 2. INTRODUCTION 2.1. DESCRIPTION OF EUT The EUT was a Multi-Band Radio Module with LTE. 2.2. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. 2.3. TEST FACILITY The Fully-anechoic chamber and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of …

Text truncated - open the document above for the full version.
