ACJFZA3ATablet Computer

Operating Instructions Smart Handheld EB-3901 Operating Instructions - Read Me First................................2 Refer to the Reference Manual by downloading from the URL below English URL:- https://pc-dl.panasonic.co.jp/itn/manual/menu_en.html Instructions d’utilisation - Lisez-moi..................................17 Reportez-vous au Manuel de référence en le téléchargeant à partir de l’URL ci-dessous. Français Tablet Computer Model No.FZ-A3 series 2 Thank you for purchasing a Panasonic product. Before operating this product, please read these instructions and precautions, and save them for future use. Safety Precautions (English) To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions. Explanation of symbol word panels The following symbol word panels are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed. The following symbols are used to classify and describe the type of instructions to be observed. Explanation of symbol word panels Denotes potential hazards that will result in serious injury or death. Denotes potential hazards that could result in serious injury or death. Denotes potential hazards that could result in minor injury. This symbol is used to alert users to specific operating procedures that must not be performed. This symbol is used to alert users to specific operating procedures that must be followed in order to operate the product safely. This symbol is used to alert users to specific operating procedures for which special attention is required. DANGER WARNING CAUTION Battery The battery is for use solely with this product. Do not use it with any other products. Electrolyte leakage, overheating, smoke, rupture, or fire may result. Charge the battery using the specified method. Failure to do so may result in electrolyte leakage, overheating, smoke, rupture, or a fire. Do not throw the battery into a fire or expose it to excessive heat. Electrolyte leakage, overheating, smoke, rupture, or fire may result. Do not disassemble, modify, insert sharp foreign objects into the battery, or subject it to impact. Electrolyte leakage, overheating, smoke, rupture, or fire may result. Do not short the positive (+) and negative (–) contacts. Do not carry the battery around or store it together with necklaces, hairpins, etc. Electrolyte leakage, overheating, smoke, rupture, or fire may result. Keep the battery away from extreme heat, such as fire and direct sunlight. Failure to do so may result in electrolyte leakage, overheating, smoke, rupture, or a fire. Do not expose the battery to water or other liquids. Electrolyte leakage, overheating, smoke, rupture, or fire may result. DANGER 3Safety Precautions (English) This product and AC adaptor Do not throw the battery or subject it to strong impact such as dropping or applying high pressure. Electrolyte leakage, overheating, smoke, rupture, or fire may result. • Stop using the product if the battery is subjected to strong impact or if the battery is noticeably damaged or deformed. If the battery deteriorates, replace it with a new one. Failure to do so may result in electrolyte leakage, overheating, smoke, rupture, or a fire. Do not directly touch electrolyte that has leaked from the battery. Electrolyte may enter the eyes and cause blindness, or may come into contact with skin or clothing and cause rashes. • Flush with clean water without rubbing and seek medical advice. Do not place the battery in microwave ovens or pressurized containers. Sudden application of heat or pressure may damage the battery, resulting in electrolyte leakage, overheating, smoke, rupture, or a fire. If the battery smells or leaks electrolyte, keep the battery away from fire. Failure to do so may result in electrolyte leakage, overheating, smoke, rupture, or a fire. WARNING When using the product for extended periods, do not expose your skin to this product or AC adaptor for a prolonged period. Generated heat can cause low-temperature burns. Do not disassemble, repair, or modify the product. Doing so may cause a short circuit or overheating, which may result in a fire or electric shock. Do not insert foreign objects into the product. Doing so may cause a short circuit or overheating, which may result in a fire or electric shock. Do not allow conductive materials such as metal objects to touch the expansion bus connector. This may cause a short circuit and overheating, which may result in battery electrolyte leakage, overheating, smoke, rupture, or a fire. Do not expose the AC adaptor or AC cord to water or other liquids. Doing so may cause a short circuit, generation of heat, or overheating, which may result in a fire, electric shocks, or injury. • If the product gets wet, immediately unplug the AC plug, and then contact your technical support representative. Do not touch the product, AC adaptor, or AC cord during lightning storms if the product is connected to an AC adaptor. Electric shock may result. WARNING 4 Do not turn the volume up too loud when using headphones, etc. Listening at high volumes for extended periods may result in loss of hearing. Also, the surrounding sounds will become difficult to hear when the volume is too high, which can cause accidents. • Turn down the volume before connecting headphones, etc. to prevent sudden loud sounds. Keep small parts, including SD cards and SIM cards, out of the reach of infants and small children. Accidental swallowing of small objects can have physically harmful effects. In such a case, seek medical advice immediately. Do not operate the product while walking, driving, riding a bicycle, etc. Being distracted while engaging in these kinds of activities can cause accidents or falls. Use only specified batteries. Use of unspecified batteries may result in electrolyte leakage, overheating, smoke, rupture…

Text truncated - open the document above for the full version.

Operating Instructions - Reference Manual Tablet Computer Model No. FZ-A3 series Table of Contents Introduction ..............................................................................................4 About this manual .............................................................................................................4 Disclaimers ........................................................................................................................4 Handling cautions .............................................................................................................5 Trademarks ........................................................................................................................7 Getting started ..........................................................................................8 Confirming the included items ........................................................................................8 Description of parts ..........................................................................................................8 Opening and closing the DC input jack cover/USB port cover ..................................12 Installing and removing the battery ..............................................................................13 Installing an SD card .......................................................................................................15 Installing a SIM card (models supporting cellular transmission only) ......................16 Replacing the battery (Battery hot swap) .....................................................................16 Charging the battery .......................................................................................................17 Turning the unit on and off ............................................................................................18 Screen description .................................................................................19 Home screen ....................................................................................................................19 Navigation buttons ..........................................................................................................19 Status bar .........................................................................................................................19 Notifications panel ..........................................................................................................20 Icons .................................................................................................................................20 Customizing the home screen .......................................................................................21 Input ........................................................................................................23 Typing and voice input ...................................................................................................23 Using the keyboard .........................................................................................................23 Connectivity ............................................................................................24 Mobile network (models supporting cellular transmission only) ...............................24 Wi-Fi .................................................................................................................................25 Bluetooth .........................................................................................................................27 Airplane mode .................................................................................................................28 USB connection ..............................................................................................................28 SD memory card ..............................................................................................................28 Security ...................................................................................................29 Locking the screen .........................................................................................................29 Encrypting the SD card ..................................................................................................29 [DeviceManagement] app ...............................................................................................30 Settings ...................................................................................................31 [Settings] app ..................................................................................................................31 Power options menu .......................................................................................................32 [Dashboard] app ..............................................................................................................32 [UserButtonManager] app ..............................................................................................33 Customized silent mode .................................................................................................34 [Panasonic Enterprise Launcher] app ..........................................................................35 Touch operation settings ...............................................................................................35 Accessibility settings .....................................................................................................35 2Operating Instructions - Reference Manual Table of Contents Apps ........................................................................................................37 Starting apps ...................................................................................................................37 Preinstalled apps .............................................................................................…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Regulatory Manager Panasonic Corporation of North America Agent Authorization Letter December 26, 2019 TSBU-19-F003 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Model FZ-A3 with FCC ID to be, FCC ID: ACJFZA3A To whom it may concern: Please be notified that Ben Botros of Panasonic Corporation of North America (PNA), hereby authorize Jones Tsai of Sporton International Inc to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Sporton International Inc. on our behalf shall have the same effect as acts of our own. The undersigned hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Sporton as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Regulatory Manager Panasonic Corporation of North America k) document the actions taken. This authorization is for Single certification of Model FZ-A3 under FCC ID: ACJFZA3A and is valid for a one year period from the date of this letter. Thank you for your attention in this matter. Sincerely, Ben Botros Regulatory Manager Panasonic Corporation of North America Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Regulatory Manager Panasonic Corporation of North America Request for Permanent & Short-Term Confidentiality December 26, 2019 TSBU-19-F003 Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Model FZ-A3 with FCC ID to be, FCC ID: ACJFZA3A To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as permanent confidential document from public disclosure. (1) Theory of Operation (4) Tune up and Alignment Procedure (2) Parts List (5) Block Diagrams (3) Schematics Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In addition, please be advised that Panasonic Corporation of North America hereby requests the following filed sensitive information to be held under short-term confidential, pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s Rules and the provisions in FCC Public DA 04-1705. We request temporarily confidentiality of 180 days, starting from the original issued Certification grant date. (1) External and Internal Photographs (3) Operating Instructions (User’s Manual) (2) Test Setup Photographs We will immediately notify Sporton in the event the information regarding the product or the product is made available to the public. Sporton will them release the documents listed above for public disclosure, pursuant to FCC Public Notice DA 04-1705. . Sincerely, Ben Botros Regulatory Manager Panasonic Corporation of North America

Model without external antenna ports ... ． ,_t:.._ — f ご碩鼻 I ' ,, _; � • 鬱 ---- IIIIIIIIIIIIIIIIIIIIIIUI _,' ― 囀 今一 ｀ Model with external antenna ports

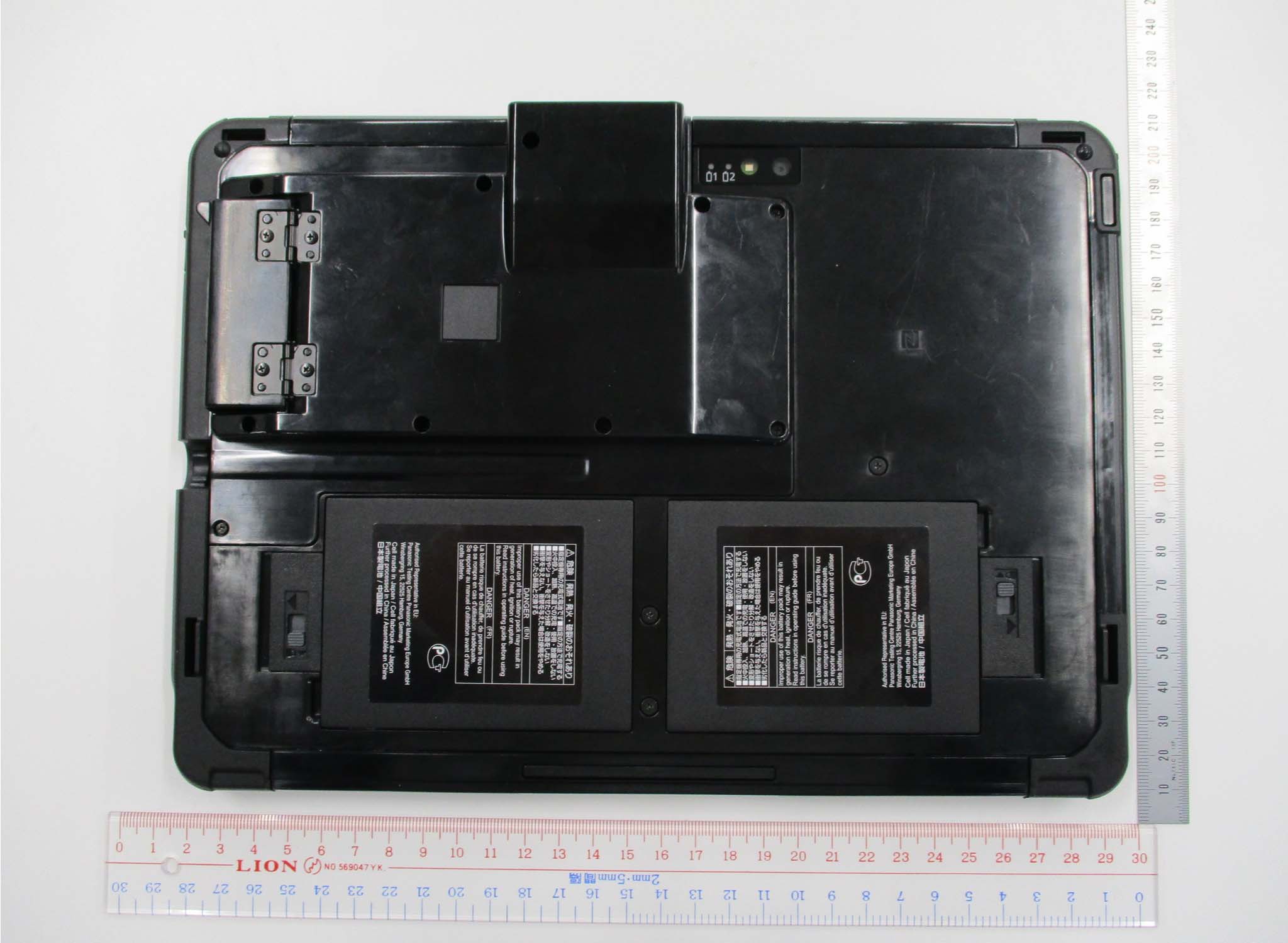

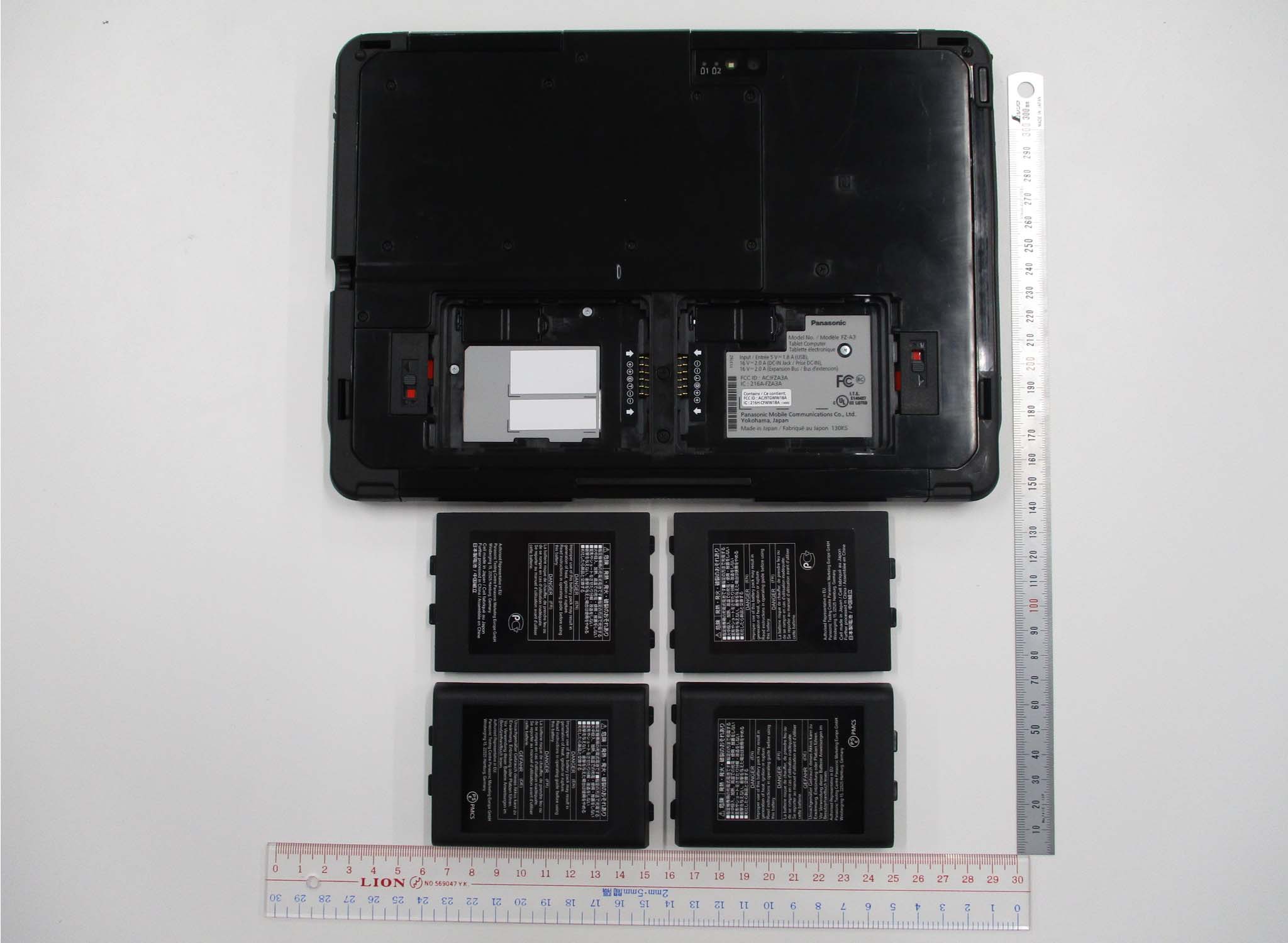

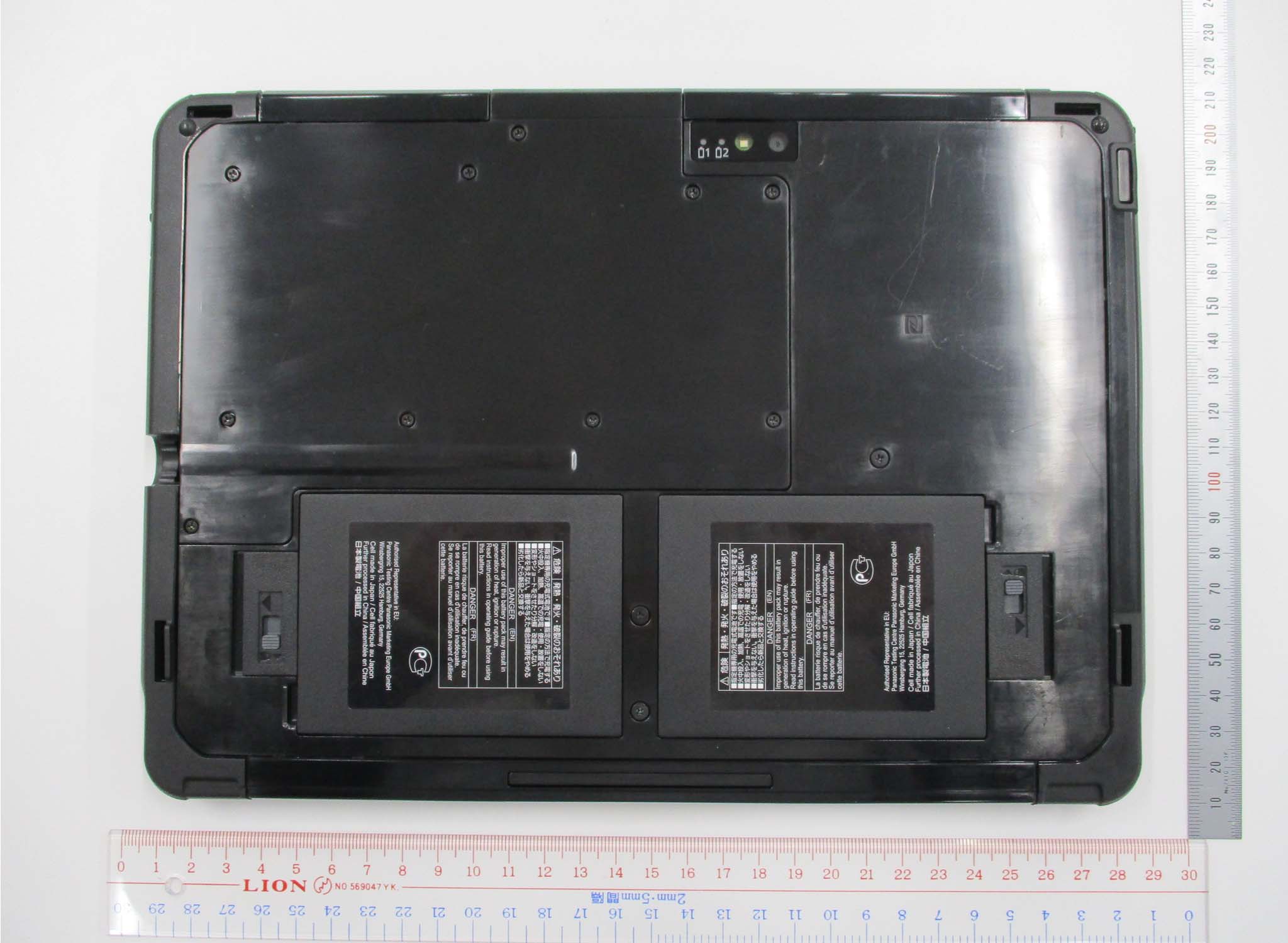

The label is located inside the battery lid (under the battery), and it is permanently attached by glue, so it is not easily removed from the device. Back of the device Label Area : This outline drawing shows the label in position within the battery compartment. The label is visible to the user at the point of sale prior to fitting battery pack Battery Area : Batteries are placed in rear side of the device.

NAME PLATE L NA DHGT1376ZA/J1

Model without external antenna ports Model without external antenna ports Model without external antenna ports

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/29 System Check_Head_2450MHz DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_191229 Medium parameters used : f = 2450 MHz; σ = 1.799 S/m; ε r = 39.449; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3642;ConvF(7.32, 7.32, 7.32) @ 2450 MHz;Calibrated: 2019/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2019/6/13 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 23.5 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 116.0 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 30.2 W/kg SAR(1 g) = 14 W/kg; SAR(10 g) = 6.41 W/kg Maximum value of SAR (measured) = 23.9 W/kg 0 dB = 23.9 W/kg = 13.78 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/24 System Check_Head_5250MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_191224 Medium parameters used : f = 5250 MHz; σ = 4.601 S/m; ε r = 36.855; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3642;ConvF(4.54, 4.54, 4.54) @ 5250 MHz;Calibrated: 2019/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2019/6/13 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 20.5 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 56.67 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 33.0 W/kg SAR(1 g) = 8.3 W/kg; SAR(10 g) = 2.29 W/kg Maximum value of SAR (measured) = 20.5 W/kg 0 dB = 20.5 W/kg = 13.12 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/27 System Check_Head_5250MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_191227 Medium parameters used : f = 5250 MHz; σ = 4.561 S/m; ε r = 35.345; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(5.34, 5.34, 5.34) @ 5250 MHz; Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn854; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1227 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.0 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 72.51 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 32.7 W/kg SAR(1 g) = 7.69 W/kg; SAR(10 g) = 2.22 W/kg Maximum value of SAR (measured) = 19.6 W/kg 0 dB = 19.0 W/kg = 12.79 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/29 System Check_Head_5250MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_191229 Medium parameters used : f = 5250 MHz; σ = 4.745 S/m; ε r = 37.006; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3642;ConvF(4.54, 4.54, 4.54) @ 5250 MHz;Calibrated: 2019/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2019/6/13 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 21.2 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 56.67 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 34.0 W/kg SAR(1 g) = 8.56 W/kg; SAR(10 g) = 2.36 W/kg Maximum value of SAR (measured) = 21.1 W/kg 0 dB = 21.1 W/kg = 13.24 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/24 System Check_Head_5600MHz DUT: D5GHzV2-1006 Communication System: CW ; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL_5G_191224 Medium parameters used: f = 5600 MHz; σ = 4.96 S/m; ε r = 36.54; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3642;ConvF(4.28, 4.28, 4.28) @ 5600 MHz;Calibrated: 2019/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn905; Calibrated: 2019/6/13 - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 21.7 W/kg Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 73.08 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 35.7 W/kg SAR(1 g) = 8.53 W/kg; SAR(10 g) = 2.33 W/kg Maximum value of SAR (measured) = 21.6 W/kg 0 dB = 21.6 W/kg = 13.34 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2019/12/27 System Check_Head_5600MHz DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL_5G_191227 Medium parameters used: f = 5600 MHz; σ = 4.872 S/m; ε r = 34.408; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7306; ConvF(4.79, 4.79, 4.79) @ 5600 MHz; Calibrated: 2019/7/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn85…
