ACJFZE1AMulti-Band CDMA/ GSM/ EDGE/ WCDMA/ LTE Portable Handset with WLAN, Bluetooth and RFID

Operating Instructions Smart Handheld EB-3901 Operating Instructions Tablet Computer Model No. FZ-E1 series Thank you for purchasing a Panasonic product. Please read this document carefully before using the product and keep this document in a safe place for future reference. For detailed information about this product, refer to the Reference Manual, which is available by flicking the Start screen to the left, then tapping [Online Manual] in the App list. (Download required.) 2 Table of Contents Introduction .............................................................. 3 Safety precautions ......................................................... 3 Regulatory information................................................. 12 Handling cautions ........................................................ 22 Trademark and license information ............................. 26 Terms and illustrations in this document ..................... 27 Disclaimers .................................................................. 28 Getting Started ....................................................... 29 Confirming the included items ..................................... 29 Description of parts...................................................... 30 Opening and closing the interface cover ..................... 34 Removing the battery cover......................................... 35 Attaching the battery cover .......................................... 36 Installing SIM cards (certain models only) ................... 38 Installing an SD card.................................................... 39 Installing the battery..................................................... 40 Charging the battery .................................................... 40 Turning the unit on and off........................................... 41 Screen display ............................................................. 42 Basic operations .......................................................... 44 Troubleshooting .................................................... 46 Appendix ................................................................ 51 Replacing the battery................................................... 51 Enabling the internal heater......................................... 51 Factory data reset........................................................ 52 Specifications............................................................... 52 Accessories ................................................................. 58 Limited warranty .......................................................... 59 3Introduction Introduction Safety precautions To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions. Explanation of symbol word panels The following symbol word panels are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed. The following symbols are used to classify and describe the type of instructions to be observed. Safety precautions Denotes potential hazards that will result in serious injury or death. Denotes potential hazards that could result in serious injury or death. Denotes potential hazards that could result in minor injury. Denotes potential hazards that could result in property damage. This symbol is used to alert users to specific operating procedures that must not be performed. This symbol is used to alert users to specific operating procedures that must be followed in order to operate the product safely. This symbol is used to alert users to specific operating procedures for which special attention is required. DANGER WARNING CAUTION NOTICE 4 When using the product for extended periods, do not expose your skin to the product or AC adaptor for a prolonged period. Generated heat can cause low-temperature burns. Do not disassemble, repair, or modify the product. These may cause electric shock or fire. Do not insert foreign objects into the product. This may cause the battery to short circuit or overheat, which may result in fire or electric shock. Do not allow conductive metallic materials to touch the expansion bus connector. This may cause a short circuit and overheating, which may result in rupture or fire. Use only specified batteries. Use of unspecified batteries may result in electrolyte leakage, overheating, rupture, or fire. Use only specified AC adaptors. Use of unspecified AC adaptors may result in overheating, fire, or rupture. Stop using the product if any of the following occurs. – Product emits smoke, unusual sound, or unusual smell – Water or foreign object enters the product – Product is damaged – Product becomes unusually hot Failure to do so may result in fire or electric shock. Turn the product off, disconnect it from the power supply, and then remove the battery. Contact your technical support representative for support or repair. WARNING 5Introduction Do not touch the product or cables during lightning storms if the product is connected to an AC adaptor. There is a remote chance of electric shock. Close the headset jack cover and interface cover when using the product near water or other liquids, and in areas with a high concentration of moisture, steam, dust, oily vapors, etc. Foreign material that enters the product may cause fire or electric shock. If foreign material enters the product, turn the product off, disconnect it from the power supply, and then remove the battery. Contact your technical support representative for support or repair. Keep SD cards out of the reach of infants and small children. Small objects are suffocation and choking hazards. In the event of accidental swallowing, seek medical help immediately. Keep SIM cards out of the reach of infants and small children. Small objects are suffocation and choking hazards. In the event of accidental swallowing, seek medical he…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark NJ 07102 Tel: 201-348-7760 [email protected] Ben Botros, Project Manager Product Safety and Compliance Division Agent Authorization Letter October 22, 2014 PSCD-14-F002A PCTEST Engineering Laboratory, Inc. 6660-B Dobbins Road Colombia, MD 21045 USA Re: Original Application for Panasonic System Approval Panasonic Toughpad Model FZ-E1 with FCC ID: ACJFZE1A To whom it may concern: The undersigned hereby authorizes PCTEST Engineering Laboratory, Inc to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out PCTEST Engineering Laboratory, Inc on our behalf shall have the same effect as acts of our own. The undersigned hereby certify that I am not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This authorization is valid for one year period from the date of this letter. This application for the subject equipment has not been submitted to another TCB for certification In authorizing PCTEST Engineering Laboratory Inc as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark NJ 07102 Tel: 201-348-7760 [email protected] Ben Botros, Project Manager Product Safety and Compliance Division October 22, 2014 PSCD-14-F002A i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. Sincerely yours, Ben Botros Ben Botros Project Manager Product Safety & Compliance Division We hereby declare that this device complies with the antenna requirement stated by FCC rule 15.203.
15.203: An intentional radiator antenna shall be designed to ensure that no antenna other than that furnished by the responsible party can be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section - The antennas of the FZ-E1 are permanently attached. - There are no provisions for connection to an external antenna. We hereby declare that bluetooth in the equipment FZ-E1 complies with the following FCC part 15 regulations.
15.247 (a) (1): - The hopping sequence is pseudo random. - All channels are used equally on average. - The receiver input bandwidth is equal to the transmit bandwidth. - The receiver hops in sequence with the transmitted signal.
15.247 (g): - As the transmitter is presented with a continuous data (or information). The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information).
15.247 (h): - The system does not coordinate its channel selection/hopping sequence with any other frequency hopping system for the express purpose of avoiding the simultaneous occupancy of individual hopping frequency by multiple transmitters.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark NJ 07102 Tel: 201-348-7760 [email protected] Ben Botros, Project Manager Product Safety and Compliance Division Request for Permanent & Short-Term Confidentiality October 22, 2014 PSCD-14-F002A Federal Communications Commission Authorization and Standards Division 7435 Oakland Mills Road Re: Original Application for Panasonic System Approval Panasonic Toughpad Model FZ-E1 with FCC ID: ACJFZE1A To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Theory of Operation (Operational Description) • Tune-up Procedure • Parts List (BOM) Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. In addition, please be advised that Panasonic Corporation of North America hereby requests the following filed sensitive information to be held under short-term confidential, pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s Rules and the provisions in FCC Public DA 04-1705. We request temporarily confidentiality of forty-five days, starting from the original issued Certification grant date. • Operating Instructions (Users Manual) • Test Setup Photographs • External & Internal Photographs Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark NJ 07102 Tel: 201-348-7760 [email protected] Ben Botros, Project Manager Product Safety and Compliance Division October 22, 2014 PSCD-14-F002A Panasonic also acknowledges that we will provide appropriate notice to PCTEST Engineering Laboratory Inc should either of the following occur: • If we require additional 45 day extension period, we will notify PCTEST Engineering Laboratory Inc with a new request letter at least seven days prior to the short-term confidentiality expiration date [Note: up to a maximum of 3 extensions only are allowed], or • We will immediately notify PCTEST Engineering Laboratory Inc in the event the information regarding the product or the product is made available to the public. PCTEST Engineering Laboratory Inc will then release the documents listed above for public disclosure, pursuant to FCC Public Notice DA 04-1705. Sincerely yours, Ben Botros Ben Botros Project Manager Product Safety & Compliance Division

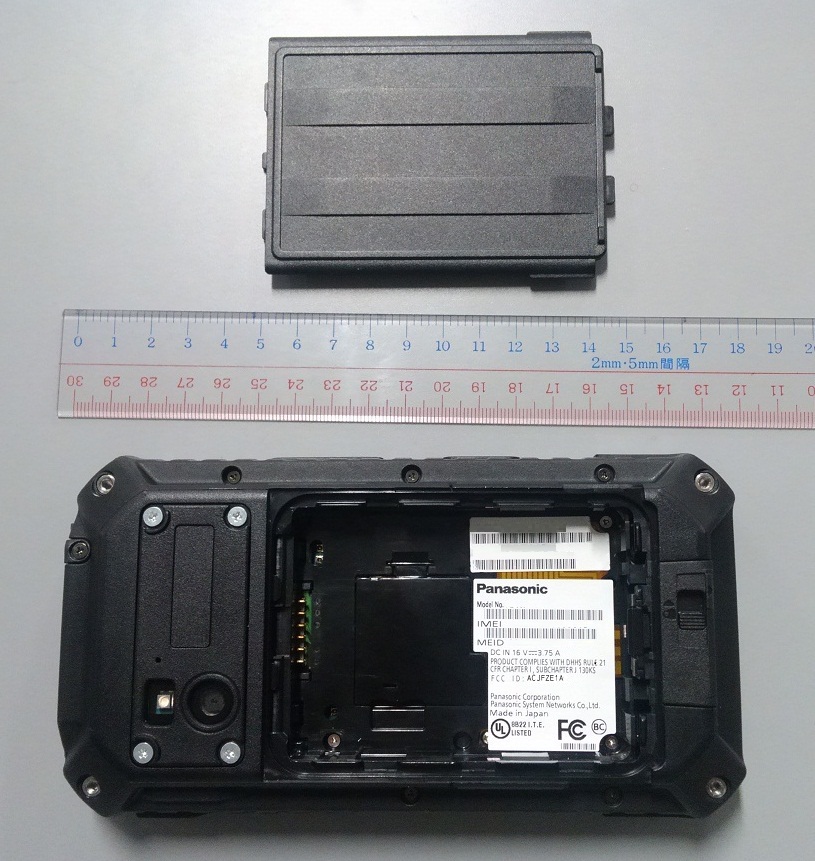

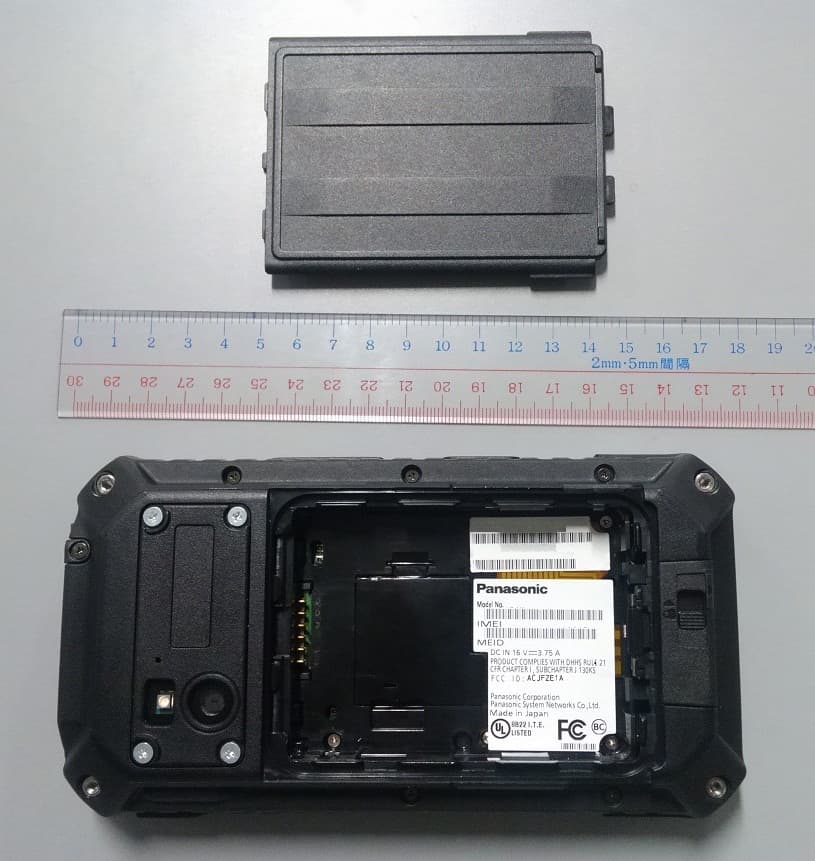

Panasonic System Networks Co., Ltd. FZ -E1 FCCID Label and Location ① F C C I D : A C J F Z E 1 A ( C e l l u l a r m o d e l ) Battery Area :Battery is placed in rear side of the phone.Label Area :This outline drawing shows the label in position within the battery compartment.The label is visible to the user at the point of sale prior to fitting the USIM, battery pack and cover. ⑥ ①Model No②Bar code of Model No③Version No④Production Serial No⑤ Bar code of Serial No ⑦ ⑥Bar code of IMEI⑦IMEI⑧Bar code of MEID⑨MEID ⑧ ⑨ ACJEB3910A ①⑥ ⑧⑦⑨ ②③④⑤ ① ⑥⑦⑧ ⑨ The label is located inside the battery lid (under the battery), and it is permanently attached by glue, so it is not e asily removed from the device.

FCC ID:ACJFZE1A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 79 0Y1409171930.ACJ 06/12/14 - 06/17/14 & 09/17/14 - 10/01/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 Applicant Name: Date of Testing: Panasonic Corporation of North America Two Riverfront Plaza, 9th Floor 06/12/14 - 06/17/14 & 09/17/14 - 10/01/14 Newark, NJ 07102 Test Site/Location: United States PCTEST Lab, Columbia, MD, USA Document Serial No.: 0Y1409171930.ACJ FCC ID: ACJFZE1A APPLICANT: PANASONIC CORPORATION OF NORTH AMERICA DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): FZ-E1 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) 10 gm Extremity (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.550.300.380.28 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz0.260.150.370.19 PCEUMTS 850826.40 - 846.60 MHz0.420.280.360.26 PCEUMTS 19001852.4 - 1907.6 MHz0.410.290.730.38 PCECell. CDMA/EVDO824.70 - 848.31 MHz0.190.550.550.62 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz0.230.900.961.06 PCELTE Band 17706.5 - 713.5 MHz0.280.190.290.15 PCELTE Band 13782 MHz0.380.250.340.39 PCELTE Band 4 (AWS)1712.5 - 1752.5 MHz0.280.220.700.21 DTS2.4 GHz WLAN2412 - 2462 MHz< 0.10.200.200.17 DTSBluetooth LE2402 - 2480 MHz NII5.2 GHz W LAN5180 - 5240 MHz< 0.10.41 -1.00 0.37 NII5.3 GHz WLAN5260 - 5320 MHz0.110.35 -1.00 0.47 NII5.5 GHz W LAN5500 - 5700 MHz< 0.10.52 -1.00 0.39 NII5.8 GHz W LAN5745 - 5825 MHz< 0.10.53-1.000.42 DSSBluetooth2402 - 2480 MHzN/A<0.1N/AN/A 0.651.361.351.63 Band & ModeTx Frequency Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: SAR N/A This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.9 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:ACJFZE1A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 79 0Y1409171930.ACJ 06/12/14 - 06/17/14 & 09/17/14 - 10/01/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ...................................................................................................................... 12 3 INTRODUCTION ........................................................................................................................... 13 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 14 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 15 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 16 7 RF EXPOSURE LIMITS ................................................................................................................ 19 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 20 9 RF CONDUCTED POWERS ......................................................................................................... 26 10 SYSTEM VERIFICATION .............................................................................................................. 39 11 SAR DATA SUMMARY ................................................................................................................. 43 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 57 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 72 14 EQUIPMENT LIST ......................................................................................................................... 73 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 75 16 CONCLUSION ............................................................................................................................... 77 17 REFERENCES .............................................................................................................................. 78 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID:ACJFZE1A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 79 0Y1409171930.ACJ 06/12/14 - 06/17/14 & 09/17/14 - 10/01/14 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMT…

Text truncated - open the document above for the full version.

FCC ID: ACJFZE1A FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 51 0Y1409171933.ACJ 06/04-07/8/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.0 07/01/2014 Applicant Name: Date of Testing: Panasonic Corporation of North America 06/04-07/8/2014 Two Riverfront Plaza, 9th Floor Test Site/Location: Newark, NJ 07102 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1409171933.ACJ FCC ID: ACJFZE1A APPLICANT: Panasonic Corporation of North America Application Type: Certification Model(s): FZ-E1 EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r02 802.11b2412 - 246226.85314.2948.97816.90 802.11g2412 - 246215.63111.9476.56018.84 802.11n2412 - 246212.50310.9761.09417.86 Max. Power (mW) Max. Power (dBm) Avg ConductedPeak Conducted Mode Tx Frequency (MHz) Max. Power (mW) Max. Power (dBm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.247 WLAN 802.11b/g/n FCC ID: ACJFZE1A FCC Pt. 15.247 802.11b/g/n MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 51 0Y1409171933.ACJ 06/04-07/8/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.0 07/01/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS ........................................................................................................................ 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N .................................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N (2.4GHZ) ................................................................... 18 6.4 POWER SPECTRAL DENSITY (802.11B/G/N) ........................................................................................... 20 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE ...................................................................................... 27 6.6 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 31 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 36 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ...................................................................... 41 RADIATED RESTRICTED BAND EDGE MEASUREMENTS ................................................................................ 43 6.9 LINE-CONDUCTED TEST DATA ................................................................................................................. 49 7.0 CONCLUSION ....................…

Text truncated - open the document above for the full version.

FCC ID: ACJFZE1A FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 36 0Y1409171936.ACJ 06/04-07/8/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.0 07/01/2014 Applicant Name: Date of Testing: Panasonic Corporation of North America 06/04-07/8/2014 Two Riverfront Plaza, 9th Floor Test Site/Location: Newark, NJ 07102 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1409171936.ACJ FCC ID: ACJFZE1A APPLICANT: Panasonic Corporation of North America Application Type: Certification Model: FZ-E1 EUT Type: Portable Handset Max. RF Output Power: 1.972 mW (2.95 dBm) Peak Conducted Frequency Range: 2402 - 2480 MHz FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Procedure(s): KDB 558074 v03r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 v03r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth (Low Energy) FCC ID: ACJFZE1A FCC Pt. 15.247 BLUETOOTH (LE) TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 36 0Y1409171936.ACJ 06/04-07/8/2014 Portable Handset © 2014 PCTEST Engineering Laboratory, Inc. V 2.0 07/01/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 2.5 LABELING REQUIREMENTS .........…

Text truncated - open the document above for the full version.
