ACJJT-H300PR1Printer

Operating Instructions PRINTER Model No. JT-H300PR-U1 Contents Precautions................................................ 3 Name of each part & function .................... 6 Battery Installation ..................................... 7 Paper Installation ....................................... 7 AC cable Set Up ........................................ 8 Charging Battery........................................ 9 Troubleshooting ....................................... 10 How to care ............................................. 11 How to attach the Option parts ................ 11 Specifications........................................... 12 Warranty Policy........................................ 13 Compliance Notice .................................. 13 Before operating this product, please read these instructions carefully and save this document for future use. Read Me First .............................................. 2 1. Getting Started........................................ 3 2. Operation................................................. 7 3. Appendix................................................ 10 2 Read Me First Introduction Thank you for purchasing the JT-H300PR series Panasonic Printer. This manual describes the instructions for the printer. Please read this manual carefully before using this product. What’s in the Box? Printer (Battery is not included.) Safety Precautions Options 1. AC Adaptor : JT-H300AD-P1 2. Belt Hook : JT-H300BH-P1 3. Wearable Case : JT-H300CA-P1 4. USB Cable : JT-H300CC-P1 Other Equipment 1. Thermal Paper (Please ask our sales rep about the recommended Paper.) 3 1. Getting Started Precautions [Printer: JT-H300PR-U1 ] 1. Avoid Radio Frequency Interference Do not place the printer near a television or radio receiver. 2. Avoid Stacking Do not place heavy objects on the printer. 3. Keep Small Objects Away Do not insert paper clips or other small objects into the printer. Failure to observe this may cause fire or electric shock. 4. Keep Dry Failure to observe this may cause fire or electric shock. 5. Do Not Disassemble the Printer Do not attempt to disassemble the printer. Failure to observe this may cause fire or electric shock. 6. Do Not Touch Keep your hands away from the paper cutter and the thermal head. Failure to observe this may cause injury. 7. Do Not Use With Any Other Battery The printer is designed for the specified JT-H100DP-50 battery. Using unspecified battery may cause smoke or fire. CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions and/or local requirements. 8. Use only the specified AC adaptor and AC cord Using unspecified AC adaptor or AC cord may cause smoke or fire. 9. Do Not Use In Aircrafts or Hospitals This printer includes “Bluetooth” wireless communication. Turn off the power switch in aircrafts or hospitals. Abnormal use may occur if used in close proximity to electric instruments or electro-medical apparatus. 10. Do Not hold this product for too long when the power on Failure to observe this may cause a serious low-temperature burn. <NOTE> Do not open the cover while the printer is operating. Keep the thermal paper away from the direct exposure to light, high temperature, dust and humidity. 4 Precautions [Battery Pack: JT-H100DP-50] 〔For Sales rep or service bench〕 1. Avoid Heat Do not throw the battery pack into a fire or expose it to excessive heat. Failure to observe this may cause fire or explosion. 2. Keep Articles Away Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing. Failure to observe this may cause heat, fire or explosion. 3. Keep Dry Failure to observe this may cause heat, fire or explosion. 4. Do Not Disassemble Do not insert sharp object into the battery pack. Do not deform, disassemble, or modify the printer. Failure to observe this may cause heat, fire or explosion. 5. Do Not Short Do not short the positive (+) and negative (-) contact. Failure to observe this may cause heat, fire or explosion. 6. Avoid Extreme Heat, Cold, and Direct Sunlight Do not charges, use or leave the battery pack for extended periods where it will be exposed to direct sunlight or in a hot, or cold environment. 7. Do Not Put Into a Microwave Oven Do not put the battery pack into a microwave oven or pressurized chamber. Failure to observe this may cause explosion. 8. Do Not Use With Any Other Device The battery pack is designed for the specified JT-H300PR-E1 printer and JT-H100CG-55 charger. Do not use the battery with any other device. CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions and/or local requirements. 9. Stop Using Should the battery emit an abnormal odor, become hot to the touch, become discolored, change shape, or become in any way different, remove it from the printer and stop using it. <NOTE> Please charge the battery pack for at least 100minutes before first use. Please ask our sales rep about the dispose method of the battery. If the battery pack is not going to be used for a long period, please charge or discharge it until the remaining battery capacity becomes 30% to 40% and store it in a cool, dry place. 5 Precautions [AC Adaptor: JT-H300AD-P1] 1. Do Not Disassemble Do not attempt to disassemble the charger. Failure to observe this may cause electric shock or fire. 2. Keep Dry Failure to observe this may cause heat or fire. 3. Do Not Use With Any Other Device The AC Adaptor is designed for the specified JT-H300PR printer. Do not use the AC adaptor with any other device. 4. Do Not Exceed the Ratings of AC Outlet and Wirings, and Connect the AC Adaptor Only within 100-240 V AC. Exceeding the ratings may result in overheating or fire. 5. Do Not Touch the Plug with Wet Hands Failure to observe this may cause electric shock. 6. Be Certain to Plug Fully Into the Outlet Failure to observe this may cause electric shock or…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 Email: [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Letter of Agency July 7, 2010 MSD-10-F001 Compliance Certification Services 47173 Benicia Street Fremont, CA. 94538 To Whom It May Concern: Panasonic Corporation of North America hereby authorizes Naoki Sakamoto of Application Section, EMC Services Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan or Compliance Certification Services, on our behalf, shall have the same effect as acts of our own. This authorization is valid for a period of one year from the date of this letter. Product Name: Panasonic Mobile Printer, Models JT-H300PR-U1 and JT-H300PR-E1 1 FCC ID: ACJJT-H300PR1 FCC Rule Part / Classification: FCC Part 15 B / Class B Computing Device Peripheral FCC Part 15C / Bluetooth Transmitter Applicant & Grantee: Panasonic Corporation of North America (PNA) One Panasonic Way, Secaucus, NJ 07094 USA FRN Number: 0003762242 Responsible Manufacturer: Panasonic System Networks Co., Ltd. (PSN) Mobility Systems Business Unit (MSD) Terminal Systems Group (TSG) 4-3-1 Tsunashima-Higashi, Kohoku-Ku Yokohama City, 223-8639 Japan Contact Person: Hiroaki Aoki E-mail: [email protected] We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This application for dual equipment authorization has not been submitted to any other TCB for certification. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety and Compliance Division 1 Mobile Printer Model JT-H300PR-U1 is provided with infrared and USB interfaces and has built-in battery and Bluetooth transmitter. Mobile Printer Model JT-H300PR-E1 is identical, except it will use detachable battery. Both of the subject models will certified under the same FCC ID with supportive FCC Parts 15B and 15C test reports.

Declaration of product details Model: JT-H300PR-U1/JT-H300PR-E1 The difference between JT-H300PR-U1 and JT-H300PR-E1 is following. JT-H300PR-E1 : Batteries are removable JT-H300PR-U1 : Batteries are installed There is no difference in electric or transmitter certification spec.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 Email: [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality July 7, 2010 MSD-10-F001 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Product Name: Panasonic Mobile Printer, Models JT-H300PR-U1 and JT-H300PR-E1 FCC ID: ACJJT-H300PR1 FCC Rule Part / Classification: FCC Part 15 B / Class B Computing Device Peripheral FCC Part 15C / Bluetooth Transmitter In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagram • Block Diagram • Parts List • Theory of Operation In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre- market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs and Test Setup Configuration • User Manual. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety and Compliance Division

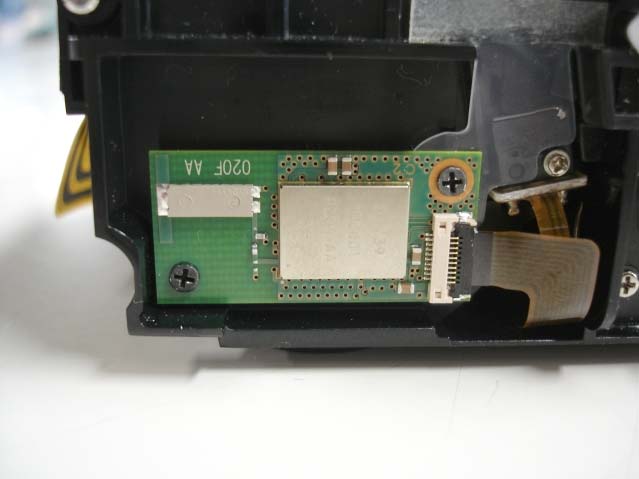

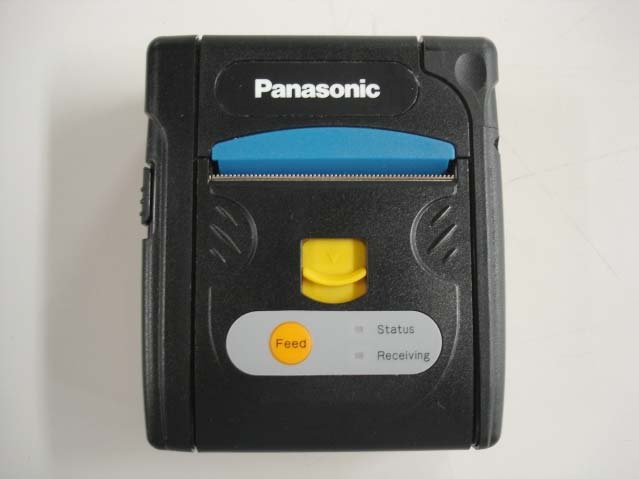

Photo Panasonic Corporation of North America [Model: JT-H300PR-U1/JT-H300PR-E1] [FCC ID: ACJJT-H300PR1] Front Rear Photo Panasonic Corporation of North America [Model: JT-H300PR-U1/JT-H300PR-E1] [FCC ID: ACJJT-H300PR1] Top Bottom Photo Panasonic Corporation of North America [Model: JT-H300PR-U1/JT-H300PR-E1] [FCC ID: ACJJT-H300PR1] Right Left Photo Panasonic Corporation of North America [Model: JT-H300PR-U1/JT-H300PR-E1] [FCC ID: ACJJT-H300PR1] Location Location

Panasonic System Networks Co.,Ltd. Model No. / No. de ModèleInput / Entrée 9.5 V 1.0 A Ser.No. / No. de Série Printer / Imprimente Made in Japan / Fabriqué au Japon ００００００００１ TM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface,and (2) this device must accept any interference received,including interface that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003./ Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Status Receiving Feed

Panasonic System Networks Co.,Ltd. Model No. / No. de ModèleInput / Entrée 9.5 V 1.0 A Ser.No. / No. de Série Printer / Imprimente Made in Japan / Fabriqué au Japon ００００００００１ TM Panasonic System Networks Co.,Ltd. Model No. / No. de Modèle Input / Entrée 9.5 V 1.0 A Ser.No. / No. de Série Printer / Imprimente Made in Japan / Fabriqué au Japon ００００００００１ TM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface,and (2) this device must accept any interference received,including interface that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003./ Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface,and (2) this device must accept any interference received,including interface that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003./ Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Status Receiving Feed

2th, July 2010 MBH7BTZ40 Appearance DiagramFujitsu Component Limited

Test report No. : 30KE0073-HO-A-R2 Page : 2 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted Emission ....................................................................................... 11 SECTION 6: Radiated Emission .......................................................................................... 12 APPENDIX 1: Photographs of test setup............................................................................. 13 Conducted Emission .................................................................................................................... 13 Radiated Emission ....................................................................................................................... 14 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ..................................................... 18 APPENDIX 2: Data of EMI test ........................................................................................... 19 Conducted Emission .................................................................................................................... 19 Radiated Emission ....................................................................................................................... 20 APPENDIX 3: Test instruments ........................................................................................... 24 Test report No. : 30KE0073-HO-A-R2 Page : 3 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Panasonic System Networks Co., Ltd. Address : 4-3-1 Tsunashima-higashi, Kohoku-ku, Yokohama-shi, Kanagawa, 223-8639 Japan Telephone Number : +81-45-544-3467 Facsimile Number : +81-45-544-3486 Contact Person : Tatsuki Kawanishi * Panasonic System Networks Co., Ltd. is on behalf of the applicant : Panasonic Corporation of North America. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Printer Model No. : JT-H300PR-E1 Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : June 10, 2010 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: JT-H300PR-E1, (referred to as the EUT in this report), is the Printer. Printer that can print thermal recording paper by two inches in width of paper and can be carried. Printed data are sent by Bluetooth, USB, and IrDA I/F from PC or Handheld PC etc. It has Charge circuit of built-in battery. General Specification Clock frequency(ies) in the system : CPU:66.4MHz, USB Controller : 48MHz, Bluetooth Controller : 16MHz, Bluetooth Communication Clock : 26MHz (Bluetooth) Power Supply : Battery: DC7.2V 1150mAh AC Adaptor: DC9.5V (AC120V/60Hz) Radio Type : Transceiver (Bluetooth Ver.2.1 + EDR Compliance (Class 2)) Frequency of Operation : 2402-2480MHz Bandwidth & Channel spacing : 1MHz & 1MHz/CH Modulation : FHSS Power Supply (radio part input) : DC 3.1 to 3.3V Antenna type : Chip Antenna Antenna Gain : 2.1 dBi (max) Series model JT-H300PRXXX (X: maybe any alphanumeric character, dash or blank) Model Differences Suffix "X" in model name JT-H300PRXXX is replaced with any alphanumeric character, dash or blank to denote the difference in case color, logo design, appearance of operation panel, label design, and USB input connector. JT-H300PR-E1 has series model as Model No. JT-H300PR-U1. The difference : JT-H300PR-E1 (Battery is removable) and "JT-H300PR-U1 (Battery is installed) Test report No. : 30KE0073-HO-A-R2 Page : 4 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B N/A [QP] 17.2dB 0.19892MHz, L [AV] 23.7dB 0.19892MHz, L Complied Radiated emission *1) FCC: ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 6.9dB 324.899MHz Horizontal Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. *1) Measurements were limited up to 1GHz since the highest frequency of internal source of the EUT is less than 108MHz. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. Test report No. : 30KE0073-HO-A-R2 Page : 5 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k…

Text truncated - open the document above for the full version.

Test report No. : 30KE0073-HO-A-R2 Page : 19 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2010/07/05 Company : Panasonic System Networks Co.,Ltd Report No. : 30KE0073-HO Kind of EUT : Printer Power : AC 120V / 60Hz Model No. : JT-H300PR-XX Temp./Humi. : 22deg.C / 67% Serial No. : 2 Engineer : Keisuke Kawamura Mode / Remarks : Battery Charge mode LIMIT : FCC15.107(a) QP FCC15.107(a) AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500123.00.713.336.314.066.056.029.742.0N 0.2001531.814.813.345.128.163.653.618.525.5N 0.2684524.49.713.337.723.061.251.223.528.2N 0.3354718.45.113.331.718.459.349.327.630.9N 0.3994011.0-1.313.324.312.057.947.933.635.9N 0.5375511.23.313.324.516.656.046.031.529.4N 0.1500123.51.113.336.814.466.056.029.241.6L 0.1989233.216.713.346.530.063.753.717.223.7L 0.2668425.610.713.338.924.061.251.222.327.2L 0.3378419.35.413.332.618.759.349.326.730.6L 0.4011111.4-1.113.324.712.257.847.833.135.6L 0.537559.72.113.323.015.456.046.033.030.6L Test report No. : 30KE0073-HO-A-R2 Page : 20 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/06/11 Company : Panasonic System Networks Co.,LtdReport No.:30KE0073-HO Kind of EUT: Printer Power:AC 120V/60Hz Model No.: JT-H300PR-XX Temp./Humi.:23deg.C / 51% Serial No.: 2 Engineer:Katsunori Okai Mode / Remarks : Bluetooth I/F continuous Printing mode, Worst-axis Hor:X, Ver:X LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 30 1000 50 70 100200300500700 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading _ DET _ Antenna _ Loss& _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ Frequency _ Reading _ DET _ Factor _ Gain _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ [ MHz ] _ [ dBuV ] _ DET _ [ dB / m] _ [dB] _ [dBuV/m] _ [Deg] _ [cm] _ Polar. _ [dBuV/m] _ [dB] _ Comment _ 141.309 _ 28 . 6 _ QP _ 14.6 _ -23.5 _ 19.7 _ 149 _ 100 _ Vert. _ 43.5 _ 23.8 _ 141.442 _ 24 . 1 _ QP _ 14.6 _ -23.5 _ 15.2 _ 228 _ 300 _ Hori. _ 43.5 _ 28.3 _ 240.042 _ 27 . 9 _ QP _ 17.3 _ -22.7 _ 22.5 _ 275 _ 300 _ Hori. _ 46.0 _ 23.5 _ 240.043 _ 27 . 7 _ QP _ 17.3 _ -22.7 _ 22.3 _ 352 _ 100 _ Vert. _ 46.0 _ 23.7 _ 303.474 _ 43 . 9 _ QP _ 14.4 _ -22.2 _ 36.1 _ 209 _ 166 _ Vert. _ 46.0 _ 9.9 _ 303.478 _ 42 . 9 _ QP _ 14.4 _ -22.2 _ 35.1 _ 246 _ 100 _ Hori. _ 46.0 _ 10.9 _ 323.041 _ 45 . 7 _ QP _ 15.1 _ -22.1 _ 38.7 _ 310 _ 165 _ Vert. _ 46.0 _ 7.3 _ 324.478 _ 44 . 8 _ QP _ 15.1 _ -22.1 _ 37.8 _ 265 _ 100 _ Hori. _ 46.0 _ 8.2 _ 354.049 _ 40 . 4 _ QP _ 16.1 _ -21.9 _ 34.6 _ 272 _ 100 _ Hori. _ 46.0 _ 11.4 _ 354.054 _ 41 . 9 _ QP _ 16.1 _ -21.9 _ 36.1 _ 186 _ 125 _ Vert. _ 46.0 _ 9.9 _ 396.730 _ 35 . 9 _ QP _ 17.3 _ -21.6 _ 31.6 _ 0 _ 170 _ Vert. _ 46.0 _ 14.4 _ 396.730 _ 36 . 9 _ QP _ 17.3 _ -21.6 _ 32.6 _ 123 _ 100 _ Hori. _ 46.0 _ 13.4 _ 505.789 _ 35 . 9 _ QP _ 18.2 _ -21.0 _ 33.1 _ 175 _ 100 _ Vert. _ 46.0 _ 12.9 _ 505.789 _ 30 . 1 _ QP _ 18.2 _ -21.0 _ 27.3 _ 99 _ 100 _ Hori. _ 46.0 _ 18.7 _ 712.847 _ 27 . 8 _ QP _ 20.6 _ -20.2 _ 28.2 _ 253 _ 100 _ Hori. _ 46.0 _ 17.8 _ 712.847 _ 31 . 8 _ QP _ 20.6 _ -20.2 _ 32.2 _ 71 _ 100 _ Vert. _ 46.0 _ 13.8 Test report No. : 30KE0073-HO-A-R2 Page : 21 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/06/11 Company : Panasonic System Networks Co.,LtdReport No.:30KE0073-HO Kind of EUT: Printer Power:AC 120V/60Hz Model No.: JT-H300PR-XX Temp./Humi.:23deg.C / 51% Serial No.: 2 Engineer:Katsunori Okai Mode / Remarks : IrDA I/F continuous Printing mode, Worst-axis Hor:X, Ver:X LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[MHz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 30 1000 50 70 100200300500700 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading _ DET _ Antenna _ Loss& _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ Frequency _ Reading _ DET _ Factor _ Gain _ Level _ Angle _ Height _ Polar. _ Limit _ Margin _ Comment _ [ MHz ] _ [ dBuV ] _ DET _ [ dB / m] _ [dB] _ [dBuV/m] _ [Deg] _ [cm] _ Polar. _ [dBuV/m] _ [dB] _ Comment _ 144.022 _ 30 . 5 _ QP _ 14.7 _ -23.5 _ 21.7 _ 170 _ 100 _ Vert. _ 43.5 _ 21.8 _ 144.025 _ 26 . 1 _ QP _ 14.7 _ -23.5 _ 17.…

Text truncated - open the document above for the full version.

Test report No. : 30KE0073-HO-A-R2 Page : 13 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 30KE0073-HO-A-R2 Page : 14 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Bluetooth I/F continuous Printing mode Photo 1 Photo 2 Test report No. : 30KE0073-HO-A-R2 Page : 15 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission IrDA I/F continuous Printing mode Photo 1 Photo 2 Test report No. : 30KE0073-HO-A-R2 Page : 16 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission USB I/F continuous Printing mode Photo 1 Photo 2 Test report No. : 30KE0073-HO-A-R2 Page : 17 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Battery Charge mode Photo 1 Photo 2 Test report No. : 30KE0073-HO-A-R2 Page : 18 of 24 Issued date : July 7, 2010 Revised date : July 15, 2010 FCC ID : ACJJT-H300PR1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
